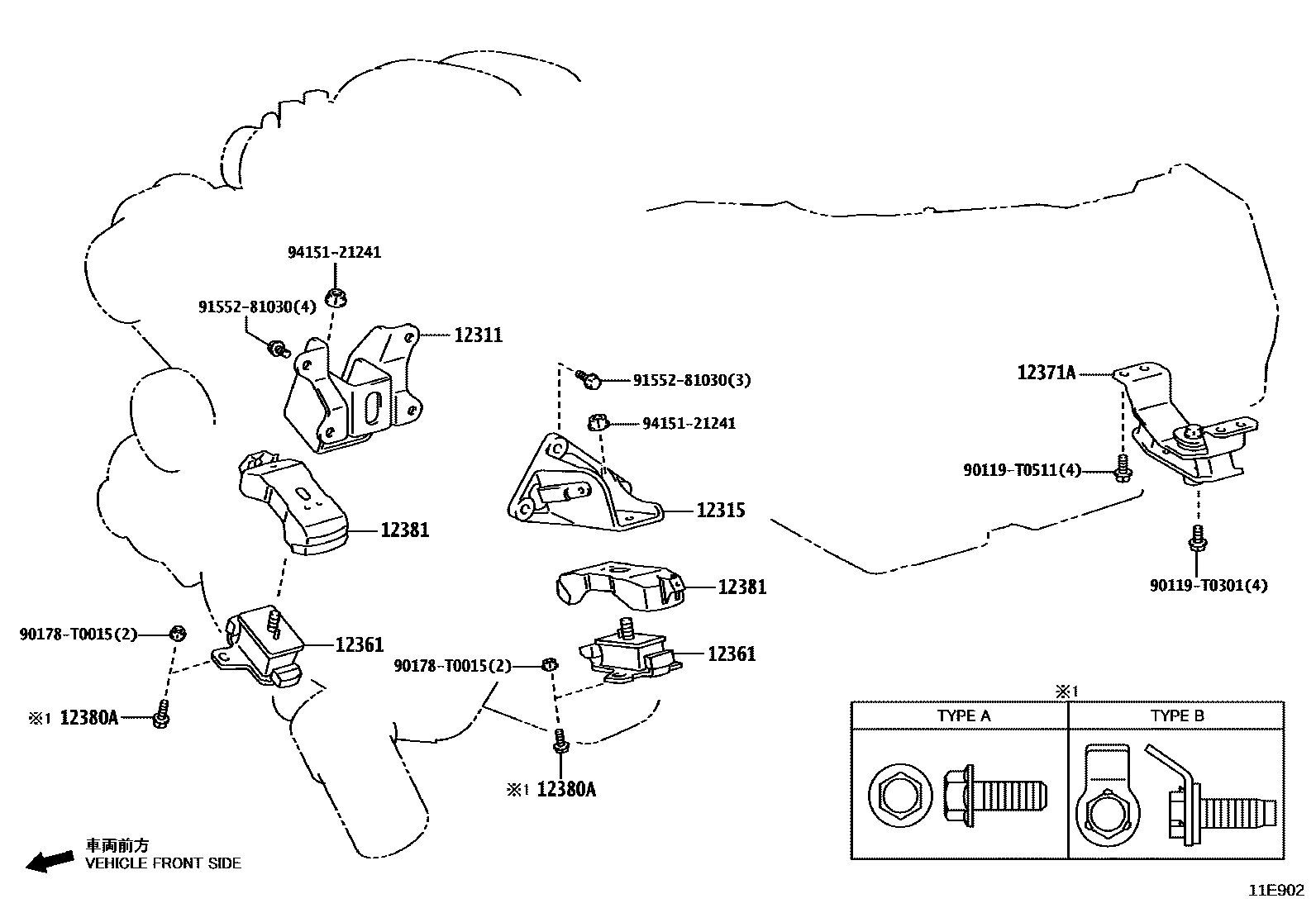

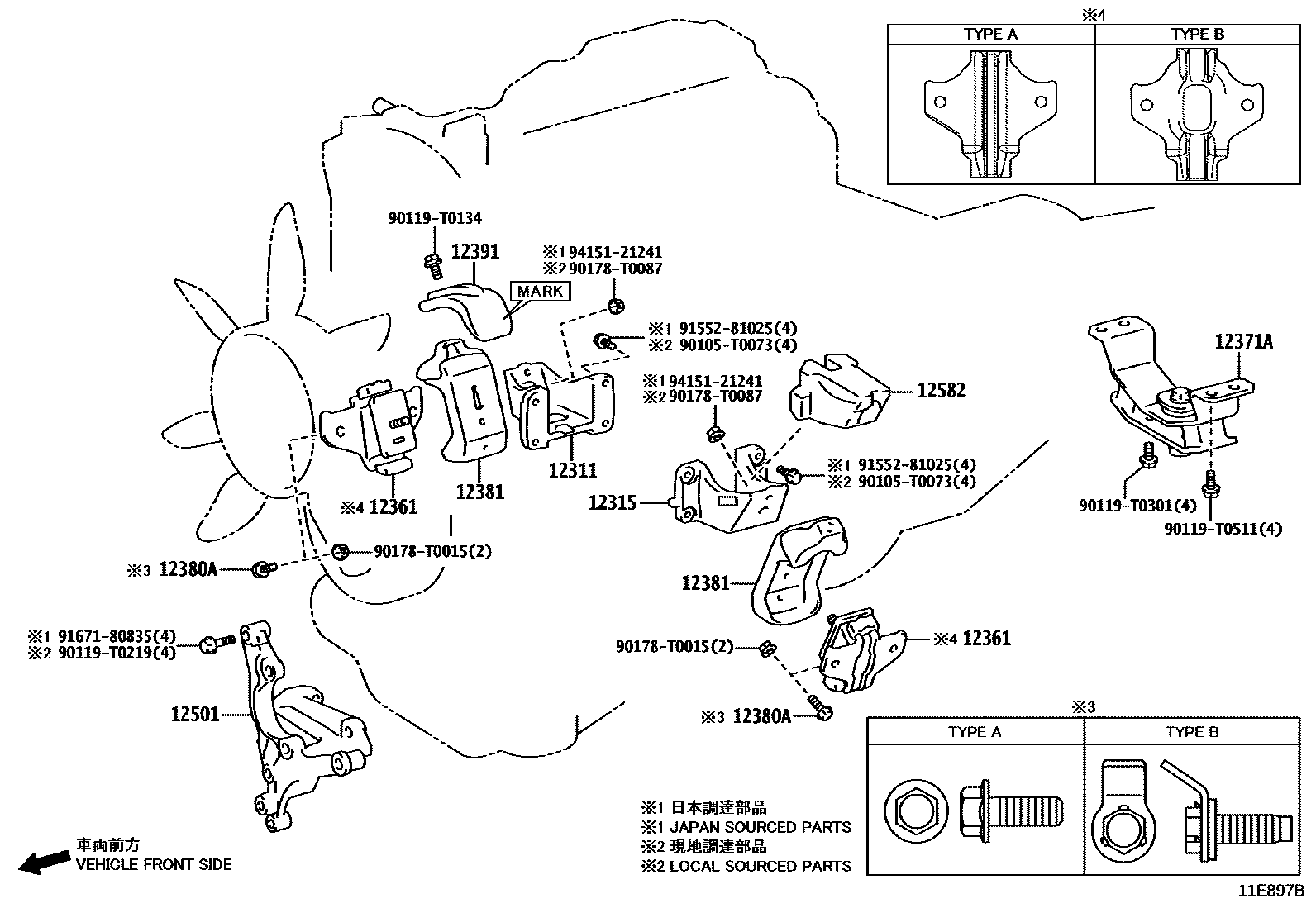

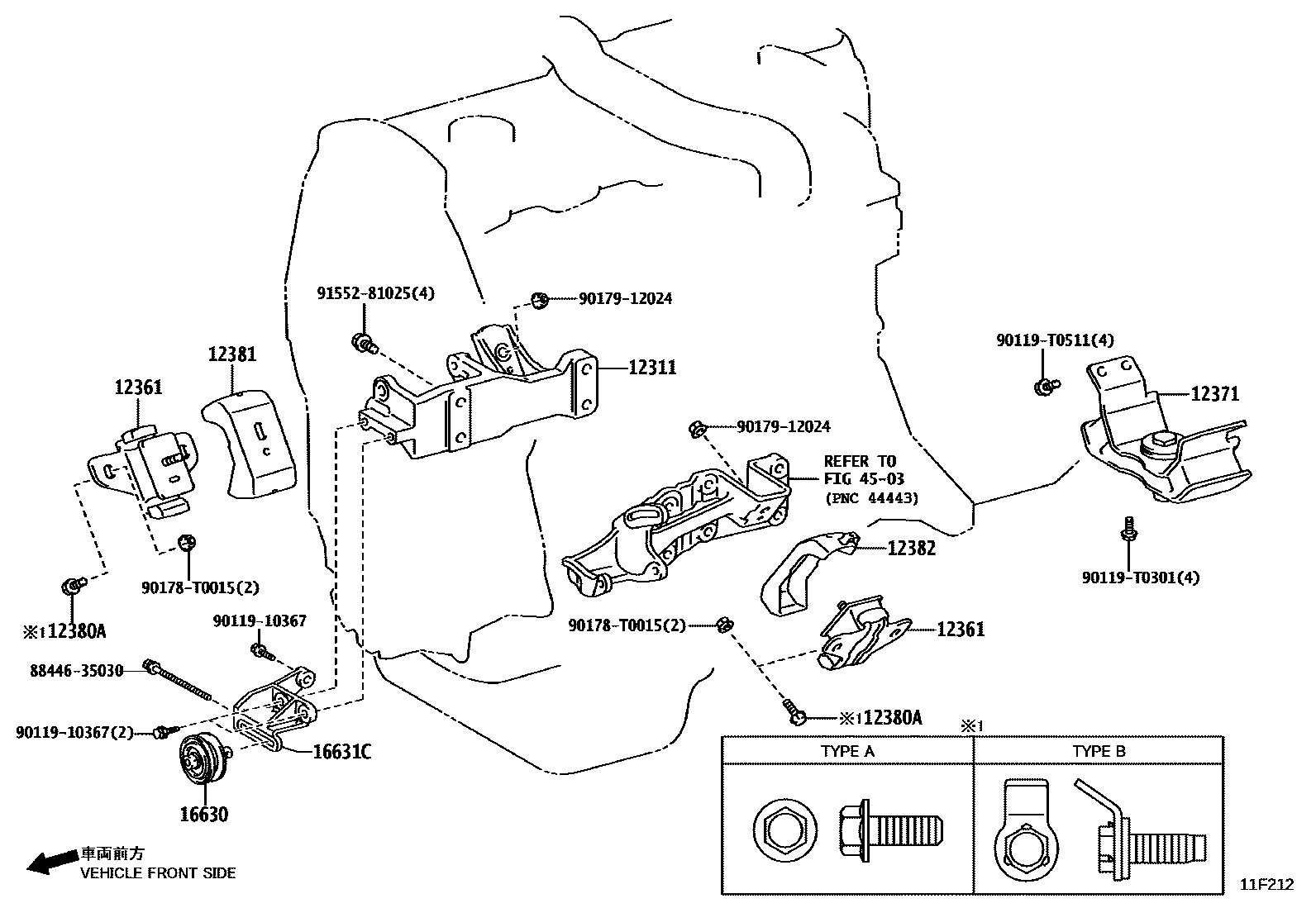

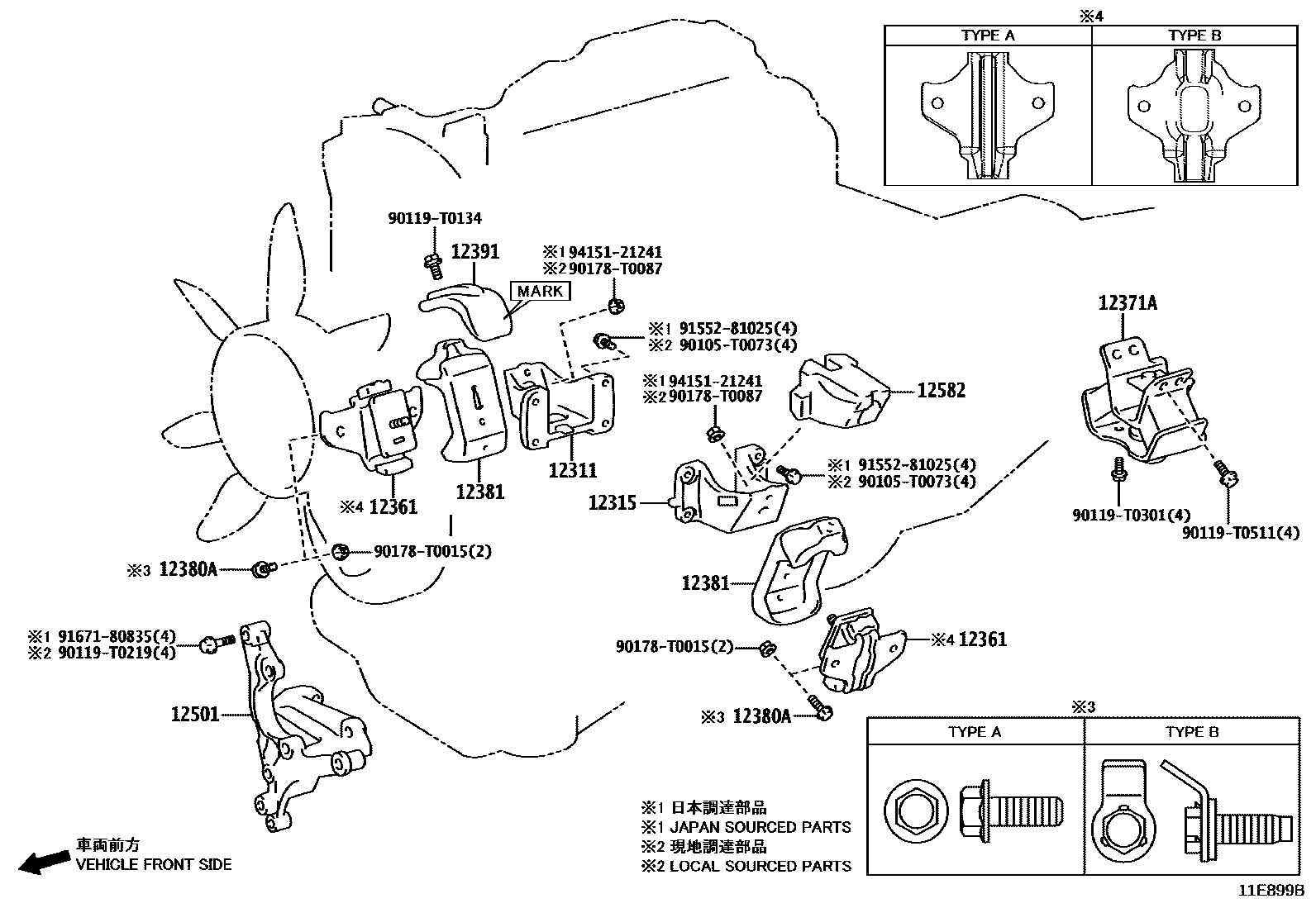

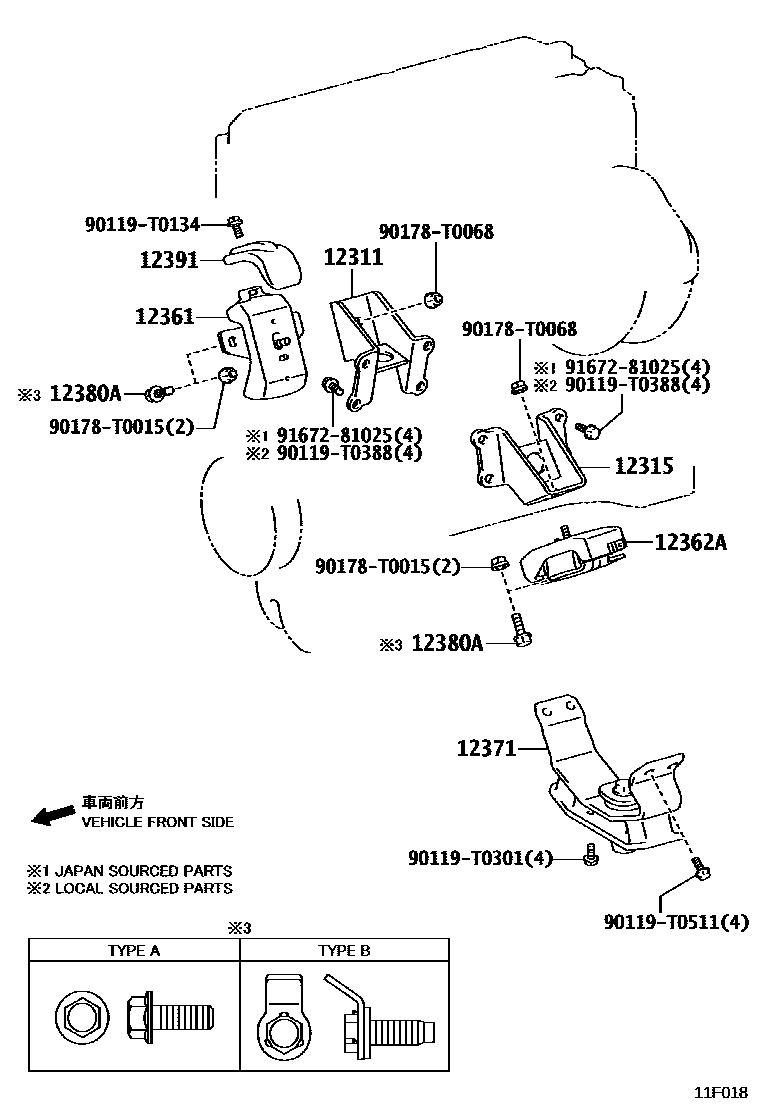

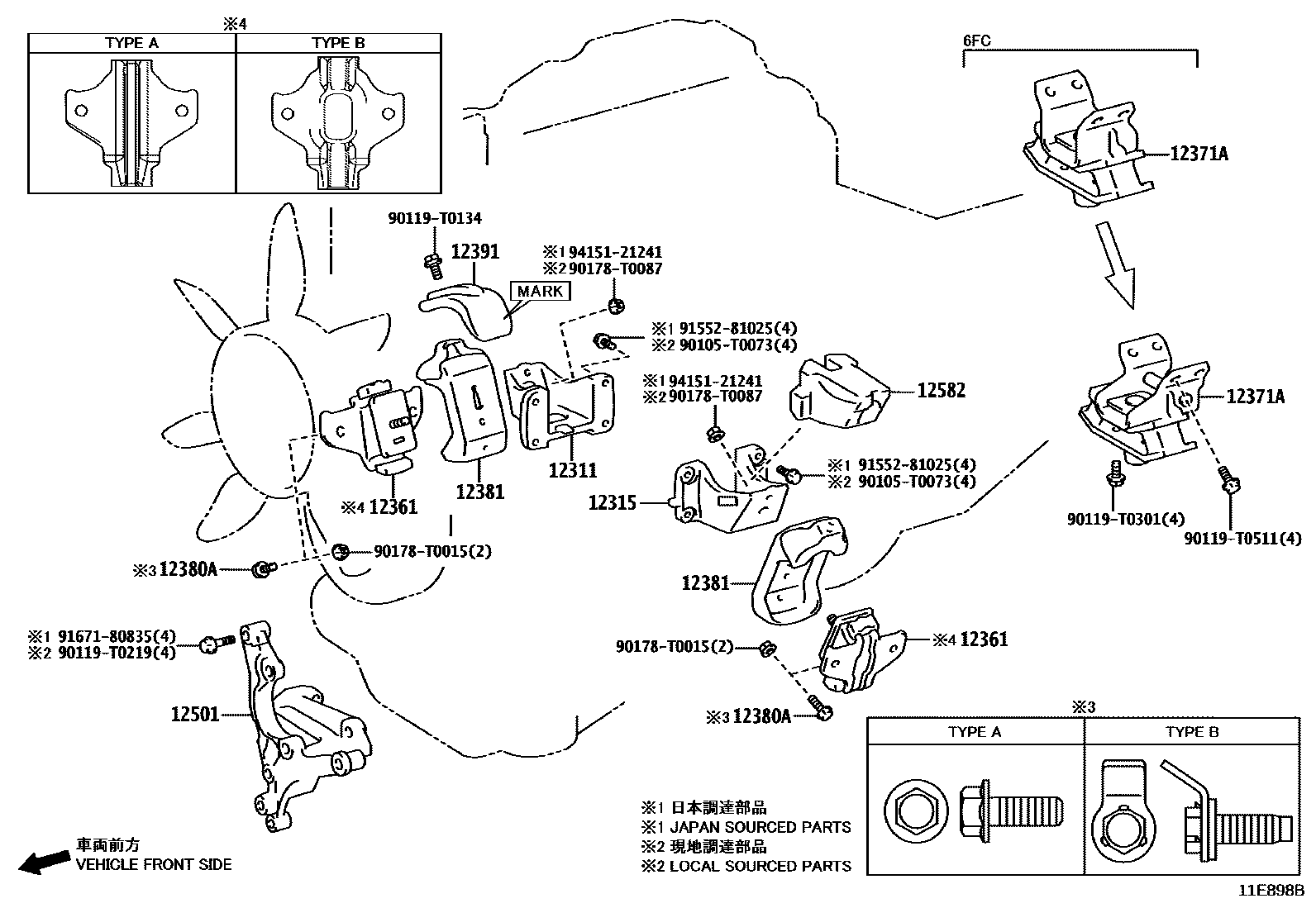

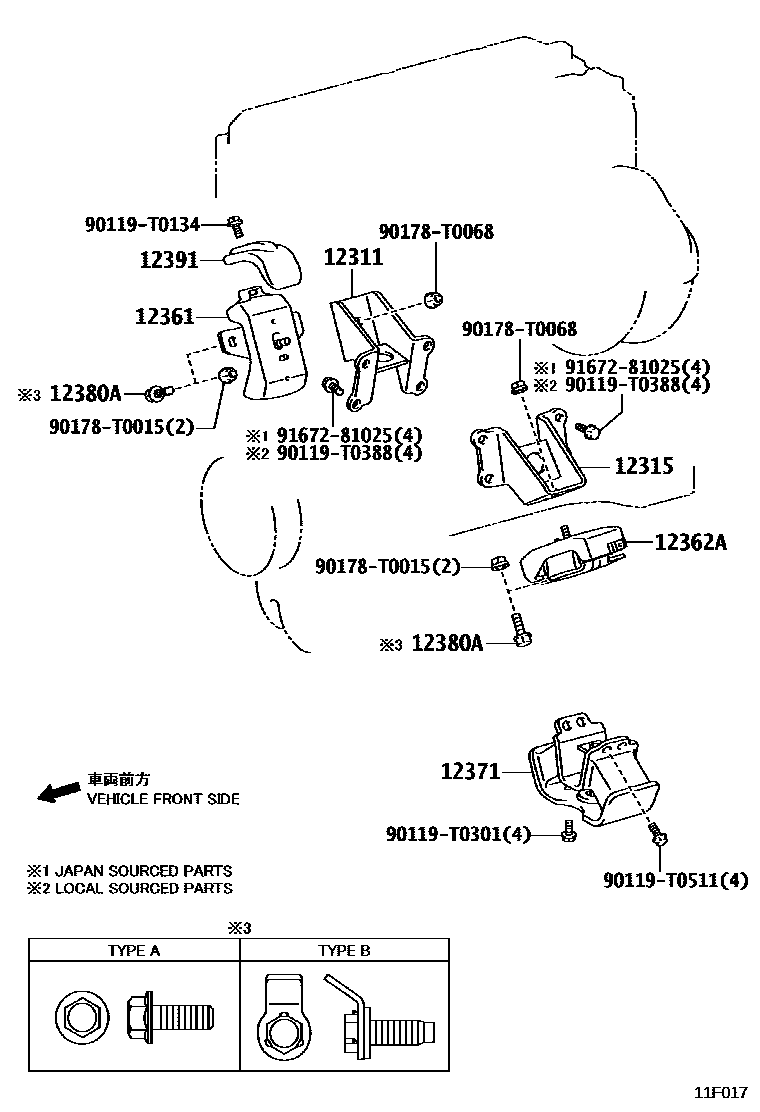

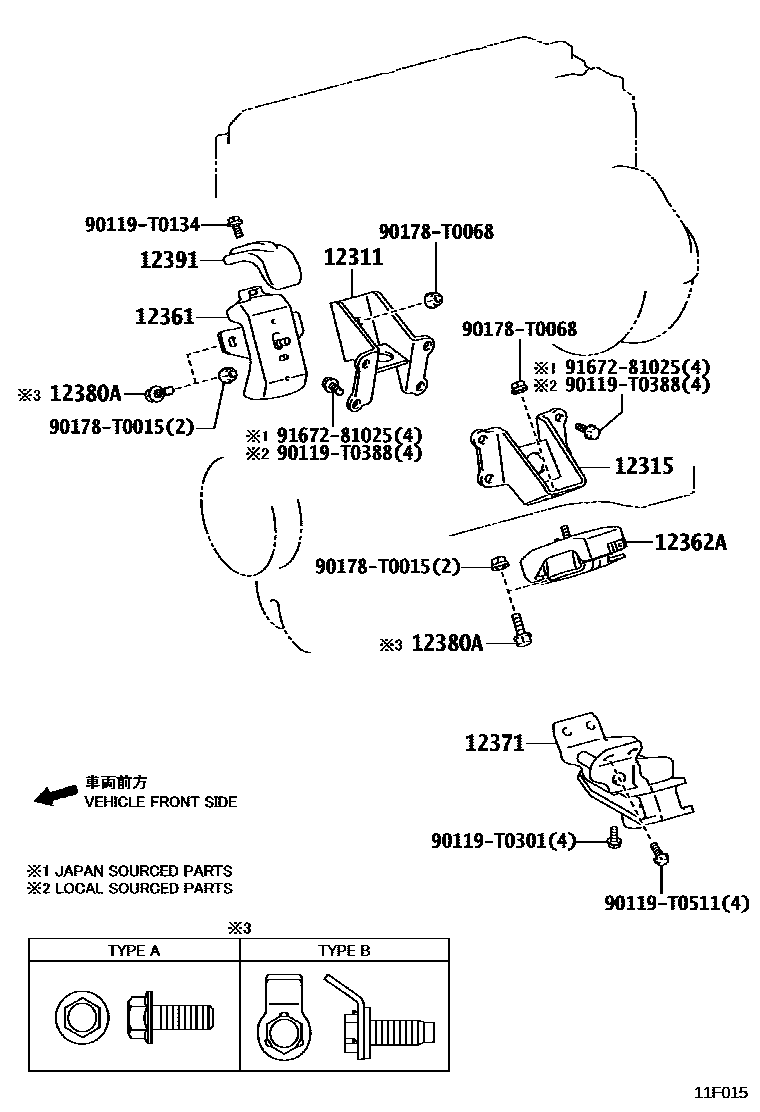

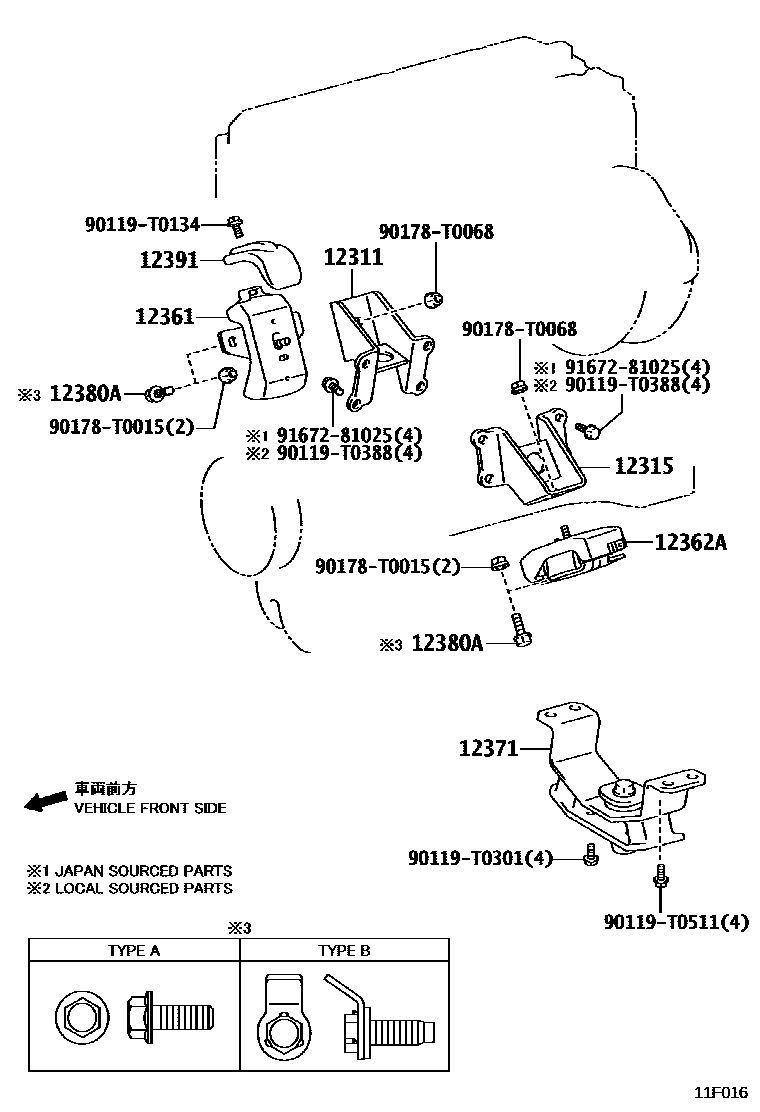

Toyota HILUX Engine Mounting — Figure 1107
Toyota HILUX EPC diagram 1107, Engine Mounting, with 9 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-0C010 · 12311-0C020 · 12311-0E020 · 12311-0E040 · 12311-0E050 · 12311-11140 · 12311-31031 · 12311-54181 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-0C010 · 12315-0C020 · 12315-0E010 · 12315-0E030 · 12315-0E040 · 12315-11060 · 12315-31062 |
| 12361 | Engine front mounting vibration isolation pad | 12305-0C050 · 12361-0L021 · 12361-30170 · 12361-30171 · 12361-31380 · 12361-54260 |
| 12362A | Engine left front mounting vibration isolation pad | 12305-0C050 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-0C072 · 12371-0C190 · 12371-0C200 · 12371-0C210 · 12371-0C270 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0L052 · 12371-0L180 · 12371-0L200 · 12371-0L210 · 12371-0L240 · 12371-0P230 |
| 12380A | Bolts (for engine mount vibration isolators) | 90105-T0174 · 90910-03003 |
| 12381 | engine mount stabilizer bar | 12381-0L081 · 12381-30090 · 12381-30091 · 12381-31090 · 12381-54130 |
| 12382 | Engine left mounting stabilizer bar | 12382-54030 |
| 12391 | Engine right front mounting heat insulation pad | 12391-0L010 · 12391-0L020 · 12391-0L050 |
| 12501 | Generator bracket sub-assembly | 12501-0E011 · 12501-0E020 · 12501-0E030 · 12501-11012 |
| 12582 | No. 2 cylinder block vibration isolation pad | 12582-0E010 · 12582-0E020 · 12582-11010 |
| 16630 | Idler gear assembly | 88440-0K281 |
| 16631C | Idler gear bracket | 88431-0K090 |
