Toyota HILUX Cylinder Block — Figure 1105

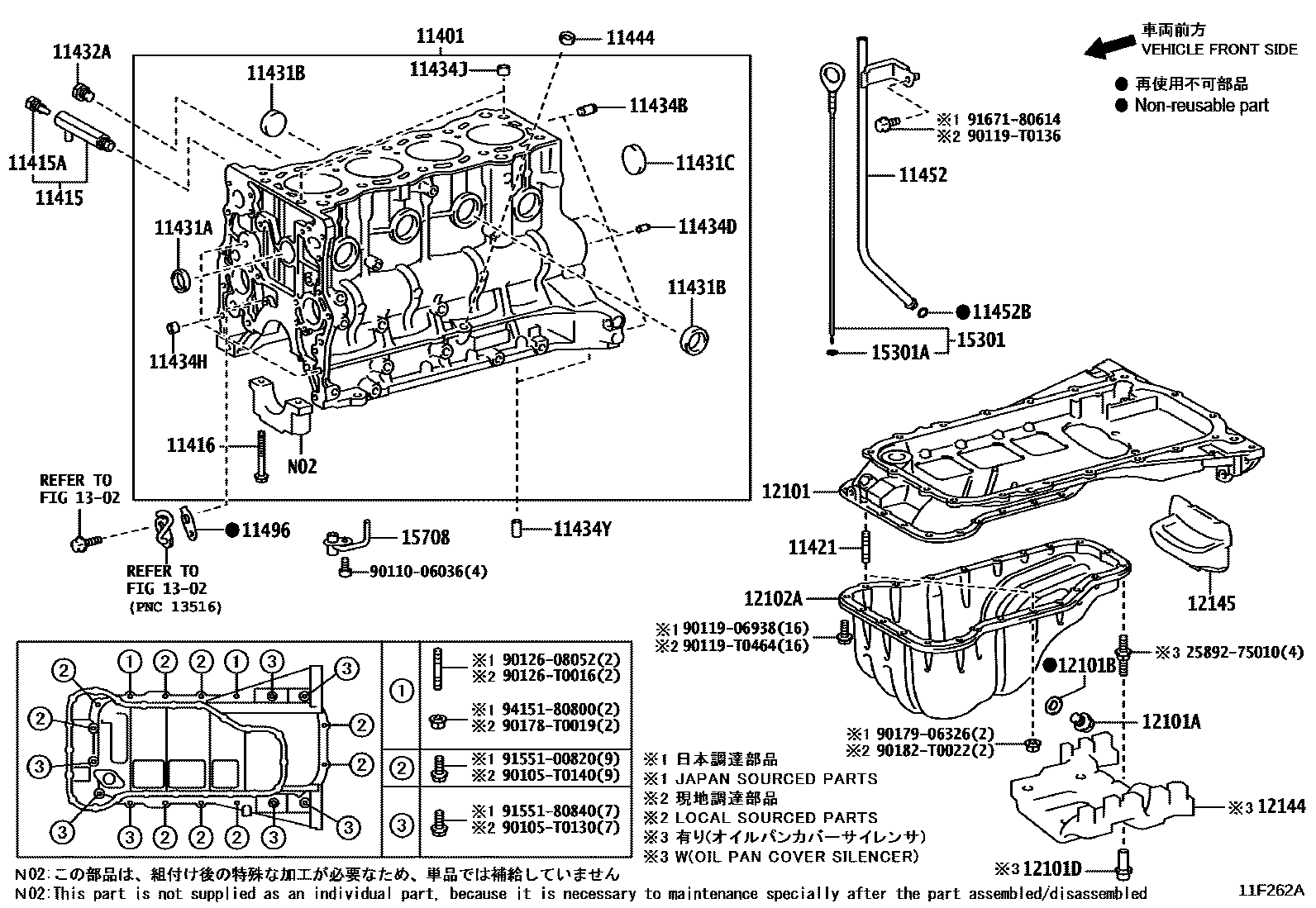

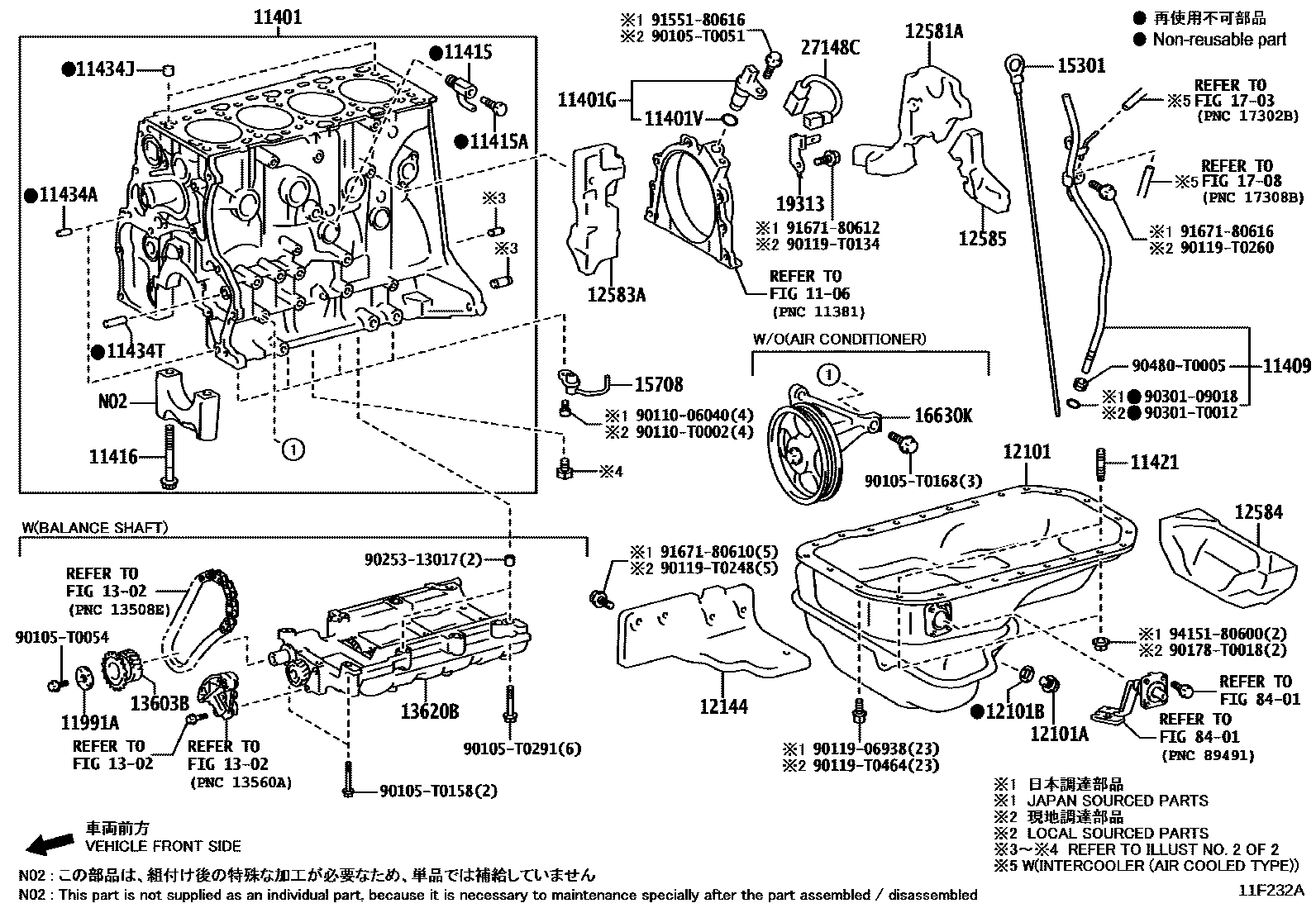

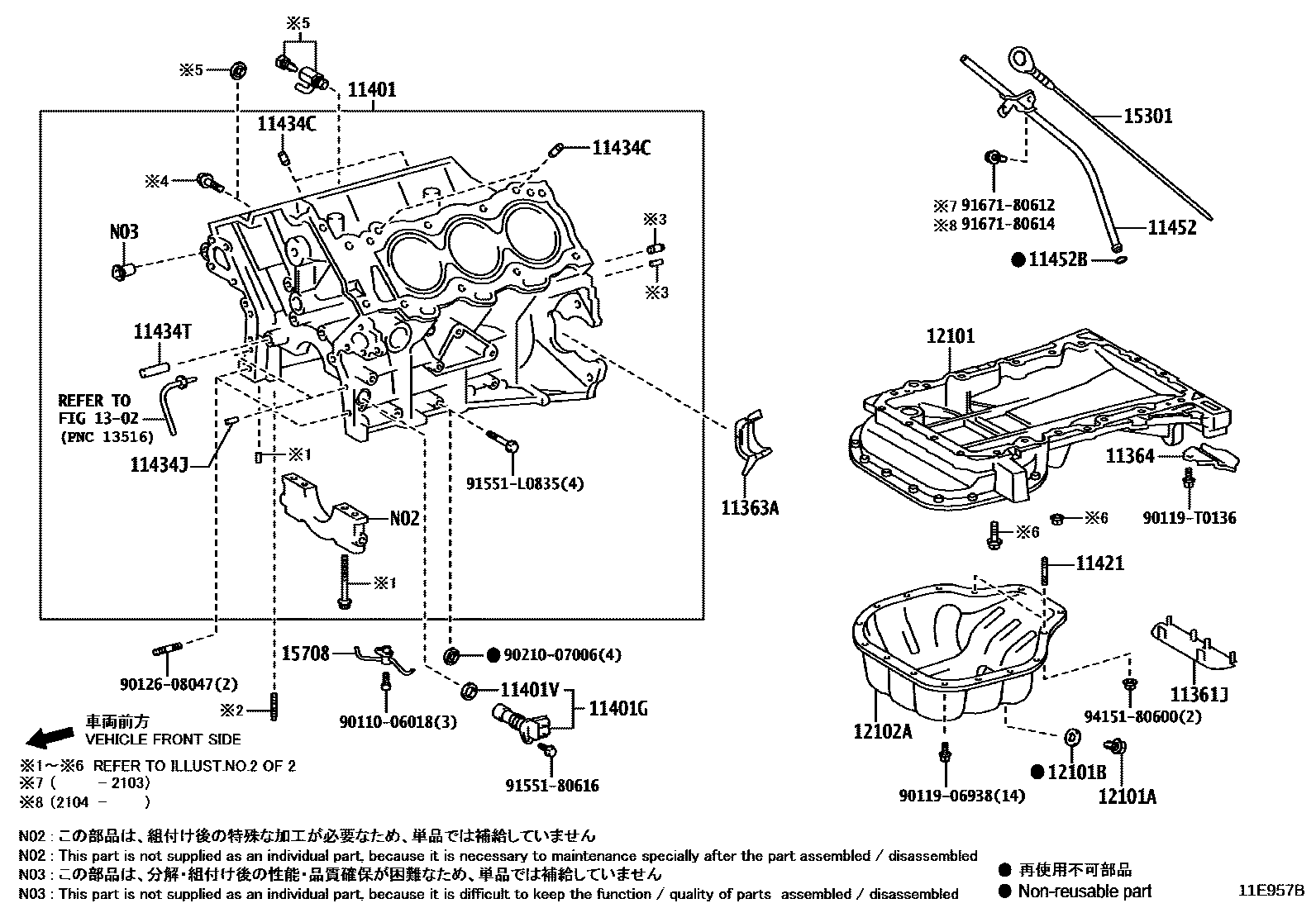

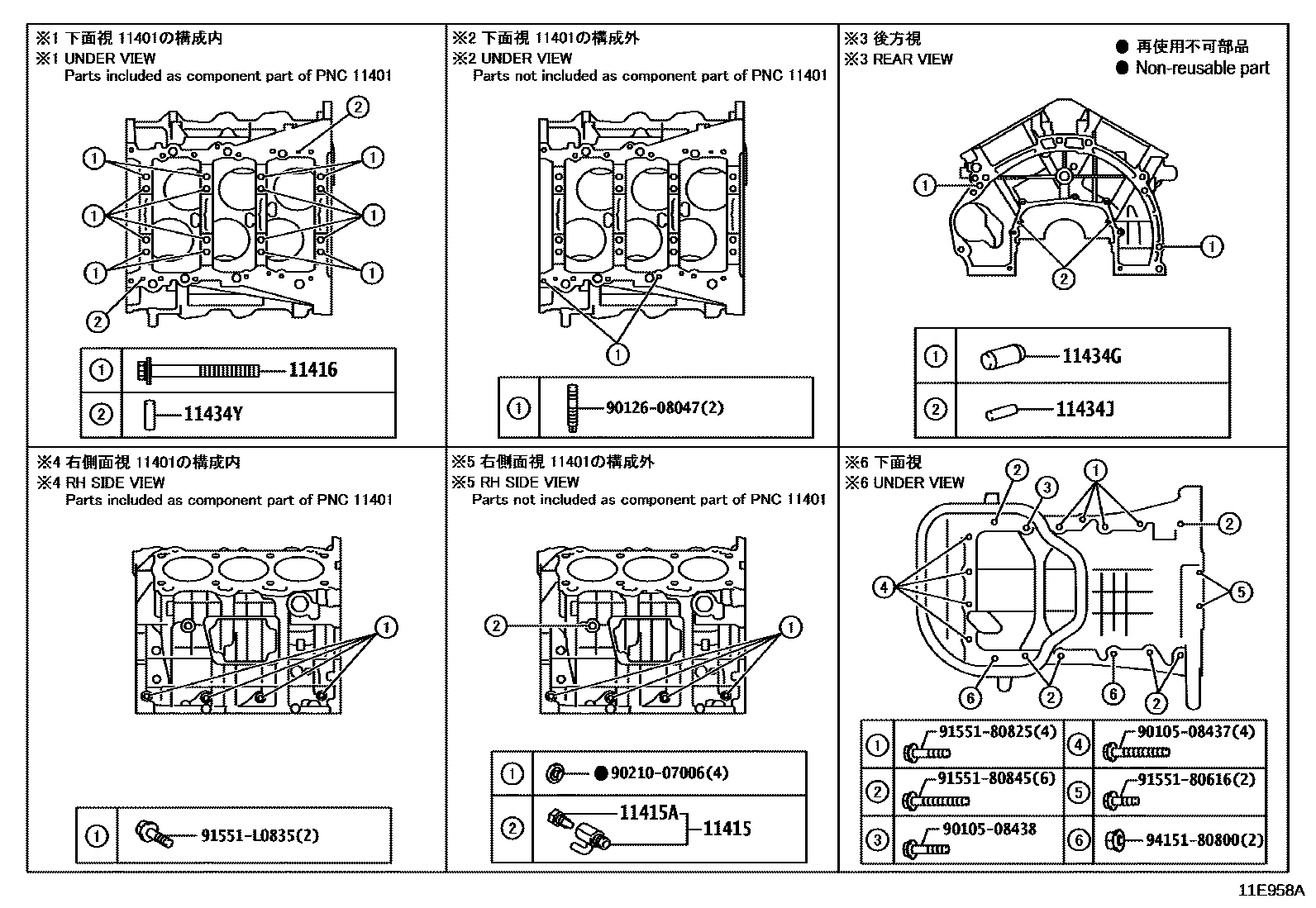

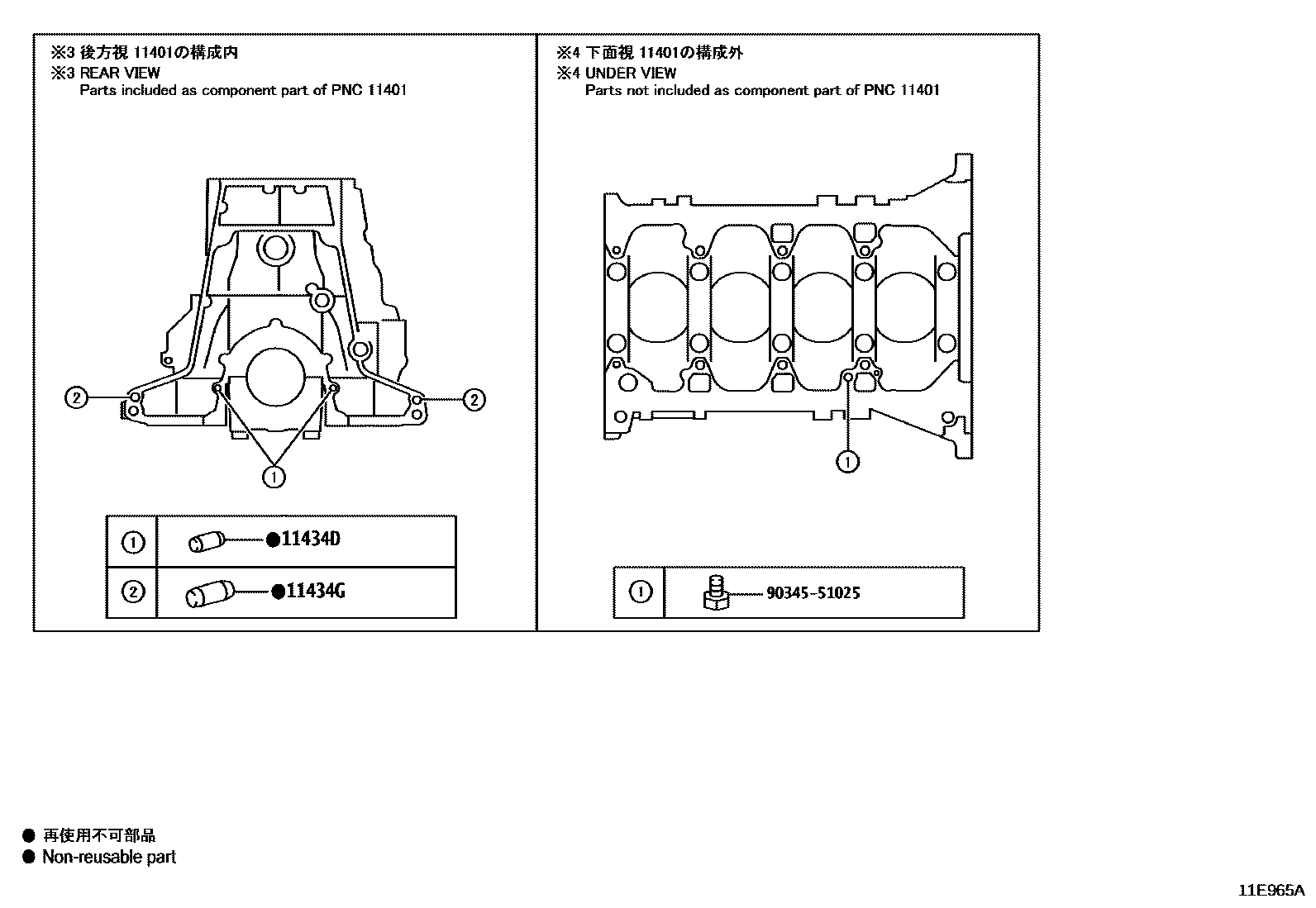

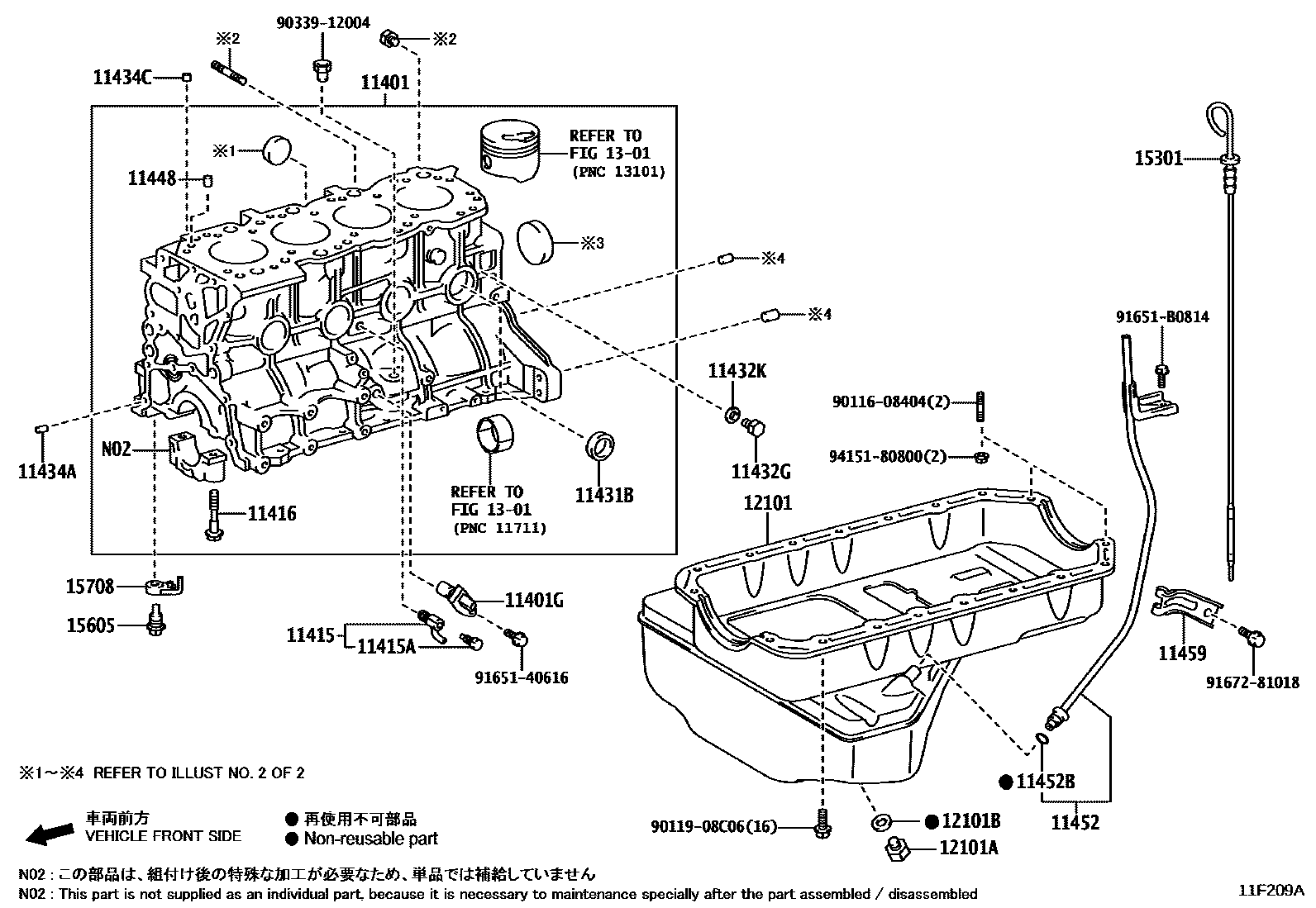

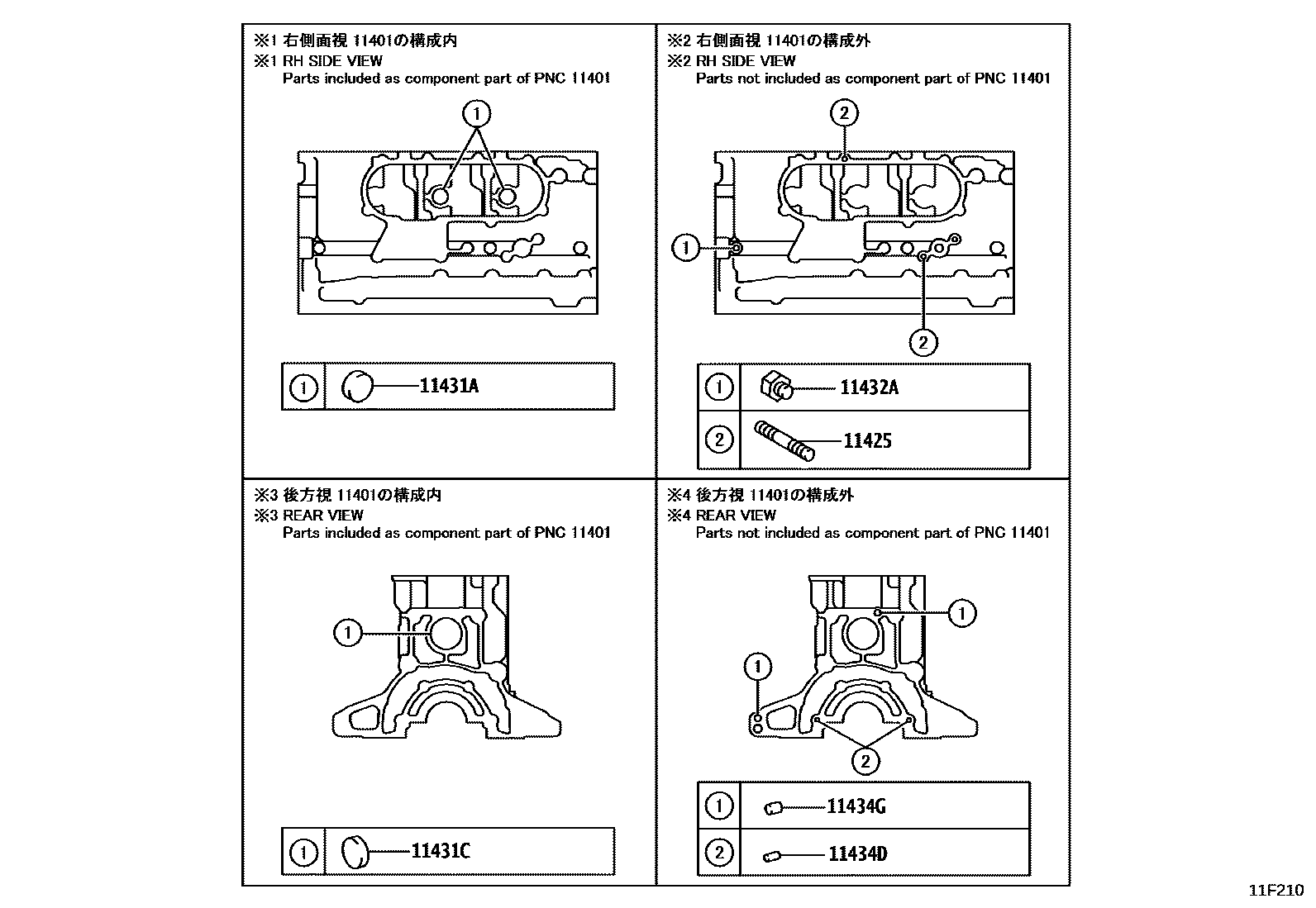

Toyota HILUX EPC diagram 1105, Cylinder Block, with 7 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-31040 |
| 11363A | Flywheel housing side cover | 11363-31050 |
| 11364 | No. 1 flywheel housing sub-bottom cover plate | 11364-0P010 |
| 11401 | Cylinder block sub-assembly | 11401-09402 · 11401-09412 · 11401-09792 · 11401-09841 · 11401-09851 · 11401-09861 · 11401-59767 · 11401-80858 |
| 11401G | crankshaft position sensor | 90919-05005 · 90919-05057 · 90919-05073 |
| 11401V | Crankshaft position sensor O-ring | 90301-14016 |
| 11409 | Engine oil level gauge guide sub-assembly | 11409-0E011 · 11409-0E021 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09110 · 90910-09128 · 90910-09129 · 90910-T9002 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 · 90910-T9001 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02061 · 90910-02176 · 90910-02179 · 90910-02191 · 90910-T2002 · 90910-T2009 |
| 11421 | Stud bolts (for oil pan) | 90126-06028 |
| 11425 | Studs (for oil filter) | 92112-80825 |
| 11431A | No. 1 sealing plug (for cylinder block) | 90331-T0004 · 96411-62500 · 96411-63000 |
| 11431B | No. 2 sealing plug (for cylinder block) | 90331-T0005 · 96411-63500 |
| 11431C | No. 3 sealing plug (for cylinder block) | 90331-T0007 · 96411-64000 · 96411-65000 |
| 11432A | No. 1 headed tapered thread plug | 90345-51006 · 90345-53009 |
| 11432G | No. 5 headed straight thread plug | 90341-12006 |
| 11432K | Headed straight thread plug liner | 90430-12221 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08120 · 90250-T0007 · 90253-11021 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-T0018 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90253-15005 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06068 · 90250-T0012 · 90250-T0017 · 90253-11021 |
| 11434G | Direct sales (for end plates) | 90250-10113 · 90250-10192 · 90250-T0008 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-T0005 |
| 11434J | Ring pin (for cylinder head assembly) | 90250-04097 · 90253-15016 · 90253-T0002 · 90253-T0007 · 90253-T0013 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90250-10030 · 90250-T0019 |
| 11434Y | Direct sales (for oil pan) | 90250-04097 · 90253-T0006 · 90253-T0012 |
| 11444 | hole plug | 11444-75020 |
| 11448 | Cylinder block oil orifice | 11448-54020 |
| 11452 | Engine oil level gauge guide | 11409-0C030 · 11409-0C050 · 11452-31130 · 11452-54190 |
| 11452B | O-ring (for oil level gauge guide) | 90301-09018 · 90301-T0025 · 90301-T0081 · 96723-19010 |
| 11459 | Oil level gauge guide bracket | 11459-54030 |
| 11496 | Oil hole cover gasket | 11496-0C010 · 11496-75011 |
| 11991A | No. 1 balance shaft thrust plate | 11991-0E010 · 11991-11010 |
| 12101 | Oil pan sub-assembly | 12101-0C030 · 12101-0C040 · 12101-0E010 · 12101-0E020 · 12101-11120 · 12101-54340 · 12111-31130 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-T0004 |
| 12101B | Gasket (for oil pan drain plug) | 90080-43030 · 90430-12031 · 90430-T0024 |
| 12101D | No. 1 screw plug (for oil pan) | 12129-75010 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0C010 · 12102-0C020 · 12102-31060 |
| 12144 | Oil pan cover muffler | 12144-0C020 · 12144-0E010 · 12144-0E020 · 12144-11010 |
| 12145 | No. 2 oil pan cover muffler | 11354-0C010 · 11354-0C020 · 12145-0C020 |
| 12581A | No. 1 cylinder block vibration isolation pad | 12581-0E010 · 12581-0E020 · 12581-11020 |
| 12583A | No. 3 cylinder block vibration isolation pad | 12583-0E010 · 12583-0E020 · 12583-11020 |
| 12584 | No. 4 cylinder block vibration isolation pad | 12584-0E011 |
| 12585 | No. 5 cylinder block vibration isolation pad | 12585-0E010 · 12585-0E020 · 12585-11020 |
| 13603B | Balance shaft gear sub-assembly | 13603-0E010 · 13603-11010 |
| 13620B | Engine balancer assembly | 13620-11012 · 13620-11013 |
| 15301 | Engine oil level scoring assembly | 15301-0C020 · 15301-0C030 · 15301-0E011 · 15301-0E020 · 15301-0E030 · 15301-0E040 · 15301-11070 · 15301-11100 · 15301-31140 · 15301-54111 |
| 15301A | O-ring (for engine oil level gauge) | 90301-T0018 |
| 15605 | Oil check valve sub-assembly | 15605-17030 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0C010 · 15708-0E010 · 15708-11010 · 15708-31020 · 15708-54060 · 15708-75020 |
| 16630K | Idler gear assembly | 16630-0E010 |
| 19313 | Crankshaft position sensor harness bracket | 19313-0E010 · 19313-0E020 · 19313-11010 |
| 27148C | Connection harness | 27148-0E010 · 27148-0E040 · 27148-11010 |
