Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715

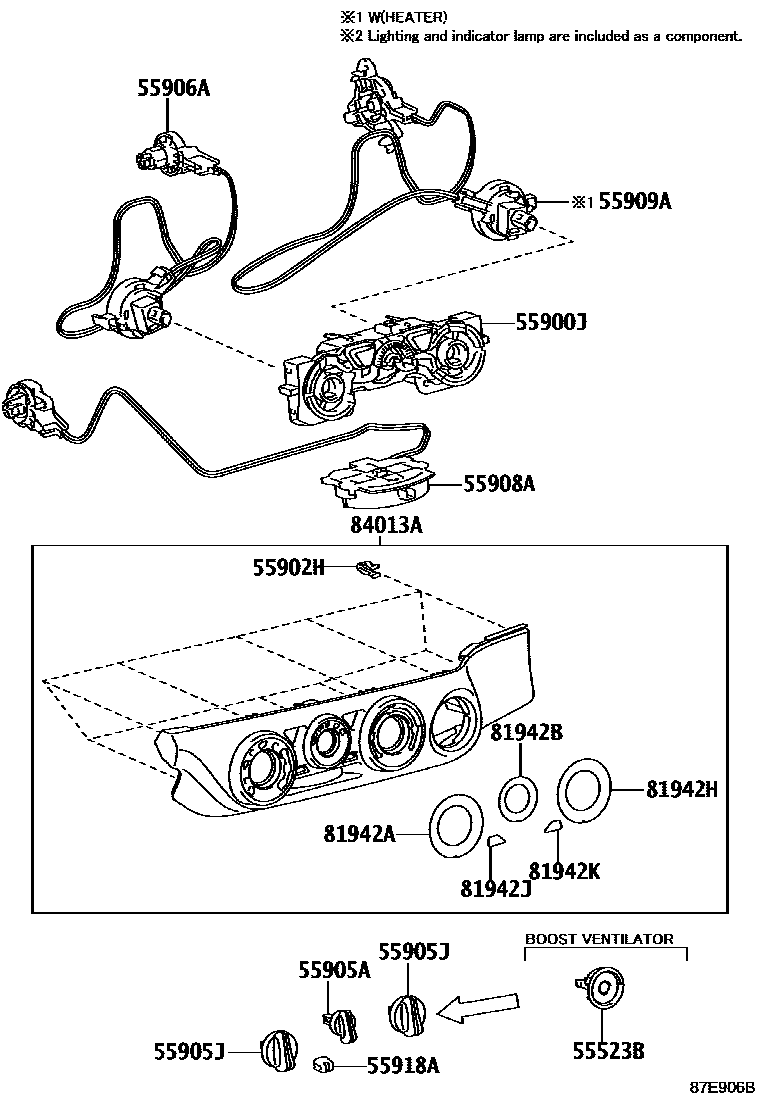

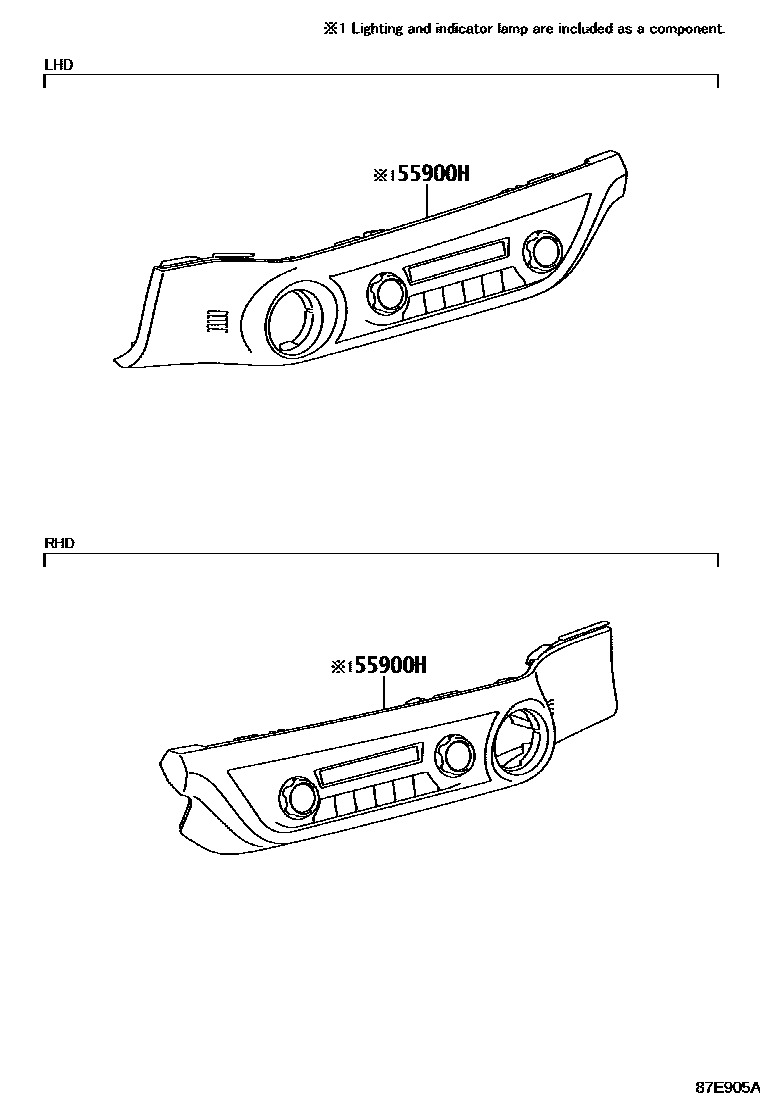

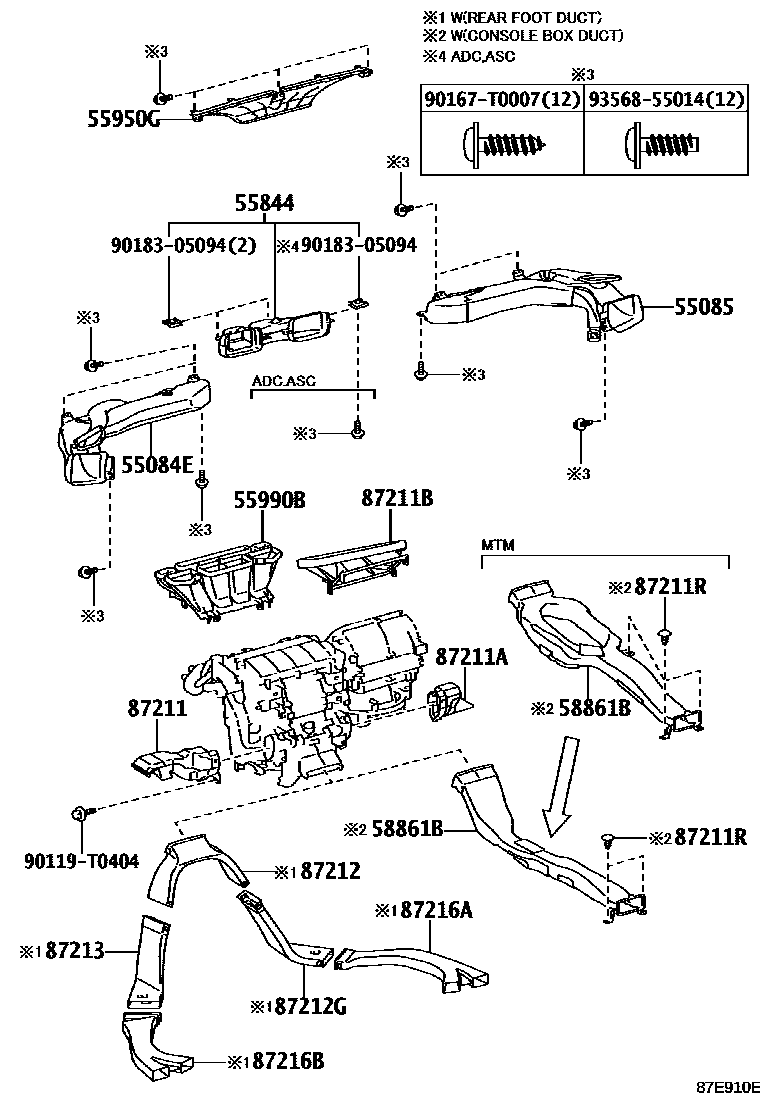

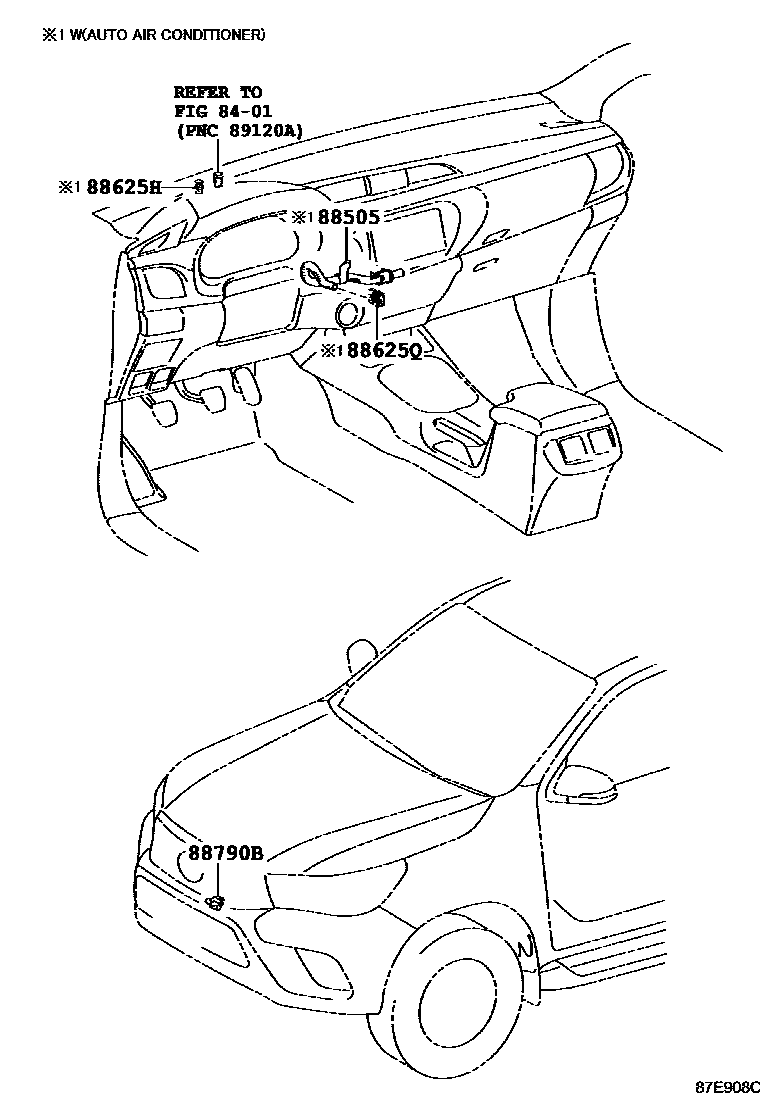

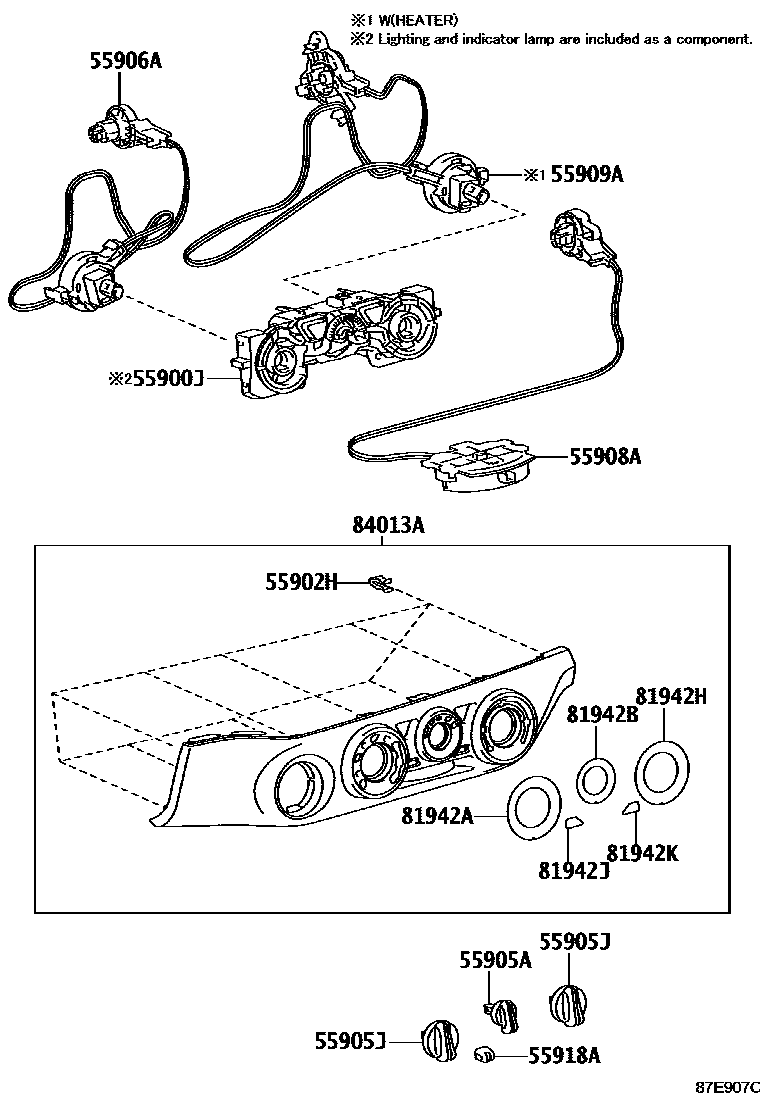

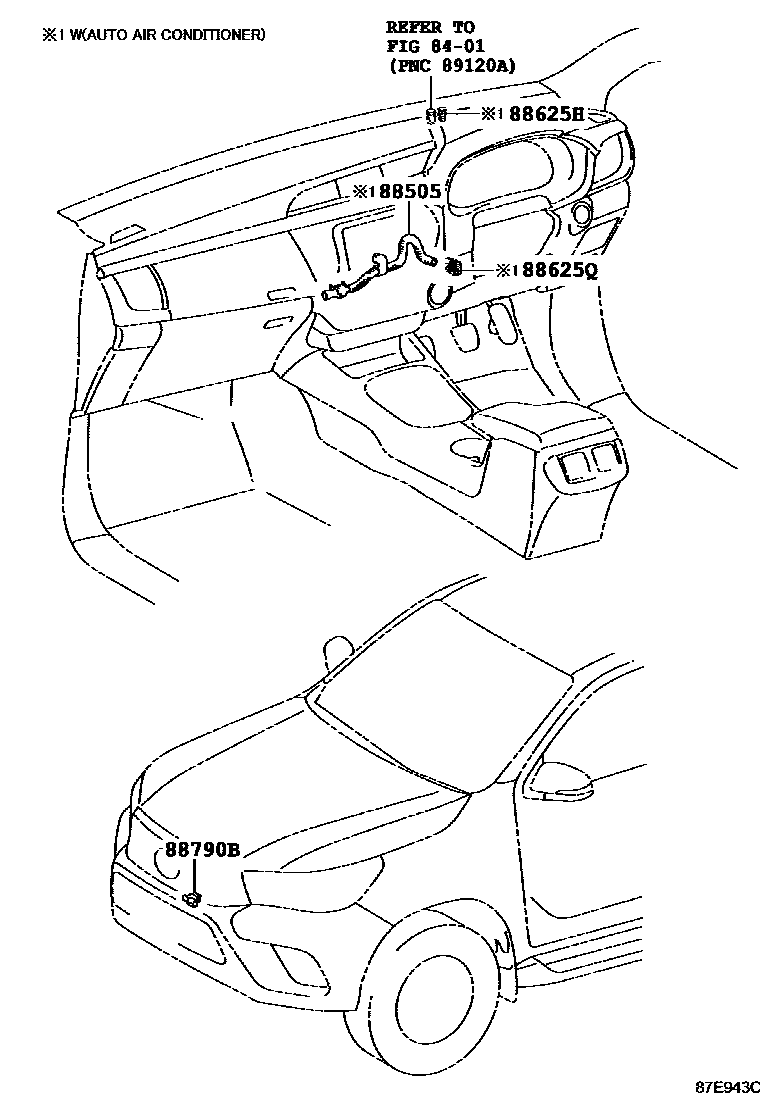

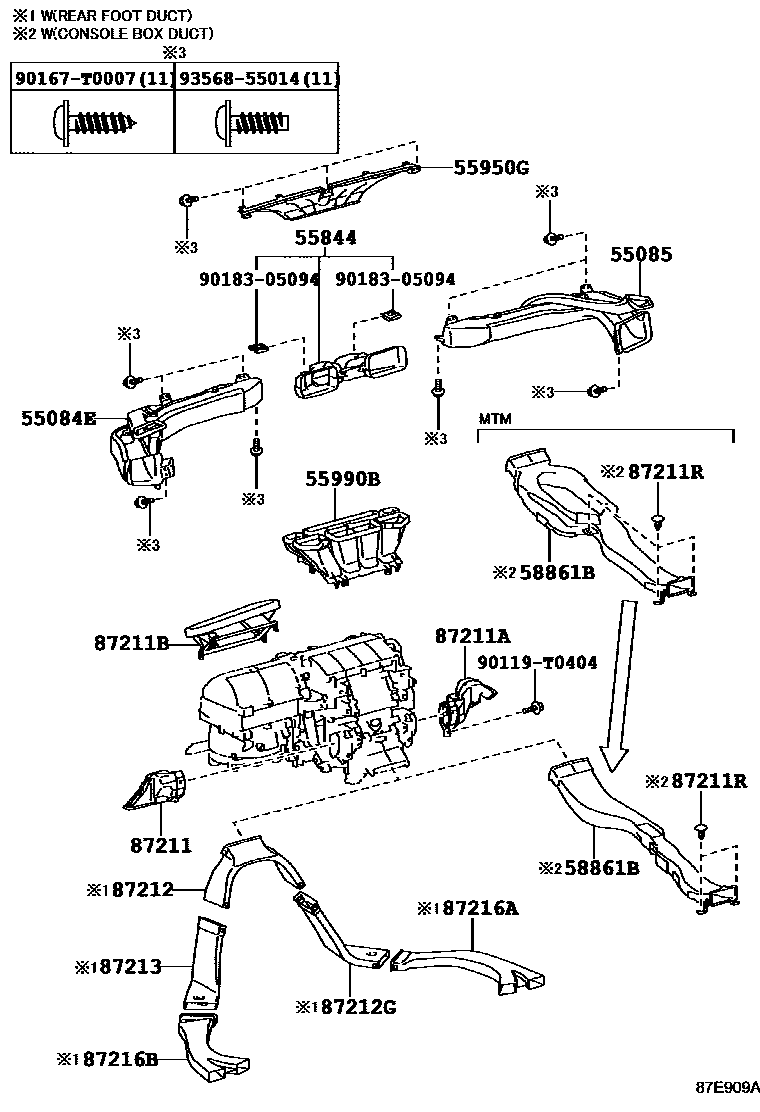

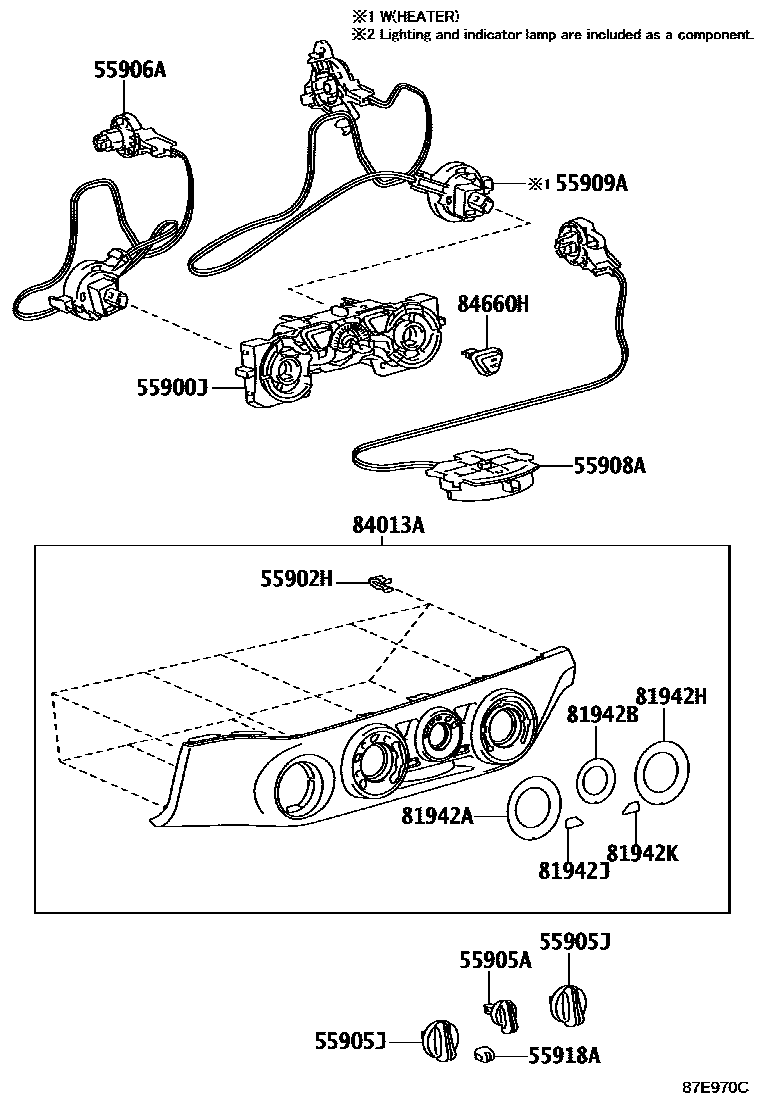

Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 8 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-KK020 · 55085-KK030 · 55085-KK070 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55084-KK010 · 55085-KK040 · 55085-KK080 |
| 55523B | Heater control opening cover | 55523-KK020 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-KK030 · 55844-KK040 · 55844-KK090 |
| 55900H | Air conditioning control assembly (automatic) | 55900-0K810 · 55900-0K890 · 55900-0KM00 |
| 55900J | Air conditioning control assembly (manual) | 55900-0KC10 · 55900-0KC30 · 55900-0KC50 · 55900-0KC70 · 55900-0KC90 · 55900-0KD00 · 55900-0KD20 · 55900-0KD60 · 55900-0KD61 · 55900-0KD80 · 55900-0KD81 · 55900-0KE00 · 55900-0KE01 · 55900-0KE20 · 55900-0KE21 |
| 55902H | Clip (for air conditioning panel) | 90467-05171 |
| 55905A | Heater control button | 55917-0K010 · 55917-0K020 · 55917-0K021 |
| 55905J | Control lever handle sub-assembly | 55905-0K230 · 55905-0K270 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0K060 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0K080 · 55908-0K110 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0K060 |
| 55918A | Intake air door control lever | 55918-0K010 · 55918-0K020 |
| 55950G | Defroster nozzle assembly | 55950-KK030 |
| 55990B | Lower defroster nozzle assembly | 55990-KK020 |
| 58861B | Air duct No. 1 for armrest box | 58861-KK010 · 58861-KK020 · 58861-KK030 · 58861-KK040 |
| 81942A | Heater No. 1 control nameplate | 81941-0K010 · 81941-0K030 |
| 81942B | Heater No. 2 control nameplate | 81942-0K660 · 81942-0K770 |
| 81942H | Heater No. 3 control nameplate | 81943-0K040 · 81943-0K100 · 81943-0K110 · 81943-0K120 · 81943-0K170 |
| 81942J | Heater No. 4 control nameplate | 81944-0K010 · 81944-0K020 |
| 81942K | Heater No. 5 control nameplate | 81945-0K010 · 81945-0K020 |
| 84013A | Integrated panel sub-assembly | 55406-KK160 |
| 84660H | Cooler control switch assembly | 84660-0K170 · 84660-0K190 |
| 87211 | No. 1 air duct | 87211-0K760 · 87211-0K820 · 87211-0K870 · 87211-0KA10 · 87211-0KA70 · 87211-0KB40 · 87211-0KC30 |
| 87211A | Duct No. 2 | 87211-0K780 · 87211-0K800 · 87211-0K890 · 87211-0KA30 · 87211-0KA50 · 87211-0KB30 · 87211-0KC20 |
| 87211B | No. 3 air duct | 87211-0K750 · 87211-0K790 · 87211-0K860 · 87211-0KA00 · 87211-0KA40 · 87211-0KA80 · 87211-0KB80 · 87211-0KC10 |
| 87212 | No. 1 rear air duct | 87214-KK010 |
| 87212G | No. 3 rear air duct | 87212-KK010 |
| 87213 | No. 2 rear air duct | 87213-KK010 |
| 87216A | No. 5 rear air duct | 87215-KK010 |
| 87216B | No. 4 rear air duct | 87216-KK010 |
| 88505 | Air conditioning duct sub-assembly | 88505-0K760 · 88505-0K770 · 88505-0K780 · 88505-0K790 · 88505-0K800 · 88505-0K860 · 88505-0K870 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-0K010 · 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-0K020 · 88625-47021 |
| 88790B | Thermistor assembly | 88790-0K010 · 88790-28100 |
