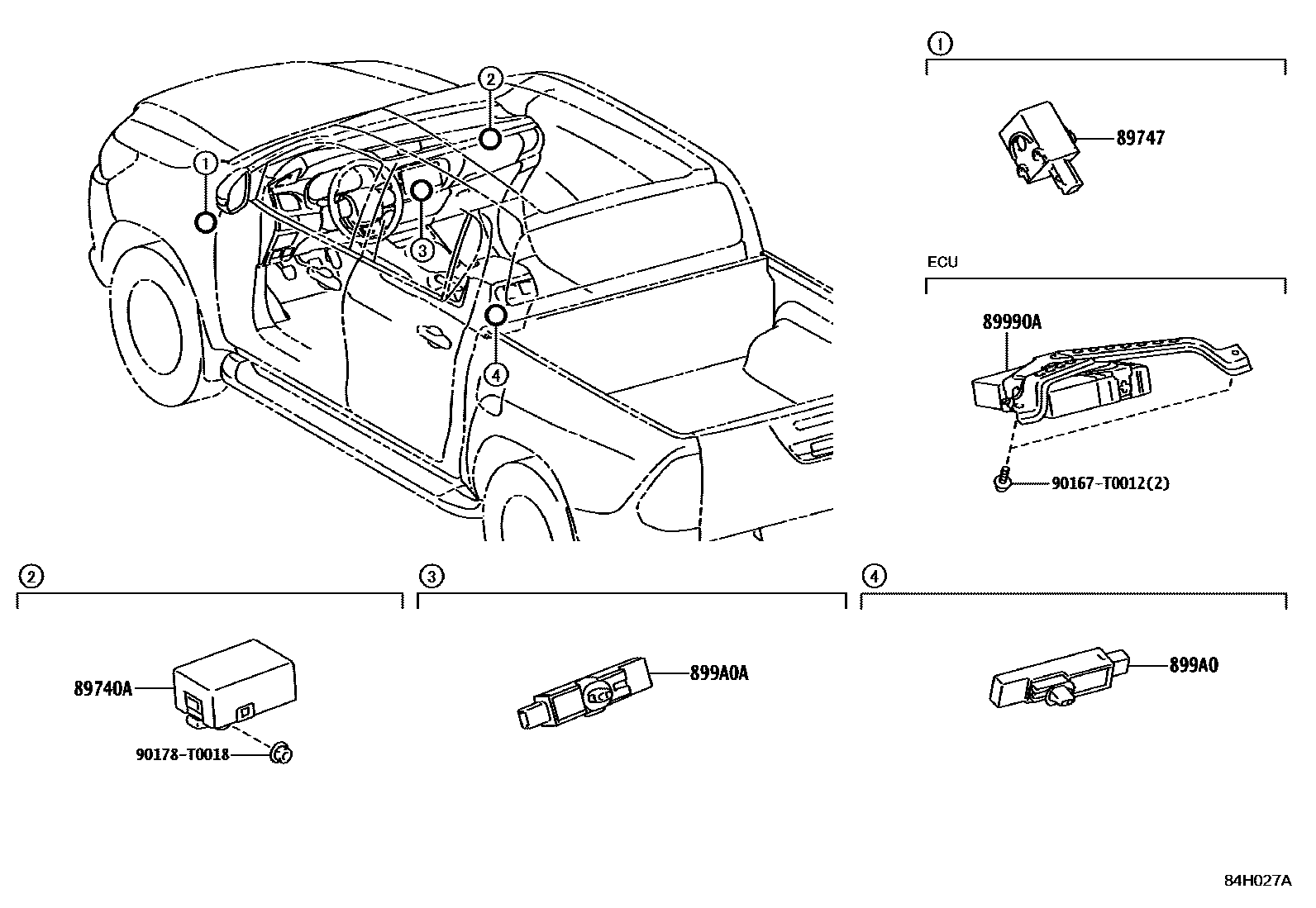

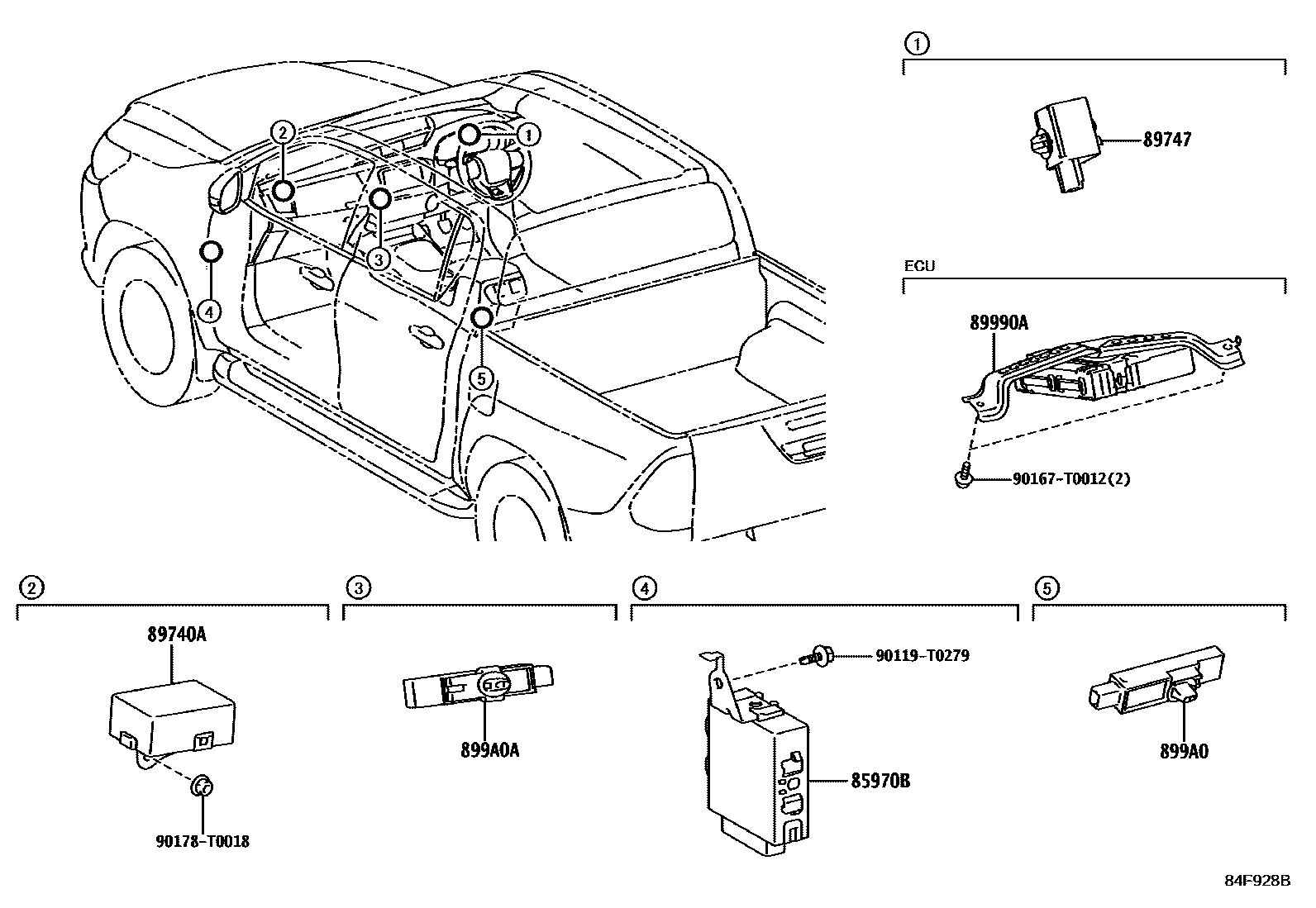

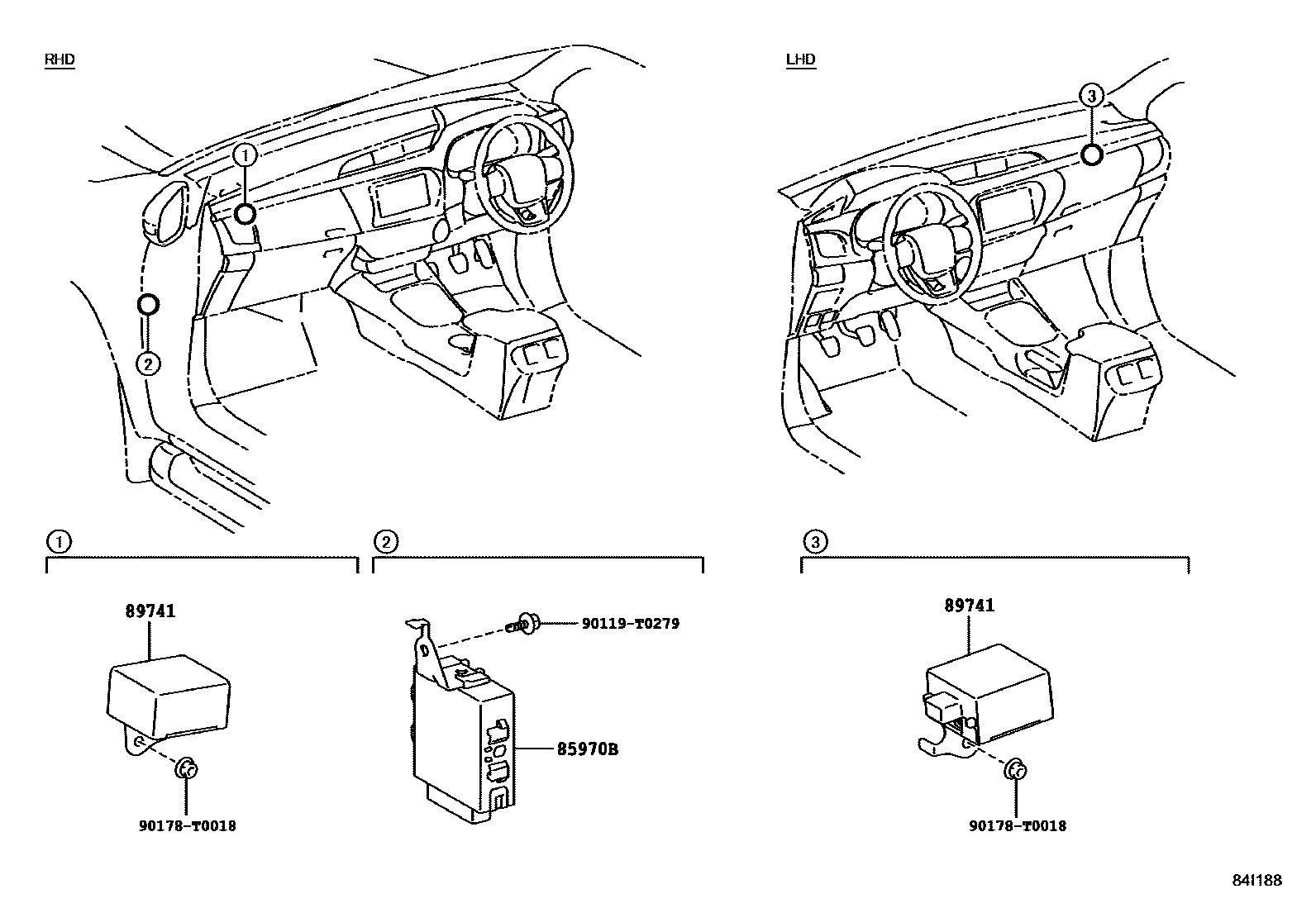

Toyota HILUX 遥控门锁 — Figure 8420
Toyota HILUX EPC diagram 8420, 遥控门锁, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85970B | Double lock door control relay assembly | 85970-71010 |
| 89740A | Smart door control receiver assembly | 89740-0K040 · 89740-0K090 · 89740-0K120 · 89740-0K121 · 89740-0K122 · 89740-0K130 · 89740-0K170 · 89740-0K171 |
| 89741 | door control receiver | 89741-0K100 · 89741-0K101 · 89741-0K120 · 89741-0K121 · 89741-0K122 · 89741-0K130 · 89741-0K131 · 89741-0K170 · 89741-0K171 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-0K050 · 89990-0K070 · 89990-0K071 · 89990-0K072 · 89990-0K090 · 89990-0K091 · 89990-0K092 · 89990-0K100 · 89990-0K101 · 89990-0K102 · 89990-0K120 · 89990-0K310 · 89990-0K311 · 89990-0K312 · 89990-0K350 · 89990-0K351 · 89990-0K380 · 89990-0K381 · 89990-0K400 · 89990-0K401 · 89990-0K410 · 89990-0K411 · 89990-0K420 · 89990-0K421 · 89990-0K430 · 89990-0K431 · 89990-0K440 · 89990-0K441 · 89990-0K740 · 89990-0K741 · 89990-0K860 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0D110 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0D170 |
