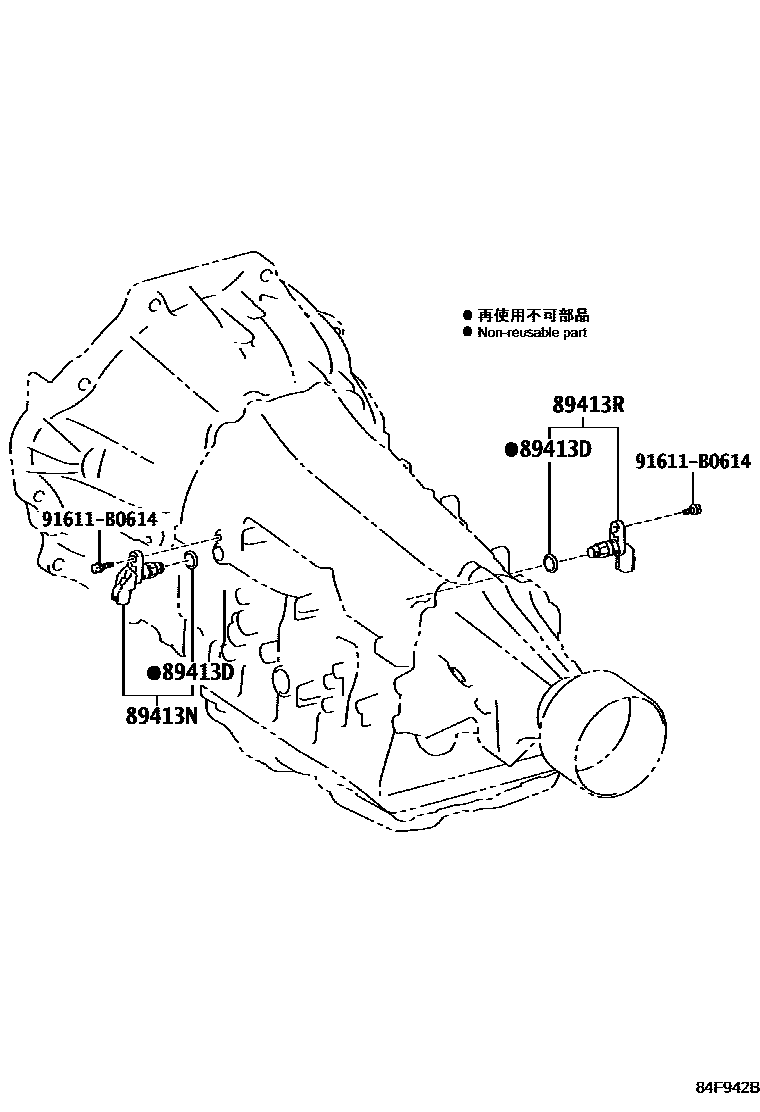

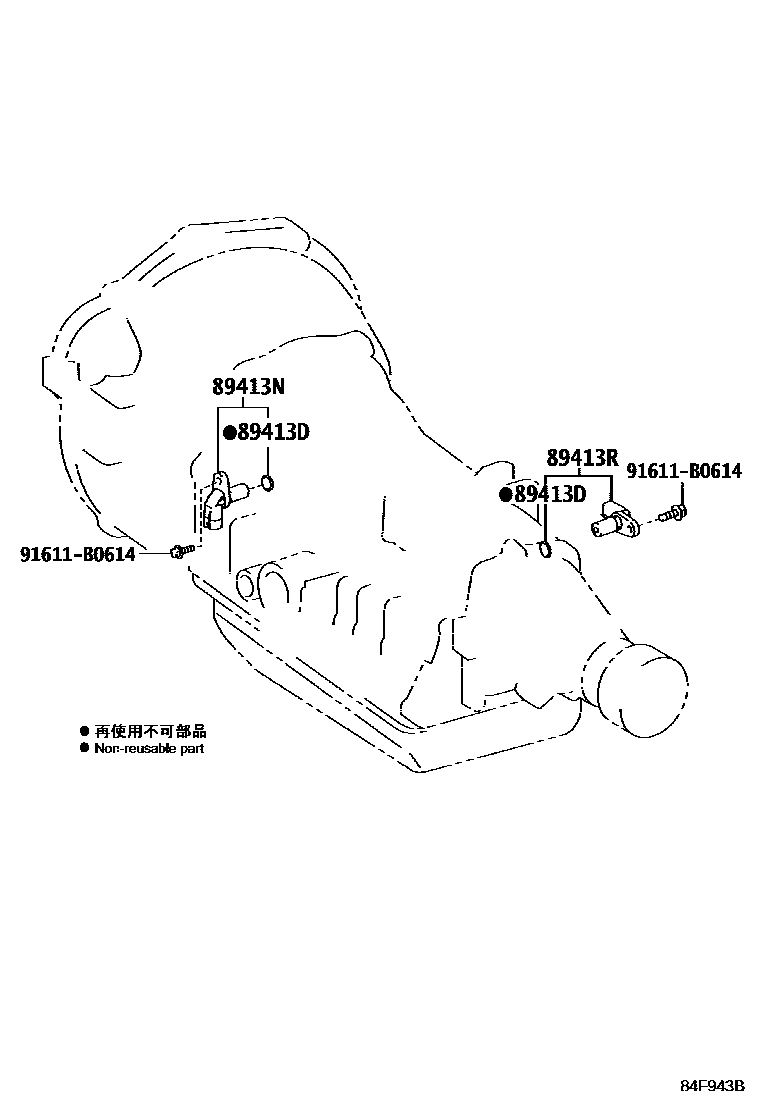

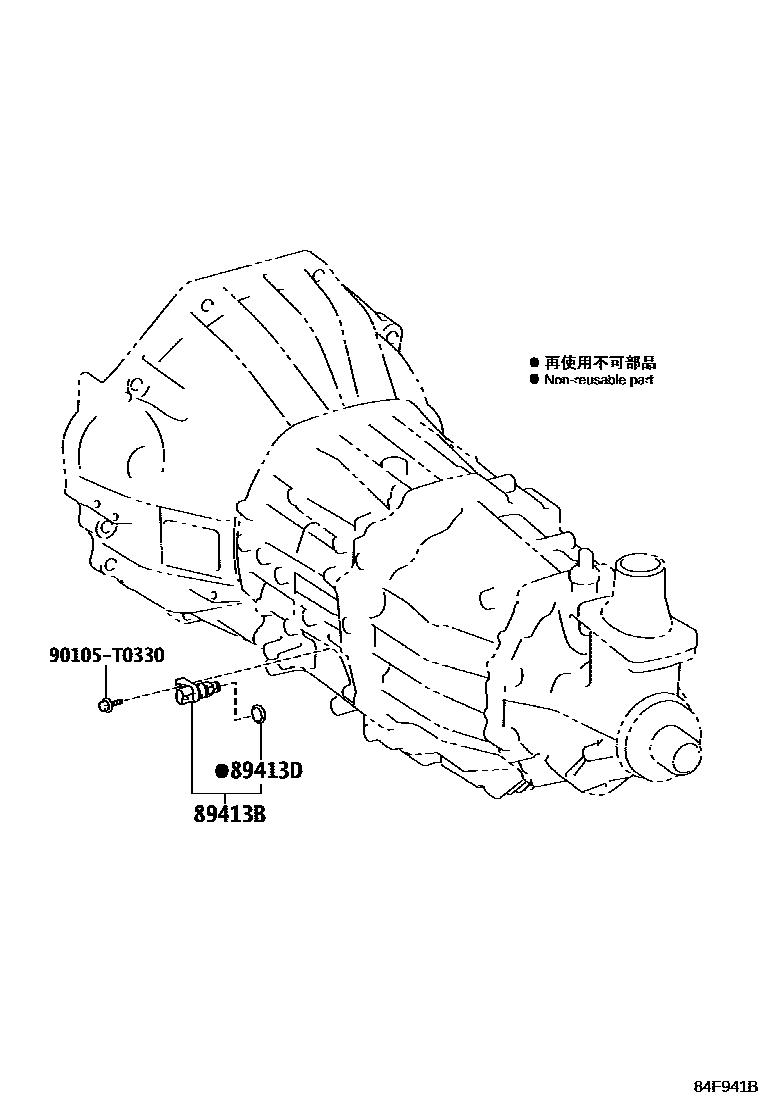

Toyota HILUX 超速档和电子控制变速器 — Figure 8410
Toyota HILUX EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89413B | Transmission speed sensor | 89413-28010 · 89413-28011 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
| 89413N | Transmission speed sensor (NT) | 89413-12020 · 89413-32010 |
| 89413R | Transmission speed sensor (SP2) | 89413-12020 · 89413-32010 |
