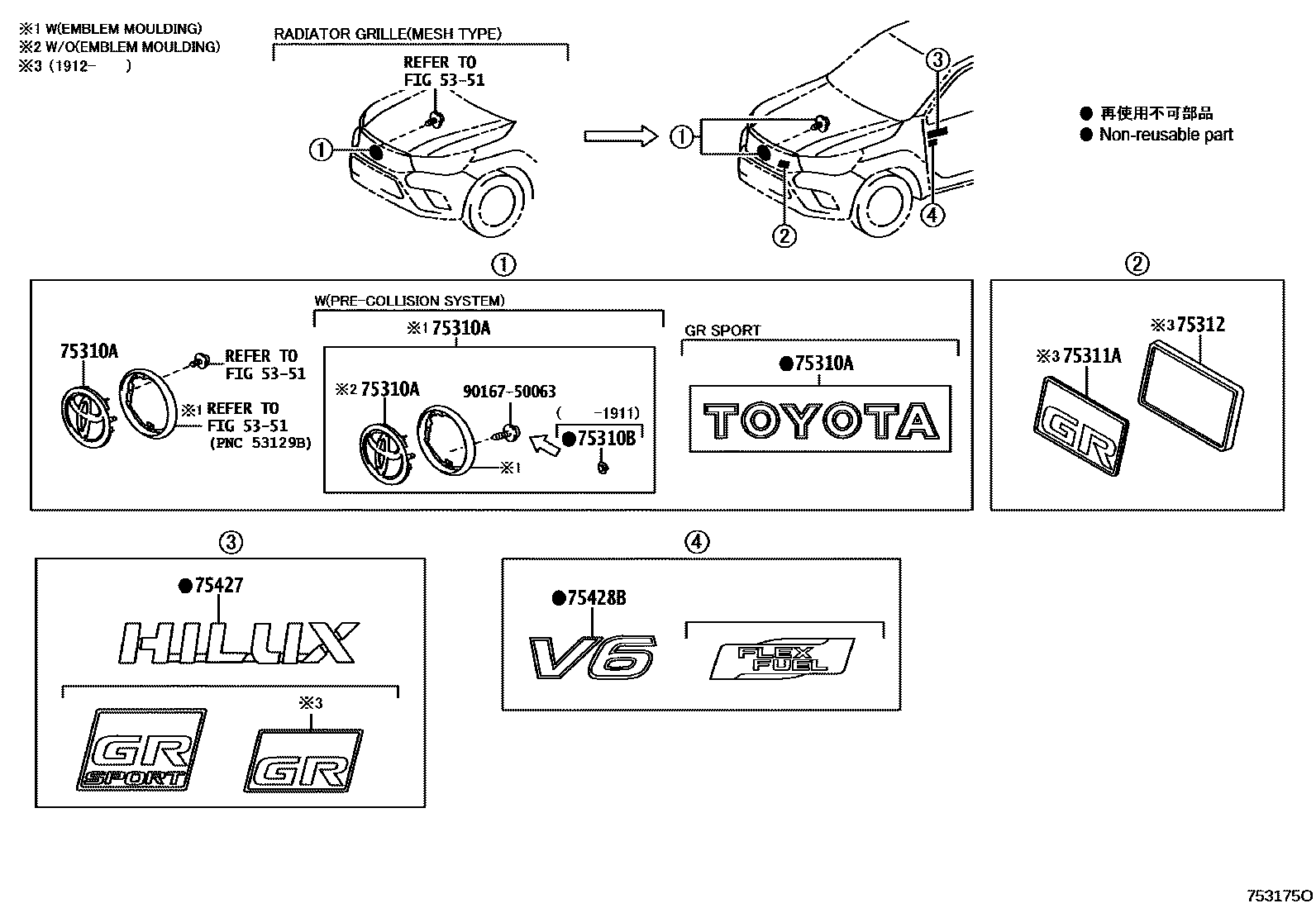

Toyota HILUX 徽标和铭牌 — Figure 7551
Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75310A | Radiator grille plate assembly | 53127-0K290 · 53127-0K310 · 53127-0K480 · 53127-0K490 · 53127-0K500 · 53127-0K510 · 53141-71010 · 75310-0K010 · 75310-0K030 · 75310-0K040 · 75310-0K060 · 75310-0K130 · 75310-YQ010 |
| 75310B | spring nut | 90183-06031 |
| 75311A | Front No. 1 nameplate | 75361-52070 |
| 75312 | Radiator grille plate base | 75310-YQ020 |
| 75427 | front door nameplate | 75361-52070 · 75427-0K030 · 75427-0K060 · 75427-0K080 · 75427-0K100 · 75427-0K150 · 75441-28830 |
| 75428B | Front door number plate No. 2 | 75428-0K031 · 75428-71010 |
| 75459 | Back door mark | 75441-28830 · 75459-0K011 · 75459-0K031 · 75459-0K051 · 75459-0K061 · 75459-0K081 · 75459-0K190 |
| 75459B | No. 2 back door mark | 75469-0K040 · 75469-0K050 · 75469-0K060 · 75469-0K070 · 75469-0K080 |
| 75471D | rear nameplate | 75427-0K090 · 75427-0K110 · 75427-0K120 · 75427-0K130 · 75427-0K140 |
| 75479A | No. 3 back door mark | 75479-0K011 |
