Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 10 images and 16 PNC and OE references.

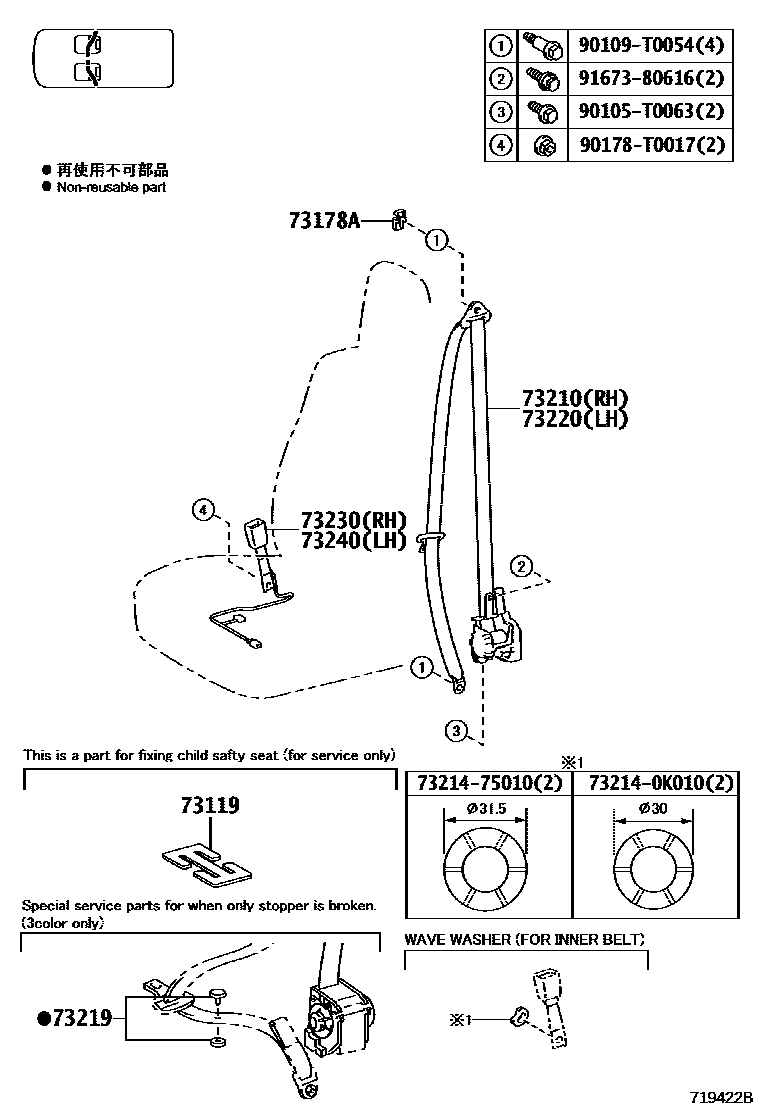

Toyota HILUX seat belt EPC diagram — 719422B
seat belt — 719422B (201505 – 999999)

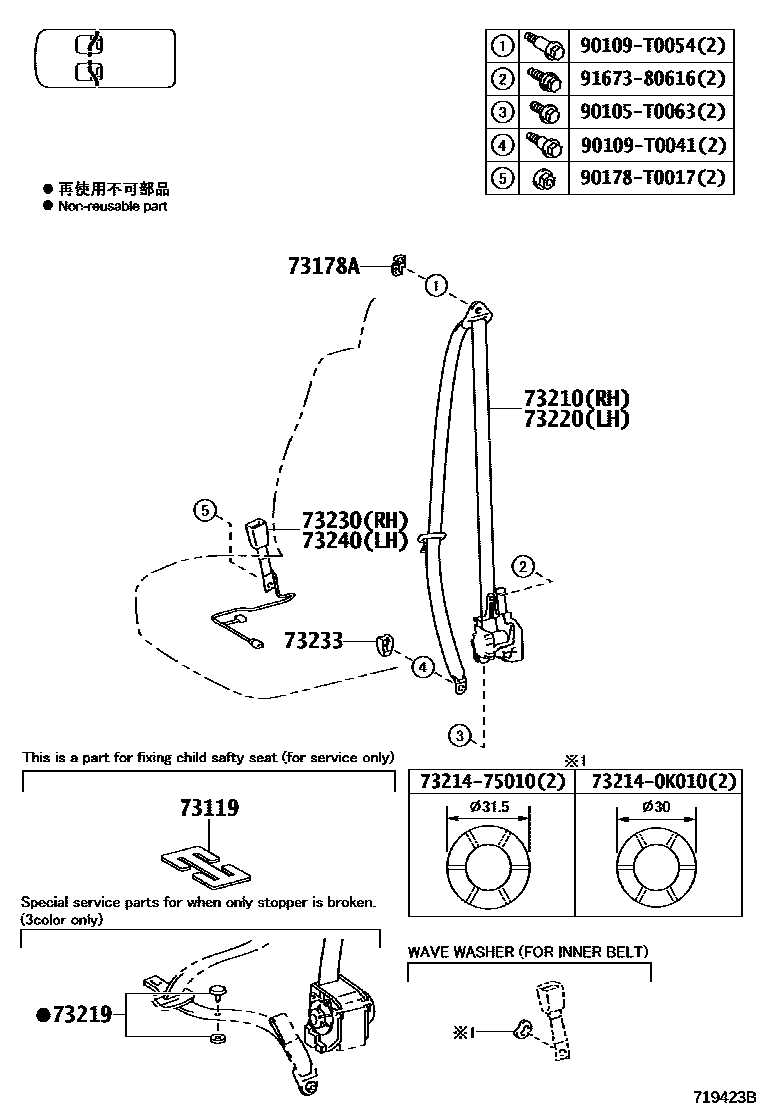

Toyota HILUX seat belt EPC diagram — 719423B
seat belt — 719423B (201506 – 999999)

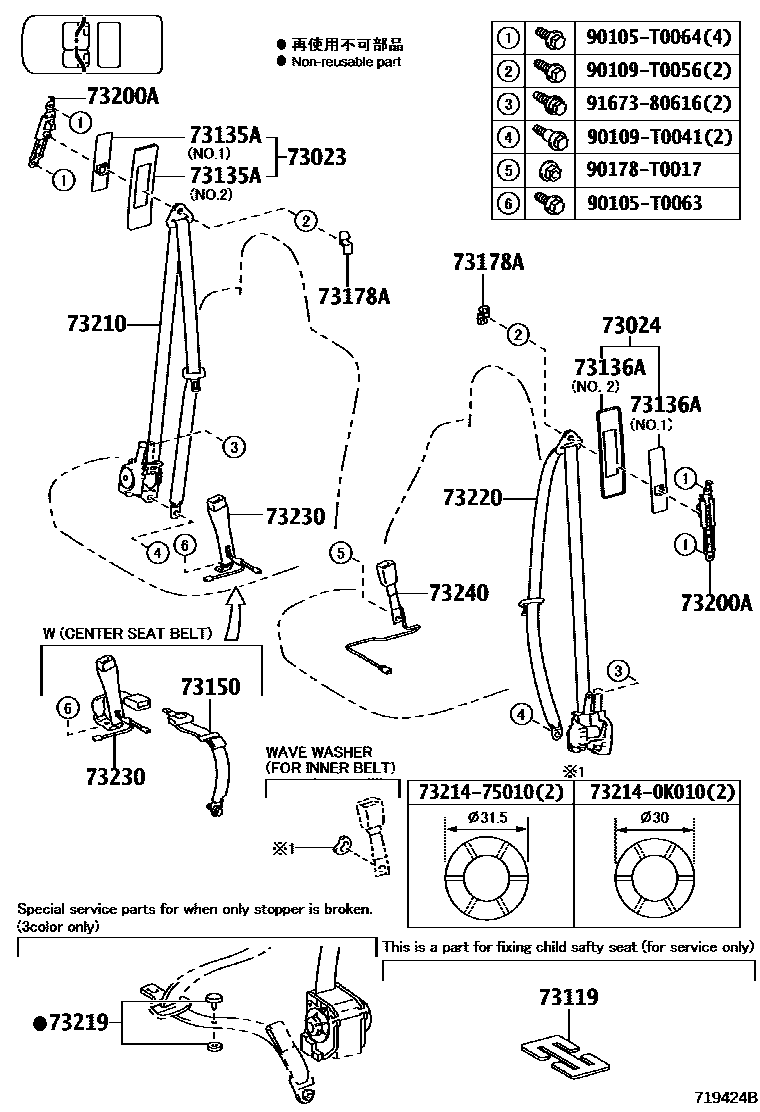

Toyota HILUX seat belt EPC diagram — 719424B
seat belt — 719424B (201505 – 999999)

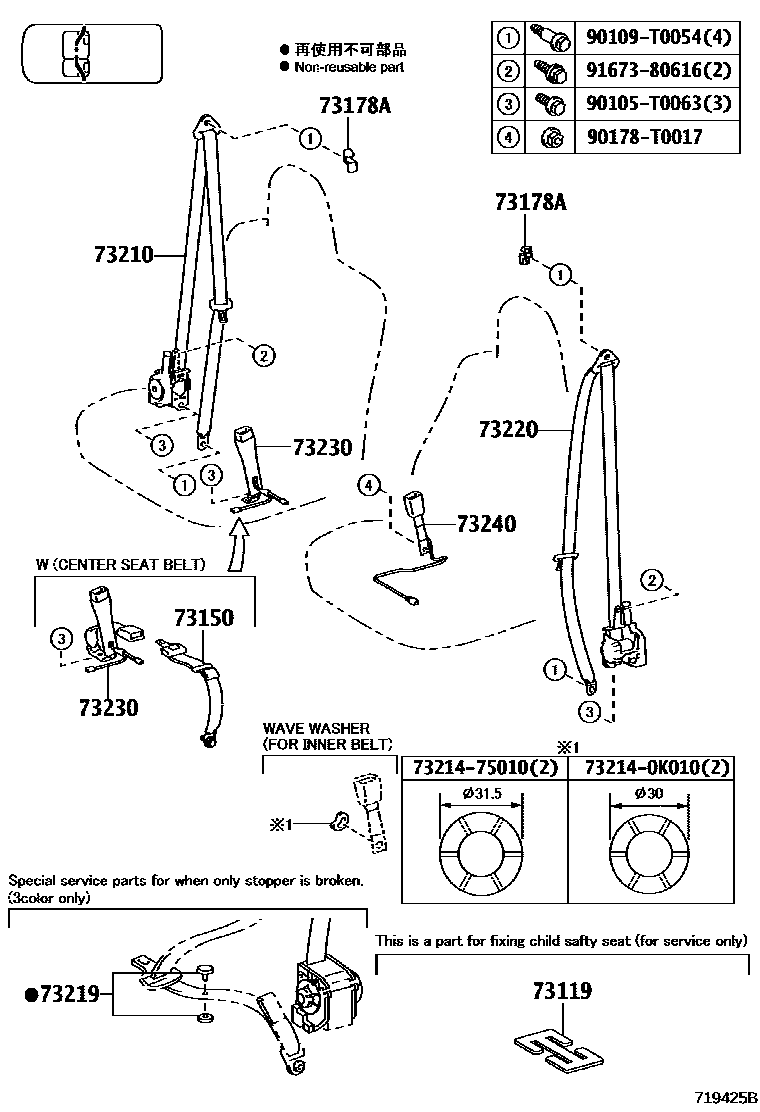

Toyota HILUX seat belt EPC diagram — 719425B
seat belt — 719425B (201505 – 999999)

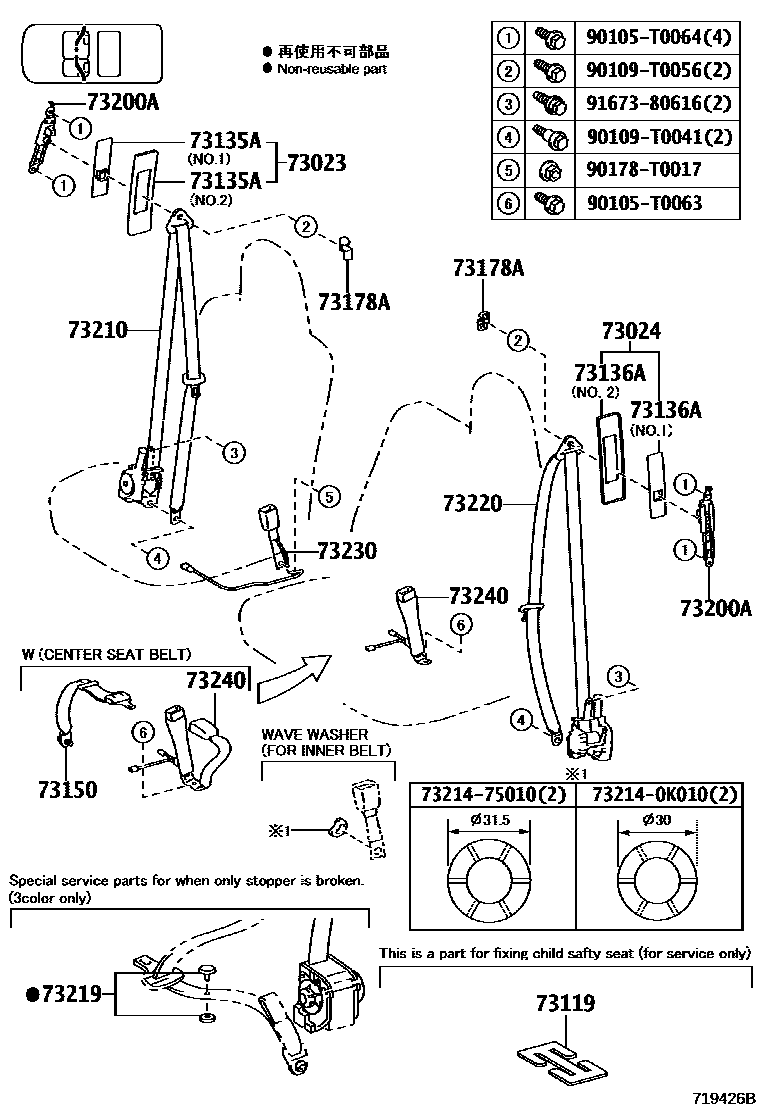

Toyota HILUX seat belt EPC diagram — 719426B
seat belt — 719426B (201505 – 999999)

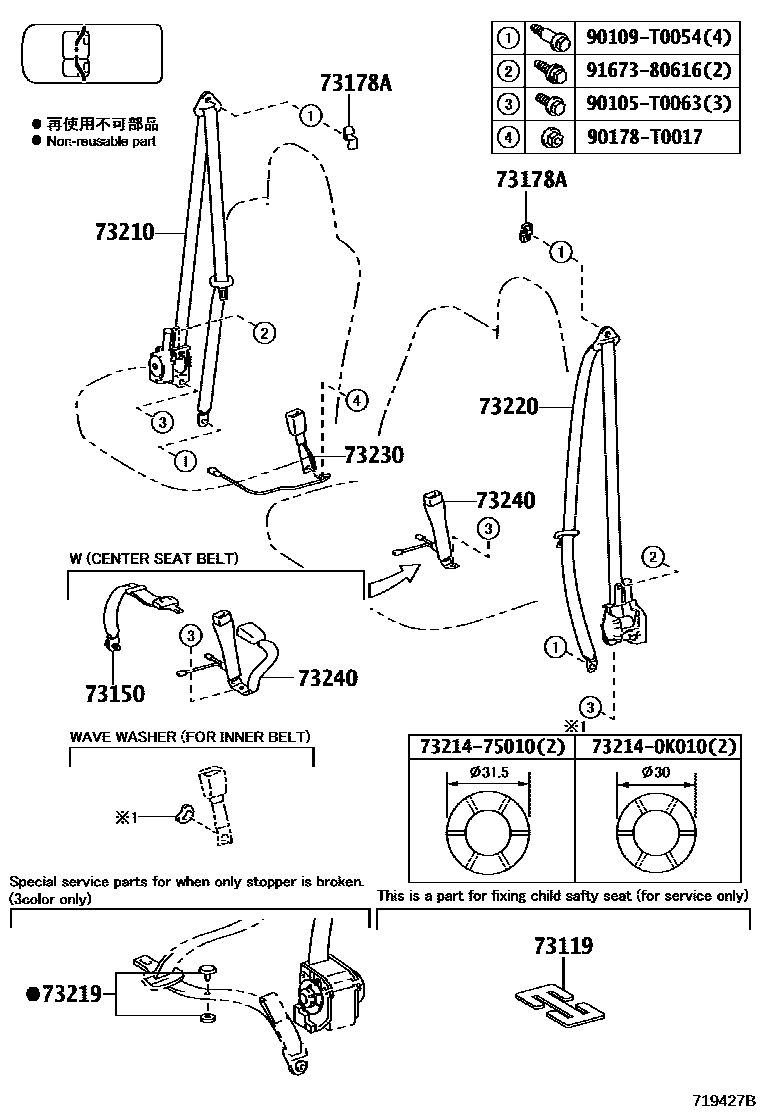

Toyota HILUX seat belt EPC diagram — 719427B
seat belt — 719427B (201505 – 999999)

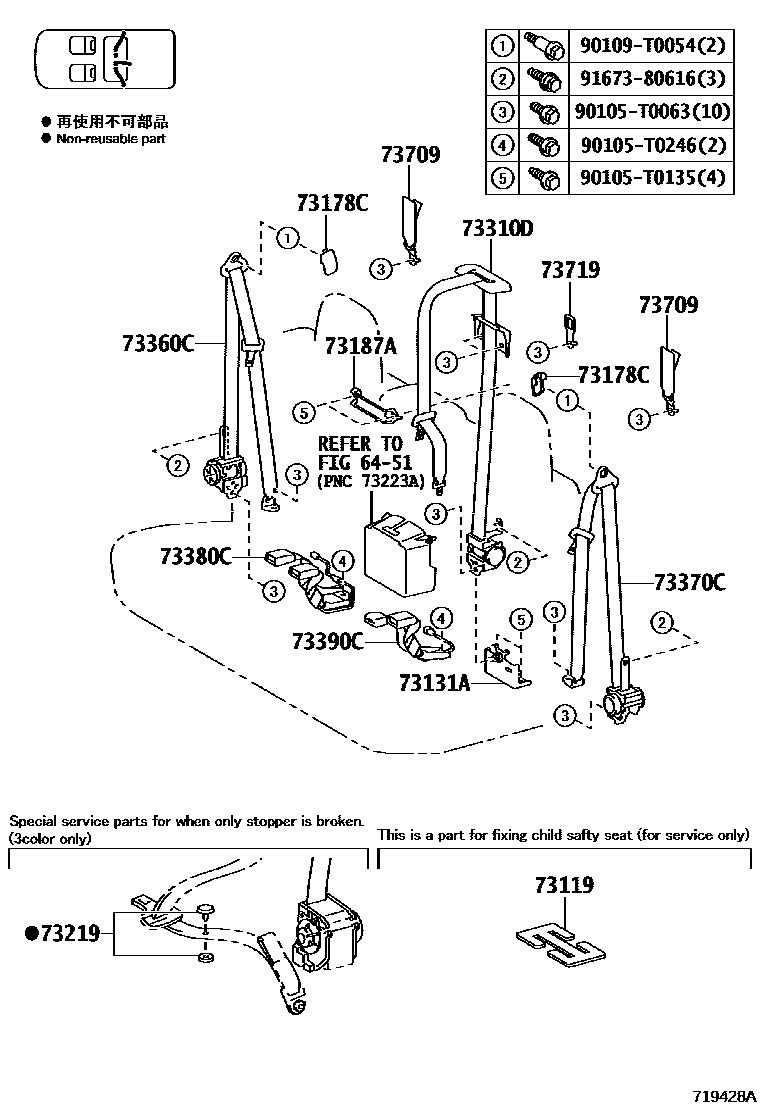

Toyota HILUX seat belt EPC diagram — 719428A
seat belt — 719428A (201505 – 999999)

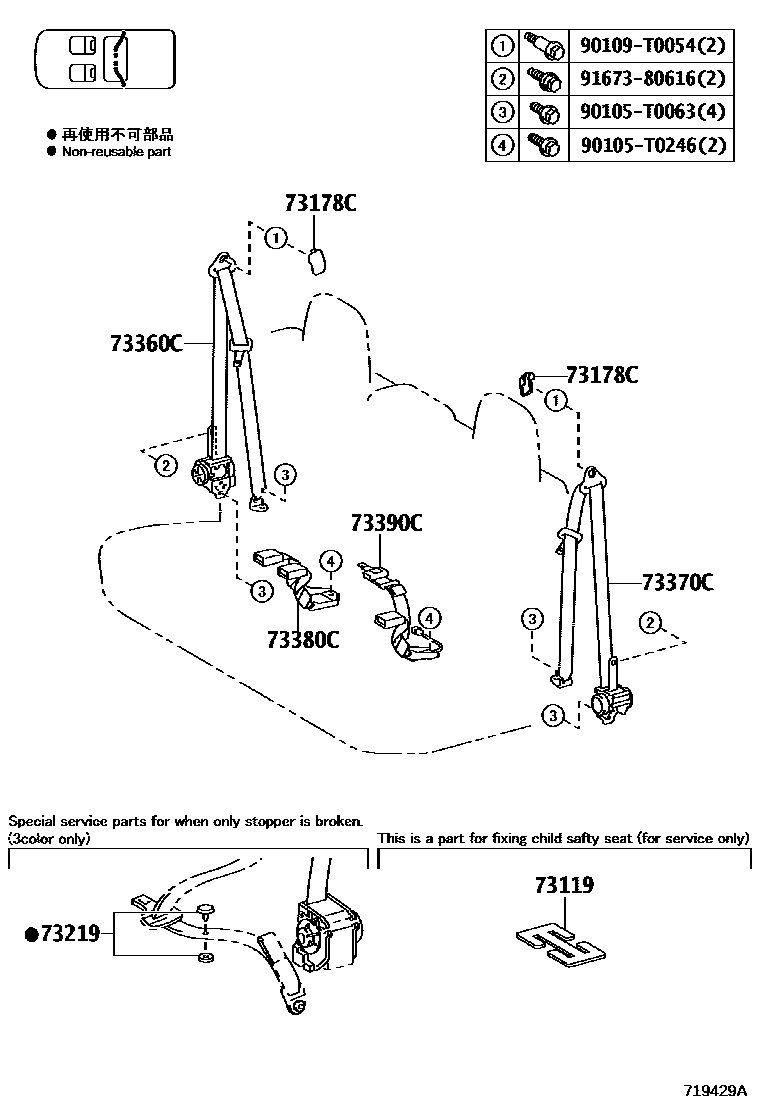

Toyota HILUX seat belt EPC diagram — 719429A
seat belt — 719429A (201505 – 999999)

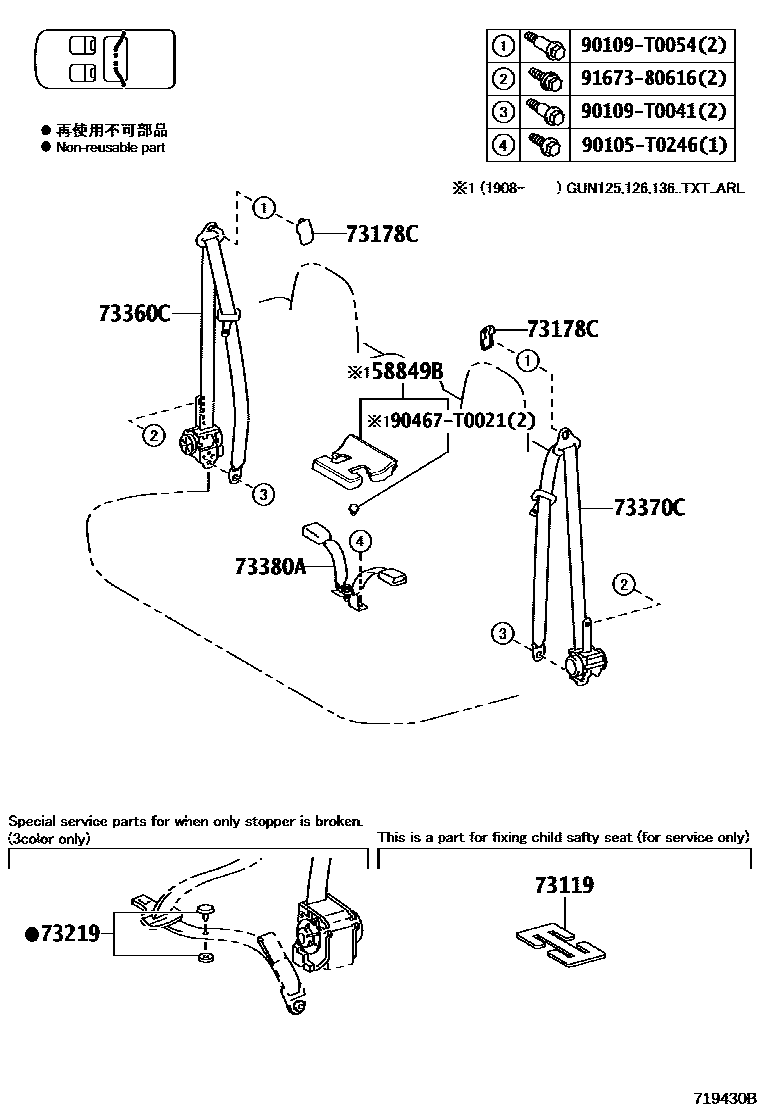

Toyota HILUX seat belt EPC diagram — 719430B
seat belt — 719430B (201506 – 999999)

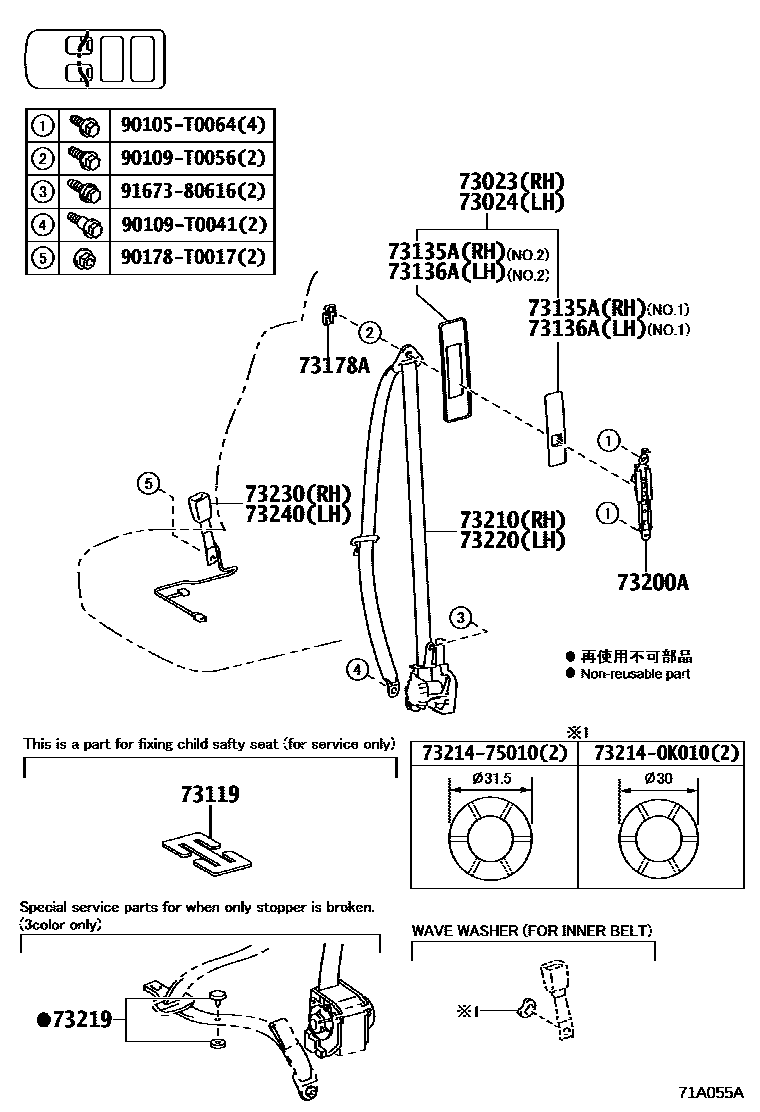

Toyota HILUX seat belt EPC diagram — 71A055A
seat belt — 71A055A (201505 – 999999)

PNC and OE references

PNCPart nameOE numbers
73119seat belt clip73119-22010
73131Aseat belt bracket73131-0K010 · 73131-0K020
73135ARight seat shoulder belt anchor cover73023-KK010
73187ARear seat shoulder belt guides73187-KK020
73210Front right seat outer seat belt assembly73210-0KB90
73219Tongue plate stop73219-33010 · 73219-33020 · 73219-33030
73220Front left seat outer seat belt assembly73220-0K810
73230Front right seat inner seat belt assembly73230-0KA70
73240Front left seat inner seat belt assembly73230-0KA10 · 73230-0KA40
73360CRear right seat No. 1 outer seat belt assembly73360-0K400
73370CRear left seat No. 1 outer seat belt assembly73360-0K400
73380ASeat belt assembly in rear seat73380-0K360
73380CSeat belt assembly in seat No. 1 on the right side of the rear row73380-0K390 · 73380-0K400
73390CSeat belt assembly in rear left seat No. 173390-0K230 · 73390-0K251 · 73390-0K300
73709Tie anchor bracket sub-assembly73709-0K010 · 73709-0K020 · 73709-0K030
73719Child restraint seat tether anchor bracket73719-0K010 · 73719-0K020 · 73719-0K030
