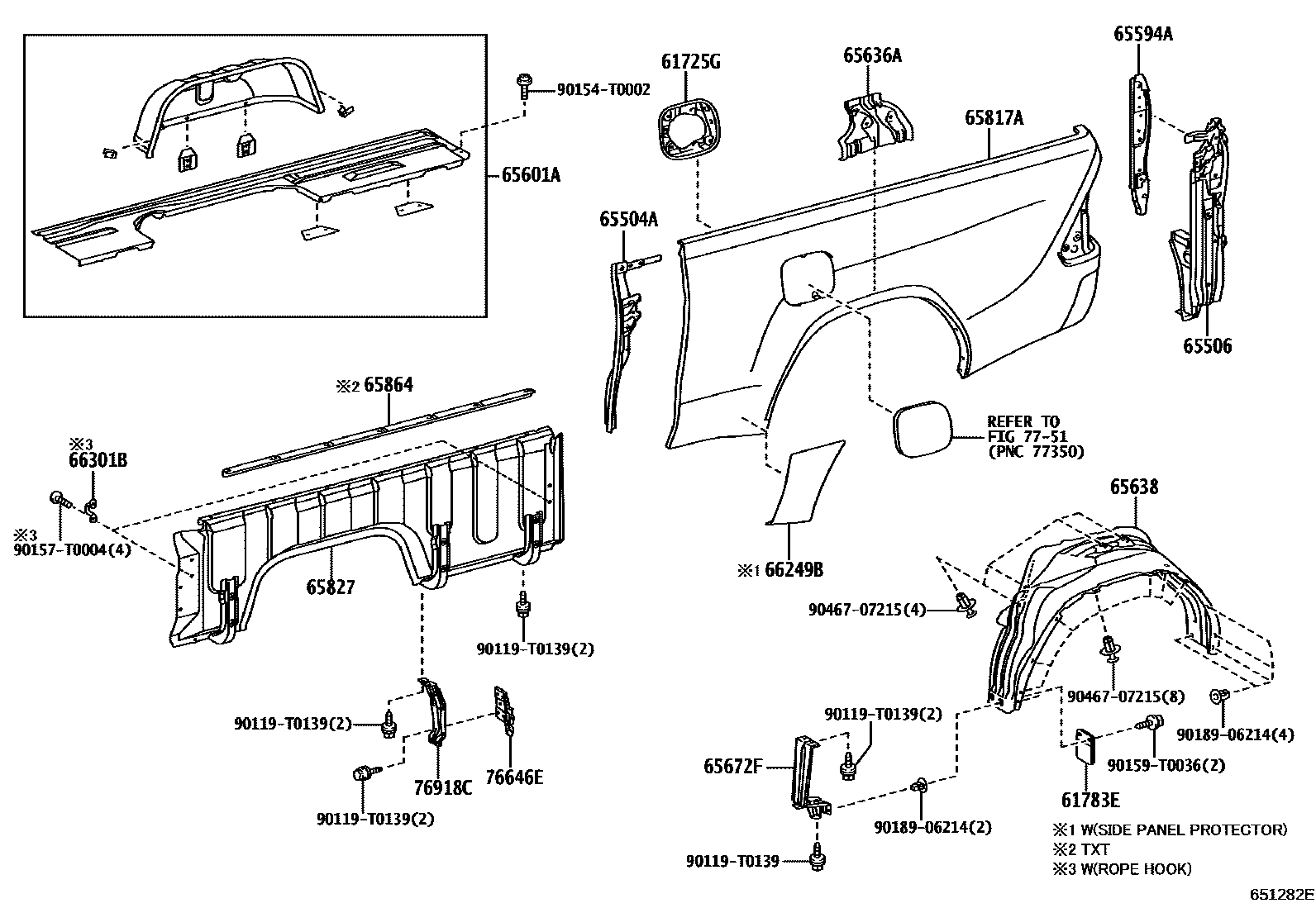

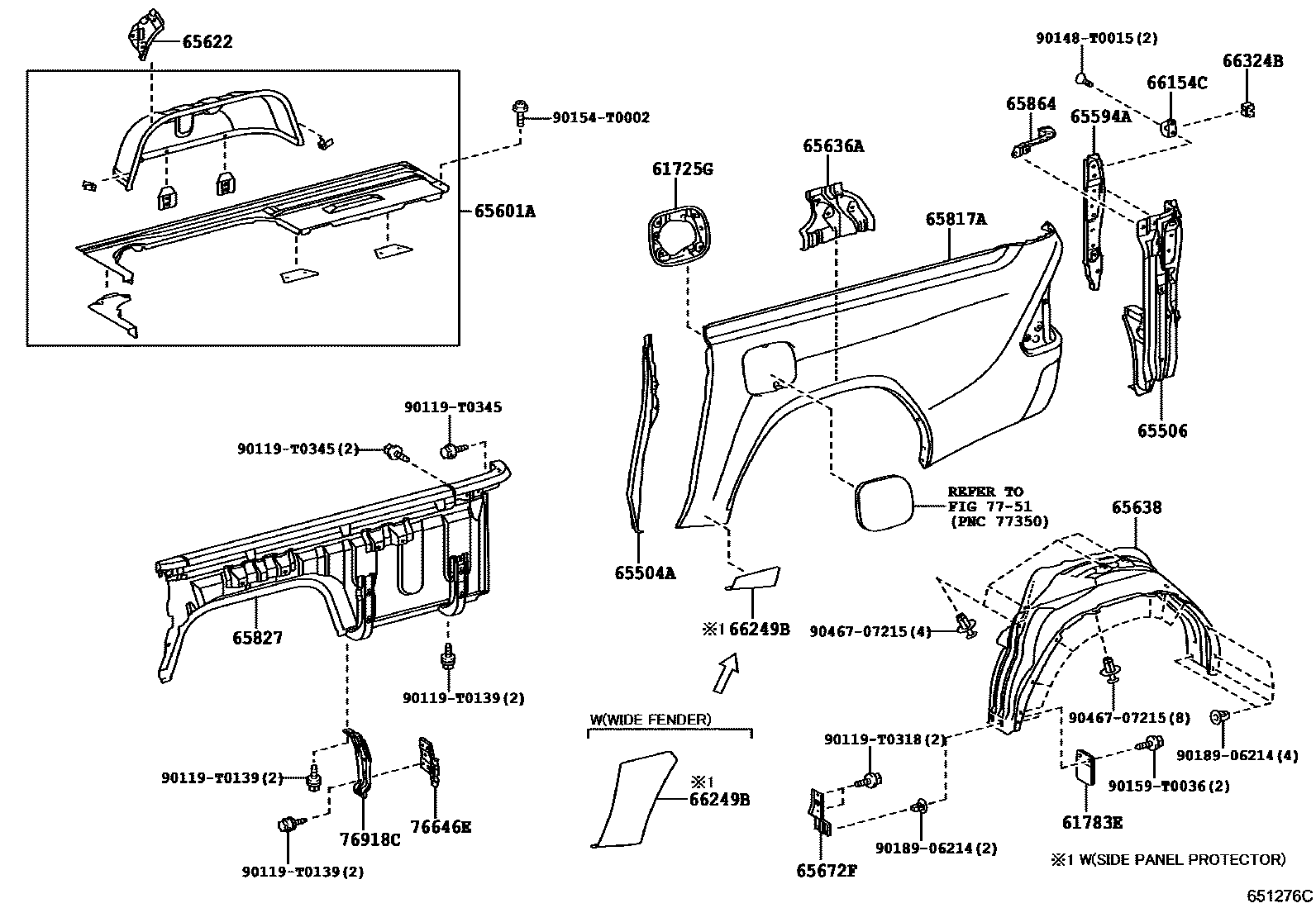

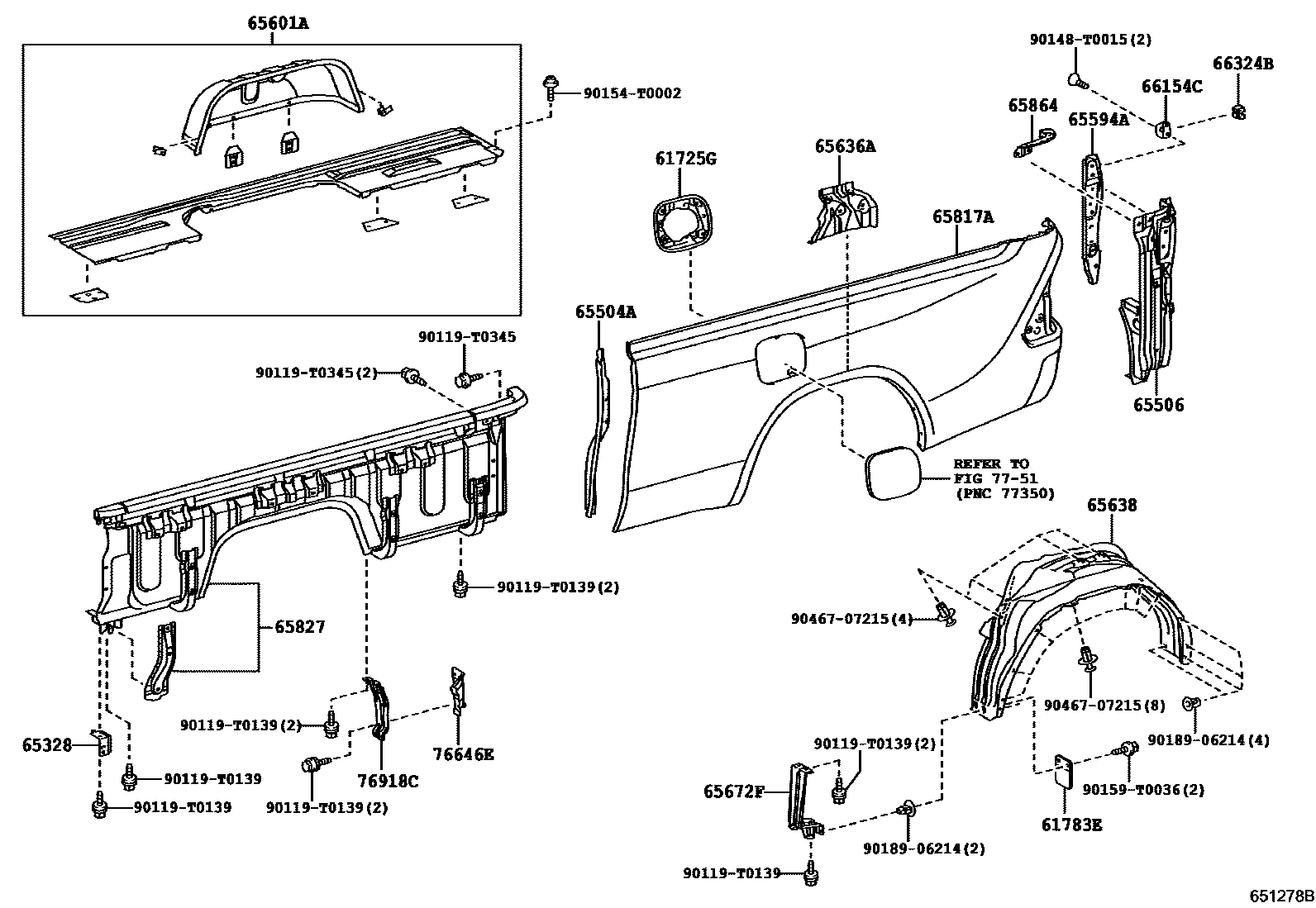

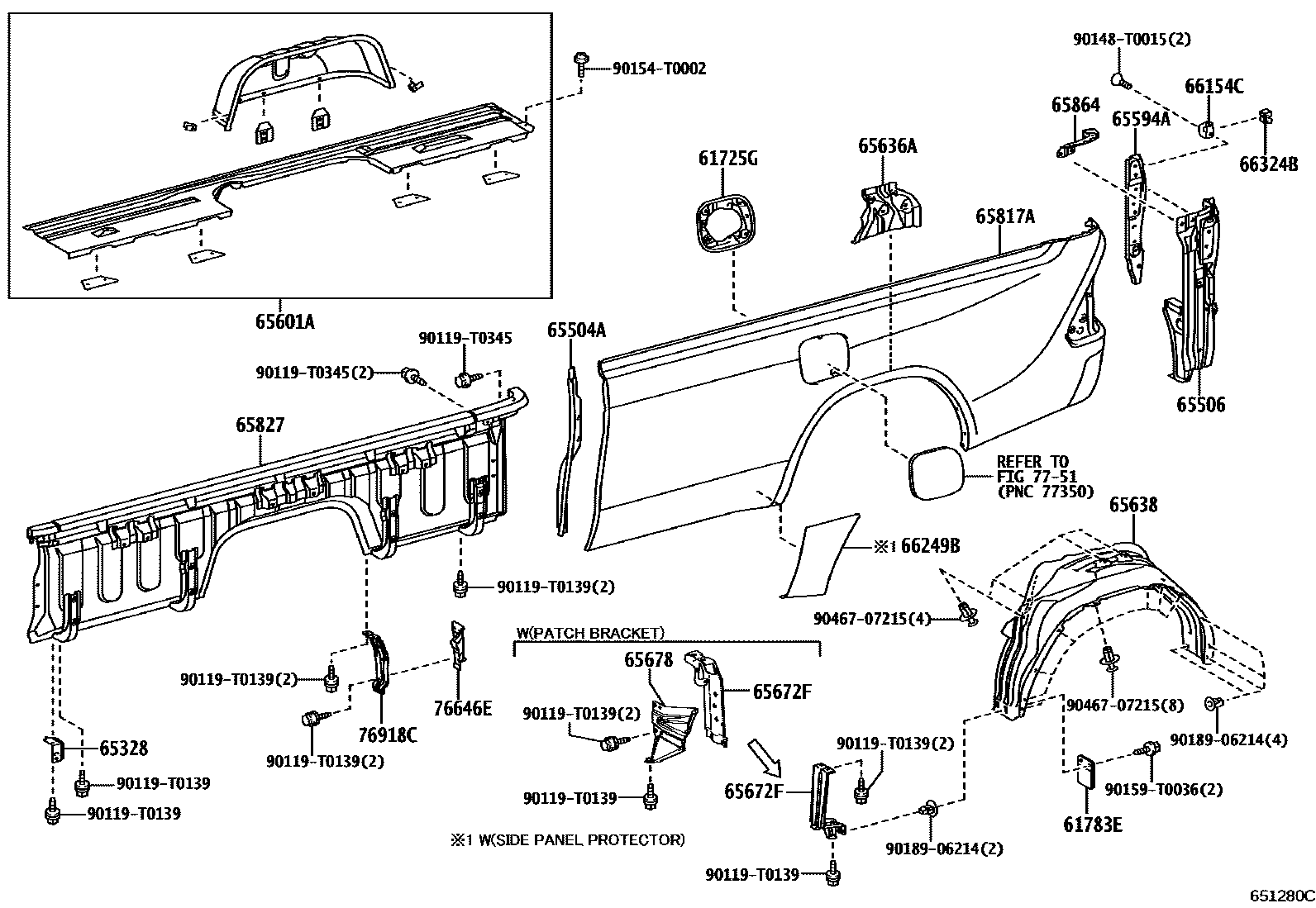

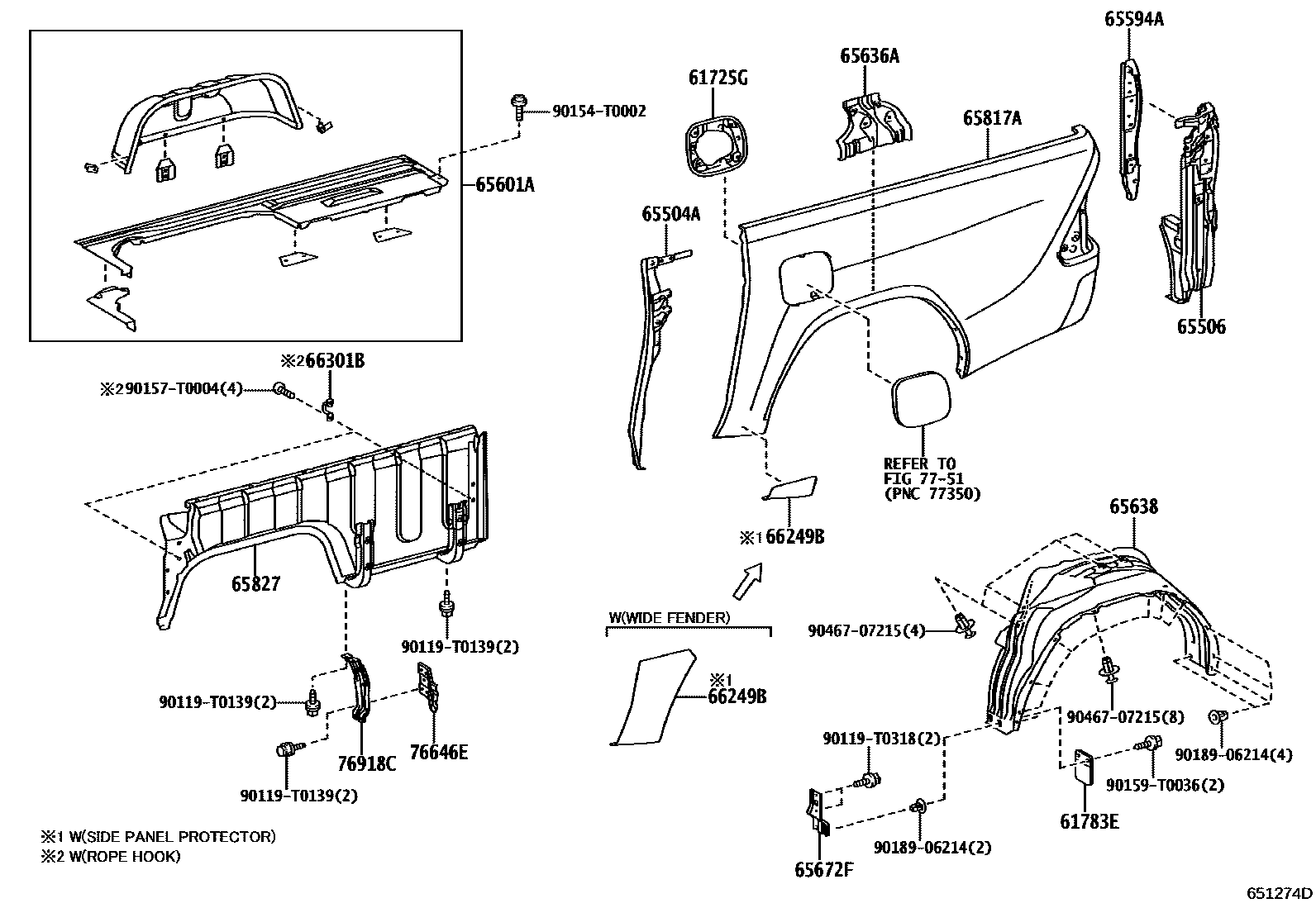

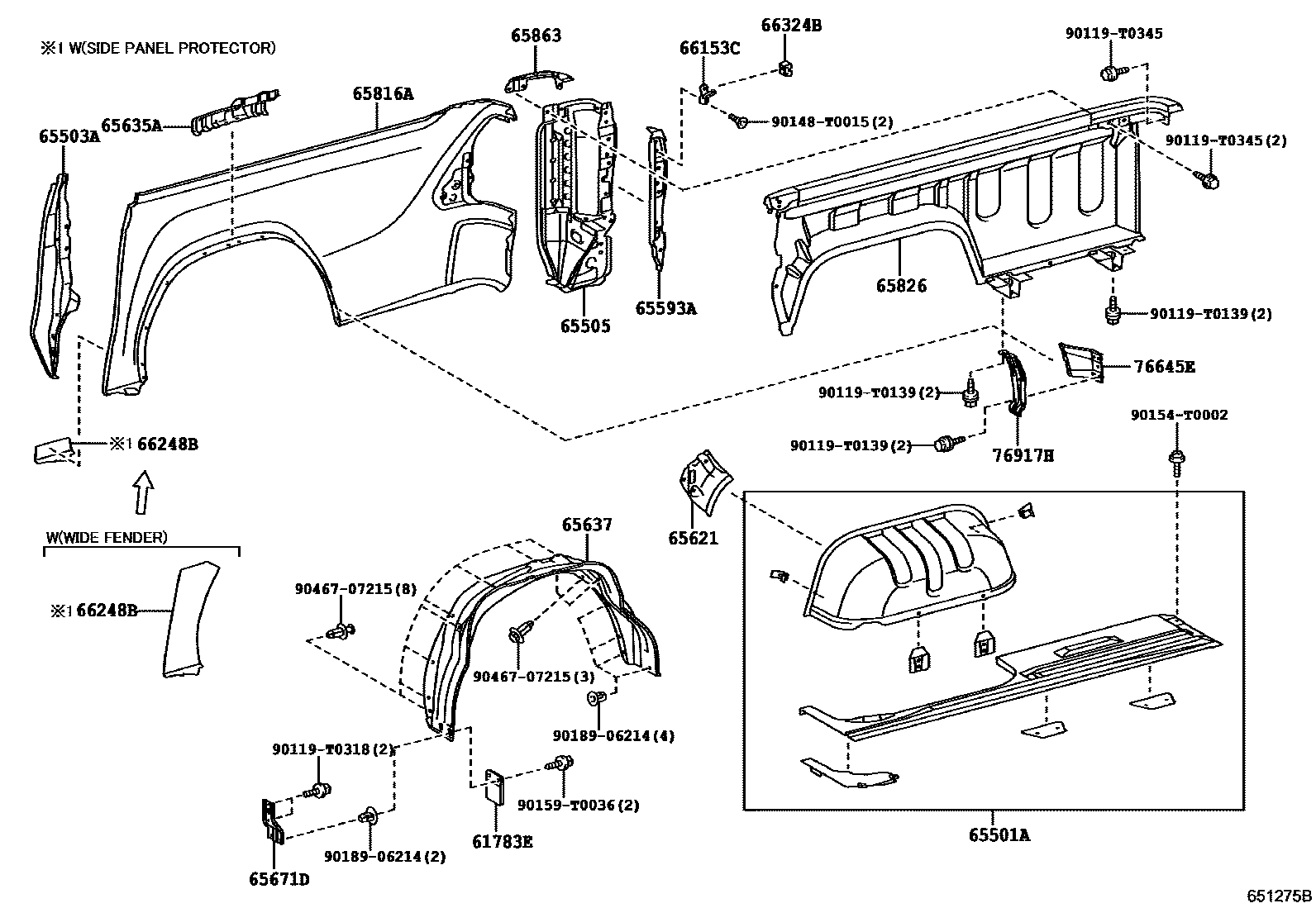

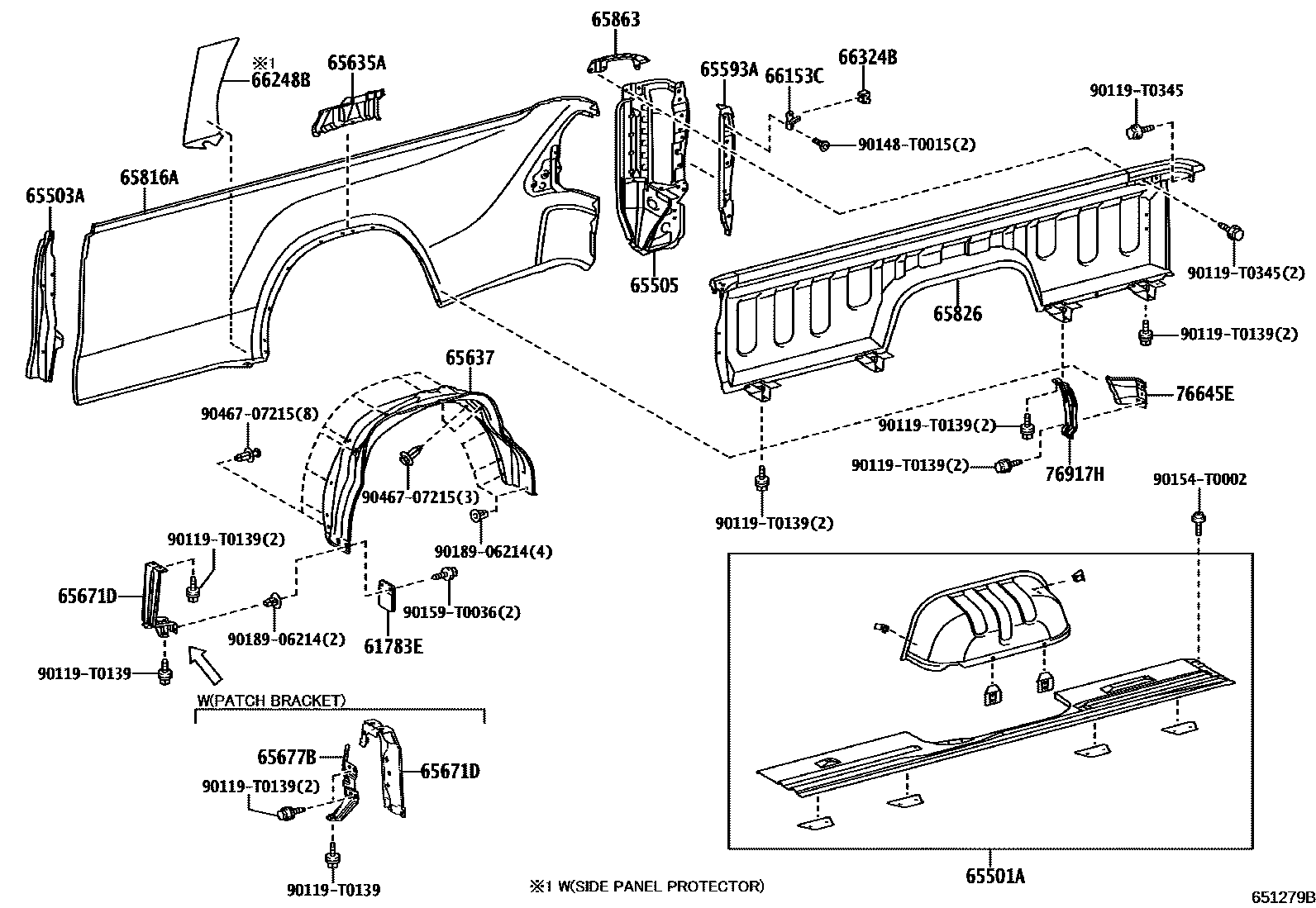

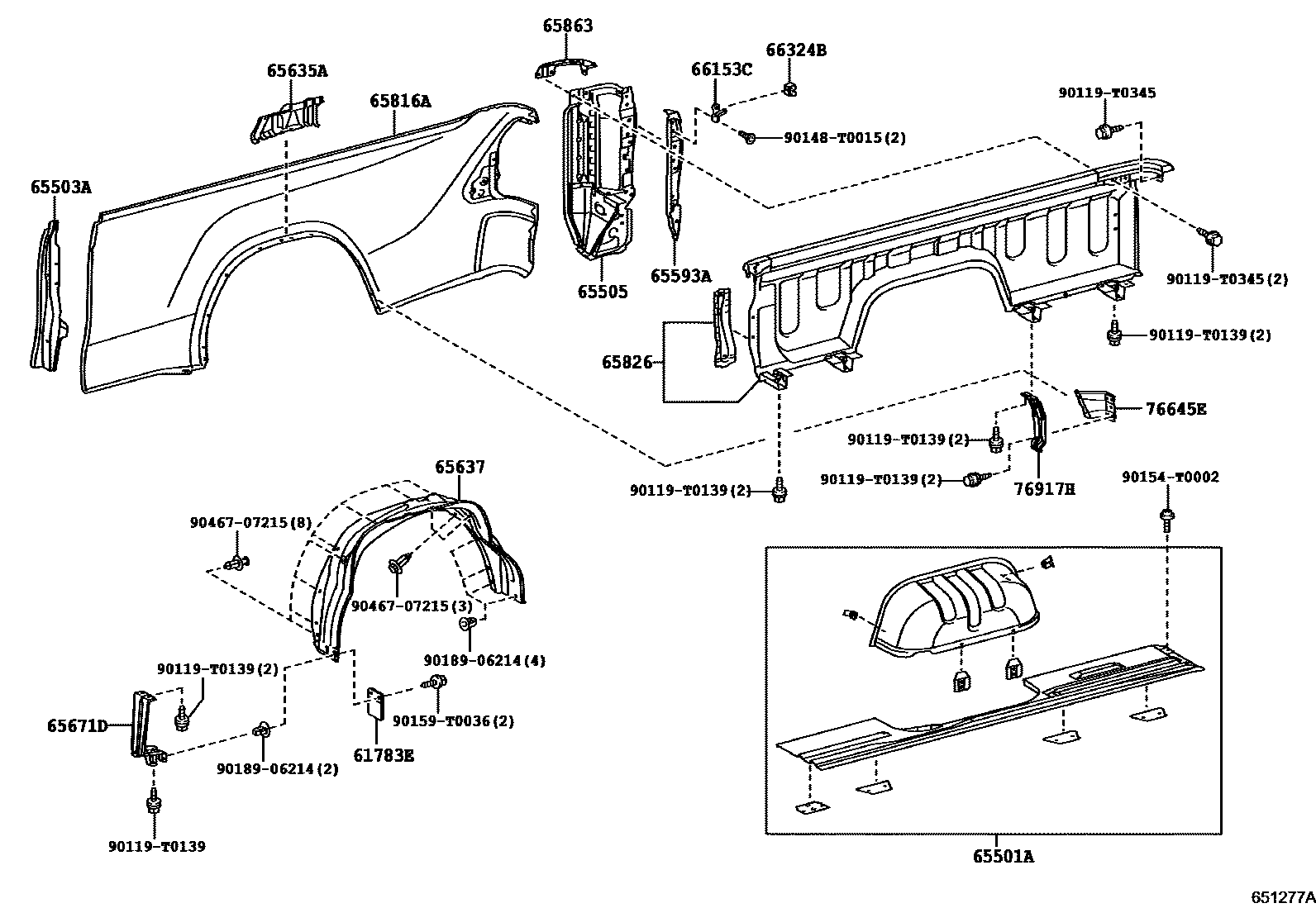

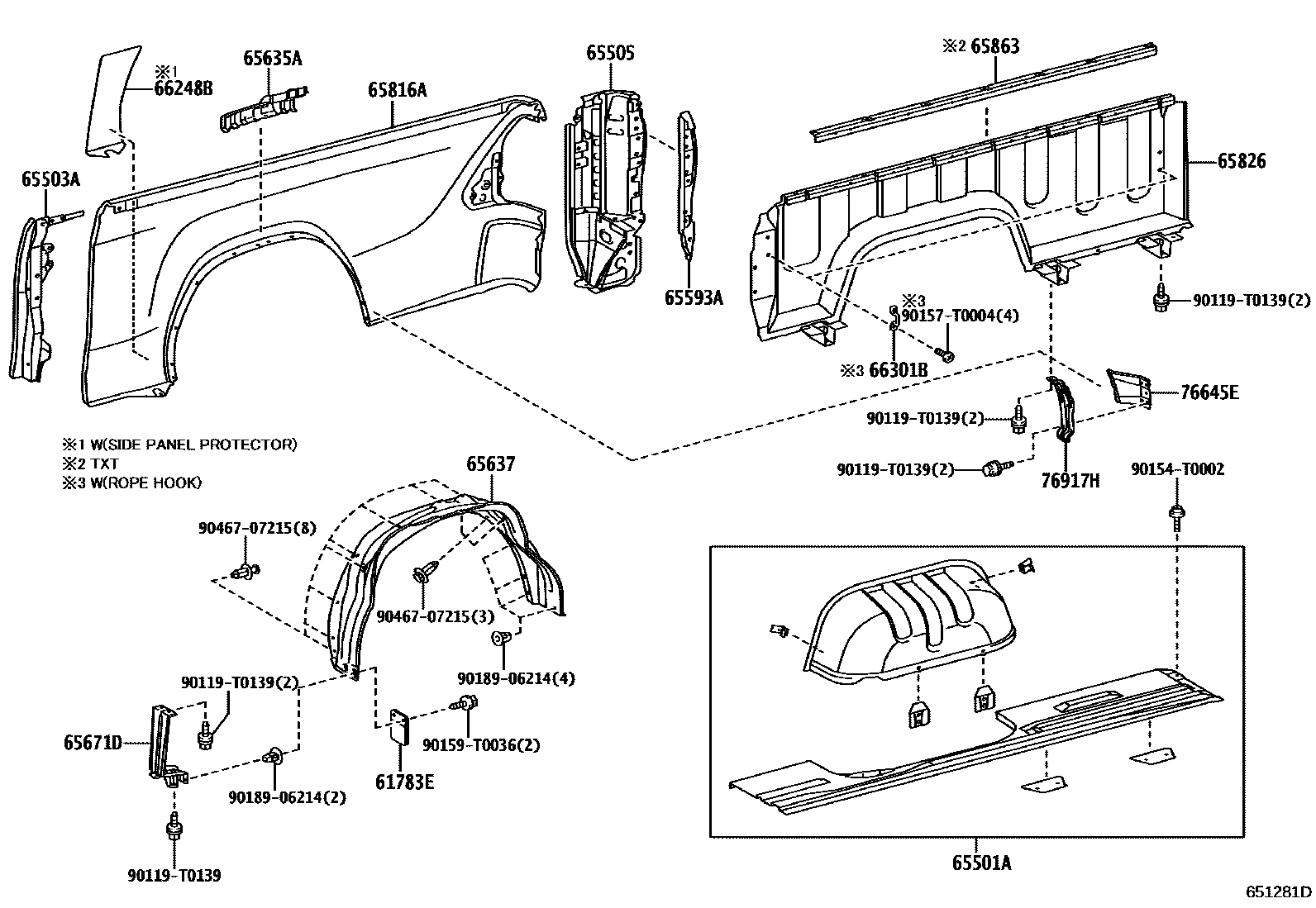

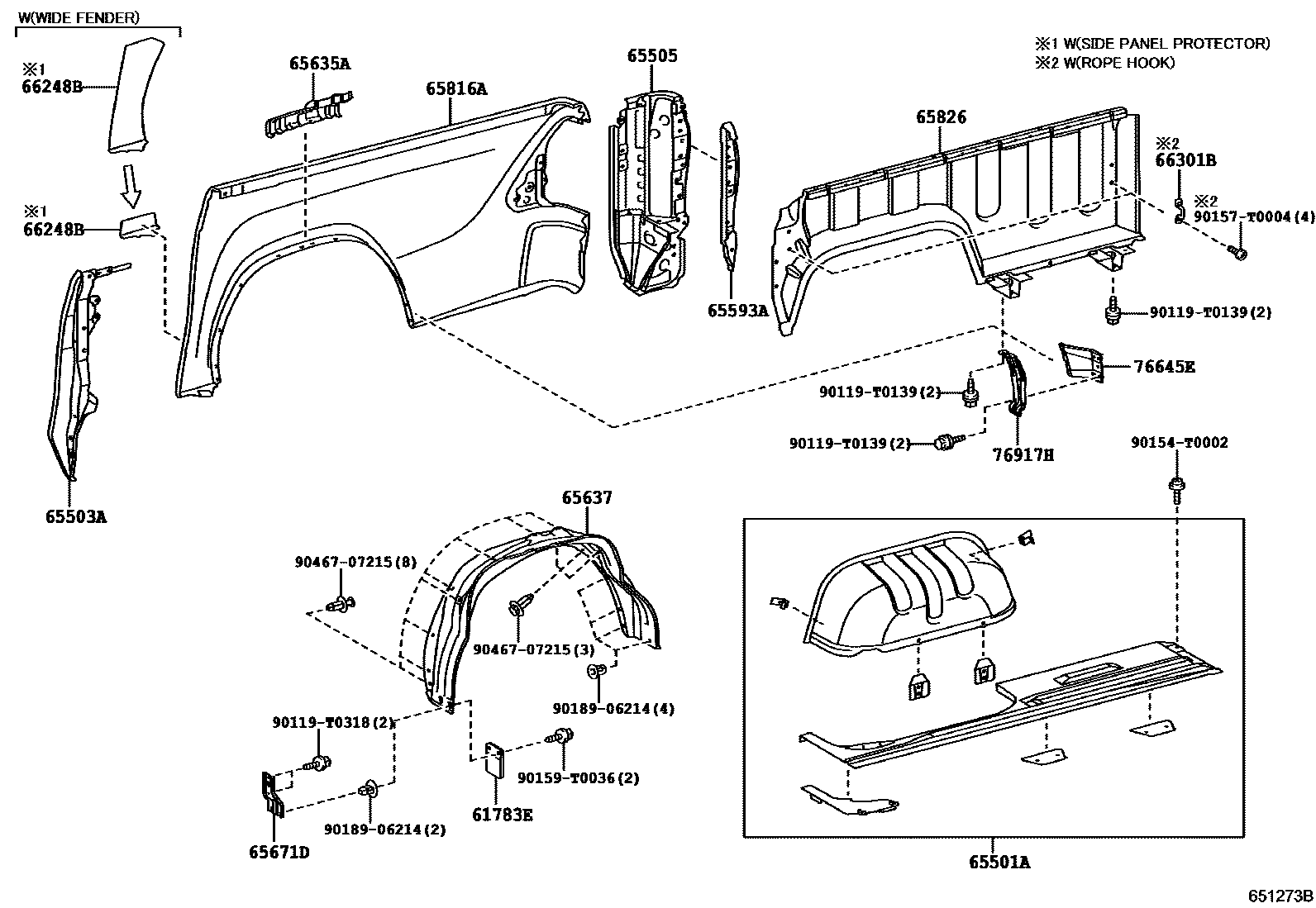

Toyota HILUX 后车身侧面板 — Figure 6554
Toyota HILUX EPC diagram 6554, 后车身侧面板, with 10 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61725G | No. 1 fuel inlet | 61725-KK010 · 61725-KK020 |
| 61783E | No. 1 rear fender outer panel pad | 61783-0K160 · 61783-0K180 |
| 65328 | Floor left panel | 65328-KK010 |
| 65501A | Right rear body side panel sub-assembly | 65501-KK900 · 65501-KK901 · 65501-KK902 · 65501-KK903 |
| 65503A | Right side panel front end column sub-assembly | 65503-KK010 · 65503-KK050 · 65551-KK030 · 65551-KK060 |
| 65504A | Left side panel front end column sub-assembly | 65504-KK010 · 65504-KK050 · 65552-KK030 · 65552-KK060 |
| 65505 | Right side panel rear end column sub-assembly | 65505-KK010 · 65505-KK030 · 65505-KK040 · 65505-KK050 |
| 65506 | Left side panel rear end column sub-assembly | 65506-KK010 · 65506-KK030 · 65506-KK040 · 65506-KK050 |
| 65593A | Right side panel rear end column inner panel | 65593-KK010 · 65593-KK020 |
| 65594A | Left side panel rear end column inner panel | 65594-KK010 · 65594-KK020 |
| 65601A | Left rear body side panel sub-assembly | 65601-KK900 · 65601-KK901 · 65601-KK902 · 65601-KK904 |
| 65621 | Right front side panel skirt | 65621-KK010 |
| 65622 | Left front side panel skirt | 65622-KK010 |
| 65635A | Right rear wheel housing panel | 65635-KK010 · 65635-KK020 |
| 65636A | Left rear wheel housing panel | 65636-KK010 · 65636-KK020 |
| 65637 | Right rear wheel house lining | 65637-0K070 · 65637-0K080 · 65637-0K090 · 65637-0K100 · 65637-0K120 · 65637-0K130 |
| 65638 | Left rear wheel house lining | 65638-0K070 · 65638-0K080 · 65638-0K090 · 65638-0K100 · 65638-0K120 · 65638-0K130 |
| 65671D | Right front side panel skirt bracket | 65608-KK010 · 65608-KK050 · 65671-KK010 |
| 65672F | Left front side panel skirt bracket | 65609-KK010 · 65609-KK050 · 65672-KK010 |
| 65677B | Right rear wheel house lining | 65677-KK040 |
| 65678 | Left rear wheel house lining | 65678-KK040 |
| 65816A | Right rear body side panel | 65816-KK010 · 65816-KK020 · 65816-KK030 · 65816-KK040 · 65816-KK050 · 65816-KK060 · 65816-KK070 · 65816-KK080 · 65816-KK090 |
| 65817A | Left rear body side panel | 65817-KK010 · 65817-KK020 · 65817-KK030 · 65817-KK040 · 65817-KK050 · 65817-KK060 · 65817-KK070 · 65817-KK080 · 65817-KK090 |
| 65826 | Right rear body inner panel | 65826-KK900 · 65826-KK901 · 65826-KK902 · 65826-KK903 · 65826-KK904 |
| 65827 | Left rear body inner panel | 65827-KK900 · 65827-KK902 · 65827-KK903 · 65827-KK904 · 65827-KK905 |
| 65863 | Right rear body upper side panel | 65863-KK010 · 65863-KK020 |
| 65864 | Left rear body upper side panel | 65864-KK010 · 65864-KK020 |
| 66153C | Rear door latch No. 1 right hook | 66153-KK020 |
| 66154C | Rear door latch No. 1 left hook | 66154-KK020 |
| 66248B | Right rear body side panel protector | 58745-0K040 · 58745-0K050 · 58745-0K070 · 58745-0K110 · 58745-0K130 · 58745-0K150 |
| 66249B | Left rear body side panel protector | 58746-0K030 · 58746-0K040 · 58746-0K060 · 58746-0K110 · 58746-0K130 · 58746-0K150 |
| 66301B | Rope hook sub-assembly | 66312-0K010 · 66312-0K020 |
| 66324B | Back door side cushion | 66324-0K020 · 66324-0K030 |
| 76645E | Right rear body fender bracket | 76645-KK010 · 76645-KK020 |
| 76646E | Left rear body fender bracket | 76646-KK010 · 76646-KK020 |
| 76917H | Right rear fender | 76607-KK010 |
| 76918C | Left rear fender | 76607-KK010 |
