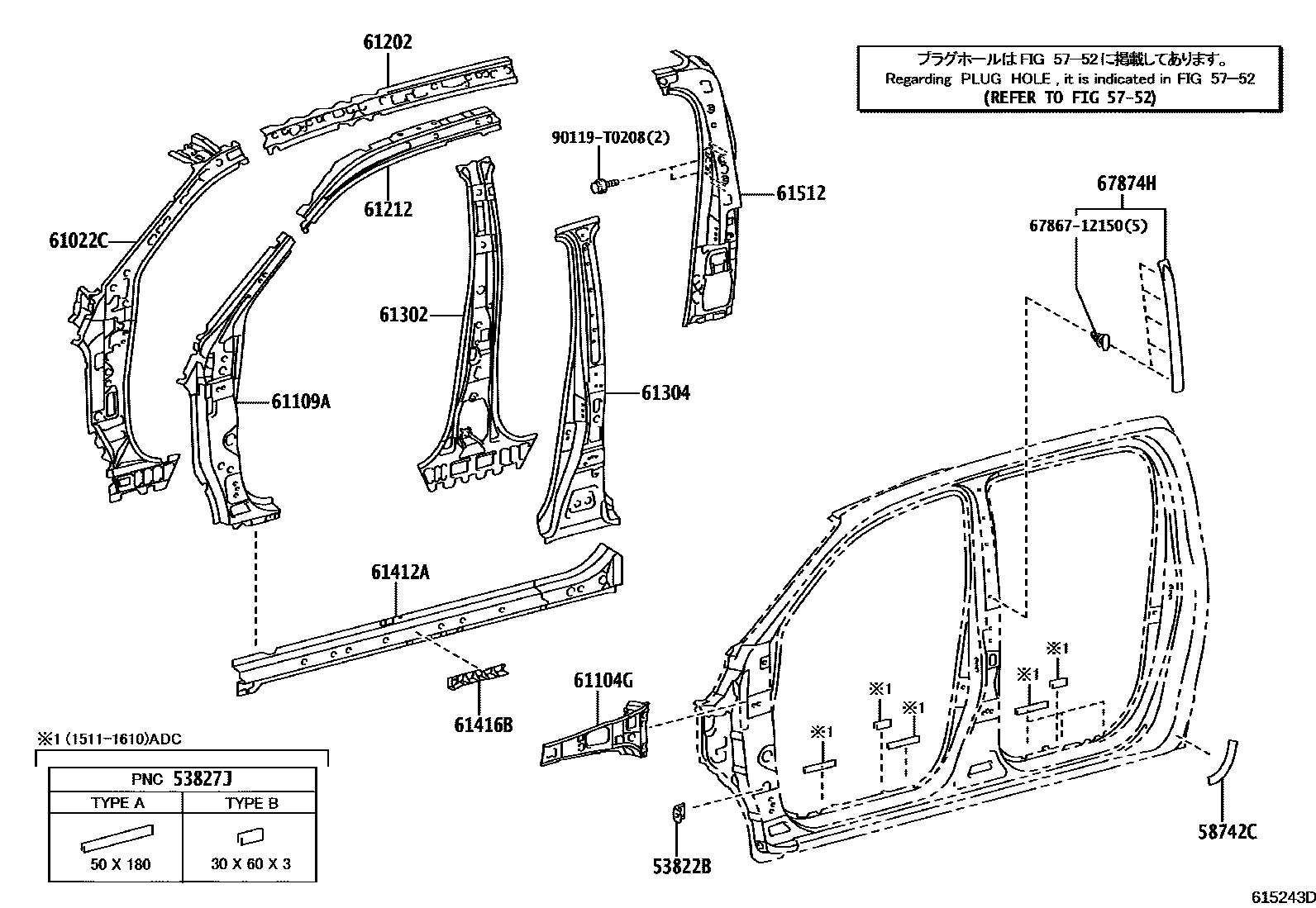

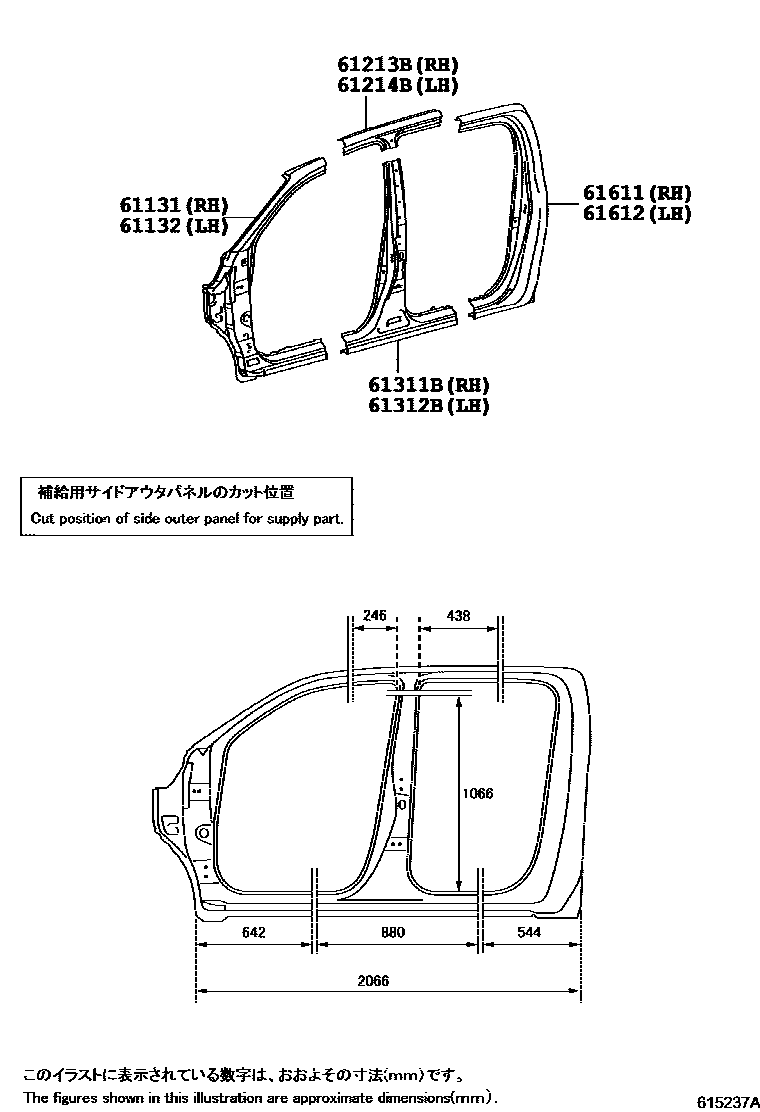

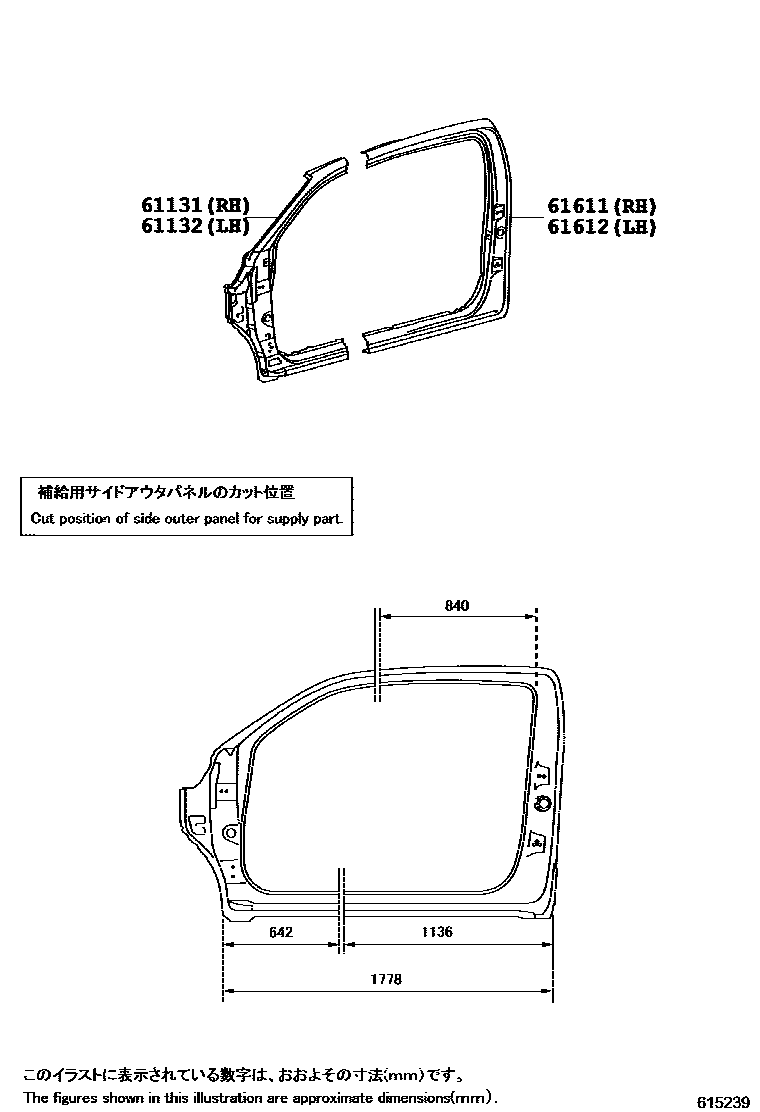

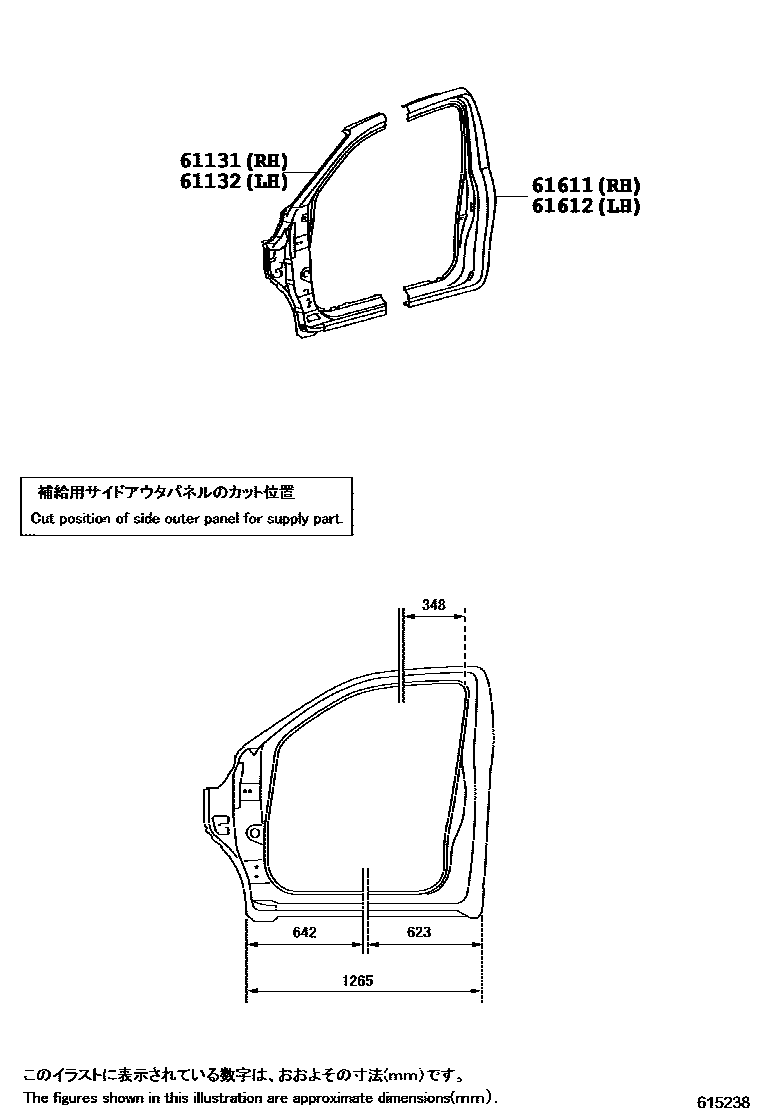

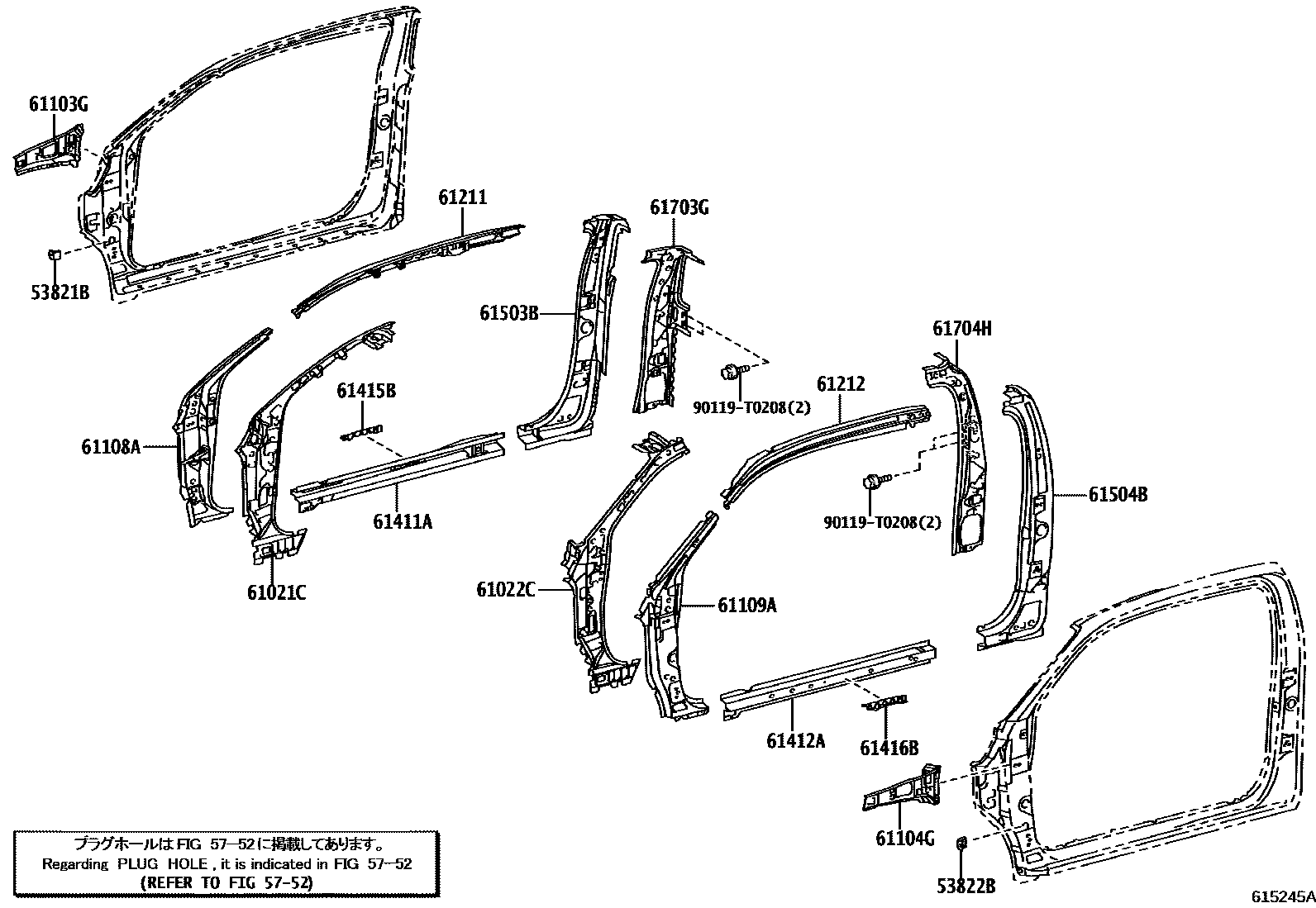

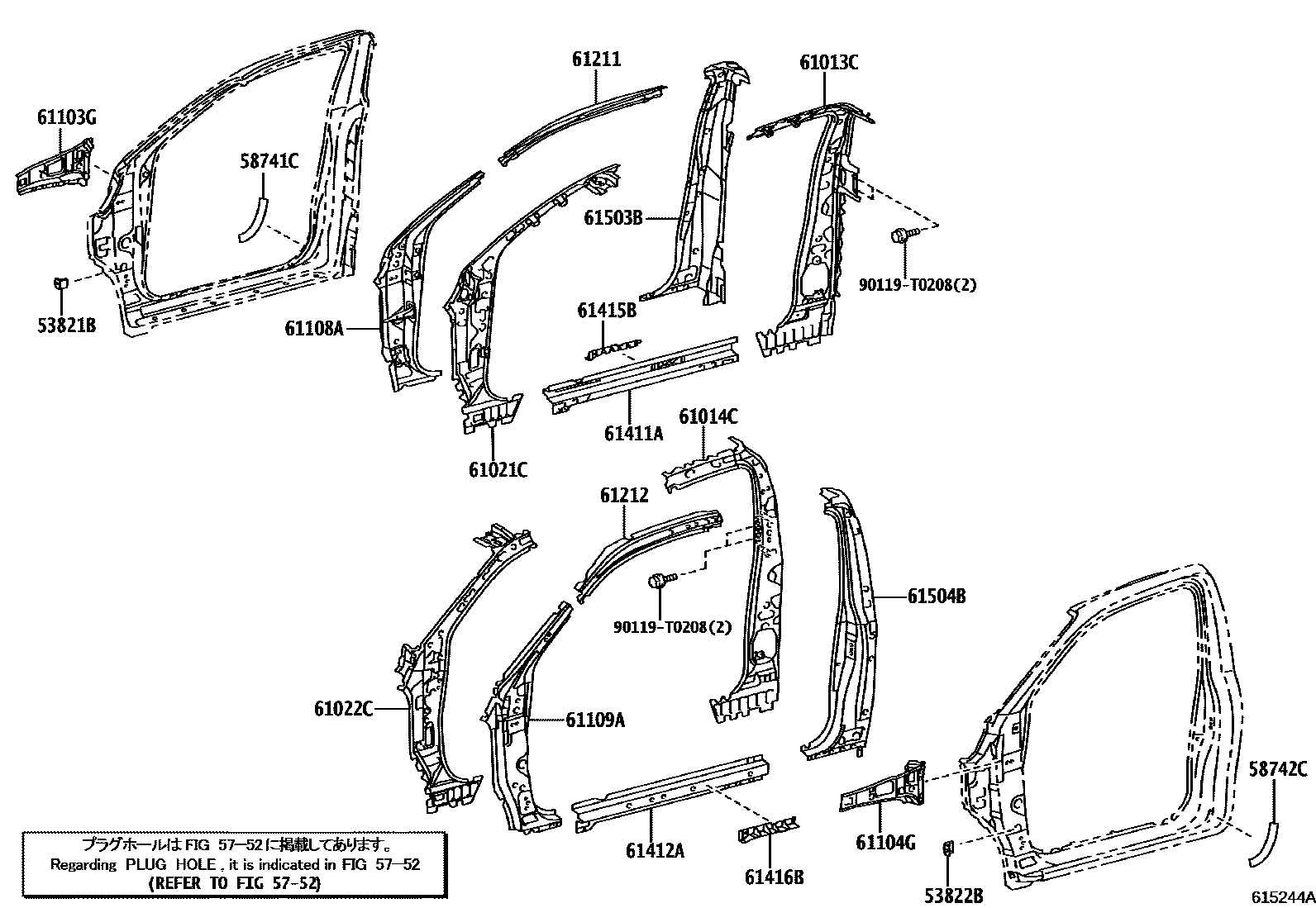

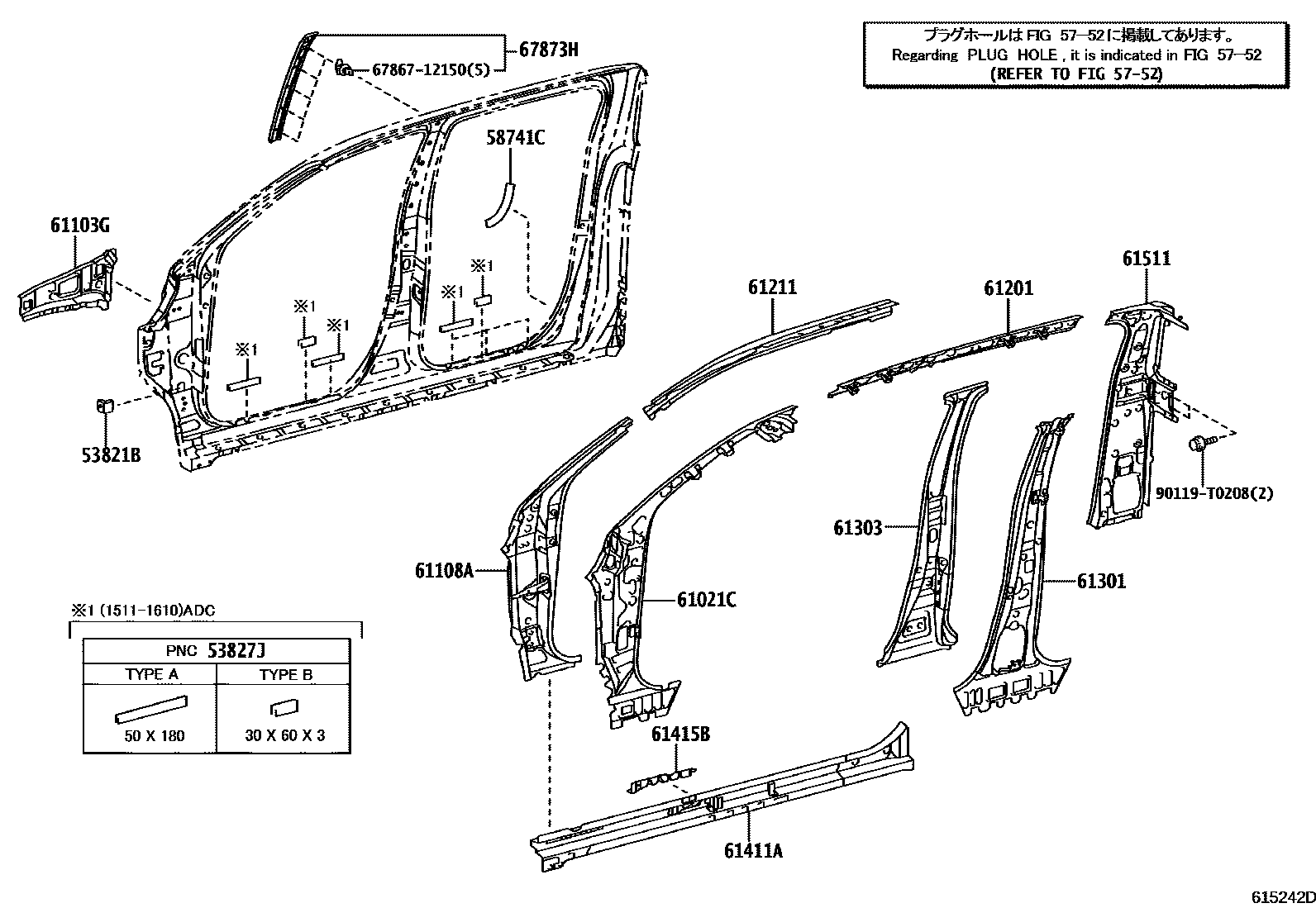

Toyota HILUX 侧梁 — Figure 6151
Toyota HILUX EPC diagram 6151, 侧梁, with 7 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53257-35030 |
| 53822B | Left front fender rear support | 53257-35030 |
| 53827J | Front fender side panel protectors | 62319-0K020 · 62559-0K030 |
| 58741C | Right side enclosure protection panel | 58741-0K070 · 58741-0K130 |
| 58742C | Left side enclosure protection panel | 58742-0K070 · 58742-0K130 |
| 61013C | Right inner panel sub-assembly | 61013-KK040 |
| 61014C | Left inner panel sub-assembly | 61014-KK040 |
| 61021C | Right body front pillar sub-assembly | 61021-KK020 · 61021-KK030 · 61021-KK040 |
| 61022C | Left body front pillar sub-assembly | 61022-KK020 · 61022-KK030 · 61022-KK040 |
| 61103G | Right body front pillar lower corner panel sub-assembly | 61103-KK010 |
| 61104G | Left side body front pillar lower corner panel sub-assembly | 61104-KK010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-KK900 · 61108-KK901 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-KK900 |
| 61131 | Right body outer front upper pillar | 61131-KK010 · 61131-KK020 · 61131-KK030 |
| 61132 | Left body outer front upper pillar | 61132-KK010 · 61132-KK020 · 61132-KK030 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-KK010 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-KK010 |
| 61211 | Roof right outer longitudinal beam | 61210-KK020 · 61211-KK010 · 61211-KK020 |
| 61212 | Roof left outer longitudinal beam | 61212-KK010 · 61212-KK020 · 61220-KK020 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-KK010 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-KK010 |
| 61301 | Right body center pillar sub-assembly | 61301-KK020 · 61301-KK030 |
| 61302 | Left body center pillar sub-assembly | 61302-KK020 · 61302-KK030 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-KK010 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-KK010 |
| 61311B | Right body outer center pillar | 61311-KK010 |
| 61312B | Left body outer center pillar | 61312-KK010 |
| 61411A | Right side door sill panel No. 1 reinforcement | 61401-KK900 · 61401-KK901 · 61401-KK902 |
| 61412A | Left side door sill panel reinforcement No. 1 | 61402-KK900 · 61402-KK901 · 61402-KK902 |
| 61415B | Right door outer sill extension | 61415-KK010 · 61415-KK020 |
| 61416B | Left door outer sill extension | 61416-KK010 · 61416-KK020 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-KK900 · 61503-KK901 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-KK900 · 61504-KK901 |
| 61511 | Right side locking post | 61501-KK010 · 61501-KK020 |
| 61512 | Left side locking post | 61502-KK010 · 61502-KK020 |
| 61611 | Right side hoarding | 61611-KK010 · 61611-KK020 · 61611-KK030 |
| 61612 | left side panel | 61612-KK010 · 61612-KK020 · 61612-KK030 |
| 61703G | Right side enclosure inner panel sub-assembly | 61703-KK040 |
| 61704H | Left side enclosure inner panel sub-assembly | 61704-KK040 |
| 67873H | Center door No. 1 upper seal | 67873-0K040 · 67873-0K041 · 67873-0K050 |
| 67874H | Center door No. 2 upper seal | 67874-0K040 · 67874-0K041 · 67874-0K050 |
