Toyota HILUX Rear Spring & Shock Absorber — Figure 4804

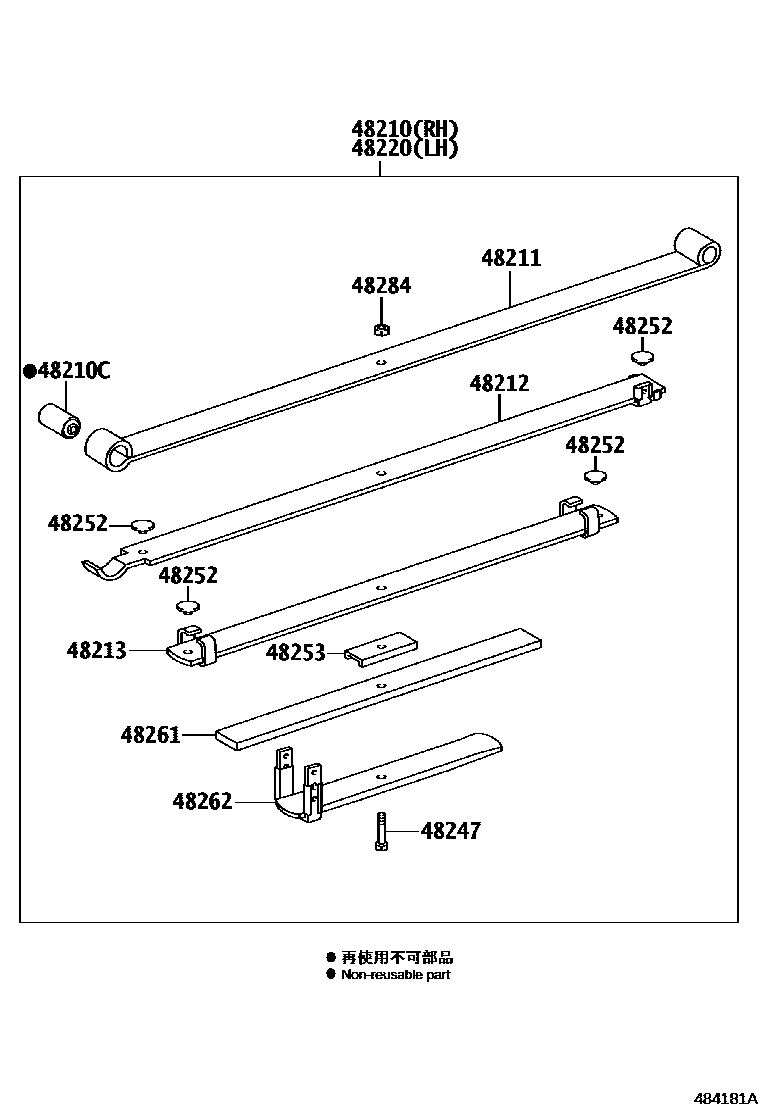

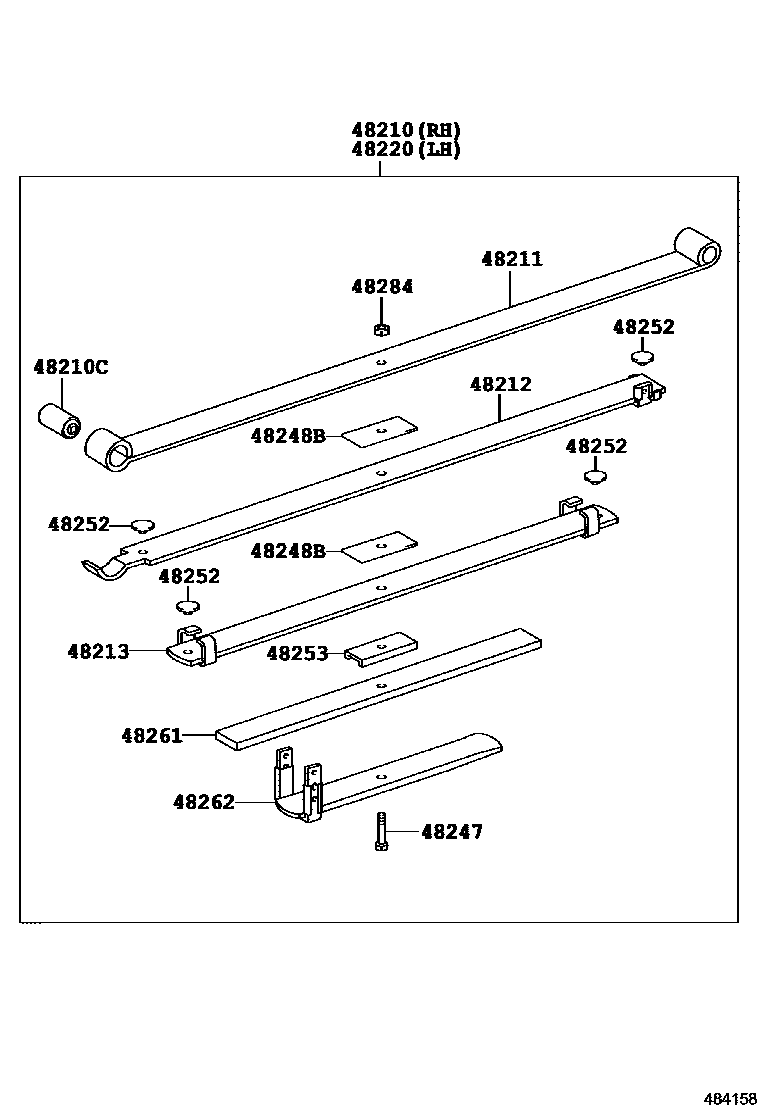

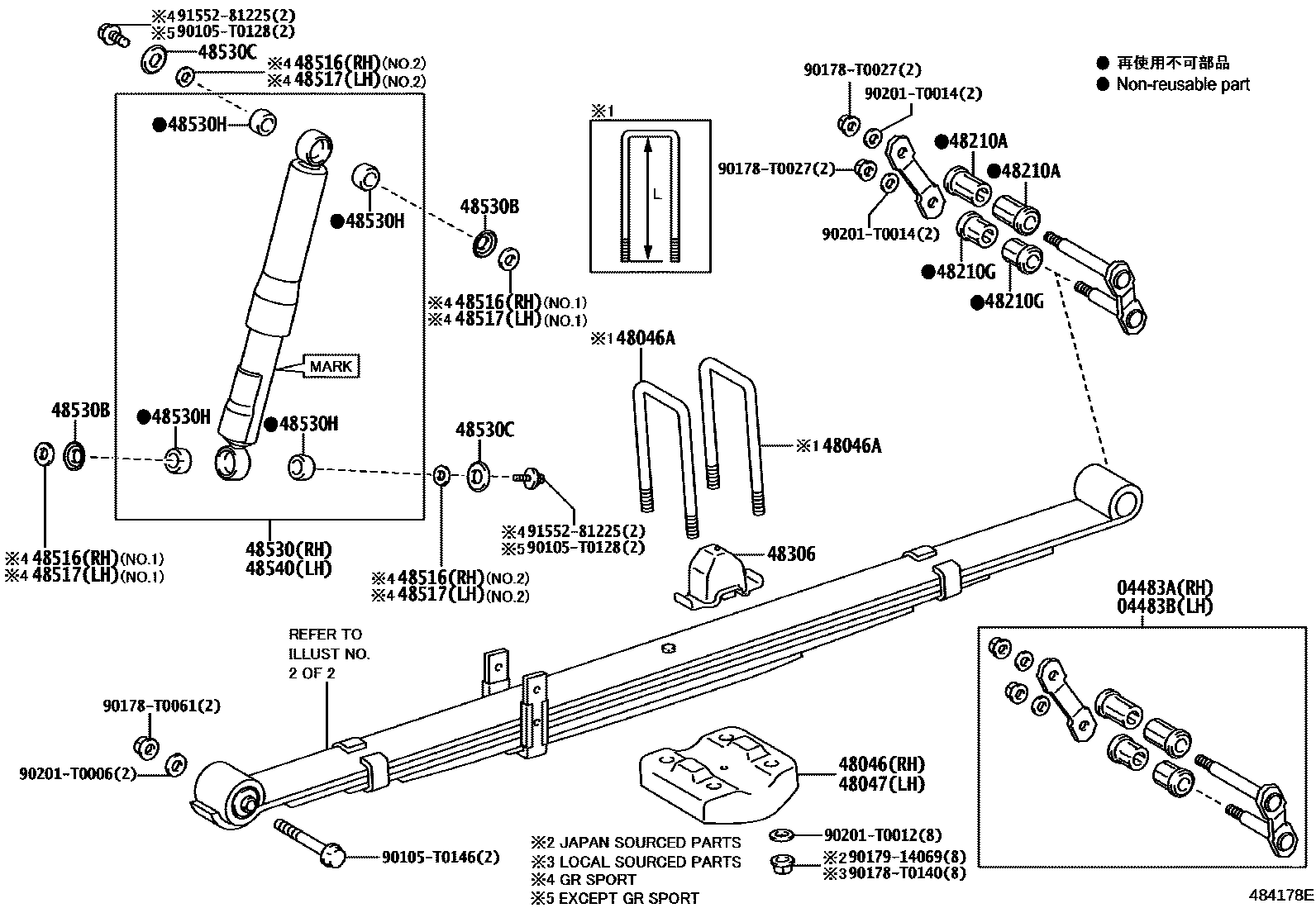

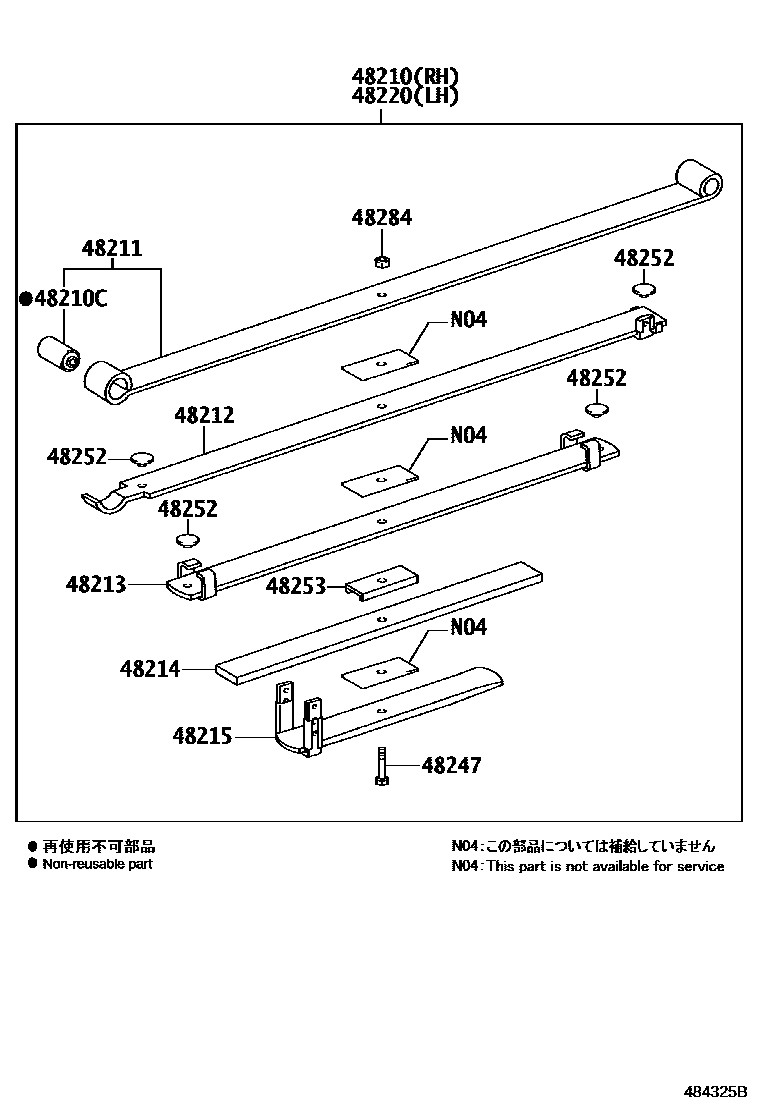

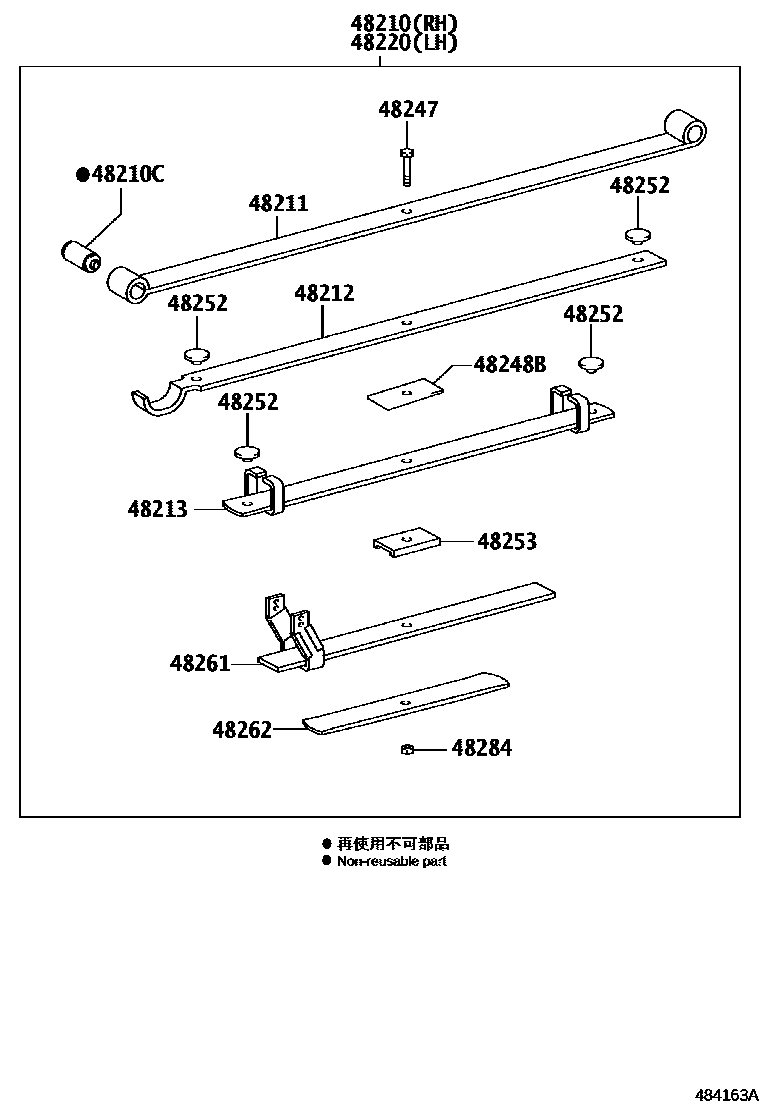

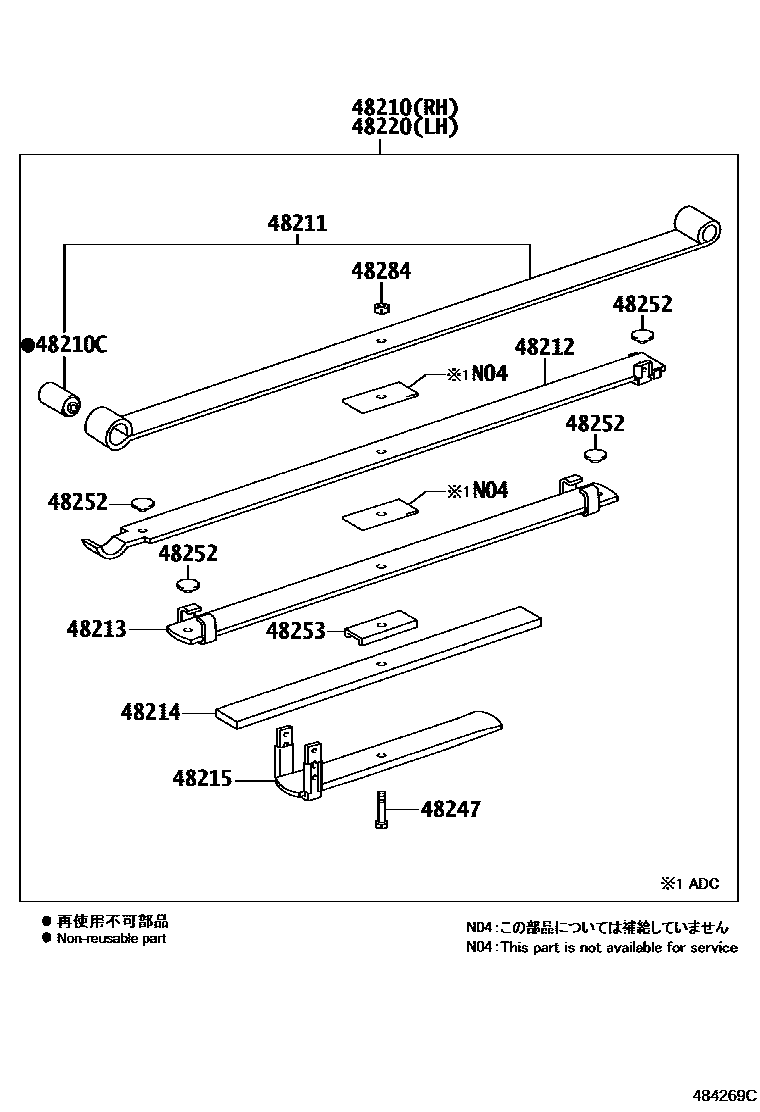

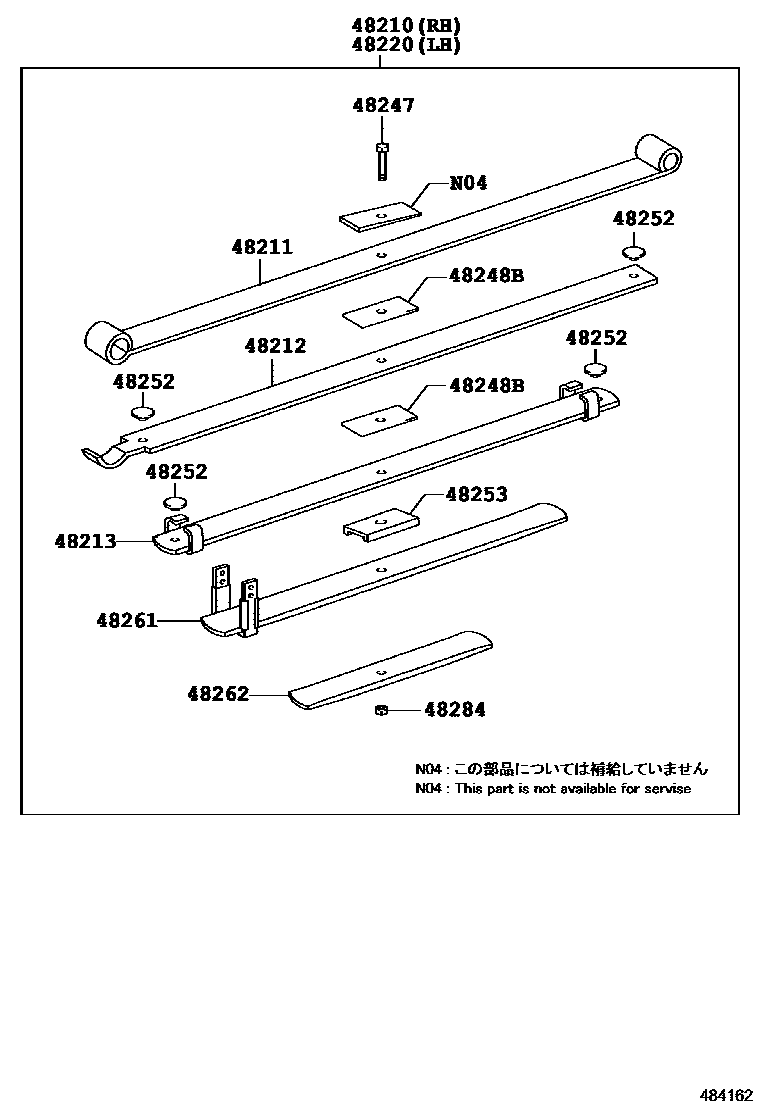

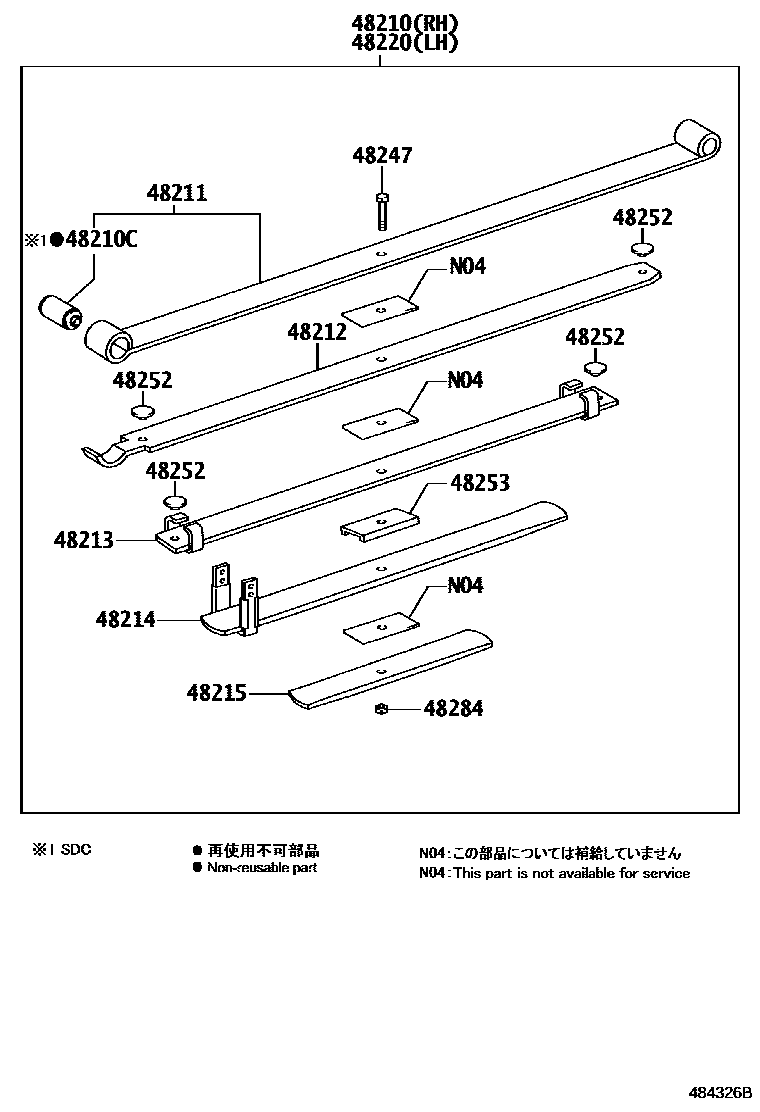

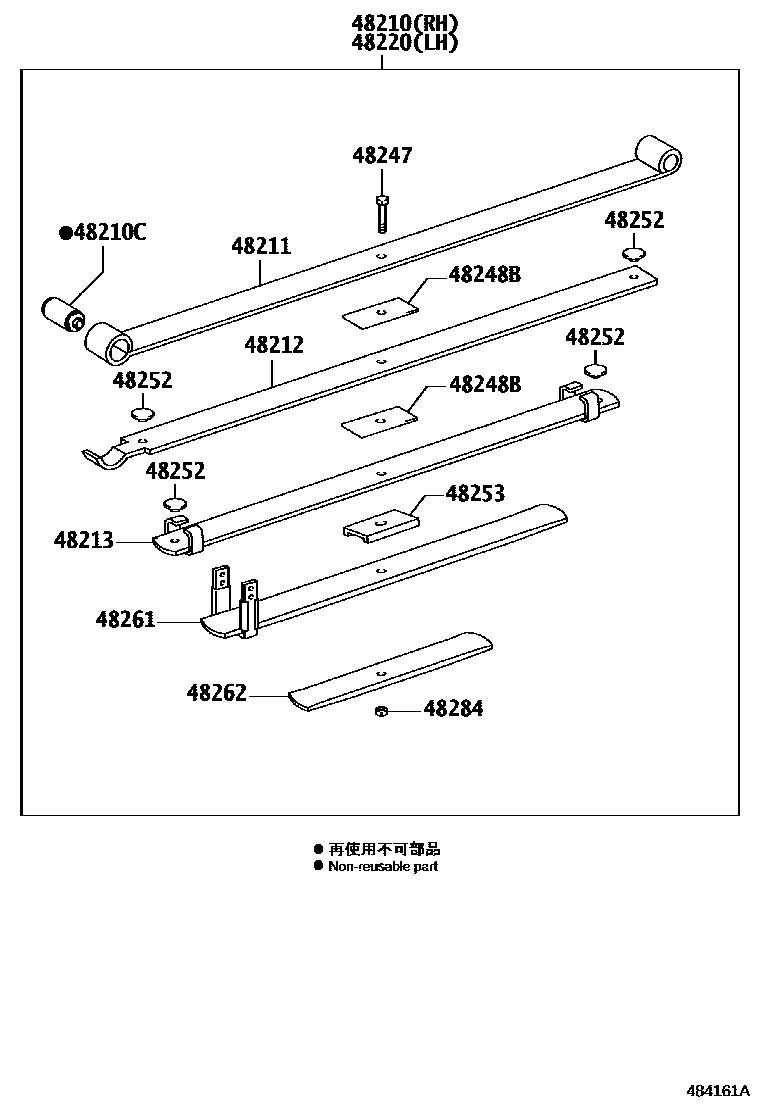

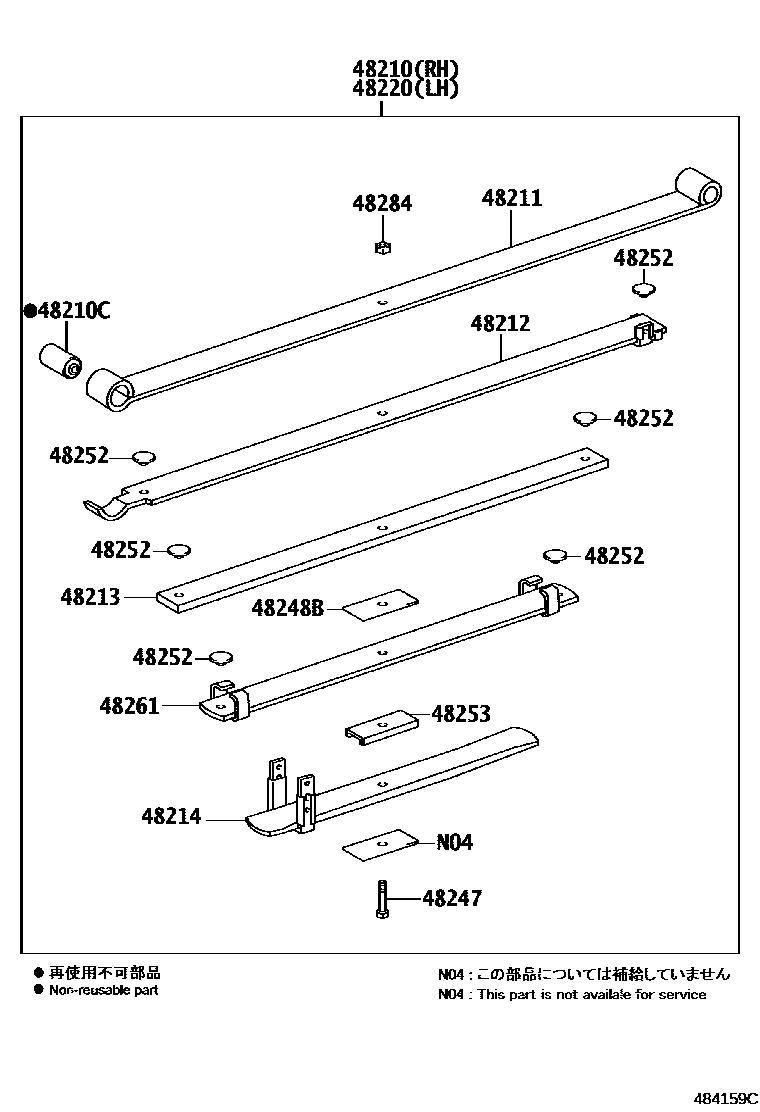

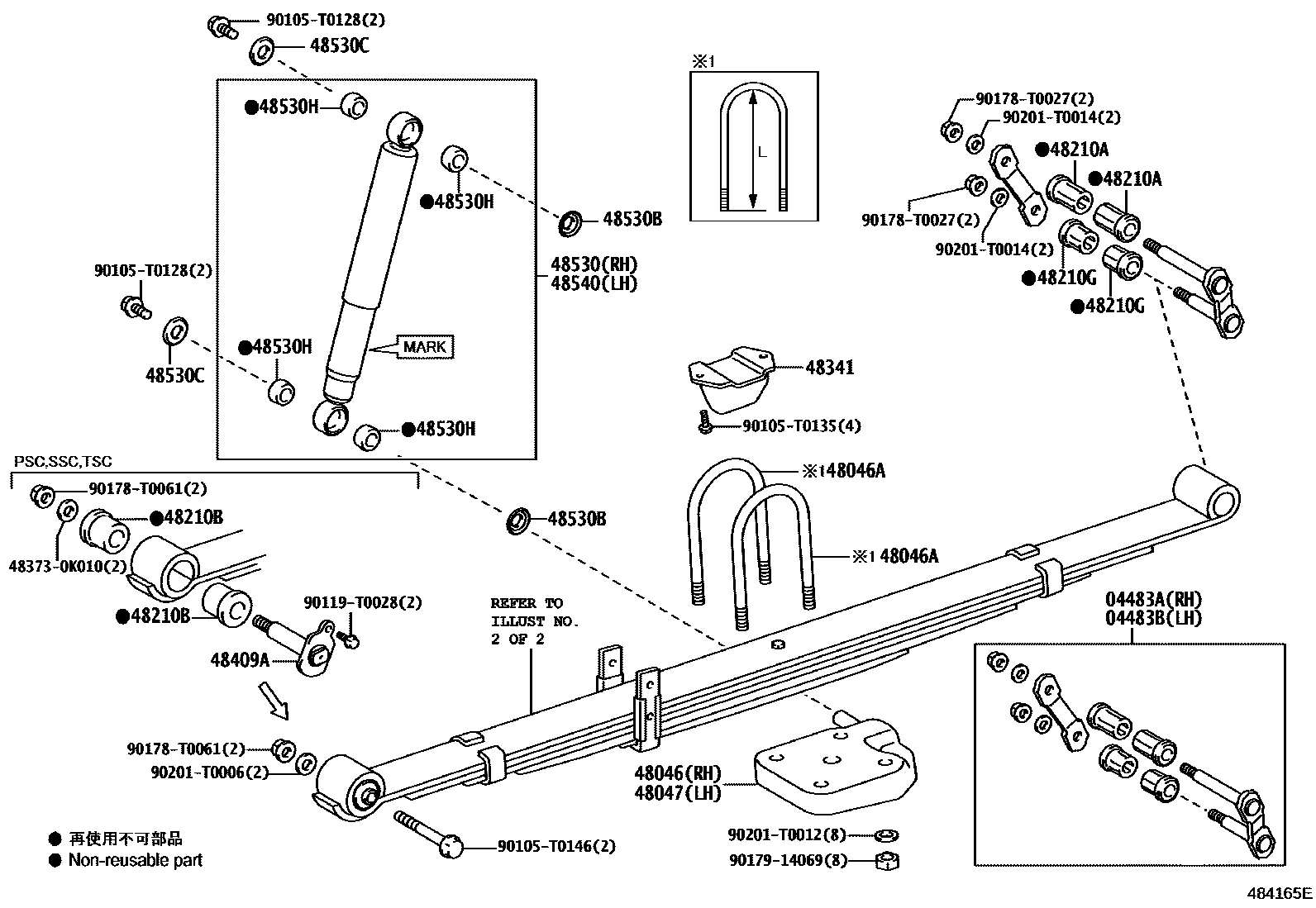

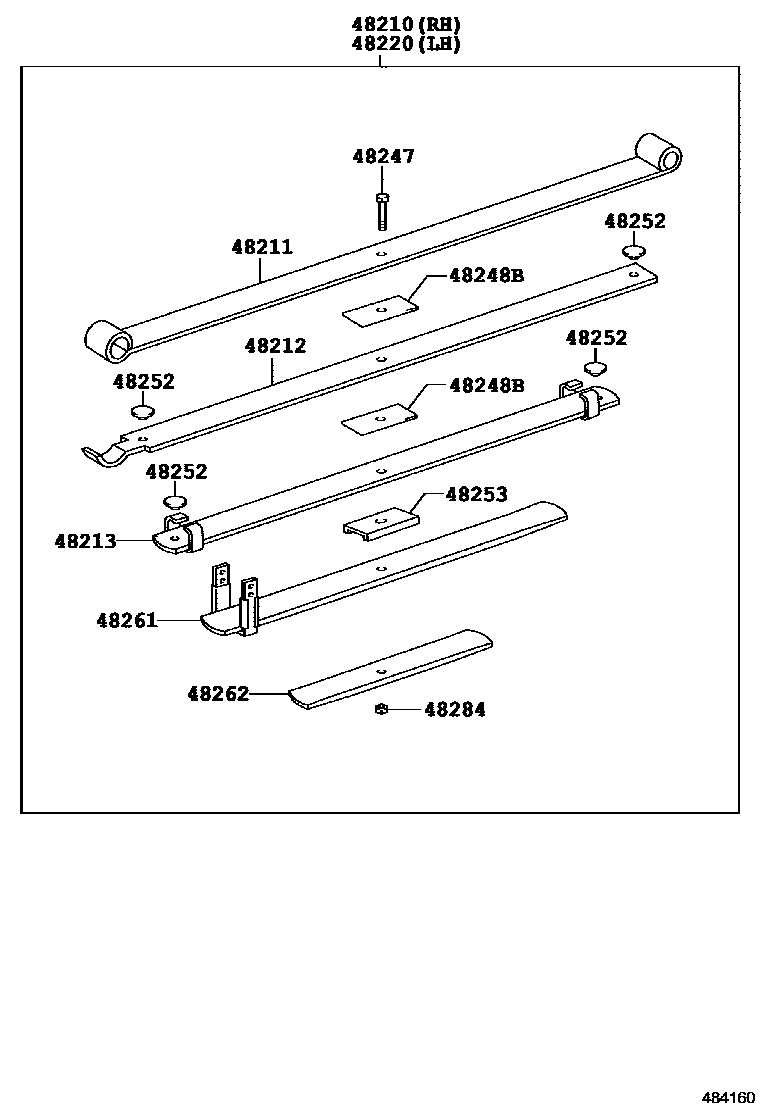

Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 13 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483A | Right rear spring lifting lug assembly | 04483-KK000 · 04483-KK010 · 04483-KK020 |
| 04483B | Left rear spring lifting lug assembly | 04483-KK000 · 04483-KK010 · 04483-KK020 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-0K011 · 48046-KK010 |
| 48046A | U-bolt (for rear spring) | 90117-F0001 · 90117-S0001 · 90117-T0003 · 90117-T0006 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-0K011 · 48046-KK010 |
| 48210 | Right rear spring assembly | 48210-0K420 · 48210-0K430 · 48210-0K440 · 48210-0K450 · 48210-0K460 · 48210-0K470 · 48210-0K500 · 48210-0K510 · 48210-0K520 · 48210-0K530 · 48210-0K540 · 48210-0K541 · 48210-0K590 · 48210-0K600 · 48210-0K710 · 48210-0K720 · 48210-0K740 · 48210-0K810 · 48210-0K820 · 48210-0K830 · 48210-0K840 · 48210-0K850 · 48210-0K860 · 48210-0KA80 · 48210-0KA90 · 48210-0KB00 · 48210-0KB10 · 48210-0KB20 · 48210-0KB30 · 48210-0KB40 · 48210-0KB41 · 48210-0KB50 · 48210-0KB80 · 48210-0KB90 · 48210-0KC00 · 48210-0KC10 · 48210-0KE60 · 48210-0KE70 · 48210-0KE80 |
| 48210A | Upper bushing (for rear spring lug) | 90385-S0002 · 90385-T0014 |
| 48210B | Bushing (for rear spring pin) | 90385-T0016 |
| 48210C | Bushing (for rear leaf spring) | 90389-S0003 · 90389-T0005 |
| 48210G | Lower bushing (for rear spring lug) | 90385-S0001 · 90385-T0017 |
| 48211 | No. 1 rear leaf spring | 48201-0K420 · 48201-0K430 · 48201-0K440 · 48201-0K450 · 48201-0K510 · 48201-0K520 · 48201-0K530 · 48201-0K540 · 48201-0K541 · 48201-0K810 · 48201-0K820 · 48201-0KA80 · 48201-0KA90 · 48201-0KB00 · 48201-0KB10 · 48201-0KB20 · 48201-0KB30 · 48201-0KB40 · 48201-0KB50 · 48201-0KC00 · 48201-0KC10 · 48211-0K460 · 48211-0K470 · 48211-0K710 · 48211-0K720 · 48211-0K830 · 48211-0K840 · 48211-0K850 |
| 48212 | No. 2 rear leaf spring | 48212-0K420 · 48212-0K430 · 48212-0K440 · 48212-0K450 · 48212-0K460 · 48212-0K470 · 48212-0K500 · 48212-0K510 · 48212-0K520 · 48212-0K530 · 48212-0K540 · 48212-0K541 · 48212-0K590 · 48212-0K600 · 48212-0K710 · 48212-0K720 · 48212-0K810 · 48212-0K820 · 48212-0K830 · 48212-0K840 · 48212-0K850 · 48212-0KA80 · 48212-0KA90 · 48212-0KB00 · 48212-0KB10 · 48212-0KB20 · 48212-0KB30 · 48212-0KB40 · 48212-0KB41 · 48212-0KB50 · 48212-0KB80 · 48212-0KB90 · 48212-0KC00 · 48212-0KC10 |
| 48213 | No. 3 rear leaf spring | 48204-0K420 · 48204-0K430 · 48204-0K440 · 48204-0K450 · 48204-0K510 · 48204-0K520 · 48204-0K530 · 48204-0K540 · 48204-0K541 · 48204-0K810 · 48204-0K820 · 48204-0KA80 · 48204-0KA90 · 48204-0KB00 · 48204-0KB10 · 48204-0KB20 · 48204-0KB30 · 48204-0KB40 · 48204-0KB50 · 48204-0KC00 · 48204-0KC10 · 48213-0K460 · 48213-0K470 · 48213-0K710 · 48213-0K720 · 48213-0K830 · 48213-0K840 · 48213-0K850 |
| 48214 | No. 4 rear leaf spring | 48026-0KB40 · 48026-0KB41 · 48205-0K540 · 48205-0K541 · 48214-0K460 · 48214-0K470 · 48214-0K710 · 48214-0K720 · 48214-0K830 · 48214-0K840 · 48214-0K850 |
| 48215 | No. 5 rear leaf spring | 48215-0K460 · 48215-0K470 · 48215-0K710 · 48215-0K720 · 48215-0K830 · 48215-0K840 · 48215-0K850 |
| 48220 | Left rear spring assembly | 48210-0K420 · 48210-0K430 · 48210-0K440 · 48210-0K450 · 48210-0K460 · 48210-0K470 · 48210-0K500 · 48210-0K510 · 48210-0K520 · 48210-0K530 · 48210-0K540 · 48210-0K541 · 48210-0K590 · 48210-0K600 · 48210-0K710 · 48210-0K720 · 48210-0K740 · 48210-0K810 · 48210-0K820 · 48210-0K830 · 48210-0K840 · 48210-0K850 · 48210-0K860 · 48210-0KA80 · 48210-0KA90 · 48210-0KB00 · 48210-0KB10 · 48210-0KB20 · 48210-0KB30 · 48210-0KB40 · 48210-0KB41 · 48210-0KB50 · 48210-0KB80 · 48210-0KB90 · 48210-0KC00 · 48210-0KC10 · 48210-0KE60 · 48210-0KE70 · 48210-0KE80 |
| 48247 | rear spring center bolt | 48247-0K010 · 48247-0K040 · 48247-0K110 · 48247-0K350 · 48247-0K540 · 48247-0K610 · 48247-0K720 · 48247-0K810 |
| 48248B | No. 3 rear spring spacer | 48248-0K020 · 48248-0K820 |
| 48252 | rear spring muffler | 48252-0K010 · 48252-0K040 · 48252-0K120 · 48252-0K810 |
| 48253 | No. 1 rear spring spacer | 48253-0K010 · 48253-0K040 · 48253-0K120 · 48253-0K160 |
| 48261 | Rear auxiliary mechanism No. 1 leaf spring | 48261-0K420 · 48261-0K430 · 48261-0K440 · 48261-0K450 · 48261-0K510 · 48261-0K520 · 48261-0K530 · 48261-0K540 · 48261-0K541 · 48261-0K810 · 48261-0K820 · 48261-0KA80 · 48261-0KA90 · 48261-0KB00 · 48261-0KB10 · 48261-0KB20 · 48261-0KB30 · 48261-0KB40 · 48261-0KB50 · 48261-0KC00 · 48261-0KC10 |
| 48262 | Rear auxiliary mechanism No. 2 leaf spring | 48026-0K420 · 48026-0K430 · 48026-0K440 · 48026-0K450 · 48026-0K510 · 48026-0K520 · 48026-0K530 · 48026-0K810 · 48026-0K820 · 48026-0KA80 · 48026-0KA90 · 48026-0KB00 · 48026-0KB10 · 48026-0KB20 · 48026-0KB30 · 48026-0KB50 · 48026-0KC00 · 48026-0KC10 |
| 48284 | Rear spring center bolt nut | 48284-0K040 · 48284-0K120 · 48284-0K160 · 48284-0K310 |
| 48306 | Rear spring buffer block sub-assembly | 48306-0K040 · 48306-0K050 · 48306-0K060 · 48306-0K070 |
| 48341 | Rear spring buffer block | 48341-0K090 |
| 48372 | Rear spring pad | 48372-0K010 |
| 48409A | Rear spring bracket pin sub-assembly | 48409-0K010 |
| 48516 | Right rear shock absorber upper bracket | 48516-YQ010 · 48516-YQ020 |
| 48517 | Left rear shock absorber upper bracket | 48516-YQ010 · 48516-YQ020 |
| 48530 | Right rear shock absorber assembly | 48531-09B20 · 48531-09B30 · 48531-09B40 · 48531-09B50 · 48531-09B70 · 48531-09B80 · 48531-09B90 · 48531-09C00 · 48531-8Z001 · 48531-8Z002 · 48531-8Z003 · 48531-8Z004 · 48531-8Z005 · 48531-8Z006 · 48531-8Z007 · 48531-8Z008 · 48531-8Z009 · 48531-8Z010 · 48531-8Z011 · 48531-8Z012 · 48531-8Z013 · 48531-8Z014 · 48531-8Z017 · 48531-8Z018 · 48531-8Z019 · 48531-8Z020 · 48531-8Z021 · 48531-8Z022 · 48531-Y9005 · 48531-Y9015 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-T3001 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-T3002 |
| 48530H | Rear shock absorber bushing | 90385-S0003 · 90385-T0019 |
| 48540 | Left rear shock absorber assembly | 48531-09B20 · 48531-09B30 · 48531-8Z001 · 48531-8Z002 · 48531-8Z003 · 48531-8Z004 · 48531-Y9005 · 48531-Y9015 · 48541-09210 · 48541-09220 · 48541-09240 · 48541-09250 · 48541-09260 · 48541-09270 · 48541-09280 · 48541-09290 · 48541-09300 · 48541-09310 · 48541-09320 · 48541-09330 · 48541-09340 · 48541-09341 · 48541-09350 · 48541-09351 · 48541-09360 · 48541-09361 · 48541-09370 · 48541-09371 · 48541-09400 · 48541-09410 |
