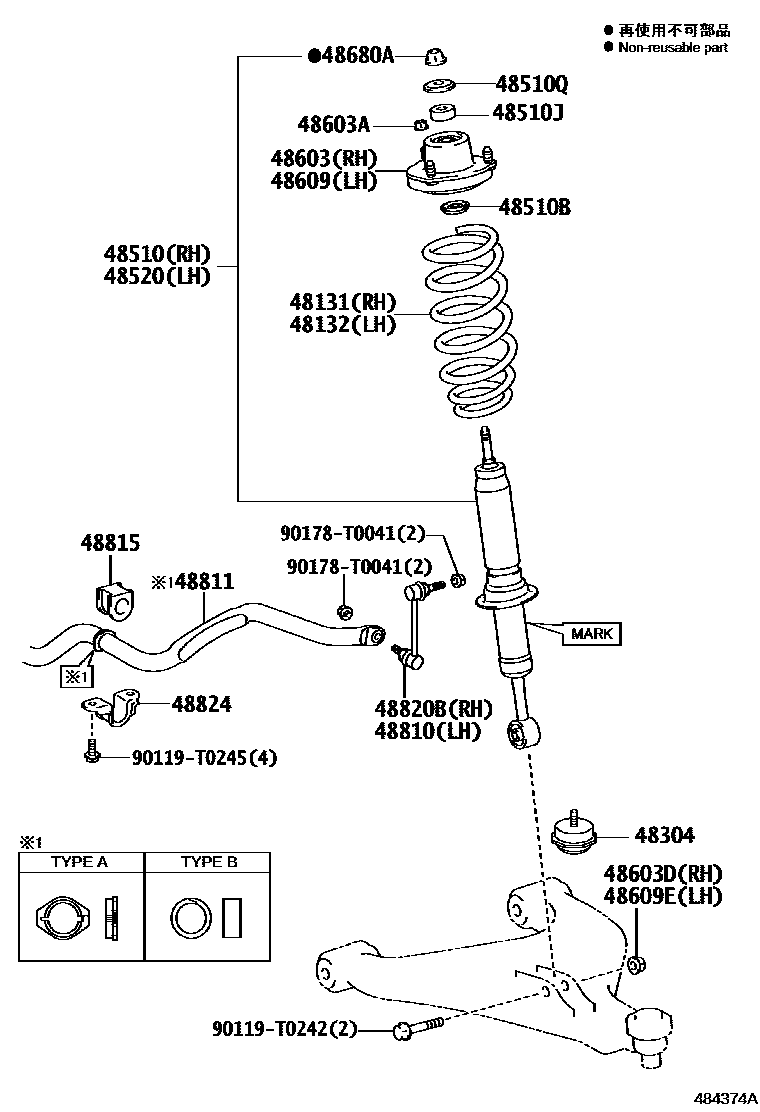

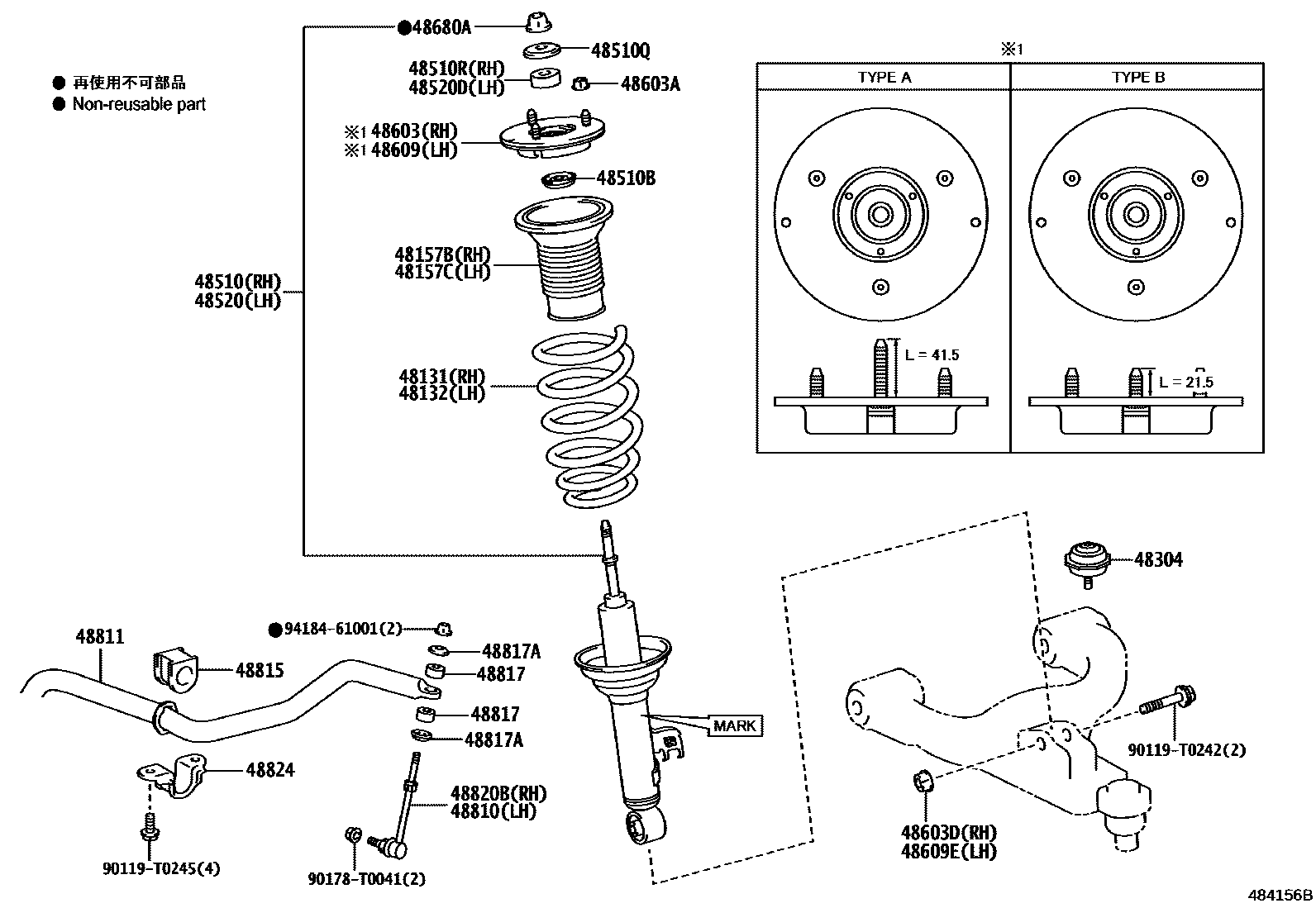

Toyota HILUX Front Spring & Shock Absorber — Figure 4803
Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0KF00 · 48131-0KF10 · 48131-0KF20 · 48131-0KF40 · 48131-0KF50 · 48131-0KF60 · 48131-0KF70 · 48131-0KF90 · 48131-0KG10 · 48131-0KG20 · 48131-0KG30 · 48131-0KG40 · 48131-0KK70 · 48131-0KK80 · 48131-0KL00 · 48131-0KL10 · 48131-0KL20 · 48131-0KL30 · 48131-0KL40 · 48131-0KM30 · 48131-0KM50 · 48131-0KM60 · 48131-0KM70 · 48131-0KN00 · 48131-0KN10 · 48131-0KN20 · 48131-0KN40 · 48131-0KR30 · 48131-0KR40 · 48131-0KS70 · 48131-0KS90 · 48131-0KT00 · 48131-YQ010 · 48131-YQ030 · 48131-YQ050 |
| 48132 | Left front coil spring | 48131-0KF00 · 48131-0KF10 · 48131-0KF20 · 48131-0KF40 · 48131-0KF50 · 48131-0KF60 · 48131-0KF70 · 48131-0KF90 · 48131-0KG10 · 48131-0KG20 · 48131-0KG30 · 48131-0KG40 · 48131-0KK70 · 48131-0KK80 · 48131-0KL00 · 48131-0KL10 · 48131-0KL20 · 48131-0KL30 · 48131-0KL40 · 48131-0KL50 · 48131-0KM30 · 48131-0KM50 · 48131-0KM60 · 48131-0KM70 · 48131-0KM80 · 48131-0KN00 · 48131-0KN10 · 48131-0KN20 · 48131-0KN30 · 48131-0KN50 · 48131-0KN70 · 48131-0KR30 · 48131-0KR40 · 48131-0KS70 · 48131-0KS90 · 48131-0KT00 · 48131-YQ010 · 48131-YQ020 · 48131-YQ040 · 48131-YQ060 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-0K010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-0K010 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-0K010 · 48304-0K040 · 48304-0K041 · 48304-0K100 · 48304-0K101 |
| 48510 | Right front shock absorber assembly | 48510-8Z189 · 48510-8Z190 · 48510-8Z191 · 48510-8Z193 · 48510-8Z197 · 48510-8Z198 · 48510-8Z199 · 48510-8Z200 · 48510-8Z202 · 48510-8Z205 · 48510-8Z206 · 48510-8Z207 · 48510-8Z208 · 48510-Y9015 · 48510-Y9025 · 48510-Y9035 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-F2002 · 90948-T2003 |
| 48510J | Front shock absorber No. 1 cushion | 90948-S1003 · 90948-T1013 · 90948-T1015 |
| 48510Q | No. 3 cushion block (for front shock absorber) | 90948-F2003 · 90948-T2004 |
| 48510R | Right front shock absorber No. 1 cushion pad | 90948-T1013 · 90948-T1015 |
| 48520 | Left front shock absorber assembly | 48510-8Z191 · 48510-8Z193 · 48510-8Z202 · 48510-8Z205 · 48510-8Z206 · 48510-8Z207 · 48510-8Z208 · 48510-Y9015 · 48510-Y9025 · 48510-Y9035 · 48520-8Z070 · 48520-8Z071 · 48520-8Z072 · 48520-8Z073 · 48520-8Z074 · 48520-8Z075 |
| 48520D | Left front shock absorber No. 1 cushion pad | 90948-T1013 · 90948-T1015 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0K070 · 48609-0K080 · 48609-0K090 · 48609-0K120 · 48609-0K150 |
| 48603A | Nut (for front suspension mount) | 90178-T0050 |
| 48603D | Nut (for front mount to right front shock absorber) | 90178-T0048 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0K070 · 48609-0K080 · 48609-0K090 · 48609-0K120 · 48609-0K150 |
| 48609E | Nut (for front mount to left front shock absorber) | 90178-T0048 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-T0015 |
| 48810 | Left front stabilizer bar link assembly | 48810-0K010 · 48810-0K020 · 48820-0K010 |
| 48811 | front stabilizer bar | 48811-0K170 · 48811-0K180 · 48811-0K190 · 48811-0K220 · 48811-0K230 · 48811-0K240 · 48811-0K250 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-0K050 · 48815-0K070 · 48815-0K090 |
| 48817 | Front stabilizer bar cushion | 90948-T1002 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-T2002 |
| 48820B | Right front stabilizer bar link assembly | 48820-0K010 · 48820-0K030 · 48820-0K040 |
| 48824 | front stabilizer bar bracket | 48824-0K010 · 48824-KK010 |
