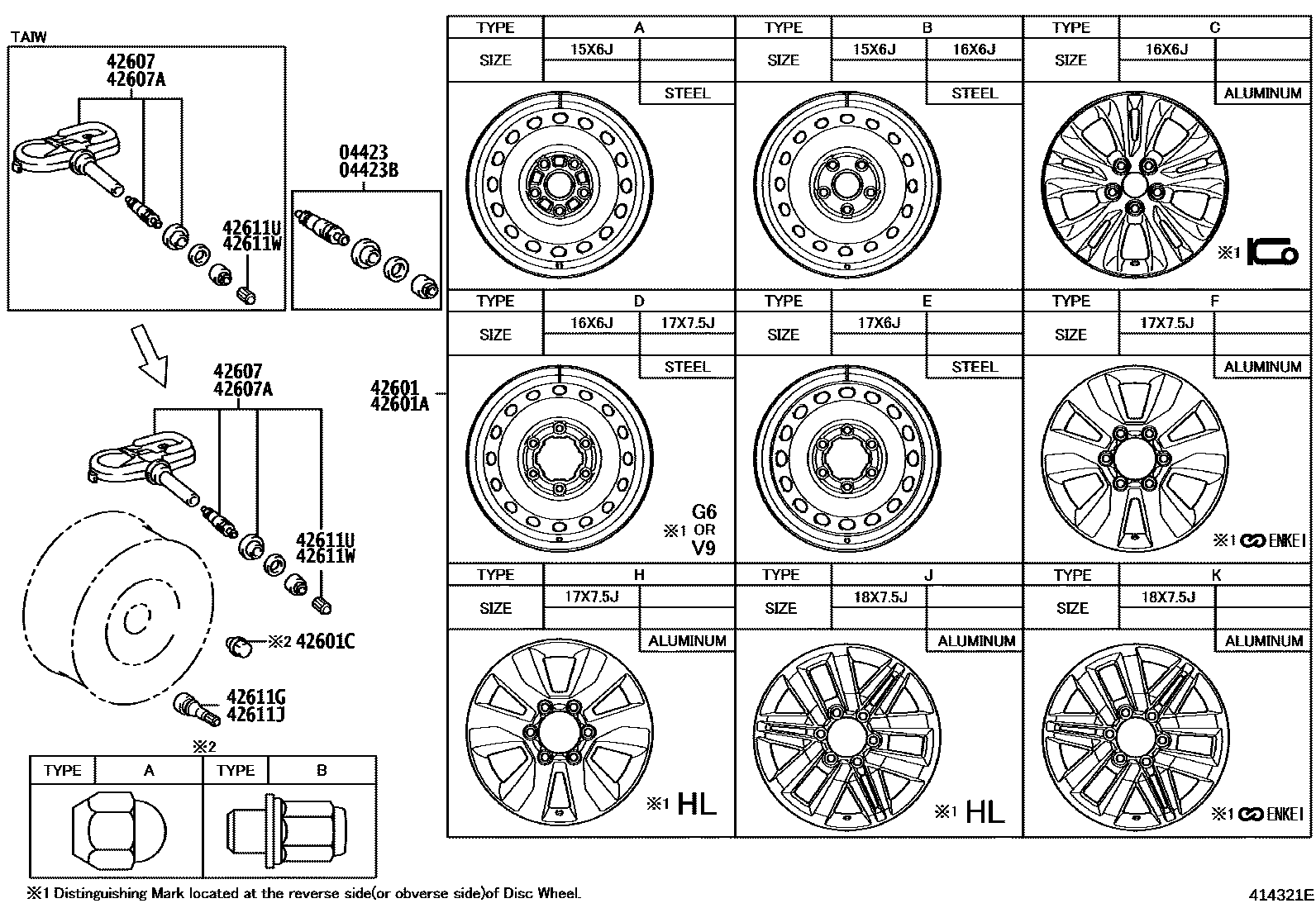

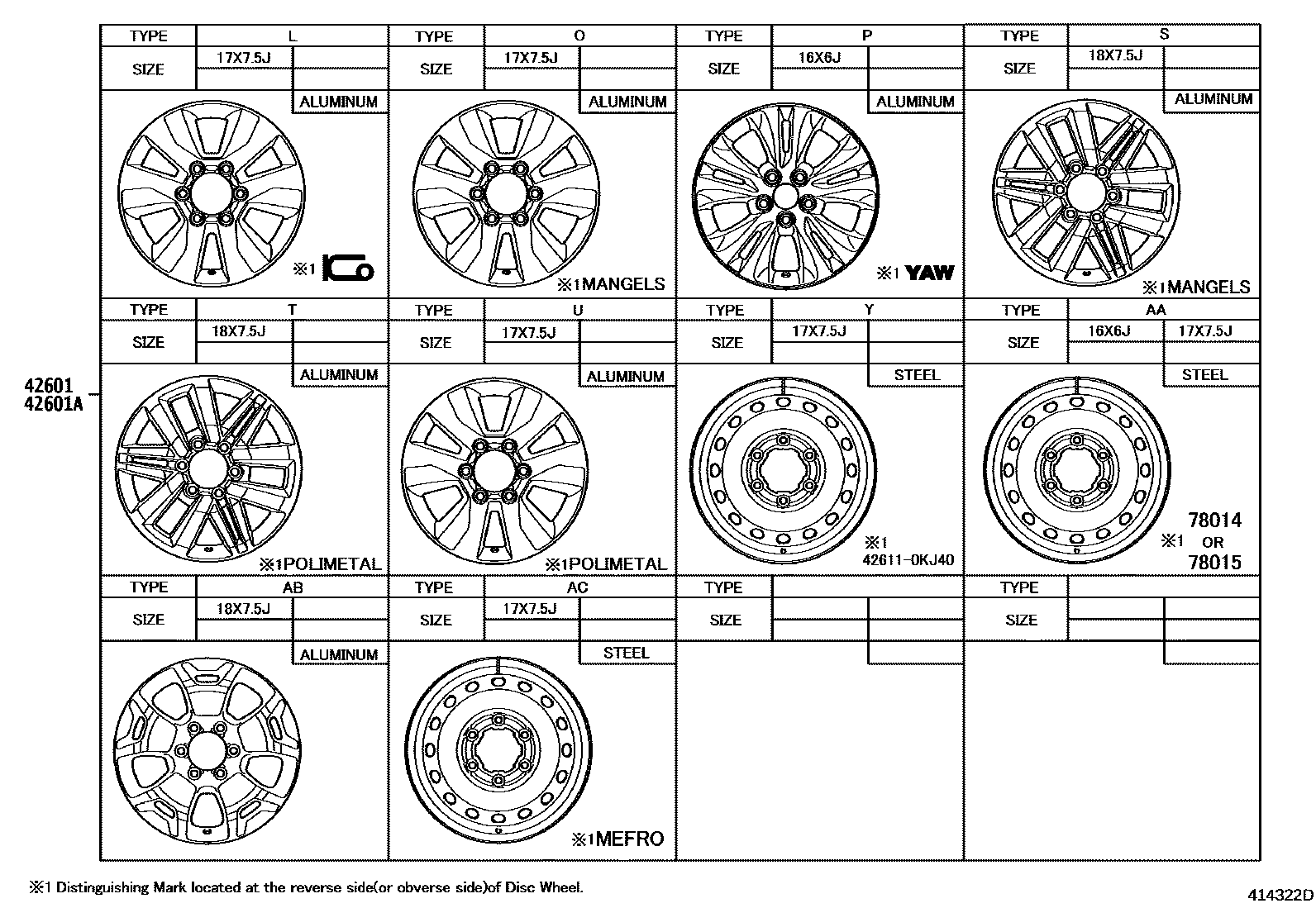

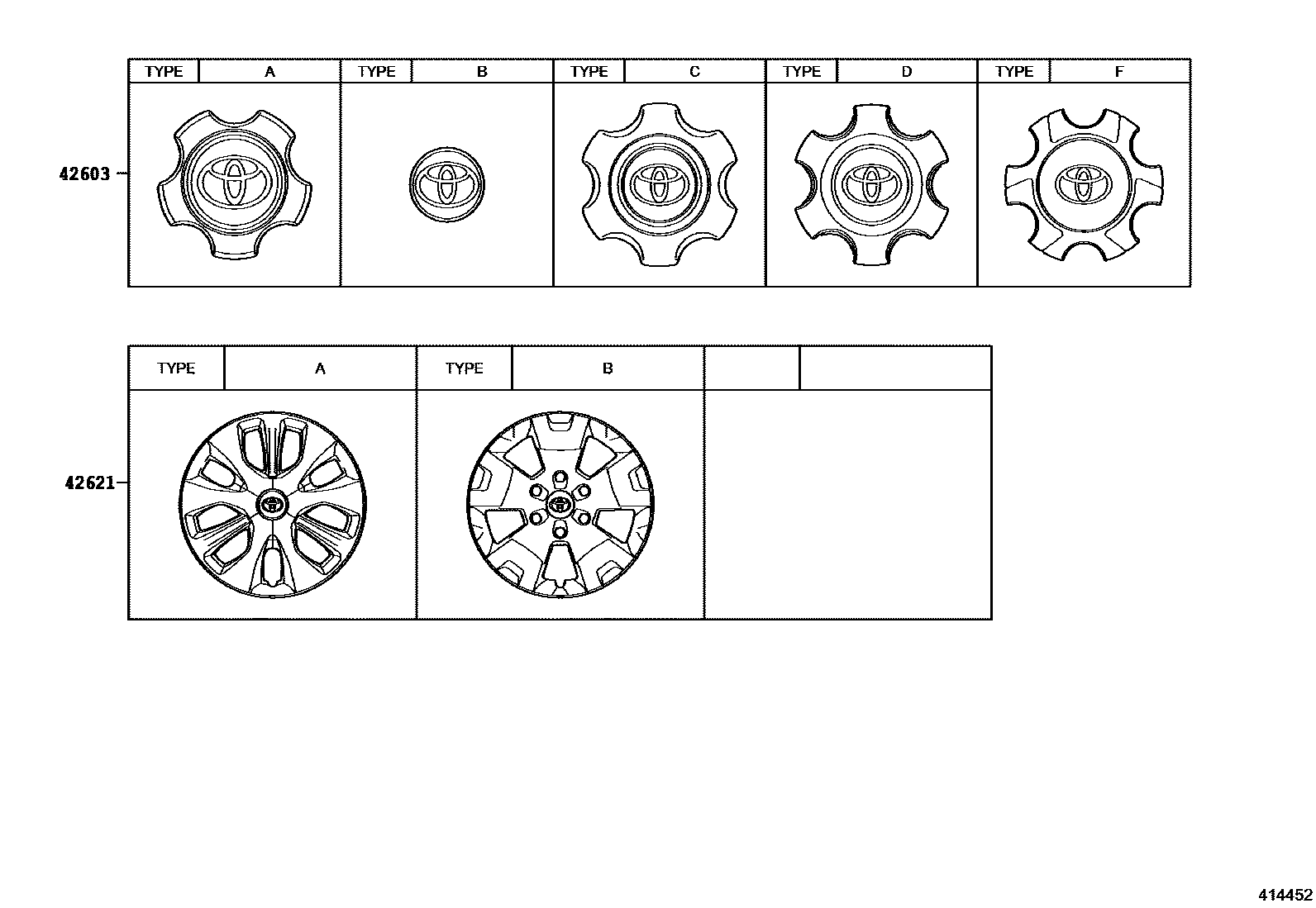

Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |
| 42601 | spoke wheel | 00000-00000 · 42611-0KG40 · 42611-0KG50 · 42611-0KG51 · 42611-0KG60 · 42611-0KG70 · 42611-0KG80 · 42611-0KG81 · 42611-0KG90 · 42611-0KJ00 · 42611-0KJ01 · 42611-0KJ10 · 42611-0KJ40 · 42611-0KK00 · 42611-0KK20 · 42611-0KK30 · 42611-0KK31 · 42611-0KK40 · 42611-0KK60 · 42611-0KK70 · 42611-0KK90 · 42611-0KL80 · 42611-0KL90 · 42611-0KM00 · 42611-0KM20 · 42611-0KM40 · 42611-0KM41 · 42611-0KN50 · 42611-0KP10 · 42611-0KQ30 · 42611-0KQ40 · 42611-0KR00 · 42611-0KR20 · 42611-0KR80 · 42611-0KR90 · 42611-0KS10 · 42611-0KS60 · 42611-0KS70 · 42611-0KT00 · 42611-0KT40 · 42611-0KX40 · 42611-YYA10 |
| 42601A | Spoke wheel (for spare tire) | 00000-00000 · 42611-0KG40 · 42611-0KG50 · 42611-0KG51 · 42611-0KG60 · 42611-0KG70 · 42611-0KG80 · 42611-0KG81 · 42611-0KG90 · 42611-0KJ00 · 42611-0KJ01 · 42611-0KJ10 · 42611-0KJ40 · 42611-0KK00 · 42611-0KK20 · 42611-0KK31 · 42611-0KK40 · 42611-0KK60 · 42611-0KK70 · 42611-0KK90 · 42611-0KL80 · 42611-0KL90 · 42611-0KM00 · 42611-0KM20 · 42611-0KM41 · 42611-0KN50 · 42611-0KP10 · 42611-0KQ40 · 42611-0KR00 · 42611-0KR20 · 42611-0KR80 · 42611-0KR90 · 42611-0KS10 · 42611-0KS60 · 42611-0KS70 · 42611-0KT00 · 42611-0KT40 · 42611-0KX40 · 42611-YYA10 |
| 42601C | Hub nut (for axle) | 90942-01082 · 90942-01109 · 90942-T1005 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0K280 · 42603-0K290 · 42603-42130 · 4260B-0K100 · 4260B-0K110 · 4260B-0K120 · 4260B-0K140 · 4260B-0K220 · 4260B-0K230 · 4260B-0K270 · 4260B-0K290 · 4260B-0K300 · 4260B-0K310 · 4260B-0K330 · 4260B-YP020 · 4260B-YP030 · 4260B-YP040 · 4260B-YP050 · 4260B-YP060 · 4260B-YP070 · 4260B-YP080 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-30060 · 42607-42021 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-30060 · 42607-42021 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90080-94179 · 90080-94180 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90080-94179 · 90080-94180 · 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-0K070 · 42602-0K090 |
