Toyota HILUX 节气阀连杆和阀杆(ATM) — Figure 3513

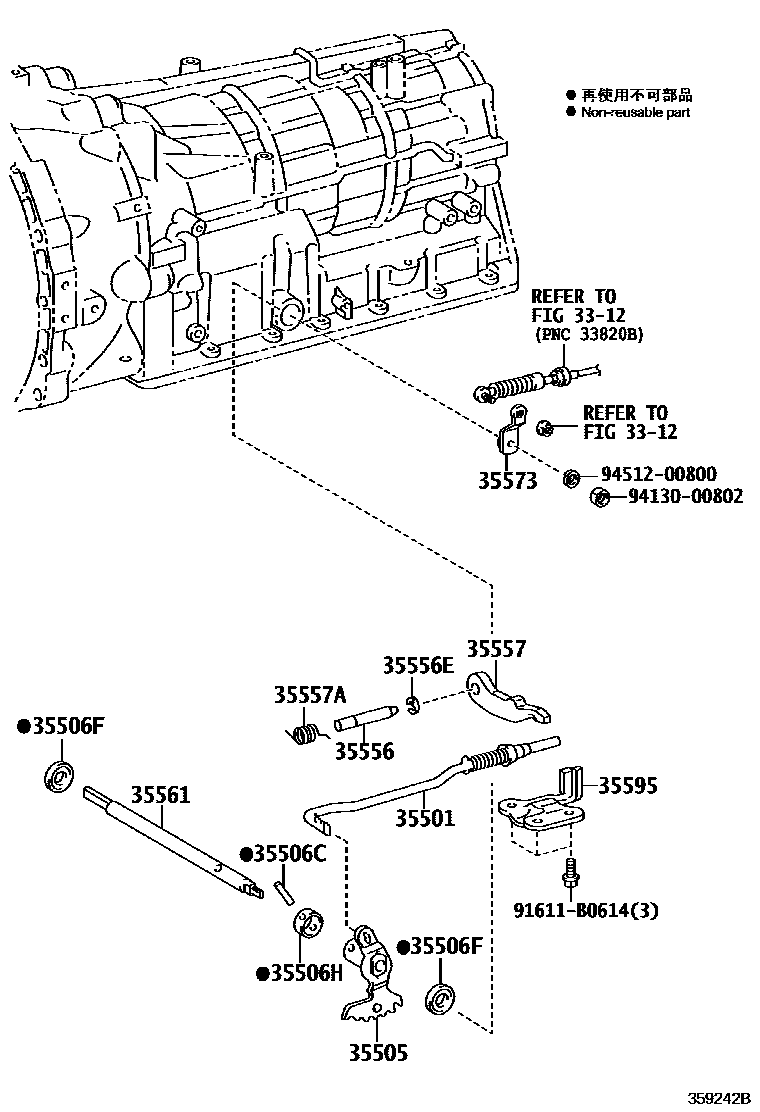

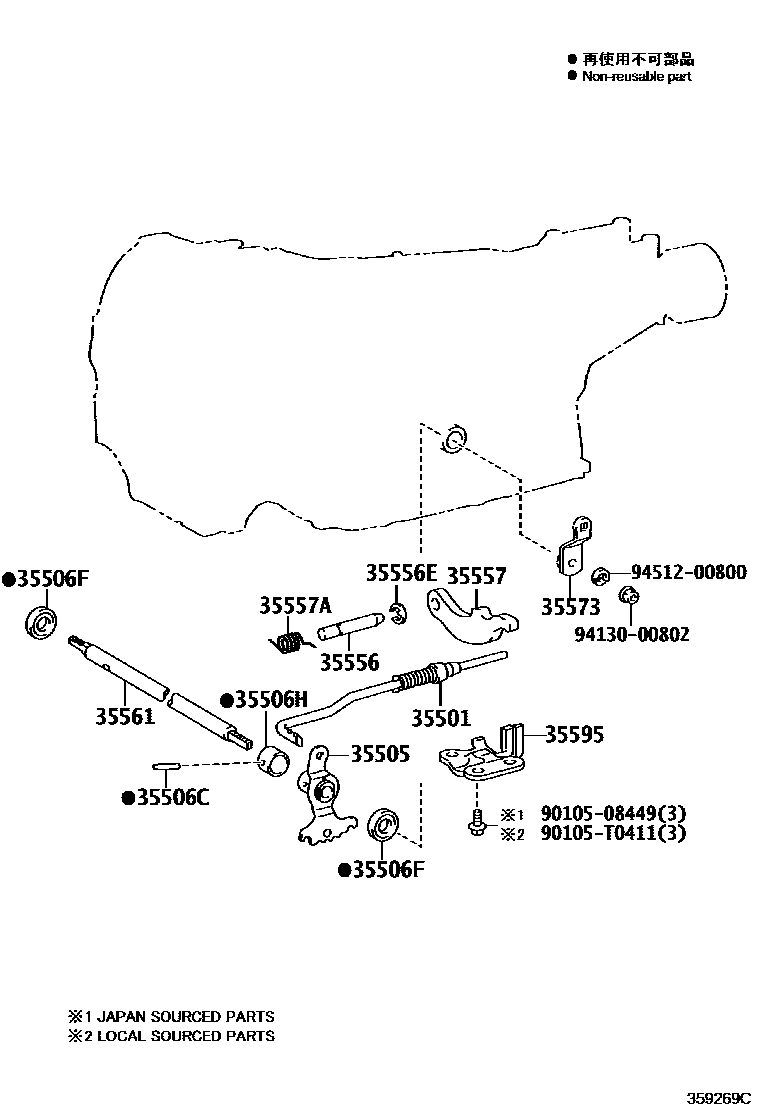

Toyota HILUX EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35501 | Parking lock lever sub-assembly | 35501-60030 · 35501-71020 |
| 35505 | Manual valve stem sub-assembly | 35505-71020 · 35505-71030 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-12002 · 90311-T0093 |
| 35506H | Spacer (for manual valve stem shaft) | 90560-20025 |
| 35556 | Parking lock pawl shaft | 35556-60020 |
| 35556E | E-ring (for parking lock pawl shaft) | 90523-08021 |
| 35557 | Parking pawl | 35557-60040 · 35557-71010 |
| 35557A | Torsion spring (for parking pawl) | 90949-03123 |
| 35561 | Manual valve stem shaft | 35561-60030 |
| 35573 | Transmission left control lever | 35573-0K010 · 35573-60020 · 35573-71010 |
| 35595 | Parking lock pawl bracket | 35595-60030 · 35595-71010 |
