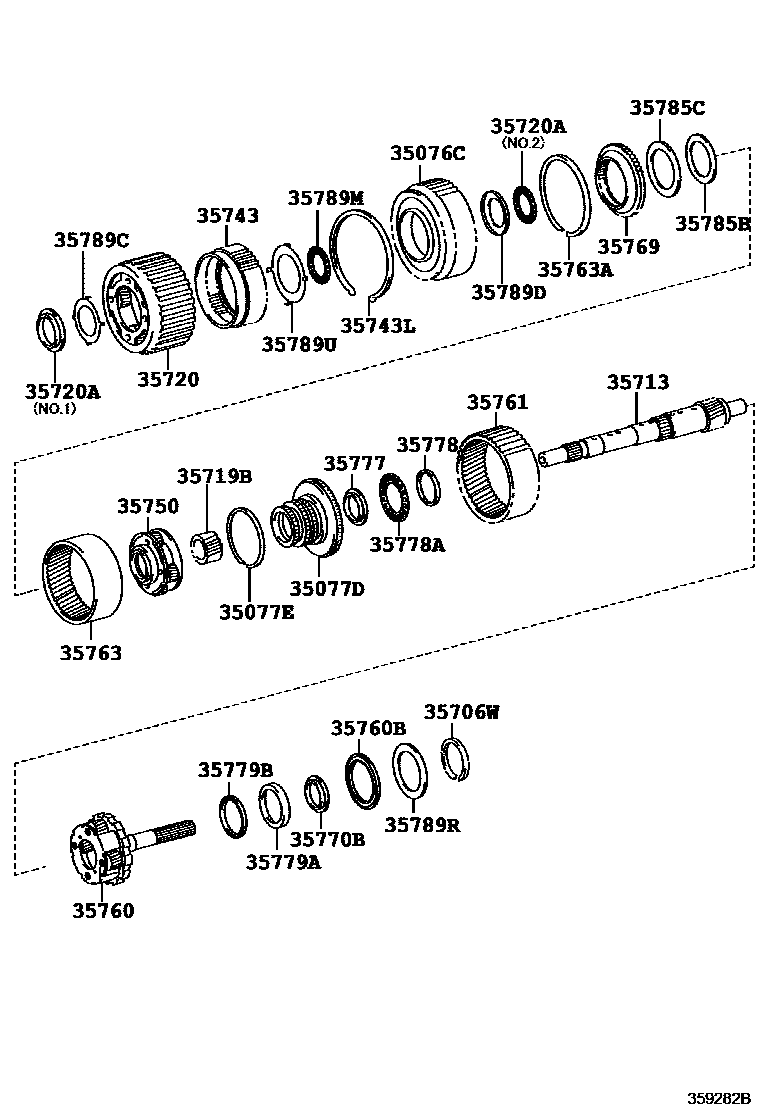

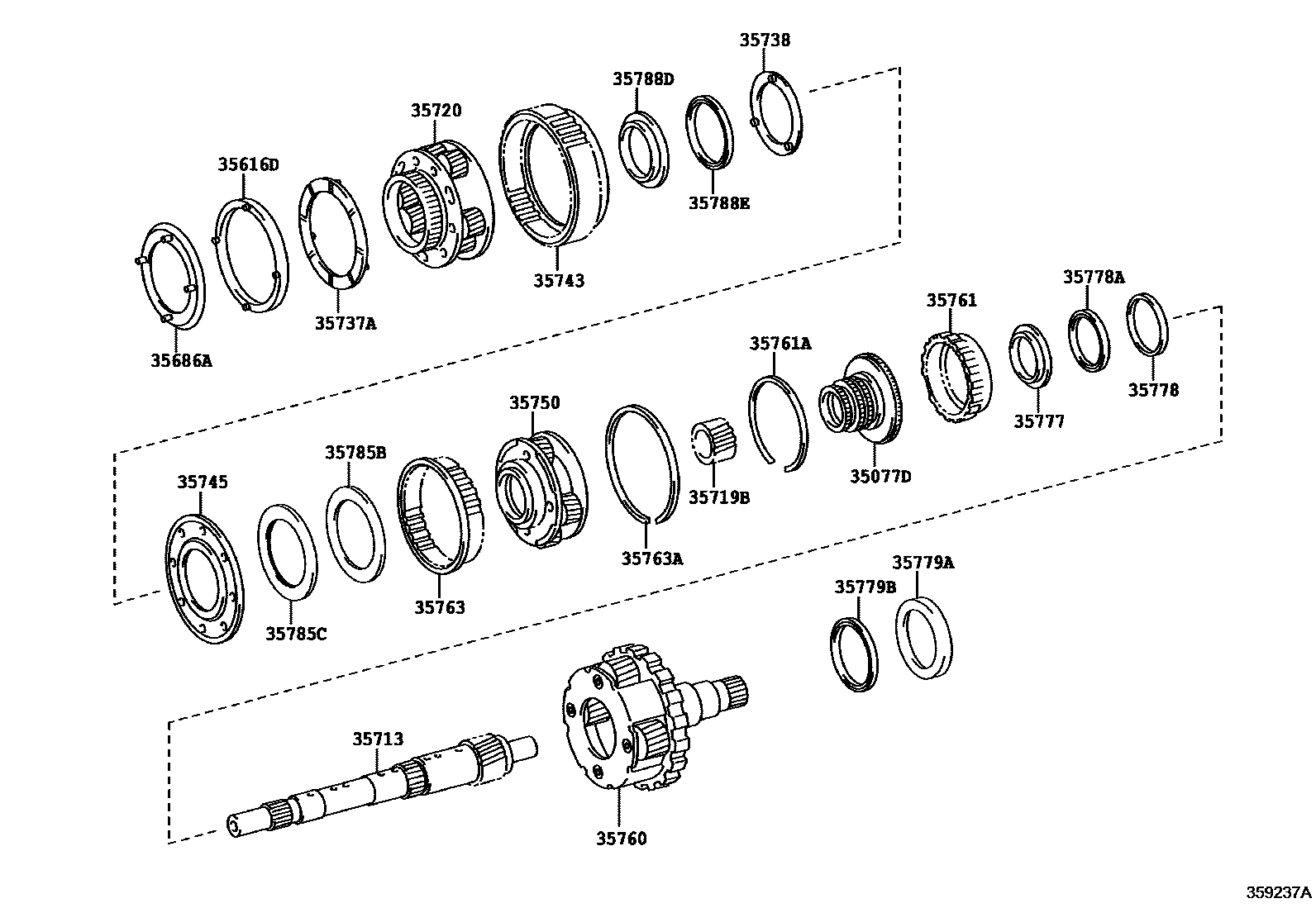

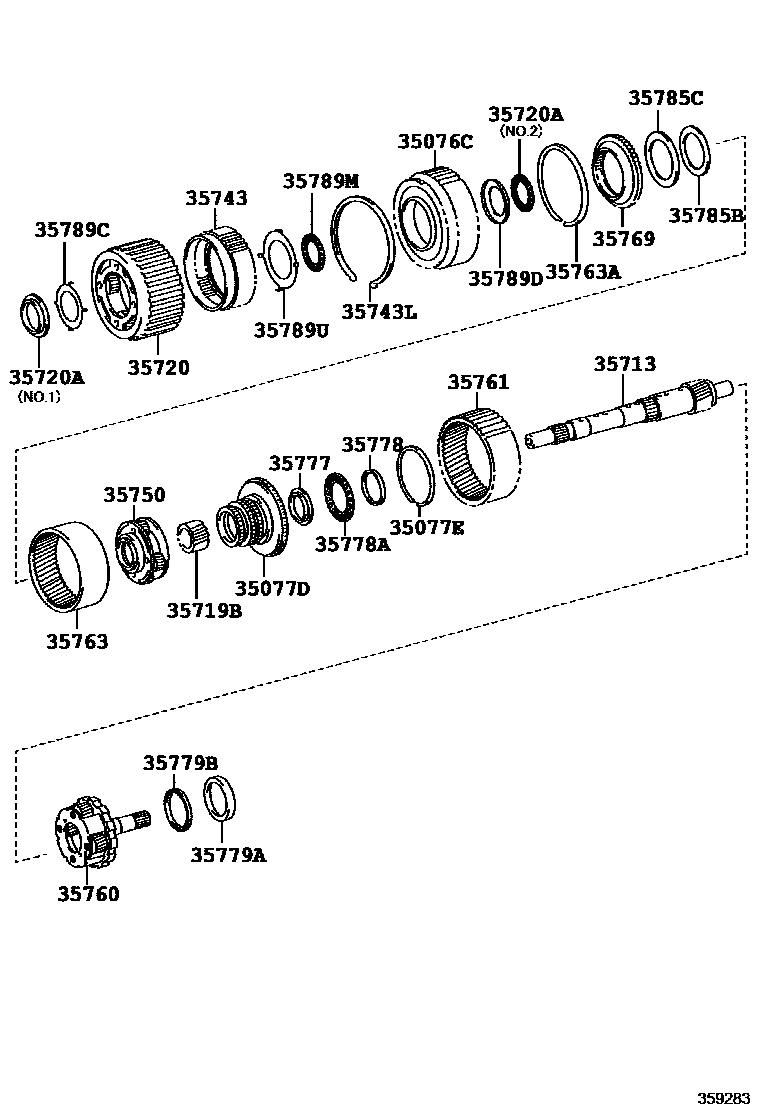

Toyota HILUX 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota HILUX EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35076C | Front planetary ring gear flange sub-assembly | 35076-71010 |
| 35077D | Rear planetary ring gear flange sub-assembly | 35077-0K010 · 35077-60010 · 35077-71010 |
| 35077E | Snap ring (for rear planetary gear flange) | 90520-99073 · 90520-T0293 |
| 35616D | Clutch drum thrust washer | 35616-60010 |
| 35686A | No. 2 clutch drum thrust washer | 35686-60010 |
| 35706W | Snap ring (for planetary gear train sun gear) | 90520-34012 |
| 35713 | intermediate shaft | 35713-0K010 · 35713-60090 · 35713-71010 |
| 35719B | planetary gear system sun gear | 35719-60050 · 35719-71010 |
| 35720 | Front planetary gear assembly | 35720-60070 · 35720-71010 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90374-37009 · 90374-63002 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-60030 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-60030 |
| 35743 | Front planetary ring gear | 35743-60060 · 35743-71010 |
| 35743L | Snap ring (for planetary ring gear) | 90520-99160 |
| 35745 | Front planetary gear flange | 35745-60010 |
| 35750 | Central planetary gear assembly | 35750-60010 · 35750-71010 · 35750-71020 |
| 35760 | Rear planetary gear assembly | 35760-0K010 · 35760-0K020 · 35760-0K030 · 35760-0K040 · 35760-0K050 · 35760-0K060 · 35760-0K070 · 35760-0K080 · 35760-0K090 · 35760-0K100 · 35760-60100 · 35760-71030 · 35760-71040 · 35760-71050 · 35760-71060 · 35760-71070 |
| 35760B | Thrust needle roller bearing (for rear planetary gear train sun gear) | 90374-36001 |
| 35761 | Rear planetary ring gear | 35761-60040 · 35761-71010 |
| 35761A | Hole snap ring (for rear planetary ring gear) | 90520-99073 |
| 35763 | Central planetary ring gear | 35763-60020 · 35763-71010 |
| 35763A | Snap ring (for central planetary gear) | 90520-99076 · 90520-99161 |
| 35769 | Central planetary gear flange | 35769-71010 |
| 35770B | Thrust bearing race (for output shaft) | 35789-22190 |
| 35777 | No. 7 thrust bearing race | 35777-60010 |
| 35778 | No. 8 thrust bearing race | 35778-60010 |
| 35778A | Thrust needle roller bearing | 90374-32010 |
| 35779A | No. 9 thrust bearing race | 35779-60011 |
| 35779B | Thrust needle roller bearing | 90374-43007 |
| 35785B | No. 4 thrust bearing race | 35785-60010 |
| 35785C | Thrust needle roller bearing | 90374-55004 |
| 35788D | No. 3 thrust bearing race | 35788-60010 |
| 35788E | Thrust needle roller bearing | 90374-44005 |
| 35789C | Front thrust bearing race (for front planetary gear) | 35789-71030 |
| 35789D | Rear thrust bearing race (for front planetary gear) | 35789-71050 |
| 35789M | Thrust needle roller bearing | 90374-63002 |
| 35789R | Rear thrust bearing race (for output shaft) | 35789-35060 · 35789-35070 · 35789-35080 · 35789-35090 · 35789-35100 · 35789-50070 · 35789-50080 · 35789-50090 · 35789-50100 · 35789-50110 · 35789-50120 · 35789-50130 |
| 35789U | thrust bearing race | 35789-71040 |
