Toyota HILUX 中央支架和行星太阳齿轮(ATM) — Figure 3508

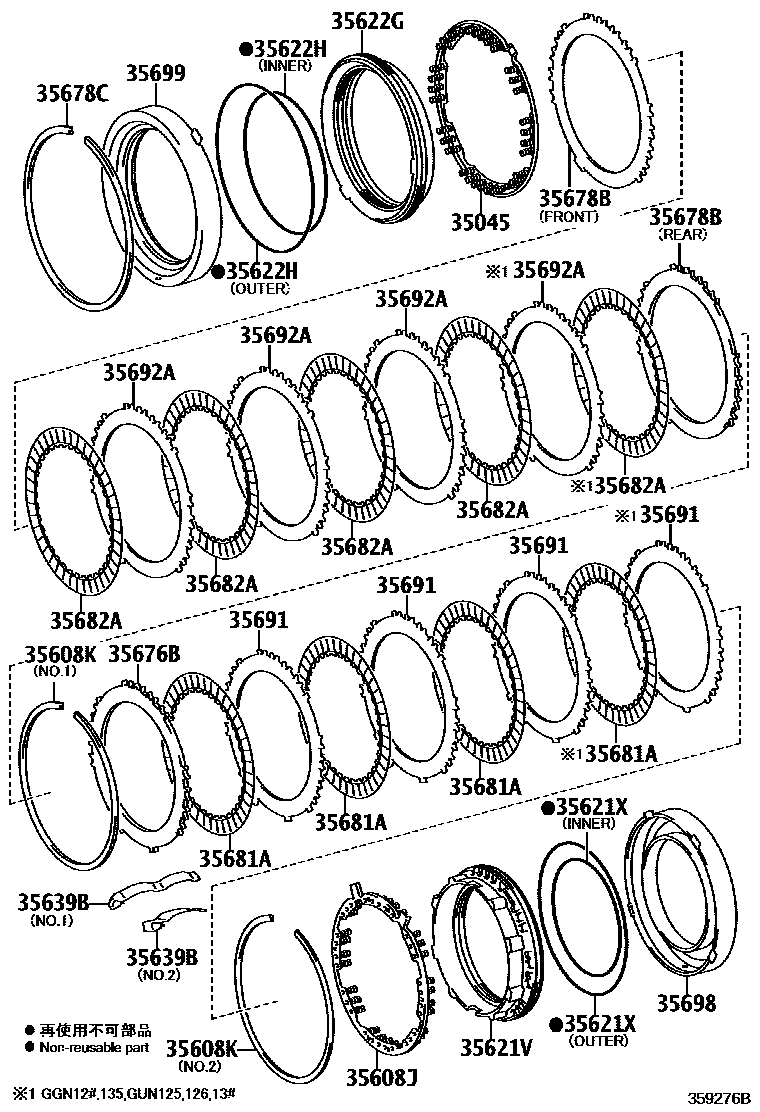

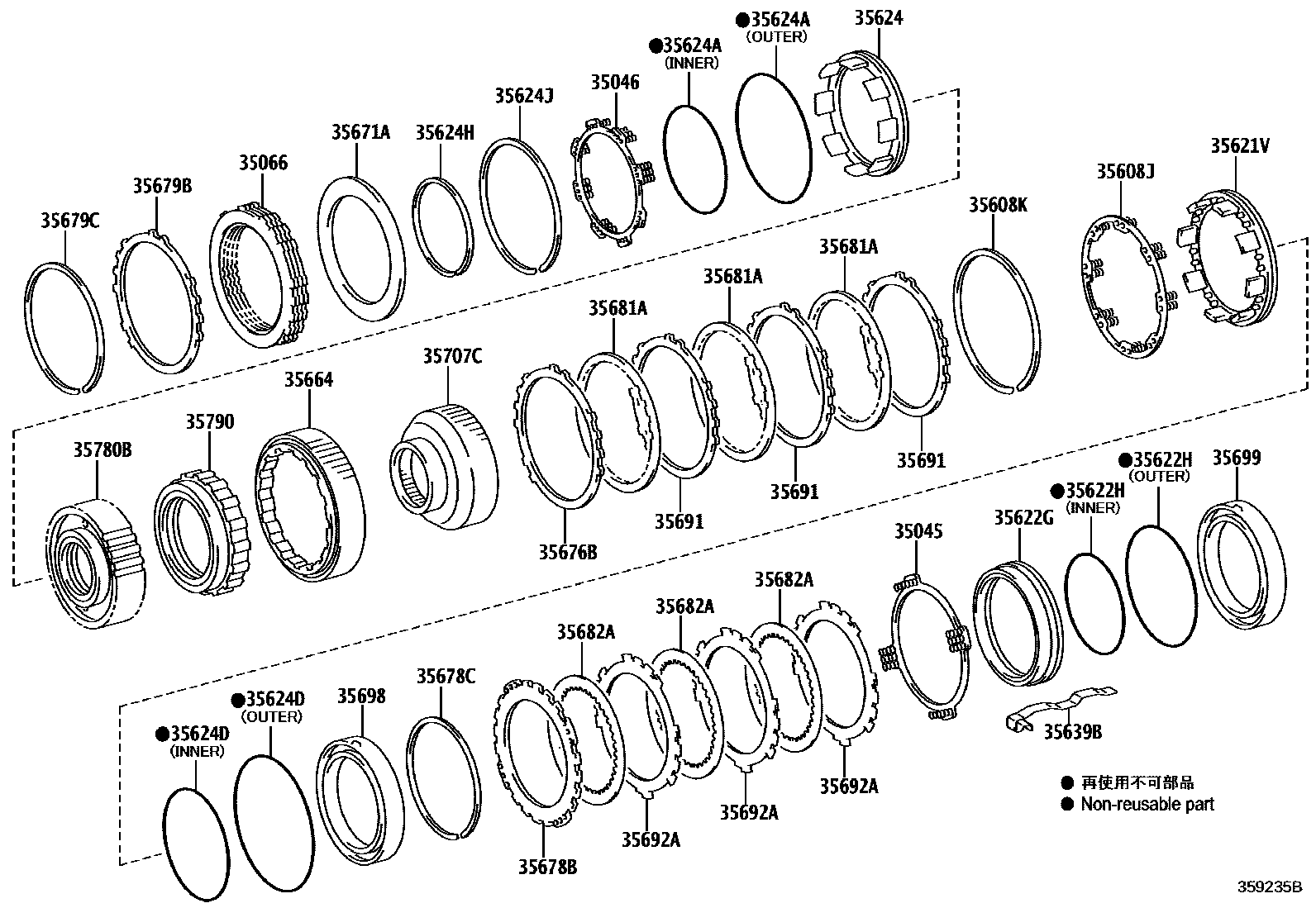

Toyota HILUX EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35045 | No. 2 brake piston return spring sub-assembly | 35045-0K010 · 35045-60010 · 35045-71010 |
| 35046 | No. 3 brake piston return spring sub-assembly | 35046-60010 |
| 35066 | Second gear brake disc assembly | 35066-60030 |
| 35608J | Brake piston return spring sub-assembly | 35608-0K010 · 35608-60020 · 35608-71010 |
| 35608K | Snap ring (for brake piston return spring) | 90520-99039 · 90520-99156 · 90520-99157 · 90520-T0288 · 90520-T0290 |
| 35621V | Brake piston No. 1 | 35621-0K010 · 35621-0K020 · 35621-60020 · 35621-71010 · 35621-71020 |
| 35621X | O-ring (for brake piston No. 1) | 90301-99115 · 90301-99123 · 90301-T0078 · 90301-T0090 |
| 35622G | Brake piston No. 2 | 35622-0K010 · 35622-0K020 · 35622-60020 · 35622-71010 · 35622-71020 |
| 35622H | O-ring (for brake piston No. 2) | 90301-99095 · 90301-99118 · 90301-99132 · 90301-99179 · 90301-T0077 · 90301-T0089 |
| 35624 | Second gear brake piston | 35624-60010 |
| 35624A | O-ring (for second gear brake piston) | 90301-99095 · 90301-99115 |
| 35624D | O-ring (for brake piston No. 4) | 90301-99126 · 90301-99204 |
| 35624H | Snap ring (for second gear brake piston) | 90520-99077 |
| 35624J | Bore snap ring (for 2nd gear brake piston) | 90521-99130 |
| 35639B | Brake pad limit spring | 35639-60010 · 35639-71010 · 35639-71020 |
| 35664 | Second gear brake cylinder | 35664-60010 |
| 35671A | brake cushion | 35671-60010 |
| 35676B | No. 1 brake flange | 35676-60080 · 35676-60090 · 35676-60100 · 35676-60110 · 35676-71010 · 35676-71020 · 35676-71030 · 35676-71040 · 35676-71050 · 35676-71060 · 35676-71070 · 35676-71080 · 35676-71090 · 35676-71100 |
| 35678B | No. 2 brake flange | 35678-60010 · 35678-71010 · 35678-71020 · 35678-71030 · 35678-71040 · 35678-71050 · 35678-71060 · 35678-71070 · 35678-71080 · 35678-71090 · 35678-71100 |
| 35678C | Snap ring (for brake No. 2) | 90520-99075 · 90520-99155 · 90520-T0291 |
| 35679B | No. 3 brake flange | 35679-60010 |
| 35679C | Snap ring (for No. 3 brake) | 90520-99080 |
| 35681A | No. 1 brake disc | 35681-0K010 · 35681-60020 · 35681-71010 |
| 35682A | Brake disc No. 2 | 35682-0K010 · 35682-50010 · 35682-71010 |
| 35691 | No. 1 brake pad | 35691-0K010 · 35691-60010 · 35691-71010 |
| 35692A | No. 2 brake pad | 35692-0K010 · 35692-60010 · 35692-71010 |
| 35698 | No. 1 brake cylinder | 35698-60010 · 35698-71010 |
| 35699 | No. 2 brake cylinder | 35699-60010 · 35699-71010 |
| 35707C | One-way clutch inner race sub-assembly | 35707-60010 |
| 35780B | No. 2 one-way clutch assembly | 35780-50040 |
| 35790 | One-way clutch assembly | 35790-50020 |
