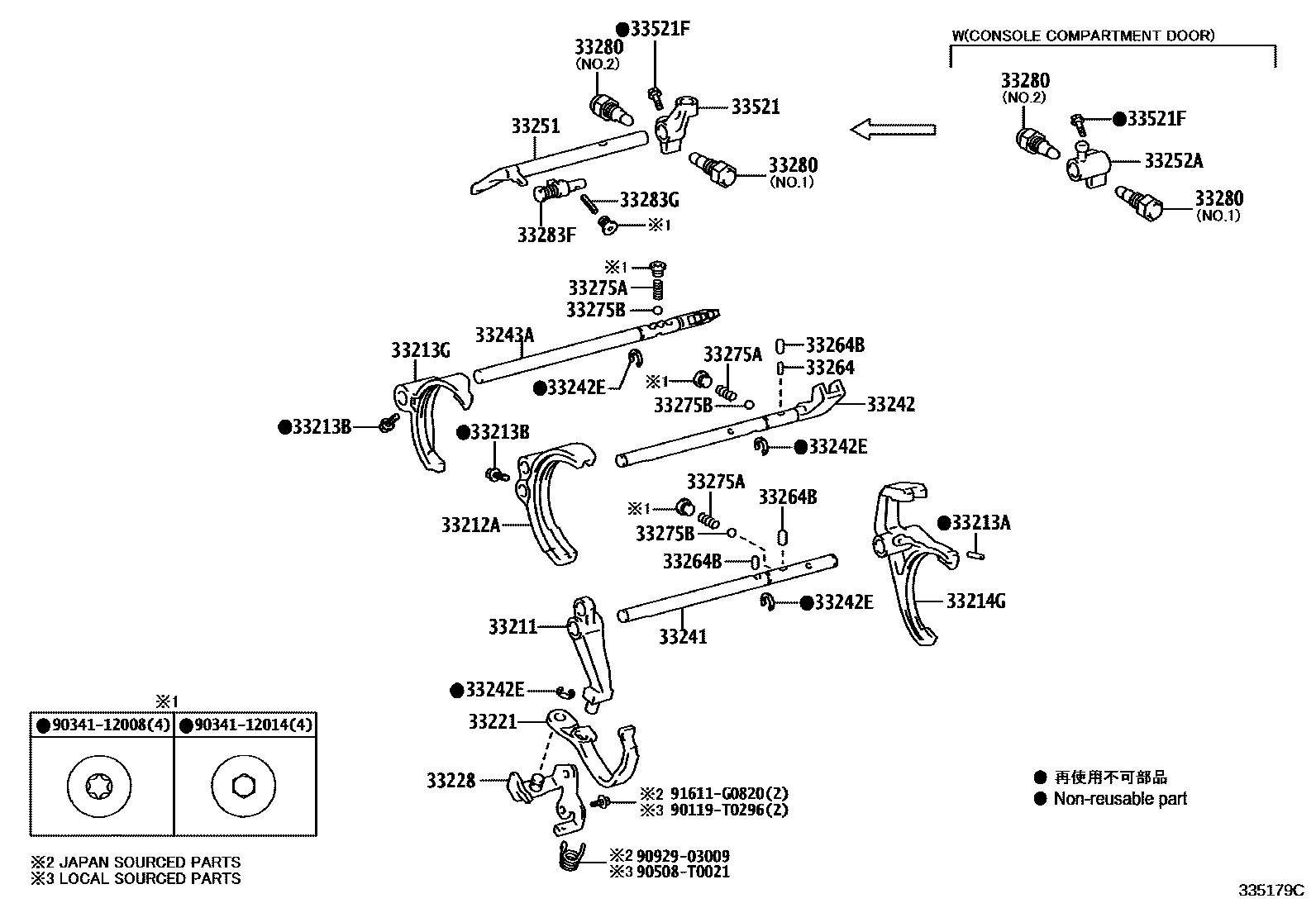

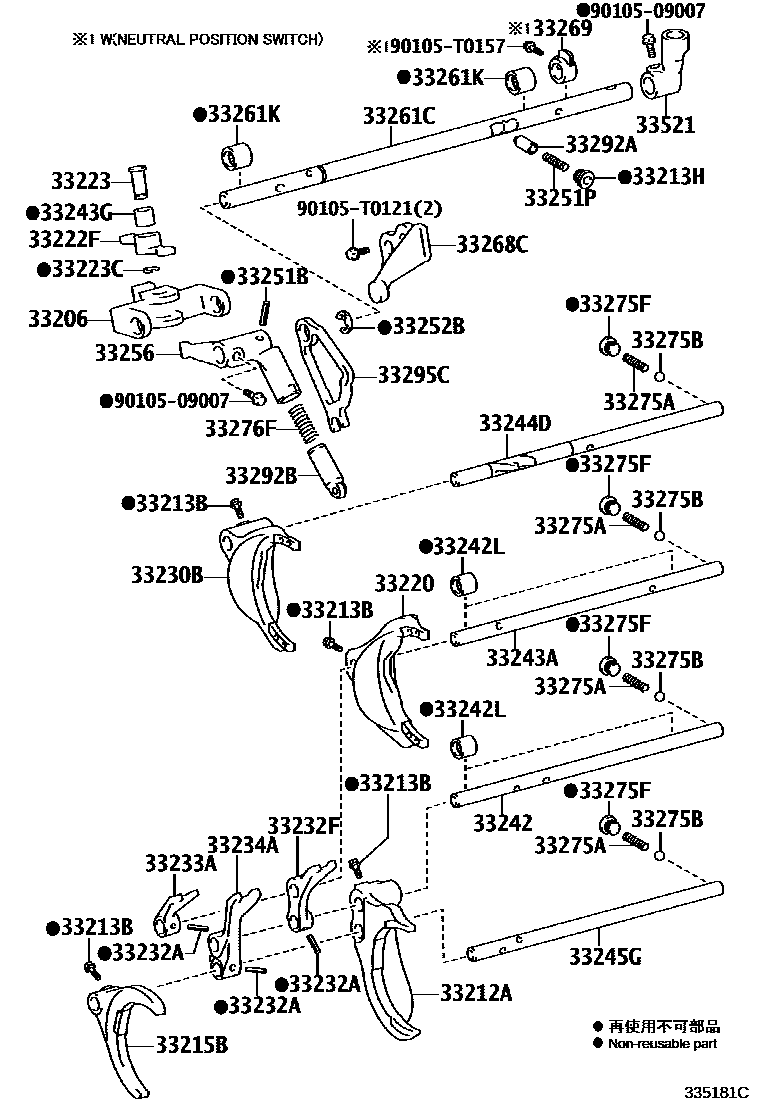

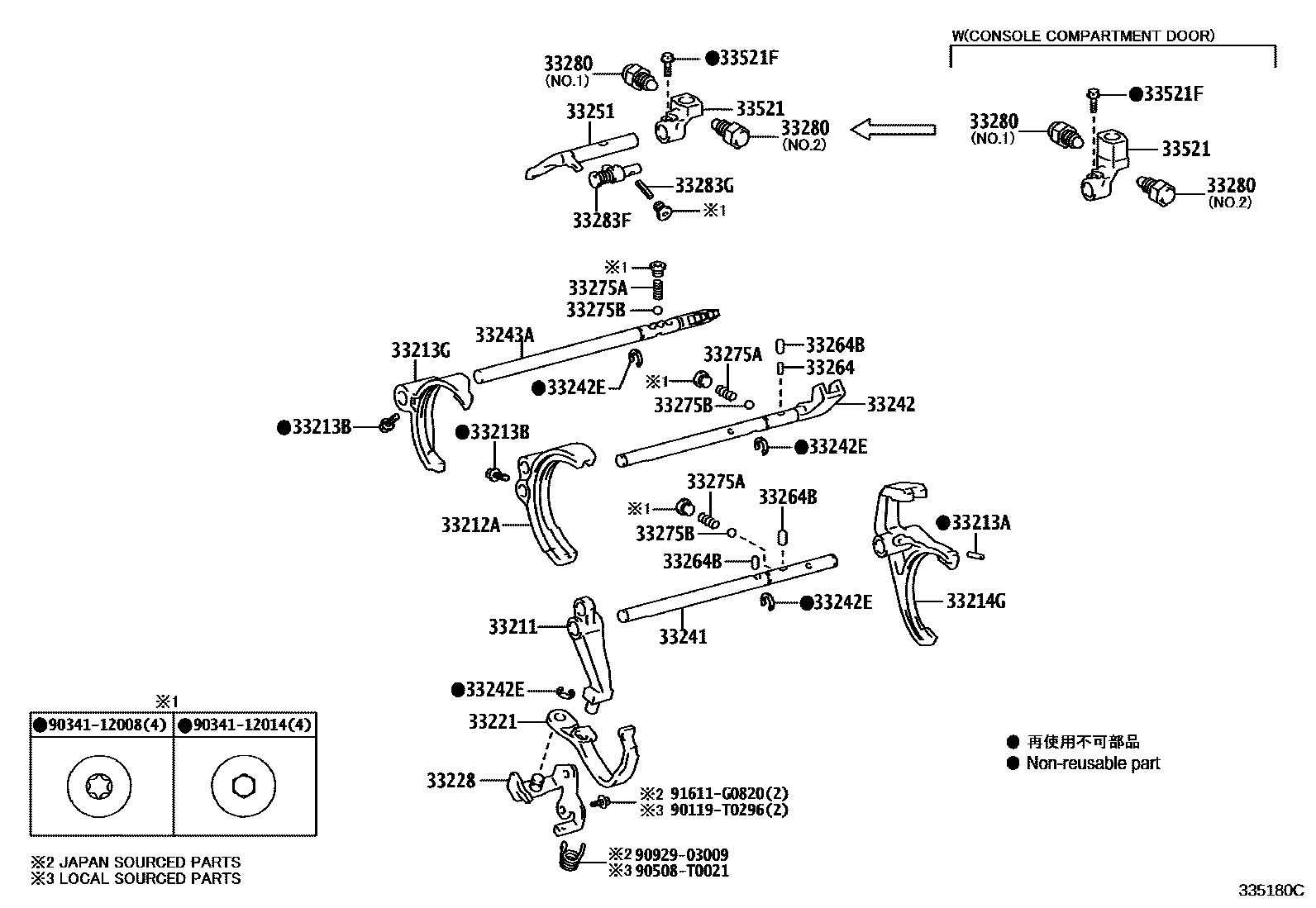

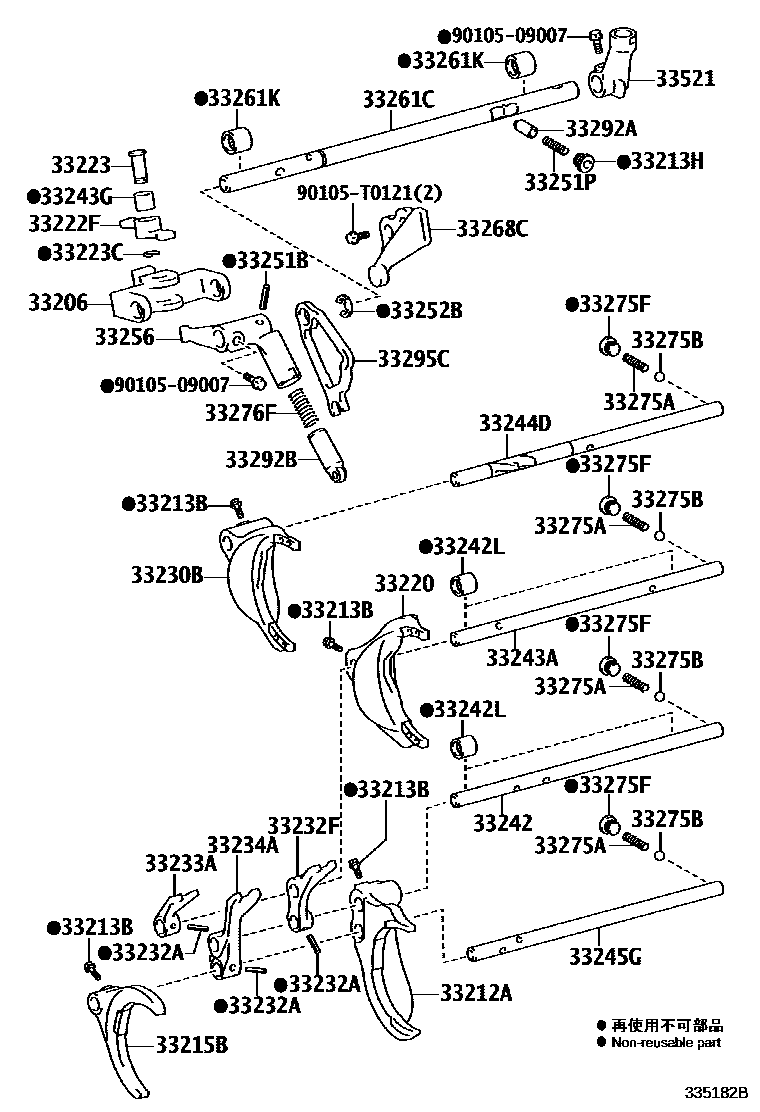

Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 4 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33206 | Shift interlock plate sub-assembly | 33206-0K010 |
| 33211 | Reverse Shift Fork | 33211-0K050 · 33211-0K060 · 33211-0K061 · 33211-0K070 · 33211-0K071 |
| 33212A | No. 1 shift fork | 33212-0K020 · 33212-0K030 · 33212-0K040 · 33212-0K050 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05016 · 90254-T0004 |
| 33213B | Bolt (for securing shift fork) | 90105-06077 · 90105-T0157 |
| 33213G | No. 2 shift fork | 33213-0K030 · 33213-0K040 |
| 33213H | No. 2 headed straight thread plug | 90341-16013 · 90341-T0016 |
| 33214G | No. 3 shift fork | 33230-0K030 · 33230-35012 |
| 33215B | No. 4 shift fork | 33215-0K010 |
| 33220 | No. 2 shift fork assembly | 33220-0K010 |
| 33221 | Reverse shift arm | 33221-0K050 · 33221-0K060 · 33221-0K070 · 33221-0K080 |
| 33222F | shift arm | 33222-0K010 |
| 33223 | shift arm pivot | 33223-0K030 |
| 33223C | Shaft snap ring (for shift arm pivot) | 90520-14003 · 90520-T0238 |
| 33228 | Reverse shift arm bracket | 33228-0K050 · 33228-0K060 · 33228-35050 |
| 33230B | No. 3 shift fork assembly | 33230-0K010 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05019 · 90254-T0006 |
| 33232F | No. 1 transmission guide block | 33232-0K012 · 33232-0K022 |
| 33233A | No. 2 speed change guide block | 33233-0K011 · 33233-0K021 |
| 33234A | No. 3 speed change guide block | 33235-0K011 · 33235-0K021 |
| 33241 | Reverse shift fork shaft | 33244-0K050 · 33244-0K060 · 33244-0K061 · 33244-0K070 · 33244-0K071 · 33244-35110 |
| 33242 | No. 1 shift fork shaft | 33242-0K050 · 33242-0K060 · 33242-0K070 · 33242-0K071 · 33242-0K082 · 33242-0K092 · 33242-0K110 · 33242-0K111 · 33242-35090 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90520-T0135 |
| 33242L | Bearings (for shift fork shaft) | 90369-T0010 |
| 33243A | No. 2 shift fork shaft | 33243-0K010 · 33243-0K030 · 33243-0K040 · 33243-0K051 · 33243-0K061 · 33243-0K070 · 33243-35100 |
| 33243G | Bearings (for shift fork shaft) | 90364-16010 · 90364-T0042 |
| 33244D | No. 3 shift fork shaft | 33244-0K090 · 33244-71020 |
| 33245G | No. 4 shift fork shaft | 33245-0K051 · 33245-0K061 |
| 33251 | shift lever | 33251-0K010 · 33251-0K070 · 33251-0K080 · 33251-0K090 · 33251-0K100 · 33251-0K130 · 33251-0K140 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05016 · 90254-T0004 |
| 33251P | Spring (for shift lever) | 90501-T0040 |
| 33252A | Internal shift lever No. 2 | 33252-0K010 · 33252-0K020 · 33252-0K030 |
| 33252B | E-ring (for inner shift lever) | 90523-T0004 |
| 33256 | Internal gear selector | 33256-0K010 |
| 33261C | shift lever shaft | 33261-0K040 · 33261-0K050 · 33261-0K060 · 33261-0K070 · 33261-0K080 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90364-T0044 · 90364-T0058 |
| 33264 | No. 1 shift interlock pin or steel ball | 90250-05029 · 90250-T0022 |
| 33264B | Roller No. 1 (for shift interlock) | 90250-06032 · 90361-10003 · 90361-T0003 |
| 33268C | Shift interlock plate stop | 33268-0K010 · 33268-0K020 |
| 33269 | Shift interlock plate cover | 33269-71010 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-16199 · 90501-T0029 · 90501-T0039 · 90501-T0052 · 90501-T0062 |
| 33275B | Gear shift lock steel ball | 90360-10003 · 90360-T0008 · 90360-T0013 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12014 · 90341-T0014 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-T0041 |
| 33280 | Reverse gear positioning pin assembly | 33280-0K050 · 33280-0K060 · 33280-0K070 · 33280-0K080 · 33280-0K110 · 33280-0K120 · 33280-35110 · 33280-35120 · 33280-35130 · 33280-35140 · 33280-71050 · 33280-71060 |
| 33283F | Reverse gear positioning pin | 33280-0K090 · 33280-35100 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 · 90254-T0003 |
| 33292A | Locking steel ball pin | 33292-0K010 · 33292-0K011 |
| 33292B | No. 2 locking steel ball pin | 33292-0K020 · 33292-71010 |
| 33295C | shift lever cam | 33295-0K010 |
| 33521 | shift lever housing | 33521-0K040 · 33521-0K080 · 33521-0K100 · 33521-0K110 · 33521-0K120 · 33521-0K160 · 33521-0K170 · 33521-0K180 · 33521-0K190 · 33521-0K200 · 33521-0K210 · 33521-0K220 · 33521-0K260 · 33521-0K280 |
| 33521F | Pin or bolt (for shifter housing) | 90109-08305 · 90109-T0039 |
