Toyota HILUX Extended shell (MTM) — Figure 3303

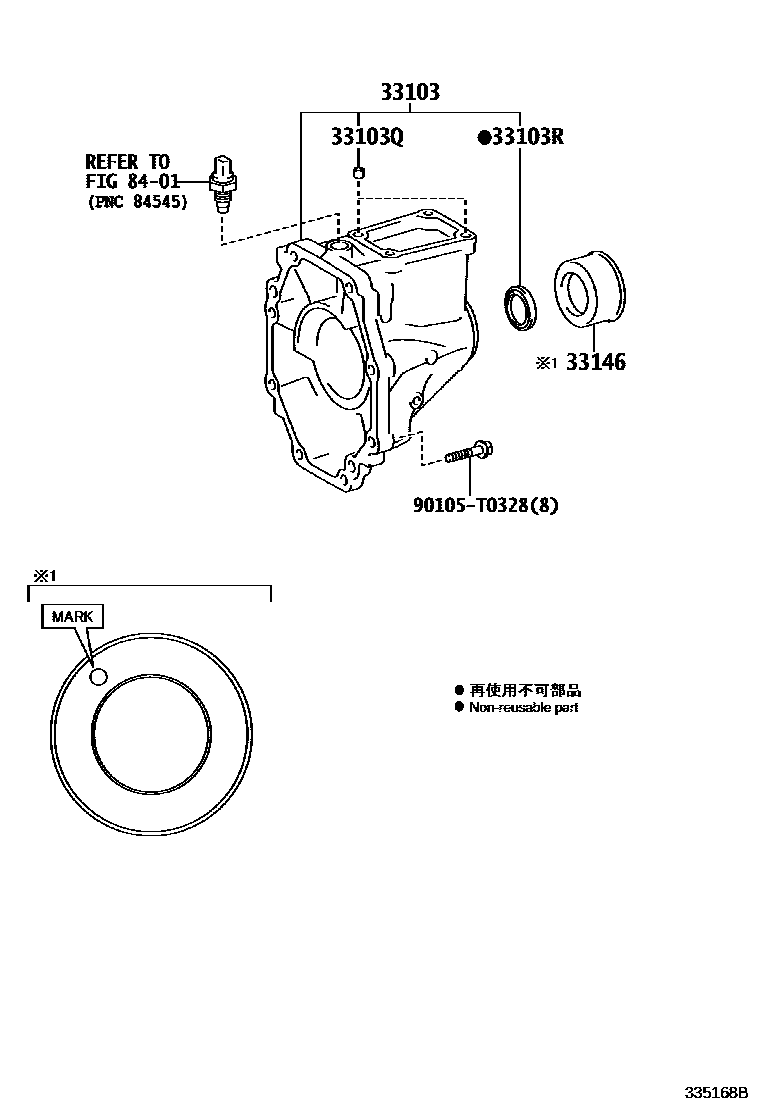

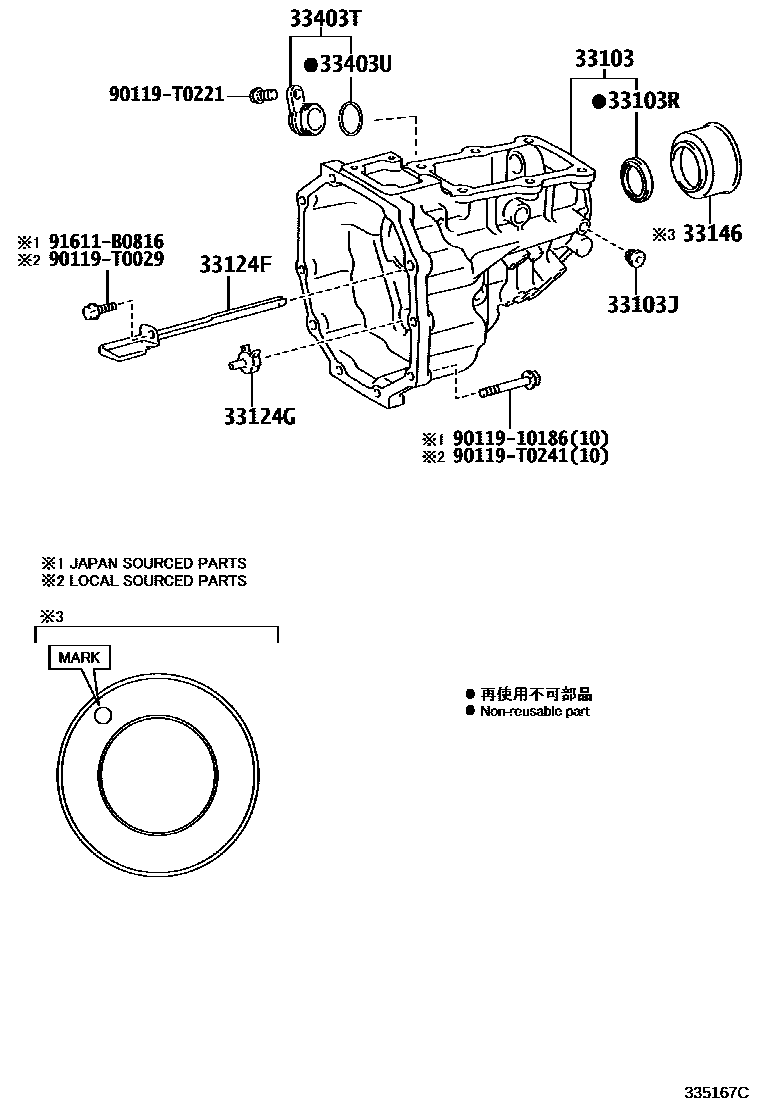

Toyota HILUX EPC diagram 3303, Extended shell (MTM), with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33103 | Extended shell sub-assembly (MTM) | 33103-0K011 · 33103-0K031 · 33103-0K041 · 33103-0K090 · 33103-0K100 · 33103-0K110 |
| 33103J | Sealing plug (for extension housing) | 90341-10065 |
| 33103Q | Ring pin (for extension housing) | 90253-11021 |
| 33103R | Oil seal (for manual transmission extension housing) | 90311-40035 · 90311-40048 · 90311-T0051 · 90311-T0052 · 90311-T0067 · 90311-T0069 · 90311-T0095 · 90311-T0096 · 90311-T0097 |
| 33124F | No. 1 oil collection pipe (for extension housing) | 33124-0K020 · 33124-0K040 · 33124-0K050 |
| 33124G | No. 2 oil collection pipe (for extension housing) | 33124-0K010 · 33124-0K060 · 33124-35100 |
| 33146 | Extension housing dust cover (MTM) | 33146-0K020 · 33146-0K030 · 33146-0K050 · 33146-0K060 · 33146-35020 · 33146-35030 |
| 33403T | Speedometer driven gear hole cover sub-assembly | 33403-0D020 · 33403-35230 |
| 33403U | O-ring (for manual transmission speedometer driven gear hole cover) | 96711-24030 |
