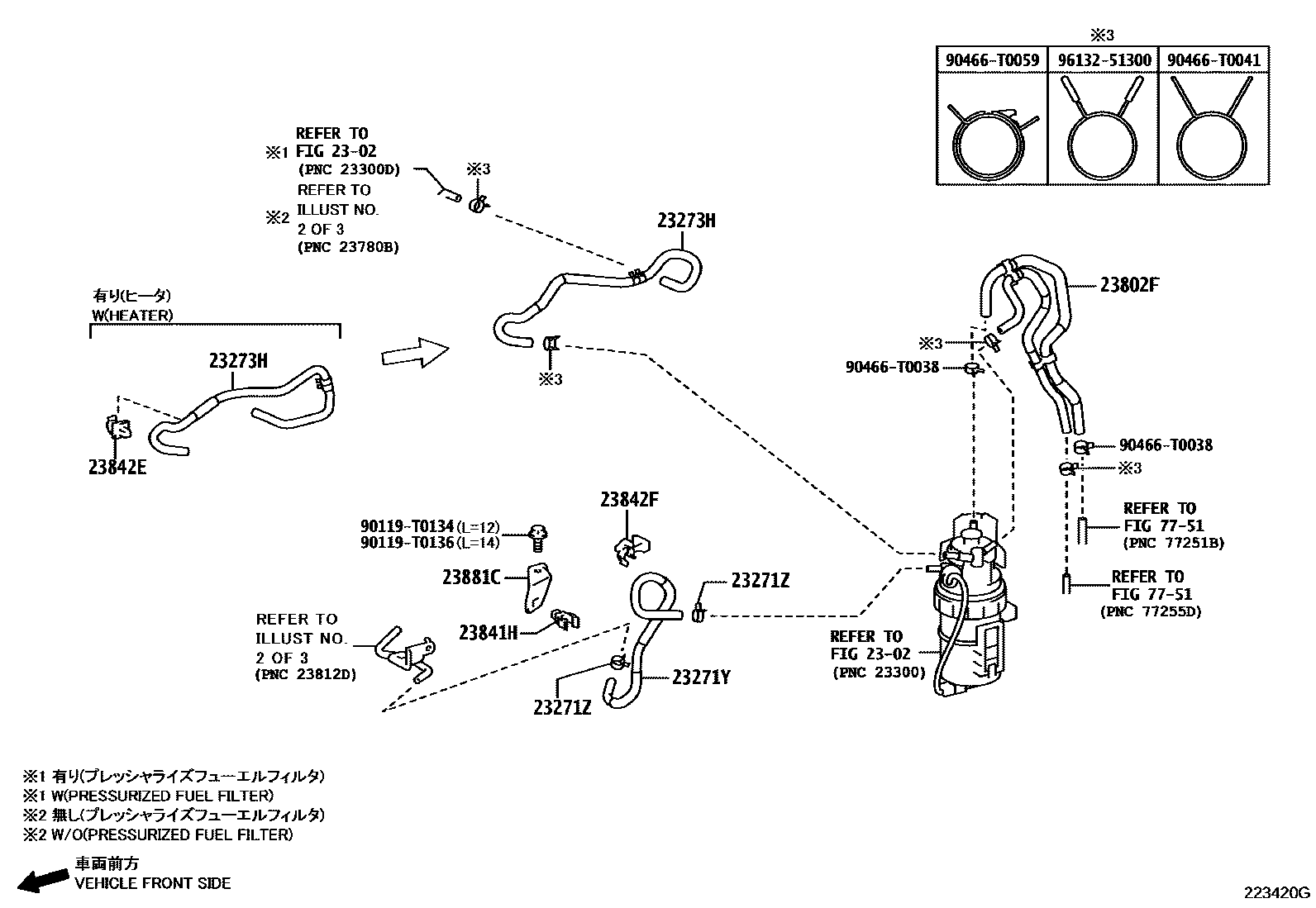

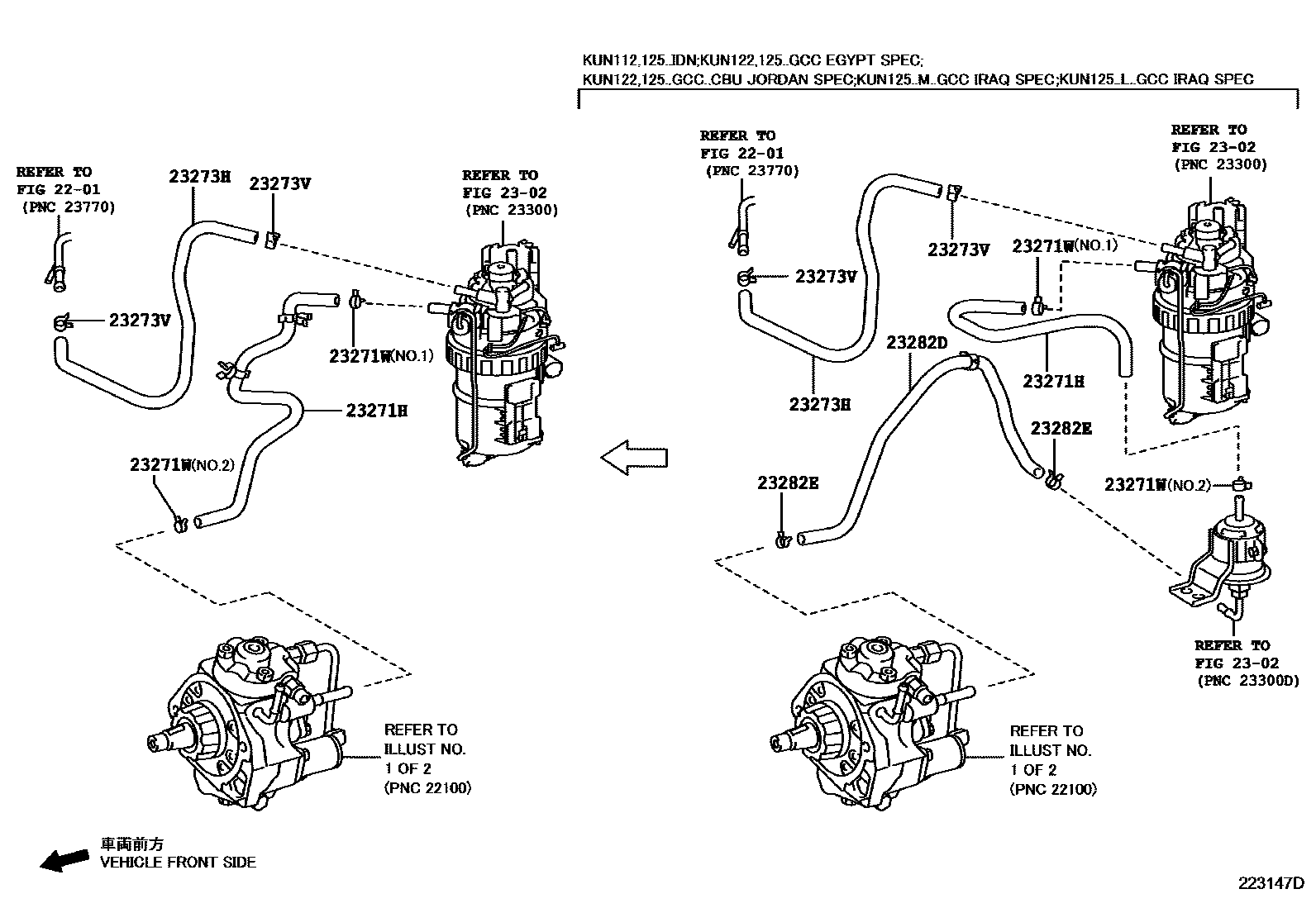

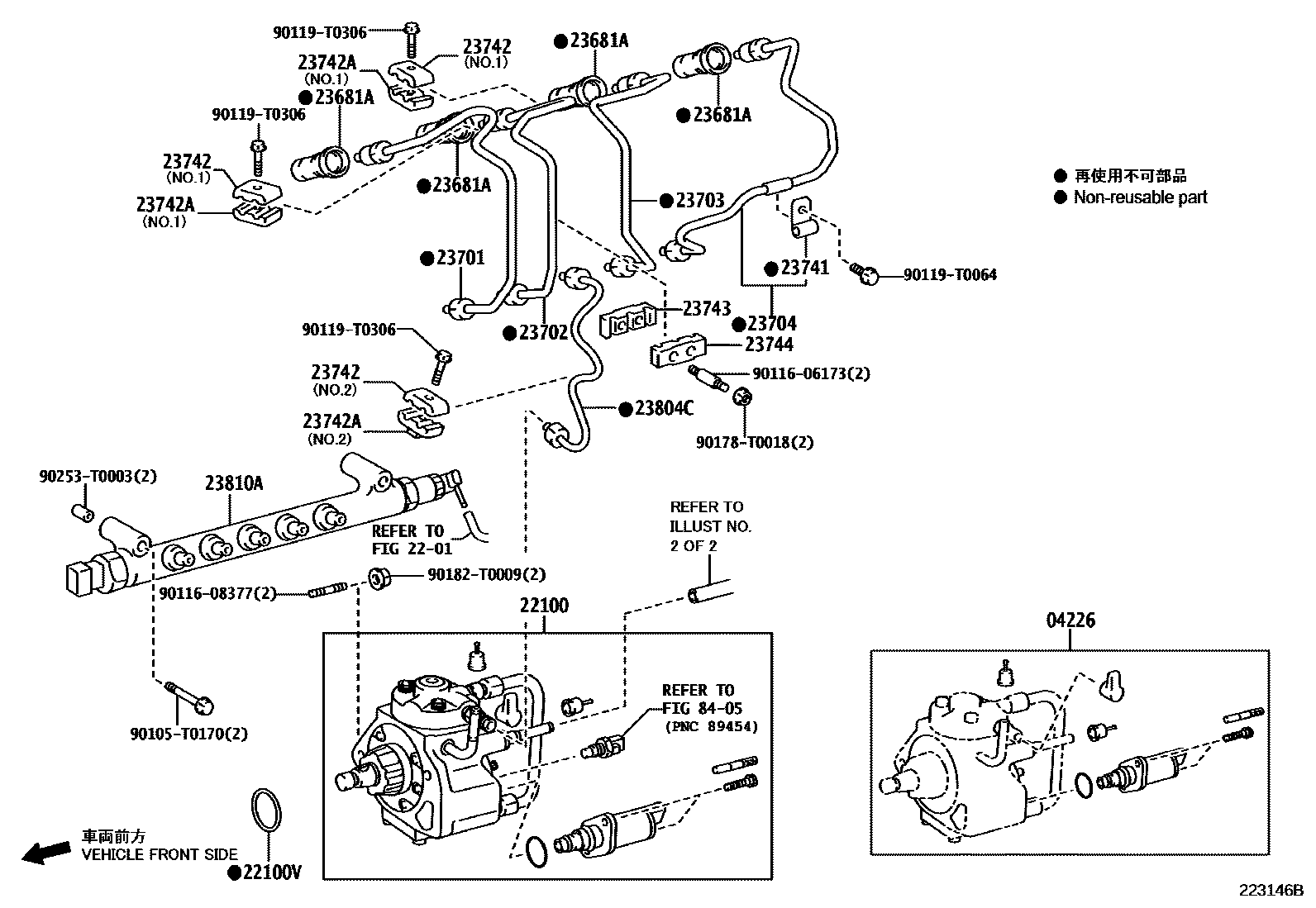

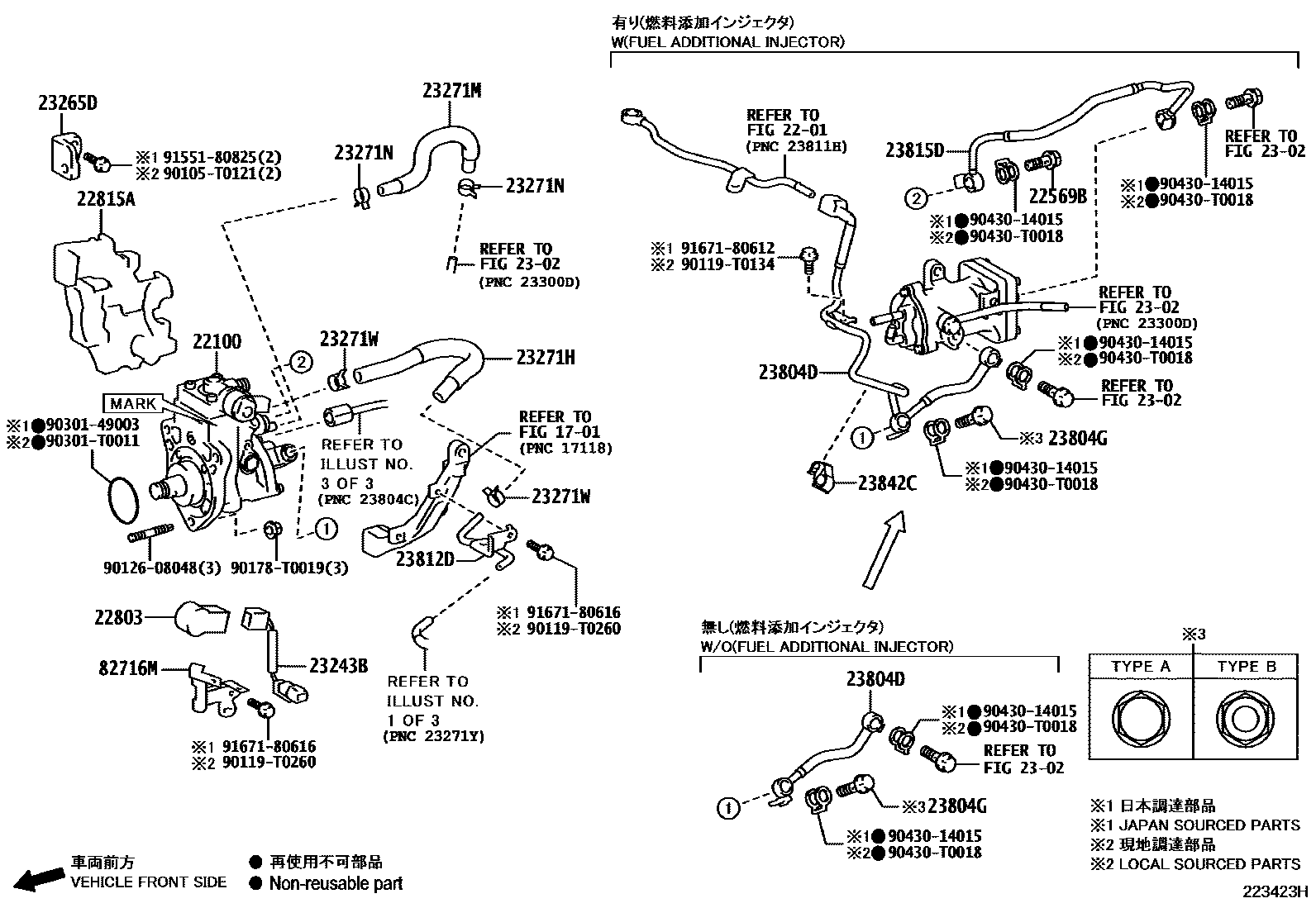

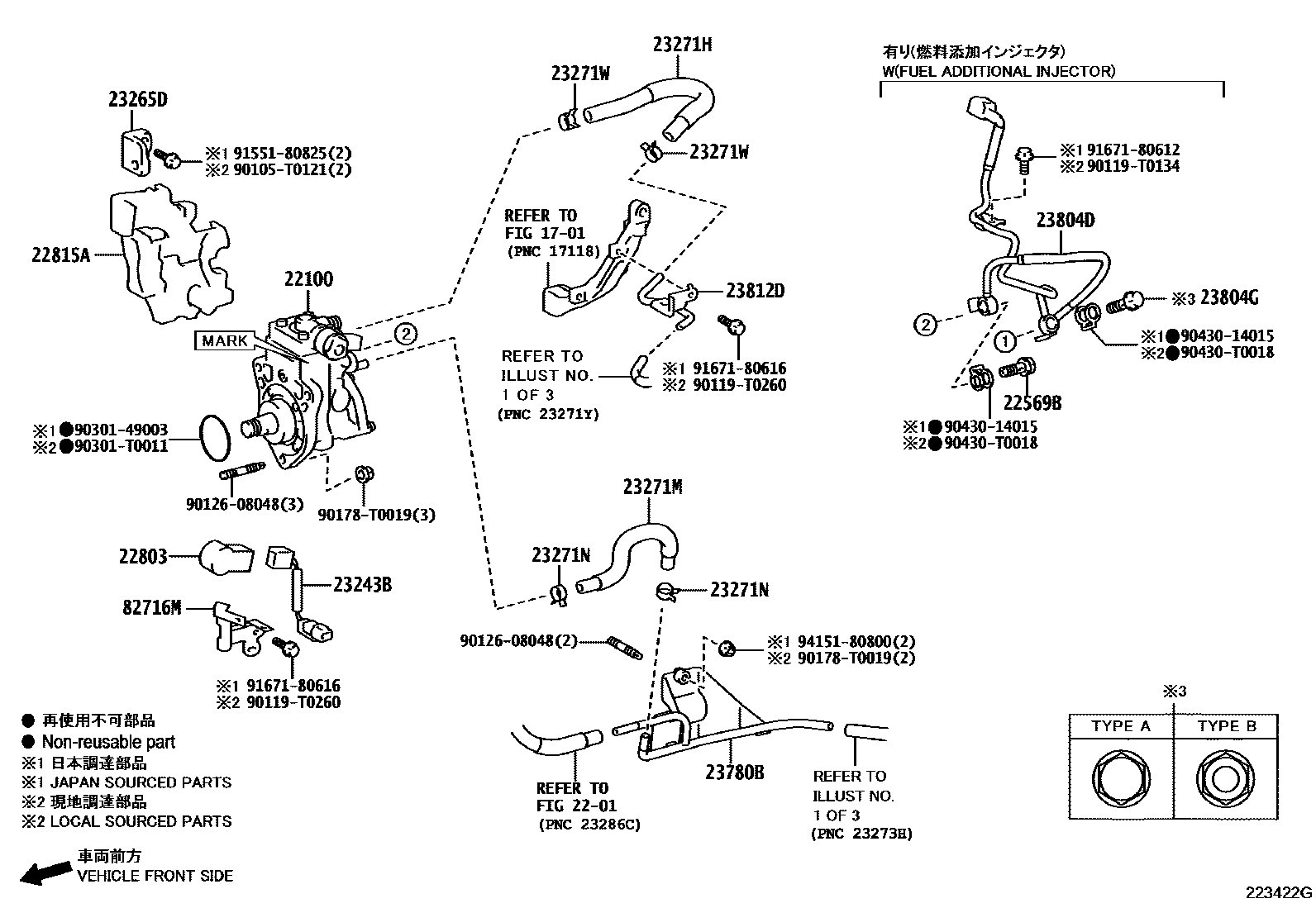

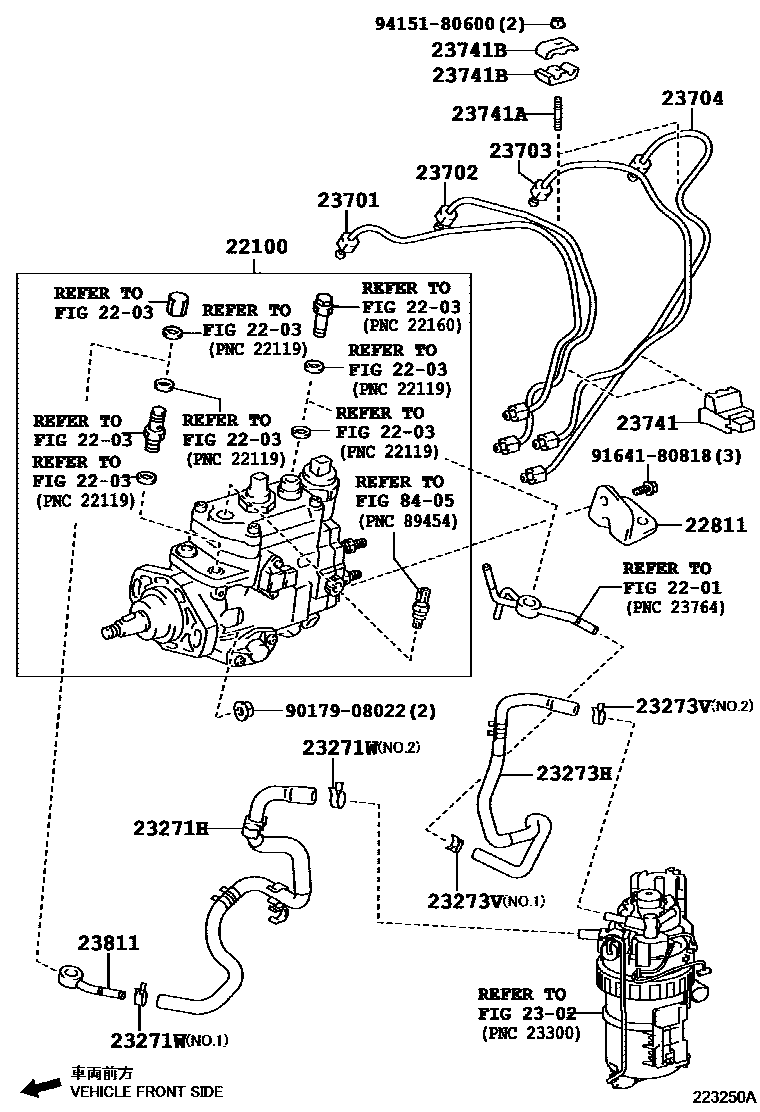

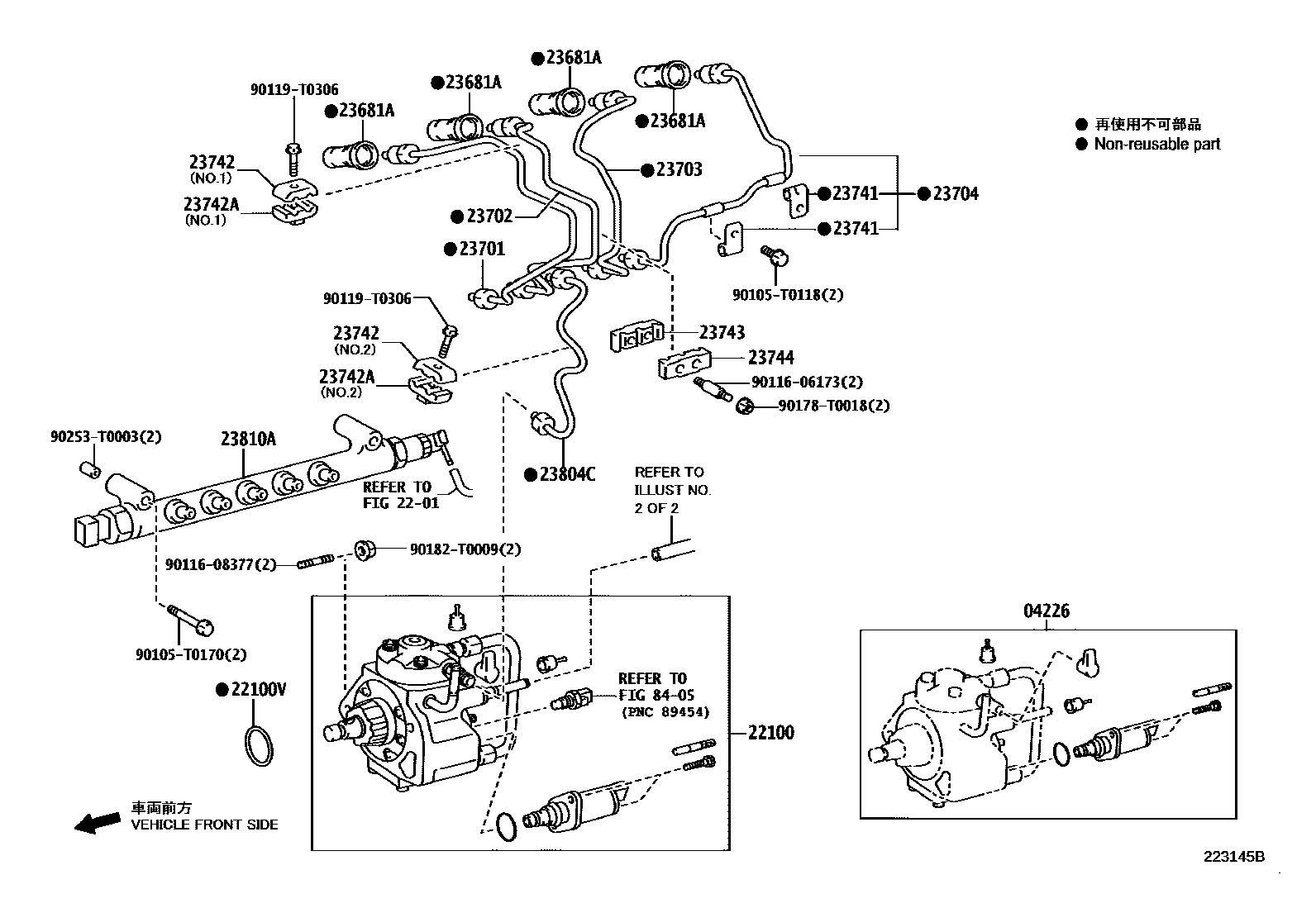

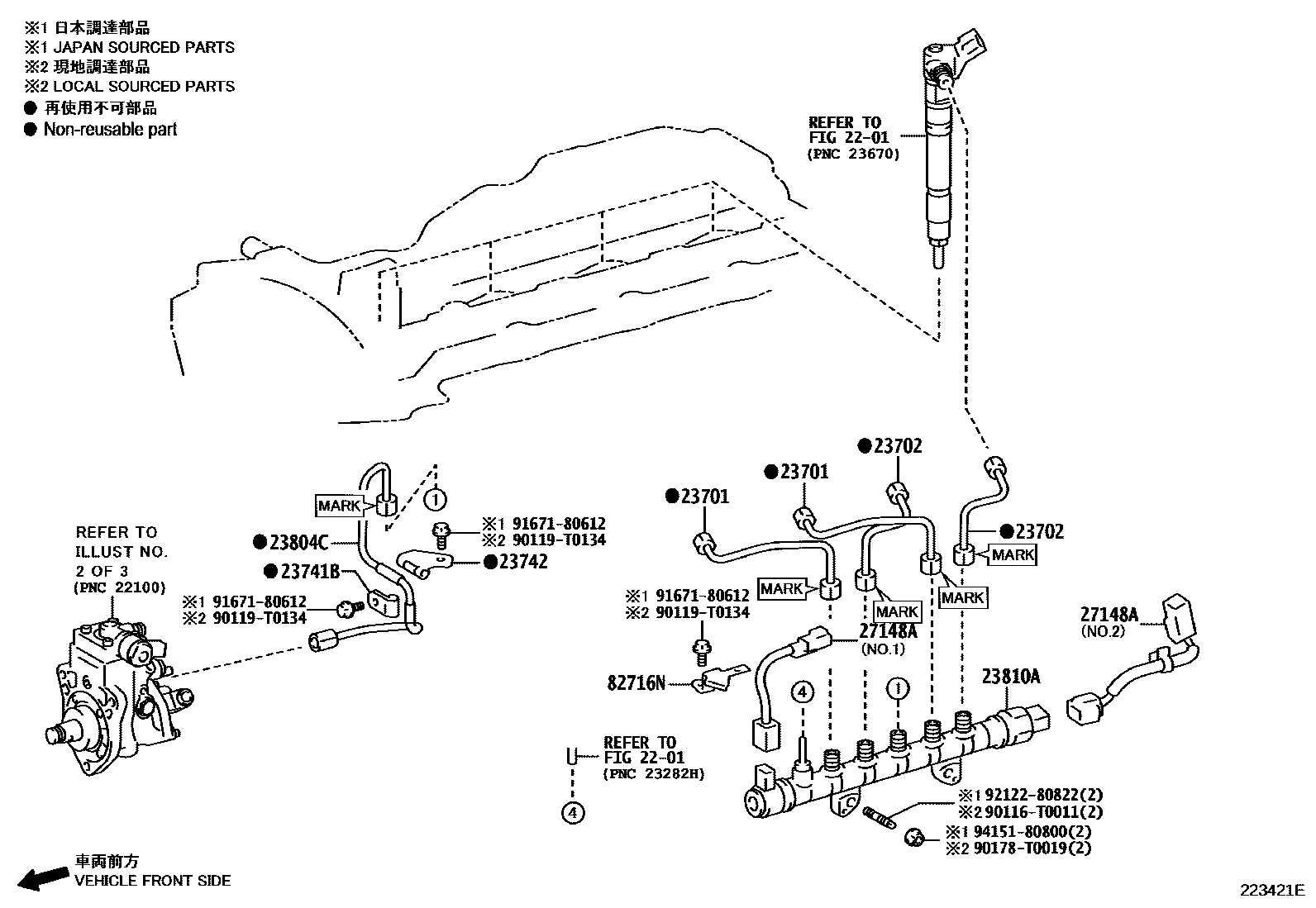

Toyota HILUX 喷油泵总成 — Figure 2202
Toyota HILUX EPC diagram 2202, 喷油泵总成, with 8 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04226 | Oil suction control valve assembly | 04226-0L020 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0E010 · 22100-0E020 · 22100-0E040 · 22100-0L060 · 22100-11010 · 22100-5D180 |
| 22100V | O-ring (for fuel injection pump) | 90301-T0011 |
| 22569B | Oil supply pump hollow screw | 22569-0E010 · 22569-11010 |
| 22803 | Fuel injection pump cover sub-assembly | 22803-0E010 · 22803-0E020 · 22803-11010 |
| 22811 | No. 1 fuel injection pump bracket | 22811-05021 |
| 22815A | Fuel injection pump vibration isolation pad | 22815-0E010 · 22815-0E011 · 22815-0E020 · 22815-11010 · 22815-11011 |
| 23243B | Fuel pump motor wiring harness | 23243-0E010 · 23243-0E030 · 23243-11010 |
| 23265D | No. 1 fuel pump bracket | 23265-0E010 · 23265-0E020 · 23265-11010 |
| 23271H | No. 1 fuel hose | 23271-0E010 · 23271-0E011 · 23271-0L120 · 23271-0L121 · 23271-0L130 · 23271-0L160 · 23271-11370 · 23271-11371 |
| 23271M | fuel hose | 23273-0E010 · 23273-0E020 · 23273-11030 |
| 23271N | Hose clip | 90466-T0015 · 96136-41501 |
| 23271W | Clamp (for No. 1 fuel hose) | 90466-T0023 · 96132-51300 · 96136-51801 |
| 23271Y | fuel hose | 23271-0L140 · 23271-0L141 |
| 23271Z | Hose clip | 90466-T0023 |
| 23273H | No. 2 fuel hose | 23273-0L120 · 23273-0L121 · 23273-0L130 · 23273-0L131 · 23273-0L132 · 23273-0L200 · 23273-54190 |
| 23273V | Clamp (for No. 2 fuel hose) | 90466-T0040 · 96132-51300 |
| 23282D | No. 4 fuel hose | 23282-0L030 |
| 23282E | Clamp (for No. 4 fuel hose) | 96132-51300 |
| 23681A | Injector body seal | 23681-0L010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-0E010 · 23701-0E011 · 23701-0E012 · 23701-0E020 · 23701-0E021 · 23701-0E022 · 23701-0L010 · 23701-0L020 · 23701-54140 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-0E010 · 23702-0E011 · 23702-0E012 · 23702-0E020 · 23702-0E021 · 23702-0E022 · 23702-0L010 · 23702-0L020 · 23702-54140 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-0L010 · 23703-0L020 · 23703-54100 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-09015 · 23704-09040 · 23704-54100 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-0L020 · 23741-54030 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06095 |
| 23741B | Fuel injection pipe clamp | 23741-0E010 · 23741-30010 · 23741-56010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-0E010 · 23742-0E020 · 23742-0L090 · 23742-0L110 · 23742-11010 |
| 23742A | No. 3 fuel injection pipe clamp | 23742-0L100 · 23742-0L120 |
| 23743 | No. 3 fuel injection pipe clamp | 23743-0L040 |
| 23744 | No. 4 fuel injection pipe clamp | 23743-0L040 |
| 23780B | No. 3 injector oil spill pipe assembly | 23780-0E010 · 23780-11010 |
| 23802F | fuel hose | 23801-0L010 · 23801-0L011 · 23801-0L050 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-0E010 · 23804-0E011 · 23804-0E012 · 23804-0E030 · 23804-0E031 · 23804-0E032 · 23804-0L010 · 23804-11010 · 23804-11011 · 23804-11012 |
| 23804D | No. 4 fuel pipe sub-assembly | 23816-0E010 · 23816-0E012 · 23816-0E013 · 23816-0E020 · 23816-0E021 |
| 23804G | Joint bolt (for No. 4 fuel pipe) | 90401-14018 · 90401-T0006 · 90401-T0008 |
| 23810A | Common rail assembly | 23810-0E010 · 23810-0E011 · 23810-0E020 · 23810-0E030 · 23810-0E031 · 23810-0L030 · 23810-11030 · 23810-11031 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-54220 |
| 23812D | No. 2 fuel pipe | 23812-0E010 · 23812-0E011 · 23812-0E021 · 23812-11010 |
| 23815D | No. 3 fuel pipe | 23815-0E010 · 23815-0E011 · 23815-0E012 · 23815-0E014 |
| 23841H | fuel hose clamp | 23841-0L010 · 23841-0L030 |
| 23842C | No. 2 fuel pipe clamp (for fuel injection pump) | 23842-11070 · 23842-11071 |
| 23842E | Fuel pipe No. 1 clamp | 23841-0L041 · 23841-0L061 |
| 23842F | Fuel pipe No. 2 clamp | 23842-0L010 · 23842-0L030 |
| 23881C | fuel hose bracket | 23881-0L010 · 23881-0L020 |
| 27148A | Connection harness | 27148-0E020 · 27148-0E030 · 27148-0E050 · 27148-0E060 · 27148-11020 · 27148-11030 |
| 82716M | No. 1 wire harness clamp bracket | 82715-0KC90 · 82715-71240 |
| 82716N | No. 2 wire harness clip bracket | 82715-0KD00 · 82715-6AC20 |
