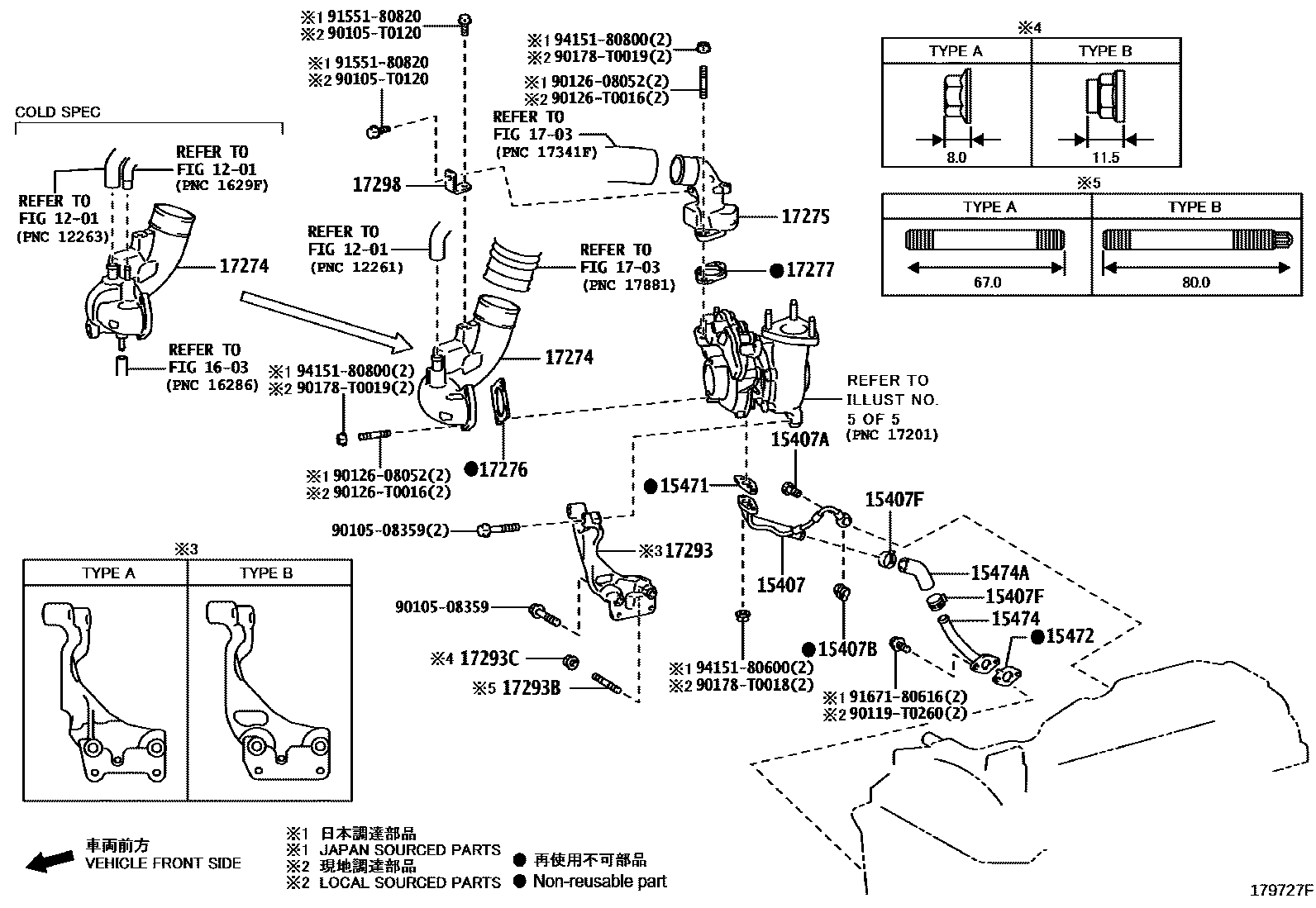

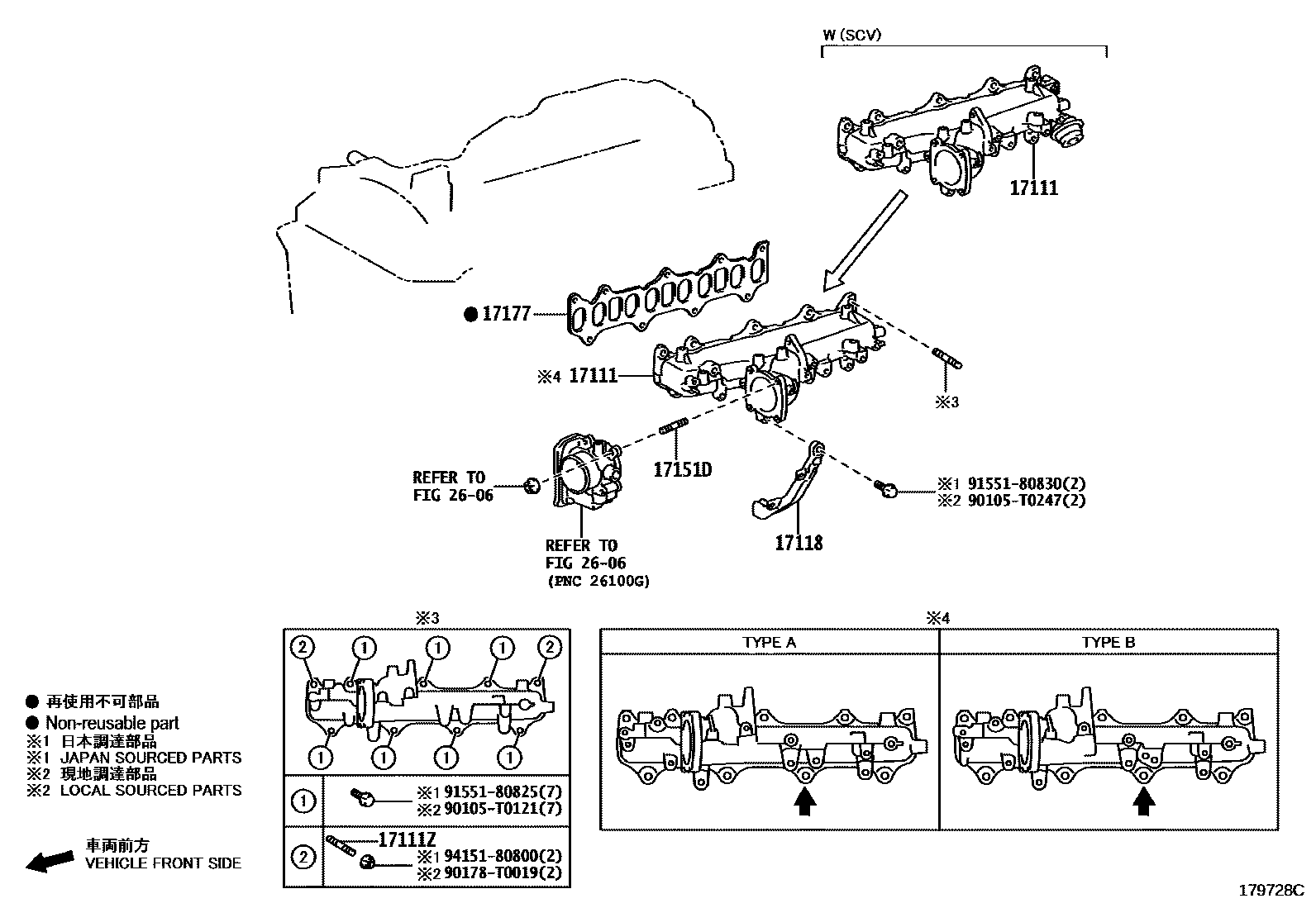

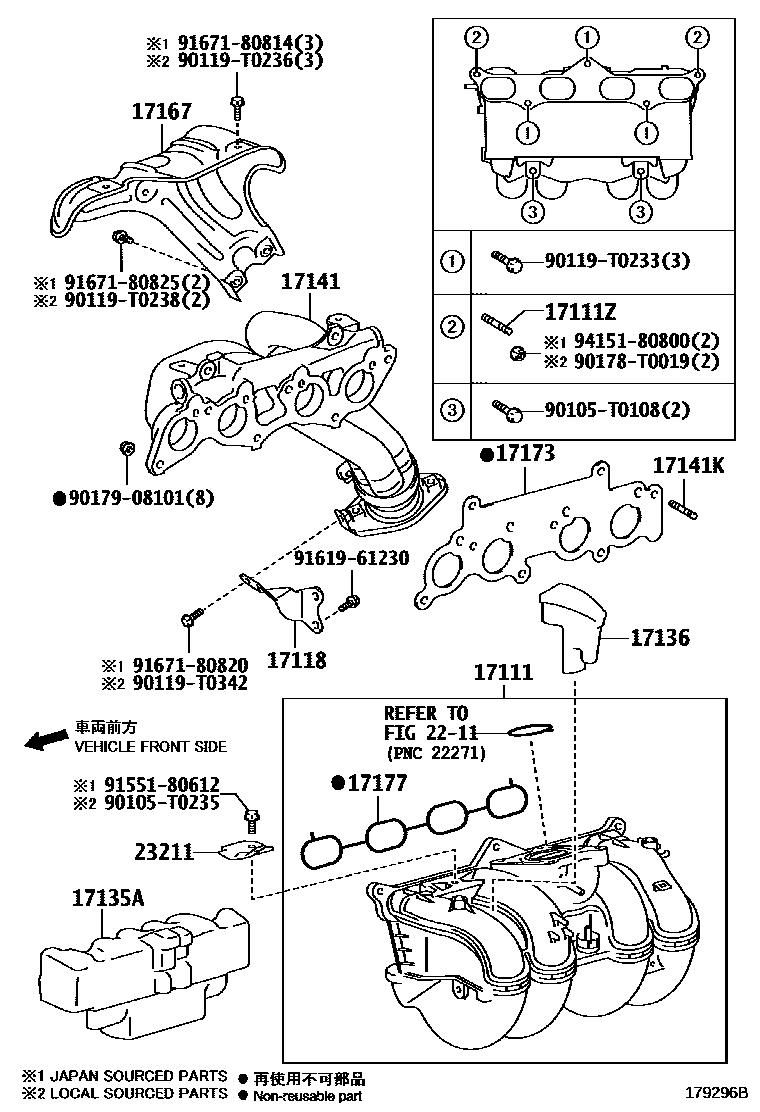

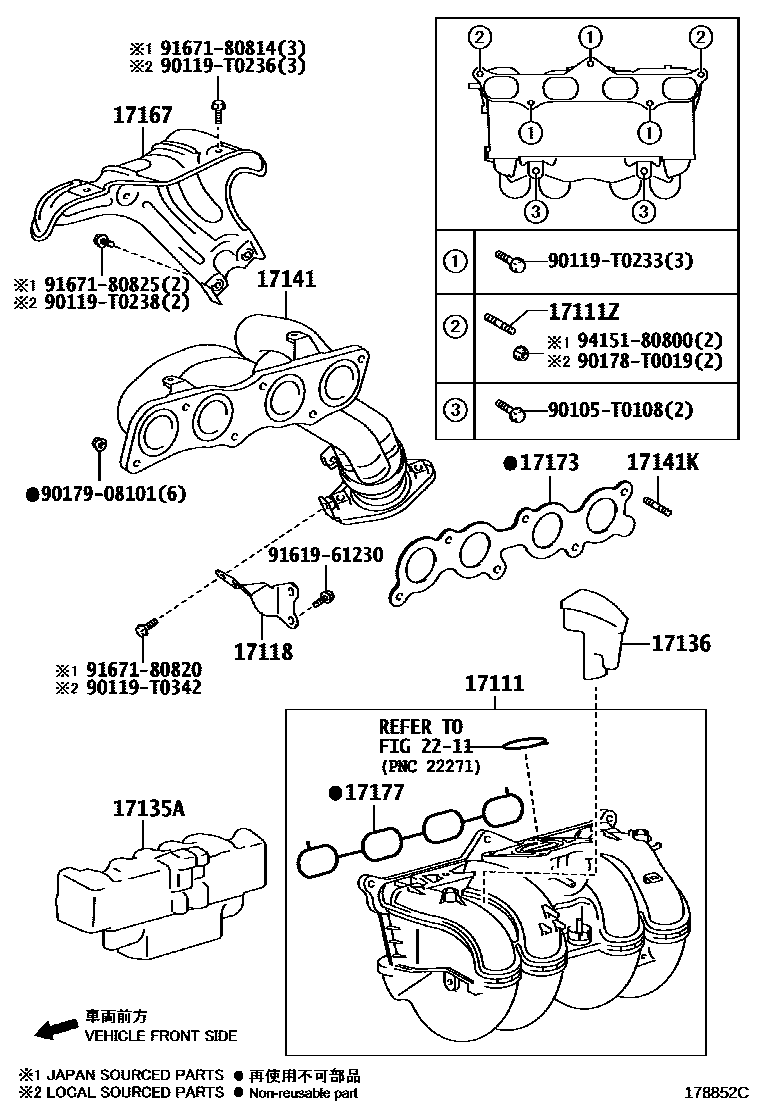

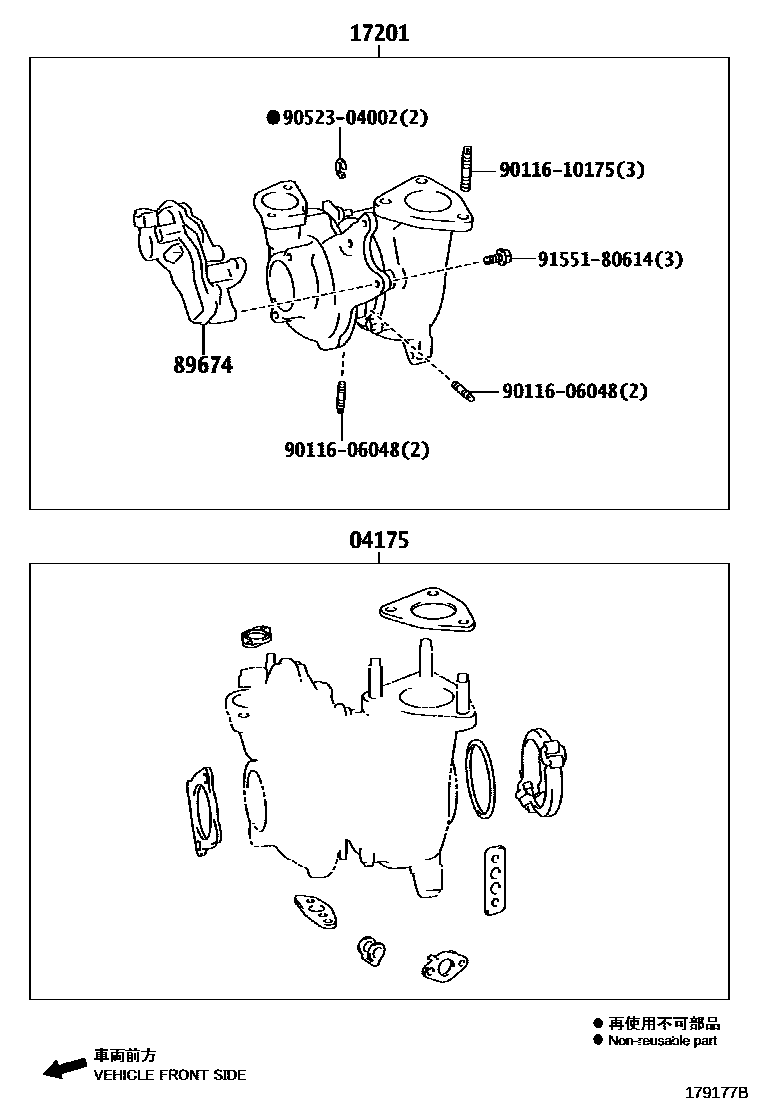

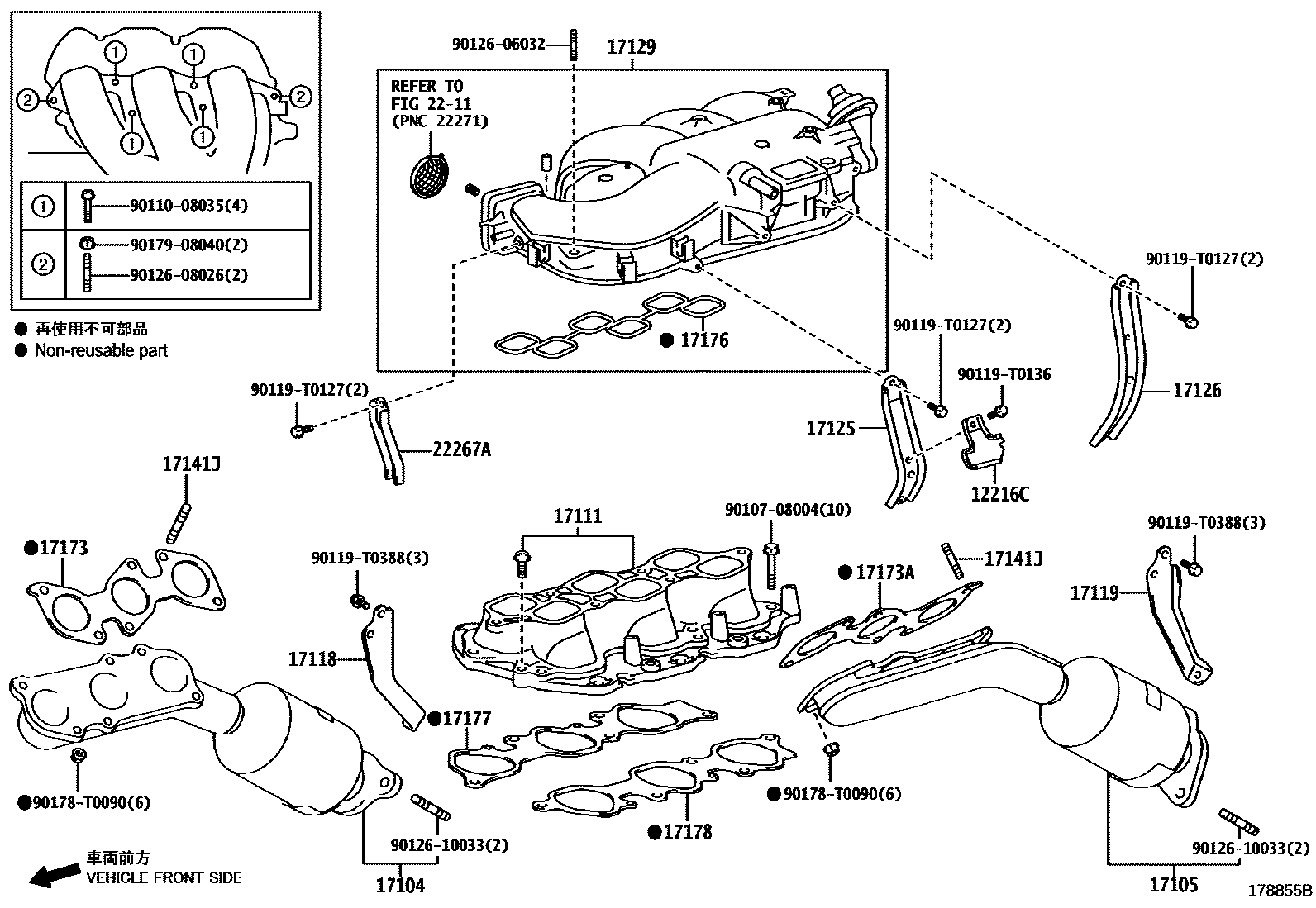

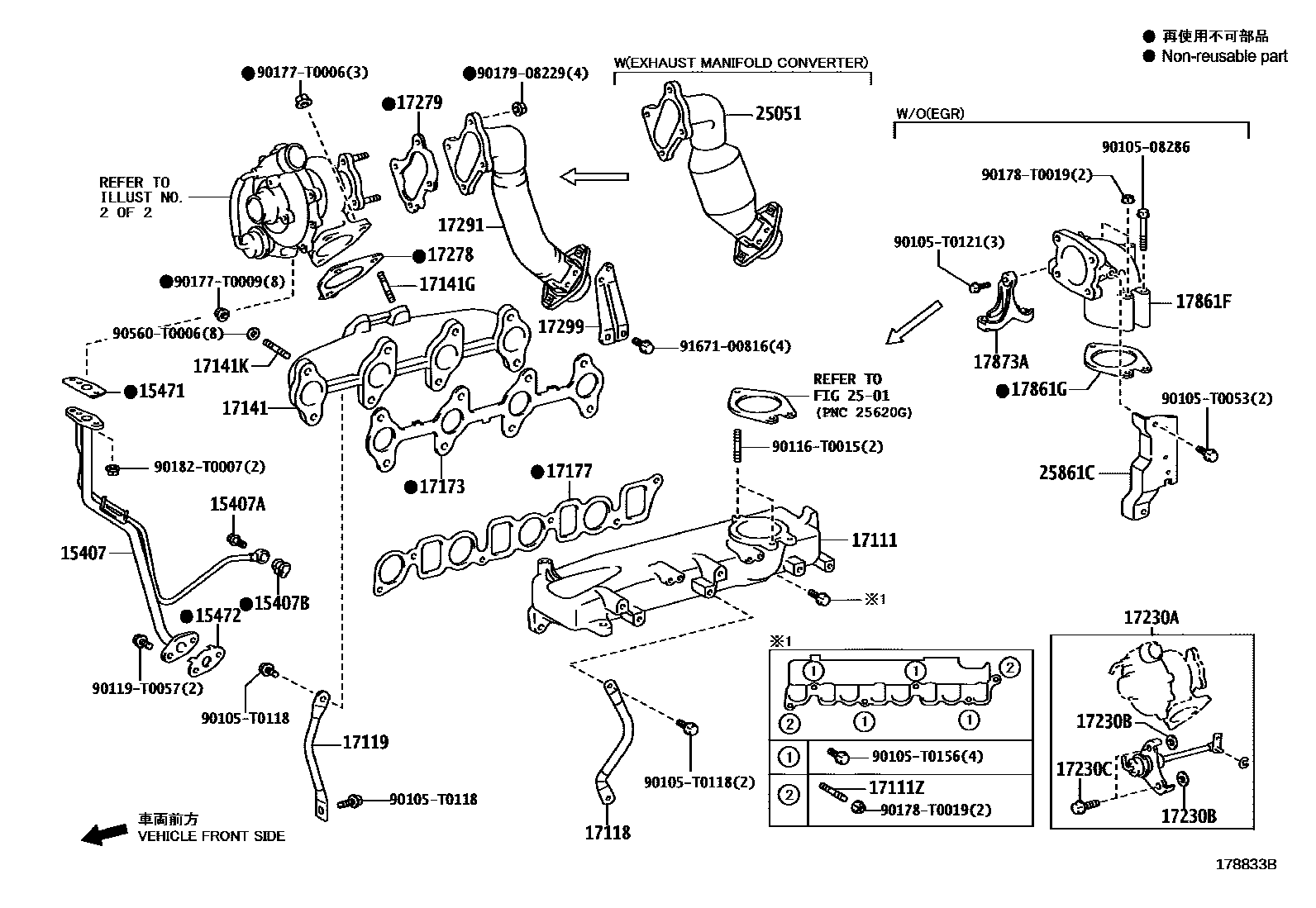

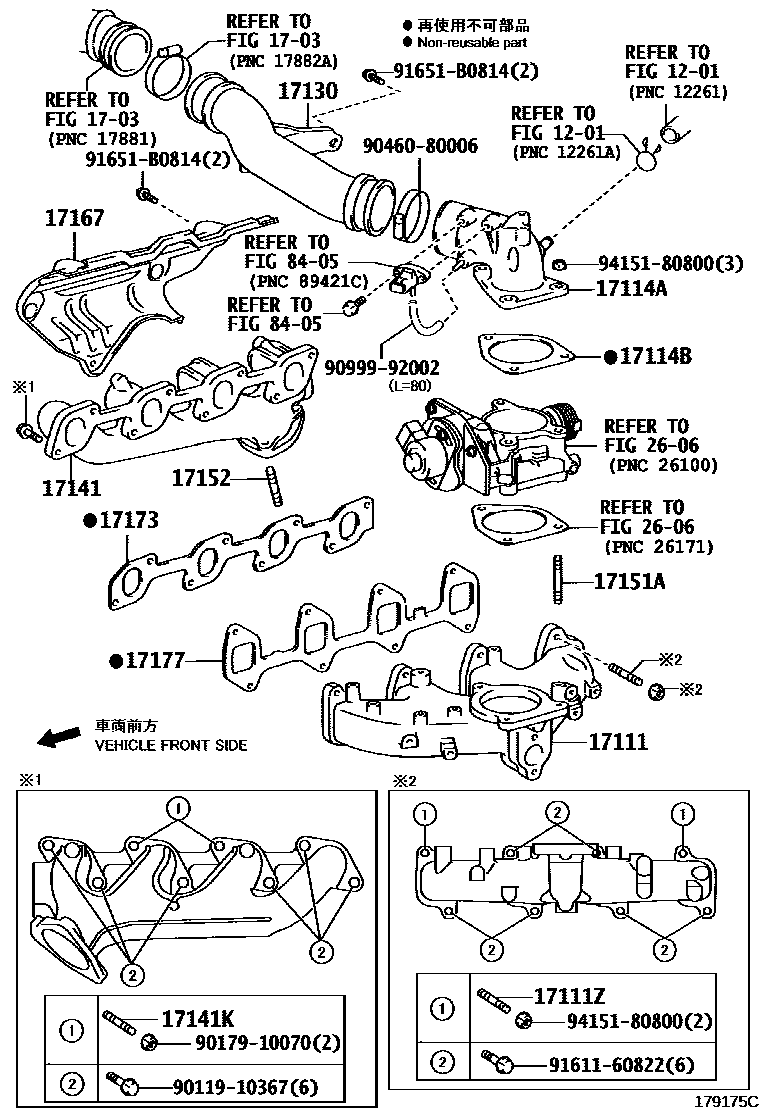

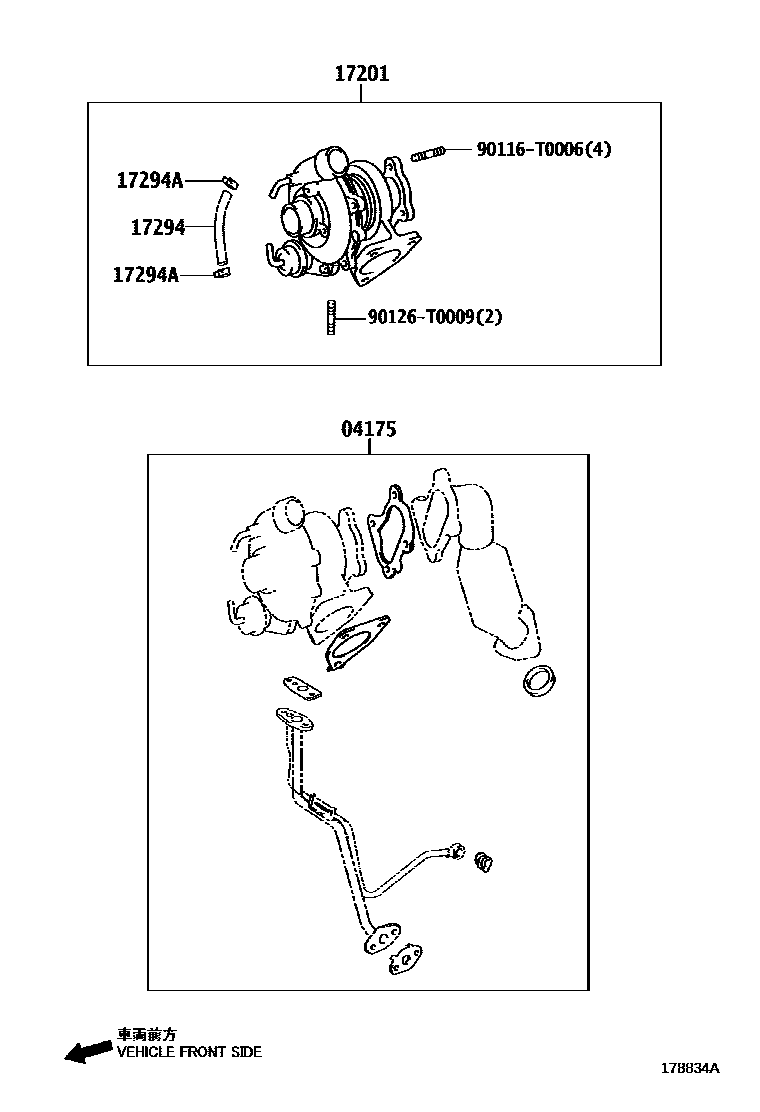

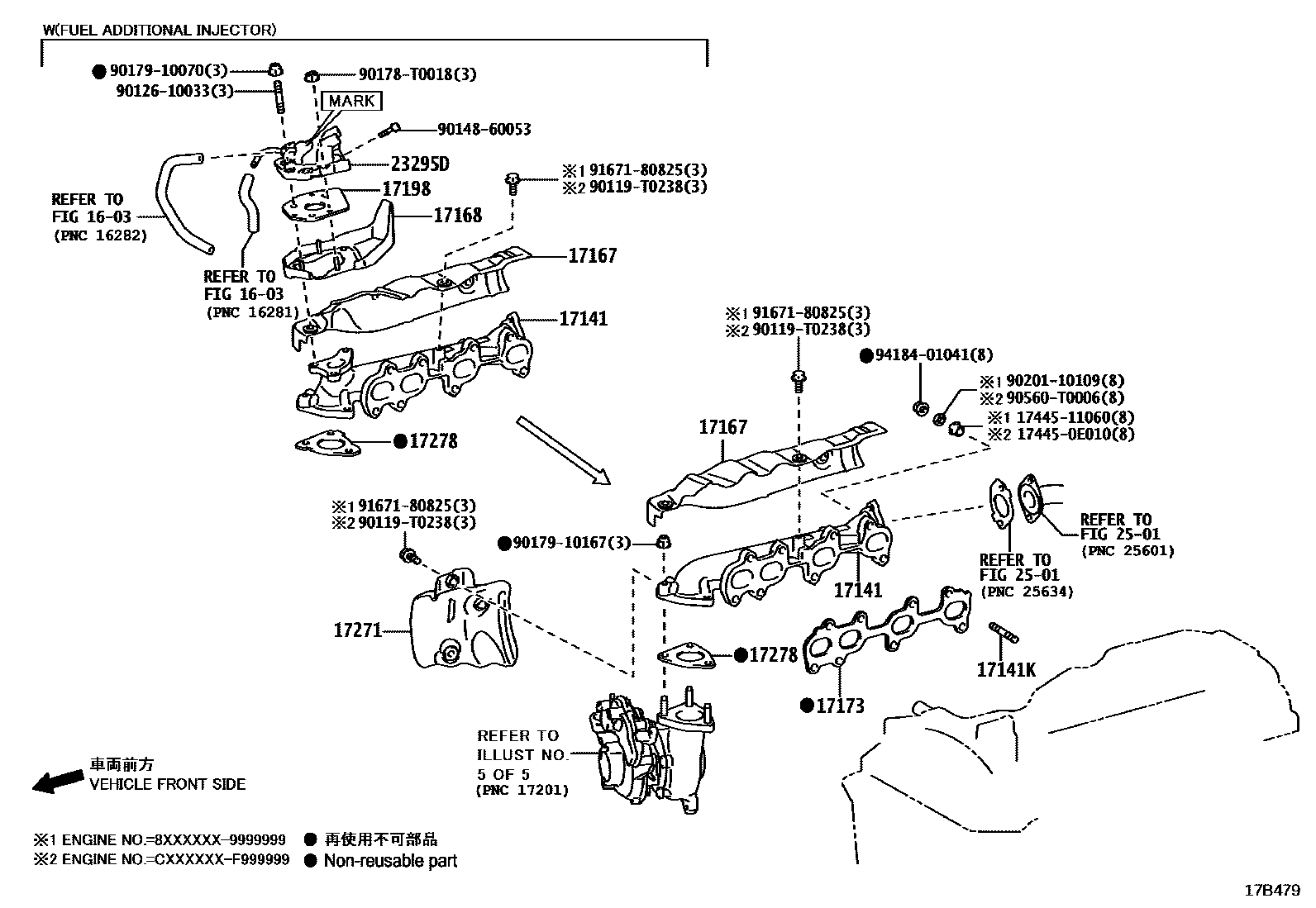

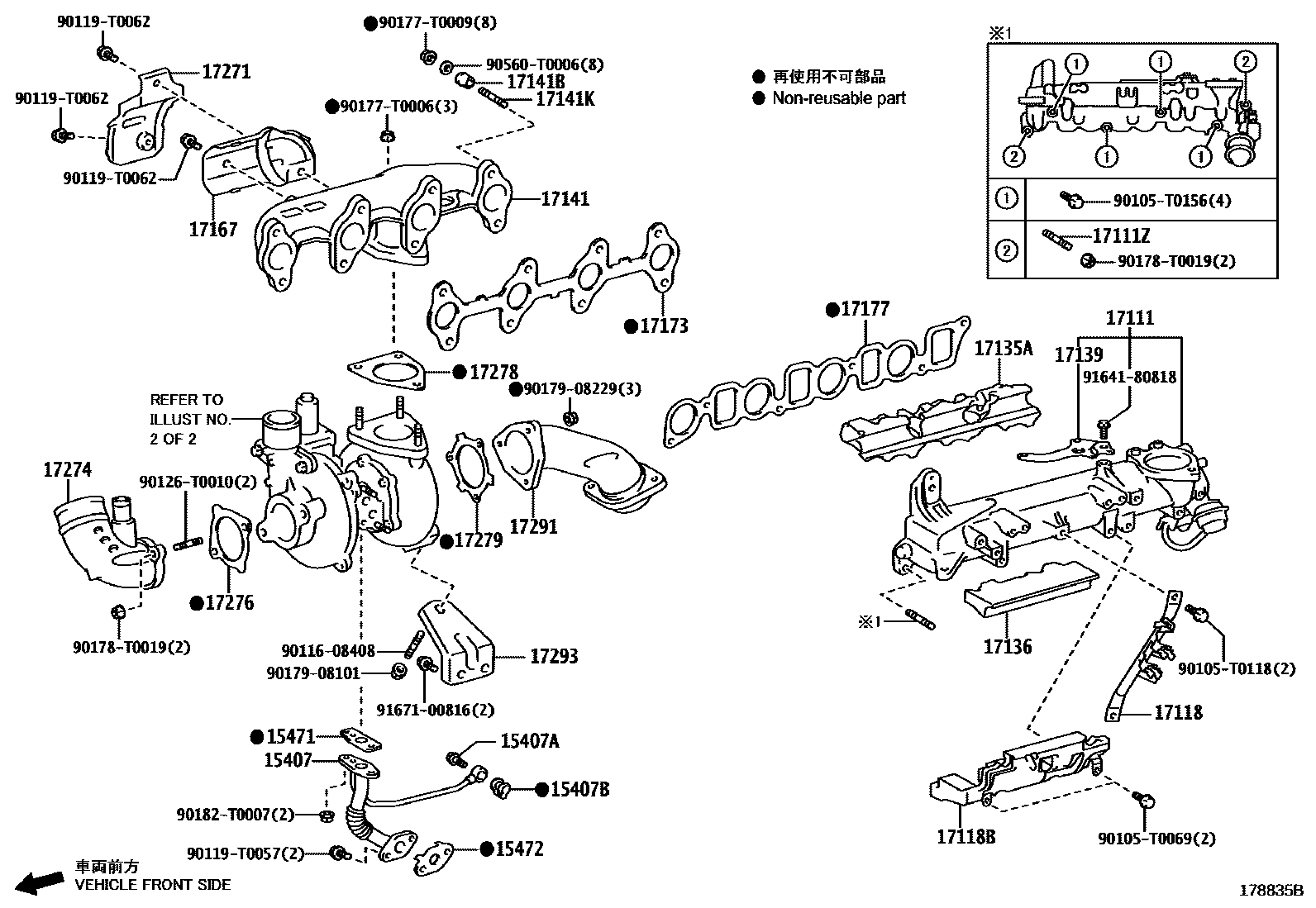

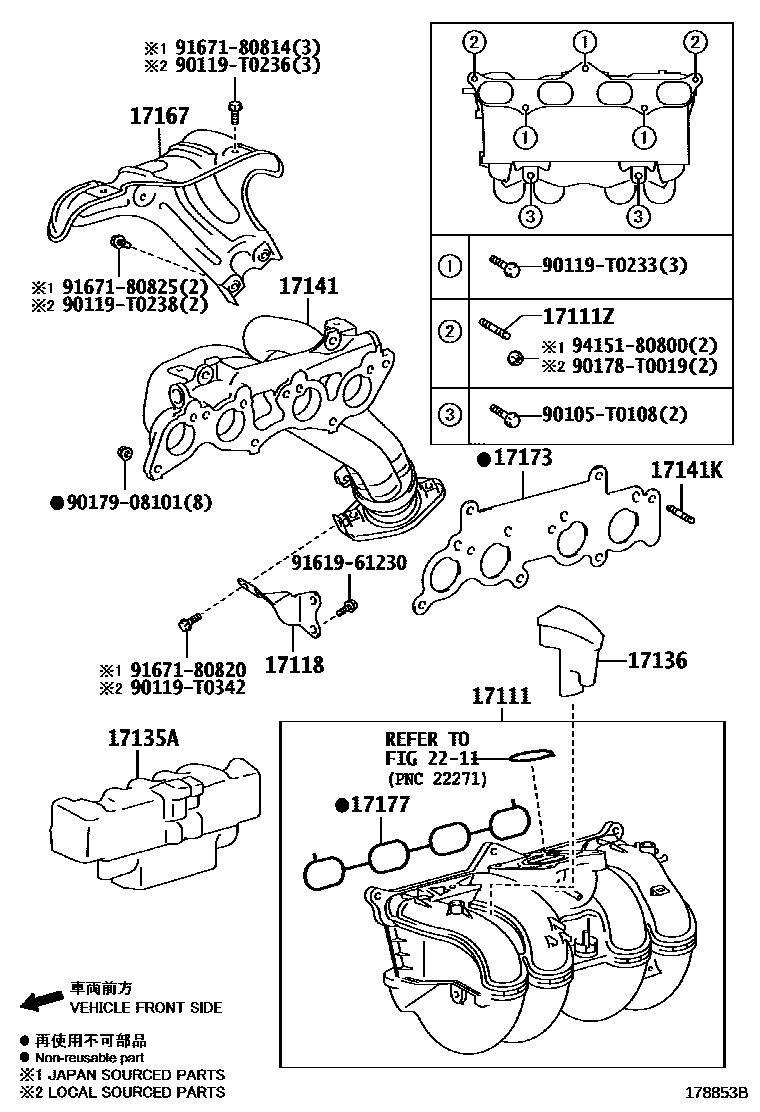

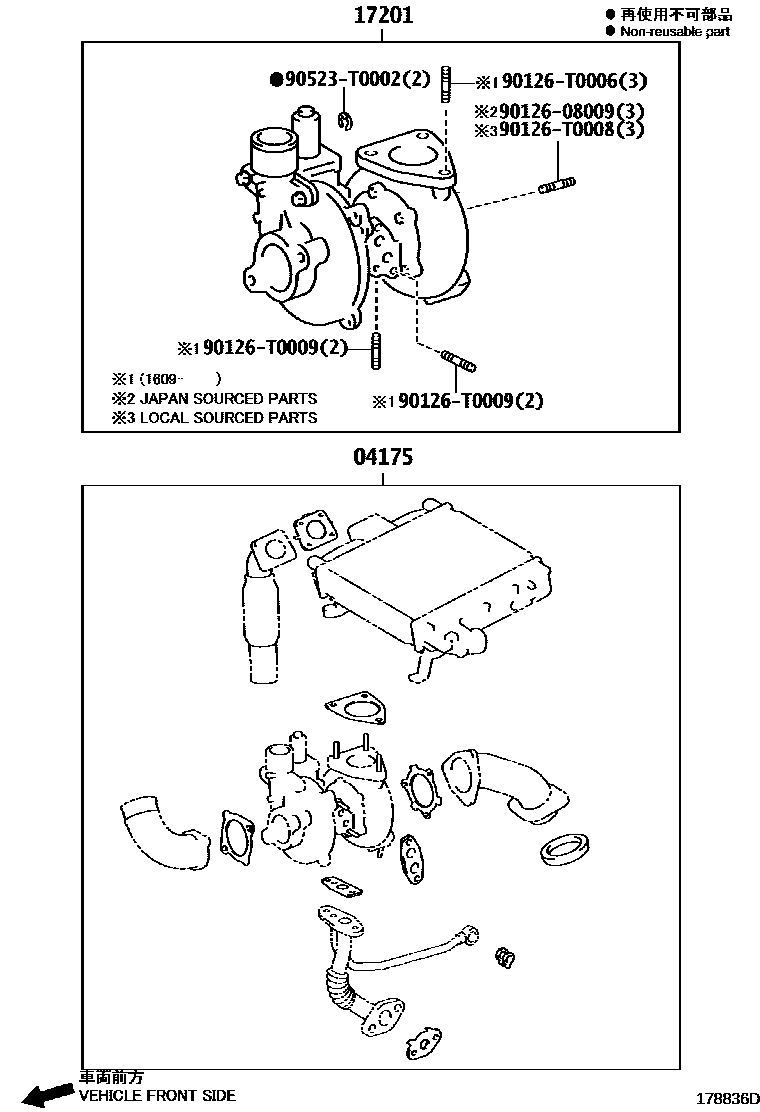

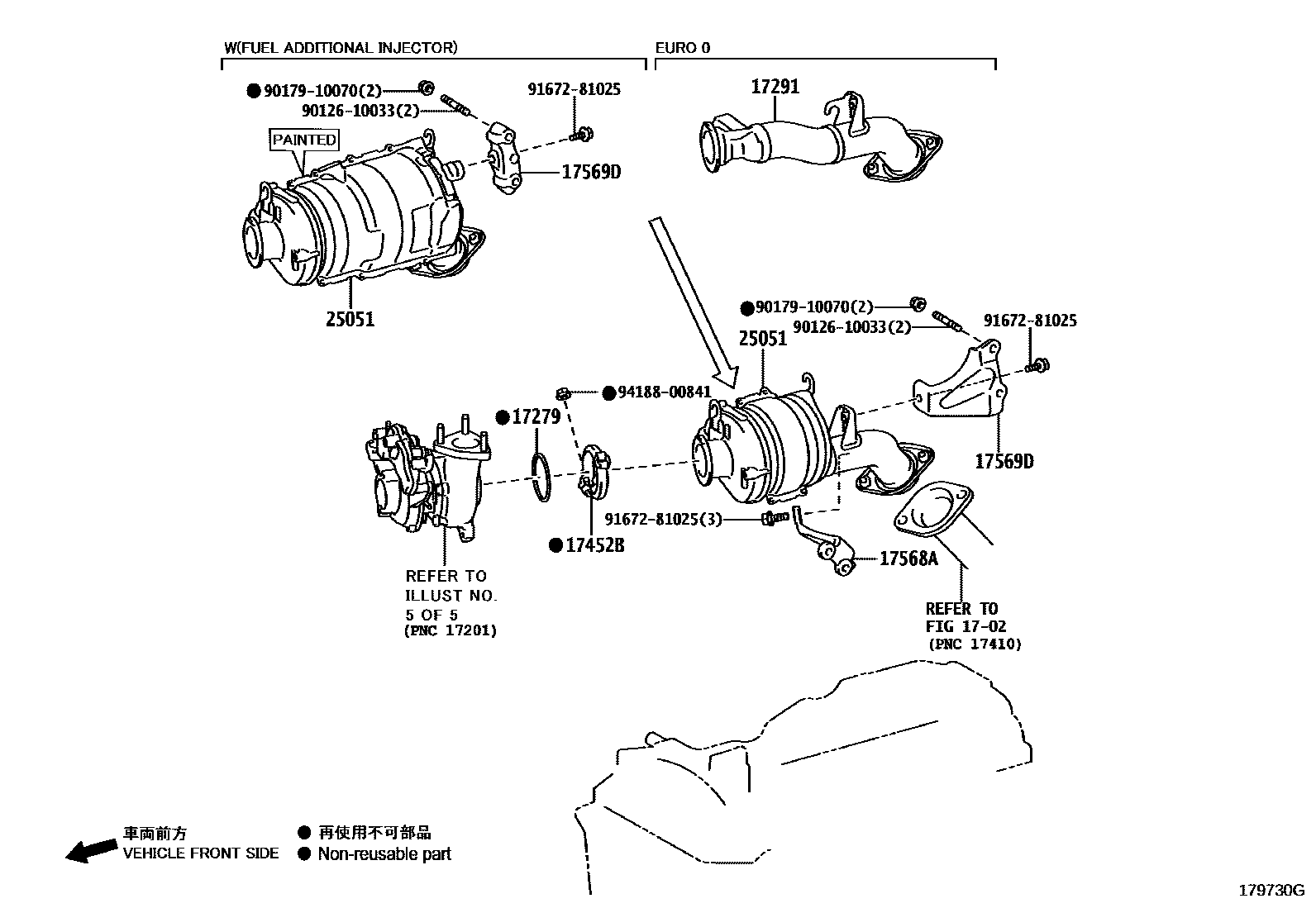

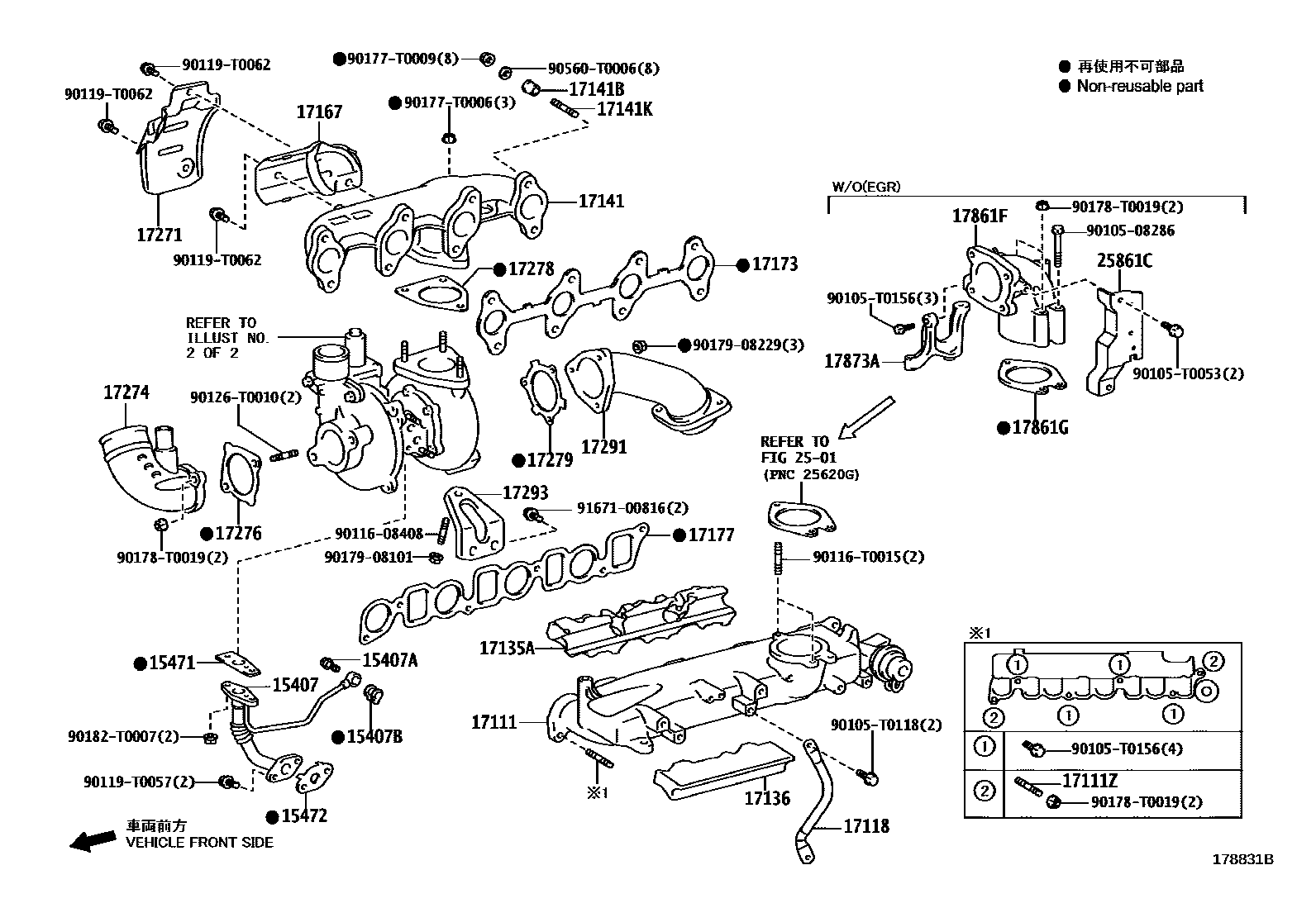

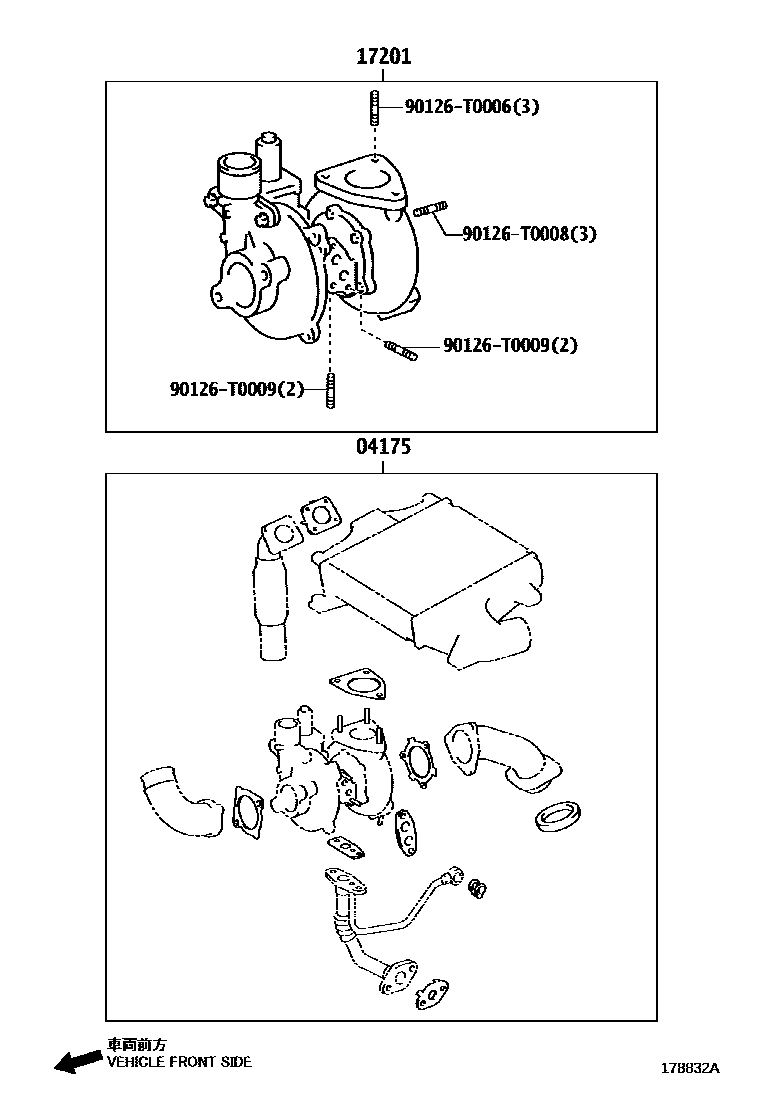

Toyota HILUX Manifold — Figure 1701
Toyota HILUX EPC diagram 1701, Manifold, with 16 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-0E011 · 04175-0E021 · 04175-0E022 · 04175-0L012 · 04175-0L043 |
| 12216C | Oil baffle | 12216-31010 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-0E020 · 15407-0L012 · 15407-0L050 · 15407-11030 · 15407-30050 · 15407-30100 · 15407-30120 · 15407-30130 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-12097 · 90401-T0004 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-T0006 · 90904-30004 |
| 15407F | Oil hose clamp or clamp | 96137-42501 |
| 15471 | Turbine oil inlet pipe gasket | 15471-0E010 · 15471-0E020 · 15471-0L011 · 15471-11020 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-0E010 · 15472-0E020 · 15472-0L010 · 15472-11010 |
| 15474 | Turbine oil outlet pipe | 15474-0E010 · 15474-0E020 |
| 15474A | Turbine oil outlet hose | 15491-0E010 · 15491-0E020 · 15491-11010 |
| 17104 | Right exhaust manifold sub-assembly | 17140-31370 |
| 17105 | Left exhaust manifold sub-assembly | 17150-31180 |
| 17111 | Intake Manifold | 17101-0E010 · 17101-0E011 · 17101-0E020 · 17101-0E021 · 17101-0E030 · 17101-0E040 · 17101-0L010 · 17101-0L030 · 17101-11390 · 17101-11391 · 17101-31011 · 17111-0L020 · 17111-54113 · 17120-0C010 · 17120-0C011 · 17120-0C050 · 17120-0C060 · 17120-0C090 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90116-08220 · 90116-T0011 · 90126-08026 · 90126-T0003 · 92122-80822 |
| 17114A | Intake flange | 17114-54130 |
| 17114B | Intake flange gasket | 17116-54030 |
| 17118 | Manifold stays | 17118-0E010 · 17118-0E030 · 17118-0E040 · 17118-0L030 · 17118-0L050 · 17118-11390 · 17118-31030 · 17118-75060 · 17118-75080 |
| 17118B | Intake manifold heat shield | 17853-0L010 |
| 17119 | No. 2 manifold stay | 17118-0L040 · 17119-31030 |
| 17125 | No. 1 pressure tank stay | 17125-31010 |
| 17126 | No. 2 pressure tank stay | 17126-31010 |
| 17129 | Intake pressure tank | 17109-31015 |
| 17130 | intake pipe | 17130-54120 |
| 17135A | Intake manifold No. 1 heat shield | 17135-0L010 · 17853-0C010 |
| 17136 | Intake manifold No. 2 heat shield | 17136-0C010 · 17136-0L010 |
| 17139 | No. 2 manifold stay | 17139-0L010 |
| 17141 | exhaust manifold | 17141-0C100 · 17141-0C120 · 17141-0C130 · 17141-0C140 · 17141-0C150 · 17141-0C160 · 17141-0E010 · 17141-0E020 · 17141-0E040 · 17141-0L010 · 17141-0L030 · 17141-11350 · 17141-11360 · 17141-54111 |
| 17141B | Collar (for exhaust manifold) | 90387-10171 |
| 17141G | Stud bolts (for turbocharger) | 90116-10219 |
| 17141J | Studs (for right exhaust manifold) | 90126-08052 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90116-10141 · 90126-08052 · 90126-10034 · 90126-10035 · 90126-T0016 |
| 17151A | Studs (for manifold to venturi) | 90116-08292 |
| 17151D | Studs (for manifold to throttle body) | 90126-06026 · 90126-T0015 |
| 17152 | Studs (for manifold to exhaust) | 90116-10088 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0C030 · 17167-0C040 · 17167-0E010 · 17167-0E020 · 17167-0L010 · 17167-11330 · 17167-11340 · 17167-54110 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0E010 · 17168-11070 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0C010 · 17173-0C020 · 17173-0E010 · 17173-0E020 · 17173-0L011 · 17173-0L021 · 17173-11060 · 17173-31010 · 17173-54030 · 17173-75030 · 17173-75040 |
| 17173A | Left side gasket (exhaust manifold to cylinder head) | 17173-31010 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-31160 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0C010 · 17177-0E010 · 17177-0E020 · 17177-0L011 · 17177-11080 · 17177-31010 · 17177-54021 · 17177-75060 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-31010 |
| 17198 | No. 2 exhaust manifold gasket | 17198-0E010 · 17198-11010 |
| 17201 | Turbocharger sub-assembly | 17201-0L030 · 17201-0L041 · 17201-0L042 · 17201-0L071 · 17201-11070 · 17201-11080 |
| 17230A | Compensation actuator assembly with bracket | 17230-39085 |
| 17230B | Flat Washer (for compensating actuator assembly) | 90201-06042 · 90201-06043 · 90201-06044 · 90201-06045 |
| 17230C | Bolt with washer (for compensating actuator assembly) | 91621-60620 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-0E010 · 17271-0L020 · 17271-0L030 · 17271-11020 · 17271-11021 |
| 17274 | Compressor oil inlet elbow pipe | 17274-0E010 · 17274-0E020 · 17274-0E030 · 17274-0L010 · 17274-11010 |
| 17275 | Compressor oil outlet elbow | 17275-0E010 · 17275-0E020 · 17275-0E030 · 17275-0E040 · 17275-11010 |
| 17276 | Compressor oil inlet gasket | 17276-0L010 · 17276-67010 |
| 17277 | Compressor oil outlet gasket | 17277-0E010 · 17277-0E020 · 17277-11030 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-0E010 · 17278-0E011 · 17278-0L010 · 17278-11040 · 17278-11041 · 17278-67010 |
| 17279 | Turbine outlet elbow gasket | 17279-0L011 · 17279-0L021 · 17279-11020 |
| 17291 | Turbine oil outlet elbow | 17291-0E010 · 17291-0E011 · 17291-0L010 · 17291-0L030 · 17291-0L060 |
| 17293 | Turbocharger stay | 17293-0E010 · 17293-0E020 · 17293-0E030 · 17293-0E040 · 17293-0E050 · 17293-0L011 · 17293-0L050 · 17293-11010 · 17293-11011 · 17293-11020 |
| 17293B | Bolt (for turbocharger stay) | 90126-08056 · 92122-80855 |
| 17293C | Nut (for turbocharger stay) | 90179-08119 · 94151-80800 |
| 17294 | Actuator hose | 90445-T0010 |
| 17294A | Clamp (for actuator hose) | 90466-T0008 |
| 17298 | Compressor elbow brace | 17298-0E010 · 17298-0E020 · 17298-11010 |
| 17299 | Turbine oil outlet elbow brace | 17299-0L010 |
| 17452B | Exhaust pipe clamp | 17452-0E010 · 17452-11070 |
| 17568A | Exhaust pipe bracket stay | 17568-0E010 · 17568-0E020 · 17568-0E030 · 17568-11170 |
| 17569D | No. 2 exhaust pipe bracket stay | 17569-0E010 · 17569-0E020 · 17569-0E030 · 17569-0E040 · 17569-0E050 · 17569-11120 · 17569-11121 · 17569-11140 |
| 17861F | Intake connecting pipe | 17861-0L020 |
| 17861G | Intake connecting pipe gasket | 26171-0L010 |
| 17873A | No. 2 intake connecting pipe bracket | 26127-0L010 · 26127-0L040 |
| 22267A | Throttle body bracket | 22267-31010 |
| 23211 | Wire harness bracket | 23211-0C030 |
| 23295D | No. 1 injector fixing piece | 23295-0E020 · 23295-0E030 · 23295-11020 · 23295-11040 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0E010 · 25051-0E020 · 25051-0E040 · 25051-0E050 · 25051-0E060 · 25051-0E080 · 25051-0E090 · 25051-0E130 · 25051-0L030 · 25051-11030 · 25051-11080 · 25051-11090 |
| 25861C | Vacuum switch valve bracket | 25861-30051 |
| 89674 | Turbocharger variable nozzle motor | 89674-71020 · 89674-71021 |
