Toyota HILUX V-Belt — Figure 1605

Toyota HILUX EPC diagram 1605, V-Belt, with 2 images and 4 PNC and OE references.

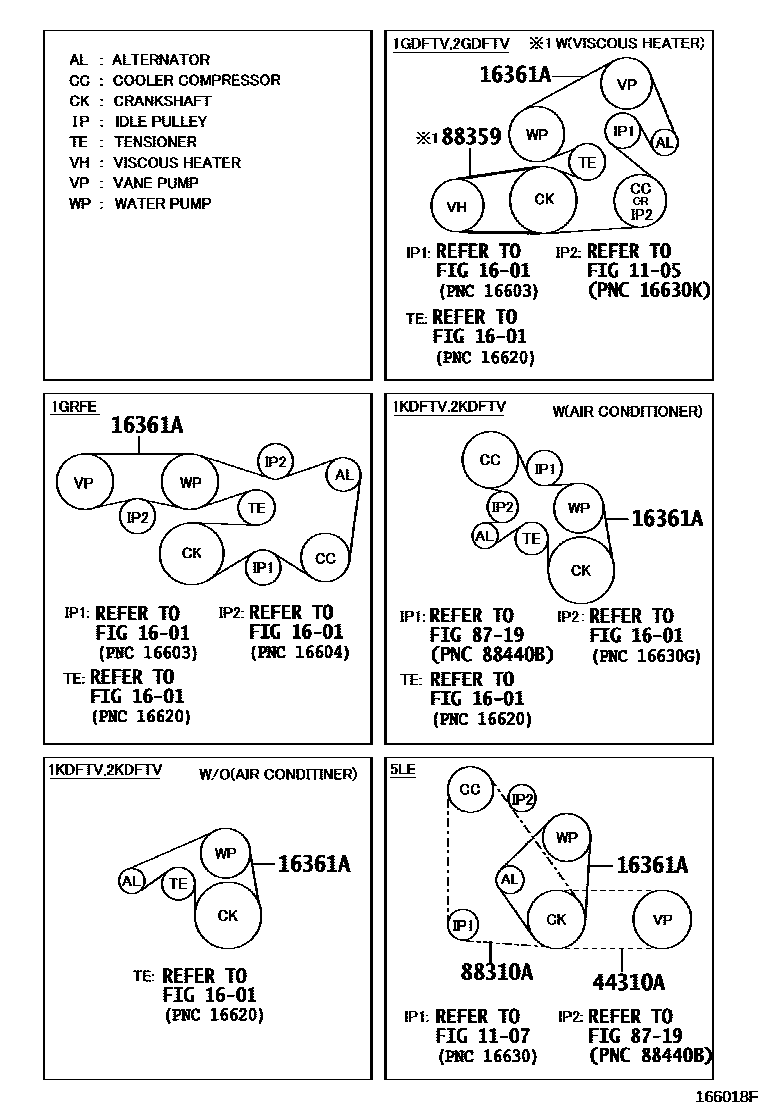

Toyota HILUX V-Belt EPC diagram — 166018F
V-Belt — 166018F (201505 – 999999)

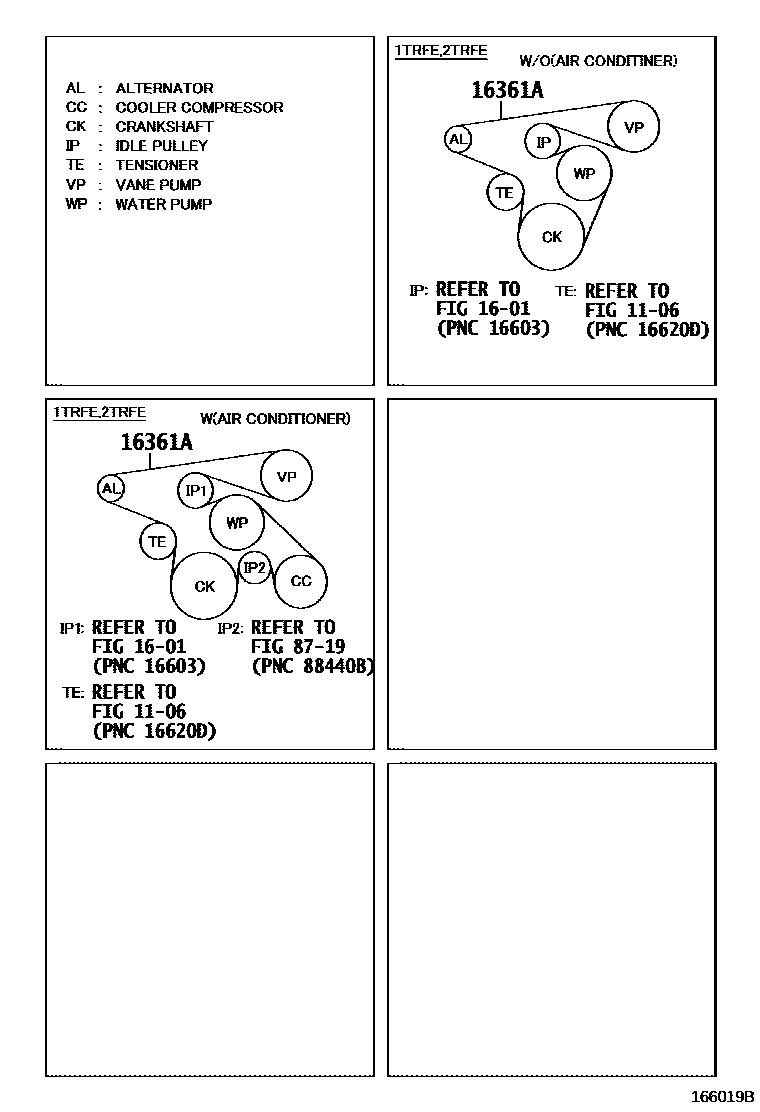

Toyota HILUX V-Belt EPC diagram — 166019B
V-Belt — 166019B (201505 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90080-92016 · 90916-02571 · 90916-02707 · 90916-T2005 · 90916-T2006 · 90916-T2022 · 90916-T2024 · 90916-T2033 · 99367-H2120
44310AV-belt (for vane pump)90916-T2020
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)90916-T2008
88359V-belt (for viscous heater)88359-0K010
