Toyota HILUX Ventilation Hose — Figure 1201

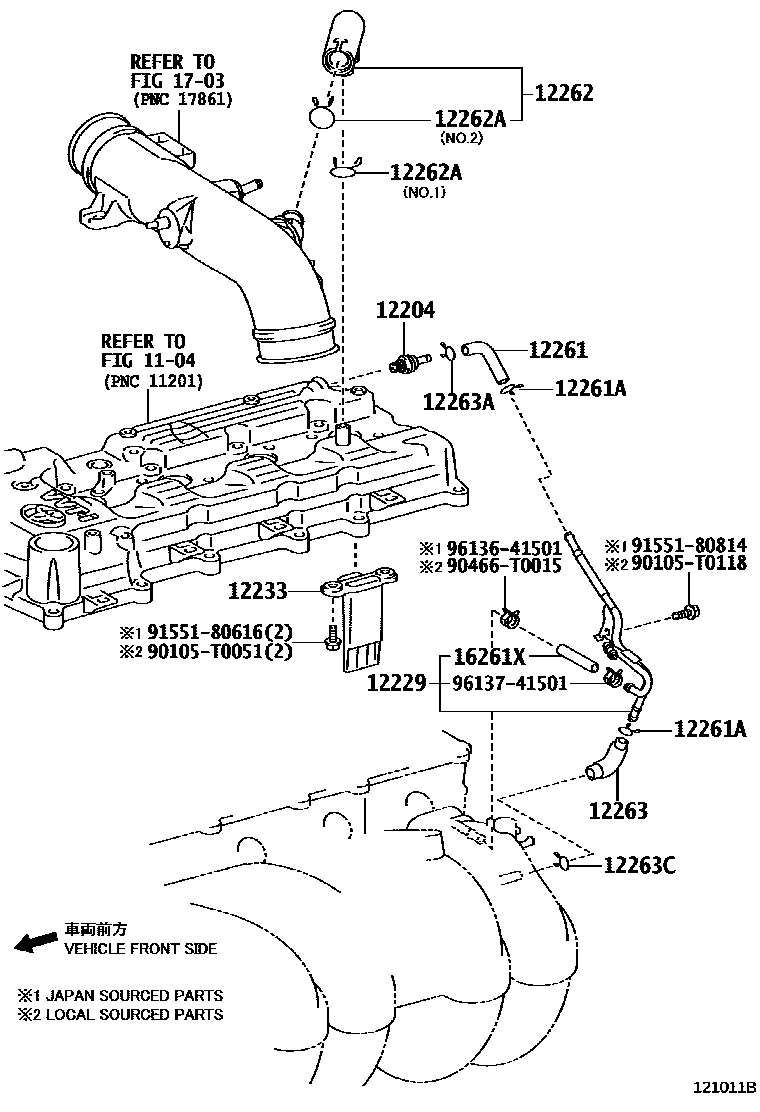

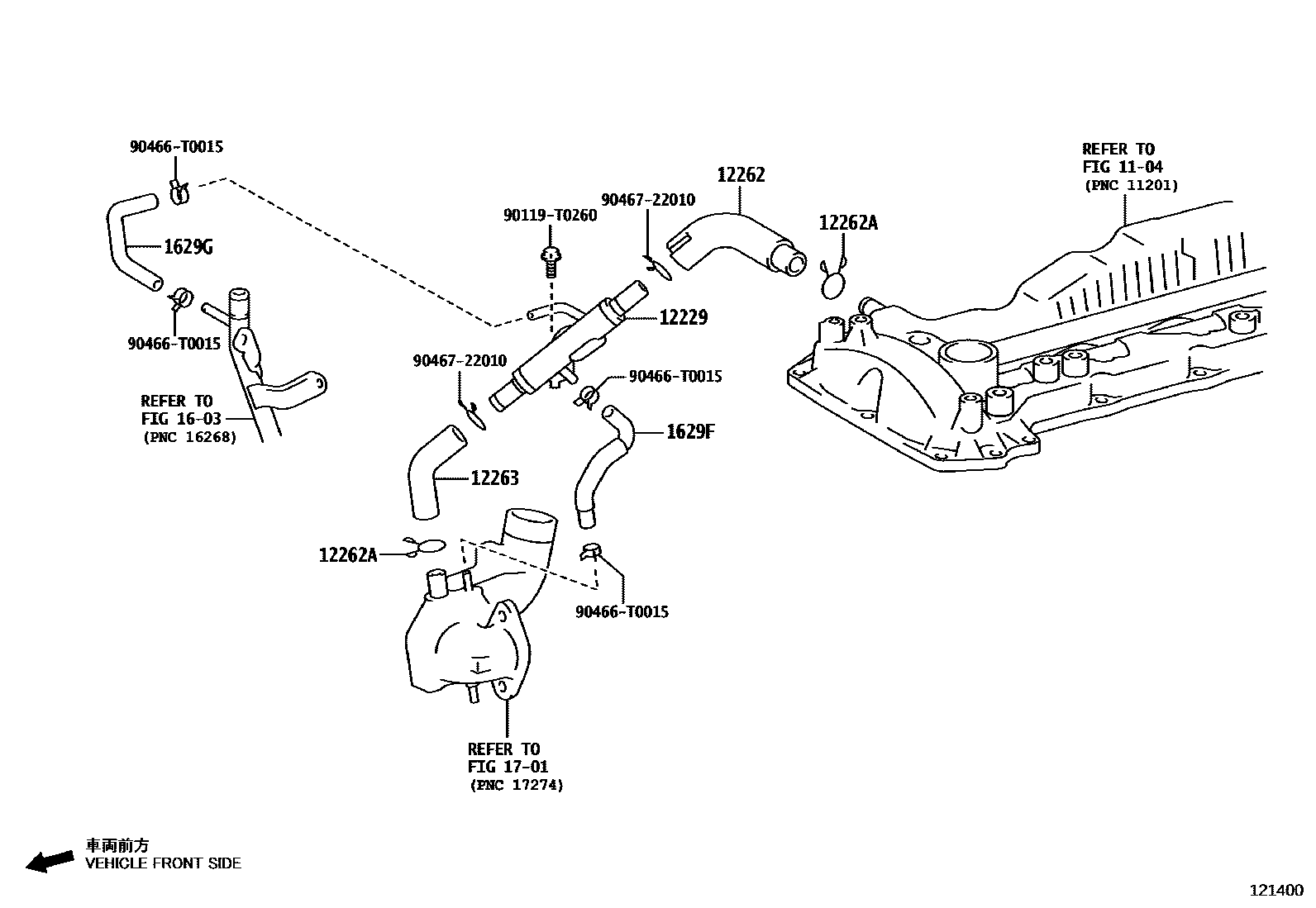

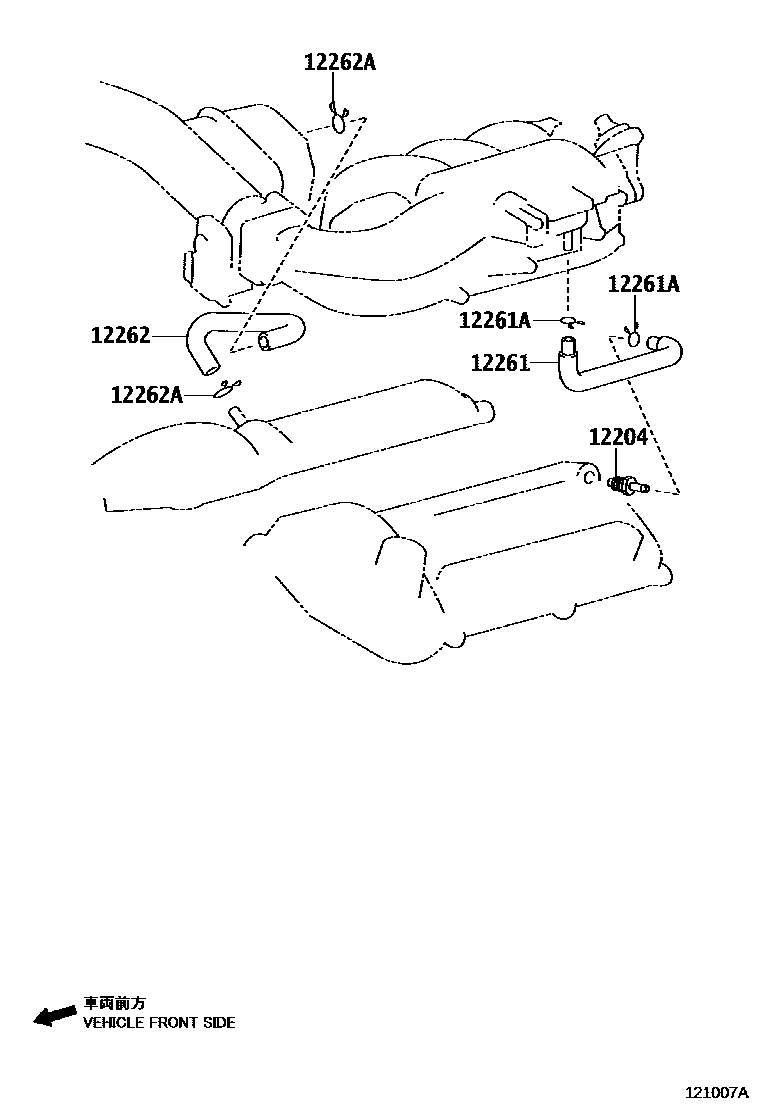

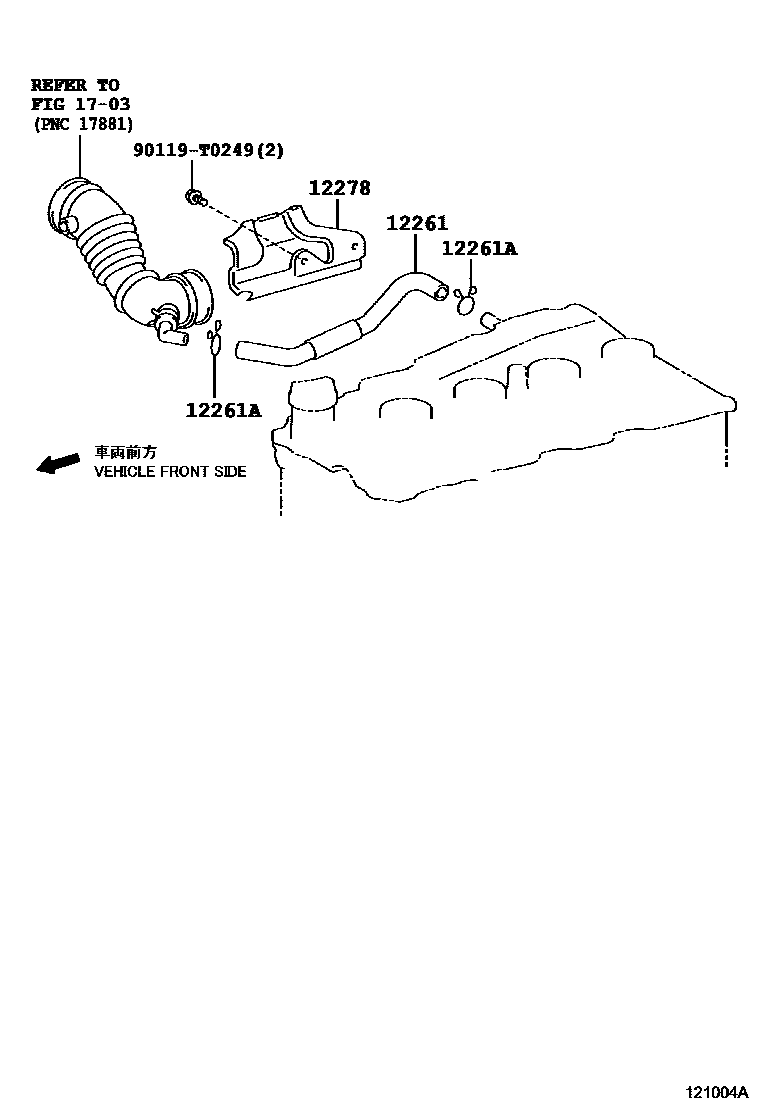

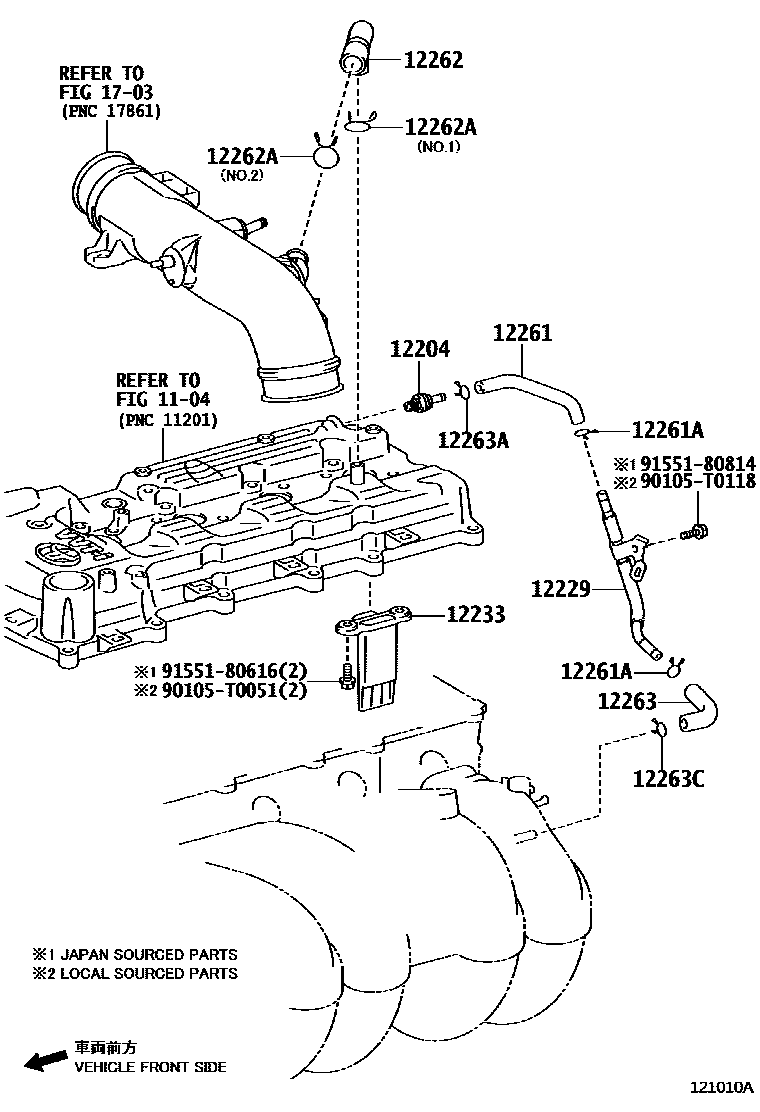

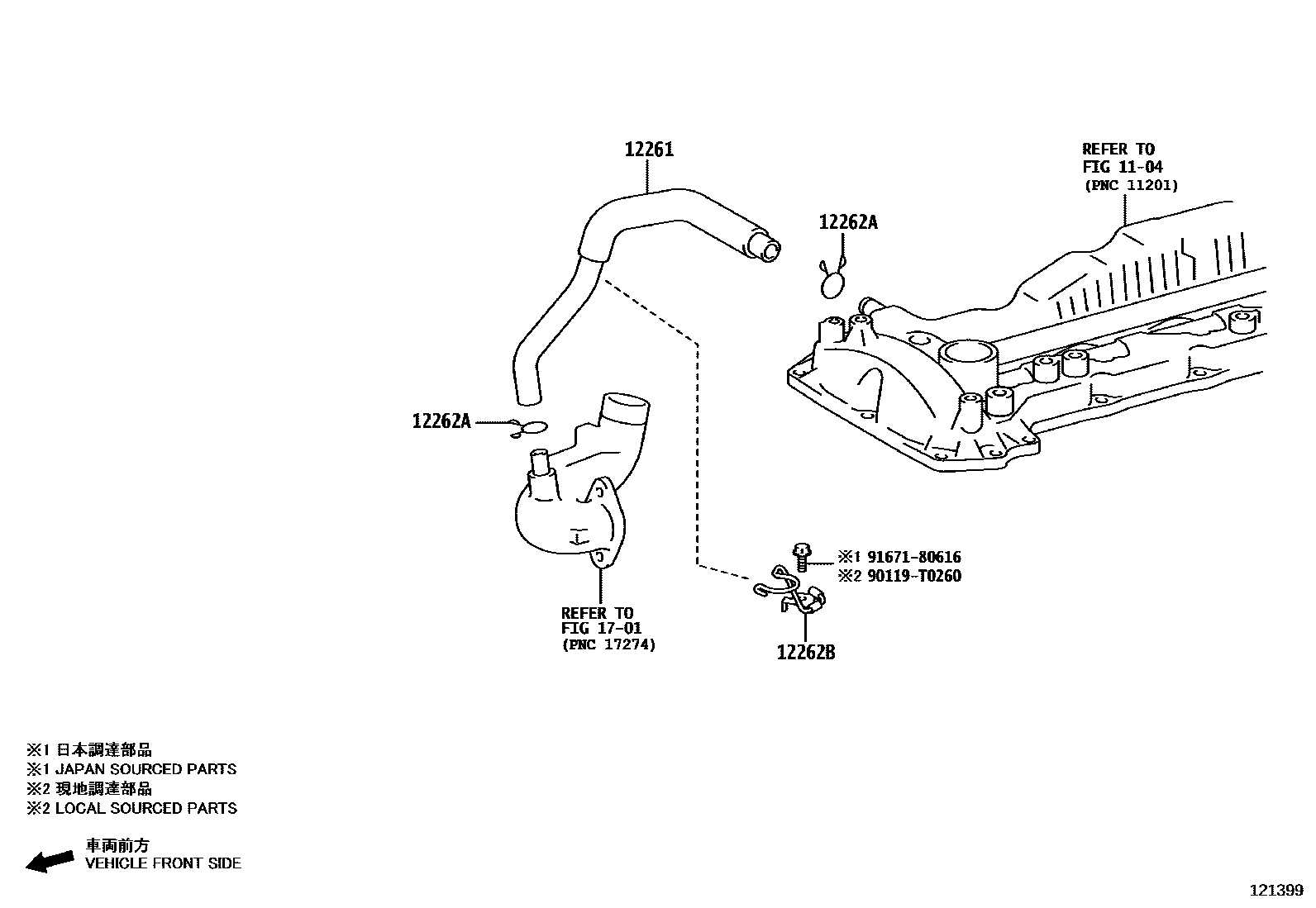

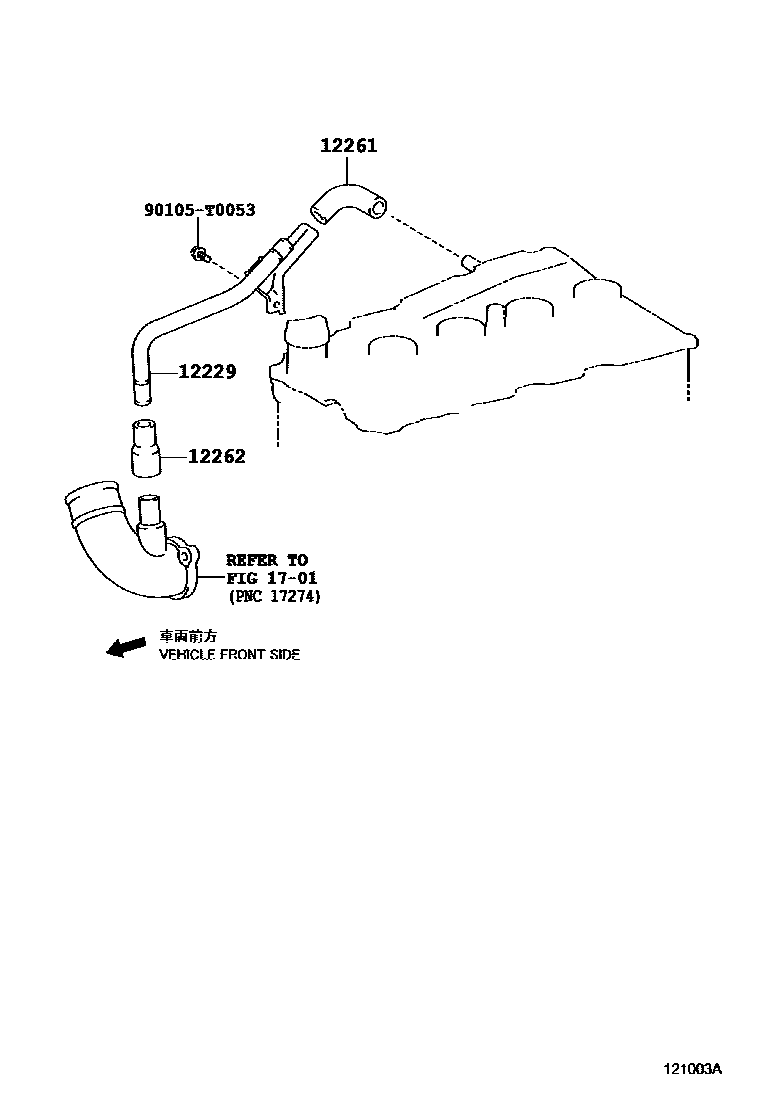

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 8 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-0C030 · 12204-31030 |
| 12229 | ventilation duct | 12229-0C010 · 12229-0C020 · 12229-0E010 · 12229-0L010 · 12229-75050 · 12229-75070 |
| 12233 | Ventilation Connector No. 1 | 12233-0C010 · 12233-0C020 · 12233-75010 |
| 12261 | Ventilation Hose | 12261-0C030 · 12261-0C040 · 12261-0E010 · 12261-0E020 · 12261-0L021 · 12261-0L030 · 12261-0P060 · 12261-11240 · 12261-54200 · 12261-75140 |
| 12261A | Clip or clip (for vent hose) | 90466-T0026 · 90466-T0032 · 90467-14001 · 90467-14017 · 90467-18003 |
| 12262 | Ventilation hose No. 2 | 12262-0C050 · 12262-0C060 · 12262-0E010 · 12262-0L010 · 12262-0P090 · 12262-75240 |
| 12262A | Clamp (for vent hose No. 2) | 90466-22005 · 90466-T0027 · 90466-T0075 · 90467-21004 · 90467-21152 · 90467-24038 |
| 12262B | Clamp (for ventilation hose) | 16581-11040 |
| 12263 | No. 3 ventilation hose | 12263-0C010 · 12263-0C020 · 12263-0E010 · 12263-75070 |
| 12263A | Clip (for ventilation hose) | 90467-15021 |
| 12263C | Clip (for ventilation hose) | 90466-T0060 · 90466-T0061 · 90467-16035 |
| 12278 | Ventilation hose insulation pad | 12278-0L010 |
| 16261X | water hose | 16267-75070 |
| 1629F | No. 19 water bypass hose | 1629F-0E010 |
| 1629G | No. 20 water bypass hose | 1629G-0E010 |
