Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

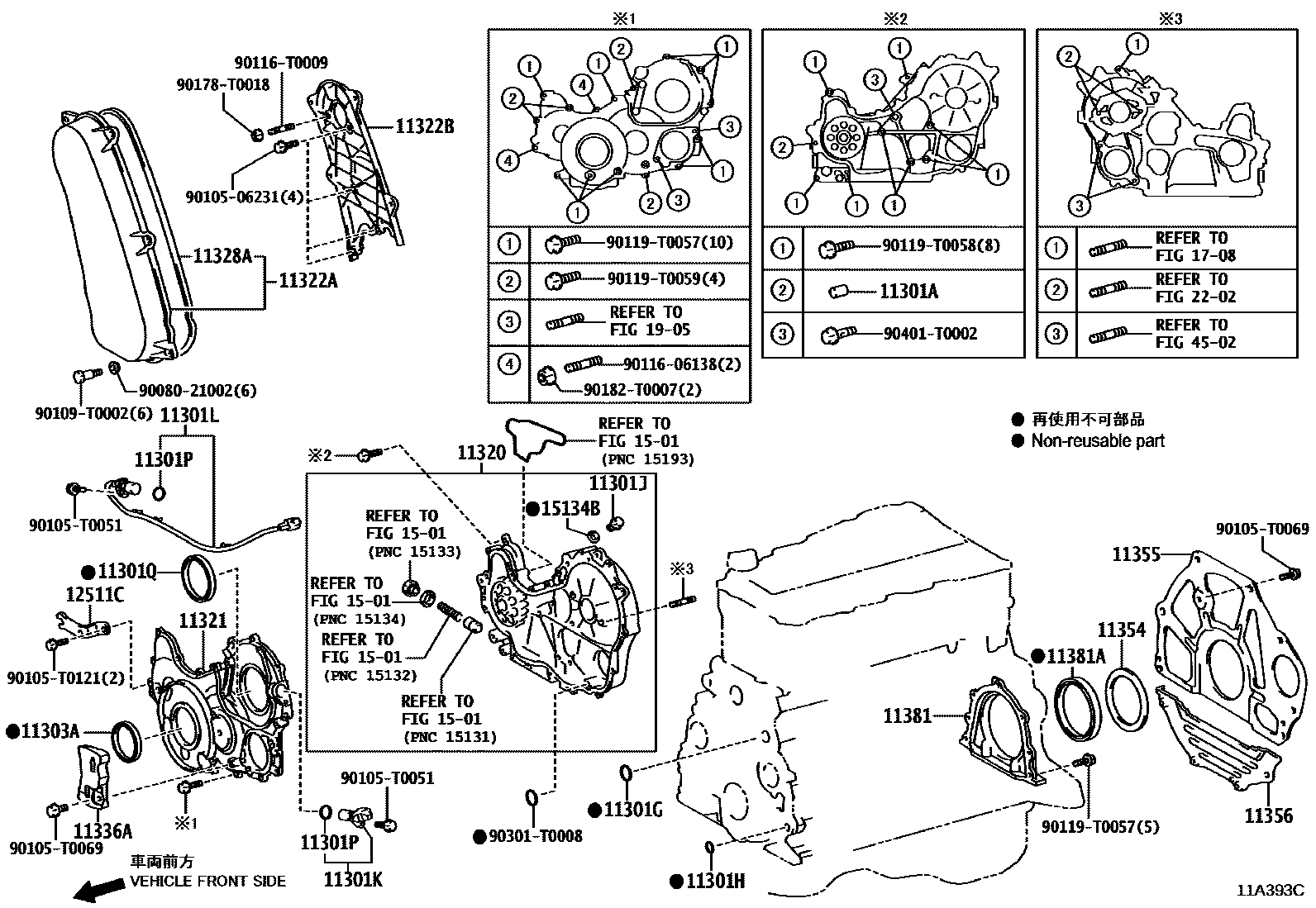

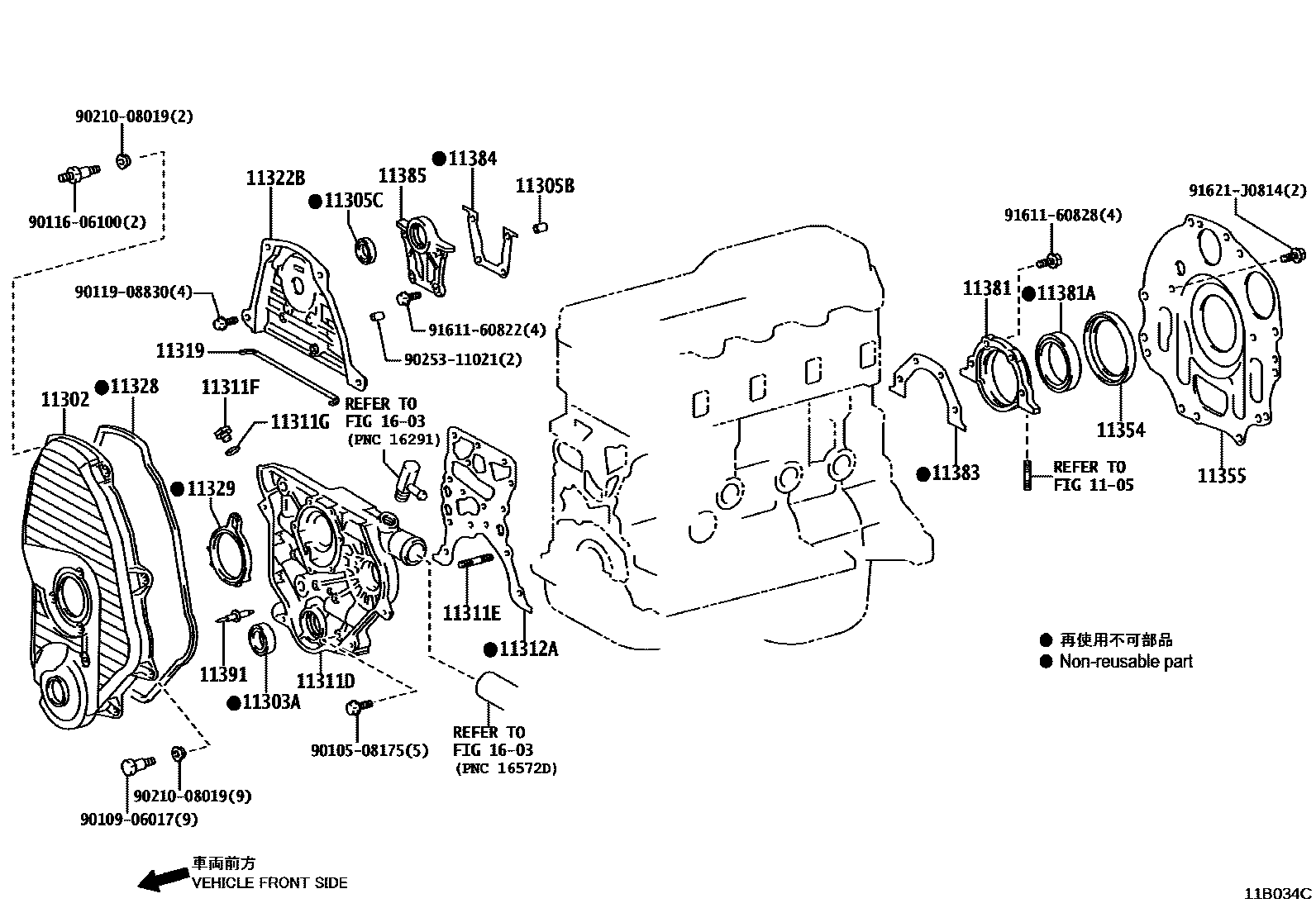

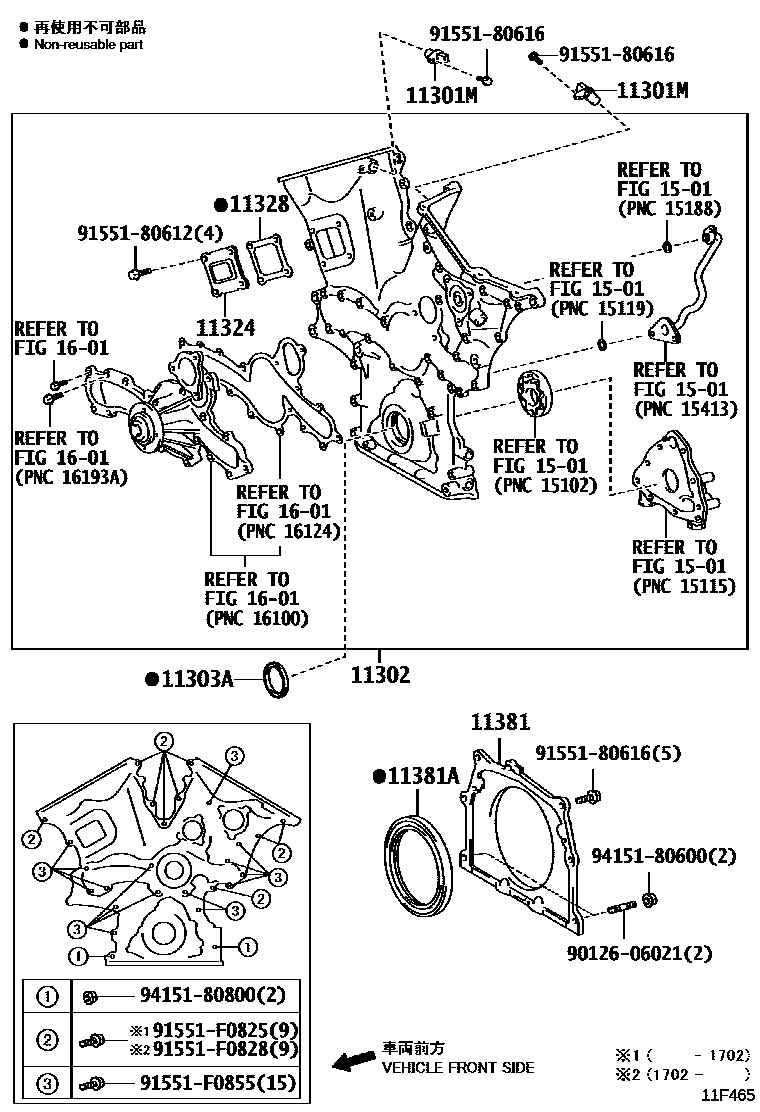

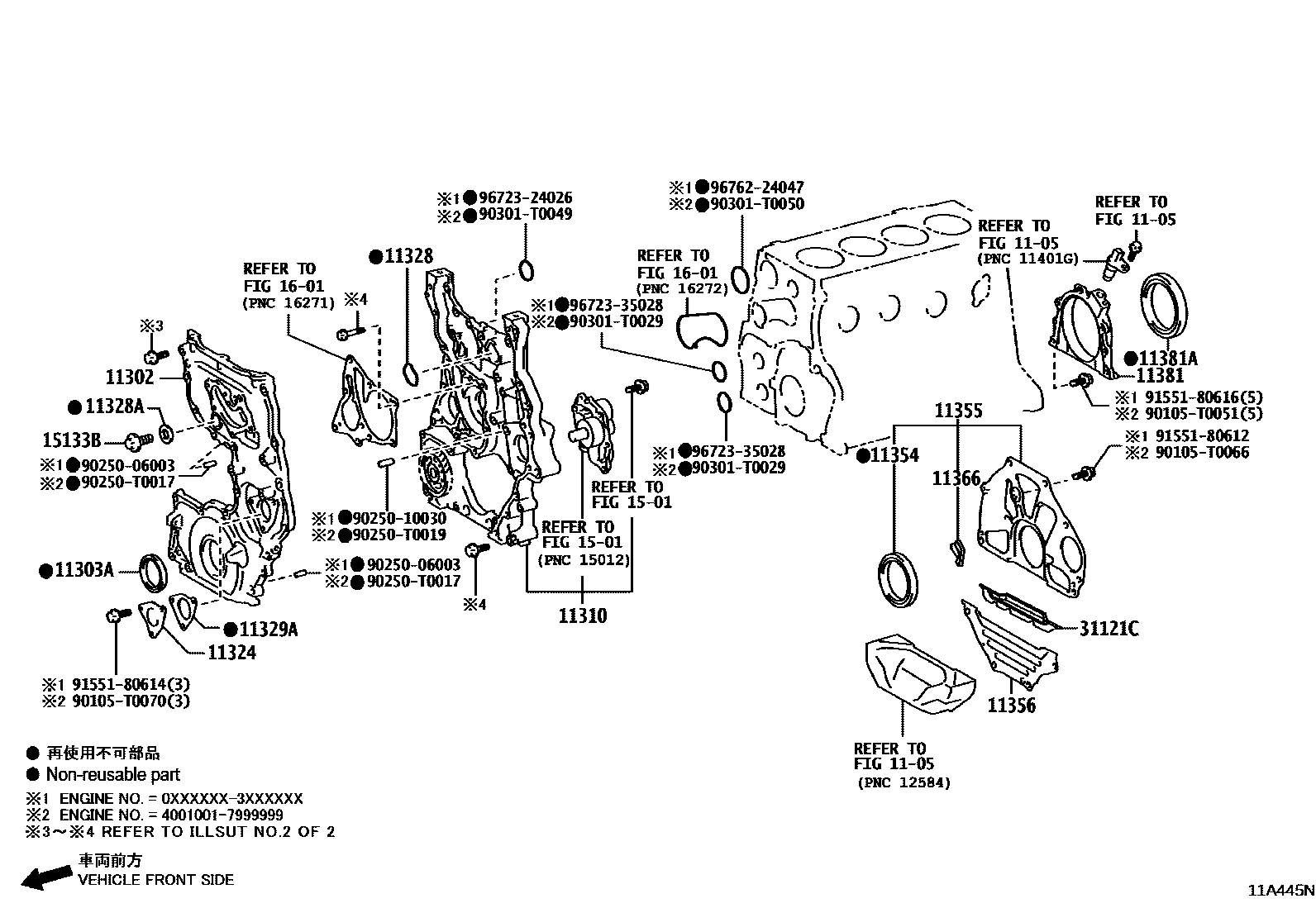

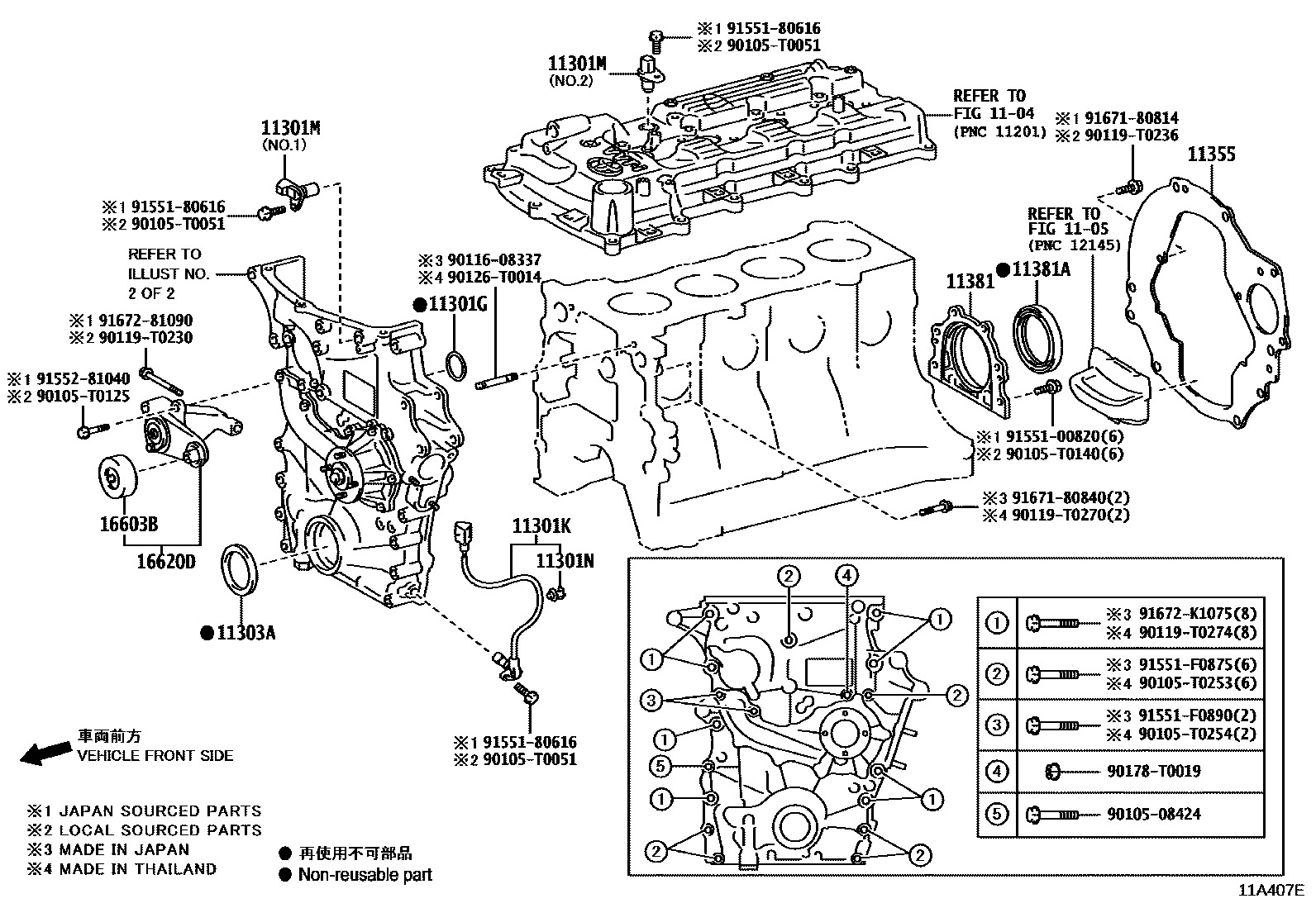

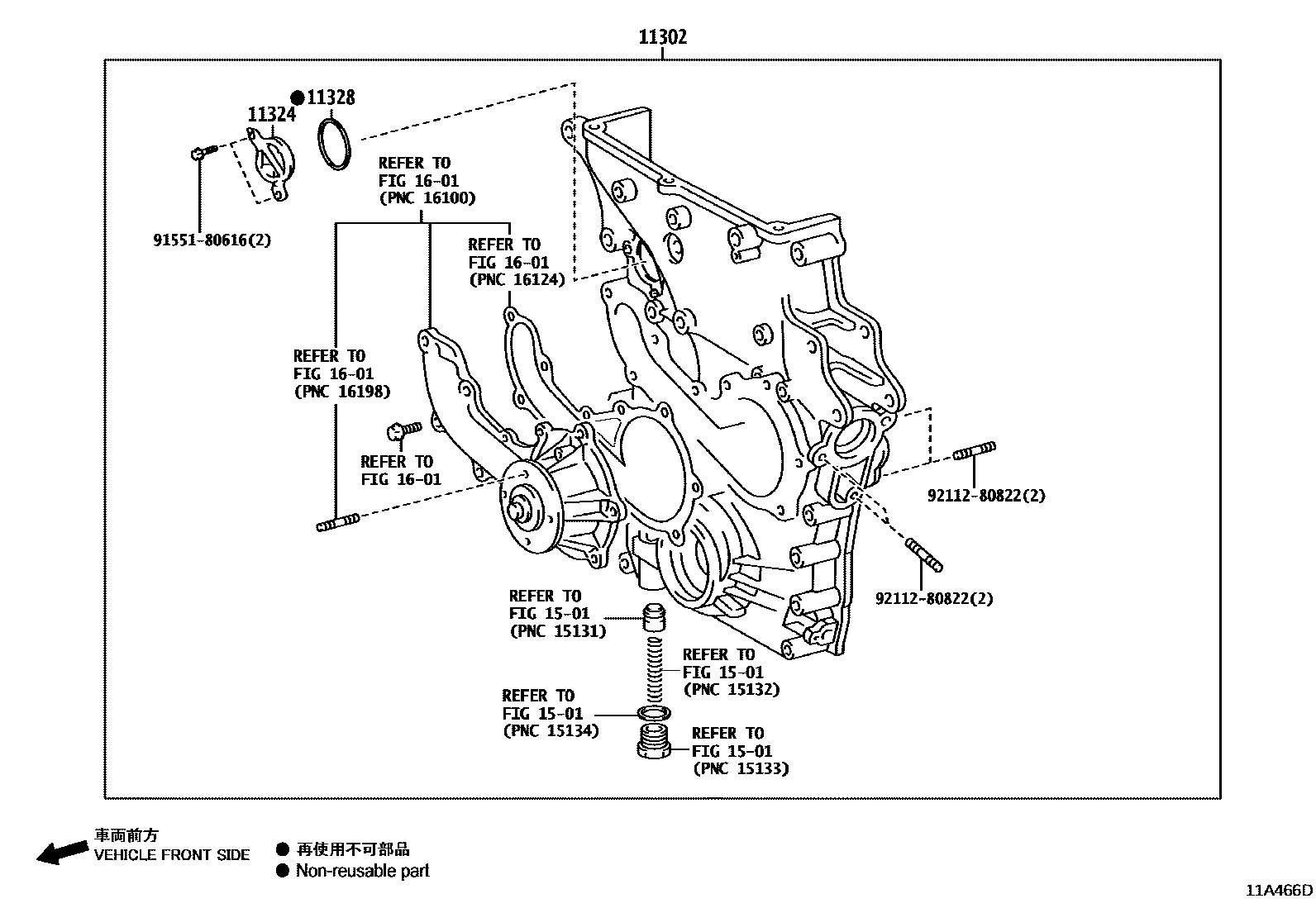

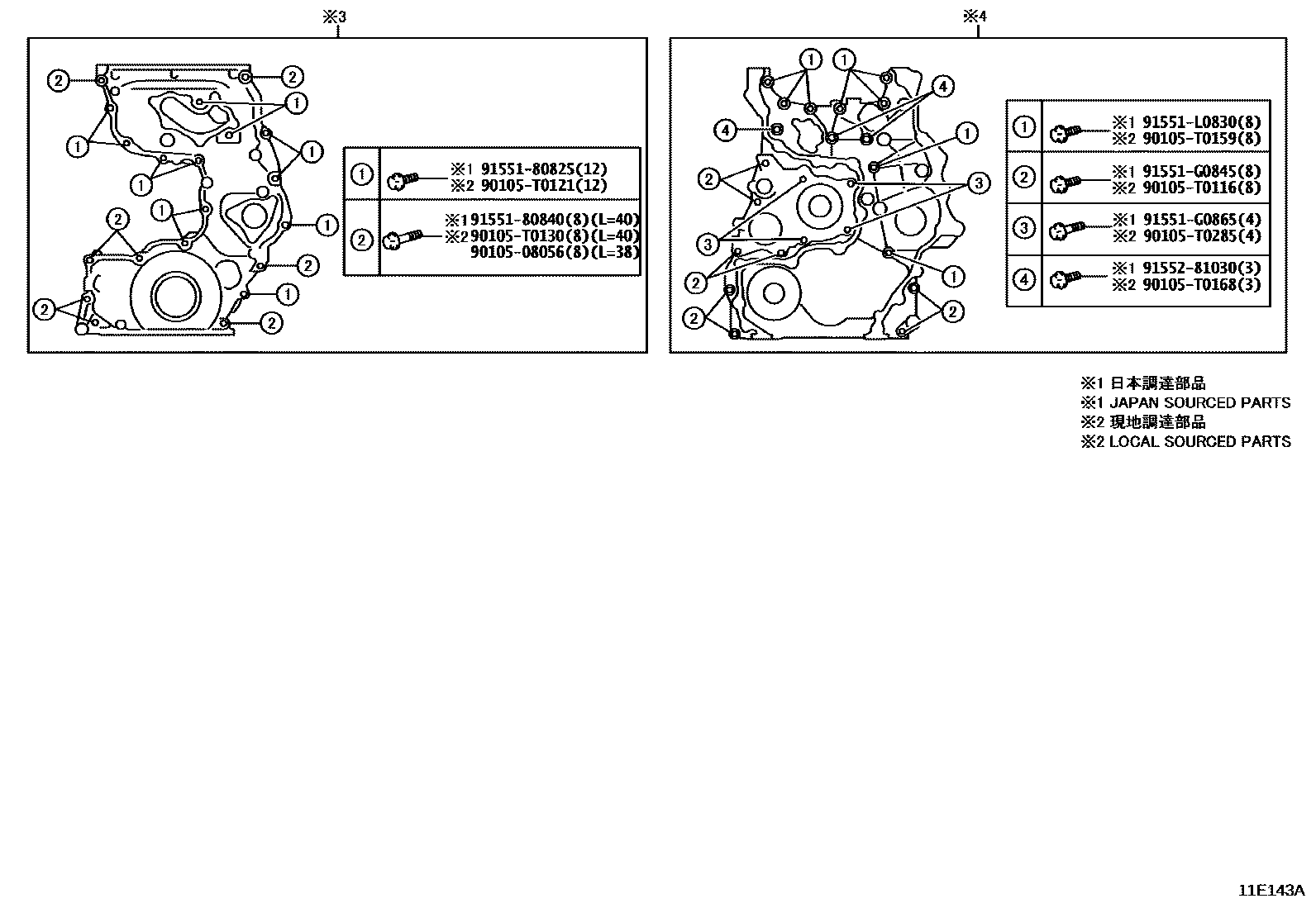

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 7 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301A | Direct sales (for timing gearbox) | 90250-T0007 |
| 11301G | O-ring (for upper timing gearbox) | 90301-T0010 · 90301-T0021 · 90301-T0085 |
| 11301H | O-RING (FOR LOWER TIMING GEAR CASE) | 90301-T0012 |
| 11301J | Headed straight thread plug (for timing gearbox) | 90341-18015 |
| 11301K | crankshaft position sensor | 90919-05025 · 90919-05059 |
| 11301L | No. 2 crankshaft position sensor | 90919-05050 |
| 11301M | Cam position sensor | 90919-05060 · 90919-05061 · 90919-05073 · 90919-T5001 |
| 11301N | card holder | 90469-07018 |
| 11301P | Crankshaft position sensor O-ring | 90301-14016 |
| 11301Q | T-type oil seal (for fuel injection pump) | 90080-31098 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11310-0C030 · 11310-0C040 · 11310-31013 · 11310-31014 · 11321-0E010 · 11321-0E020 · 11321-11120 · 11321-54021 |
| 11303A | Front oil seal (for crankshaft) | 90311-42031 · 90311-42048 · 90311-50051 · 90311-T0054 · 90311-T0060 · 90311-T0061 · 90311-T0099 · 90311-T0100 |
| 11305B | Ring pin (for No. 2 oil seal seat ring) | 90253-11021 |
| 11305C | Oil seal (for camshaft) | 90311-32019 · 90311-32025 |
| 11310 | Timing chain cover assembly | 11310-0E010 · 11310-0E020 · 11310-11030 |
| 11311D | timing belt box | 11311-54052 |
| 11311E | Studs (for timing belt case) | 92132-60828 |
| 11311F | Headed straight thread plug (for timing belt case) | 90341-18004 |
| 11311G | O-ring (for timing belt box) | 96711-19015 |
| 11312A | Timing belt box gasket | 11312-54040 |
| 11319 | No. 3 timing belt cover gasket | 11319-54010 |
| 11320 | Timing gearbox assembly | 11320-0L030 · 11320-0L040 |
| 11321 | timing gearbox | 11321-0L010 |
| 11322A | No. 1 timing belt cover | 11332-0L010 |
| 11322B | No. 2 timing belt cover | 11322-0L010 · 11322-54033 |
| 11324 | Timing chain cover | 11324-0C010 · 11324-0E010 · 11324-0E020 · 11324-11010 · 11324-31020 · 11324-75010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-05010 · 11328-0C010 · 11328-0E010 · 11328-0E020 · 11328-11070 · 11328-31030 · 11328-54021 · 11328-75030 |
| 11328A | No. 1 timing belt cover gasket | 11328-11080 · 11328-30020 · 11328-38030 |
| 11329 | Timing gear rear cover gasket | 11329-05010 · 11329-54021 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-0E010 · 11329-0E020 · 11329-11020 |
| 11336A | Timing gear cover vibration isolation pad | 11336-0L010 |
| 11354 | Flywheel housing dust seal | 11354-0L020 · 11354-30010 · 11354-54010 |
| 11355 | rear end plate | 11355-0C010 · 11355-0C020 · 11355-0E010 · 11355-0E020 · 11355-0E030 · 11355-0E040 · 11355-0E050 · 11355-0L010 · 11355-11040 · 11355-11050 · 11355-54120 · 11355-75021 |
| 11356 | No. 2 rear end plate | 11356-0L011 · 11356-0L012 · 11356-0L021 · 11356-0L022 · 11356-0L031 · 11356-0L032 |
| 11366 | Flywheel housing bottom cover dust seal | 11366-0E010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-0C012 · 11381-0C022 · 11381-0E010 · 11381-0E030 · 11381-0E040 · 11381-0K010 · 11381-11010 · 11381-31010 · 11381-54030 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-85011 · 90311-95015 · 90311-99010 · 90311-T0046 · 90311-T0058 · 90311-T0059 · 90311-T0098 |
| 11383 | Engine rear oil seal seat gasket | 11383-54030 |
| 11384 | No. 2 oil seal seat ring gasket | 11384-54030 |
| 11385 | Camshaft oil seal race | 11382-05010 · 11382-54020 |
| 11391 | Timing pointer | 11391-54020 |
| 12511C | Generator bracket | 12511-0L010 · 12511-0L020 · 12511-0L030 |
| 15133B | PLUG, OIL PUMP RELIEF VALVE | 15133-38071 |
| 15134B | Oil pump pressure reducing valve gasket | 15134-0L030 |
| 16603B | Idler gear sub-assembly | 16603-0C030 · 16603-0C031 · 16603-0C032 |
| 16620D | Poly V-belt tensioner assembly | 16620-0C030 · 16620-0C031 |
| 31121C | Clutch housing adapter plate cover | 31121-26030 |
