Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 32 images and 2 PNC and OE references.

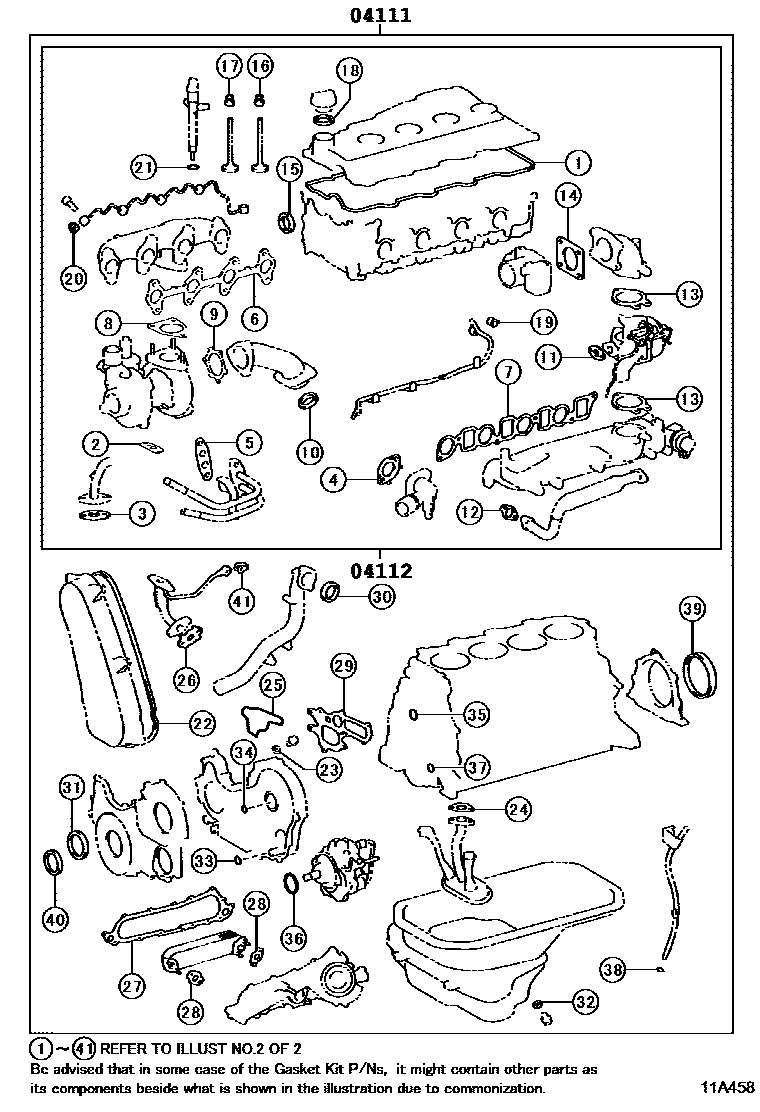

Engine Overhaul Gasket Kit — 11A458 (201505 – 999999)

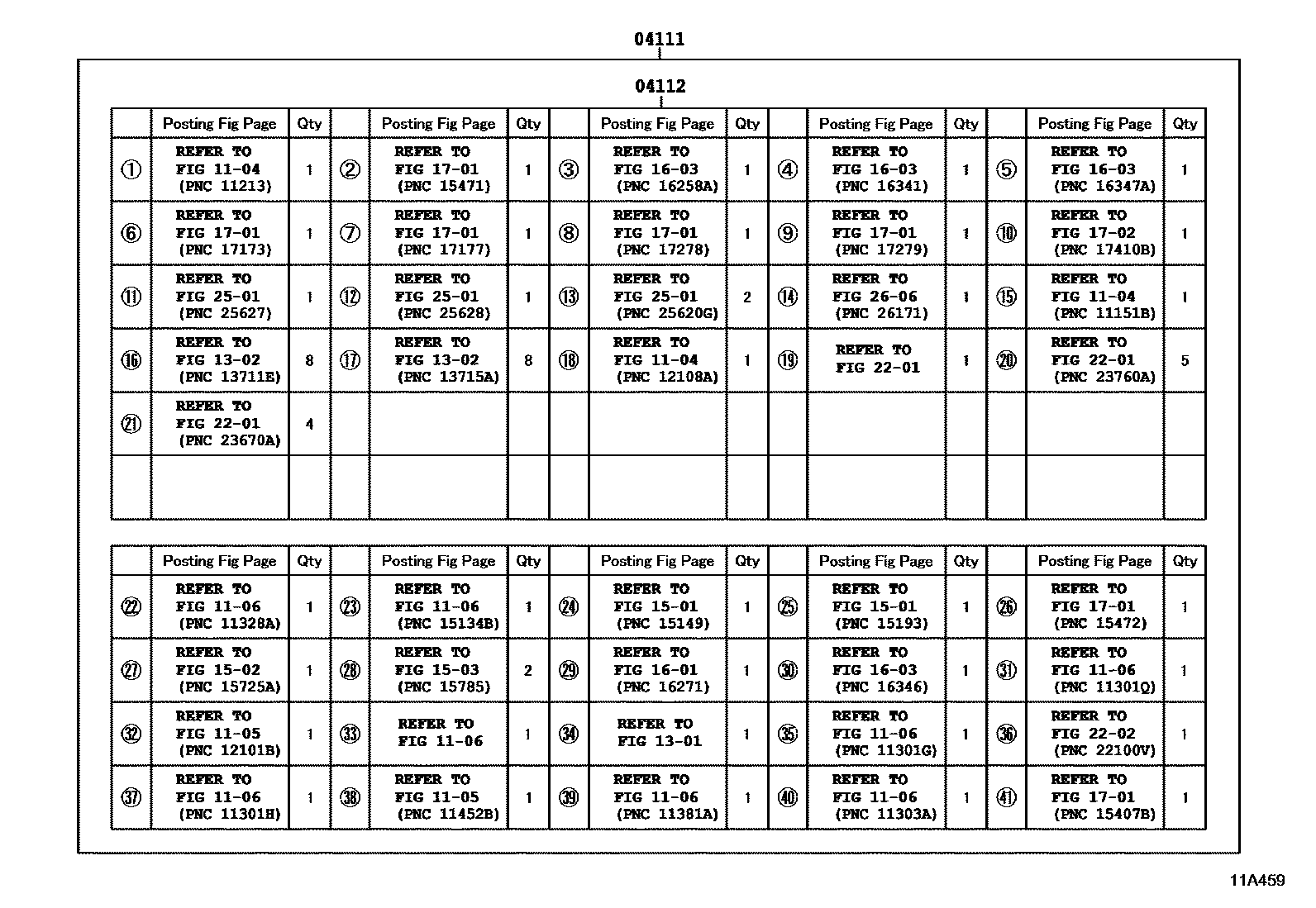

Engine Overhaul Gasket Kit — 11A459 (201505 – 999999)
Engine Overhaul Gasket Kit — 11A460 (201505 – 999999)

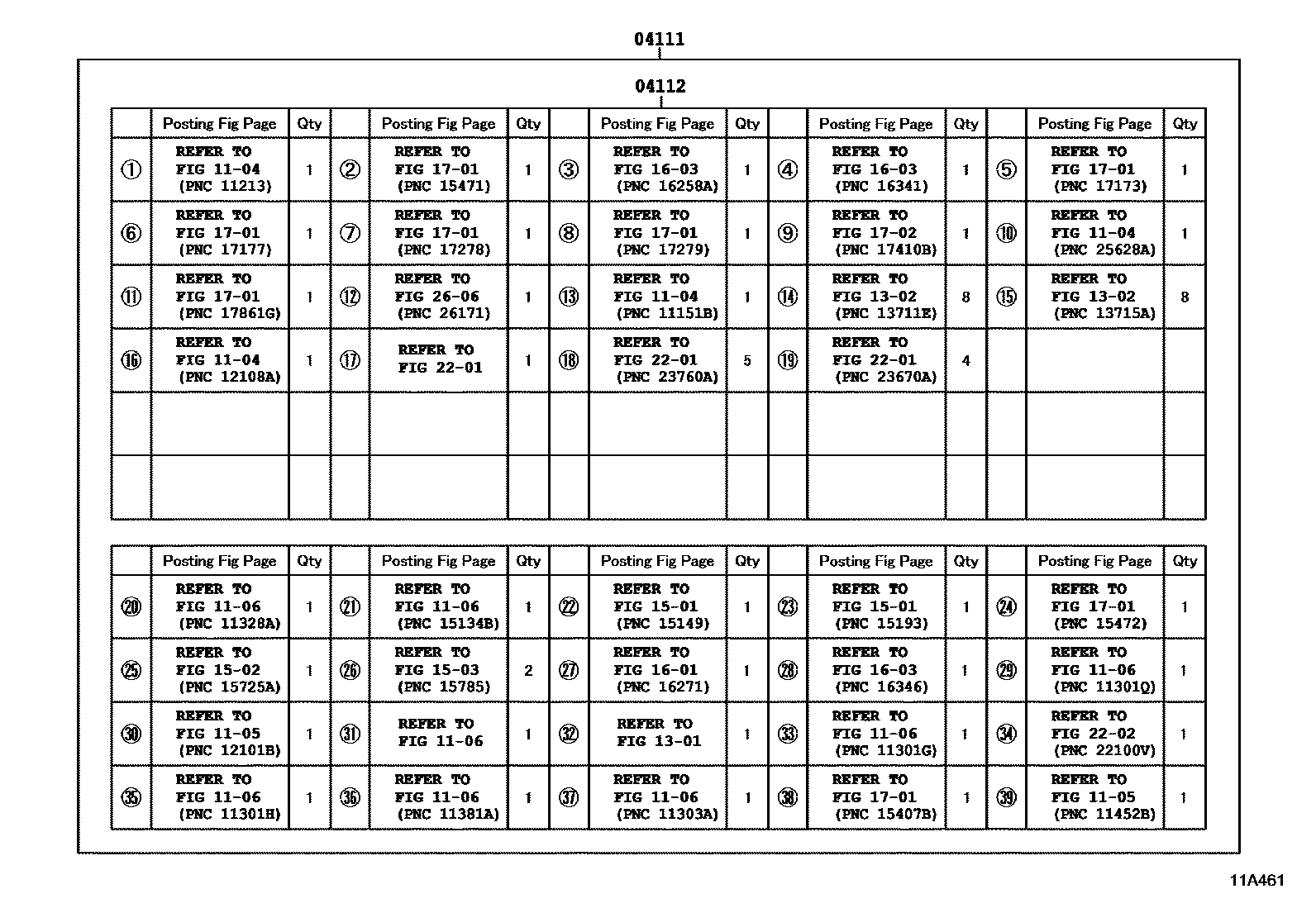

Engine Overhaul Gasket Kit — 11A461 (201505 – 999999)

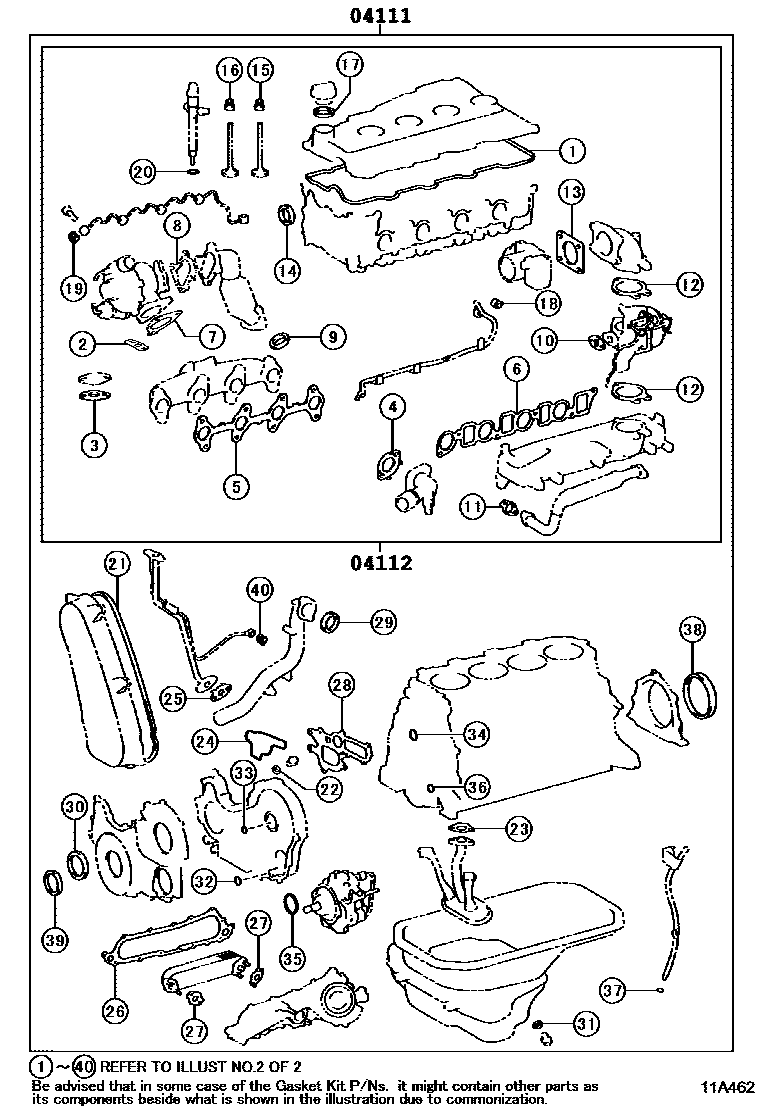

Engine Overhaul Gasket Kit — 11A462 (201505 – 999999)

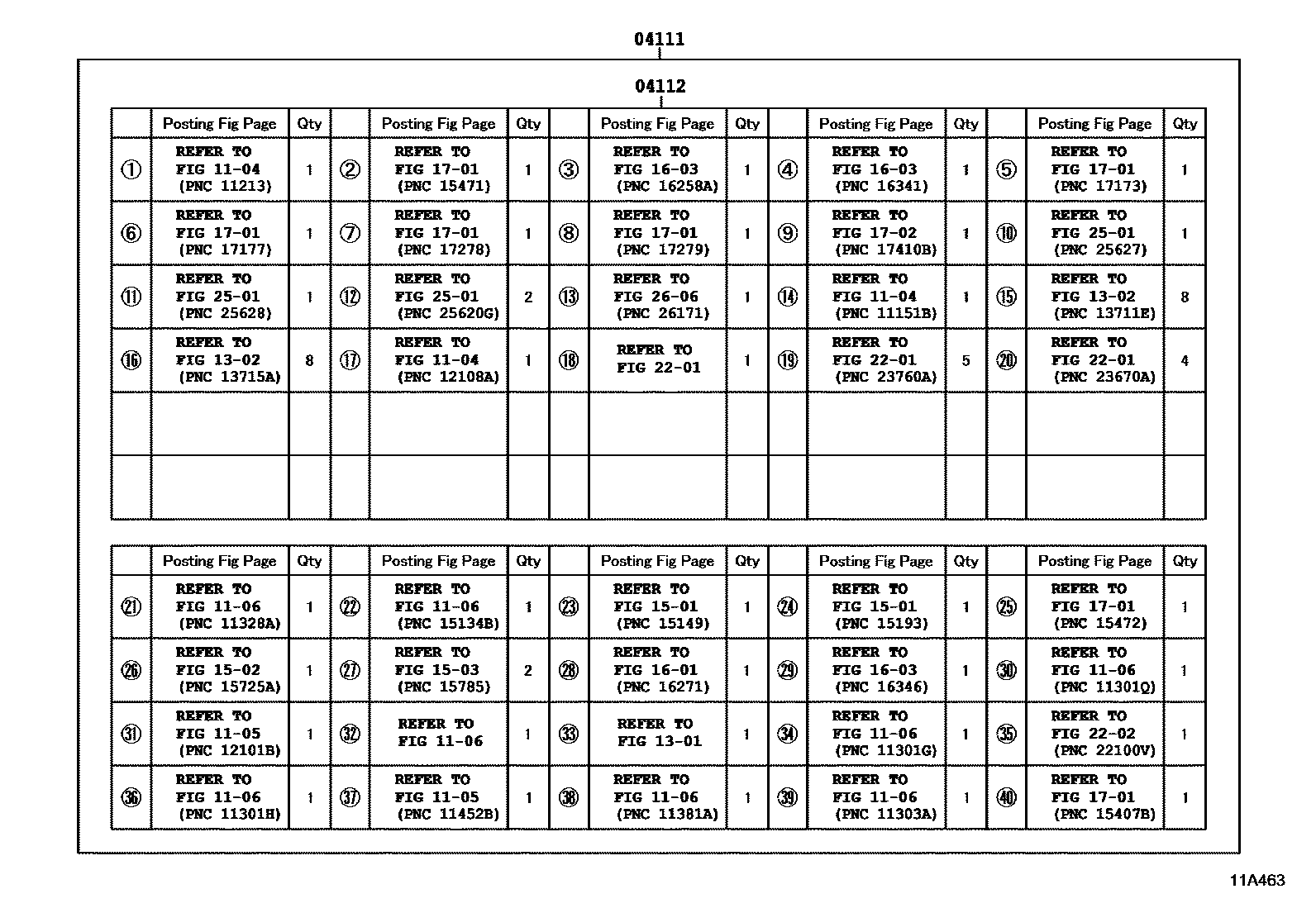

Engine Overhaul Gasket Kit — 11A463 (201505 – 999999)

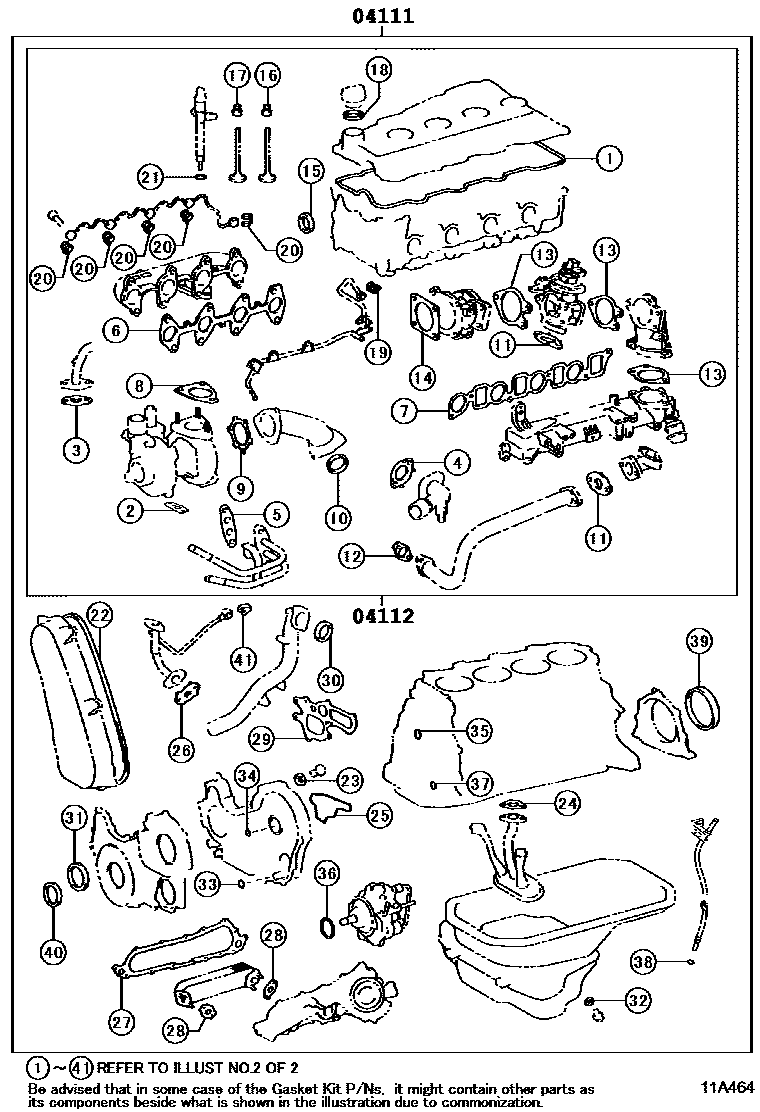

Engine Overhaul Gasket Kit — 11A464 (201505 – 999999)

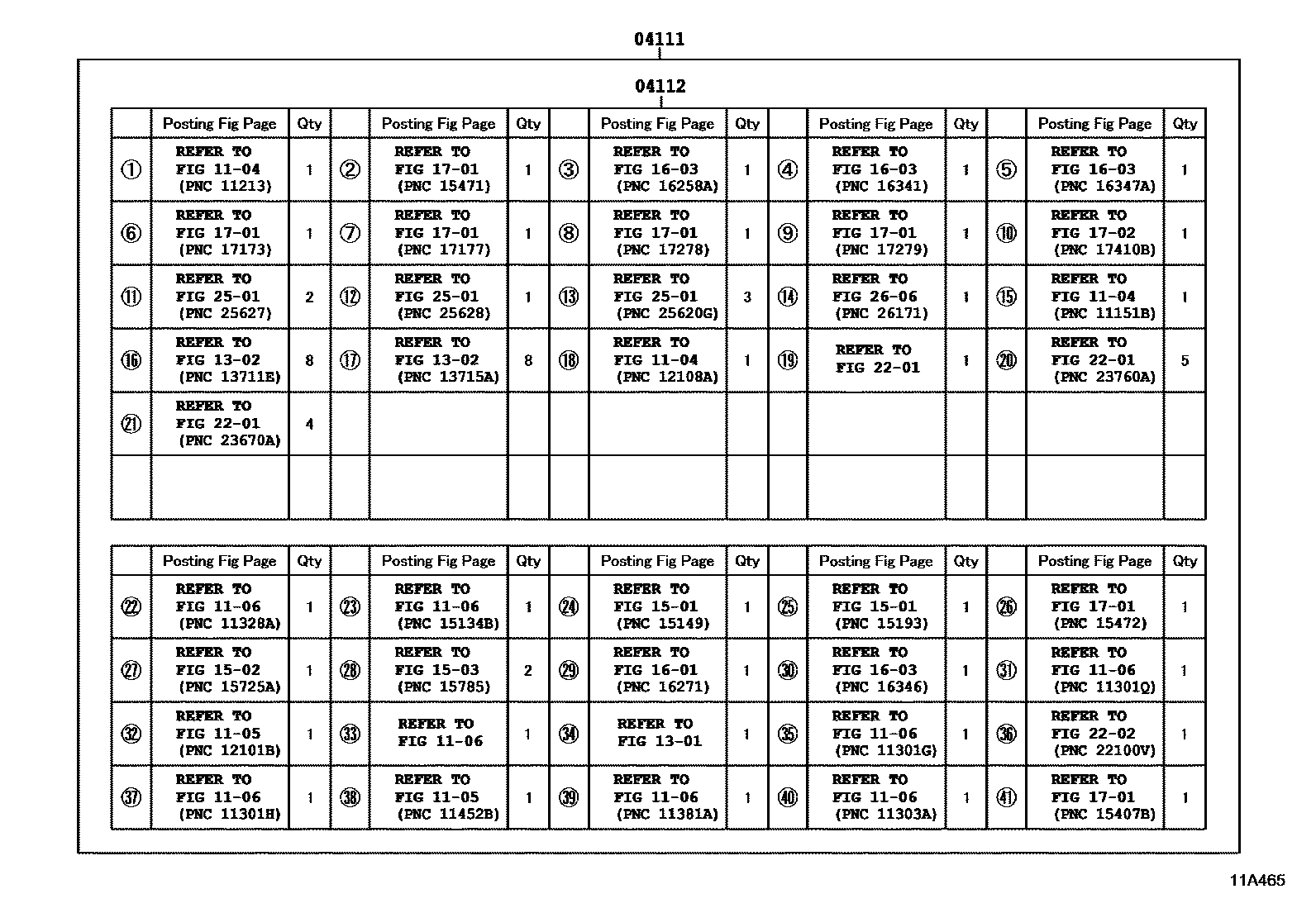

Engine Overhaul Gasket Kit — 11A465 (201505 – 999999)

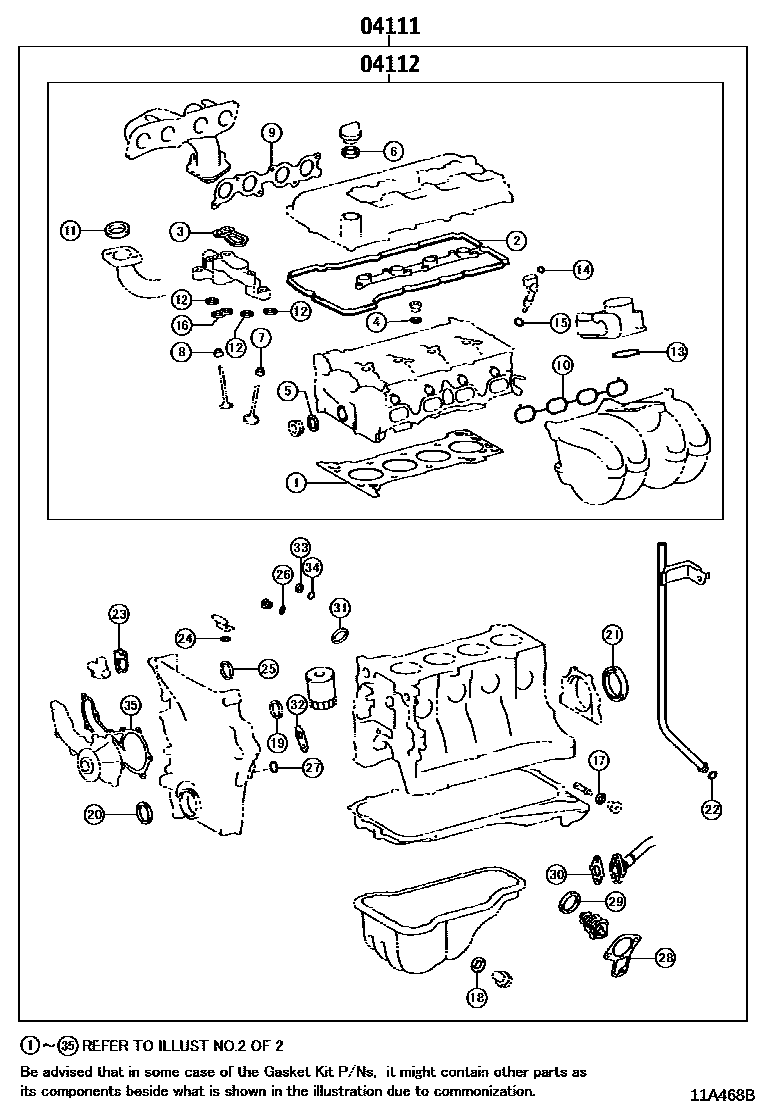

Engine Overhaul Gasket Kit — 11A468B (201505 – 999999)

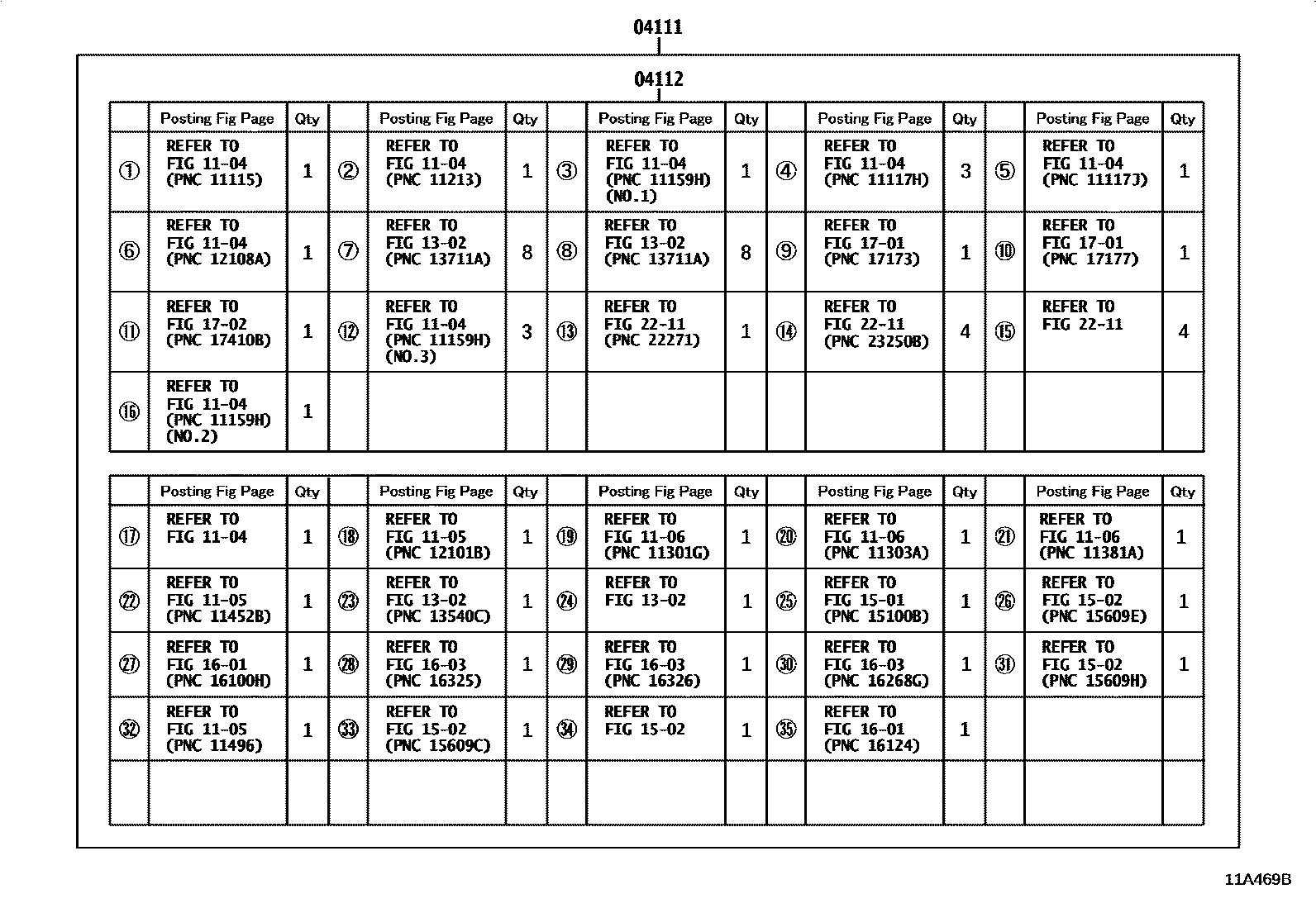

Engine Overhaul Gasket Kit — 11A469B (201505 – 999999)

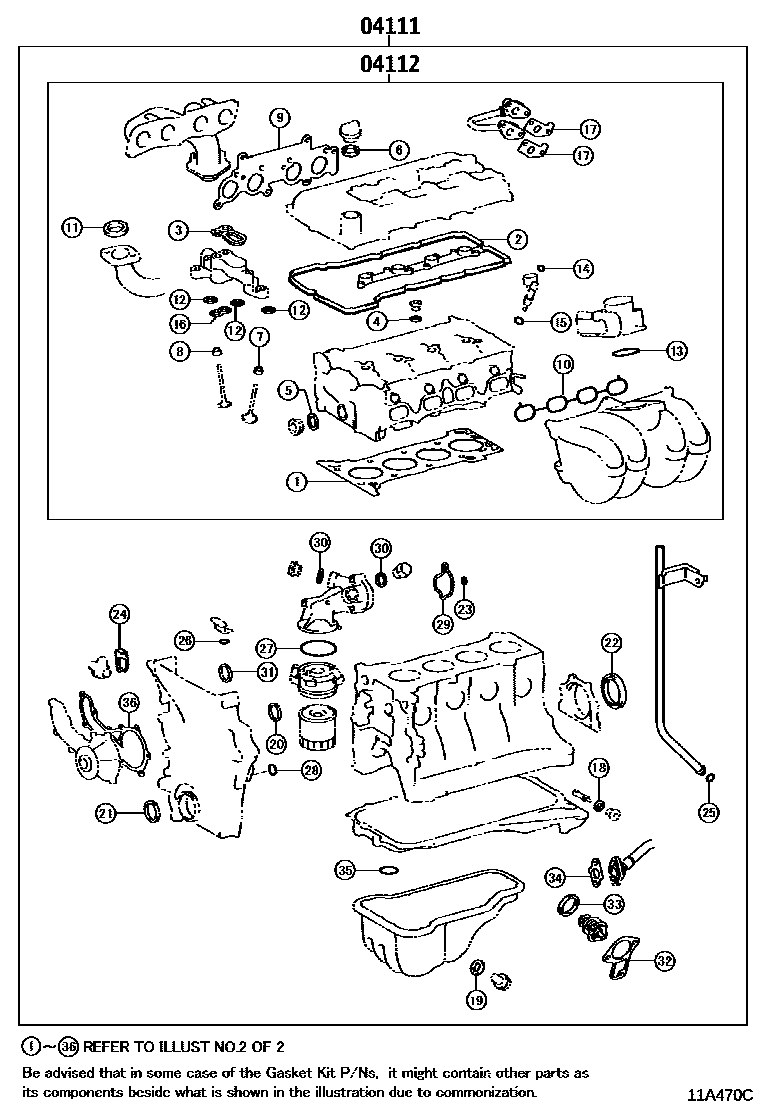

Engine Overhaul Gasket Kit — 11A470C (201505 – 999999)

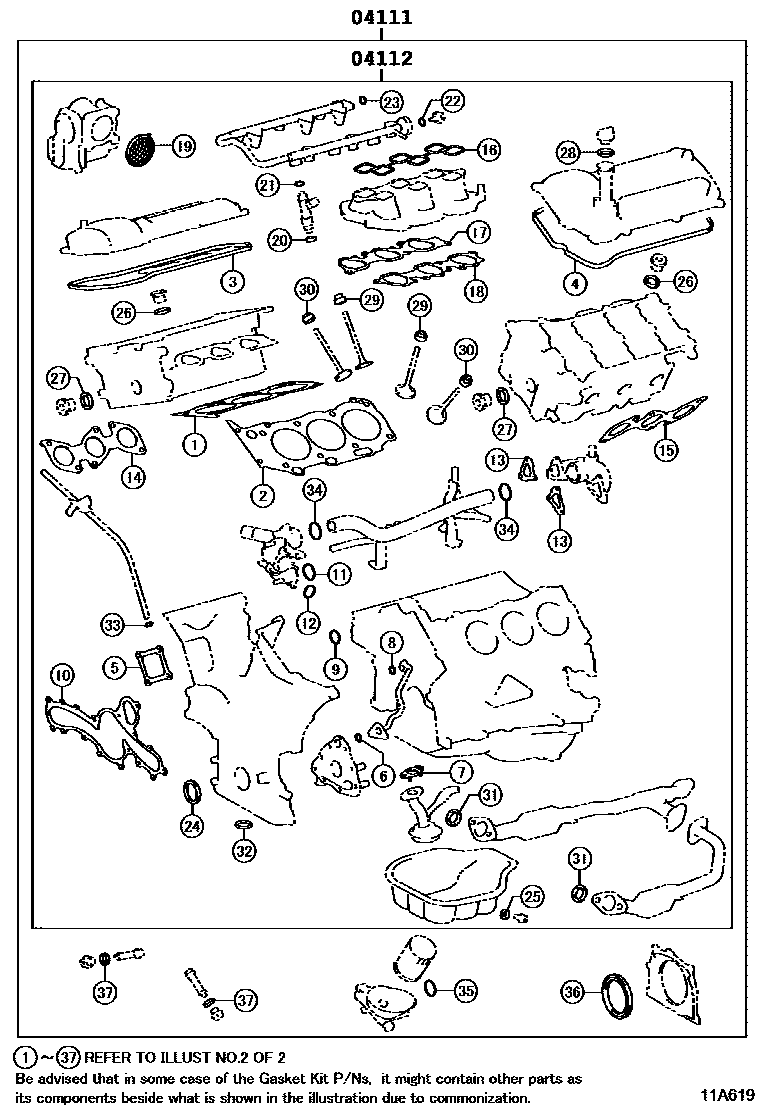

Engine Overhaul Gasket Kit — 11A619 (201505 – 999999)

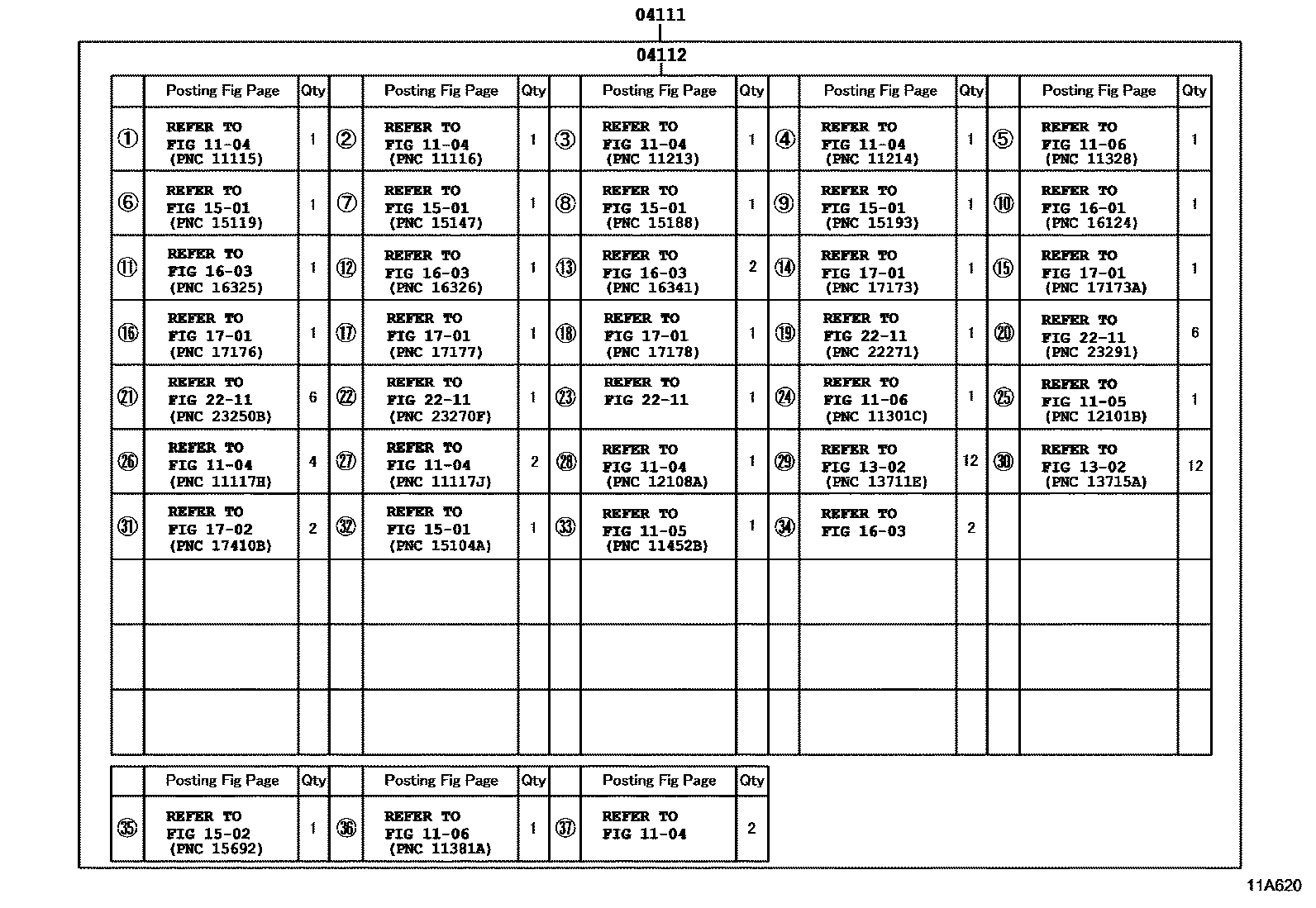

Engine Overhaul Gasket Kit — 11A620 (201505 – 999999)

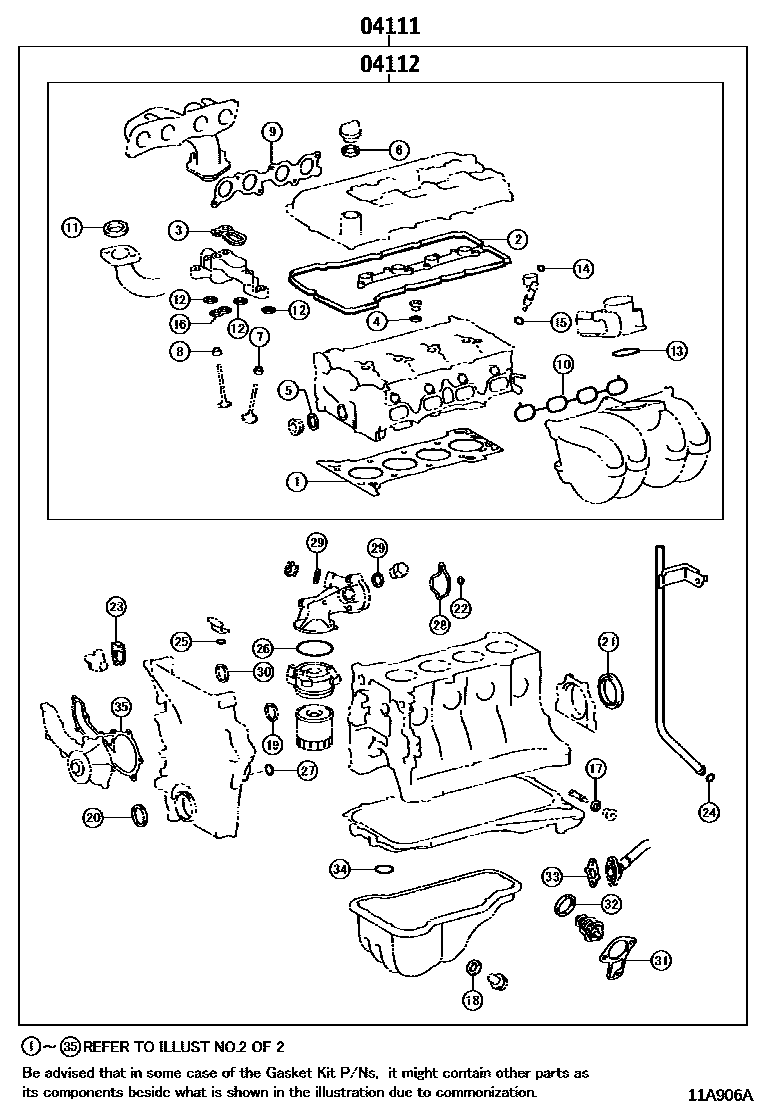

Engine Overhaul Gasket Kit — 11A906A (201505 – 999999)

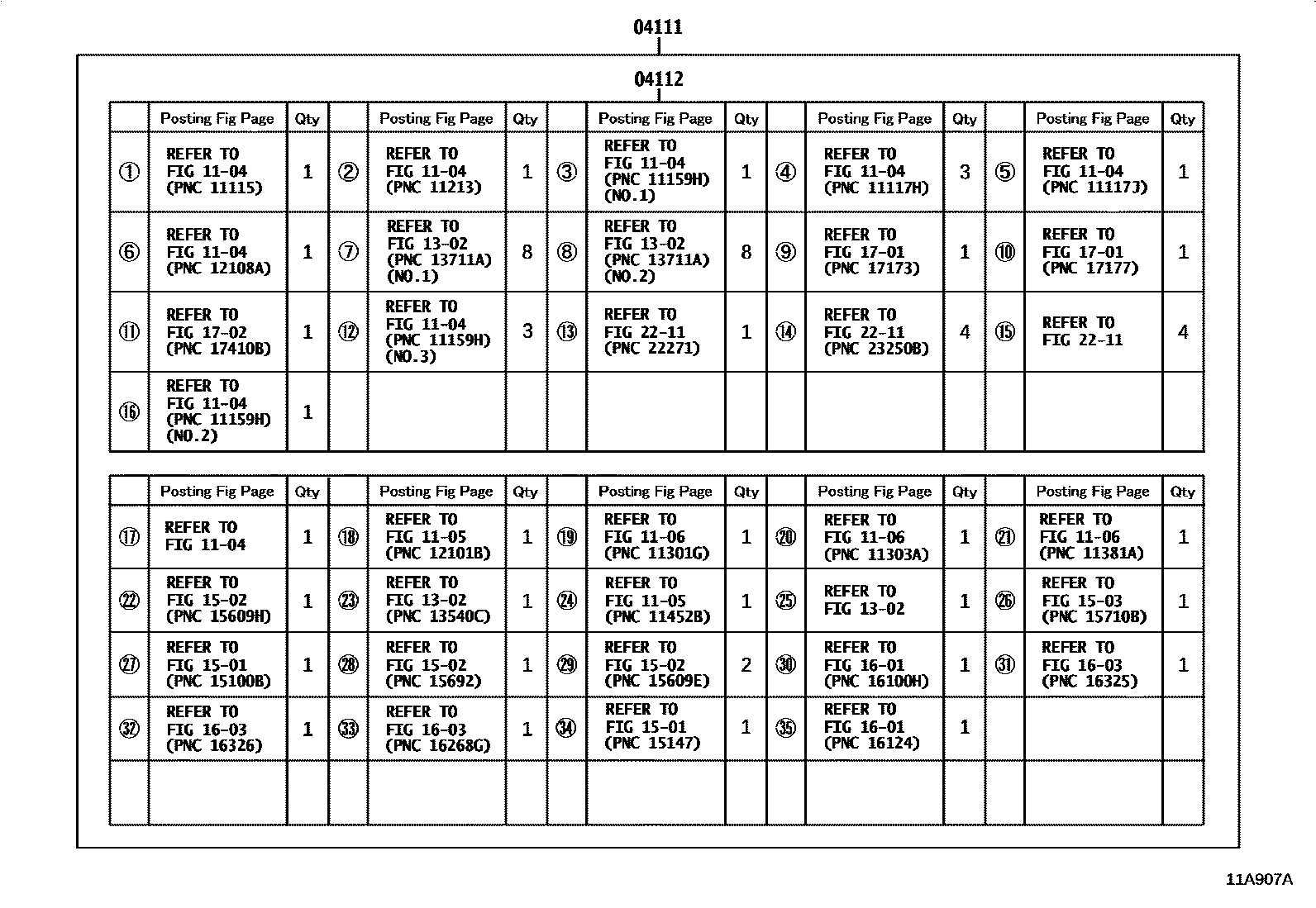

Engine Overhaul Gasket Kit — 11A907A (201505 – 999999)

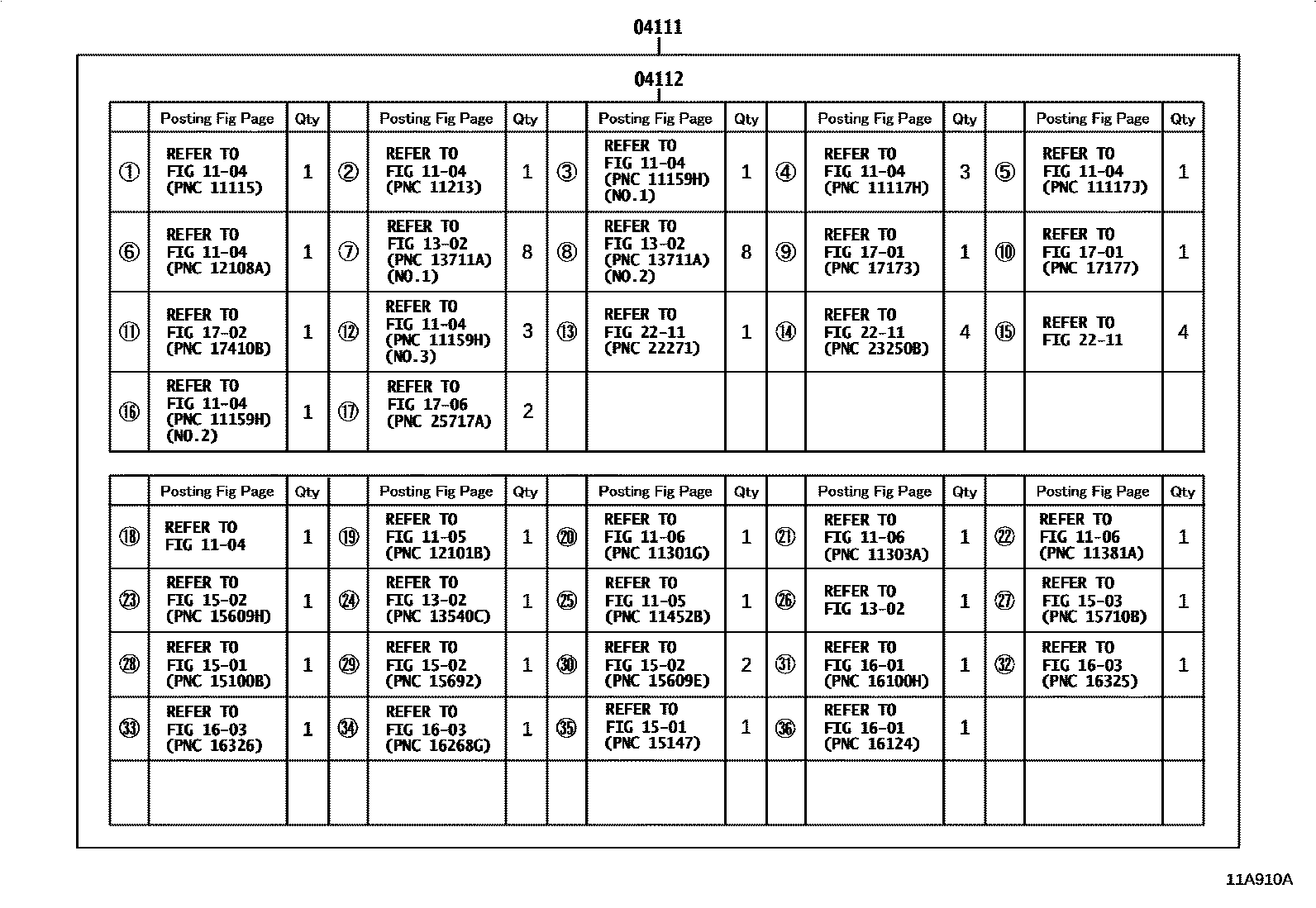

Engine Overhaul Gasket Kit — 11A910A (201505 – 999999)

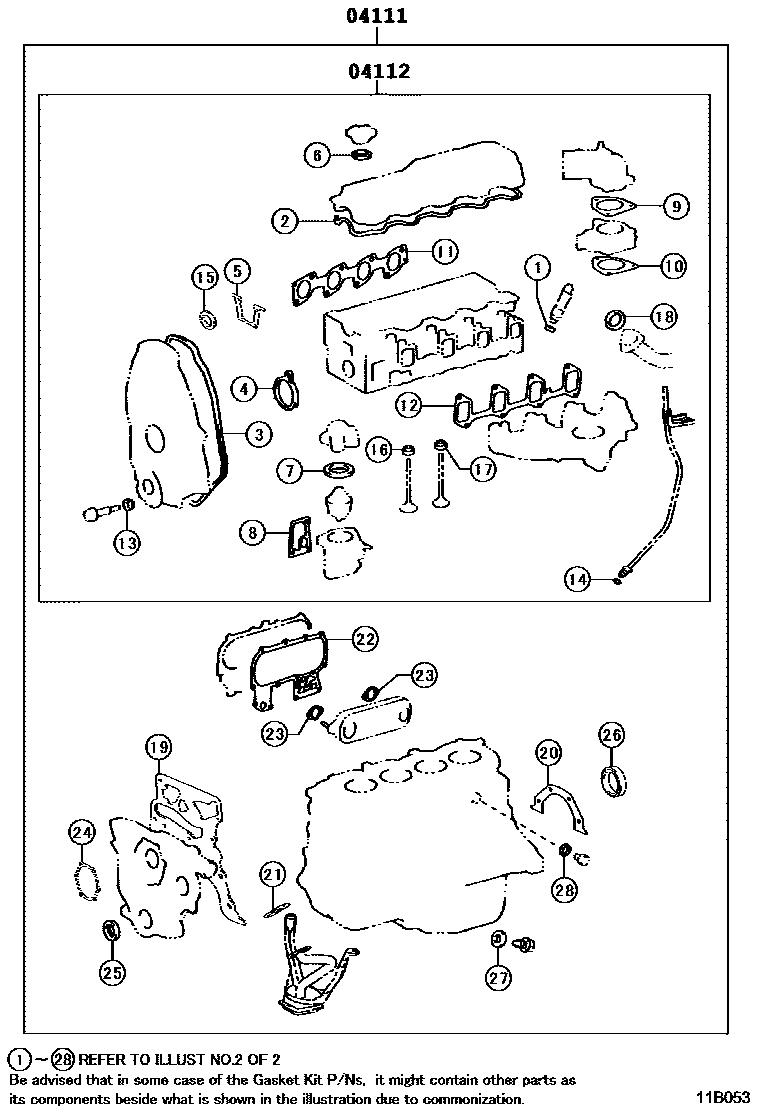

Engine Overhaul Gasket Kit — 11B053 (201601 – 999999)

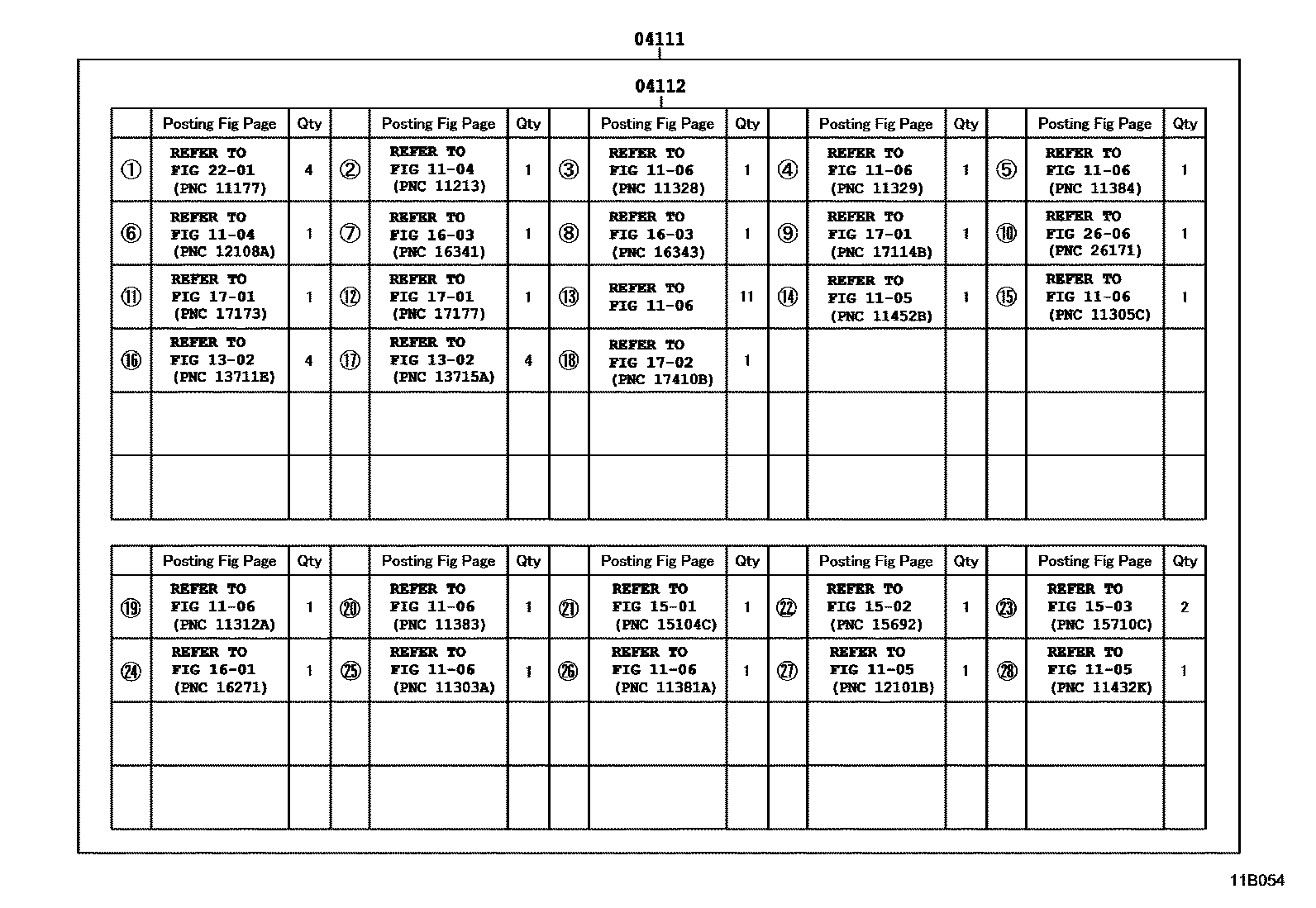

Engine Overhaul Gasket Kit — 11B054 (201601 – 999999)

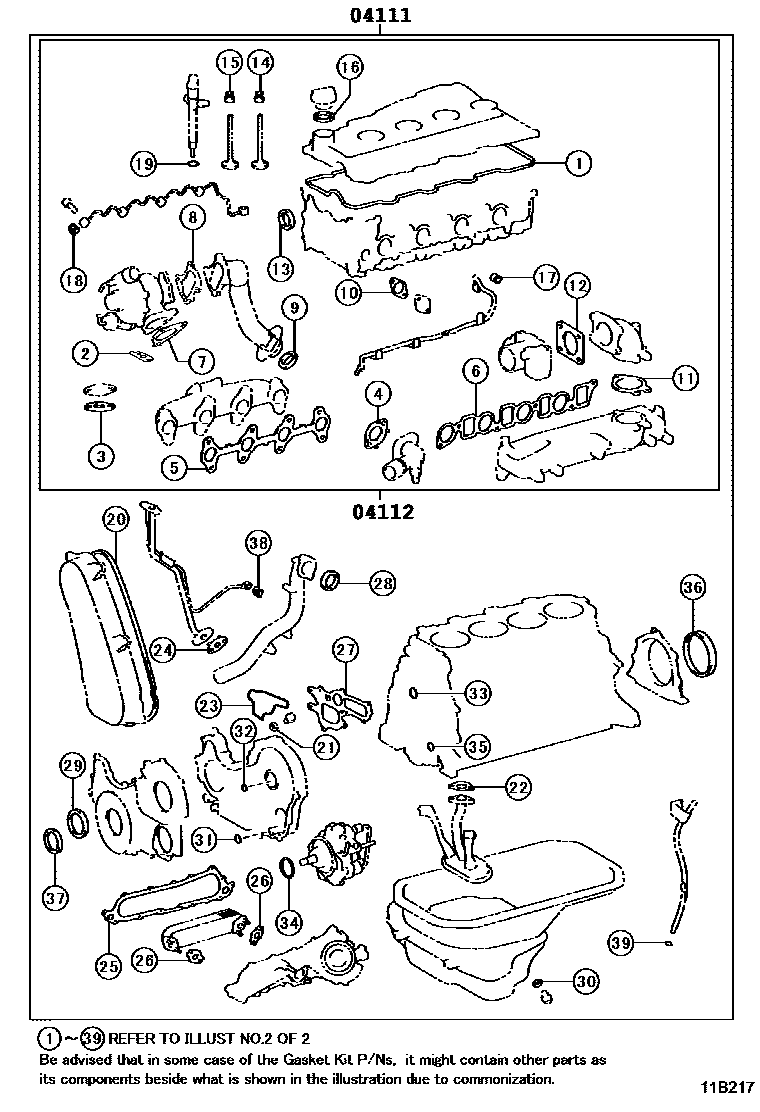

Engine Overhaul Gasket Kit — 11B217 (201610 – 999999)
Engine Overhaul Gasket Kit — 11B218 (201610 – 999999)

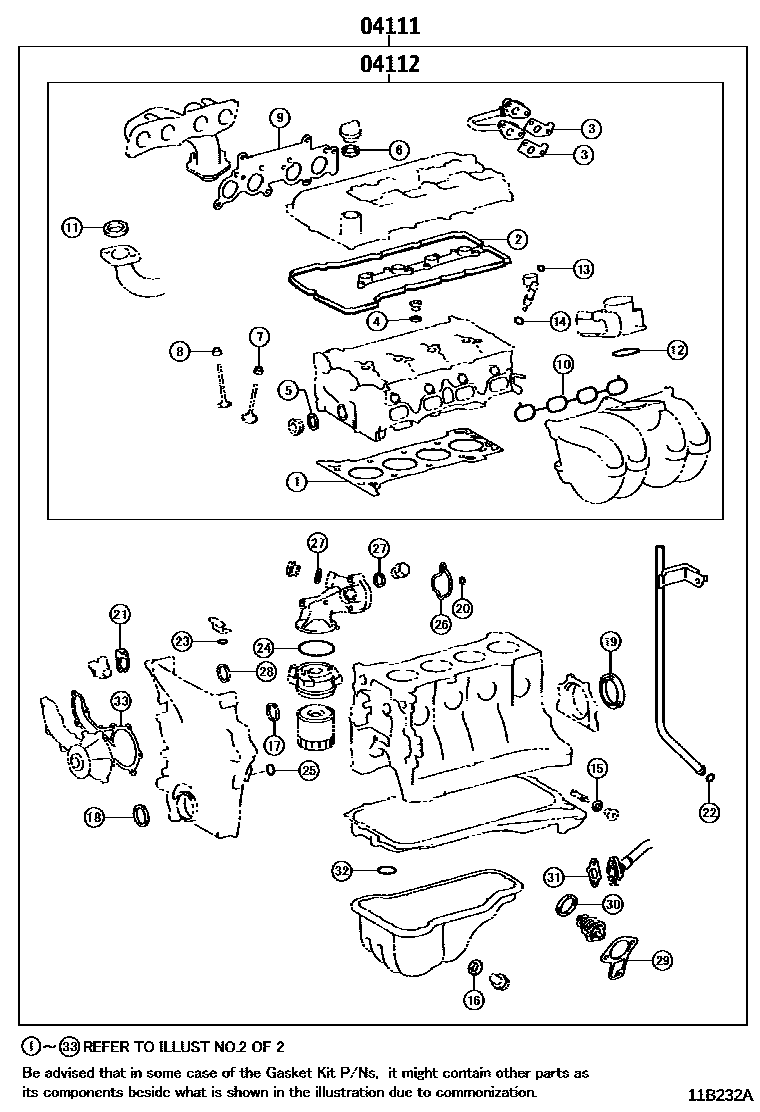

Engine Overhaul Gasket Kit — 11B232A (201607 – 999999)

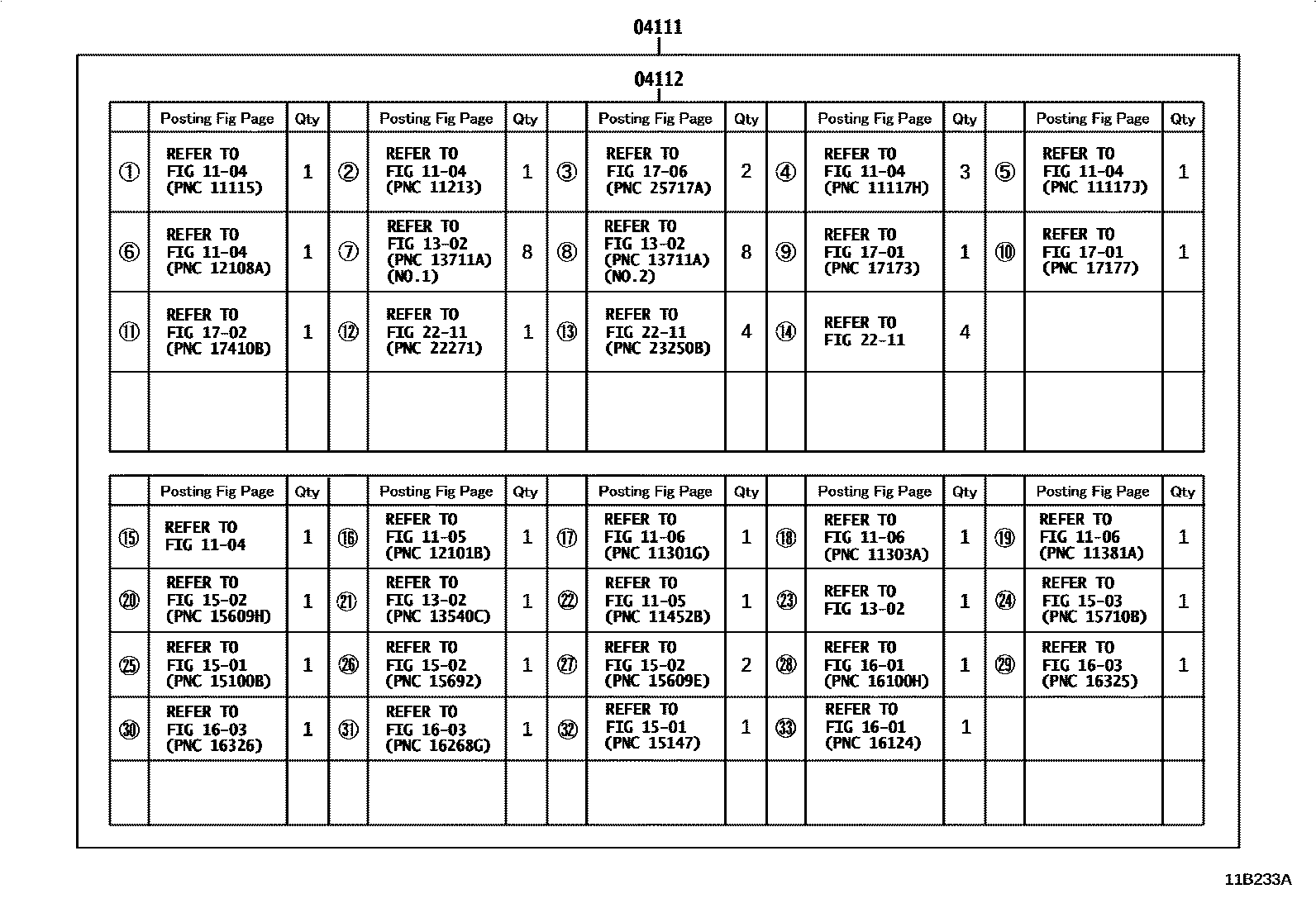

Engine Overhaul Gasket Kit — 11B233A (201607 – 999999)

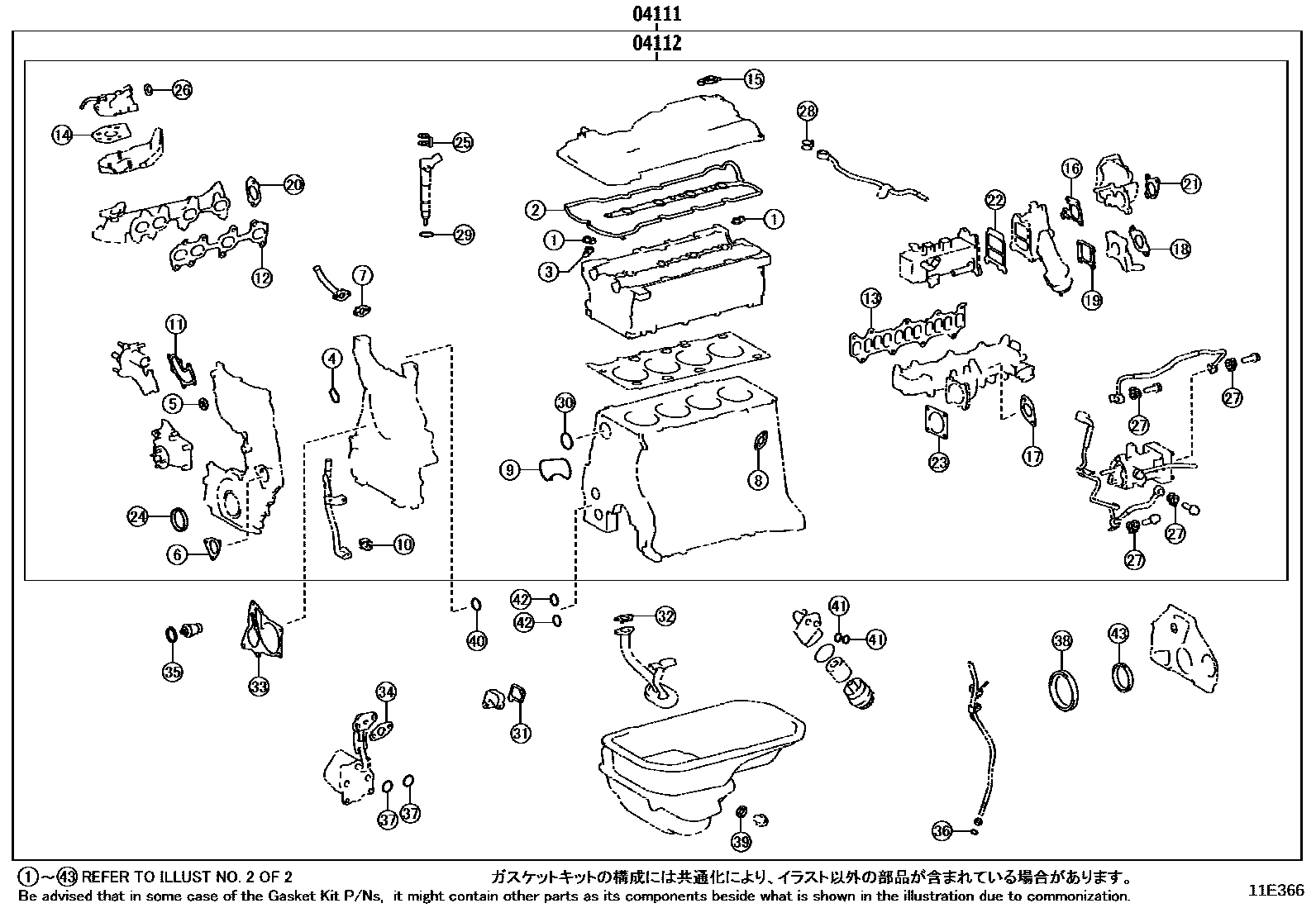

Engine Overhaul Gasket Kit — 11E366 (201505 – 999999)

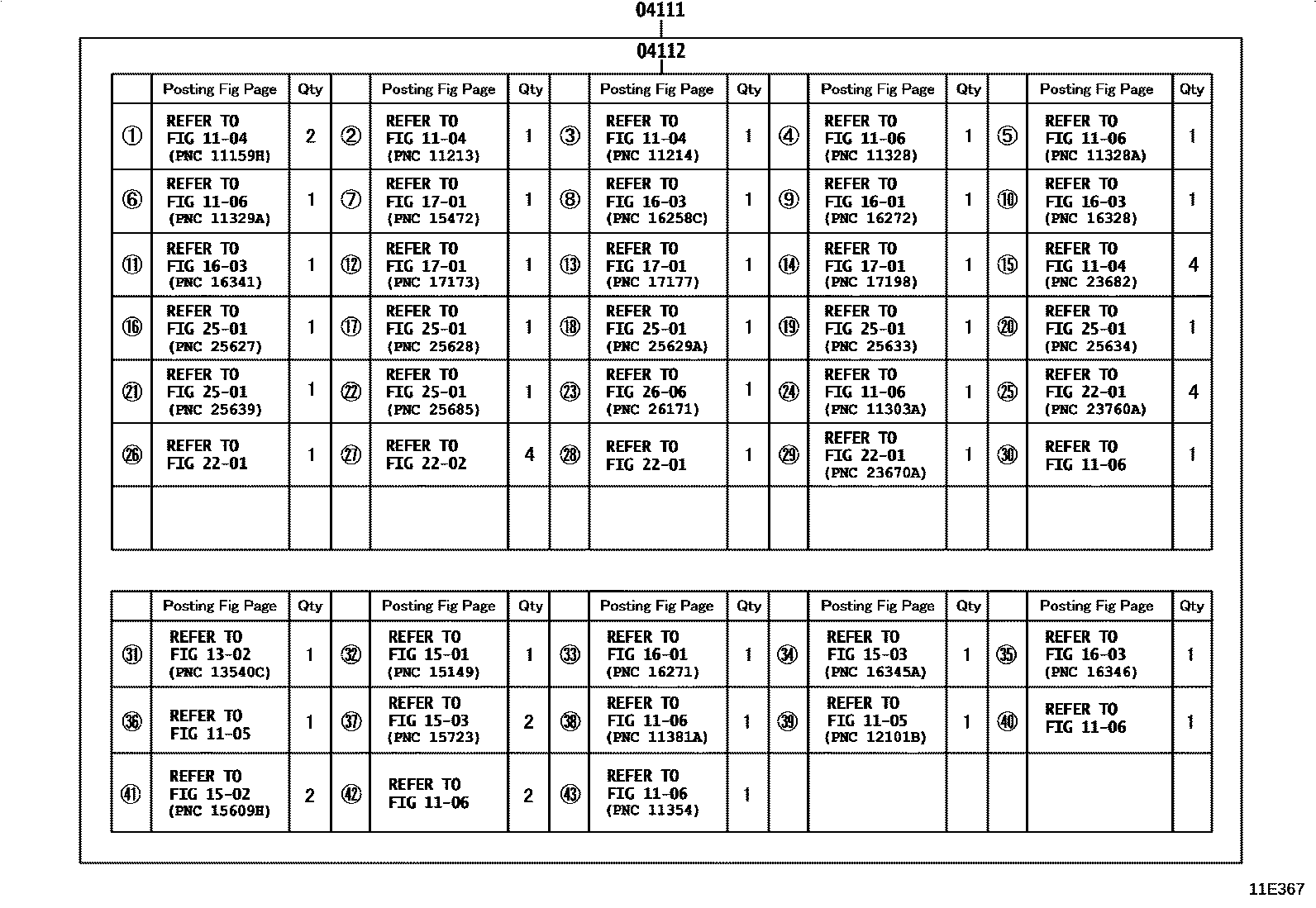

Engine Overhaul Gasket Kit — 11E367 (201505 – 999999)
Engine Overhaul Gasket Kit — 11E368 (201505 – 999999)
Engine Overhaul Gasket Kit — 11E369 (201505 – 999999)

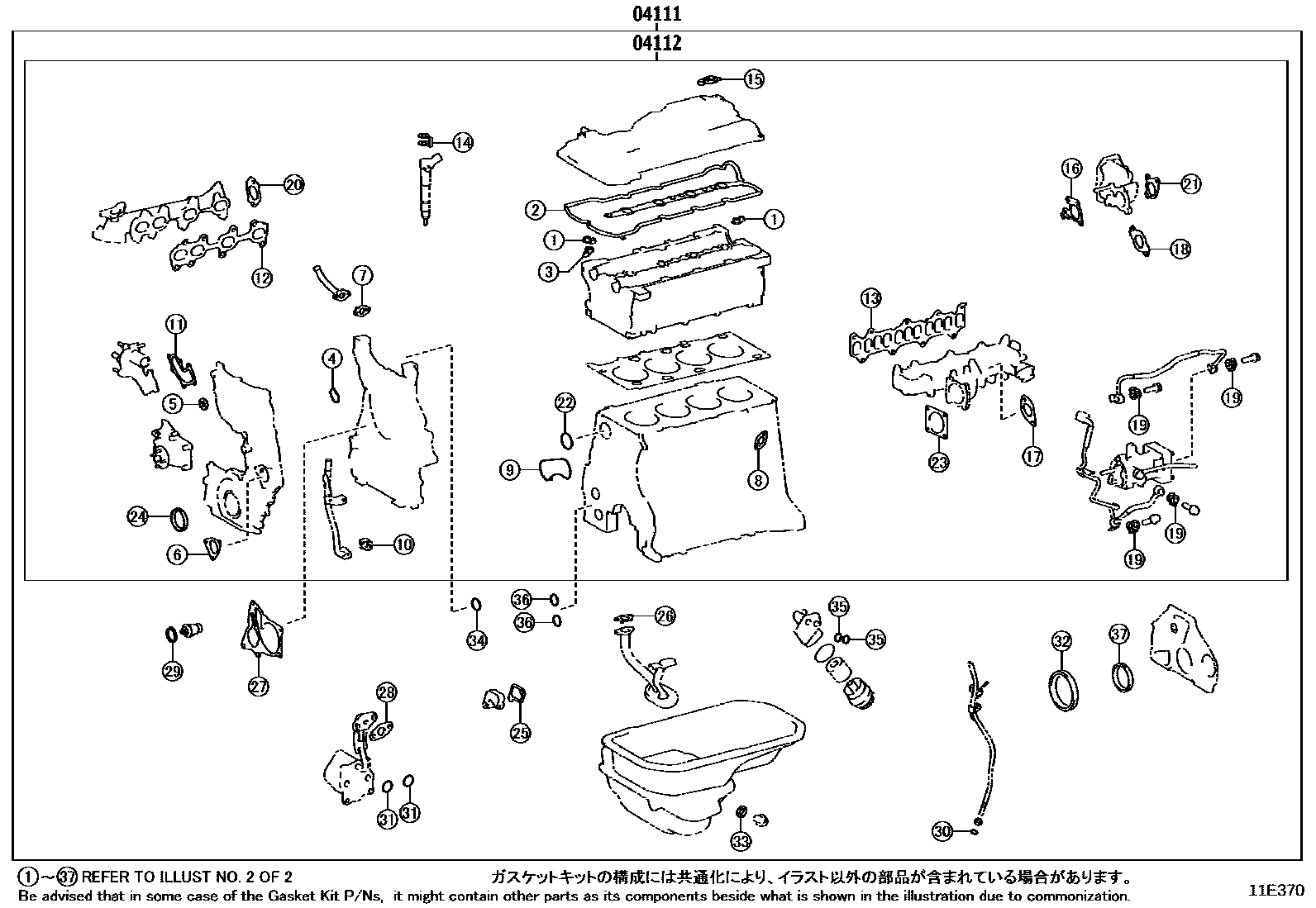

Engine Overhaul Gasket Kit — 11E370 (201505 – 999999)

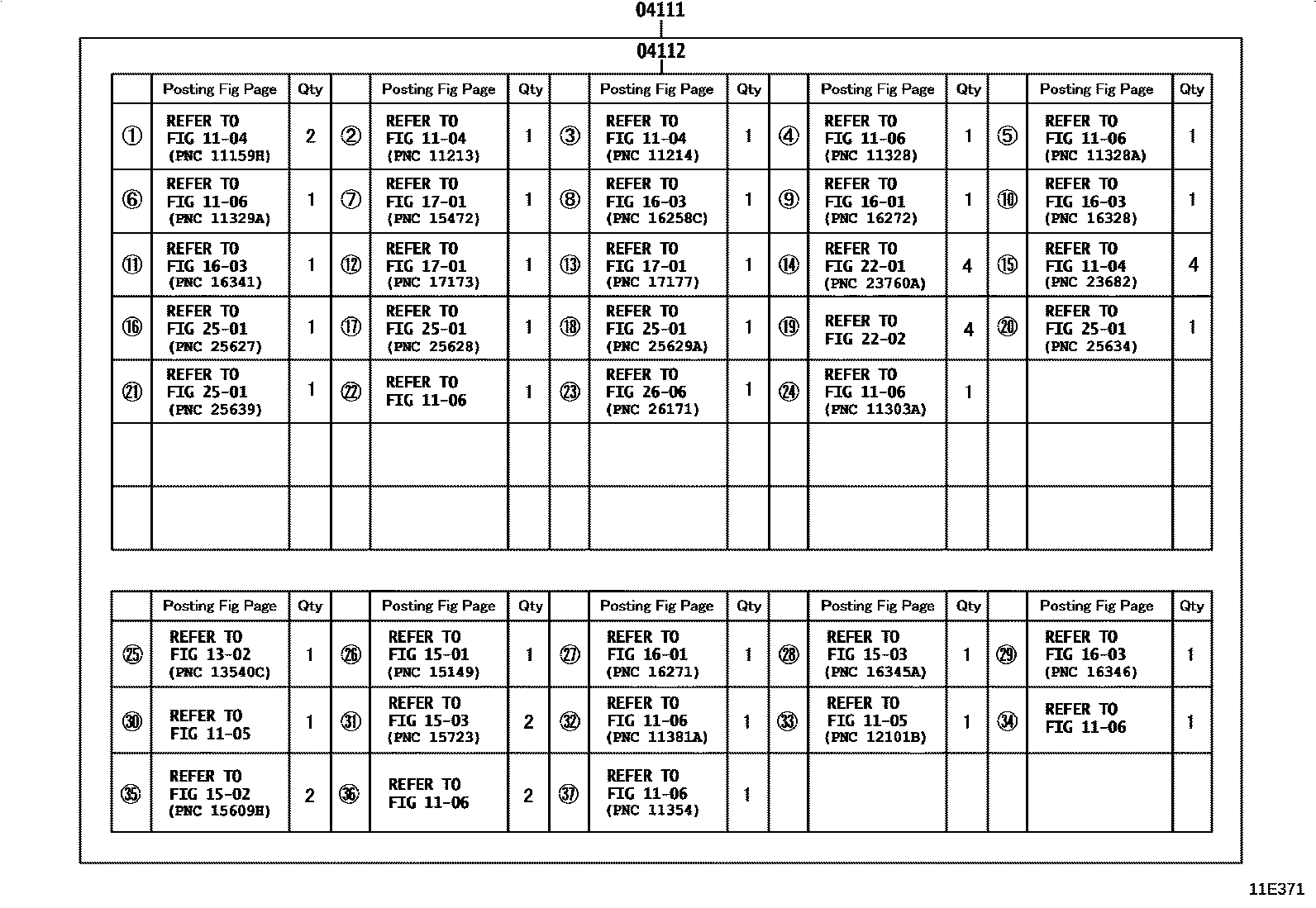

Engine Overhaul Gasket Kit — 11E371 (201505 – 999999)

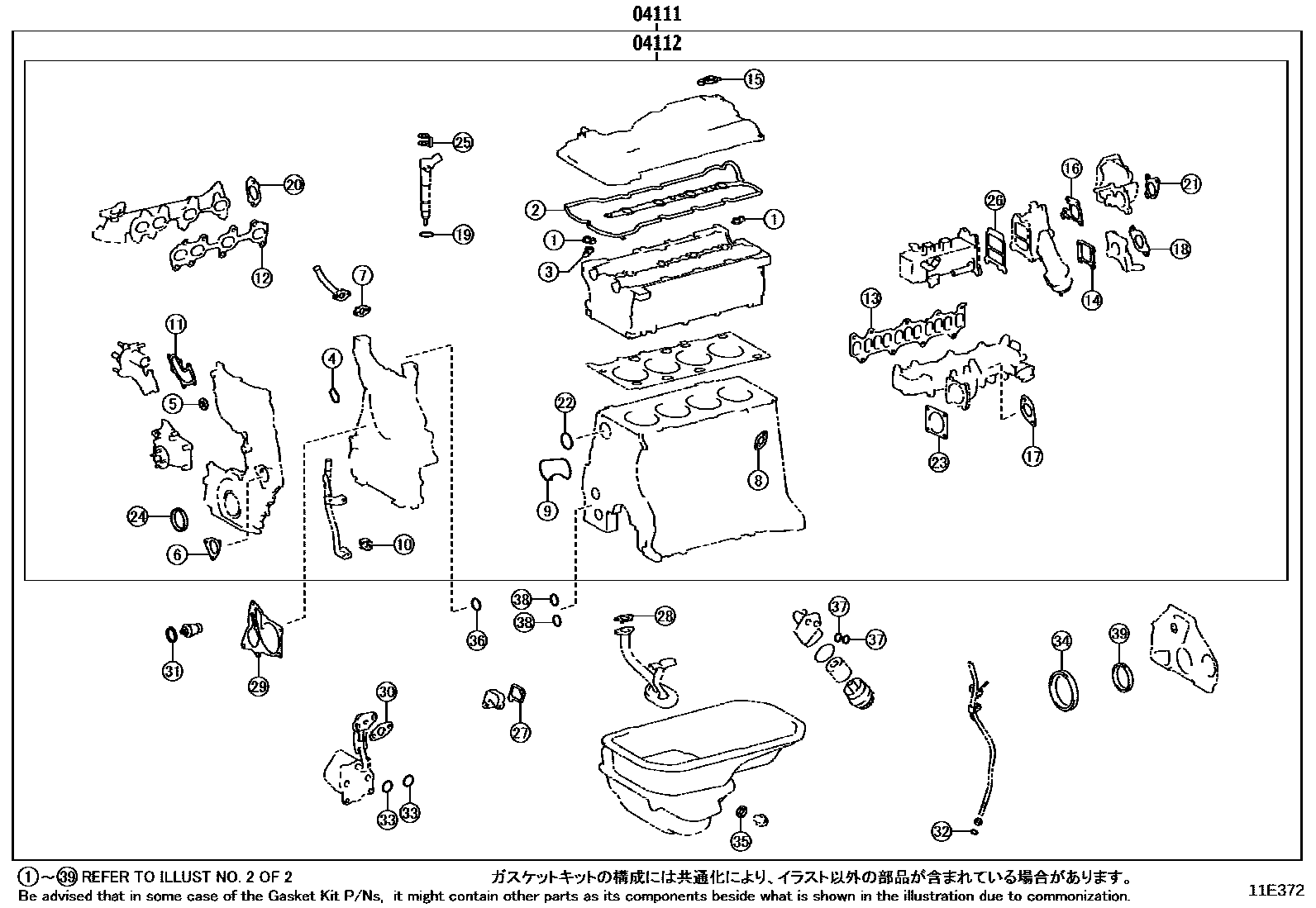

Engine Overhaul Gasket Kit — 11E372 (201505 – 999999)

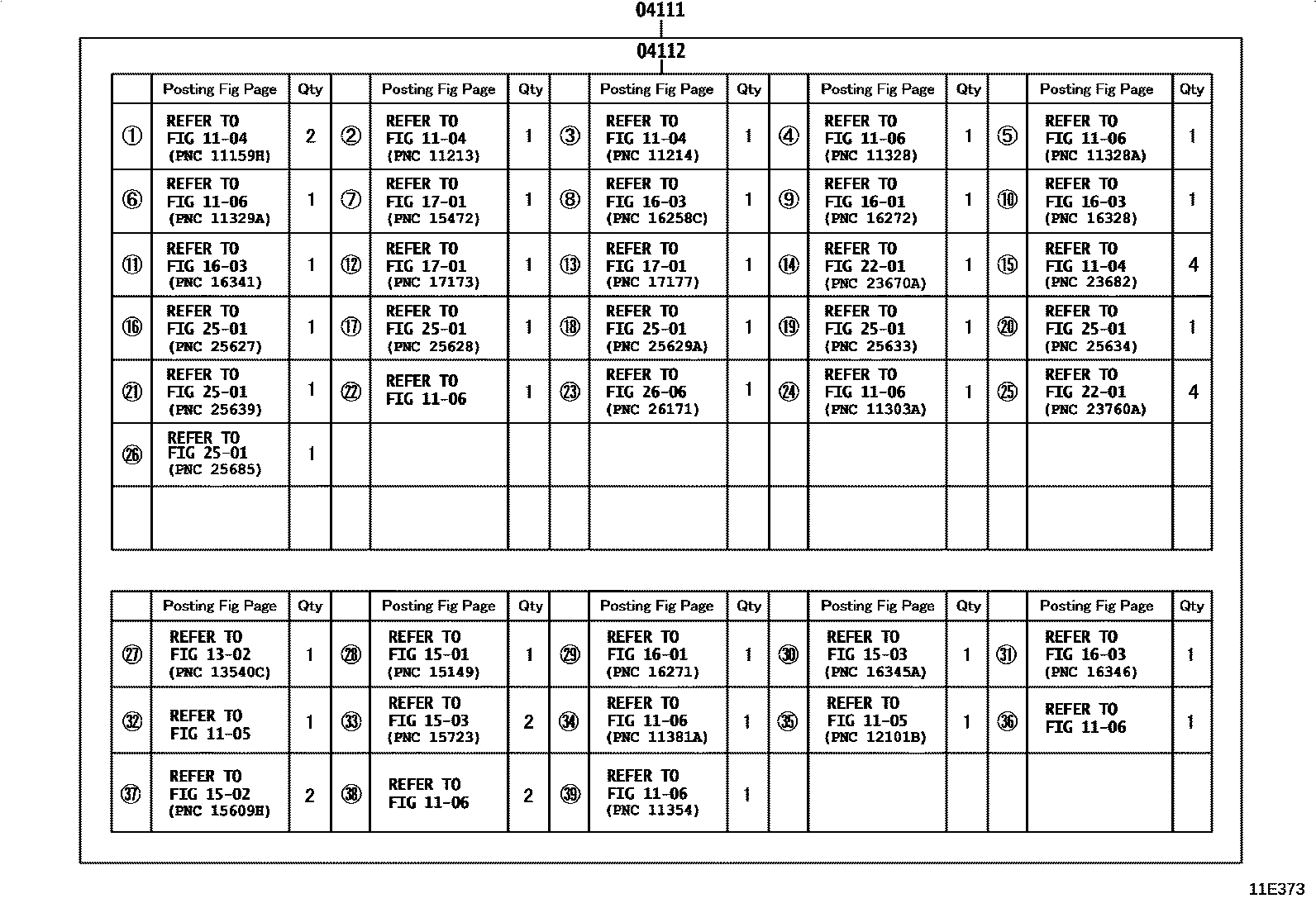

Engine Overhaul Gasket Kit — 11E373 (201505 – 999999)

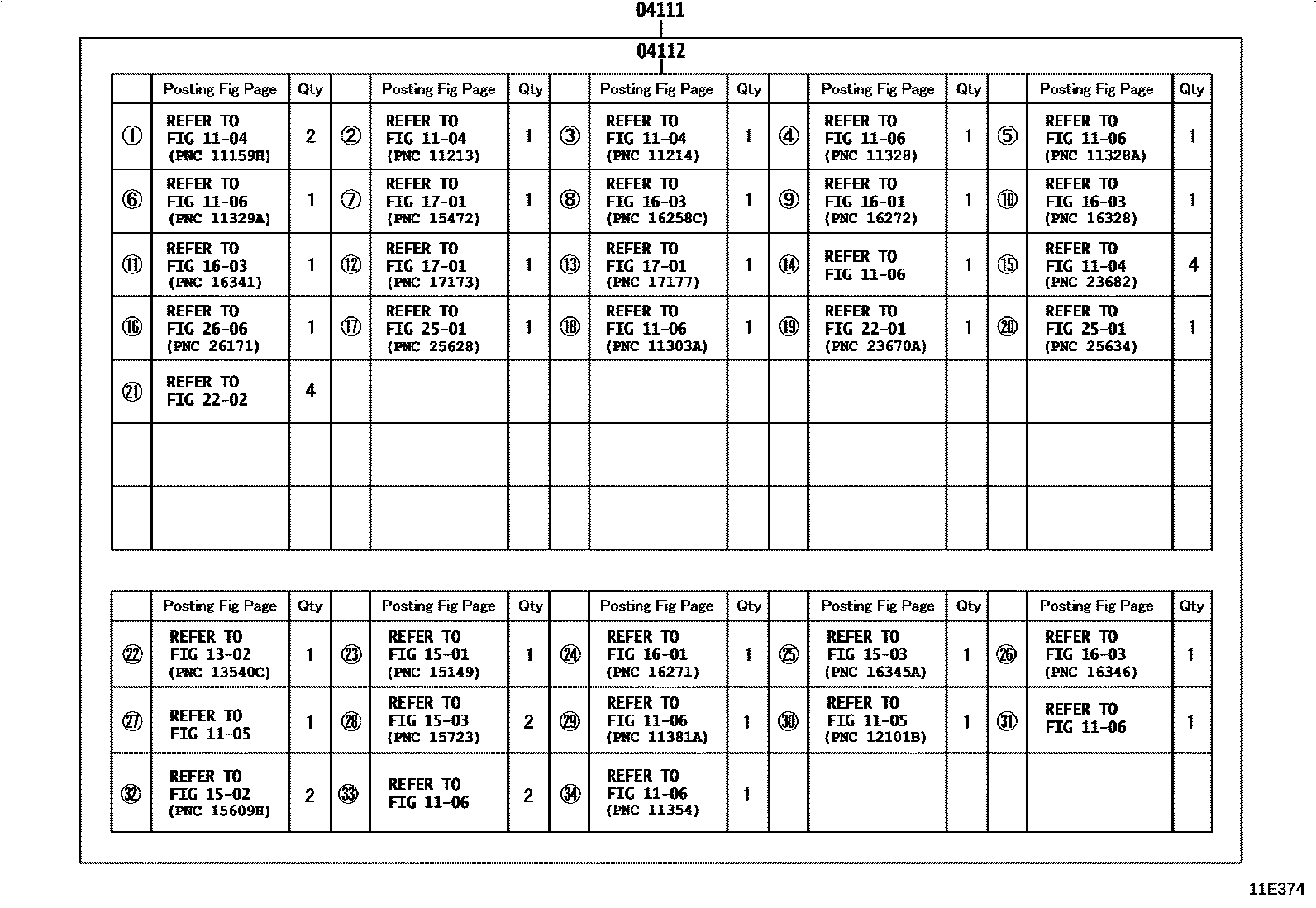

Engine Overhaul Gasket Kit — 11E374 (201505 – 999999)

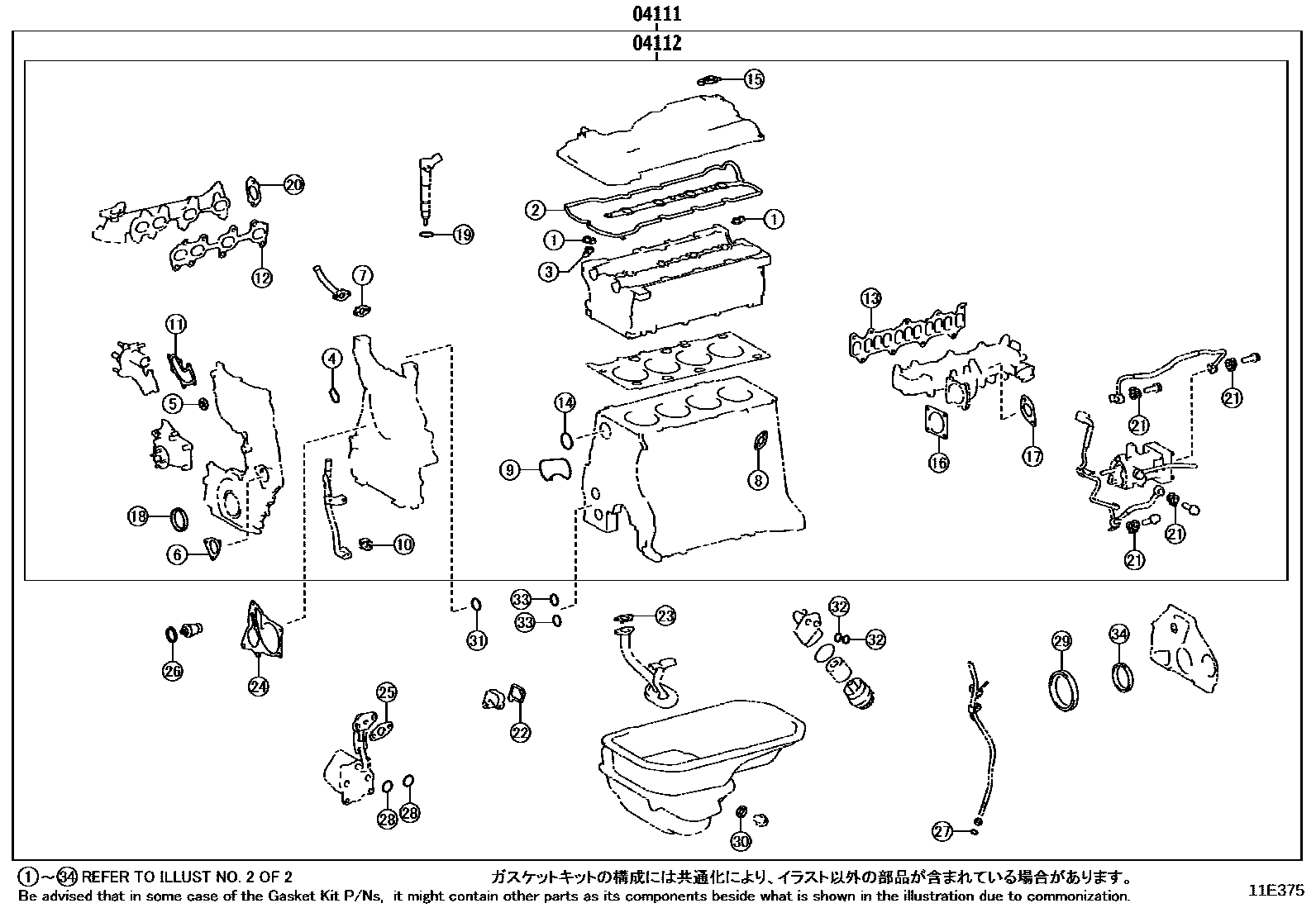

Engine Overhaul Gasket Kit — 11E375 (201505 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-0C150 · 04111-0C151 · 04111-0C152 · 04111-0C160 · 04111-0C161 · 04111-0C162 · 04111-0C170 · 04111-0C171 · 04111-0C172 · 04111-0C180 · 04111-0C181 · 04111-0C182 · 04111-0C290 · 04111-0C300 · 04111-0C310 · 04111-0E010 · 04111-0E020 · 04111-0E030 · 04111-0E040 · 04111-0E070 · 04111-0L083 · 04111-0L084 · 04111-0L093 · 04111-0L094 · 04111-0L104 · 04111-0L193 · 04111-31344 · 04111-54600 |
| 04112 | Engine valve grinding pad assembly | 04112-0C120 · 04112-0C130 · 04112-0C140 · 04112-0C150 · 04112-0E010 · 04112-0E020 · 04112-0E030 · 04112-0E040 · 04112-0E070 · 04112-0L081 · 04112-0L082 · 04112-0L091 · 04112-0L092 · 04112-0L102 · 04112-0L191 · 04112-31125 · 04112-54510 |
