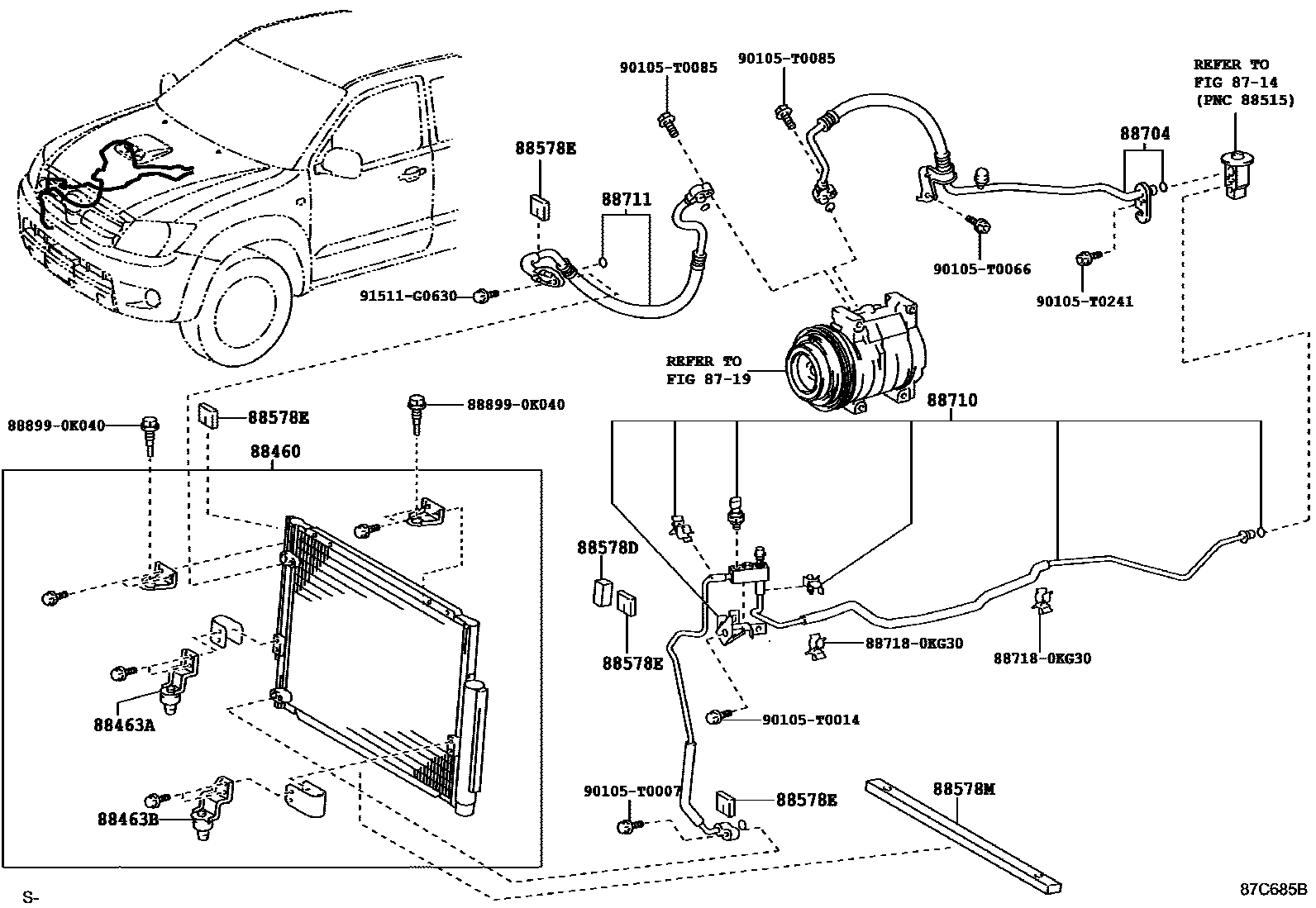

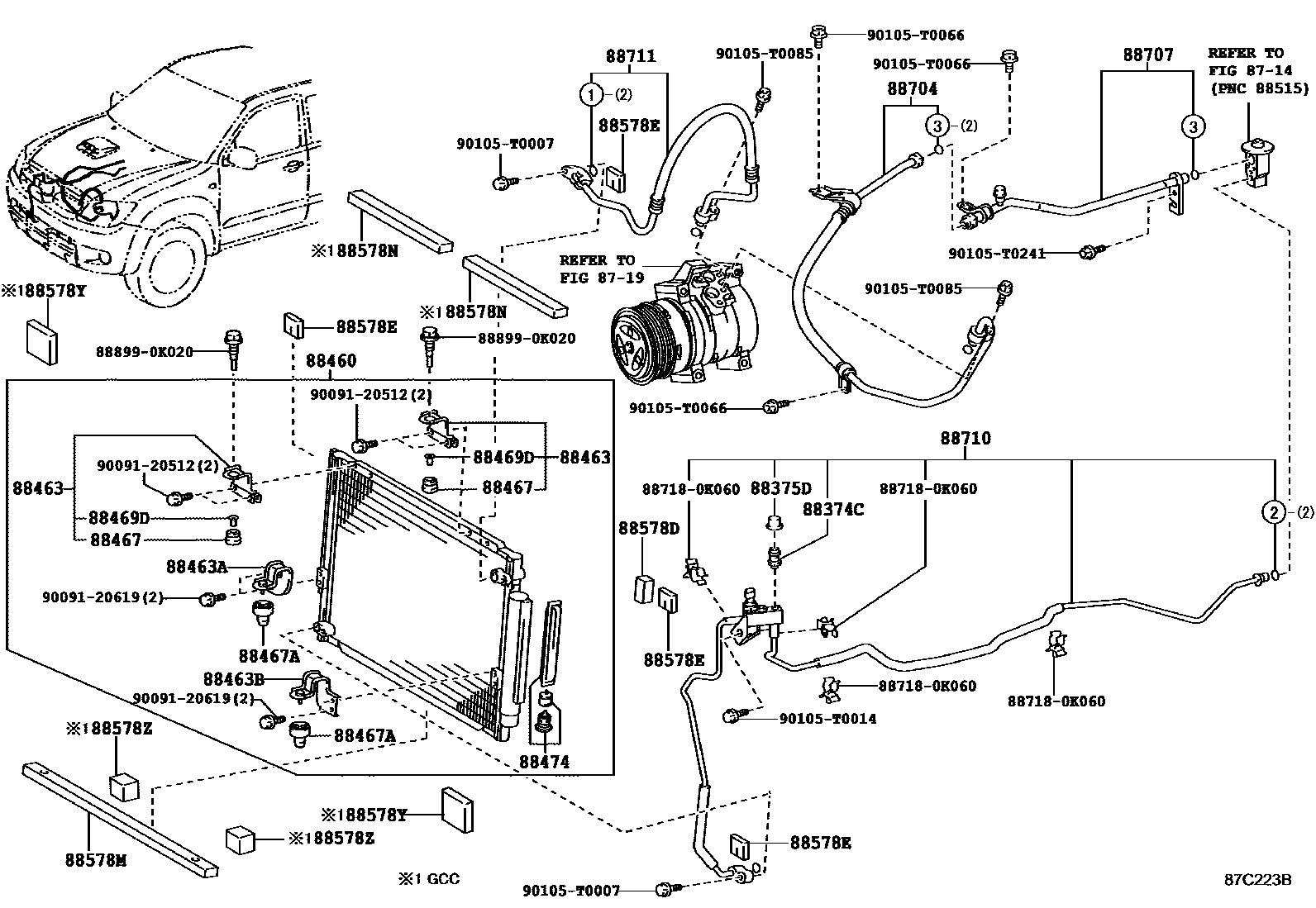

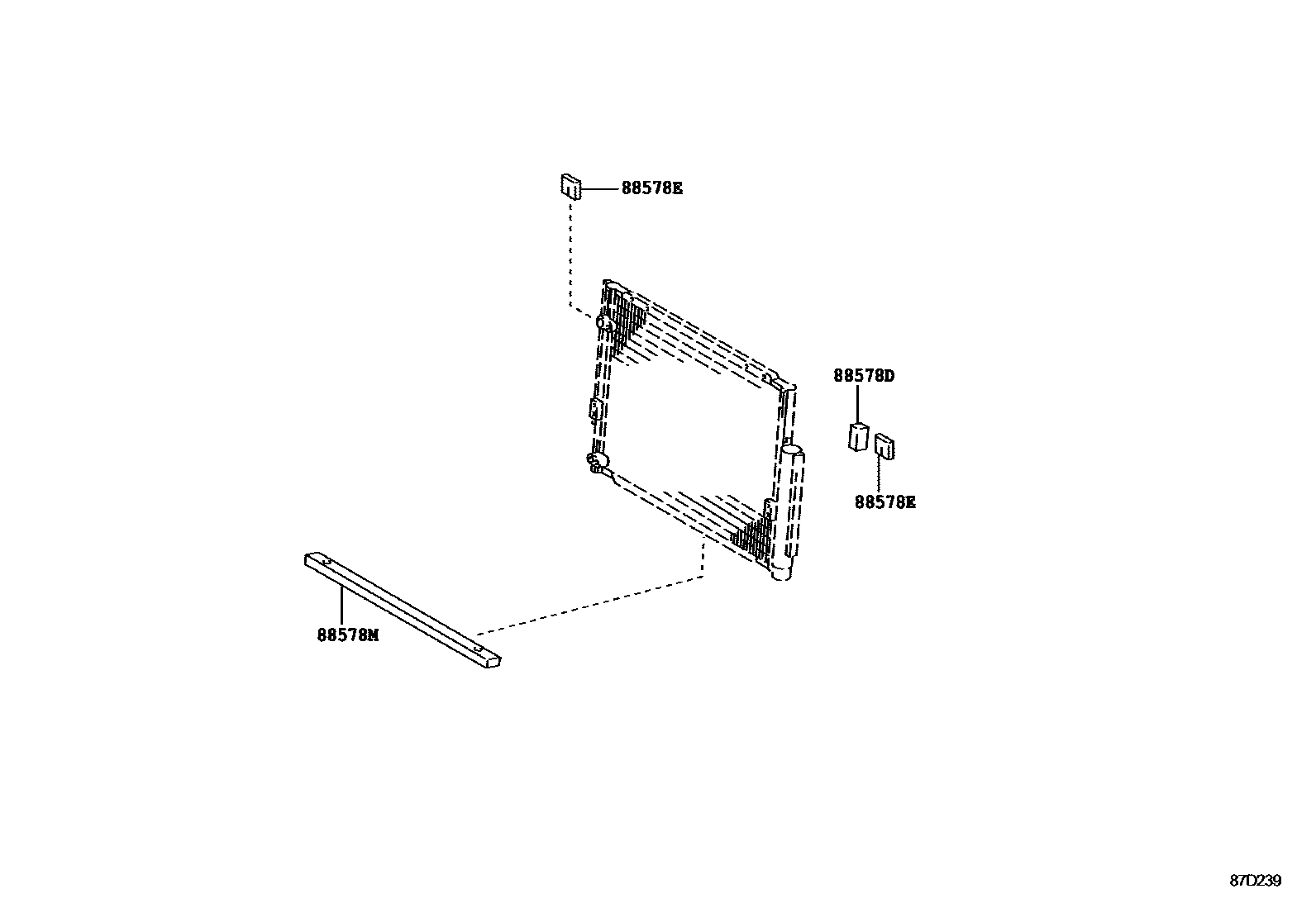

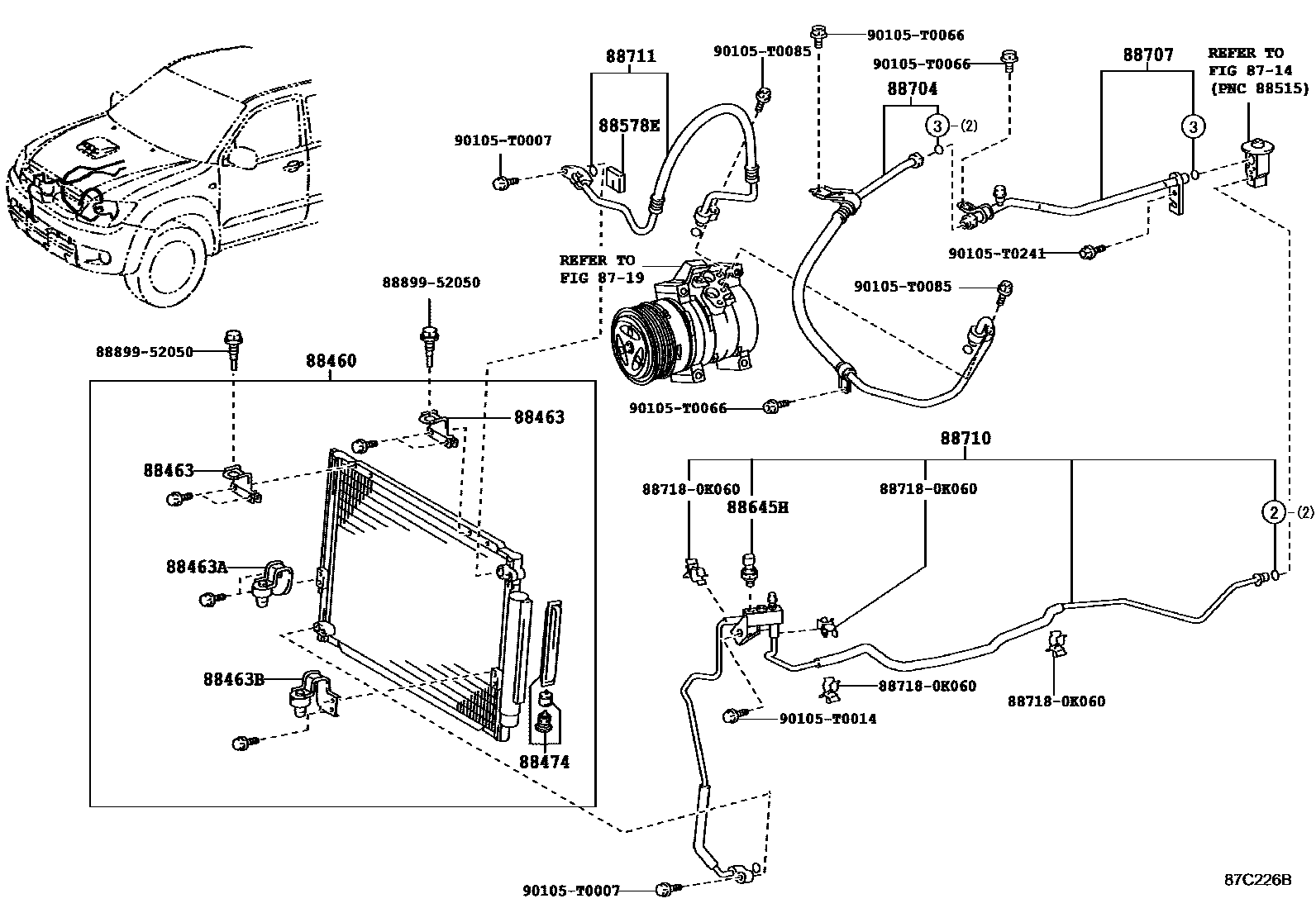

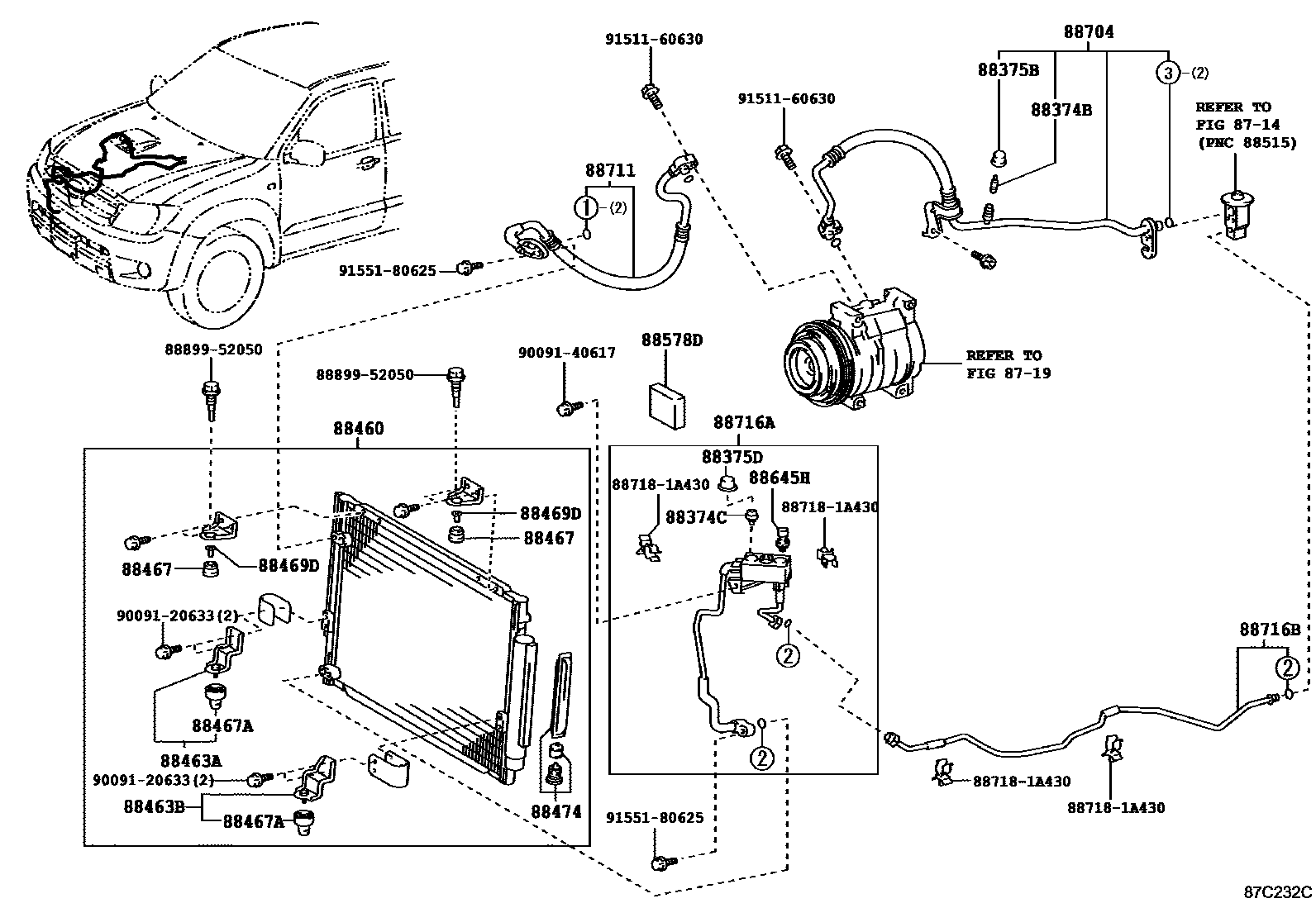

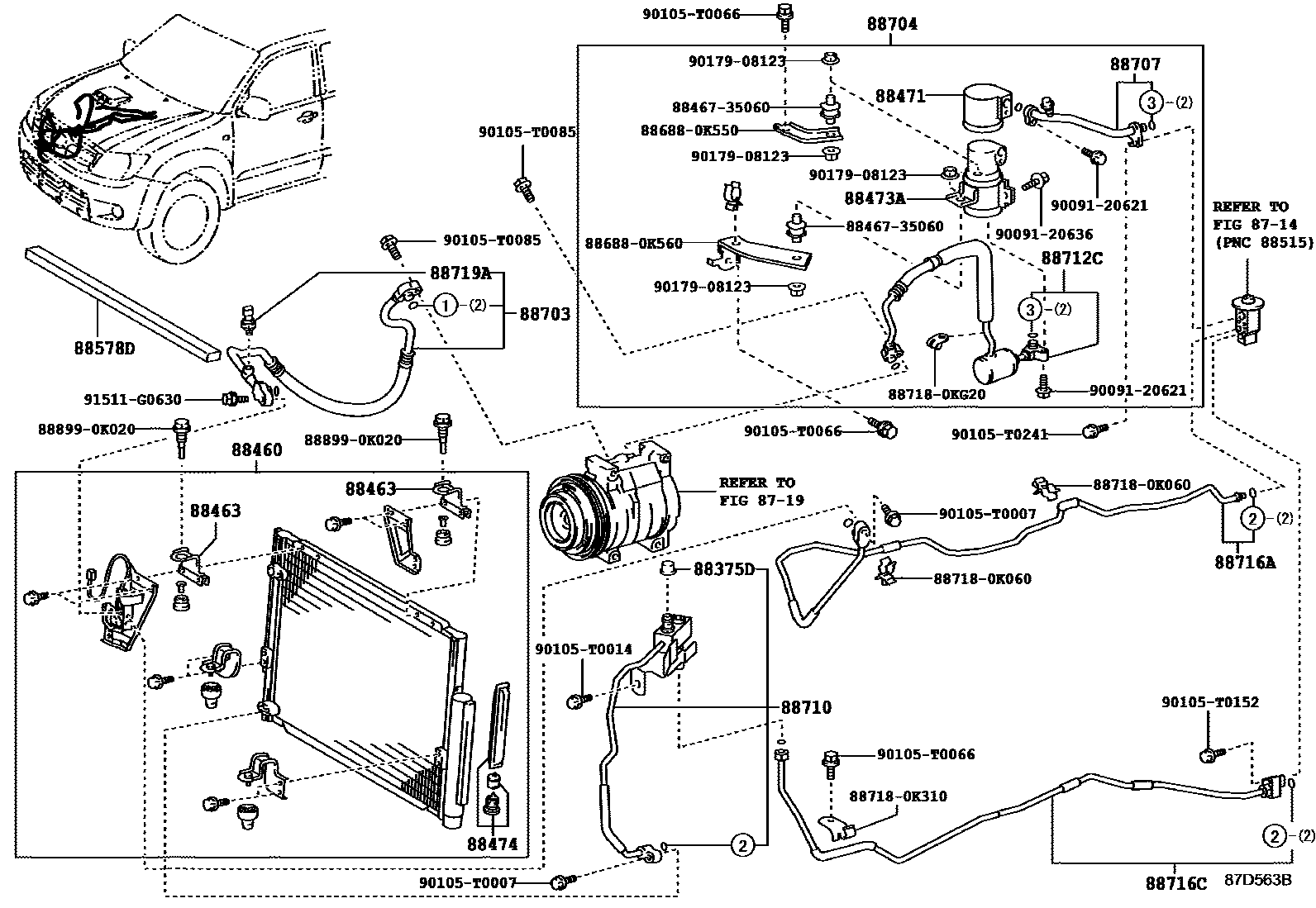

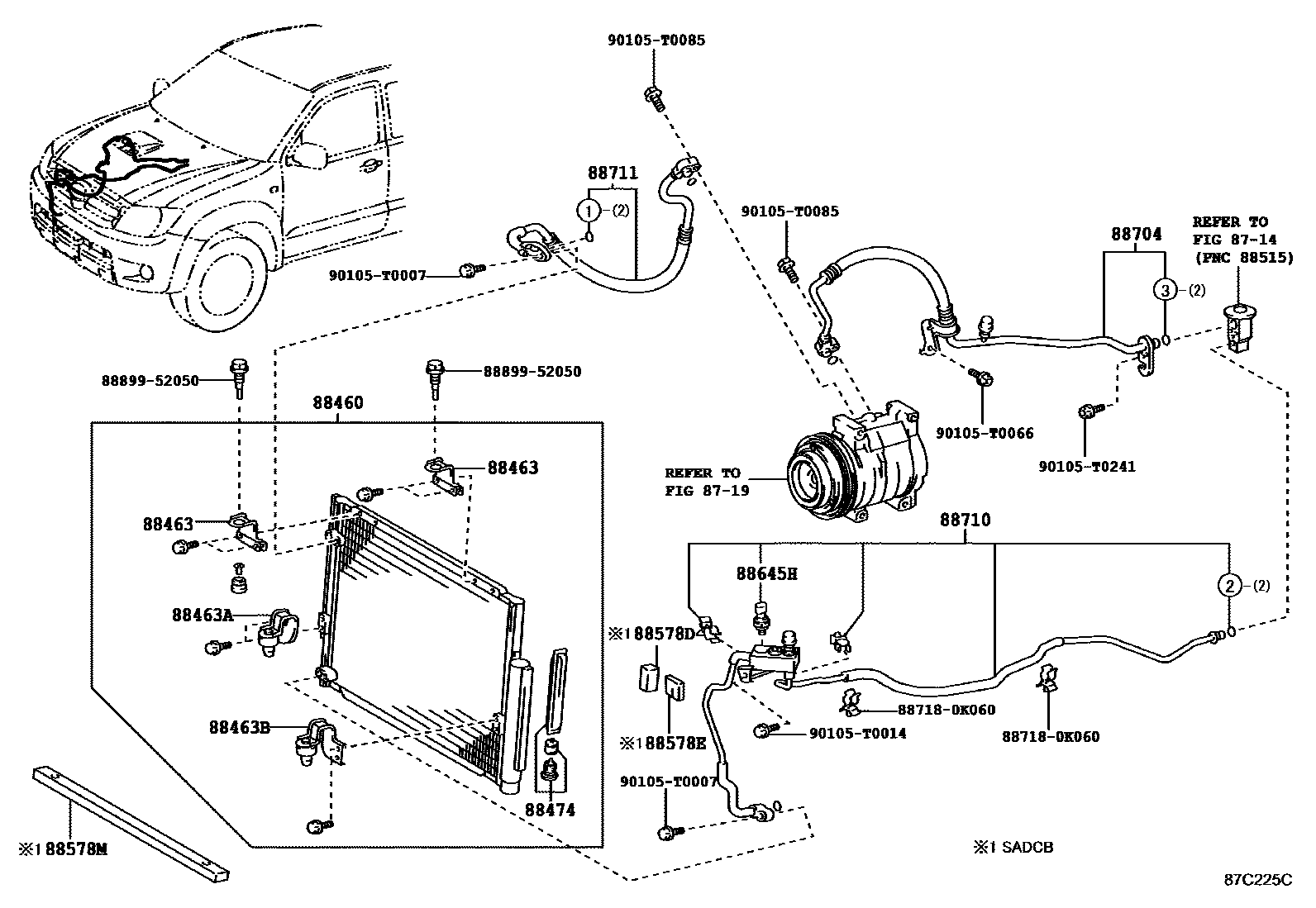

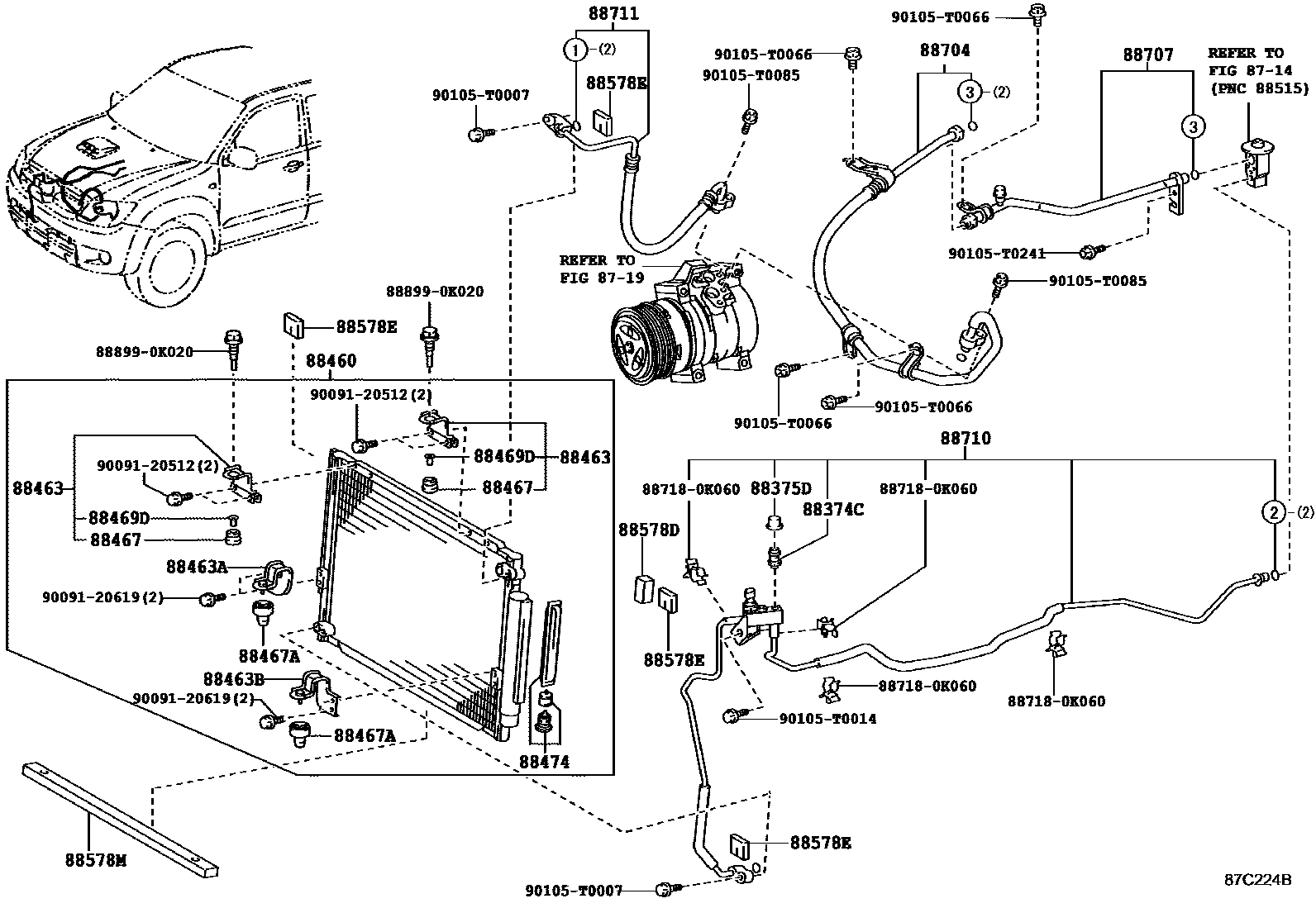

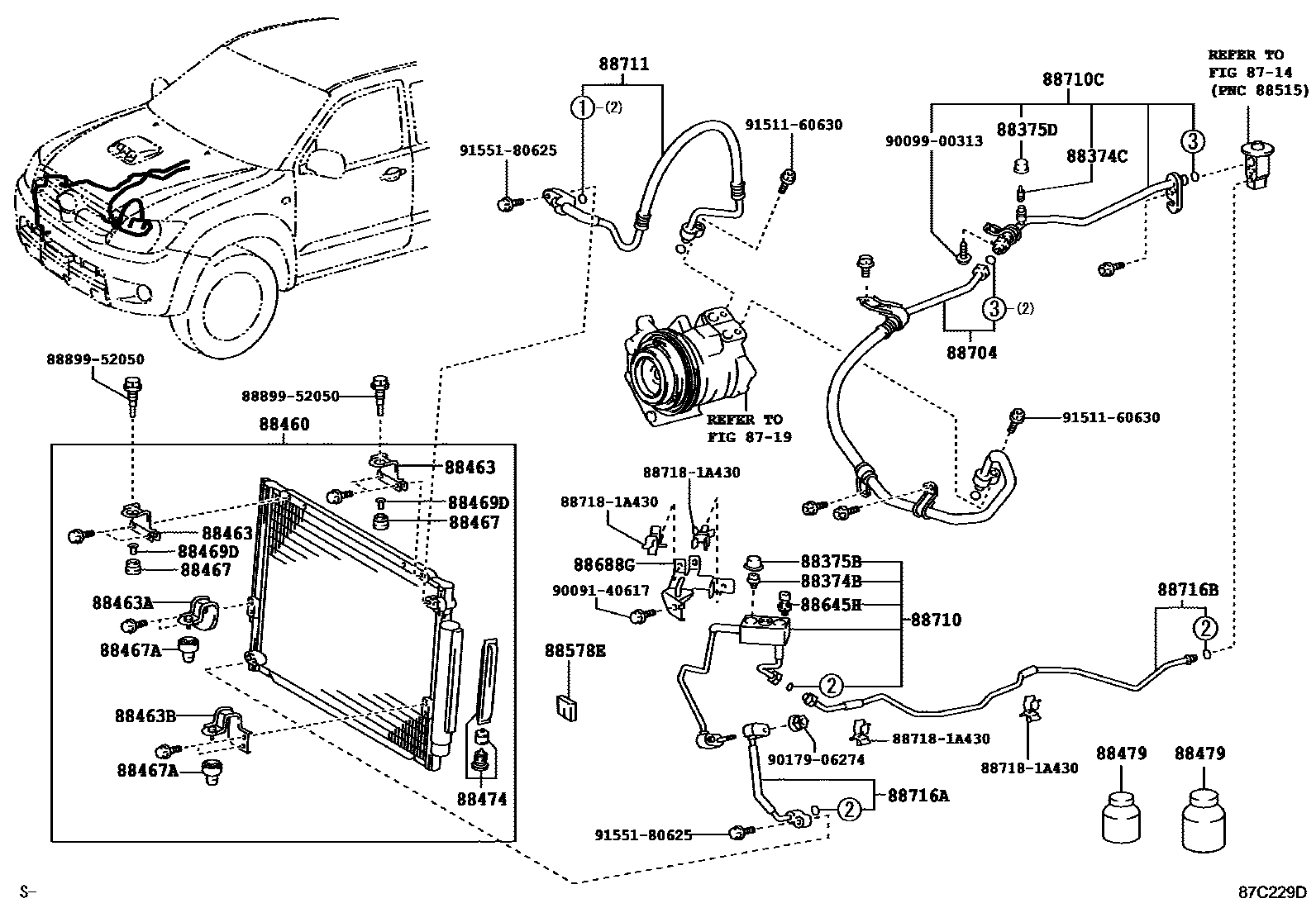

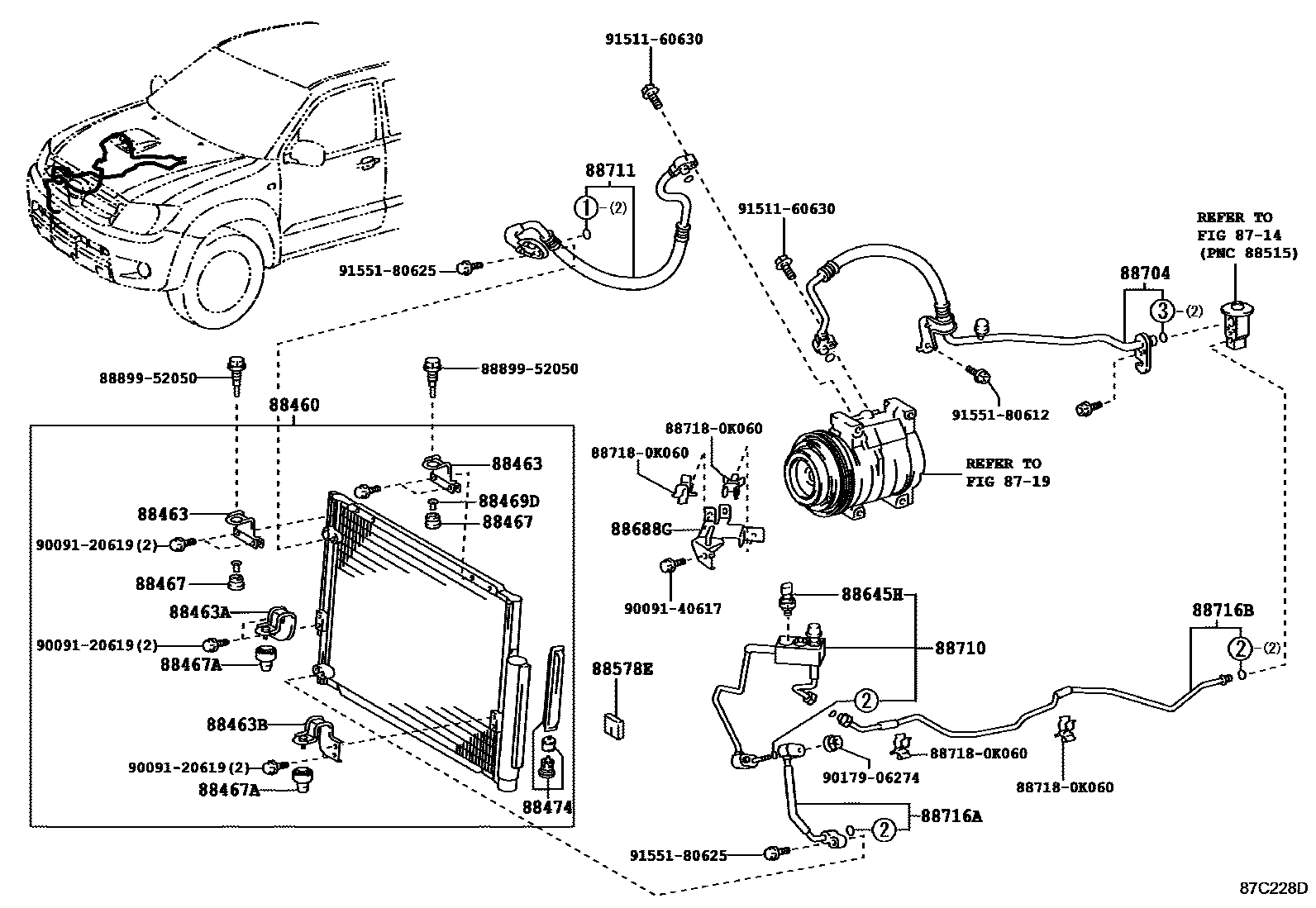

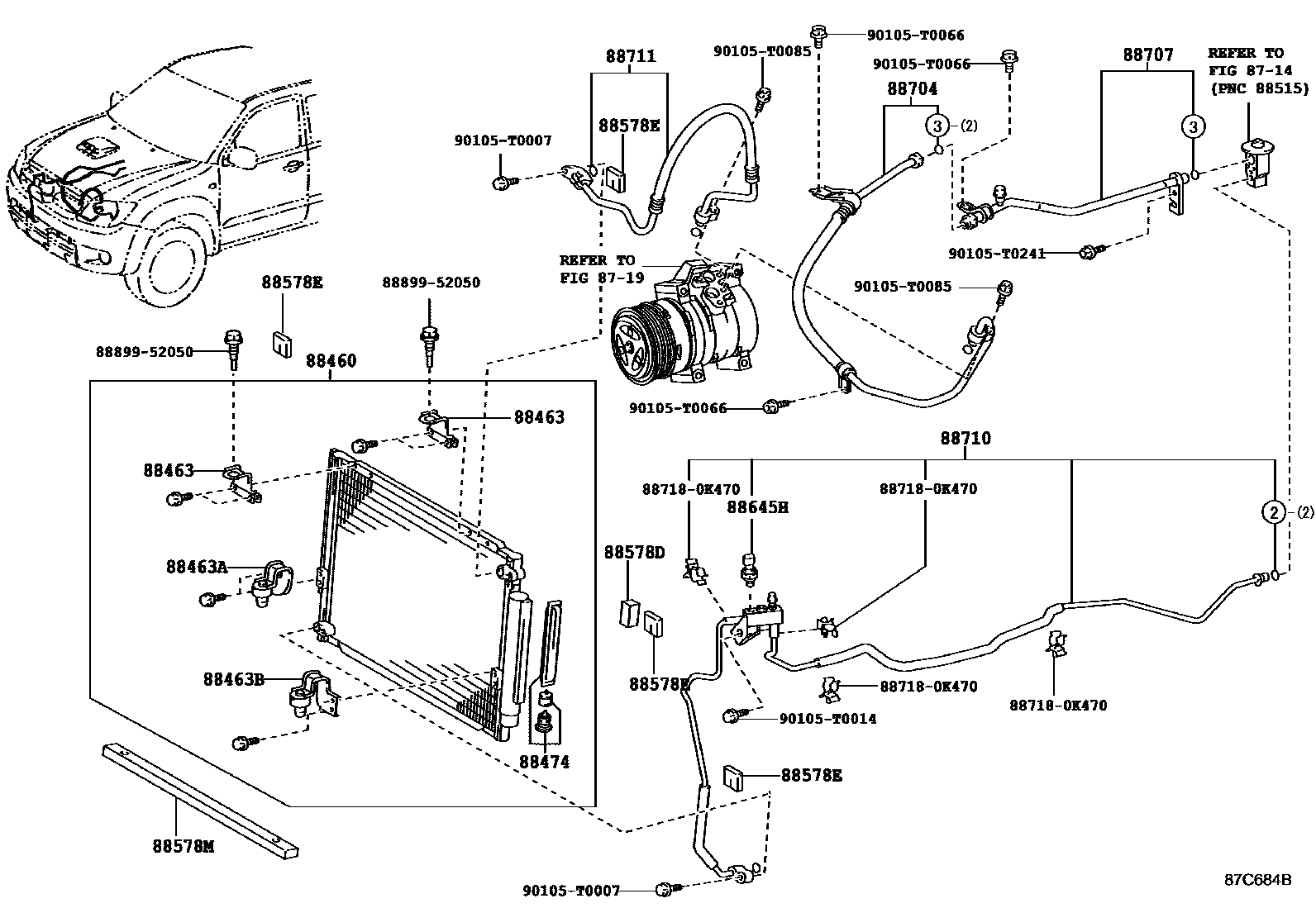

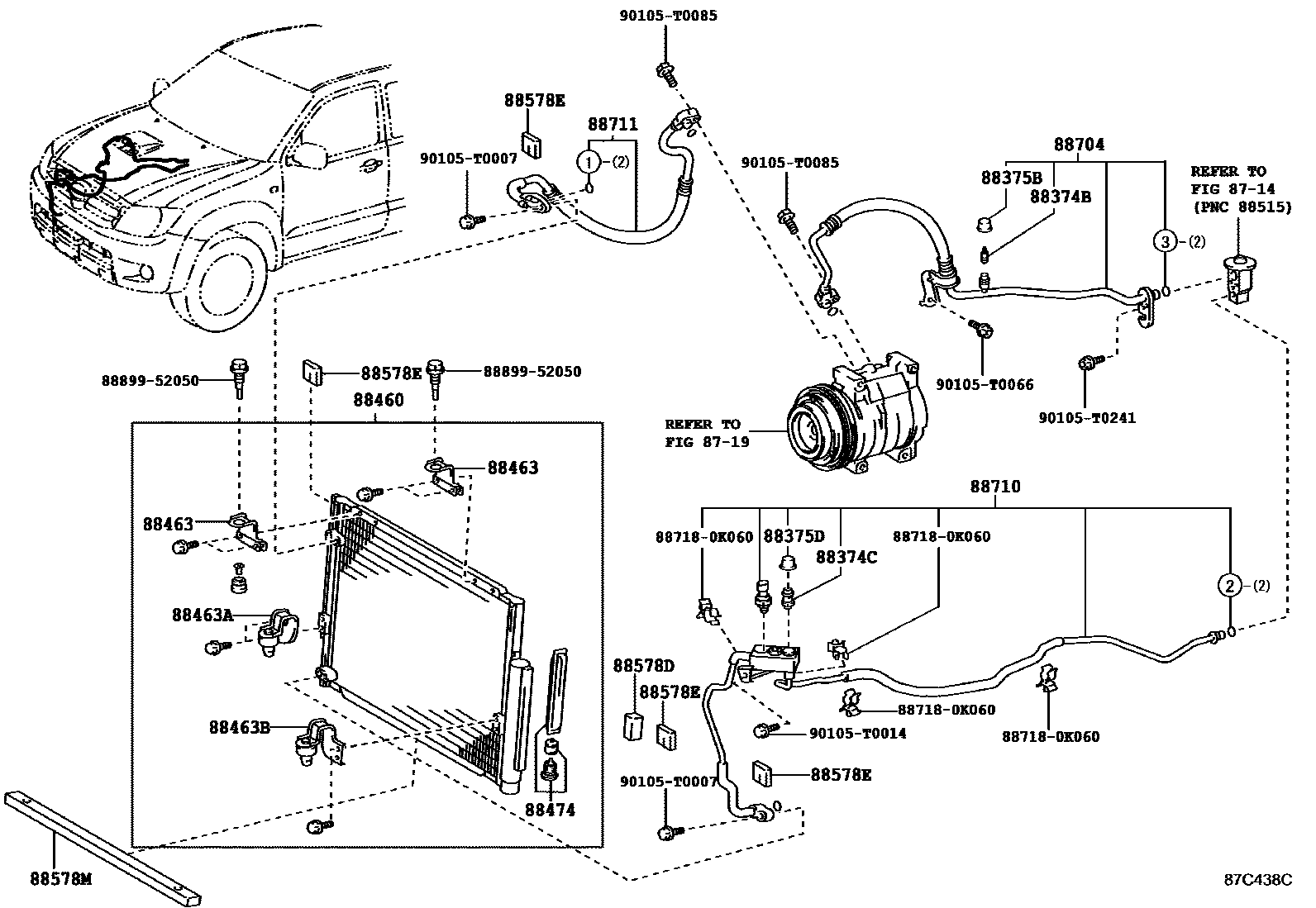

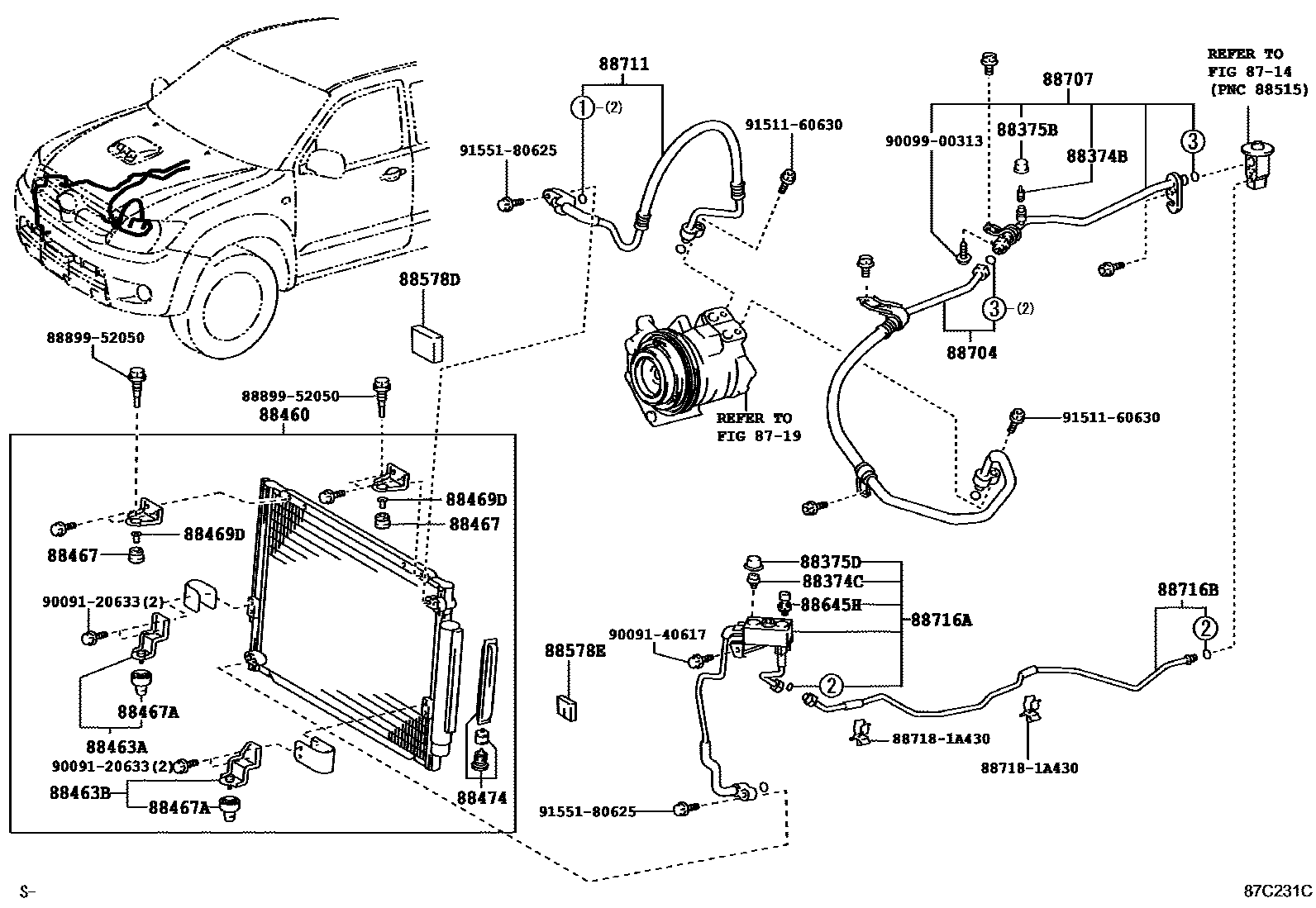

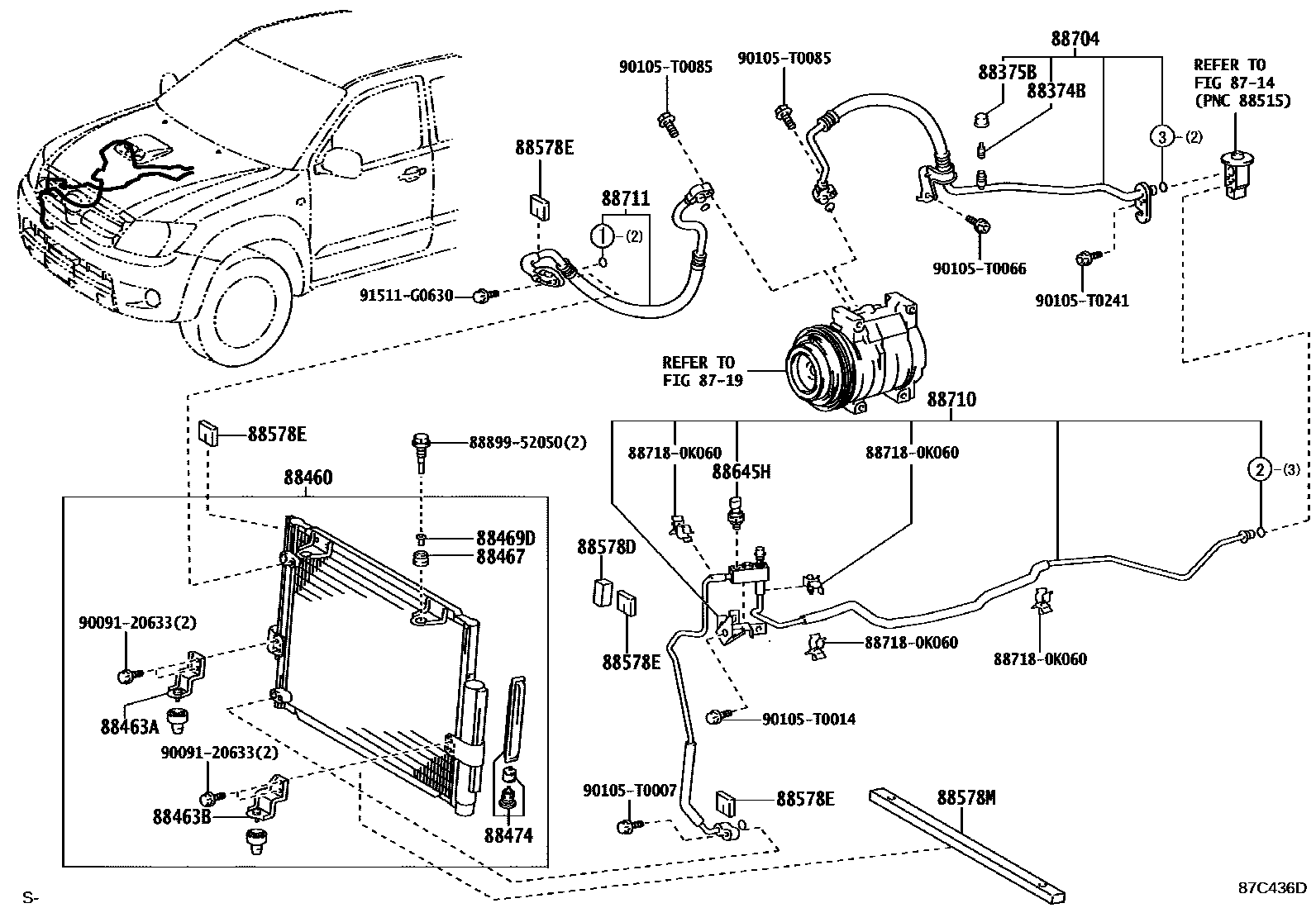

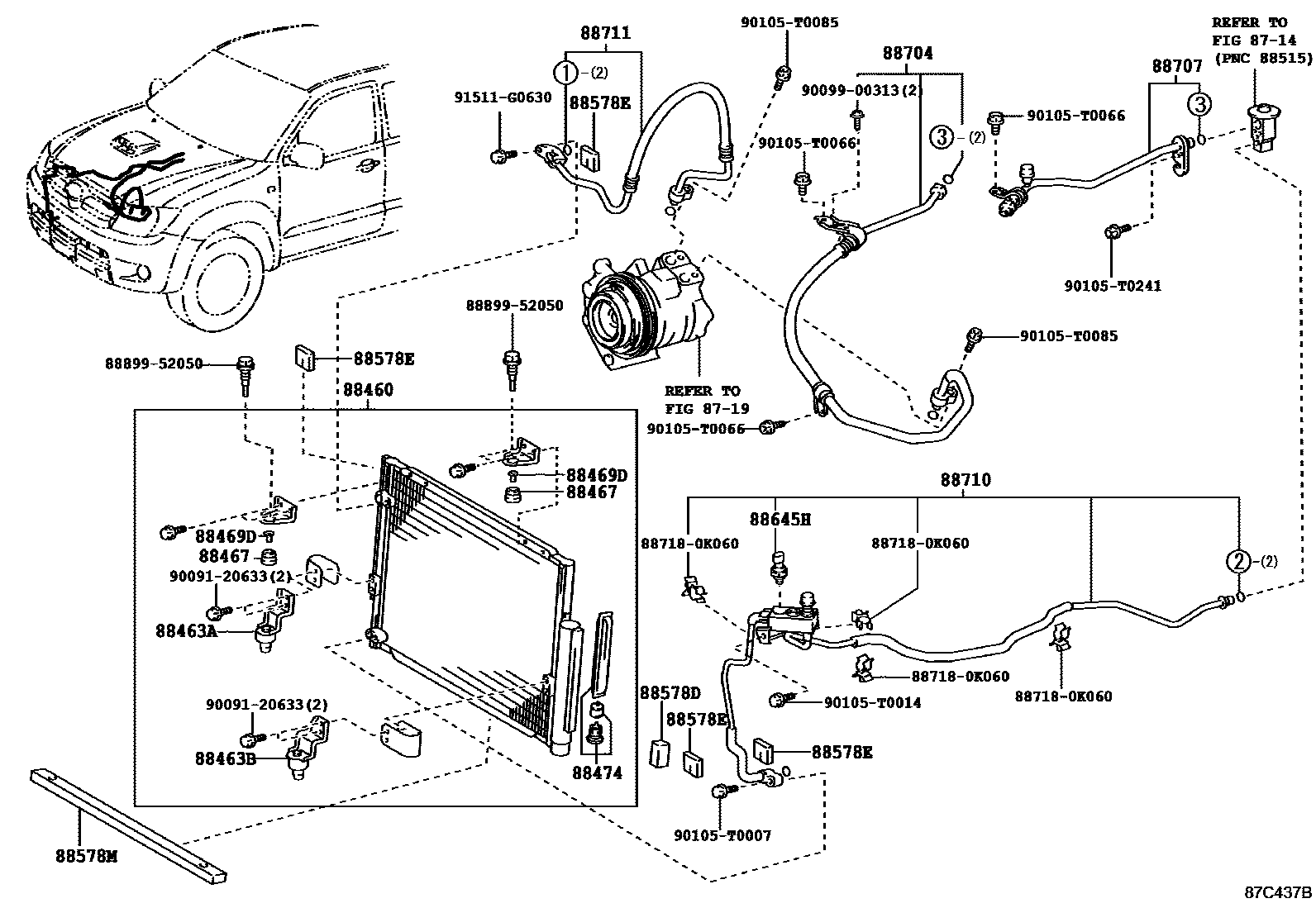

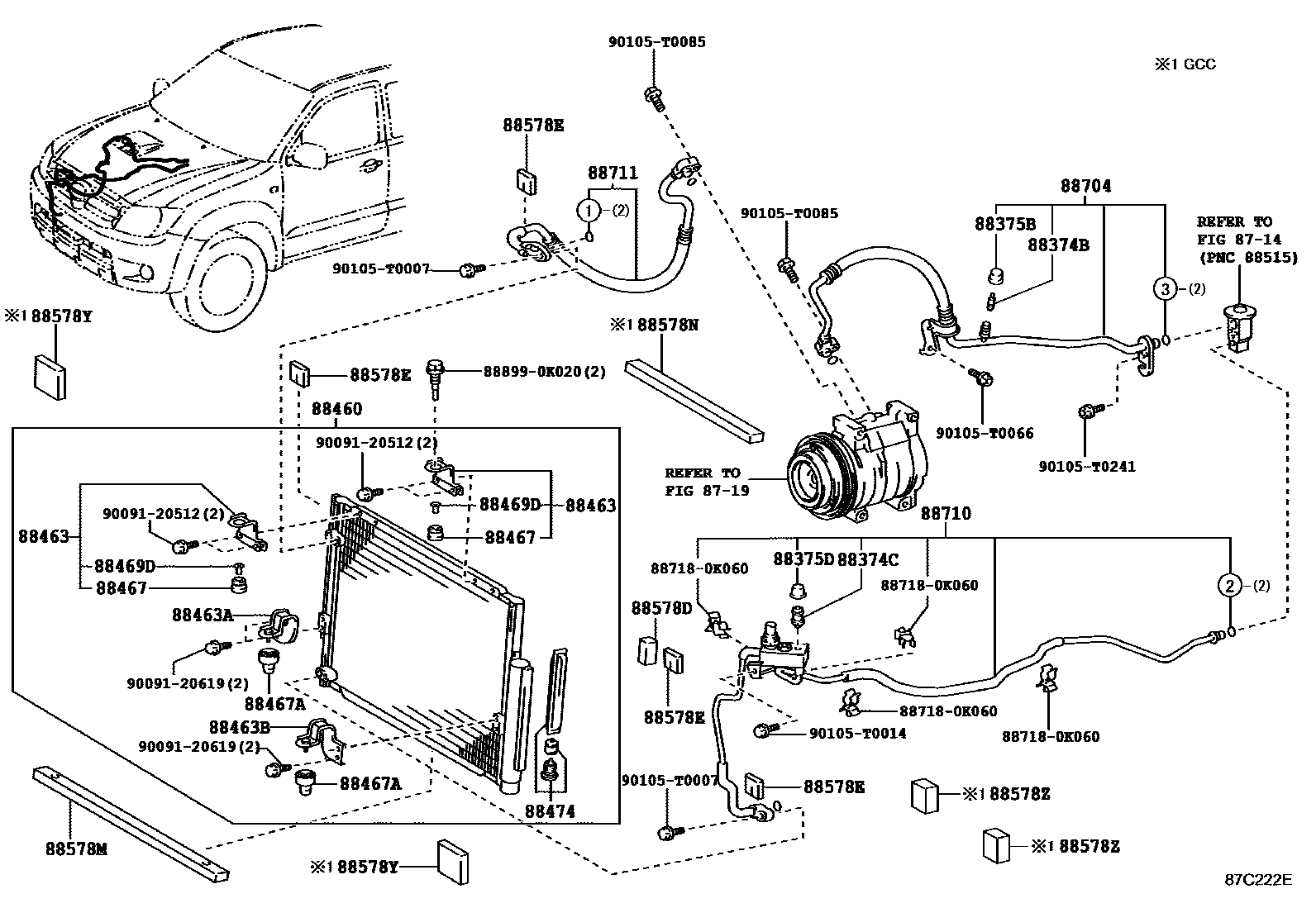

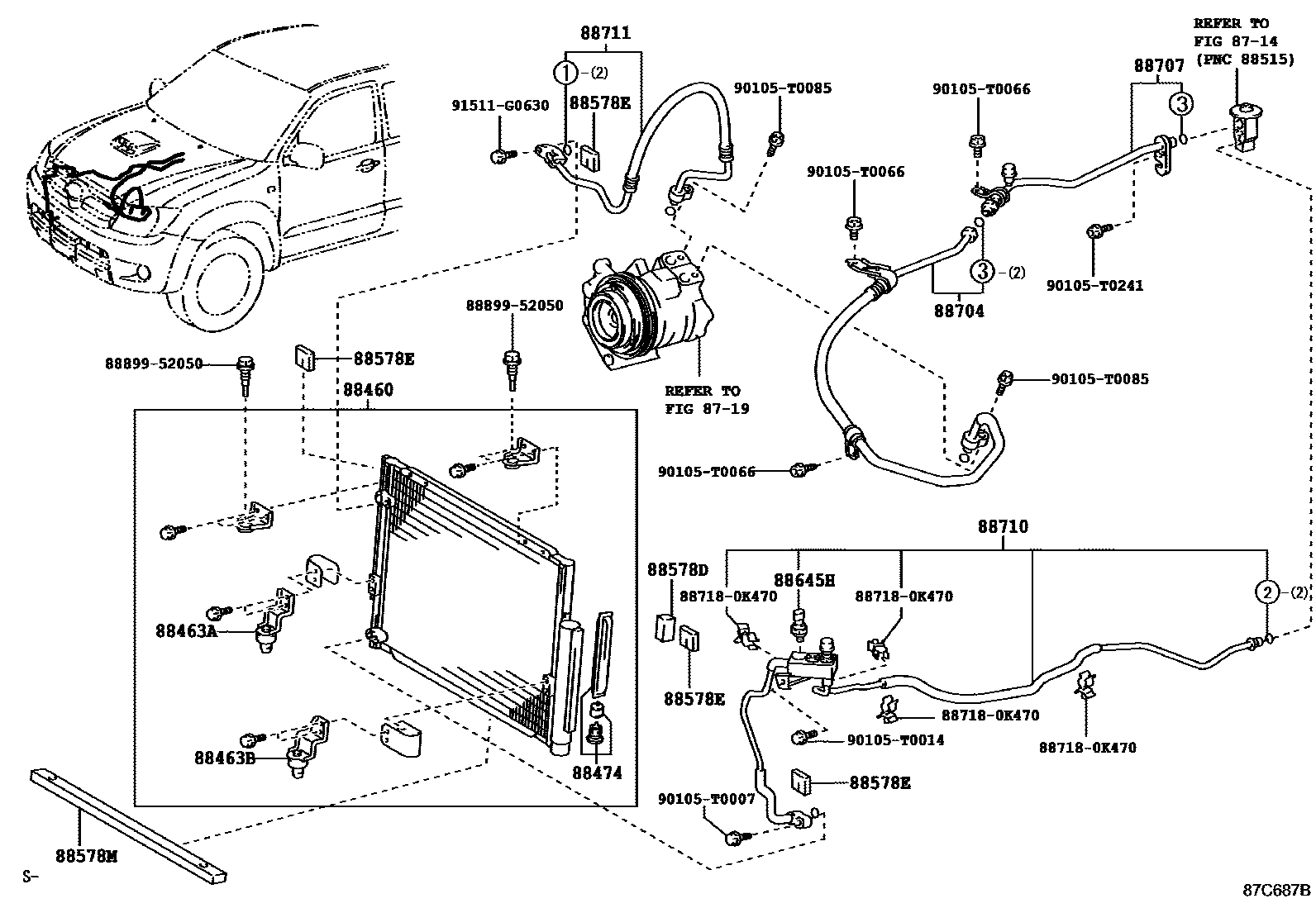

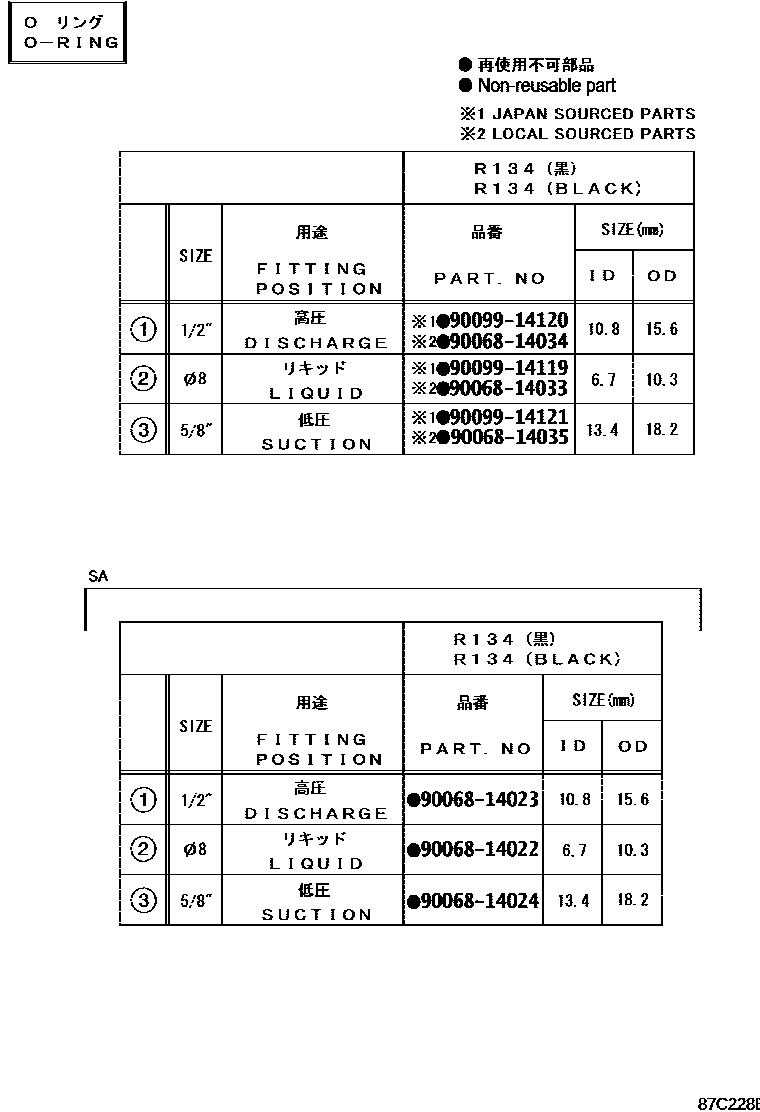

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 18 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-02010 · 88374-30010 |
| 88374C | Service valve No. 2 | 88374-02010 · 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02130 · 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02120 · 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-0K010 · 88460-0K020 · 88460-0K050 · 88460-0K080 · 88460-0K090 · 88460-0K130 · 88460-0K140 · 88460-0K230 · 88460-0K270 · 88460-0K760 · 88460-71050 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-0K020 · 88463-0K060 · 88463-0K190 |
| 88463A | No. 2 air conditioner condenser bracket | 88463-0K070 · 88463-0K090 · 88463-0K200 · 88463-0K250 · 88463-0K460 · 88463-0K610 |
| 88463B | No. 3 air conditioner condenser bracket | 88463-0K100 · 88463-0K110 · 88463-0K210 · 88463-0K260 · 88463-0K470 · 88463-0K620 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02090 · 88467-12180 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-0K130 · 88467-0K150 · 88467-28040 |
| 88469D | No. 1 condenser bracket collar | 88469-02030 · 88469-52010 |
| 88471 | Air conditioning fluid storage tank | 88470-0K010 |
| 88473A | Reservoir tank fixings | 88473-0K010 |
| 88474 | cooler dryer | 88474-02220 · 88474-08010 · 88474-17010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 · 90986-02008 |
| 88578D | Cooler tube seal No. 1 | 88578-0K110 · 88578-0K220 · 88578-0K230 · 88578-0K270 · 88578-0K300 · 88578-0K380 · 88578-0K870 · 88578-71060 |
| 88578E | No. 2 cooler tube seal | 88578-0K100 · 88578-0K220 · 88578-0K260 · 88578-0K290 · 88578-0K370 · 88578-0K860 · 88578-71030 |
| 88578M | No. 3 cooling pipe seal | 88578-0K081 · 88578-0K091 · 88578-0K201 · 88578-0K211 · 88578-0K251 · 88578-0K281 · 88578-0K361 · 88578-0K451 · 88578-0K851 · 88578-71070 |
| 88578N | No. 4 cooling pipe seal | 88578-0K670 · 88578-0K790 |
| 88578Y | No. 5 cooling pipe seal | 88578-0K690 |
| 88578Z | Cooler seal No. 1 | 88578-0K700 |
| 88645H | No. 1 pressure switch | 88645-34010 |
| 88688G | Cooler refrigerant pipe bracket | 88688-0K010 · 88688-71040 |
| 88703 | Discharge hose sub-assembly | 88703-0K250 |
| 88704 | Oil suction hose sub-assembly | 88704-0K010 · 88704-0K061 · 88704-0K100 · 88704-0K110 · 88704-0K130 · 88704-0K140 · 88704-0K190 · 88704-0K200 · 88704-0K231 · 88704-0K242 · 88704-0K300 · 88704-0K320 · 88704-0K360 · 88704-0K392 · 88704-0K411 · 88704-0K461 · 88704-0K500 · 88704-0K510 · 88704-0K651 · 88704-0K673 · 88704-0KA80 · 88704-0KB60 · 88704-0KC80 · 88704-71050 |
| 88707 | Suction pipe sub-assembly | 88707-0K010 · 88707-0K050 · 88707-0K060 · 88707-0K160 · 88707-0K270 · 88717-0KE01 |
| 88710 | Air conditioning pipe assembly | 88710-0K010 · 88710-0K020 · 88710-0K040 · 88710-0K120 · 88710-0K460 · 88710-0K500 · 88710-0K710 · 88710-0KE00 · 88710-71060 |
| 88710C | Air conditioning pipe assembly | 88710-71050 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0K012 · 88711-0K041 · 88711-0K062 · 88711-0K071 · 88711-0K092 · 88711-0K093 · 88711-0K101 · 88711-0K161 · 88711-0K182 · 88711-0K191 · 88711-0K232 · 88711-0K301 · 88711-0K331 · 88711-0K401 · 88711-0K601 · 88711-0K680 · 88711-71060 |
| 88712C | Oil suction hose | 88712-0KA00 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0K151 · 88716-0KB60 · 88716-0KD50 · 88716-71030 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-0KD60 · 88716-71010 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-0KD22 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
