Toyota HILUX 后视镜 — Figure 8701

Toyota HILUX EPC diagram 8701, 后视镜, with 2 images and 7 PNC and OE references.

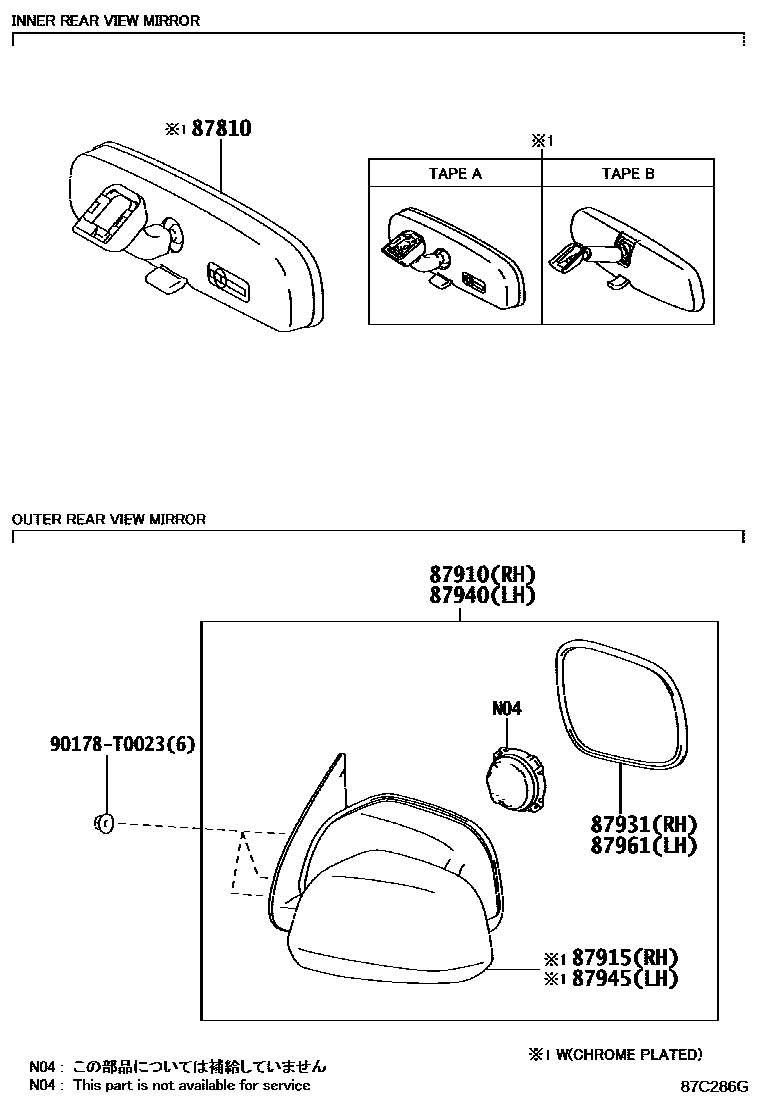

Toyota HILUX 后视镜 EPC diagram — 87C286G
后视镜 — 87C286G (201106 – 999999)

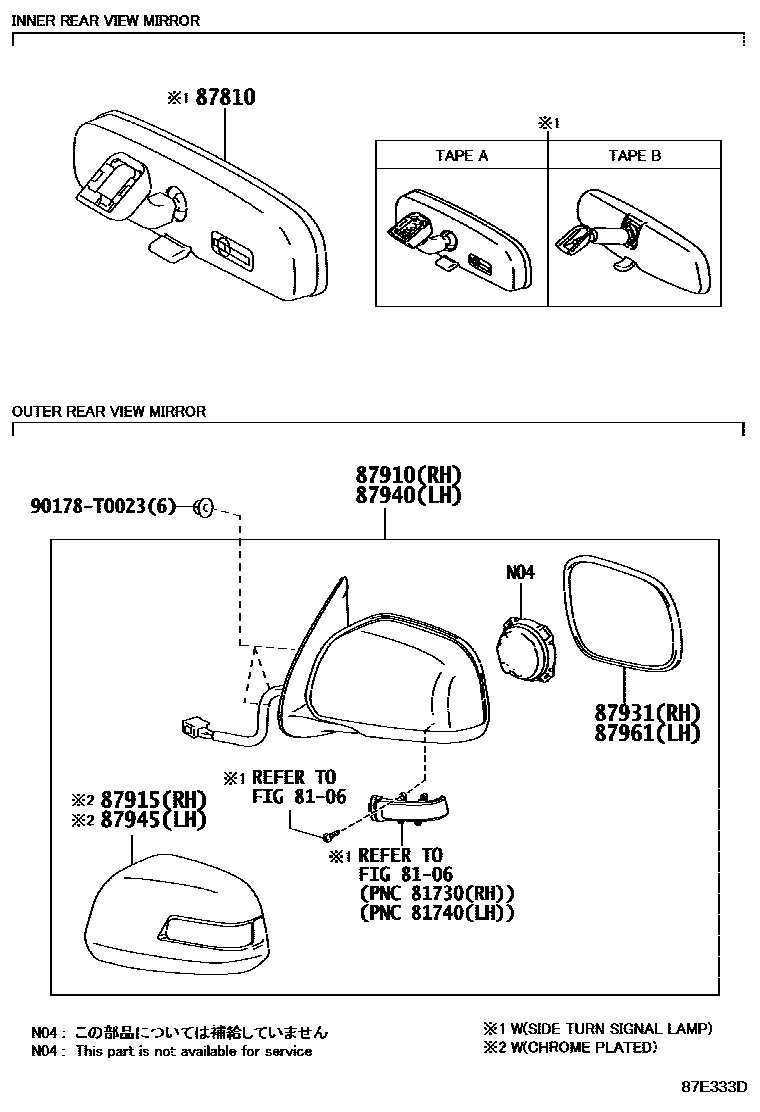

Toyota HILUX 后视镜 EPC diagram — 87E333D
后视镜 — 87E333D (201106 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06041 · 87810-AA011
87910Right exterior rearview mirror assembly87910-0K013 · 87910-0K051 · 87910-0K071 · 87910-0K130 · 87910-0K201 · 87910-0K280 · 87910-0K281 · 87910-0K371 · 87910-0K411 · 87910-0K860 · 87910-0K880 · 87910-0KA00 · 87910-0KA40 · 87910-0KA50 · 87910-0KA70 · 87910-0KB20 · 87910-0KJ60
87915Right exterior rearview mirror cover87915-0K120 · 87915-0K190 · 87915-0K200 · 87915-0K210
87931Right exterior rearview mirror87931-0K010 · 87931-0K070 · 87931-0K130 · 87931-0K160 · 87931-0K850 · 87931-0K860 · 87931-0KA00
87940Left exterior rearview mirror assembly87940-0K013 · 87940-0K031 · 87940-0K051 · 87940-0K110 · 87940-0K181 · 87940-0K260 · 87940-0K261 · 87940-0K351 · 87940-0K391 · 87940-0K720 · 87940-0K740 · 87940-0K760 · 87940-0K800 · 87940-0K810 · 87940-0K830 · 87940-0K880 · 87940-0KJ30
87945Left exterior rearview mirror cap87945-0K120 · 87945-0K190 · 87945-0K200 · 87945-0K210
87961Left exterior rearview mirror87961-0K010 · 87961-0K050 · 87961-0K110 · 87961-0K140 · 87961-0K710 · 87961-0K720 · 87961-0K760
