Toyota HILUX 扬声器 — Figure 8602

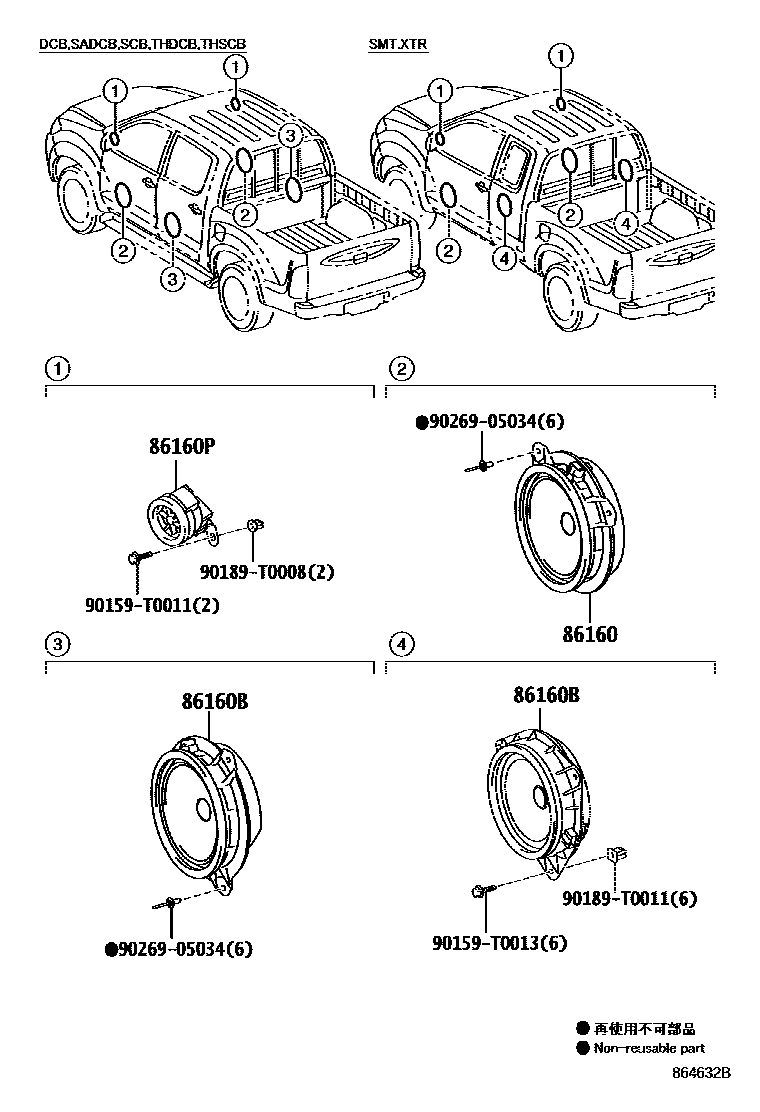

Toyota HILUX EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-0K220 · 86160-0K300 |
| 86160B | Rear speaker assembly | 86160-0K060 · 86160-0K220 · 86160-0K300 |
| 86160P | No. 2 front speaker assembly | 86150-0K010 · 86150-0K020 · 86150-0K050 · 86150-0K060 |
