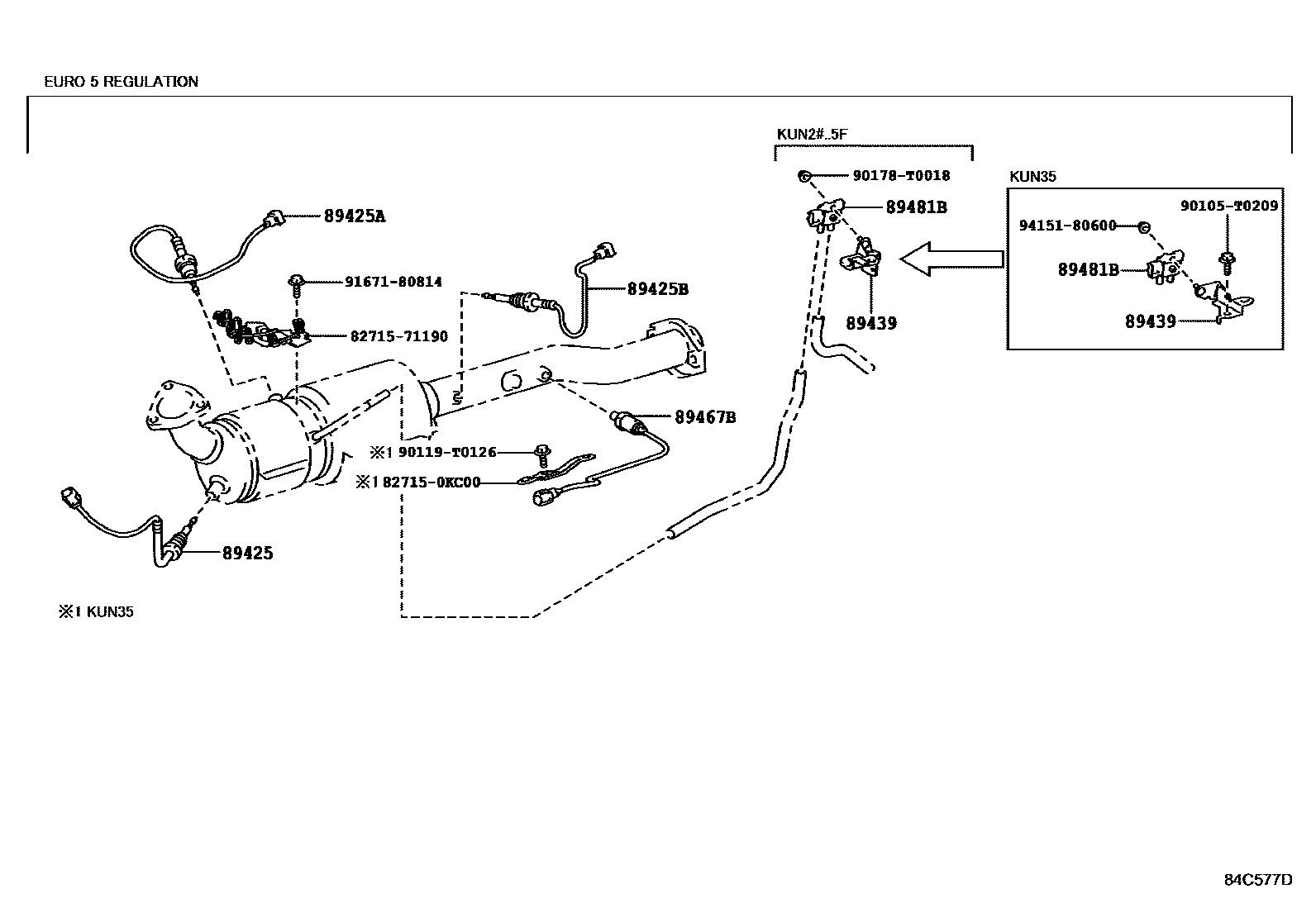

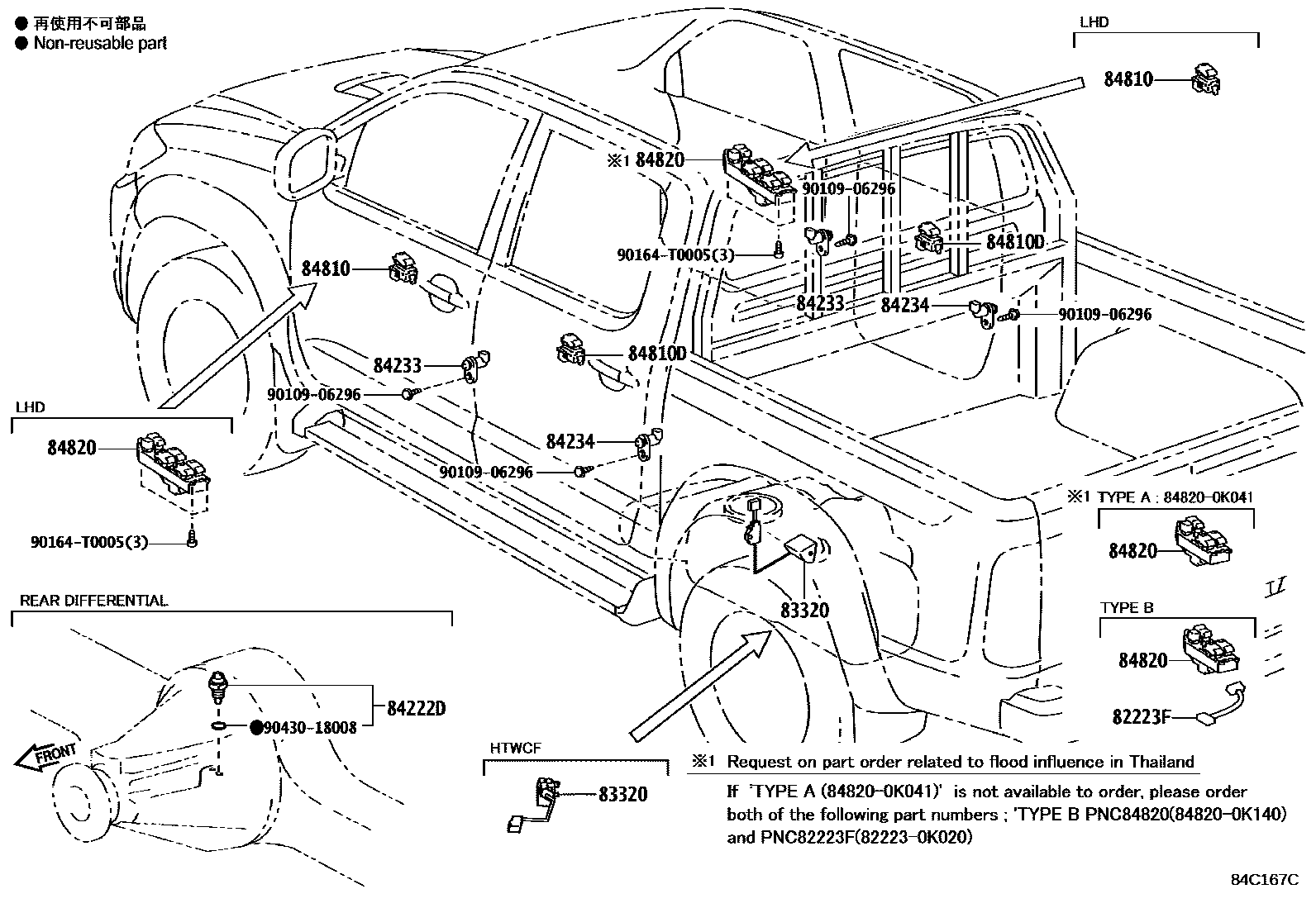

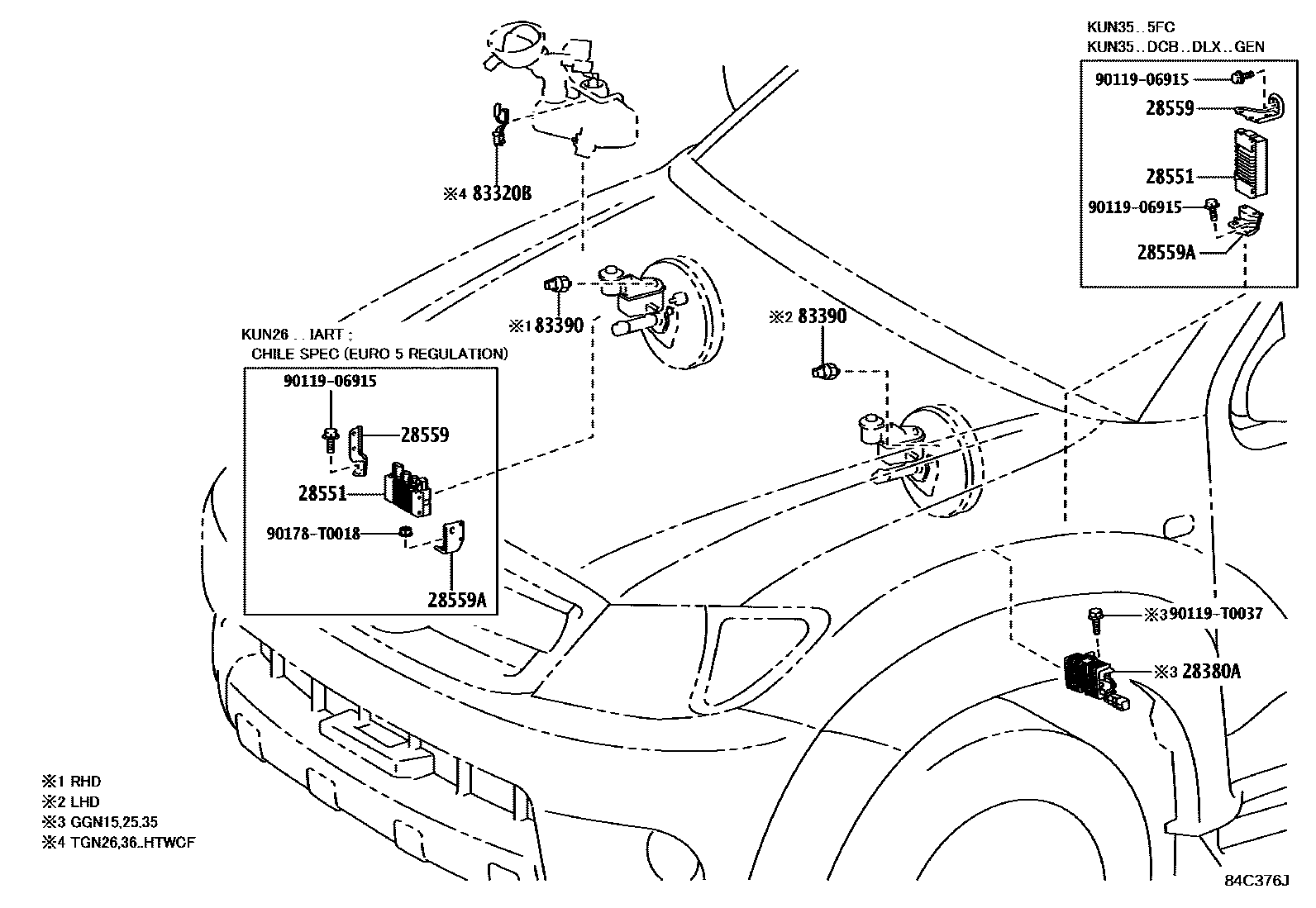

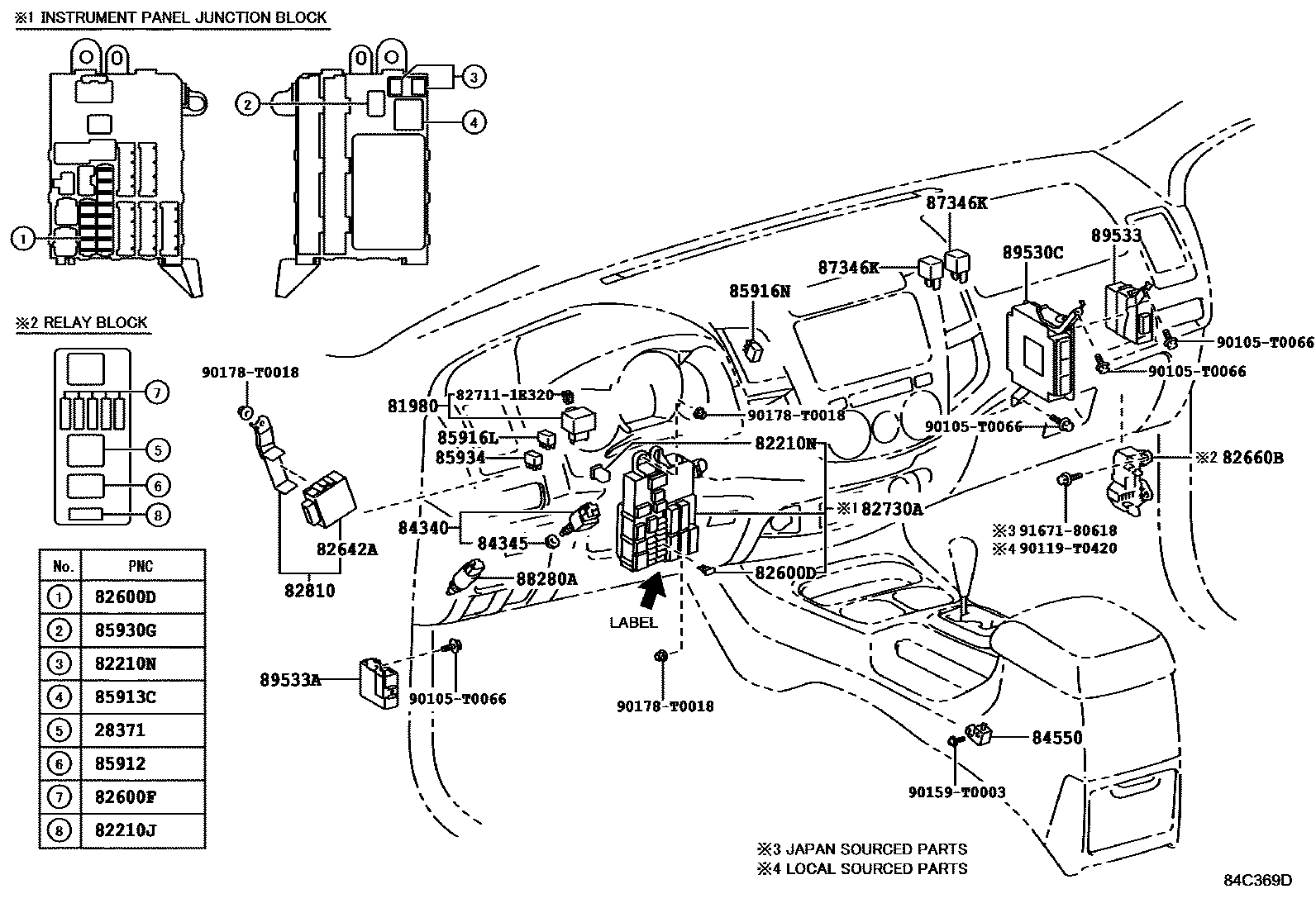

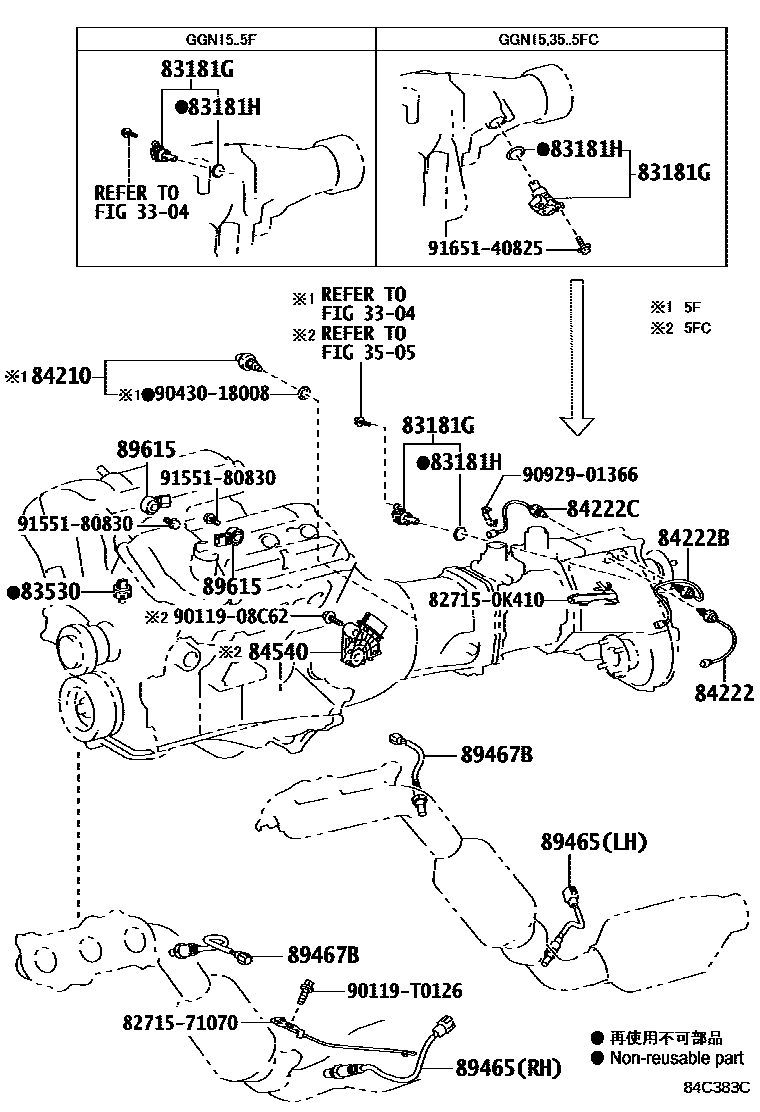

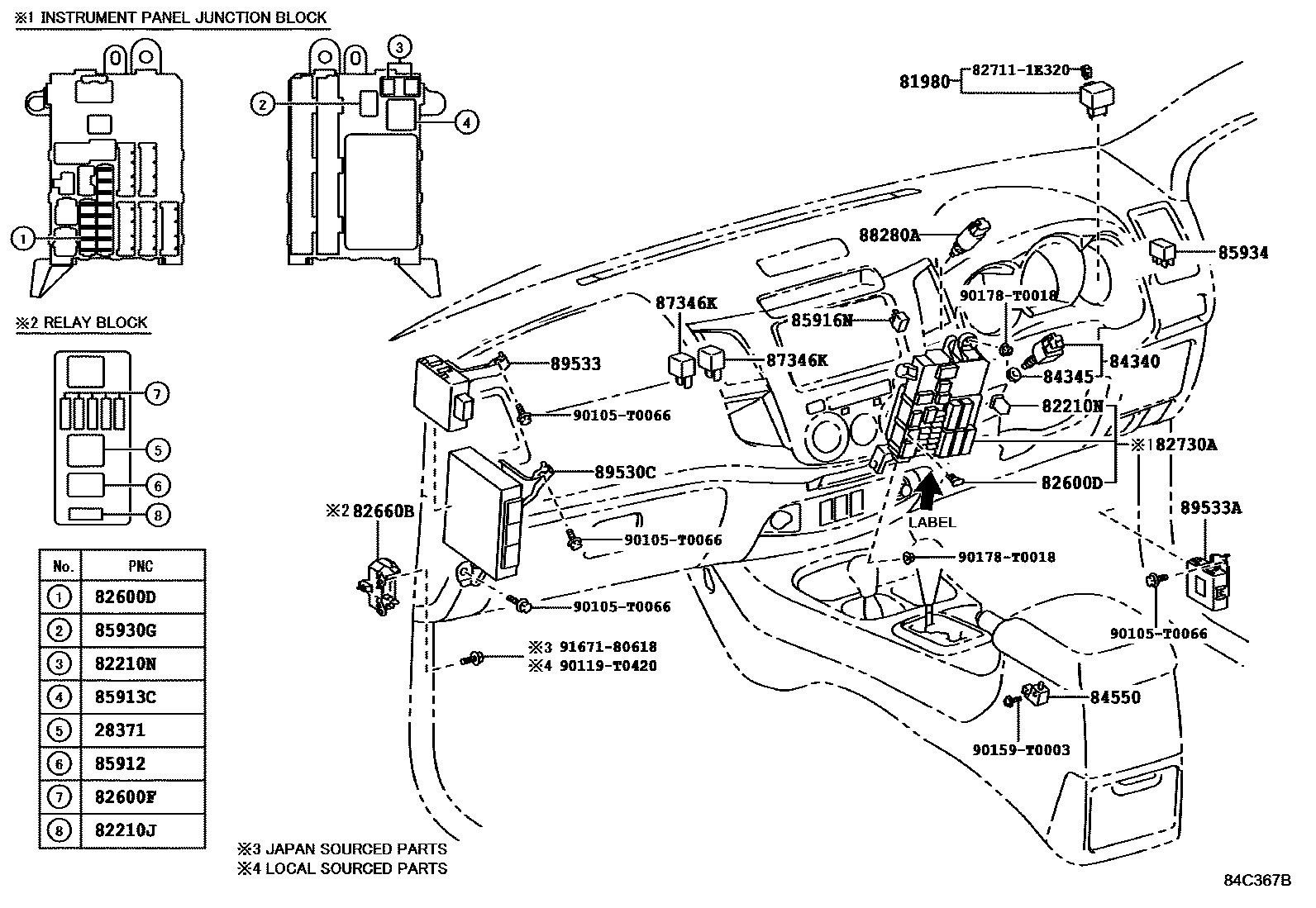

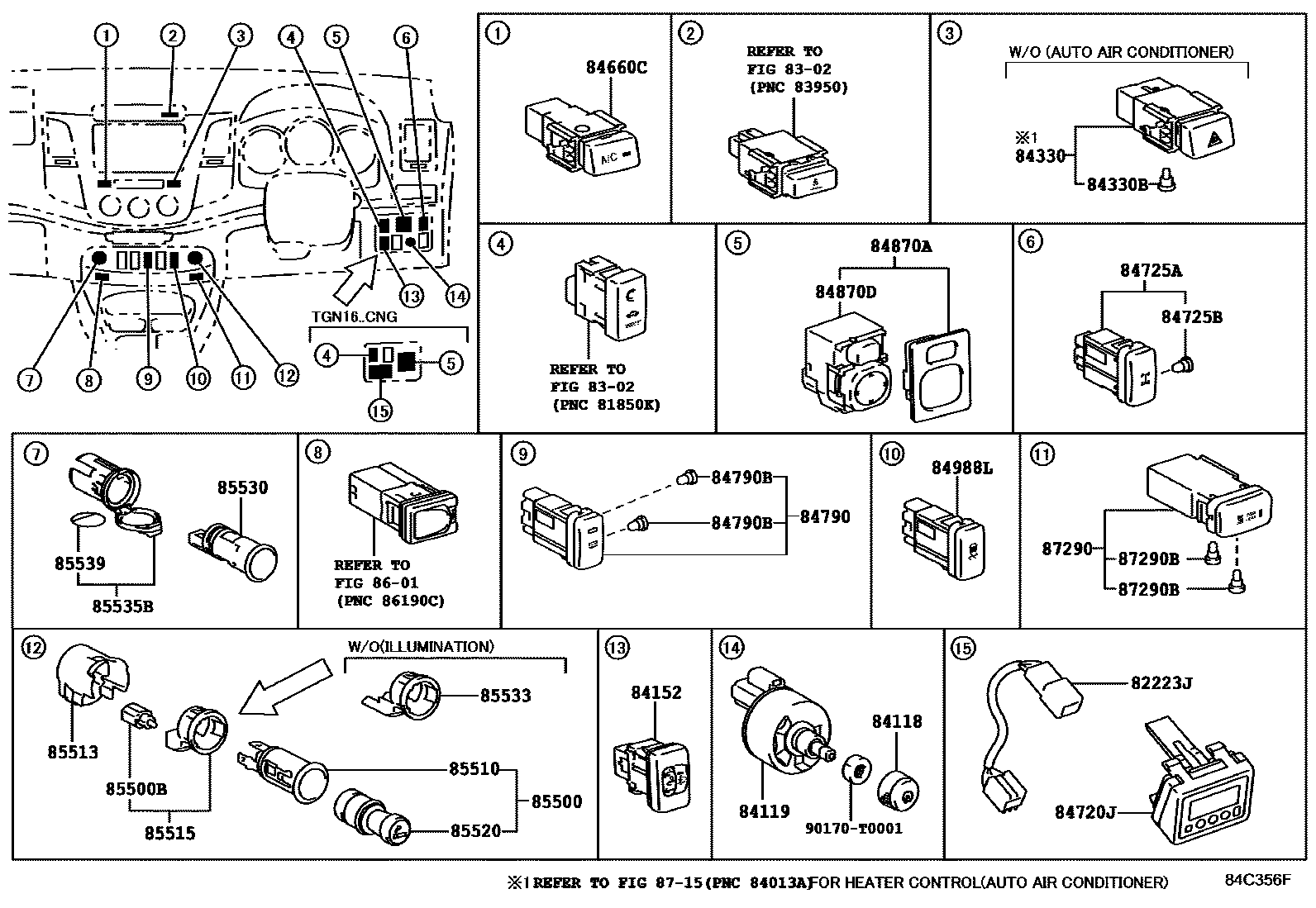

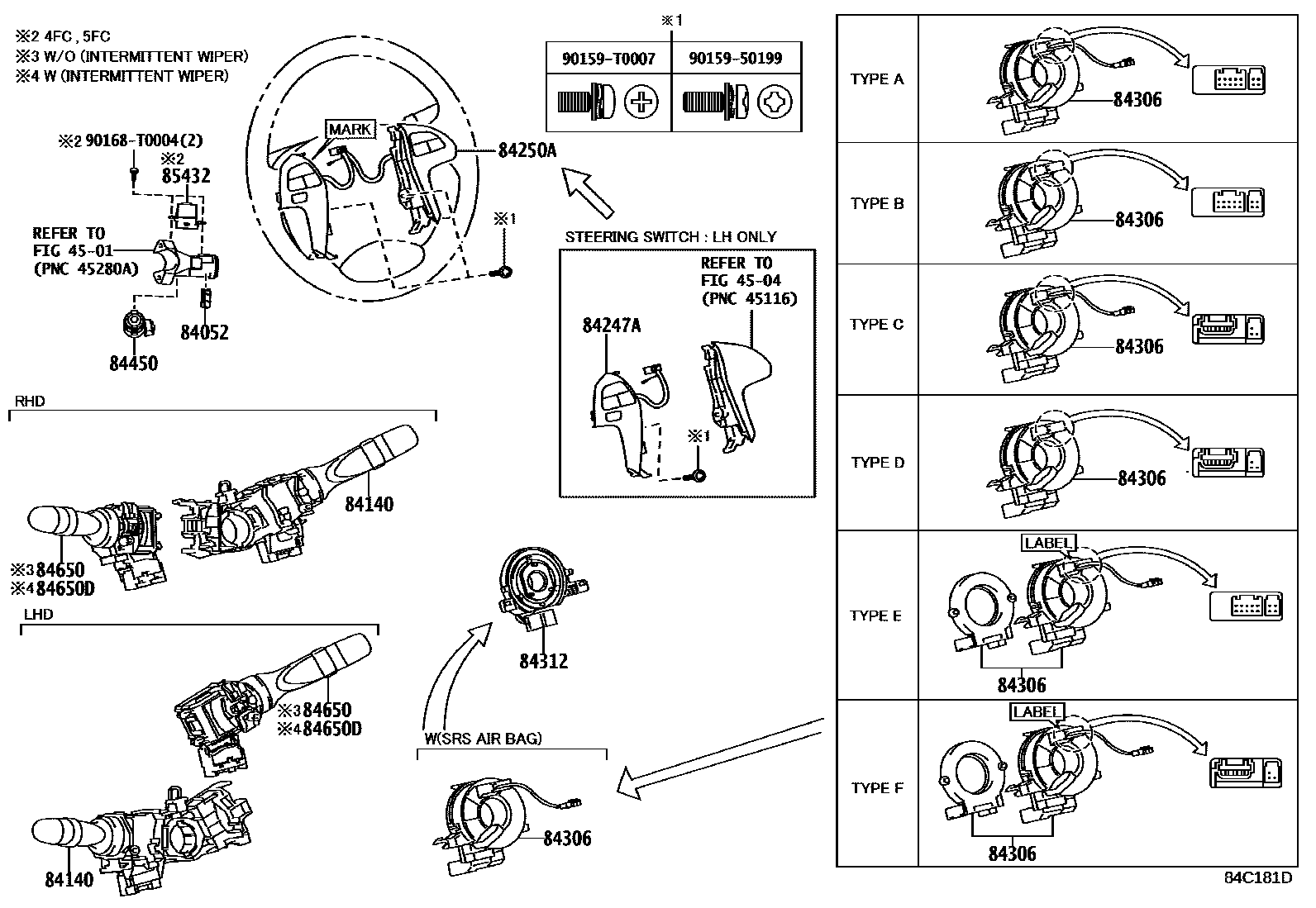

Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 14 images and 109 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0L010 · 28300-0L011 · 90987-02025 |
| 28371 | No. 1 ignition relay | 90987-T2002 |
| 28380A | fuel pump resistor | 23080-75020 |
| 28551 | glow plug controller | 28551-30010 |
| 28559 | Glow plug controller bracket No. 1 | 28559-30040 · 28559-30060 |
| 28559A | Glow plug controller bracket No. 2 | 28559-30050 · 28559-30070 |
| 28610 | Intake air heater or glow plug relay assembly | 28610-27010 · 28610-54390 |
| 81980 | Turn signal flasher relay assembly | 81980-06030 |
| 82210J | fuse | 90982-08280 |
| 82210N | Instrument panel fuse | 90982-08284 |
| 82223F | switch harness | 82223-0K020 |
| 82223J | switch harness | 82223-0K010 |
| 82600D | Dashboard fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 |
| 82600E | Engine room fuse | 90982-09013 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600F | Spare fuse | 90982-09022 · 90982-09023 · 90982-09024 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-71012 · 82620-71020 |
| 82630 | Fuse holder assembly | 82631-0K010 |
| 82641 | Integrated relay No. 1 | 82641-0C030 · 82641-71010 · 82641-71020 |
| 82642A | driving light relay | 82642-12050 |
| 82660B | Relay assembly | 82660-0K030 |
| 82661 | No. 1 relay box cover | 82661-0K010 · 82661-0K020 |
| 82662A | No. 1 relay box upper cover | 82662-0K043 · 82662-0K044 · 82662-0K210 · 82662-0K211 · 82662-0K220 · 82662-0K221 · 82662-0K230 · 82662-0K231 · 82662-0K260 · 82662-0K270 · 82662-0K280 · 82662-0K281 · 82662-0K380 · 82662-0K381 · 82662-0K410 · 82662-0K411 · 82662-0K420 · 82662-0K421 |
| 82663 | Relay box lower cover | 82663-0K010 |
| 82730A | Driver's side junction box assembly | 82730-0K010 · 82730-0K020 · 82730-0K021 · 82730-0K030 · 82730-0K040 · 82730-0K050 · 82730-0K051 · 82730-0K060 · 82730-0K130 · 82730-0K131 |

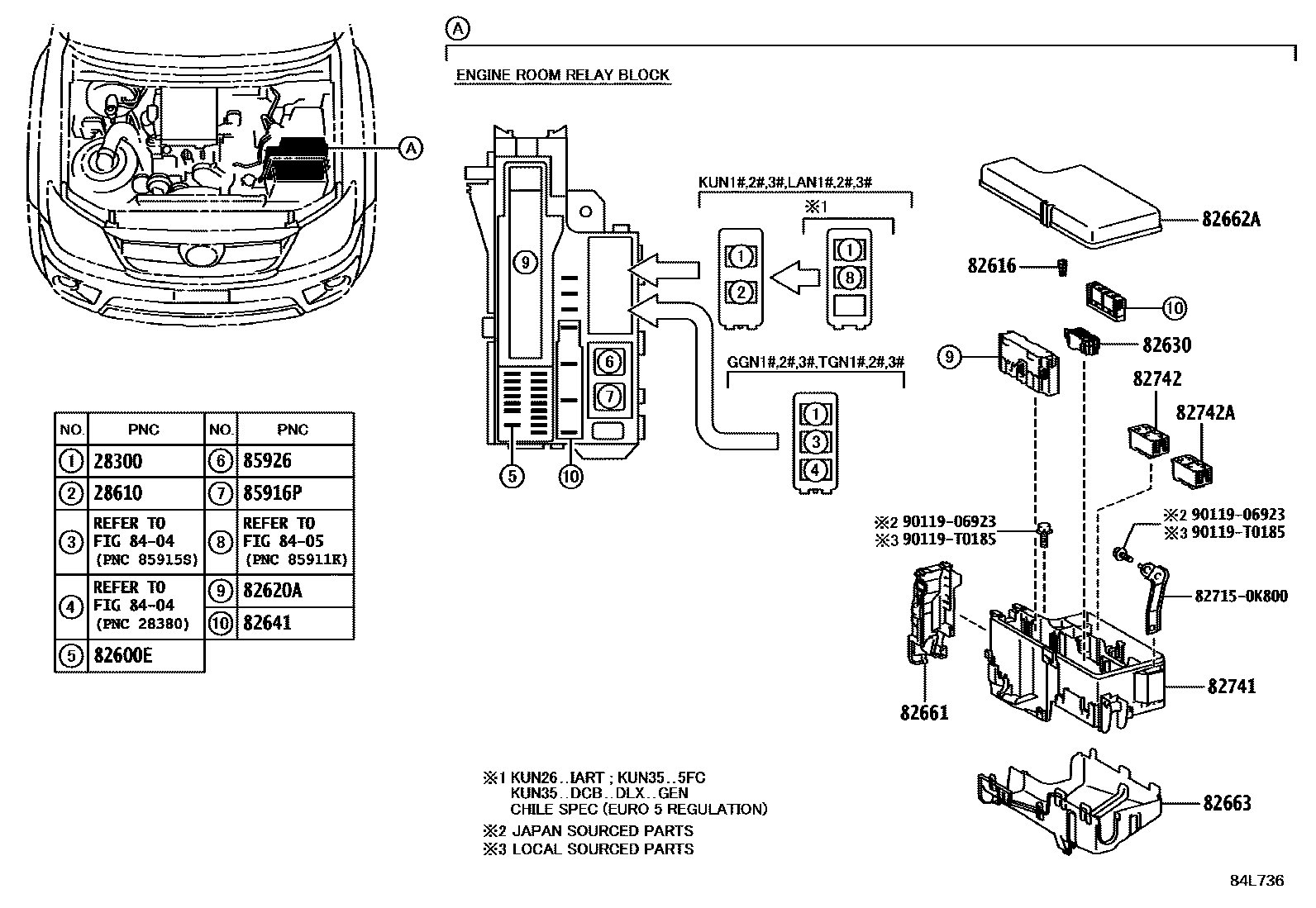

| 82741 | Engine room relay box | 82741-0K010 |
| 82742 | Engine room No. 2 relay box | 82660-0C040 · 82744-0K010 · 82744-0K020 |
| 82742A | Engine room No. 5 relay box | 82742-0K010 |
| 82810 | Driving light relay assembly | 82810-71010 |

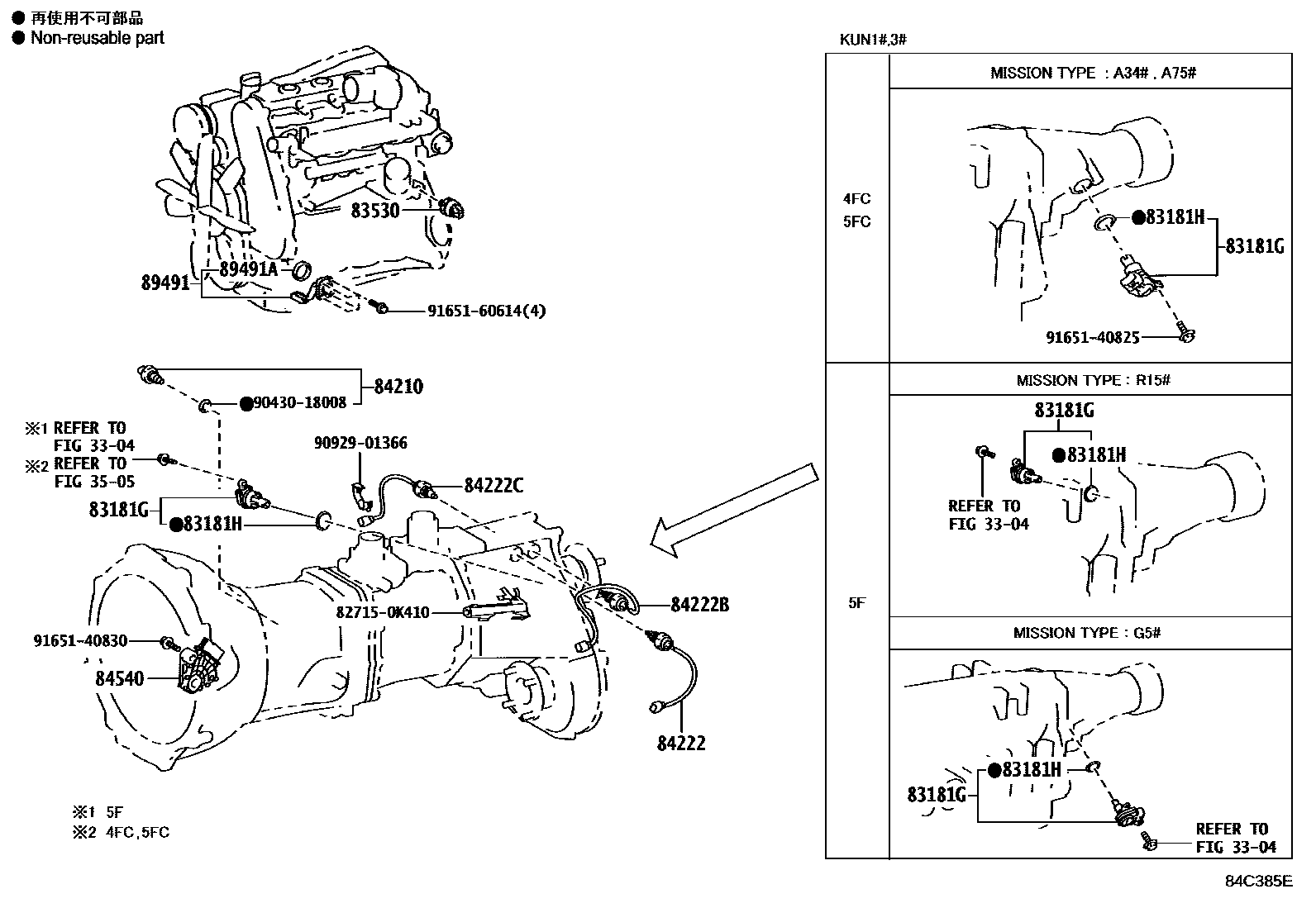

| 83181G | speedometer sensor | 83181-12020 · 83181-35041 · 83181-35070 |
| 83181H | O-ring (for speedometer sensor) | 90301-18004 · 90301-18018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-0K010 · 83320-0K020 · 83320-0K040 · 83320-0K090 · 83320-71010 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-12852 |
| 83390 | Vacuum warning switch assembly | 83390-28120 · 83390-30100 |

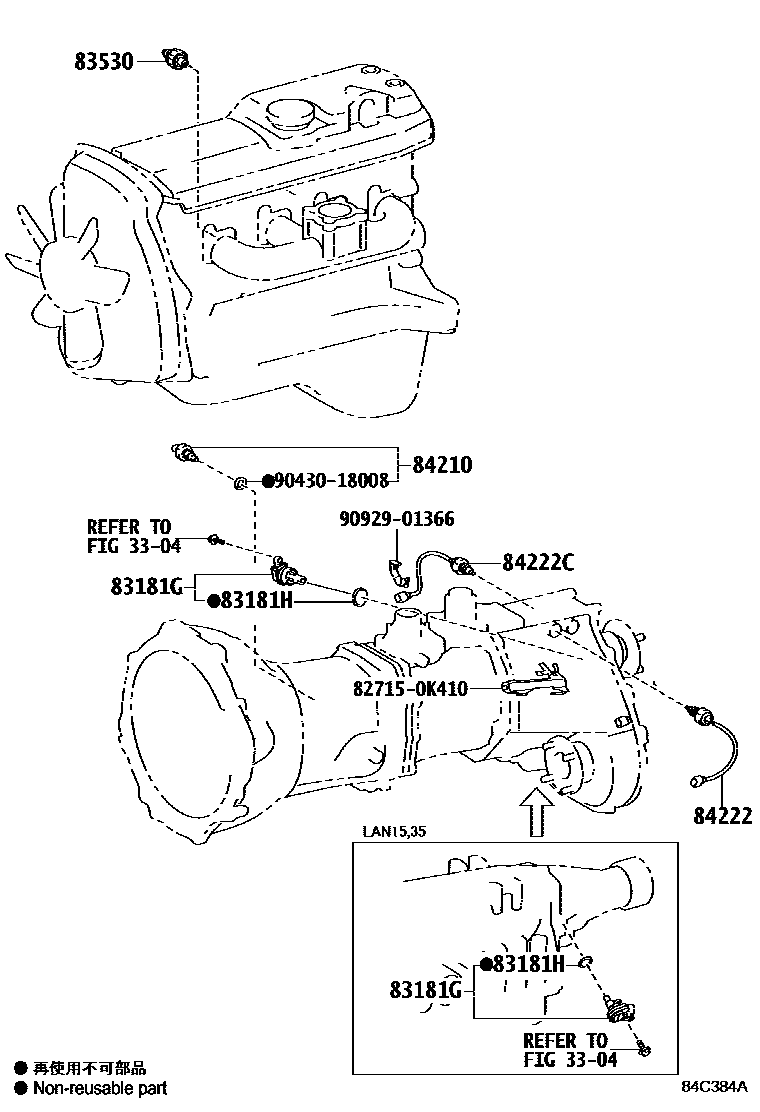

| 83530 | Oil pressure switch assembly (for engine) | 83530-28010 · 83530-28020 · 83530-60010 · 83530-60020 · 83530-60030 |
| 84052 | Unlock warning switch assembly | 84052-0K020 |
| 84118 | Light control rheostat button | 84118-0K010 |
| 84119 | Light control rheostat | 84119-0K010 |
| 84140 | Headlight dimmer switch assembly | 84140-02221 · 84140-02631 · 84140-06430 · 84140-0K011 · 84140-0K021 · 84140-0K041 · 84140-0K051 · 84140-0K111 · 84140-0K151 · 84140-0K210 · 84140-0K720 · 84140-0K730 · 84140-52161 · 84140-52171 |
| 84152 | Headlight beam height adjustment switch | 84152-0K010 · 84152-0K011 |
| 84210 | Reversing light switch assembly | 84210-04010 · 84210-0K010 · 84210-12040 · 84210-52050 · 84210-71010 · 84210-71020 |
| 84222 | No. 1 transfer case indicator switch | 84222-35080 |
| 84222B | No. 2 transfer case indicator switch | 84222-35090 |
| 84222C | No. 3 transfer case indicator light switch | 84222-35110 |
| 84222D | No. 4 transfer case indicator light switch | 84222-12010 |
| 84233 | Door control light switch assembly (for front door) | 84231-0K020 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0K020 |
| 84247A | Steering wheel decorative cover left switch | 84247-0K010 · 84247-0K030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-0K010 · 84250-0K020 · 84250-0K280 · 84250-0K290 · 84250-0K300 |
| 84306 | Spiral cable sub-assembly | 84306-0K011 · 84306-0K021 · 84306-0K030 · 84306-0K051 · 84306-0K060 · 84306-0K160 · 84307-0K010 · 84307-0K020 · 84307-0K140 |
| 84312 | Speaker contact piece | 84312-0K030 |
| 84330 | Hazard warning signal switch assembly | 84332-0K010 |
| 84330B | Hazard warning signal switch light bulb | 90011-01056 |
| 84340 | brake light switch assembly | 84340-09040 · 84340-09041 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84450 | Ignition or starter switch assembly | 84450-0K010 |
| 84540 | Neutral start switch assembly | 84540-04010 · 84540-35050 · 84540-71010 |
| 84550 | Parking brake switch assembly | 84550-02030 |
| 84650 | Windshield wiper switch assembly | 84652-0D130 · 84652-0D131 · 84652-0K041 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-06230 · 84652-0D120 · 84652-0K061 · 84652-0K071 · 84652-0K111 |
| 84660C | Cooler switch | 84660-71010 |
| 84720J | Mode selection switch assembly | 84721-0K020 |
| 84725A | Differential lock switch | 84725-0K010 |
| 84725B | Differential lock switch light bulb | 90011-01055 |
| 84790 | Rear window defogger switch assembly | 84790-0K010 |
| 84790B | Bulb (for rear window defogger switch) | 90011-01055 · 90011-01056 |
| 84810 | Electric window lift switch assembly | 84810-0K010 |
| 84810D | Rear electric window lift switch assembly | 84810-0K010 |
| 84820 | Electric window lift main switch assembly | 84820-0K011 · 84820-0K021 · 84820-0K041 · 84820-0K051 · 84820-0K061 · 84820-0K062 · 84820-0K100 · 84820-0K101 · 84820-0K110 · 84820-0K111 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0D030 · 84870-0K010 |
| 84870D | No. 2 exterior rearview mirror switch assembly | 84872-06020 · 84872-06040 |

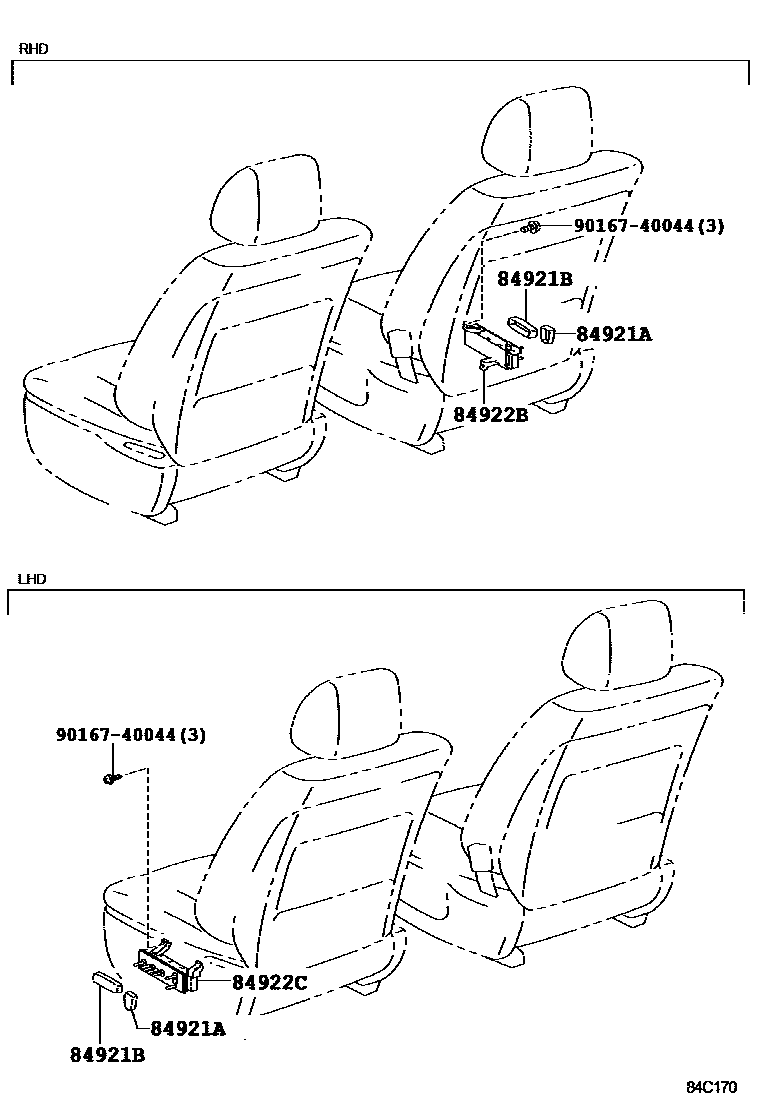

| 84922B | Front right electric seat switch | 84922-0K050 |
| 84922C | Front left electric seat switch | 84922-0K060 |
| 84988L | VSC off switch | 84988-0K020 |
| 85432 | Key interlock solenoid valve | 85432-0K010 · 85432-71010 |
| 85500 | Cigarette lighter assembly | 85500-28050 |
| 85500B | Cigarette lighter bulb | 90010-01022 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-22110 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-60010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-0K010 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-30060 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85912 | defogger relay | 90987-T2001 |
| 85913C | Heater relay No. 1 | 90987-T2003 |
| 85916L | Rear fog light relay | 90987-T2001 |
| 85916N | Tail light relay | 90987-T2001 |
| 85916P | headlight relay | 90987-T2002 |
| 85926 | Headlight dimmer relay | 90987-T2003 |
| 85930G | ACC relay | 90987-T2001 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 87290 | Heater switch assembly | 87290-0K050 |
| 87290B | Light bulb (for heater switch) | 84999-10310 · 90010-01039 |
| 87346K | PTC heater relay | 90987-T2002 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89425 | Exhaust gas temperature sensor | 89425-71010 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-71020 |
| 89425B | No. 3 exhaust gas temperature sensor | 89425-71030 · 89425-71040 |
| 89439 | Sensor holder | 89439-0K040 · 89439-0K041 · 89439-71040 |

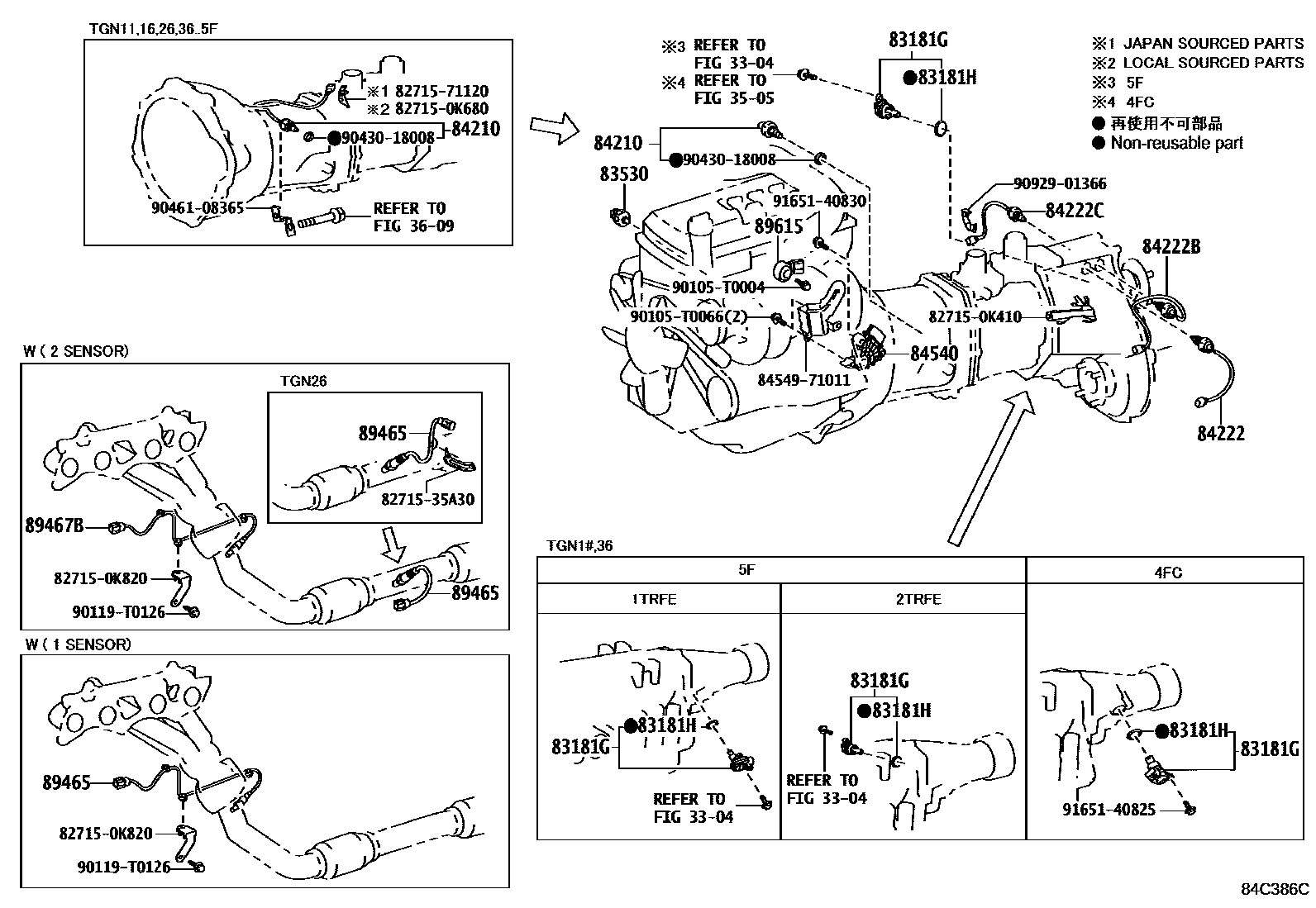

| 89465 | oxygen sensor | 89465-0K010 · 89465-0K070 · 89465-0K080 · 89465-0K100 · 89465-0K110 · 89465-0K130 · 89465-0K140 · 89465-0K150 |
| 89467B | air fuel ratio sensor | 89467-35110 · 89467-71070 · 89467-71080 · 89467-71090 · 89467-71100 |
| 89481B | Differential pressure sensor | 89481-12050 |
| 89491 | Engine oil level sensor | 89491-26081 |
| 89491A | Engine oil level sensor gasket | 90430-27001 |
| 89530C | Transmission control ECU assembly | 89530-71310 · 89530-71311 · 89530-71320 · 89530-71321 · 89530-71331 · 89530-71341 · 89530-71342 · 89530-71350 · 89530-71400 · 89530-71401 · 89530-71460 · 89530-71480 · 89530-71490 · 89530-71500 · 89530-71510 · 89530-71520 · 89530-71530 · 89530-71550 · 89530-71551 · 89530-71650 |
| 89533 | Four-wheel drive control ECU | 89533-71070 · 89533-71080 |
| 89533A | Four-wheel drive control No. 2 ECU | 89533-71030 · 89533-71040 · 89533-71050 |
| 89615 | knock control sensor | 89615-20090 |
