Toyota HILUX Headlamp — Figure 8101

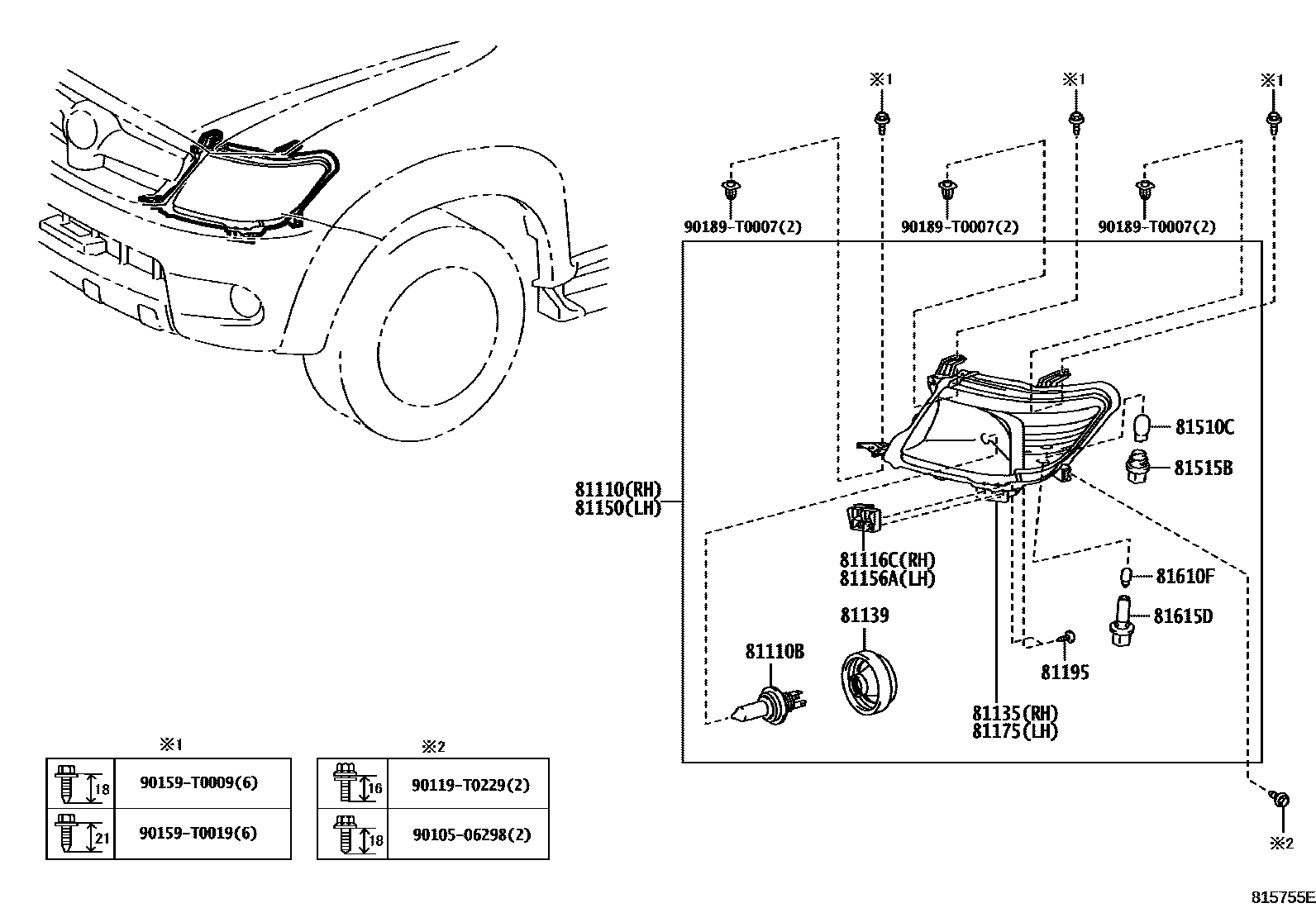

Toyota HILUX EPC diagram 8101, Headlamp, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0K370 · 81110-0K390 · 81110-0K400 · 81110-0K401 · 81110-0K410 · 81110-0K420 · 81110-0K430 · 81110-0K450 |
| 81110B | Bulb (for headlight No. 1) | 90981-13058 |
| 81116C | Right headlight bracket | 81116-0K370 · 81116-0K410 · 81116-0K450 |
| 81135 | Right headlight assembly assembly | 81130-0K370 · 81130-0K390 · 81130-0K400 · 81130-0K401 · 81130-0K410 · 81130-0K420 · 81130-0K430 · 81130-0K450 |
| 81139 | Headlight lamp holder cover | 90075-65002 |
| 81150 | Left headlight assembly | 81150-0K370 · 81150-0K390 · 81150-0K400 · 81150-0K401 · 81150-0K410 · 81150-0K420 · 81150-0K430 · 81150-0K450 |
| 81156A | Left headlight bracket | 81156-0K370 · 81156-0K410 · 81156-0K450 |
| 81175 | Left headlight assembly assembly | 81170-0K370 · 81170-0K390 · 81170-0K400 · 81170-0K401 · 81170-0K410 · 81170-0K420 · 81170-0K430 · 81170-0K450 |
| 81195 | headlight screw | 81136-0K180 · 81136-0K260 · 81136-0K410 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60077 |
