Toyota HILUX battery holder — Figure 7454

Toyota HILUX EPC diagram 7454, battery holder, with 1 images and 5 PNC and OE references.

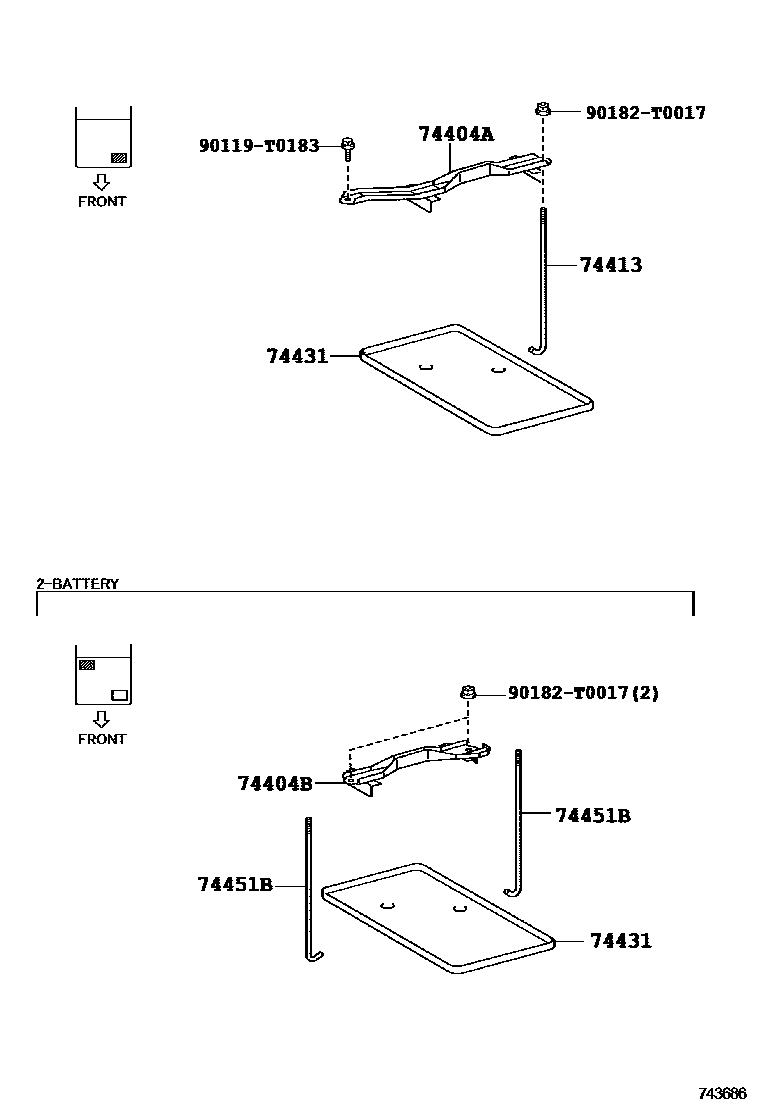

Toyota HILUX battery holder EPC diagram — 743686
battery holder — 743686 (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-0K010 · 74404-0K020 · 74404-0K041 · 74404-0K071 · 74404-0K100 · 74404-0K120 · 74404-0K131 · 74404-0K141
74404BBattery clip sub-assembly74404-0K030
74413Battery clamp bolt74451-0K010 · 74451-0K030 · 74451-0K080 · 74451-0K100
74431battery tray74431-04050 · 74431-04070 · 74431-0K010 · 74431-0K030 · 74431-0K040 · 74431-0K080 · 74431-0K090
74451BBattery clamp bolt74451-0K020
