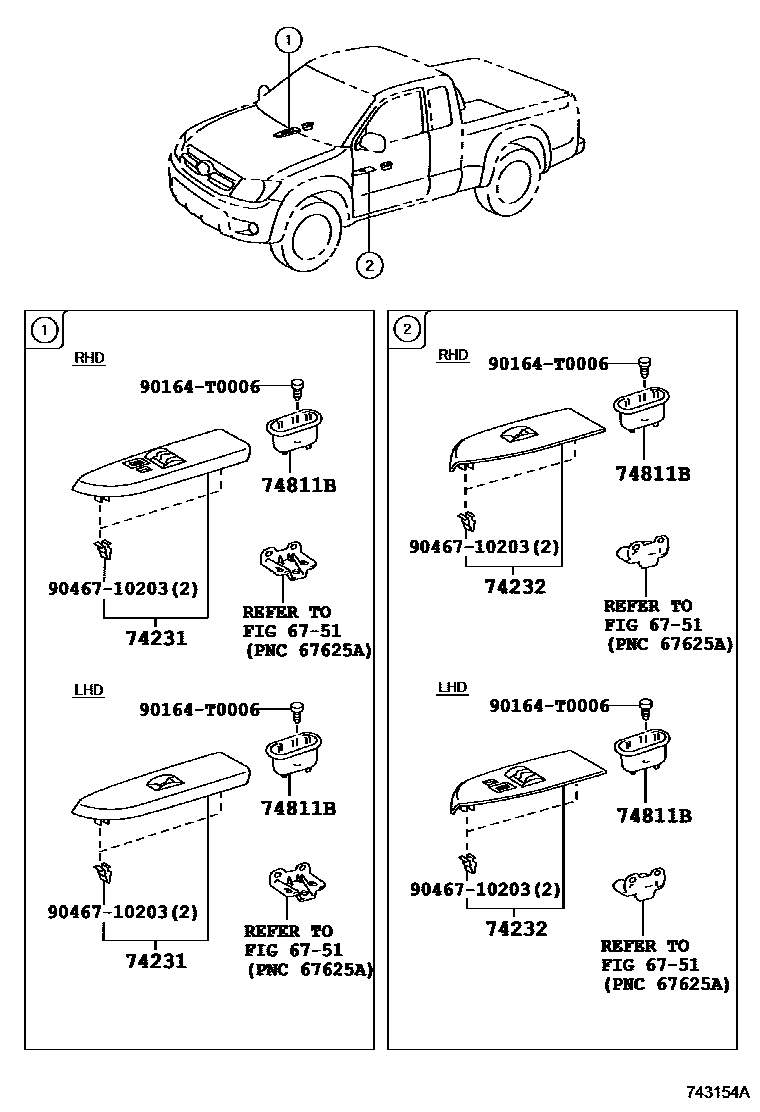

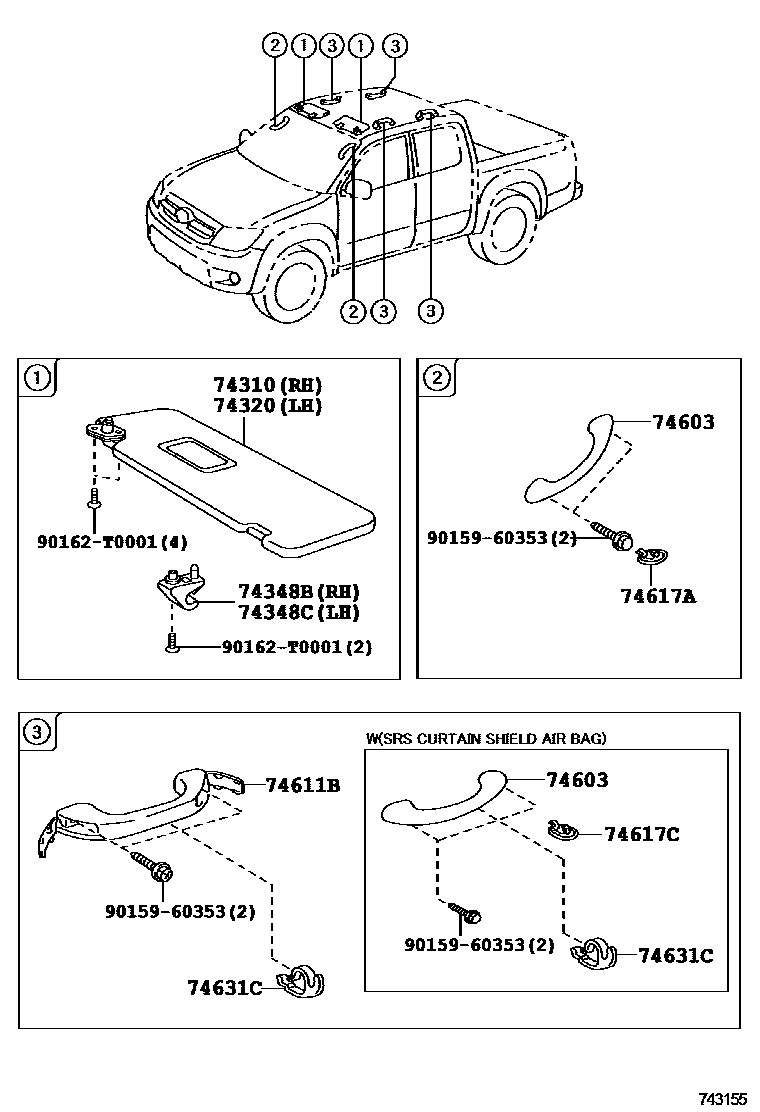

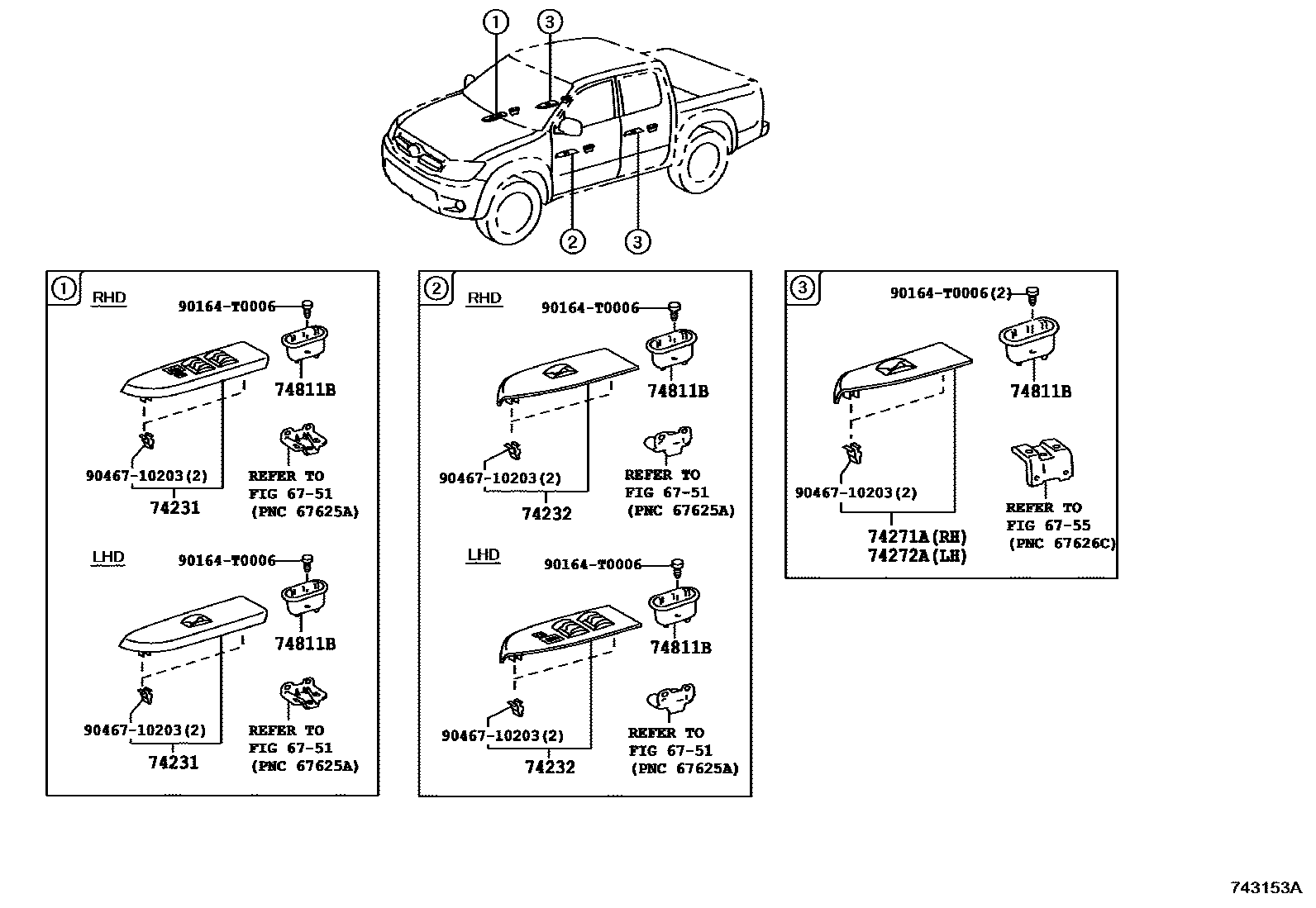

Toyota HILUX 扶手和遮阳板 — Figure 7451
Toyota HILUX EPC diagram 7451, 扶手和遮阳板, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0K470 · 74231-0K471 · 74231-0K480 · 74231-0K481 · 74231-0K490 · 74231-0K491 · 74231-0K500 · 74231-0K510 · 74231-0KA10 · 74231-0KA20 |
| 74232 | Left front armrest upper panel | 74232-0K470 · 74232-0K471 · 74232-0K480 · 74232-0K481 · 74232-0K490 · 74232-0K491 · 74232-0K500 · 74232-0K510 · 74232-0K880 · 74232-0K890 |
| 74271A | Right rear door armrest upper panel | 74271-0K260 · 74271-0K430 |
| 74272A | Left rear door armrest upper panel | 74272-0K260 · 74272-0K430 |
