Toyota HILUX 前门锁和车门把手 — Figure 6753

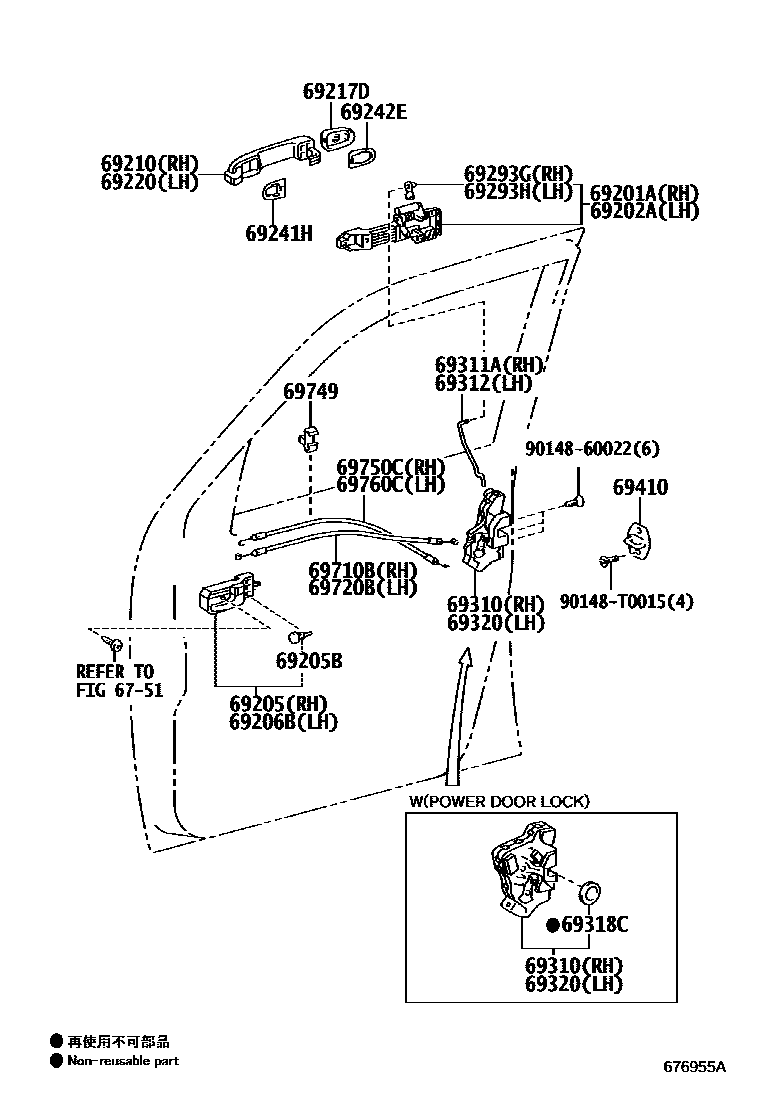

Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-02030 · 69201-02050 · 69201-06010 · 69201-33010 · 69201-52010 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02020 · 69202-02030 · 69202-06010 · 69202-33010 · 69202-52010 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69210-06040 · 69210-12260 · 69211-02130 · 69211-02150 · 69211-02180 · 69211-0K010 · 69211-12903 · 69211-42010 |
| 69217D | Front door outer handle cover | 69217-02060 · 69217-02080 · 69217-02100 · 69217-02120 · 69217-06020 · 69217-0K010 · 69217-0K070 · 69217-0K080 · 69217-0K110 · 69217-0K904 · 69217-12010 · 69217-33030 · 69217-42010 |
| 69220 | Left front door outer handle assembly | 69210-06040 · 69210-12260 · 69211-02130 · 69211-02150 · 69211-02180 · 69211-0K010 · 69211-12903 · 69211-42010 |
| 69241H | Front door exterior handle pad | 69241-02050 · 69241-02060 · 69241-06020 · 69241-42020 |
| 69242E | Front door rear outer handle pad | 69242-02050 · 69242-02060 · 69242-06020 · 69242-42010 |
| 69293G | Right front door outer handle buckle | 69293-12030 · 69293-33010 |
| 69293H | Left front door outer handle buckle | 69293-12040 · 69293-33020 |
| 69310 | Right front door lock assembly | 69030-02190 · 69030-0K010 · 69030-0K020 · 69030-0K060 · 69030-0K070 · 69030-0K230 · 69030-0K240 · 69030-0K250 · 69310-0K010 · 69310-0K020 · 69310-0K050 · 69310-0K060 · 69310-0K080 |
| 69311A | Right front door lock opening lever | 69311-0K010 · 69311-0K030 · 69311-0K060 |
| 69312 | Left front door lock opening lever | 69312-0K010 · 69312-0K030 · 69312-0K060 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-02180 · 69040-0K010 · 69040-0K020 · 69040-0K060 · 69040-0K070 · 69040-0K190 · 69040-0K200 · 69320-0K010 · 69320-0K020 · 69320-0K050 · 69320-0K060 · 69320-0K080 |
| 69410 | Front door lock plate assembly | 69410-0K010 · 69410-0K030 · 69410-0K040 |
| 69710B | Right front door lock remote control cable assembly | 69710-0K010 · 69710-0K020 · 69710-0K030 · 69710-0K040 · 69710-0K050 · 69710-0K060 |
| 69720B | Left front door lock remote control cable assembly | 69710-0K010 · 69710-0K020 · 69710-0K030 · 69710-0K040 · 69710-0K050 · 69710-0K060 |
| 69749 | Front door lock link clip | 69749-32040 |
| 69750C | Right front door inner lock cable assembly | 69750-0K010 · 69750-0K020 · 69750-0K030 · 69750-0K040 · 69750-0K050 · 69750-0K060 |
| 69760C | Left front door inner lock cable assembly | 69760-0K010 · 69760-0K020 · 69760-0K030 · 69760-0K040 · 69760-0K050 · 69760-0K060 |
