Toyota HILUX 中央扶手箱和支架 — Figure 5855

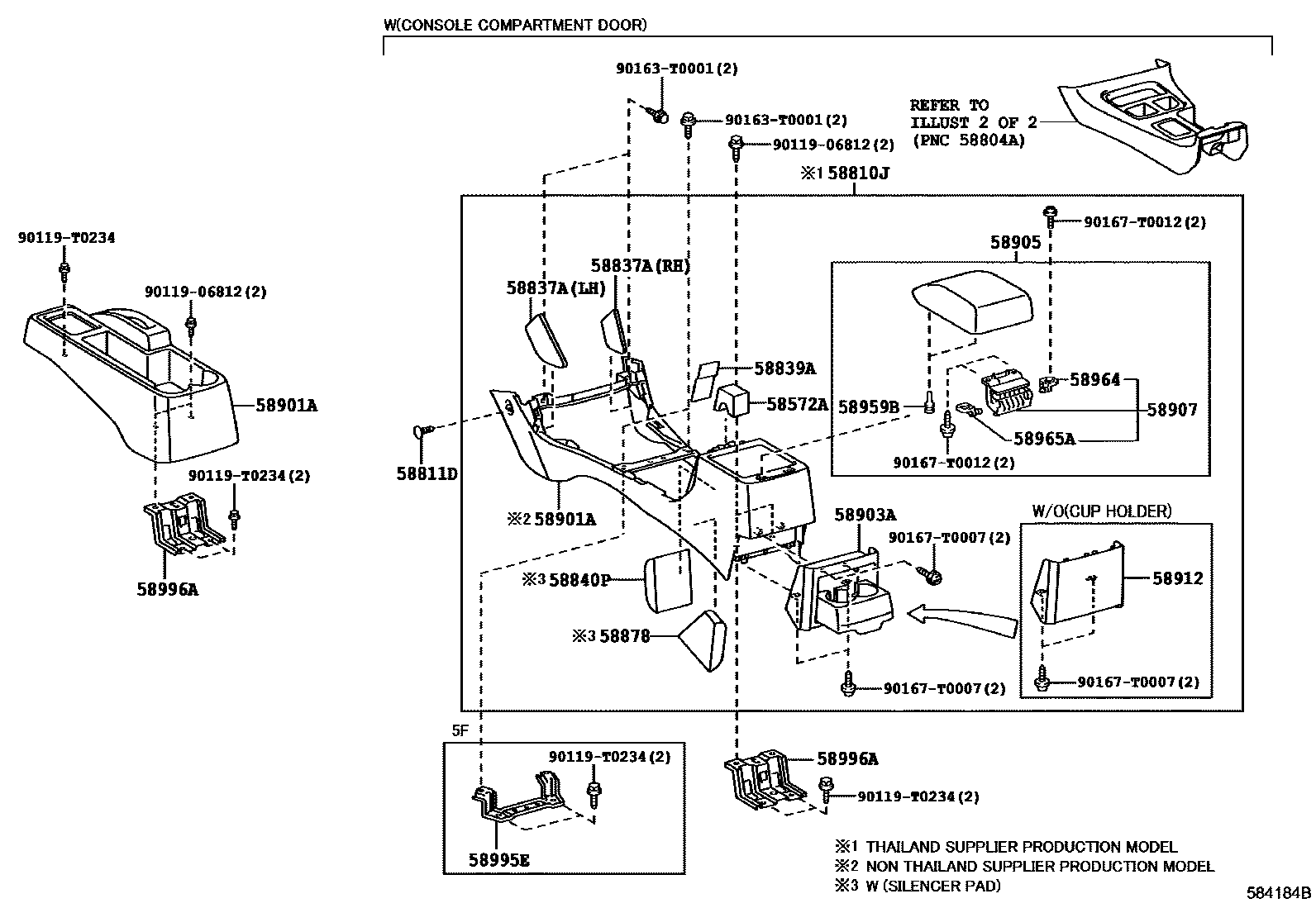

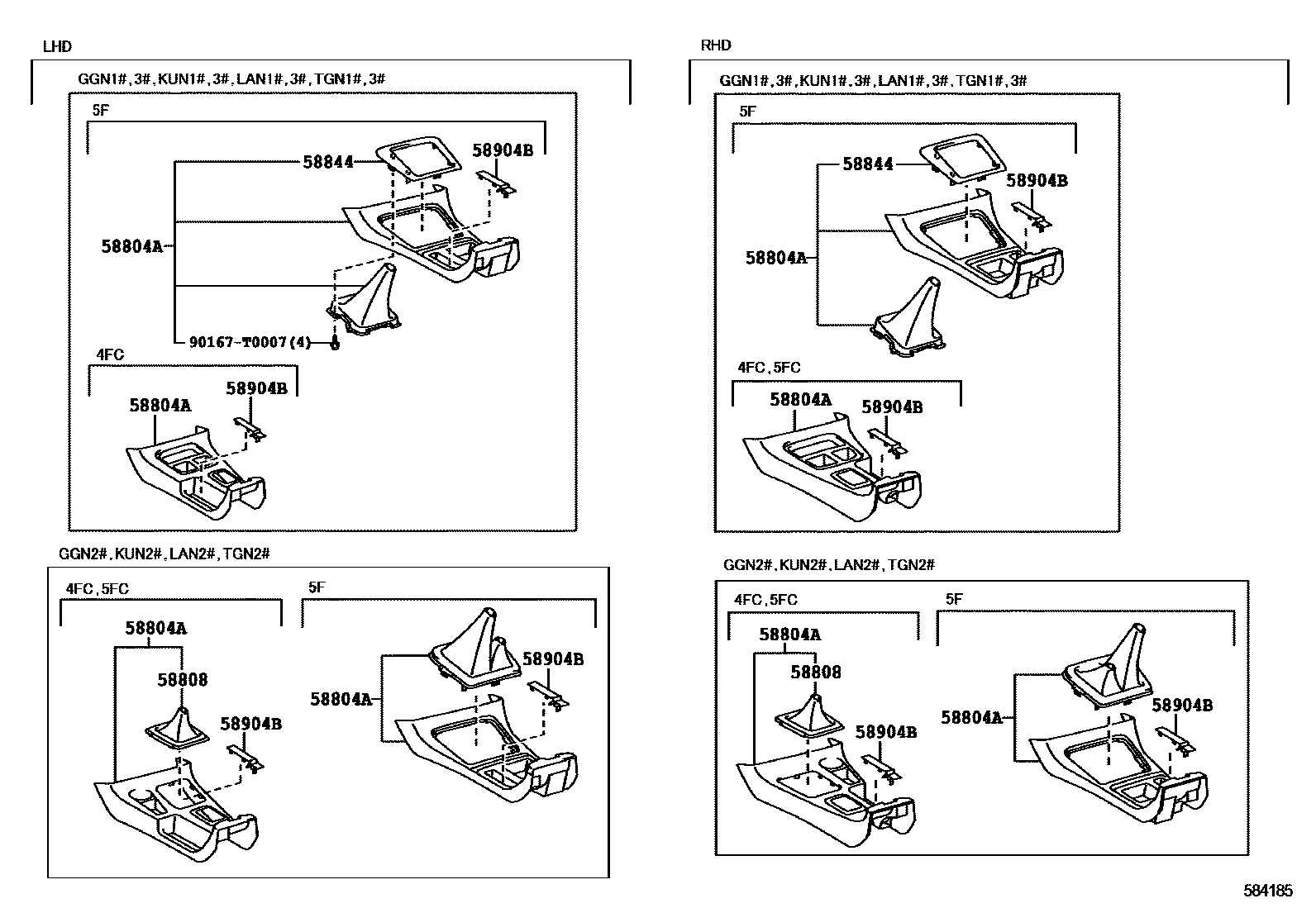

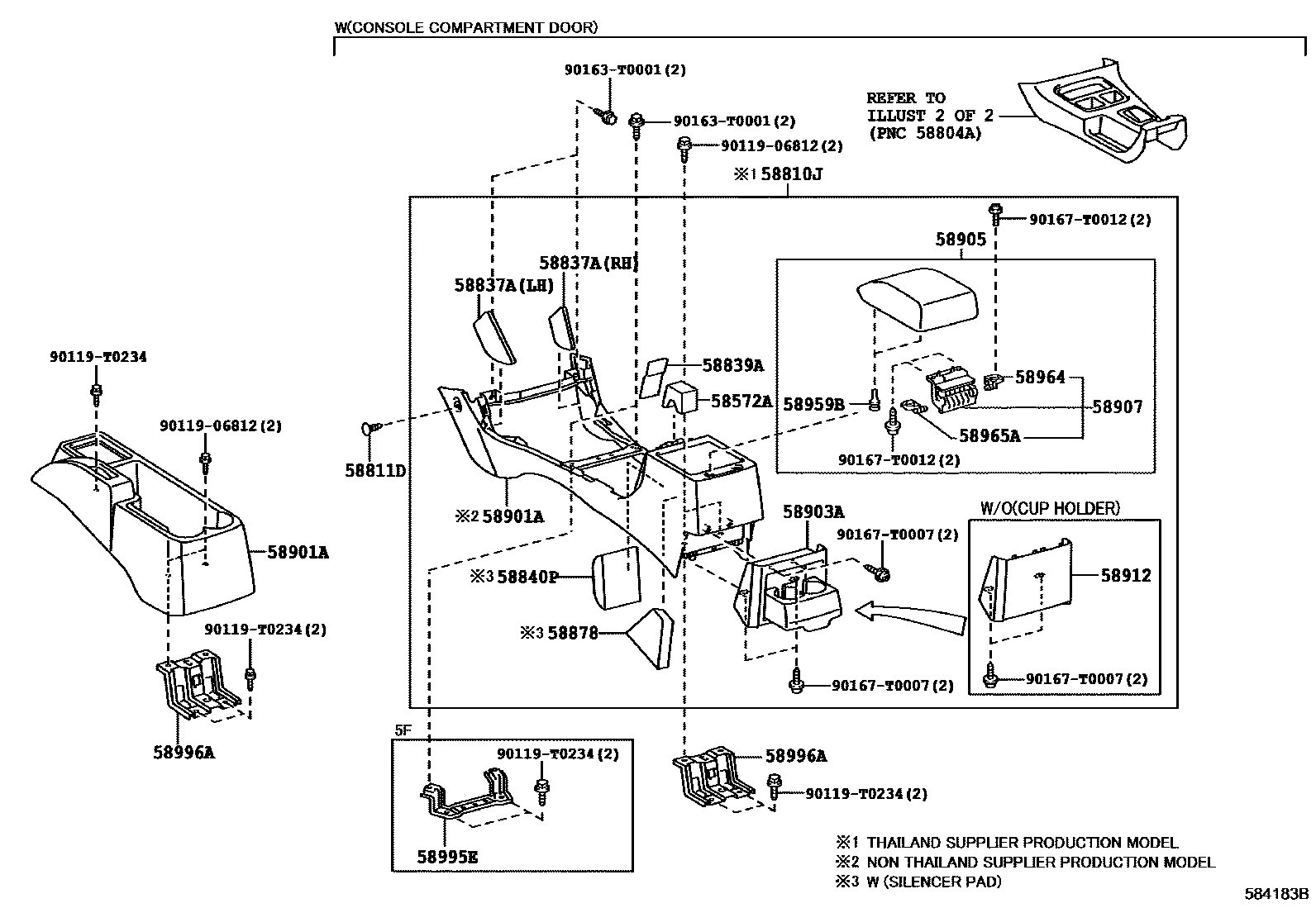

Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58572A | Armrest box cushion | 58872-0K010 |
| 58804A | Armrest box upper panel sub-assembly | 58804-0K021 · 58804-0K160 · 58804-0K260 · 58804-0K270 |
| 58808 | Shift hole cover sub-assembly | 58808-0K030 |
| 58837A | Armrest Box No. 2 Silencer Pad | 58837-0K010 · 58837-0K020 |
| 58840P | Armrest Box No. 3 Silencer Pad | 58859-0K010 |
| 58878 | Armrest Box No. 4 Silencer Pad | 58878-0K010 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-0K050 |
| 58959B | Armrest box cover cushion | 90541-04079 · 90541-T0008 |
| 58964 | Armrest box cover No. 1 stop | 58964-0K050 · 58964-20030 |
| 58965A | Armrest box cover No. 2 stopper | 58965-0K070 · 58965-20040 |
| 58995E | Armrest box No. 1 mounting bracket | 58995-0K010 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0K010 |
