Toyota HILUX 地板垫和消声垫 — Figure 5854

Toyota HILUX EPC diagram 5854, 地板垫和消声垫, with 5 images and 4 PNC and OE references.

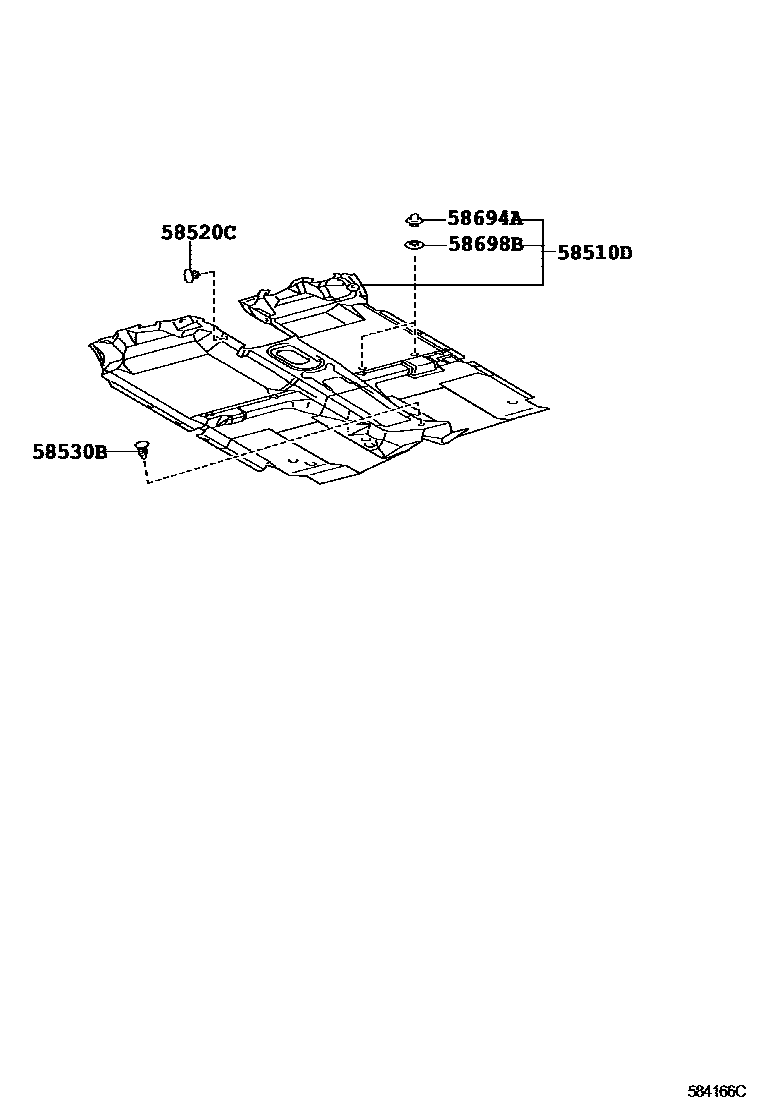

Toyota HILUX 地板垫和消声垫 EPC diagram — 584166C
地板垫和消声垫 — 584166C (201107 – 999999)

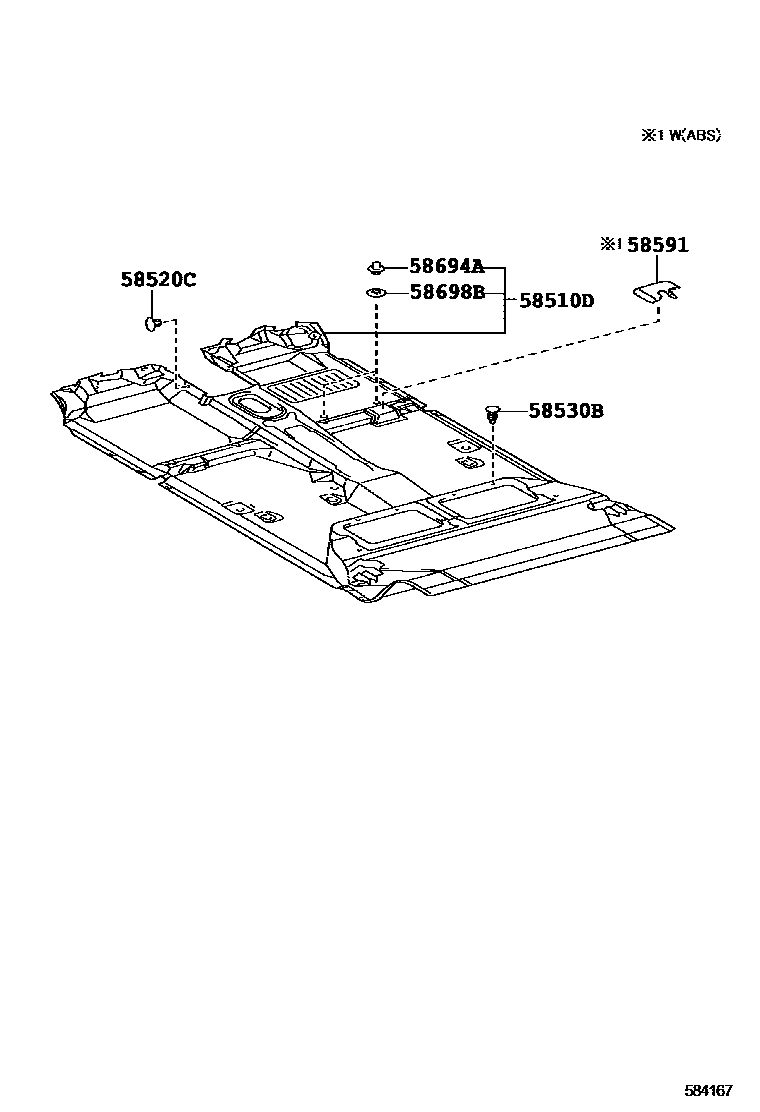

Toyota HILUX 地板垫和消声垫 EPC diagram — 584167
地板垫和消声垫 — 584167 (201107 – 999999)

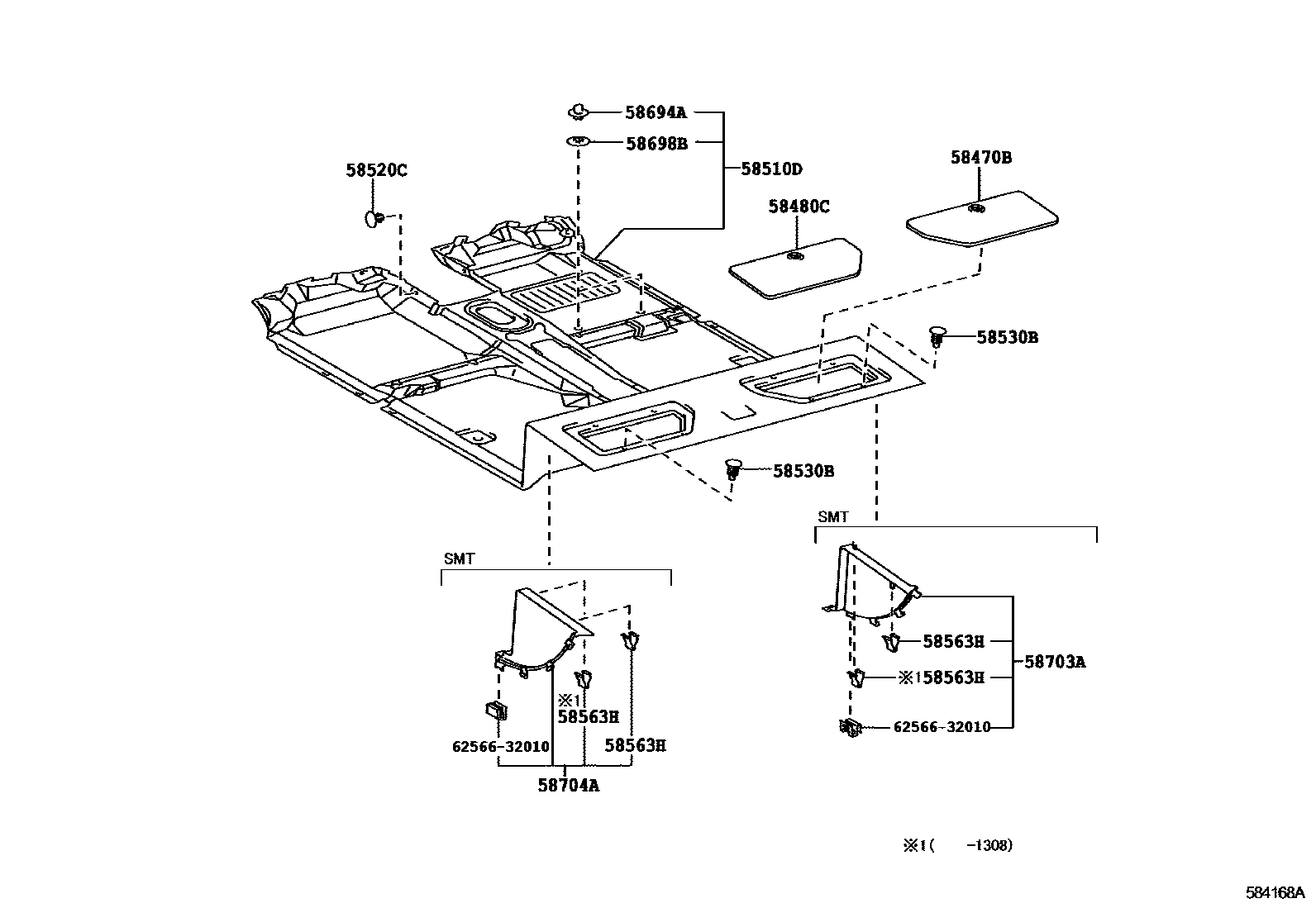

Toyota HILUX 地板垫和消声垫 EPC diagram — 584168A
地板垫和消声垫 — 584168A (201107 – 999999)
Toyota HILUX 地板垫和消声垫 EPC diagram — 584598
地板垫和消声垫 — 584598 (201110 – 999999)
Toyota HILUX 地板垫和消声垫 EPC diagram — 584608
地板垫和消声垫 — 584608 (201110 – 999999)

PNC and OE references

PNCPart nameOE numbers
58520CClip (for front carpet)90467-T0014
58563HClip (for rear floor mat)90468-05125
58694APad the fixing plate58694-76010
58698BFixing plate under the pad58698-76010
