Toyota HILUX 后地板和后地板梁 — Figure 5852

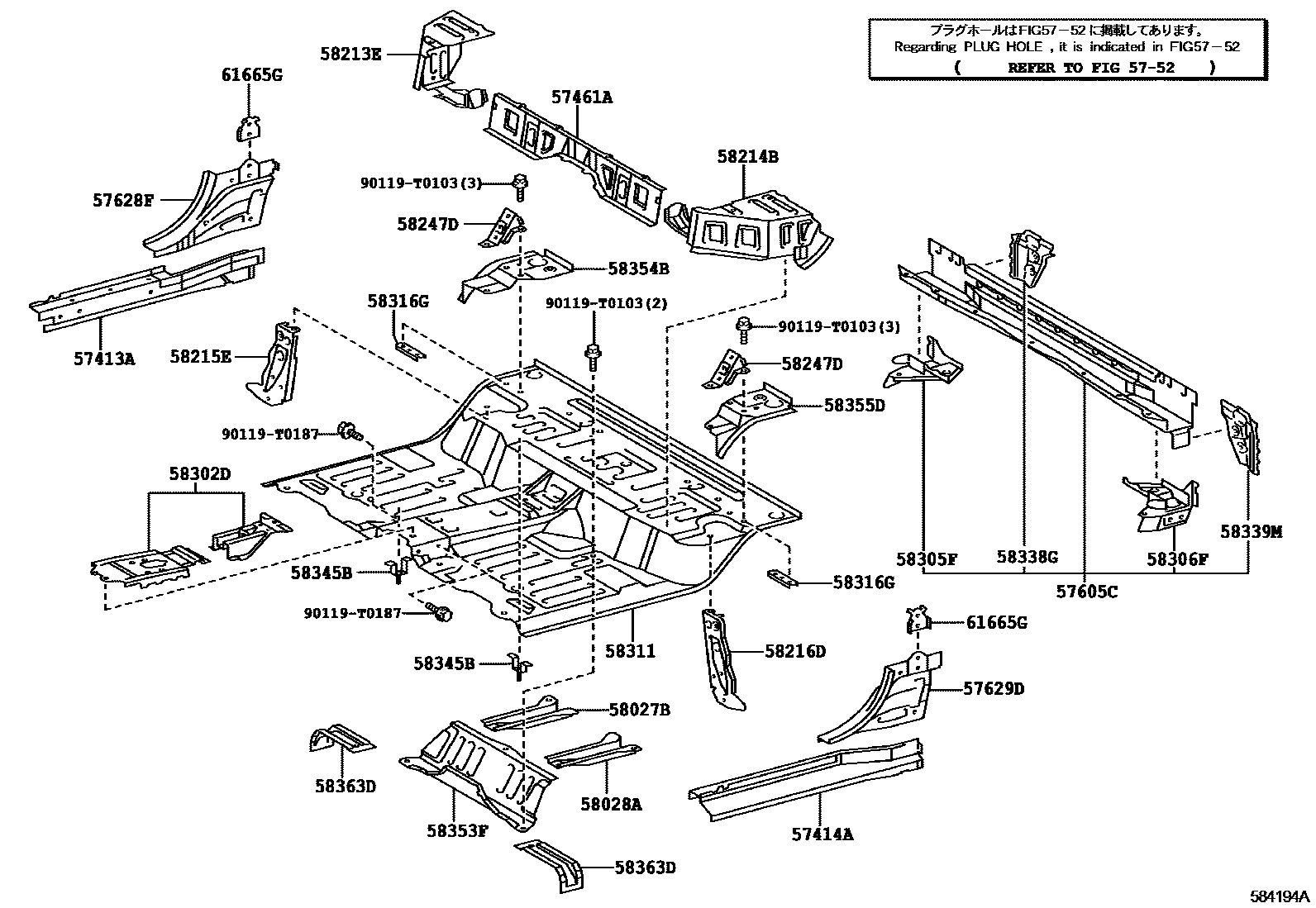

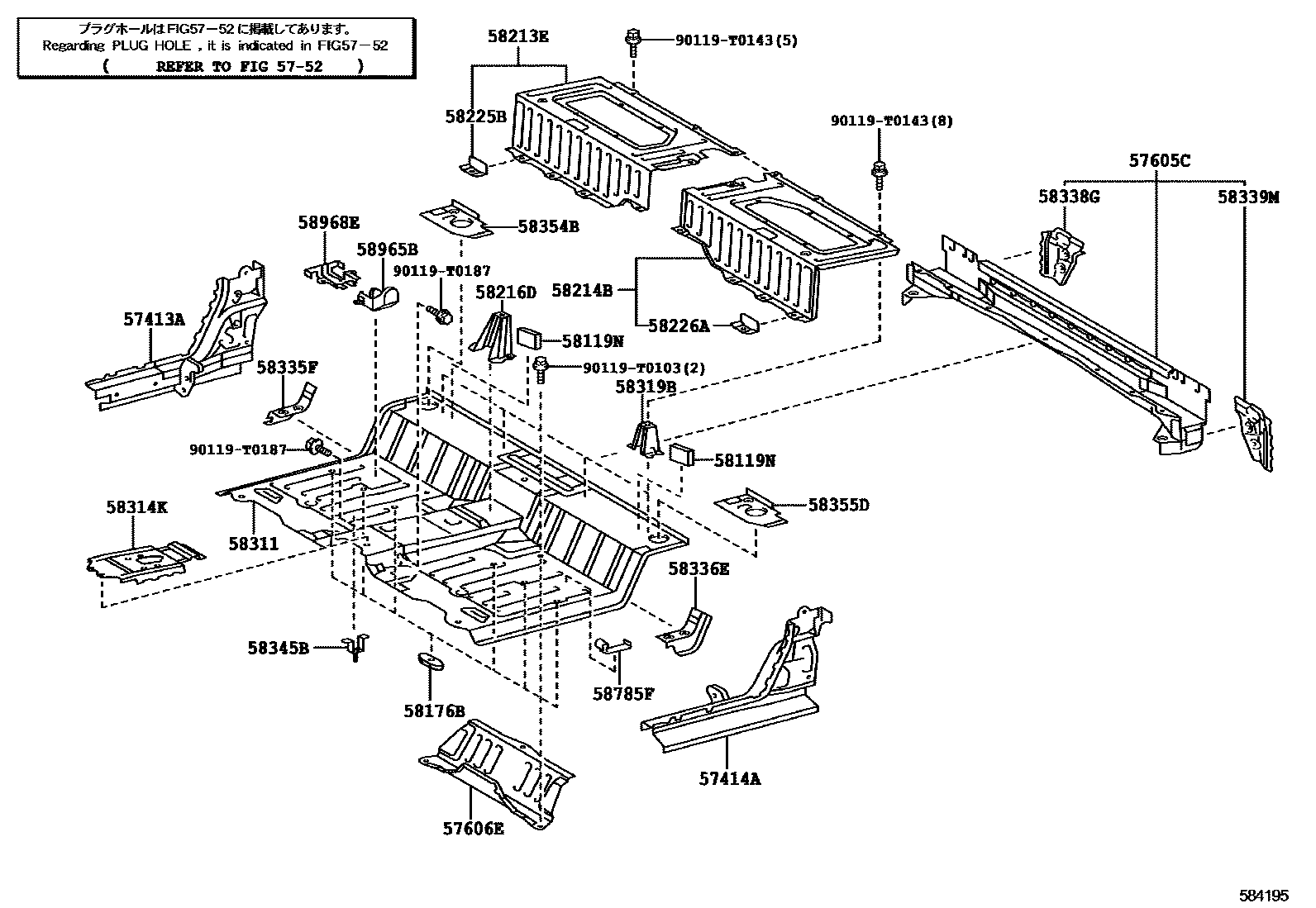

Toyota HILUX EPC diagram 5852, 后地板和后地板梁, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57413A | Rear floor right inner longitudinal beam | 57403-0K020 · 57403-0K030 · 57413-0K010 |
| 57414A | Rear floor left inner longitudinal beam | 57404-0K020 · 57404-0K030 · 57414-0K010 |
| 57461A | central floor beam | 57461-0K010 |
| 57605C | Rear floor cross member sub-assembly | 57605-0K010 · 57605-0K020 · 57605-0K030 · 57605-0K040 · 57605-0K050 · 57605-0K060 |
| 57606E | Rear floor No. 2 cross member sub-assembly | 57606-0K010 · 57606-0K020 |
| 57628F | Rear floor right longitudinal beam plate | 57628-0K010 · 57628-0K060 |
| 57629D | Rear floor left longitudinal beam plate | 57629-0K010 · 57629-0K060 |
| 58027B | Seat belt anchor reinforcement sub-assembly | 58027-0K010 |
| 58028A | No. 2 seat belt anchor reinforcement sub-assembly | 58028-0K010 · 58028-0K020 |
| 58119N | Rear floor cushion | 58119-0K010 |
| 58176B | Rear seat fixing nut piece | 58176-0K010 · 58176-0K020 |
| 58213E | Right seat floor side panel | 58201-0K010 · 58201-0K021 |
| 58214B | Left seat floor side panel | 58202-0K010 · 58202-0K021 |
| 58215E | Rear right seat mounting bracket | 58215-0K010 |
| 58216D | Rear left seat mounting bracket | 58216-0K010 · 58216-0K020 |
| 58225B | Front floor lower right side panel | 58225-35020 |
| 58226A | Front floor lower left side panel | 58225-35020 |
| 58247D | Rear right seat outer hinge bracket | 58247-0K010 |
| 58302D | Rear floor front panel sub-assembly | 58302-0K010 |
| 58305F | Rear floor right side panel sub-assembly | 58305-0K010 |
| 58306F | Rear floor left side panel sub-assembly | 58306-0K010 |
| 58311 | rear floor pan | 58311-0K010 · 58311-0K020 · 58311-0K030 · 58311-0K040 · 58311-0K050 · 58311-0K090 · 58311-0K100 · 58311-0K170 · 58311-0K180 · 58311-0K190 · 58311-0K200 |
| 58314K | Rear floor center panel | 58314-0K010 |
| 58316G | Rear seat No. 1 fixed parts | 58316-0K010 · 58316-KK010 |
| 58319B | Rear floor side panel bracket | 58319-0K010 · 58319-KK010 |
| 58335F | Front floor right panel | 58335-0K021 |
| 58336E | Front floor left panel | 58336-0K021 |
| 58338G | Cab rear suspension right rear corner panel | 58338-0K010 |
| 58339M | Cab rear mounting left rear corner panel | 58339-0K010 |
| 58345B | Rear floor insulation pad bracket No. 1 | 58345-0K010 |
| 58353F | Rear floor reinforcement No. 3 | 58353-0K010 |
| 58354B | Rear floor reinforcement No. 4 | 58354-0K010 · 58354-0K020 · 58354-0K060 |
| 58355D | Rear floor reinforcement No. 5 | 58355-0K010 · 58355-0K020 · 58355-0K060 |
| 58363D | Rear floor No. 2 right reinforcement | 58363-0K010 |
| 58785F | Tool bag strap holder | 58785-89106 |
| 58965B | Jack holder | 58965-0K030 |
| 58968E | Jack stand No. 2 | 58968-0K010 |
| 61665G | Right seat belt anchor to side wheel arch reinforcement | 61665-0K010 |
