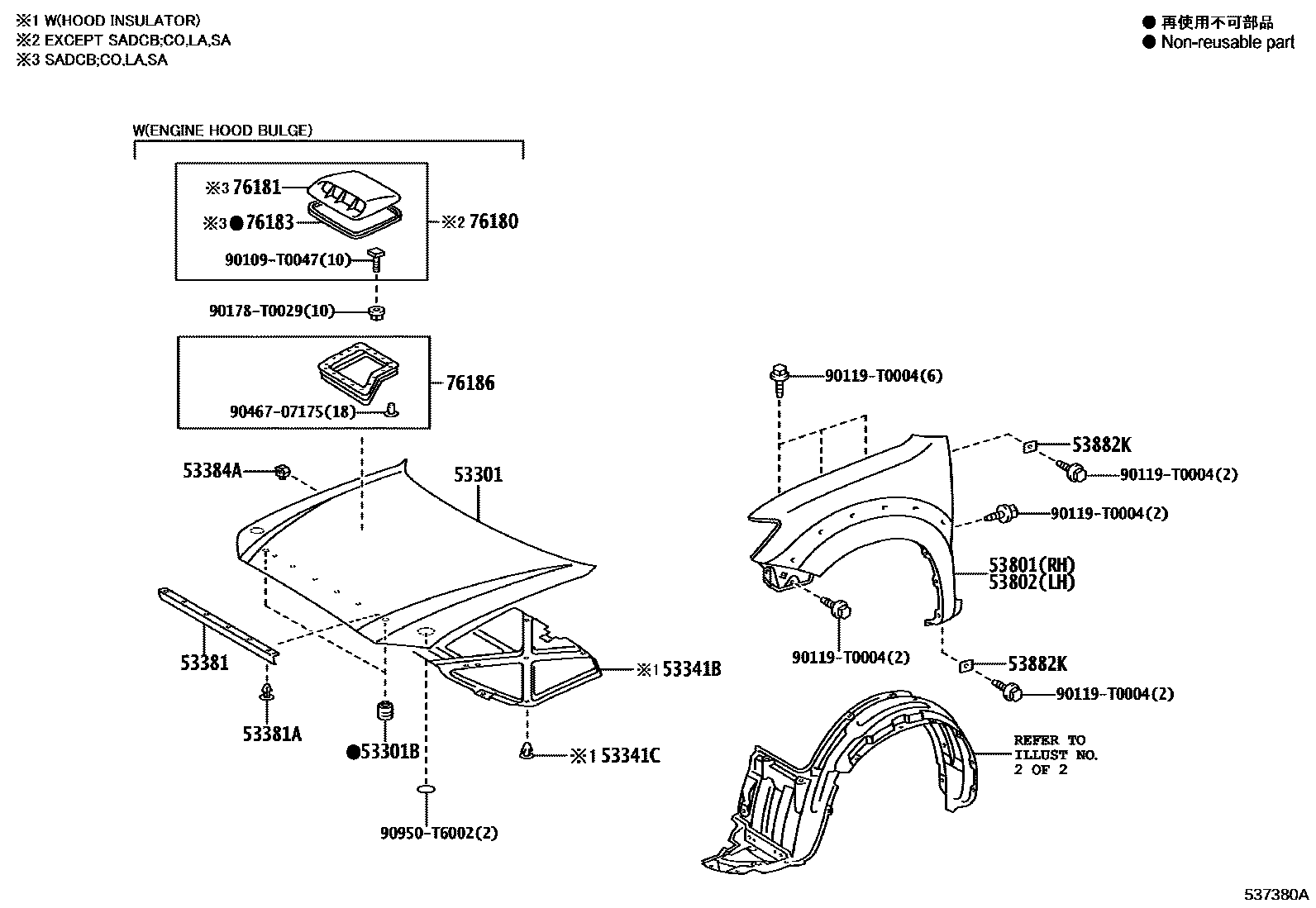

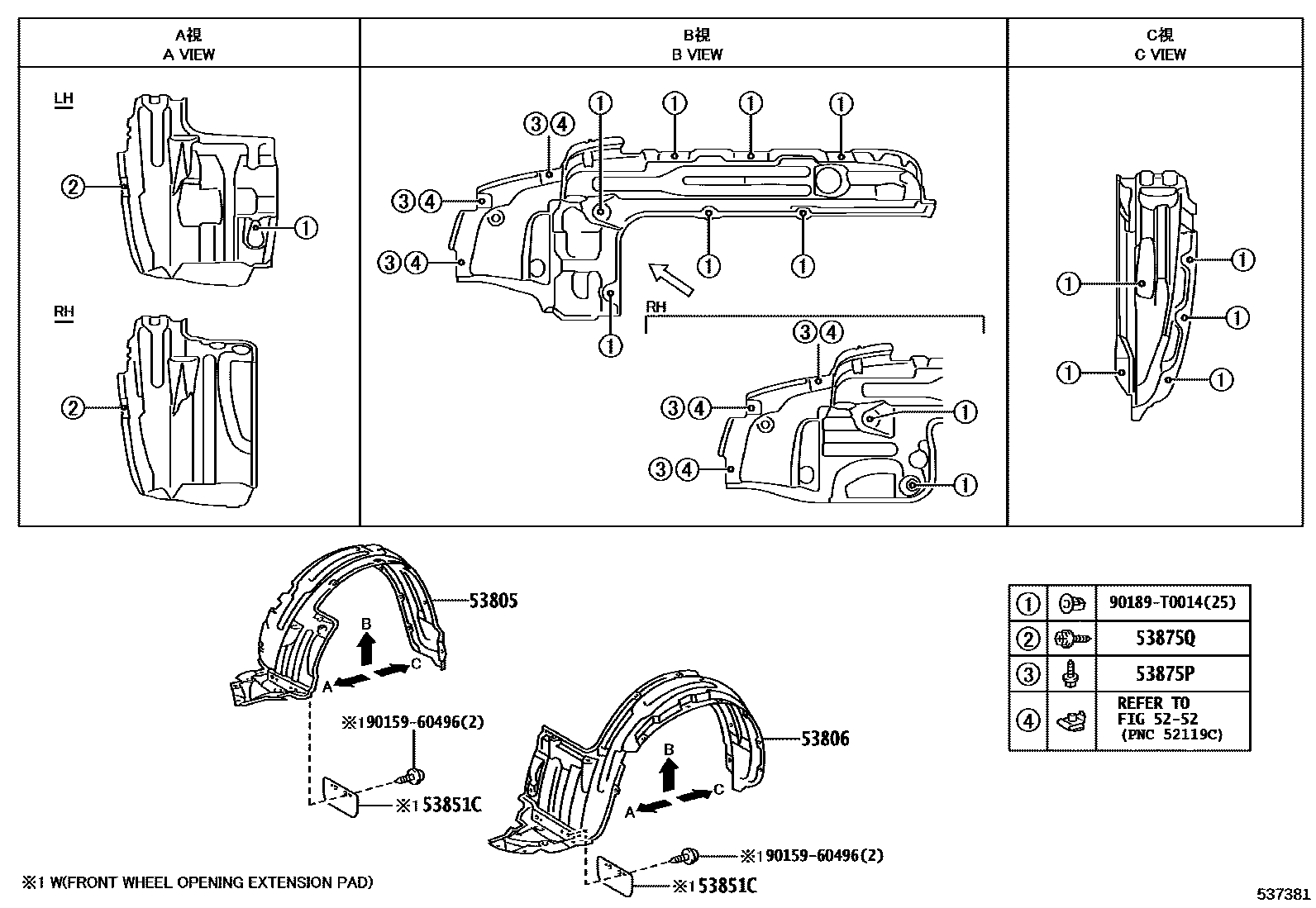

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-0K100 · 53301-0K101 · 53301-0K110 · 53301-0K111 |
| 53301B | engine cover cushion | 90541-09143 |
| 53341B | engine cover gasket | 53341-0K140 · 53341-0K150 · 53341-0K190 · 53341-0K200 |
| 53341C | Clip (for engine cover gasket) | 90467-T0014 |
| 53381 | Engine cover to radiator bracket seal | 53381-0K010 · 53381-0K030 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-T0013 |
| 53384A | fender to engine cover buffer block | 53384-0K010 |
| 53801 | Right front fender sub-assembly | 53811-0K080 · 53811-0K090 · 53811-0K100 · 53811-0K110 |
| 53802 | Left front fender sub-assembly | 53812-0K080 · 53812-0K090 · 53812-0K100 · 53812-0K110 |
| 53805 | Right front fender splash guard sub-assembly | 53805-0K050 · 53875-0K140 |
| 53806 | Left front fender splash guard sub-assembly | 53806-0K070 · 53876-0K150 |
| 53851C | No. 1 front fender outer panel pad | 53851-0K070 |
| 53875P | Screw No. 1 | 90159-60217 |
| 53875Q | No. 2 screw | 90159-60603 |
| 53882K | front fender seal | 53882-0D010 · 53882-0K020 |
| 76180 | Engine cover boss assembly | 76180-0K909 |
| 76181 | hood bulge | 76181-0K904 · 76181-0K905 |
| 76183 | Engine cover bump protector No. 1 | 76183-0K020 |
| 76186 | Engine cover air intake seal | 76186-0K030 · 76186-0K040 |
