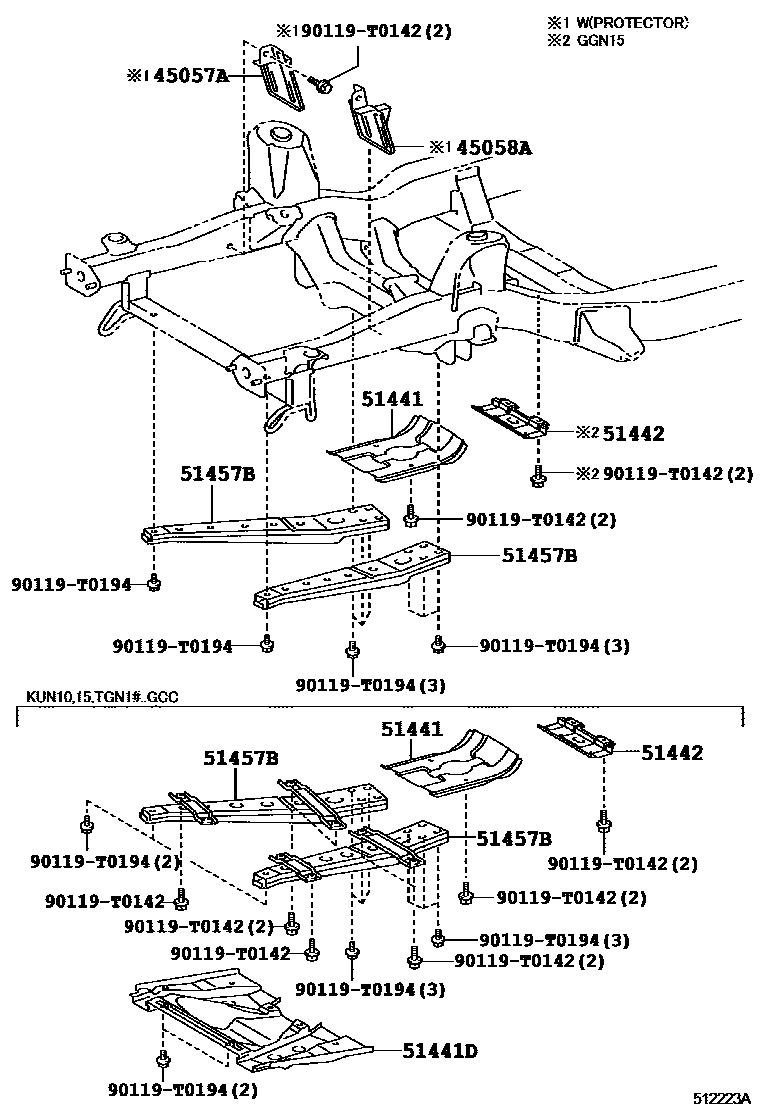

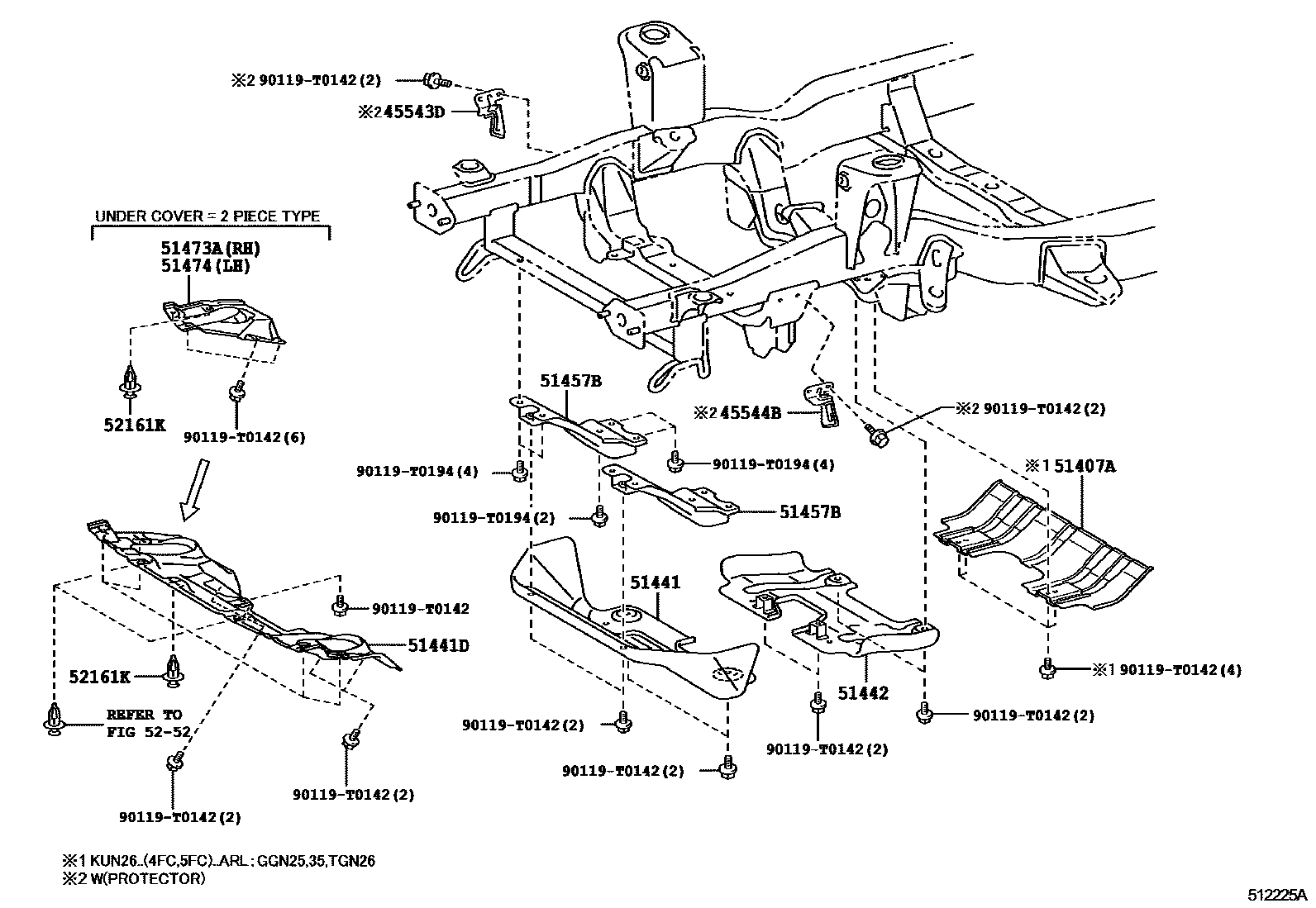

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45057A | No. 1 rack dust boot right side protective cover sub-assembly | 45057-0K010 |
| 45058A | No. 1 rack dust boot left protective cover sub-assembly | 45058-0K010 |
| 45543D | Steering rack dust boot right side protective cover | 45543-0K020 |
| 45544B | Steering rack dust boot left protective cover | 45544-0K020 |
| 51407A | No. 3 engine bottom cover sub-assembly | 51407-0K020 |
| 51441 | No. 1 engine bottom cover | 51410-0K021 · 51441-0K020 |
| 51441D | engine cover | 51441-0K040 · 51441-0K050 |
| 51442 | No. 2 engine bottom cover | 51420-0K010 · 51420-0K040 · 51442-0K030 |
| 51457B | Bracket from front longitudinal beam to front suspension cross member | 51405-0K010 · 51405-0K020 · 51405-0K030 · 51405-0K040 |
| 51473A | Engine right side cover sub-assembly | 51473-0K010 |
| 51474 | Engine left side cover sub-assembly | 51474-0K010 |
| 52161K | front bumper insert | 52161-0K050 |
