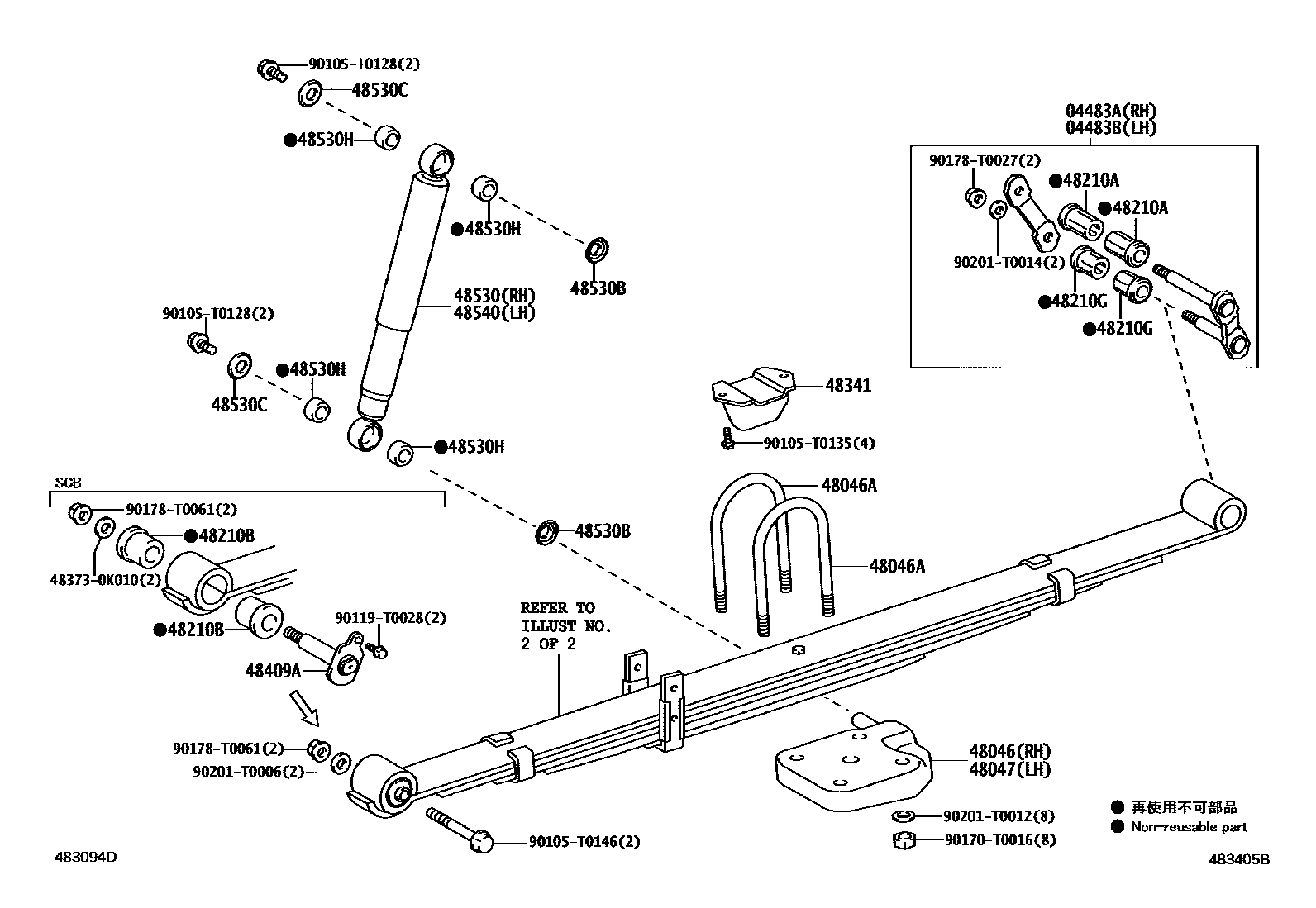

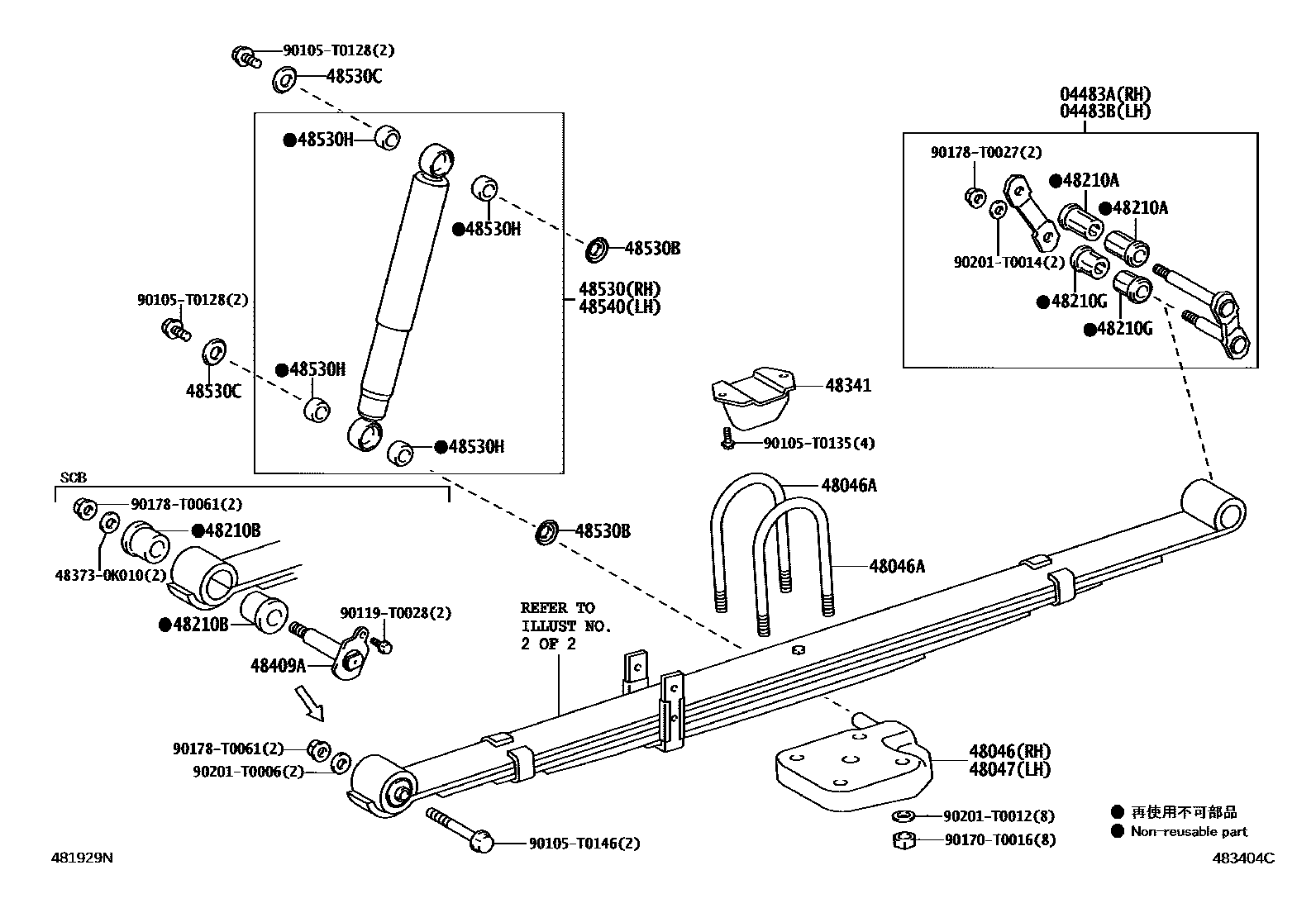

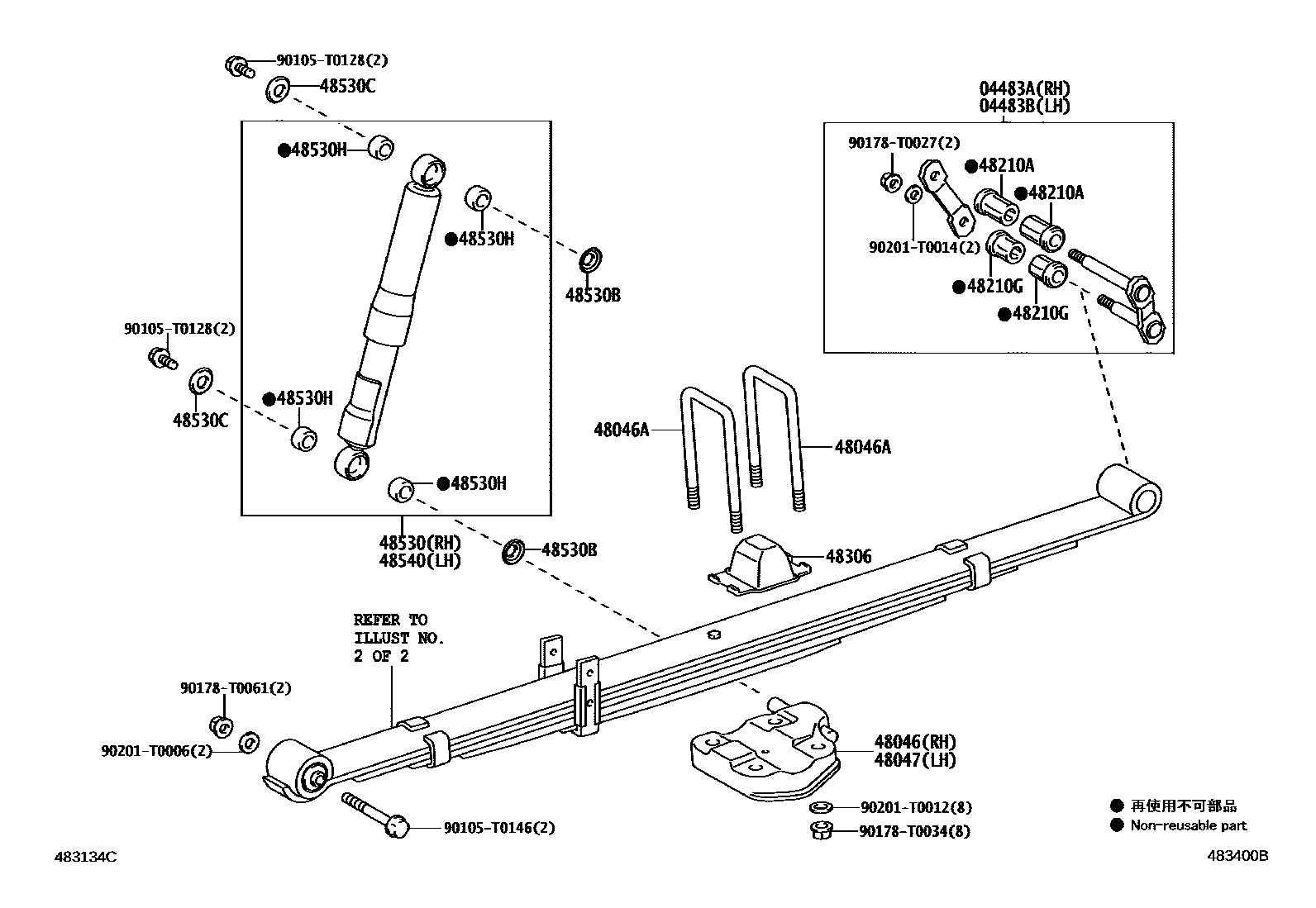

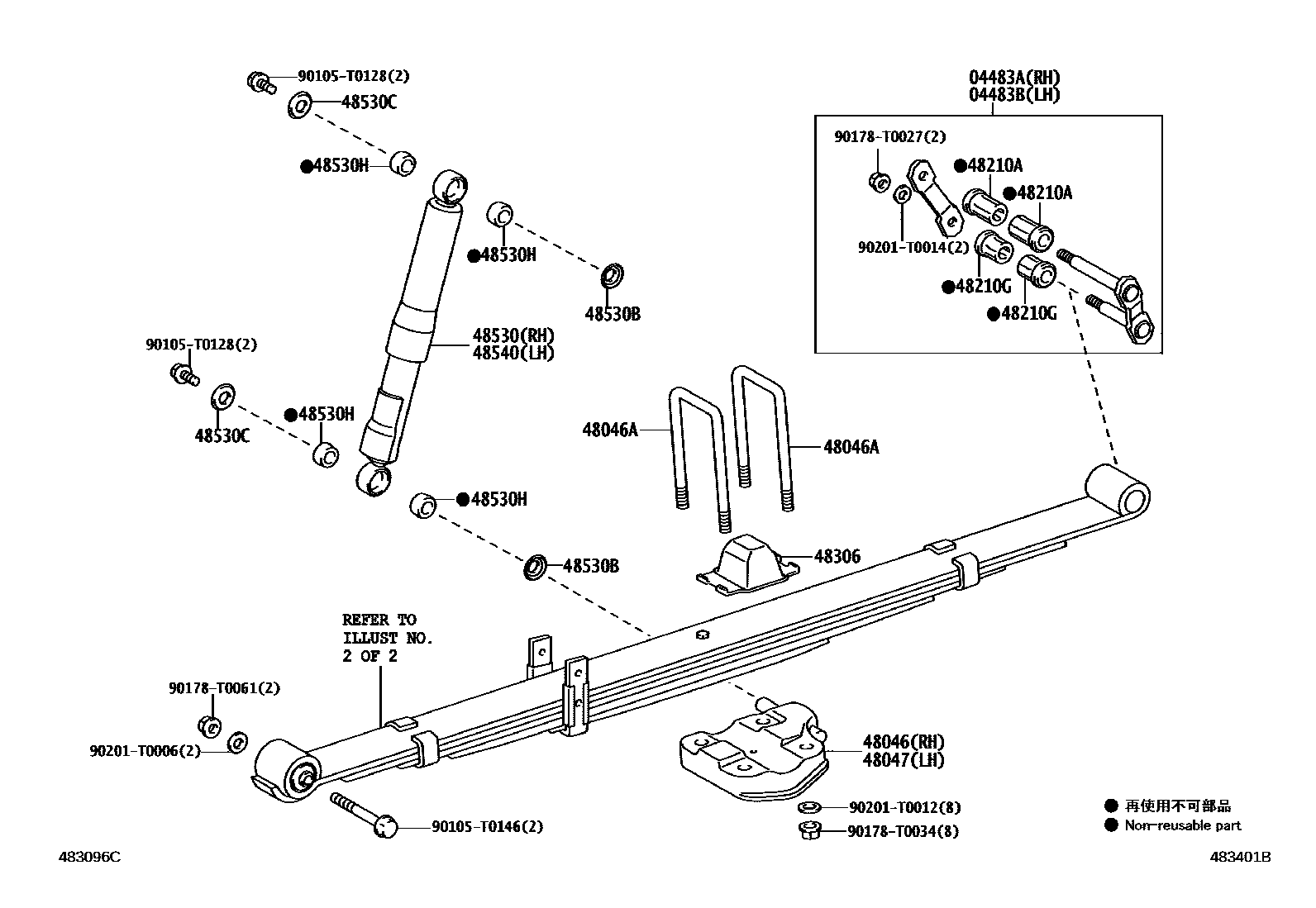

Toyota HILUX Rear Spring & Shock Absorber — Figure 4804

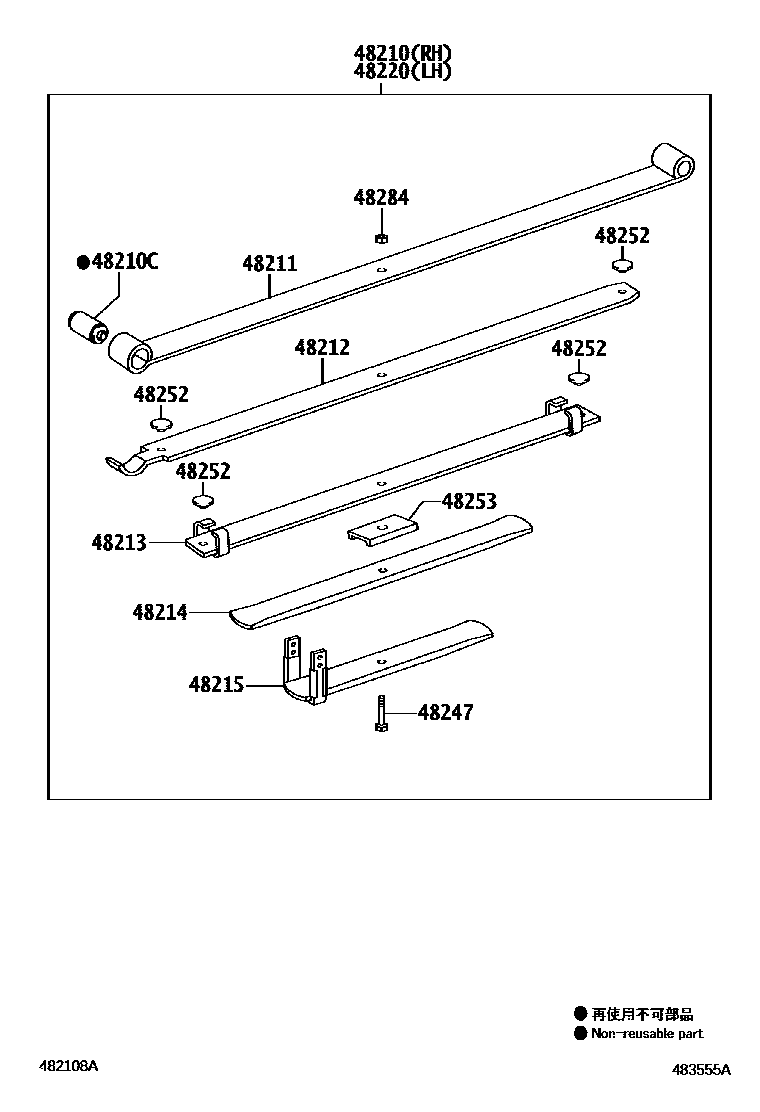

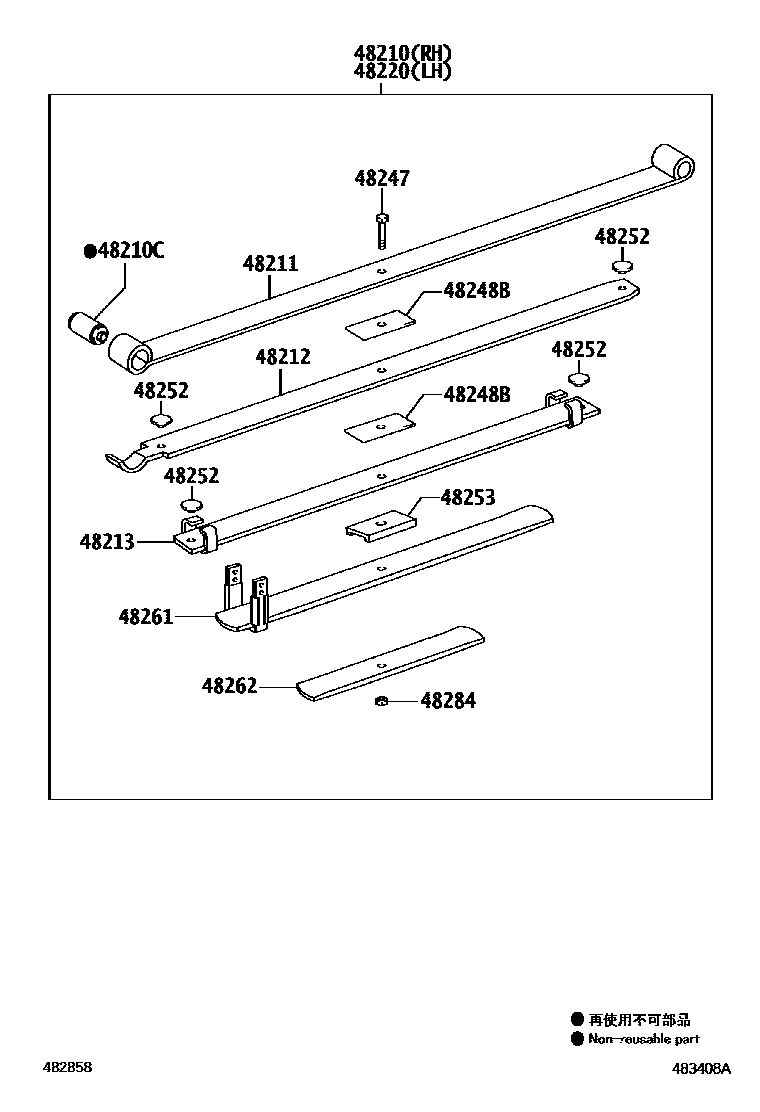

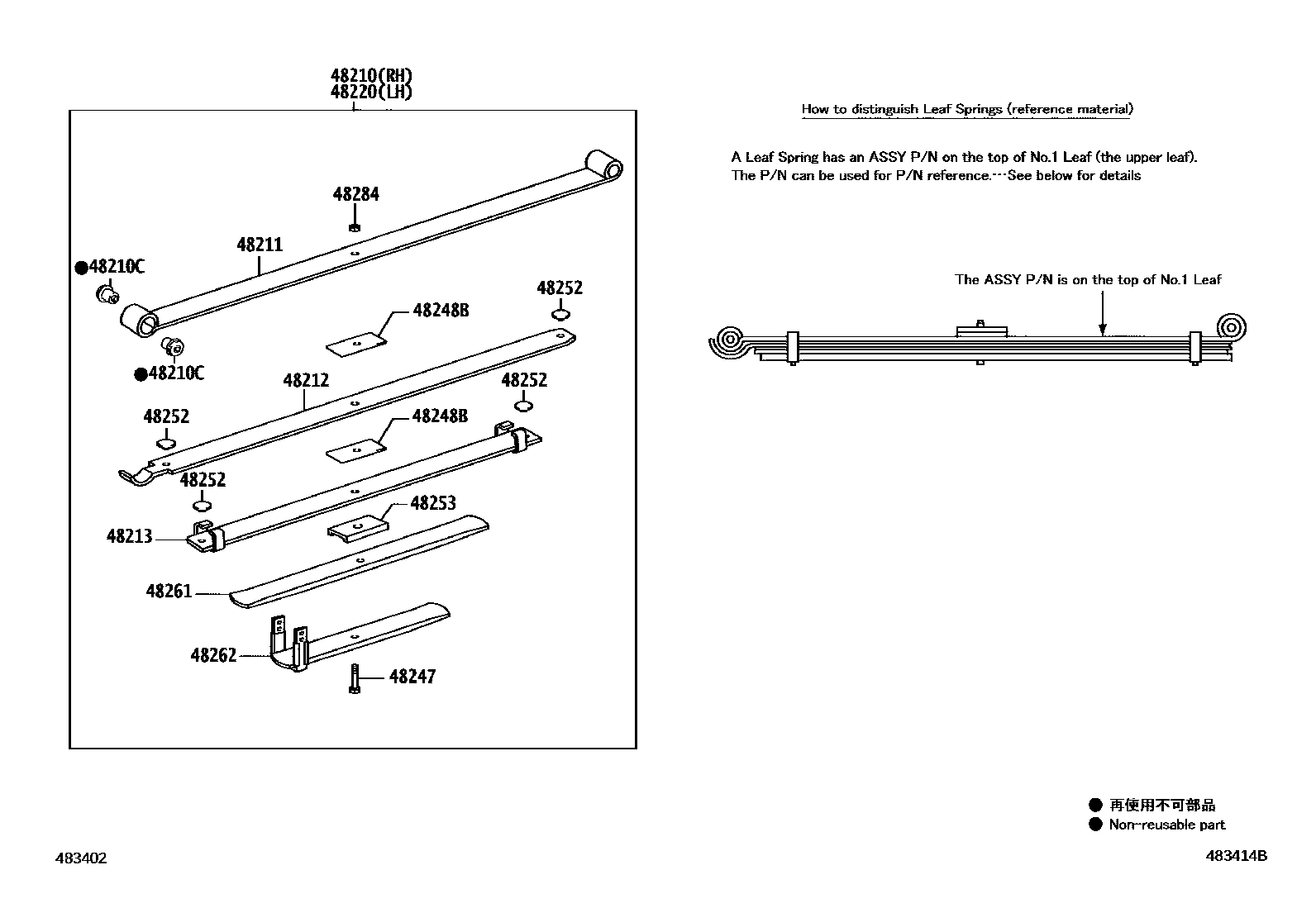

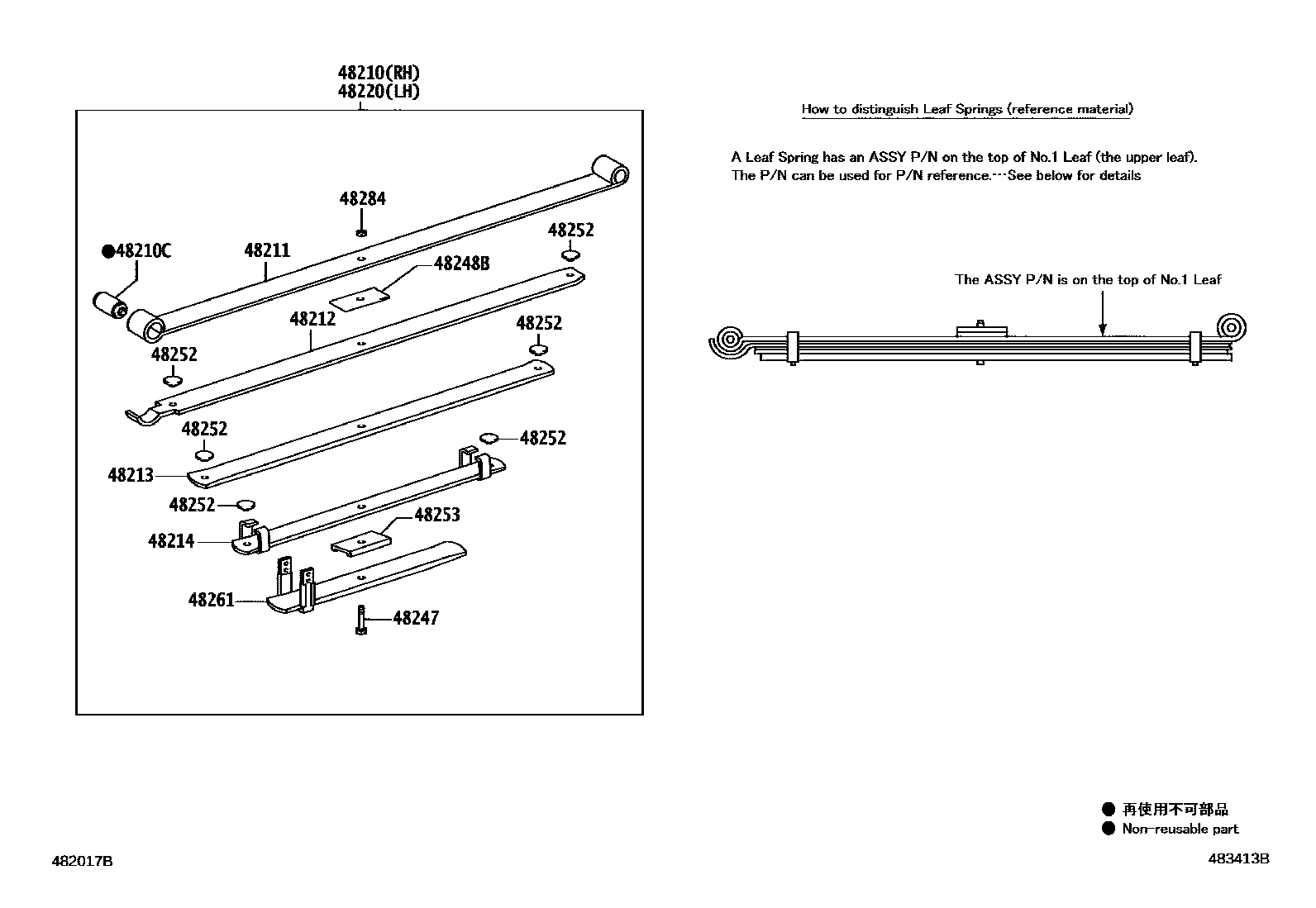

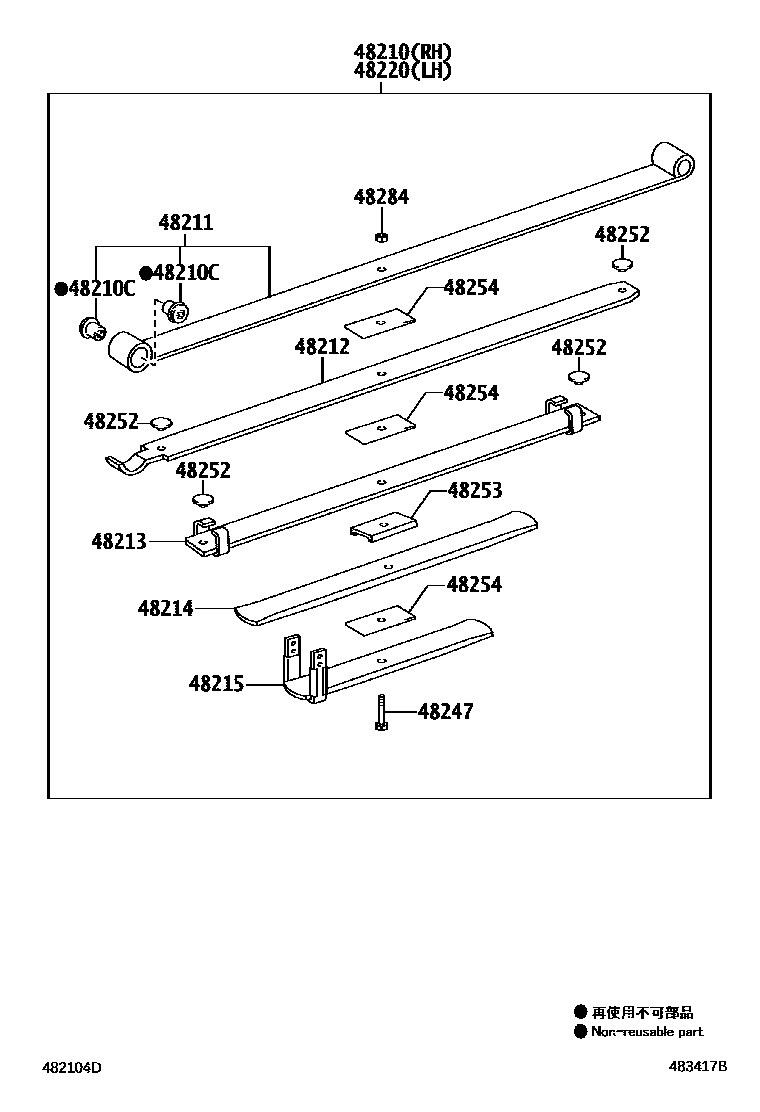

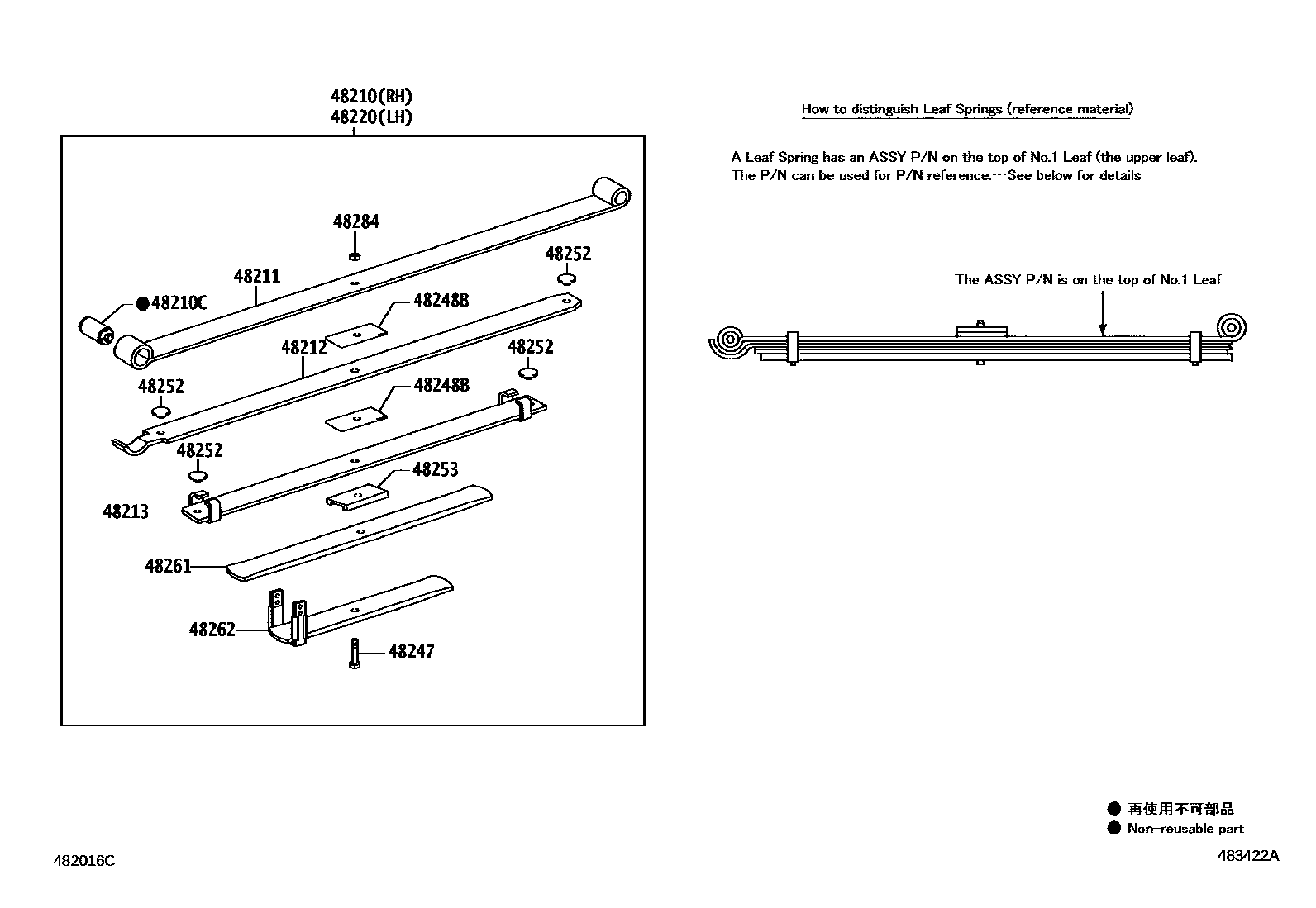

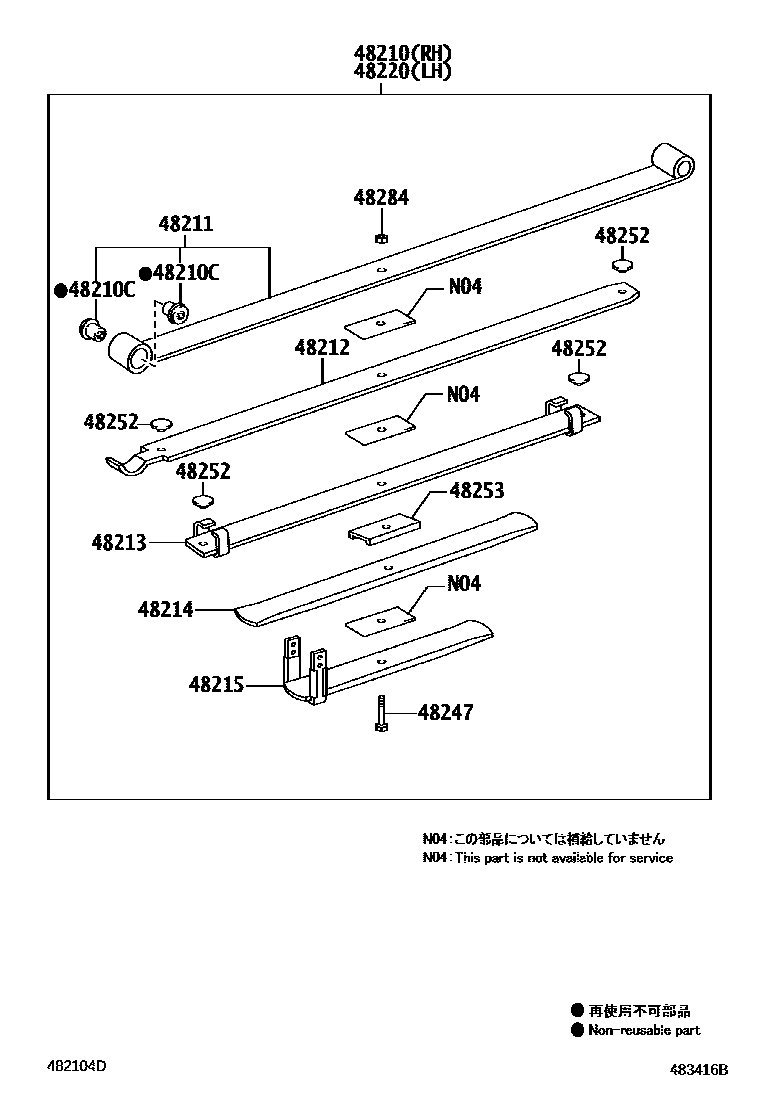

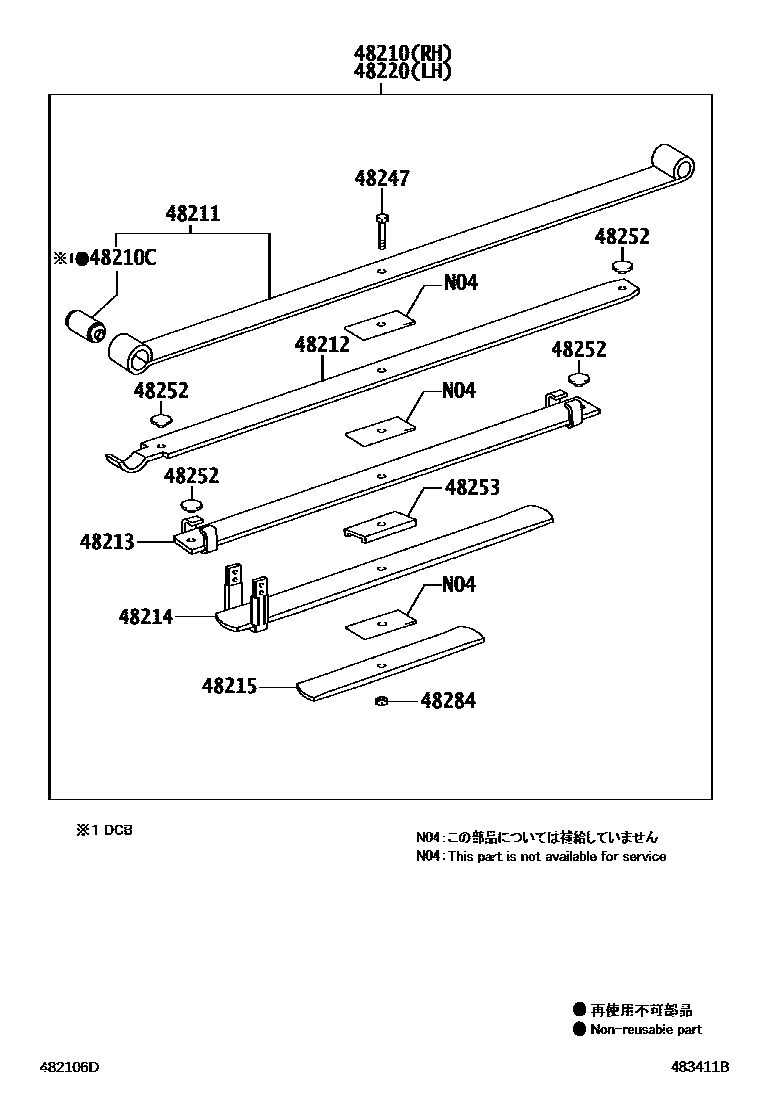

Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 17 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483A | Right rear spring lifting lug assembly | 04483-0K050 |
| 04483B | Left rear spring lifting lug assembly | 04483-0K050 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-0K011 · 48046-0K020 |
| 48046A | U-bolt (for rear spring) | 90117-T0002 · 90117-T0003 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-0K011 · 48046-0K020 |

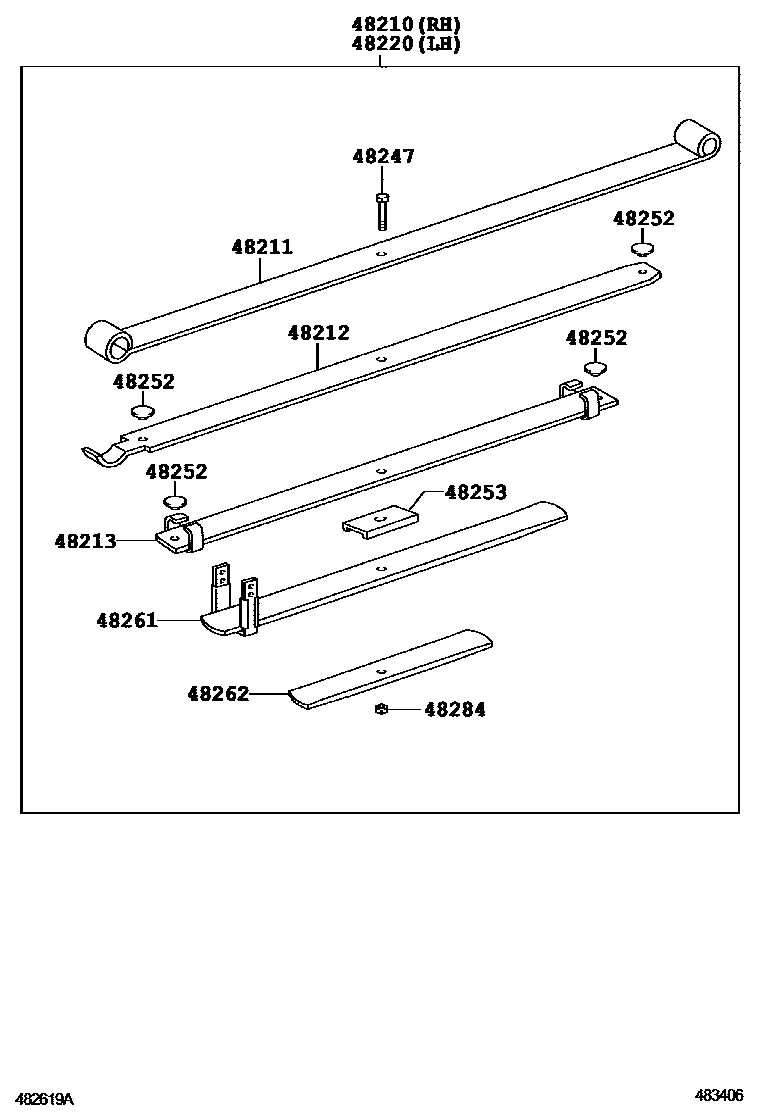

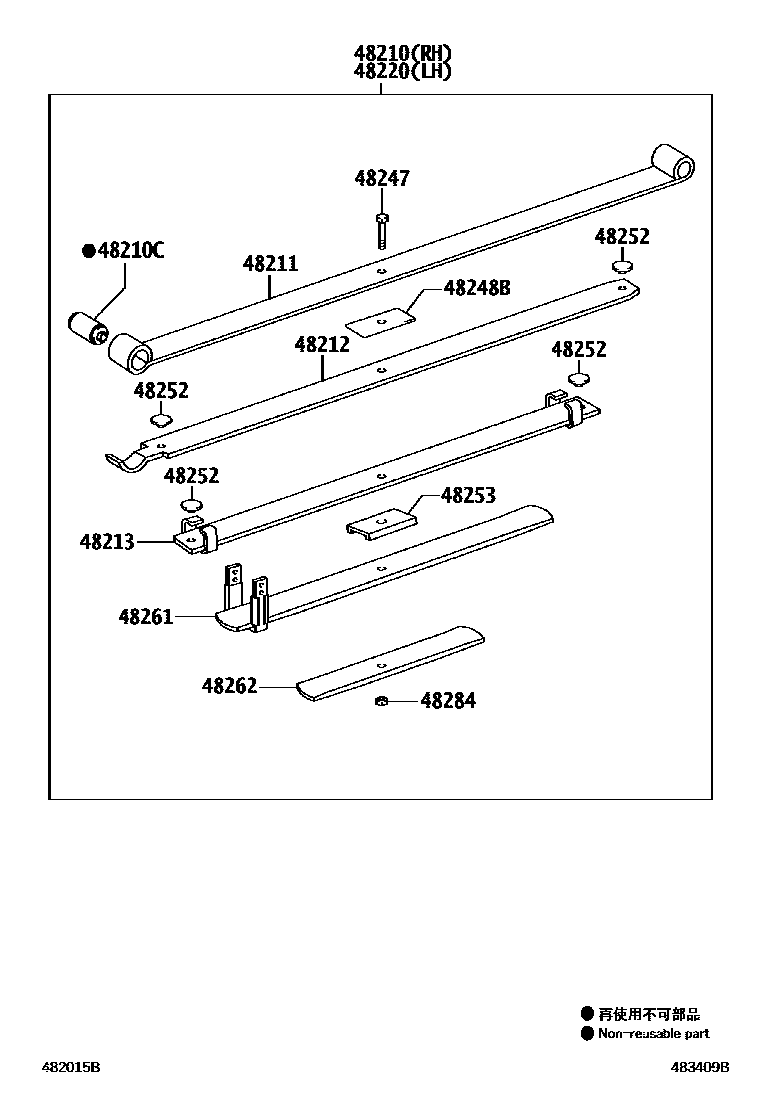

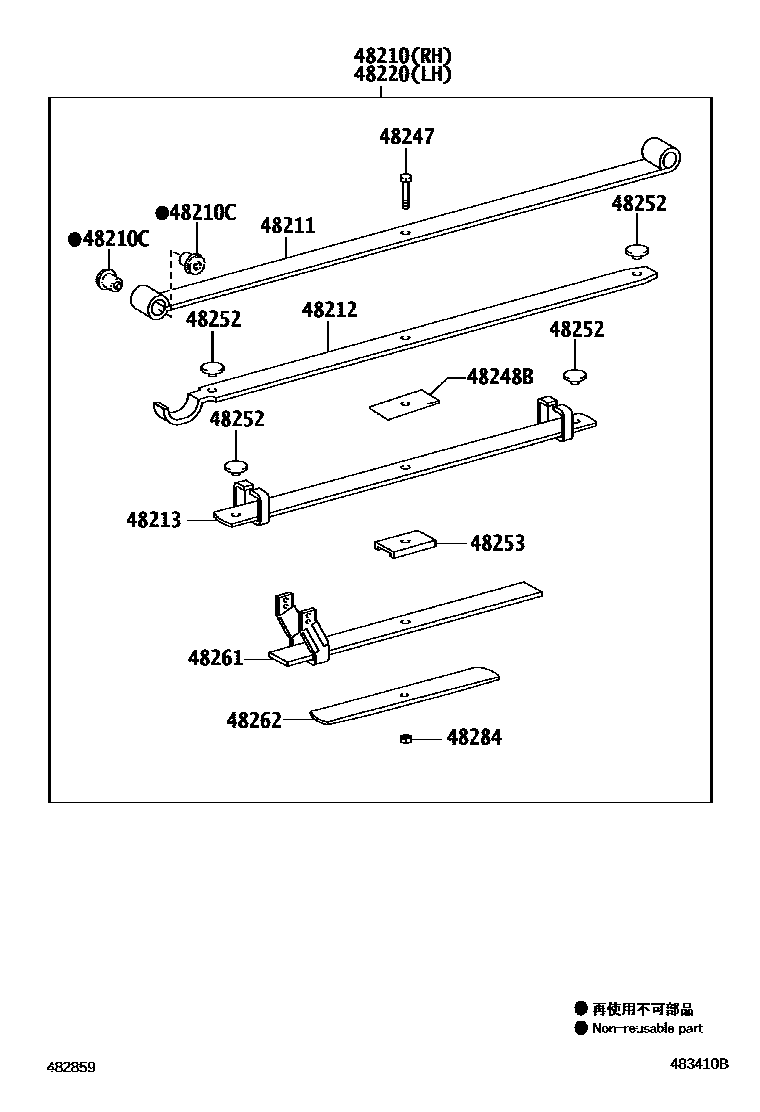

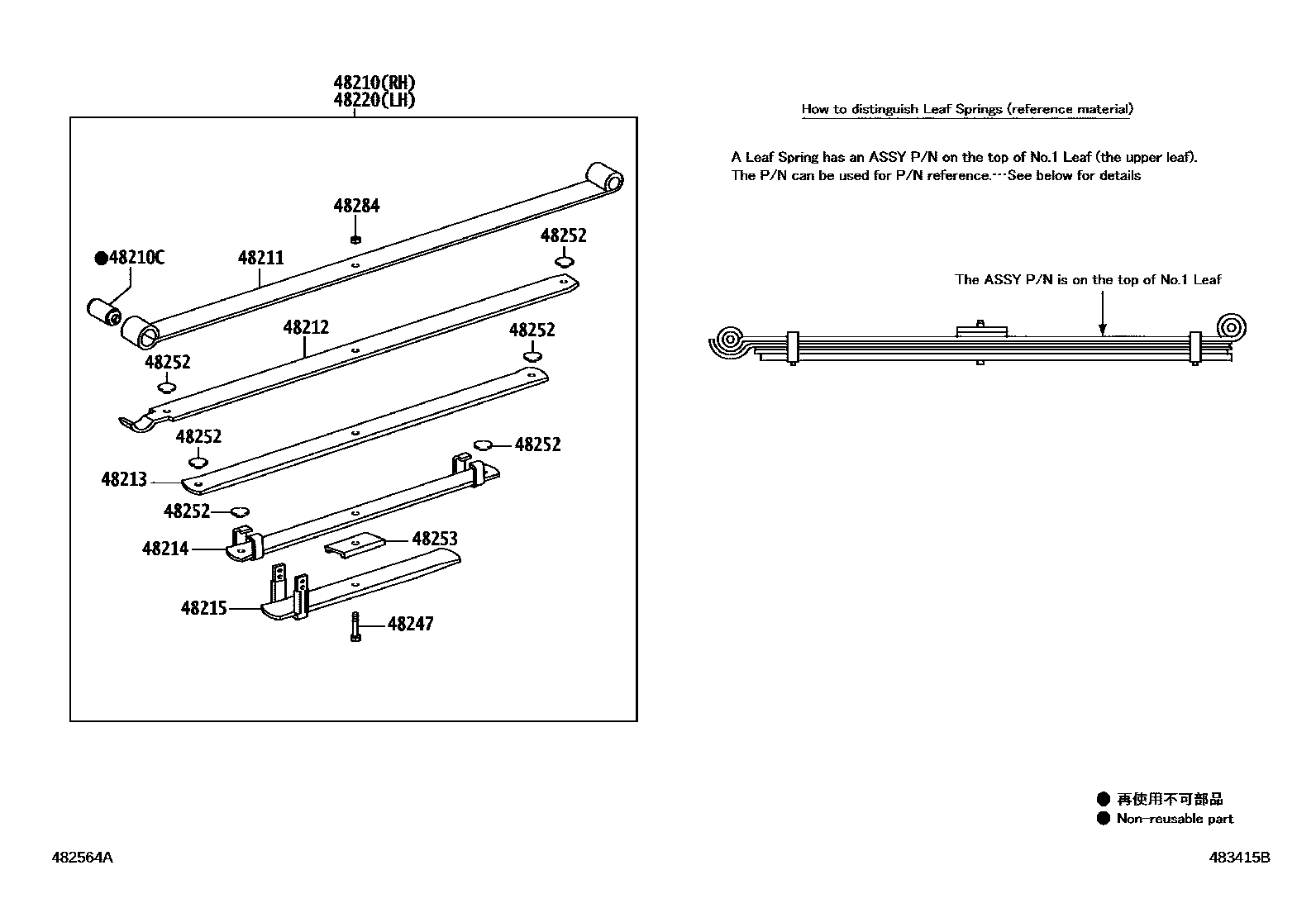

| 48210 | Right rear spring assembly | 48210-0K010 · 48210-0K020 · 48210-0K030 · 48210-0K040 · 48210-0K050 · 48210-0K060 · 48210-0K070 · 48210-0K081 · 48210-0K110 · 48210-0K122 · 48210-0K130 · 48210-0K150 · 48210-0K160 · 48210-0K170 · 48210-0K210 · 48210-0K220 · 48210-0K231 · 48210-0K240 · 48210-0K251 · 48210-0K280 · 48210-0K290 · 48210-0K300 · 48210-0K410 · 48210-0K780 |
| 48210A | Upper bushing (for rear spring lug) | 90385-T0001 · 90385-T0009 |
| 48210B | Bushing (for rear spring pin) | 90385-T0008 |
| 48210C | Bushing (for rear leaf spring) | 90080-38152 · 90389-T0005 · 90389-T0009 |
| 48210G | Lower bushing (for rear spring lug) | 90385-T0002 · 90385-T0010 |
| 48211 | No. 1 rear leaf spring | 48201-0K020 · 48201-0K030 · 48201-0K060 · 48201-0K070 · 48201-0K130 · 48201-0K210 · 48201-0K220 · 48211-0K010 · 48211-0K040 · 48211-0K050 · 48211-0K080 · 48211-0K110 · 48211-0K121 · 48211-0K150 · 48211-0K160 · 48211-0K170 · 48211-0K230 · 48211-0K240 · 48211-0K251 · 48211-0K280 · 48211-0K300 · 48211-0K410 · 48211-0K780 |
| 48212 | No. 2 rear leaf spring | 48212-0K010 · 48212-0K020 · 48212-0K030 · 48212-0K040 · 48212-0K050 · 48212-0K060 · 48212-0K070 · 48212-0K081 · 48212-0K110 · 48212-0K121 · 48212-0K130 · 48212-0K150 · 48212-0K160 · 48212-0K170 · 48212-0K210 · 48212-0K220 · 48212-0K231 · 48212-0K240 · 48212-0K251 · 48212-0K280 · 48212-0K300 · 48212-0K410 · 48212-0K780 |
| 48213 | No. 3 rear leaf spring | 48201-0K010 · 48204-0K020 · 48204-0K030 · 48204-0K060 · 48204-0K070 · 48204-0K150 · 48204-0K210 · 48204-0K220 · 48213-0K040 · 48213-0K050 · 48213-0K080 · 48213-0K110 · 48213-0K121 · 48213-0K130 · 48213-0K160 · 48213-0K170 · 48213-0K230 · 48213-0K240 · 48213-0K251 · 48213-0K280 · 48213-0K300 · 48213-0K410 · 48213-0K780 |
| 48214 | No. 4 rear leaf spring | 48205-0K130 · 48214-0K040 · 48214-0K050 · 48214-0K110 · 48214-0K121 · 48214-0K160 · 48214-0K170 · 48214-0K240 · 48214-0K251 · 48214-0K280 · 48214-0K410 |
| 48215 | No. 5 rear leaf spring | 48215-0K040 · 48215-0K050 · 48215-0K110 · 48215-0K121 · 48215-0K160 · 48215-0K170 · 48215-0K240 · 48215-0K251 · 48215-0K280 · 48215-0K410 |
| 48220 | Left rear spring assembly | 48210-0K010 · 48210-0K020 · 48210-0K030 · 48210-0K040 · 48210-0K050 · 48210-0K060 · 48210-0K070 · 48210-0K081 · 48210-0K110 · 48210-0K122 · 48210-0K130 · 48210-0K150 · 48210-0K160 · 48210-0K170 · 48210-0K210 · 48210-0K220 · 48210-0K231 · 48210-0K240 · 48210-0K251 · 48210-0K280 · 48210-0K290 · 48210-0K300 · 48210-0K410 · 48210-0K780 |
| 48247 | rear spring center bolt | 48247-0K010 · 48247-0K040 · 48247-0K050 · 48247-0K070 · 48247-0K110 · 48247-0K120 · 48247-0K130 · 48247-0K160 · 48247-0K280 · 48247-0K310 · 48247-0K350 |
| 48248B | No. 3 rear spring spacer | 48248-0K020 |
| 48252 | rear spring muffler | 48252-0K010 · 48252-0K040 · 48252-0K120 · 48252-0K160 |
| 48253 | No. 1 rear spring spacer | 48253-0K010 · 48253-0K040 · 48253-0K120 · 48253-0K160 · 48253-0K300 |
| 48254 | rear leaf spring spacer | 48254-0K250 |
| 48261 | Rear auxiliary mechanism No. 1 leaf spring | 48207-0K010 · 48207-0K020 · 48207-0K030 · 48207-0K130 · 48207-0K150 · 48261-0K060 · 48261-0K070 · 48261-0K081 · 48261-0K210 · 48261-0K220 · 48261-0K231 · 48261-0K300 · 48261-0K780 |
| 48262 | Rear auxiliary mechanism No. 2 leaf spring | 48026-0K060 · 48026-0K070 · 48026-0K210 · 48026-0K220 · 48262-0K010 · 48262-0K020 · 48262-0K030 · 48262-0K080 · 48262-0K150 · 48262-0K230 · 48262-0K300 · 48262-0K780 |
| 48284 | Rear spring center bolt nut | 48284-0K010 · 48284-0K040 · 48284-0K120 · 48284-0K160 · 48284-0K310 |
| 48306 | Rear spring buffer block sub-assembly | 48306-0K010 · 48306-0K020 · 48306-0K030 |
| 48341 | Rear spring buffer block | 48341-0K010 · 48341-0K020 |
| 48409A | Rear spring bracket pin sub-assembly | 48409-0K010 · 48409-0K020 |
| 48530 | Right rear shock absorber assembly | 48531-09440 · 48531-09460 · 48531-09480 · 48531-09490 · 48531-09550 · 48531-09570 · 48531-09590 · 48531-09630 · 48531-09660 · 48531-09661 · 48531-09690 · 48531-09740 · 48531-09750 · 48531-09780 · 48531-09810 · 48531-09A10 · 48531-09A11 · 48531-09B10 · 48531-0K070 · 48531-0K080 · 48531-0K170 · 48531-0K180 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-T3001 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-T3002 |
| 48530H | Rear shock absorber bushing | 90385-T0004 |
| 48540 | Left rear shock absorber assembly | 48531-09440 · 48531-09480 · 48531-09570 · 48531-09590 · 48531-09630 · 48531-09690 · 48531-09740 · 48531-09750 · 48531-09810 · 48531-09B10 · 48531-0K070 · 48531-0K080 · 48541-09100 · 48541-09110 · 48541-09120 · 48541-09130 · 48541-09170 · 48541-09171 · 48541-09190 · 48541-09191 · 48541-0K050 · 48541-0K070 |
