Toyota HILUX 制动助力器和真空管 — Figure 4703

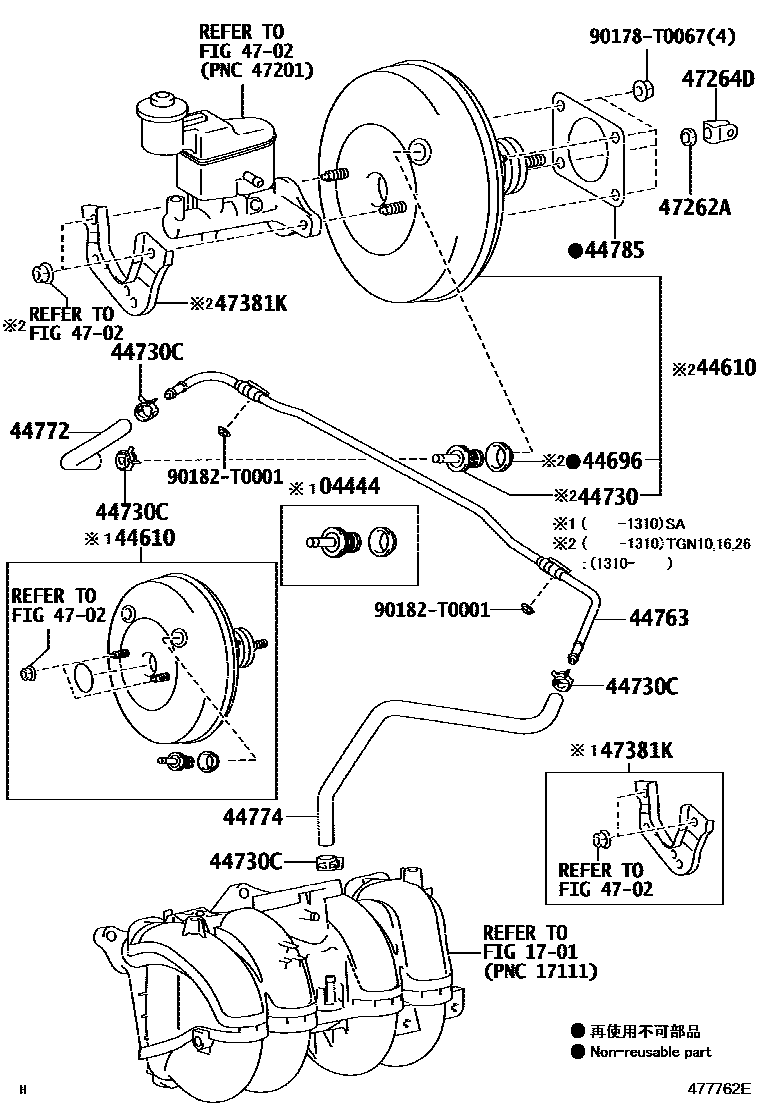

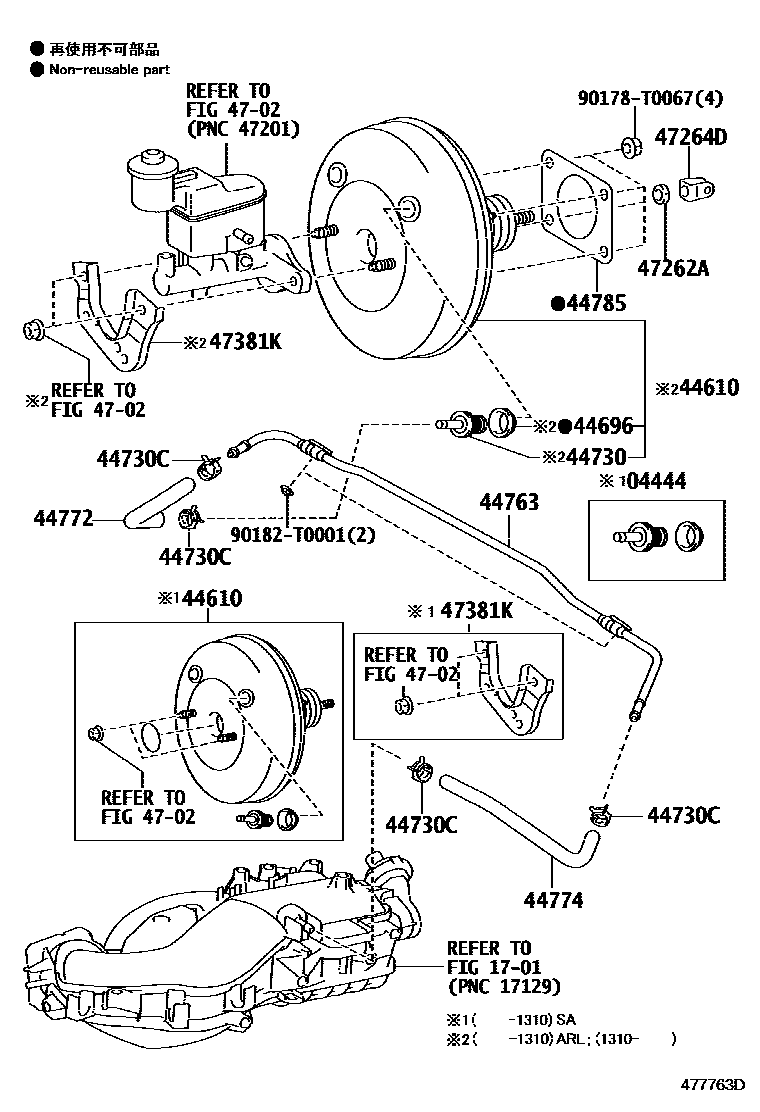

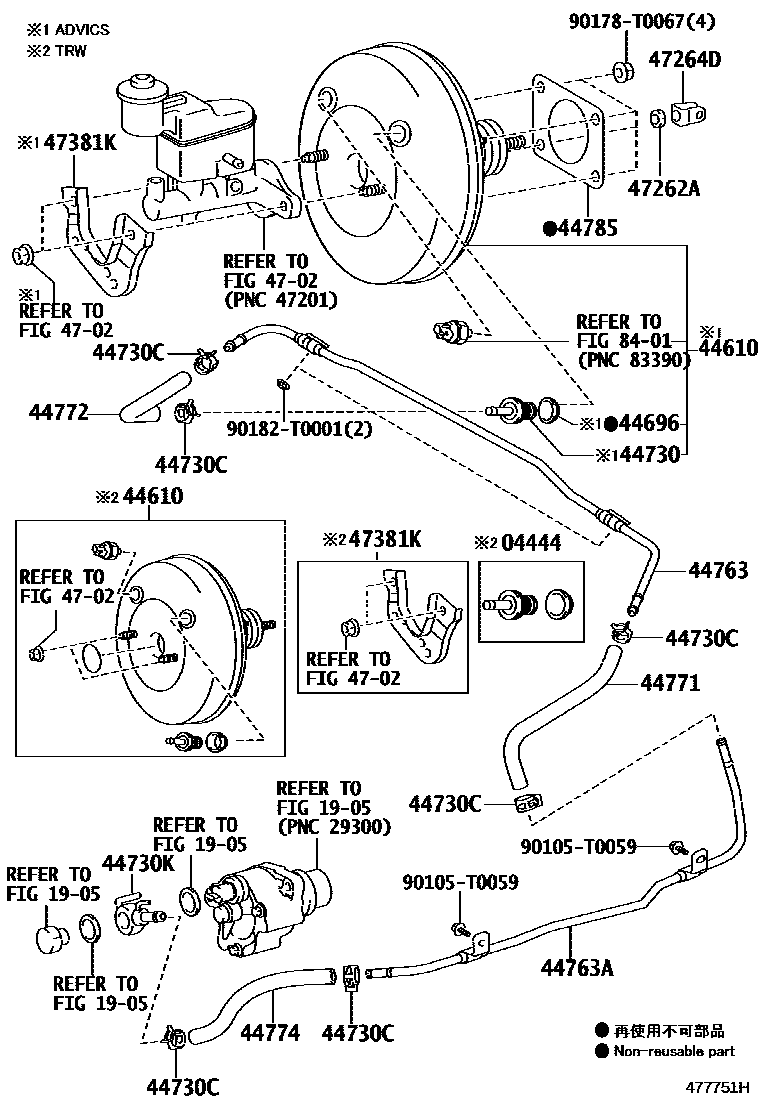

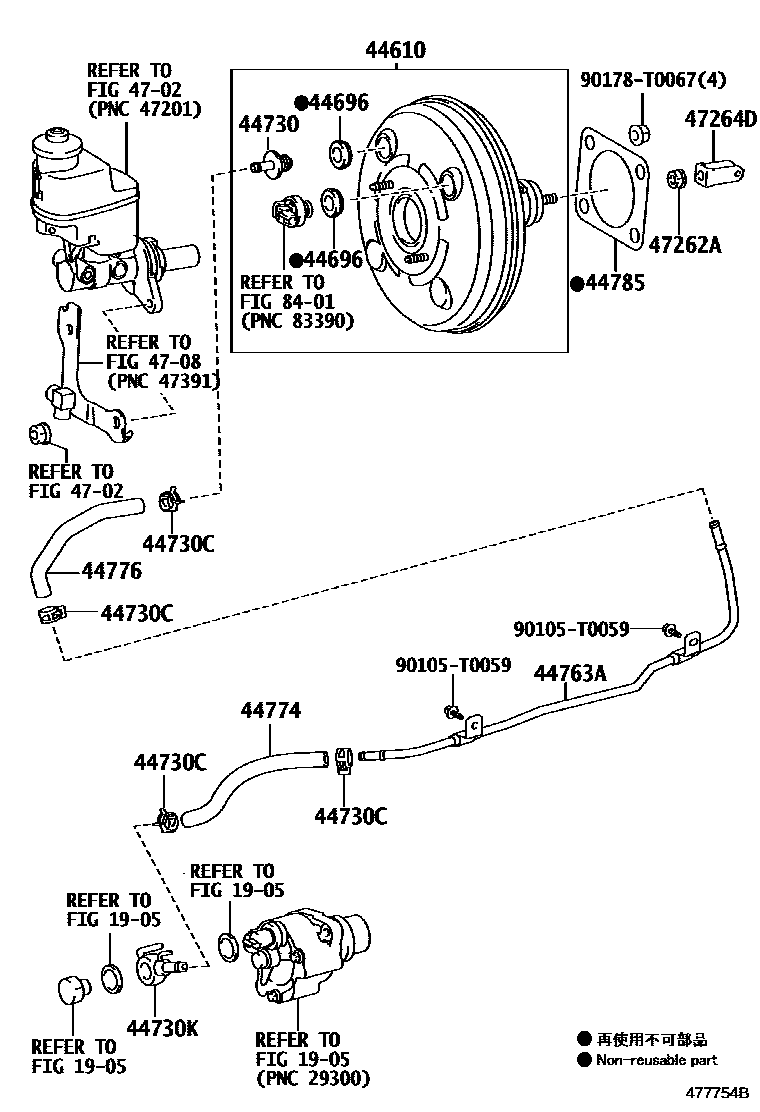

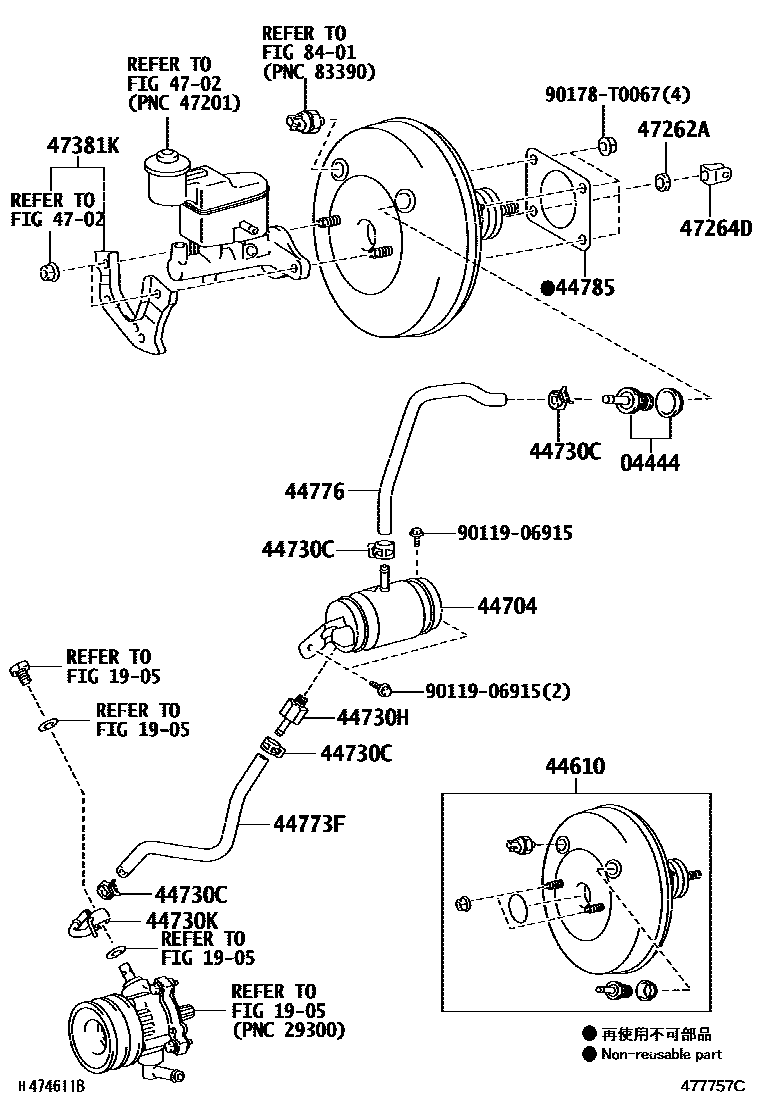

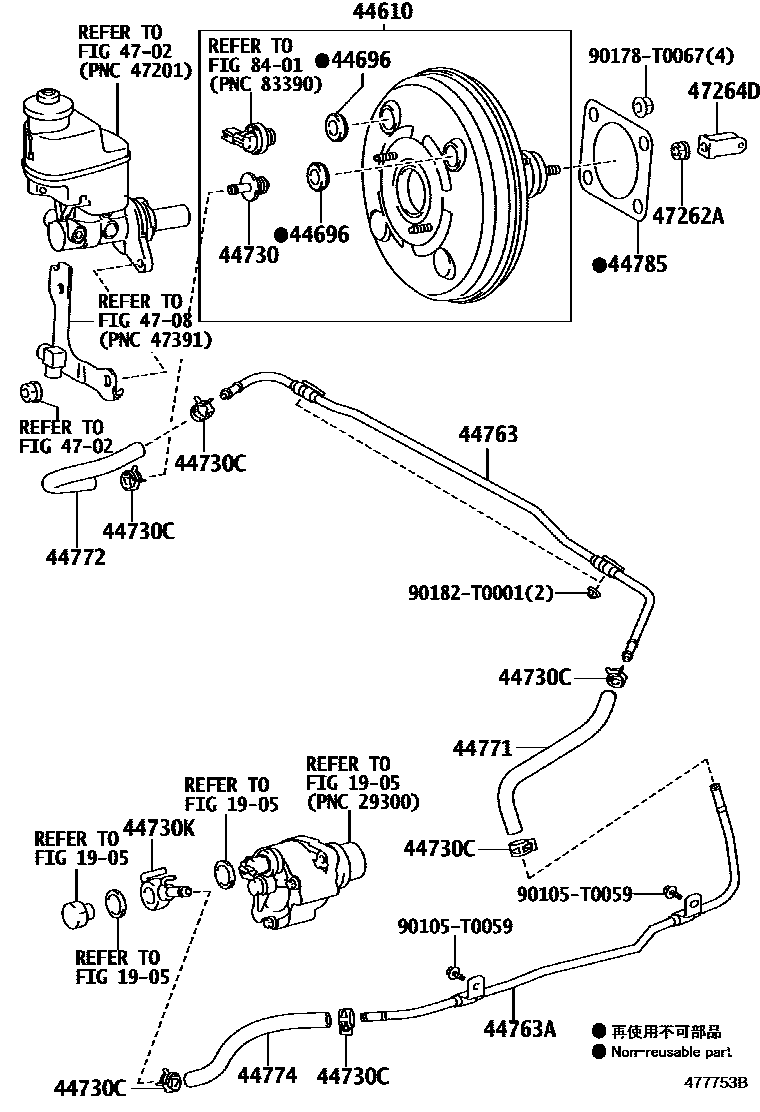

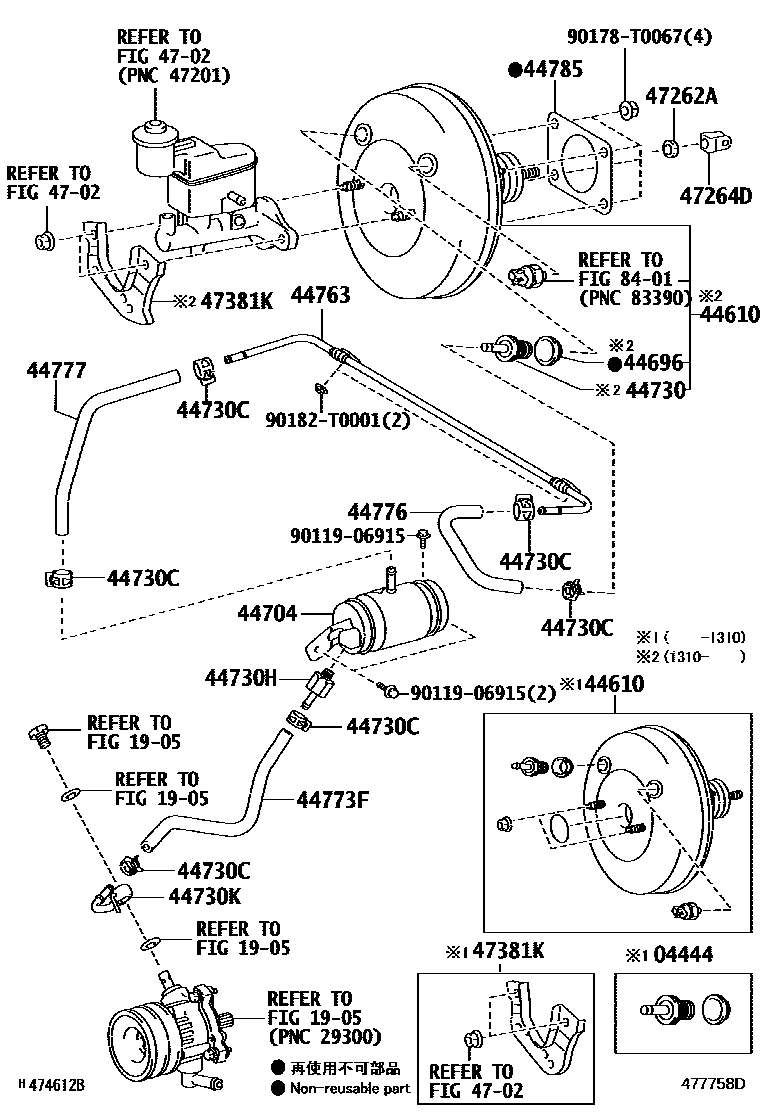

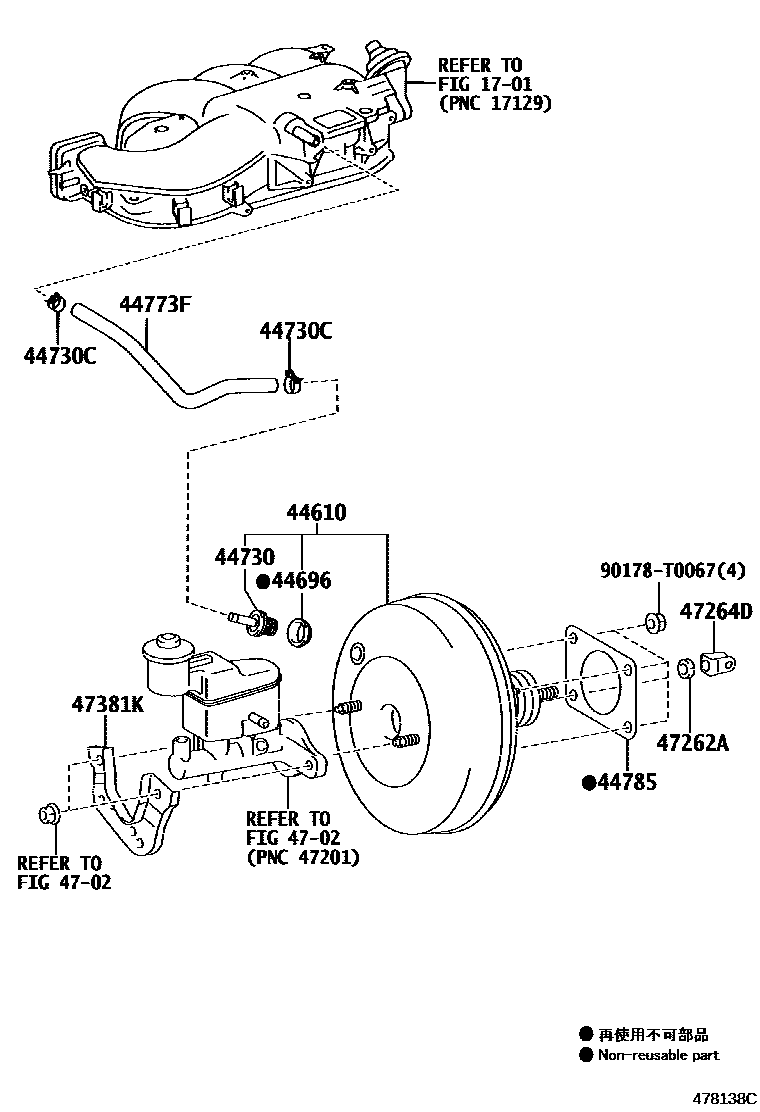

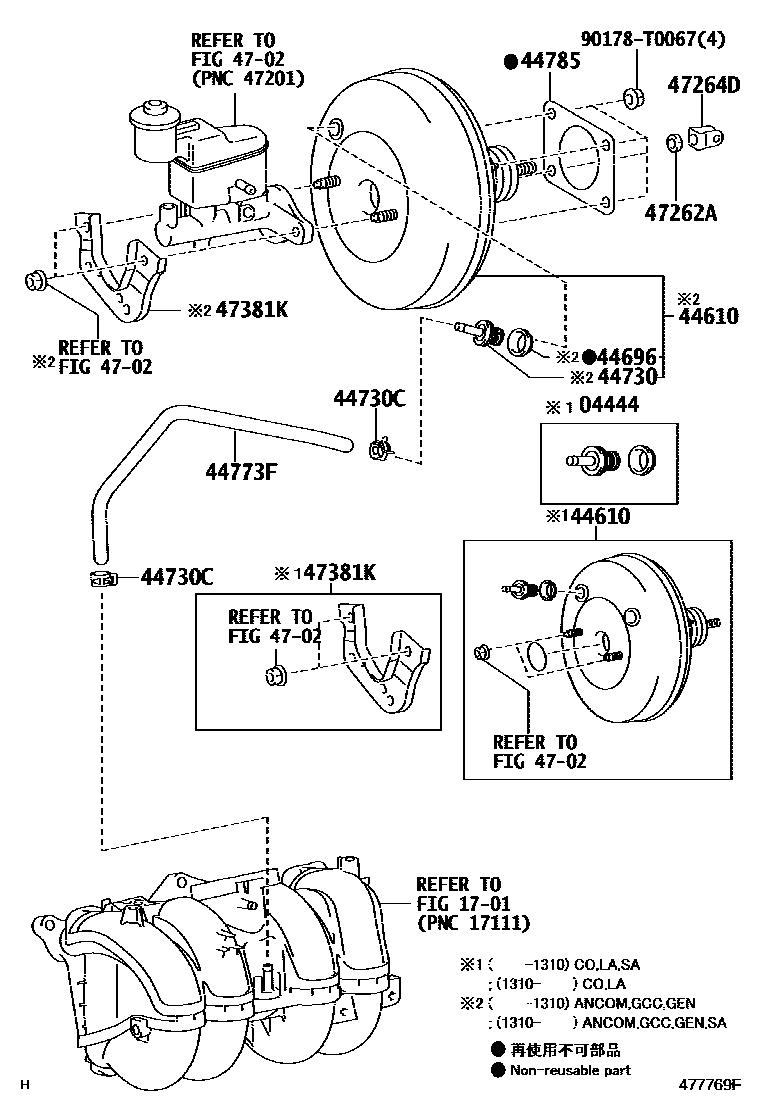

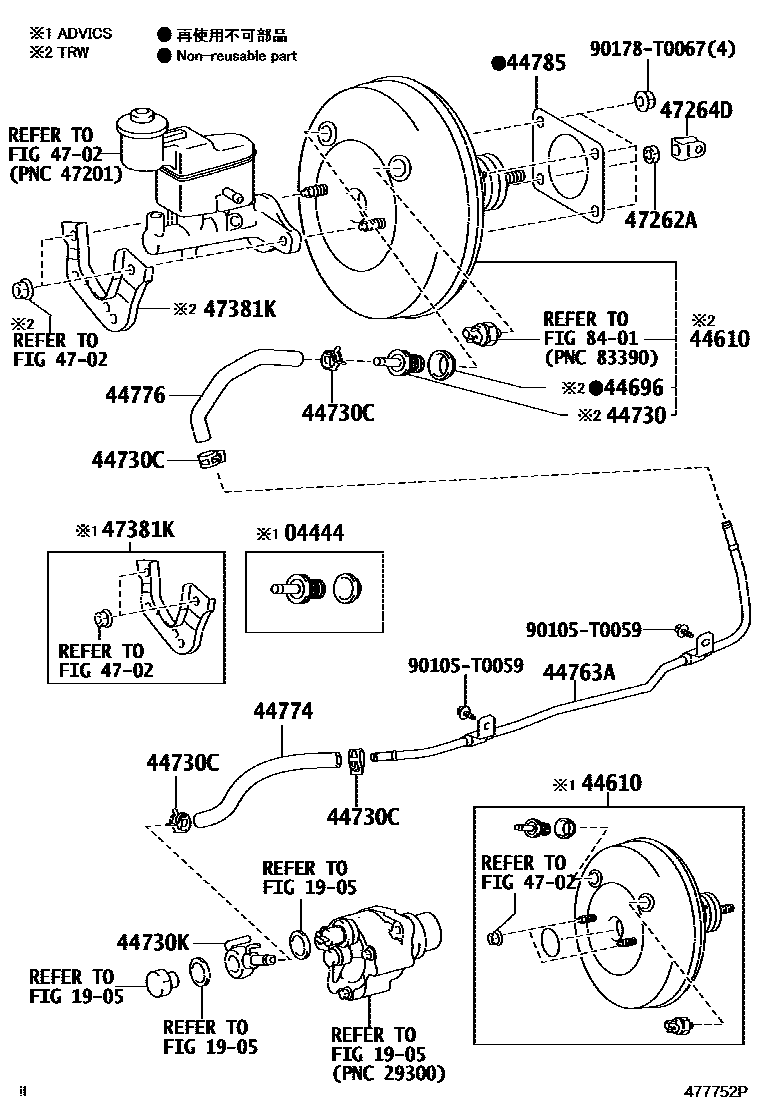

Toyota HILUX EPC diagram 4703, 制动助力器和真空管, with 10 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04444 | Booster control valve assembly | 04444-02010 · 04444-02020 |
| 44610 | brake booster assembly | 44610-09280 · 44610-09310 · 44610-09810 · 44610-09820 · 44610-09A90 · 44610-09C50 · 44610-09C60 · 44610-0K110 · 44610-0K130 · 44610-0K140 · 44610-0K150 · 44610-0K170 · 44610-0K180 · 44610-0K190 · 44610-0K220 |
| 44696 | One-way valve seal | 90080-48050 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-71010 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-22150 |
| 44730C | Clip (for vacuum hose) | 90466-T0019 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-60050 |
| 44730K | Vacuum hose connector (for vacuum pump) | 90405-09180 · 90405-T0003 |
| 44763 | booster vacuum tube | 44763-0K010 · 44763-0K030 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-0K020 |
| 44771 | Vacuum tube connector hose | 44771-0K010 · 44771-0K011 |
| 44772 | Hoses (check valve to connector tube) | 44772-0K010 · 44772-0K020 · 44772-0K030 · 44772-0K031 |
| 44773F | Hoses (connector to check valve) | 44773-0K010 · 44773-0K020 · 44773-0K030 · 44773-0K040 |
| 44774 | Hoses (joints to connector tubes) | 44774-0K010 · 44774-0K020 · 44774-0K021 · 44774-0K030 · 44774-0K040 |
| 44776 | brake booster hose | 44776-0K010 · 44776-0K011 · 44776-0K020 · 44776-0K021 · 44776-0K030 · 44776-0K031 · 44776-0K040 · 44776-0K050 · 44776-0K051 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-0K010 |
| 44785 | brake booster pad | 44785-17010 |
| 47262A | Master cylinder push rod U-shaped clamp lock nut | 47262-0K010 · 90016-AC101 · 90179-10065 · 94120-41000 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0K010 · 47264-0K020 · 47264-0K050 |
| 47381K | Brake booster tube clamp bracket | 47381-09020 · 47381-0K010 |
