Toyota HILUX 制动总泵 — Figure 4702

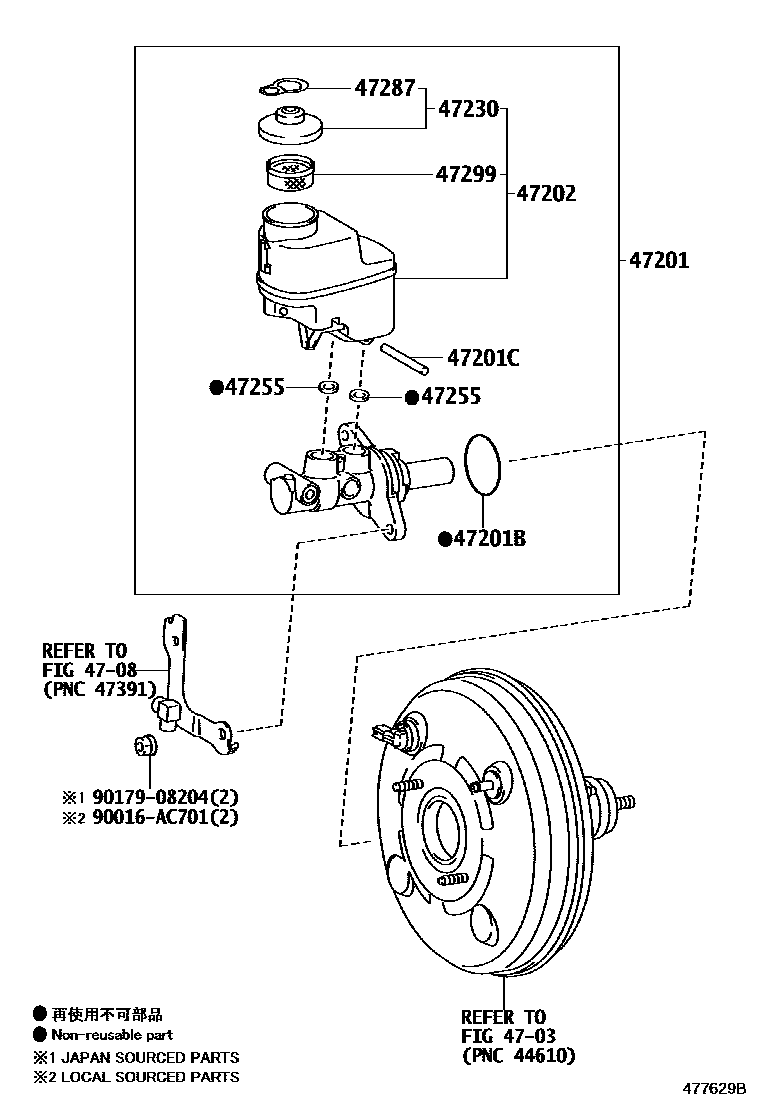

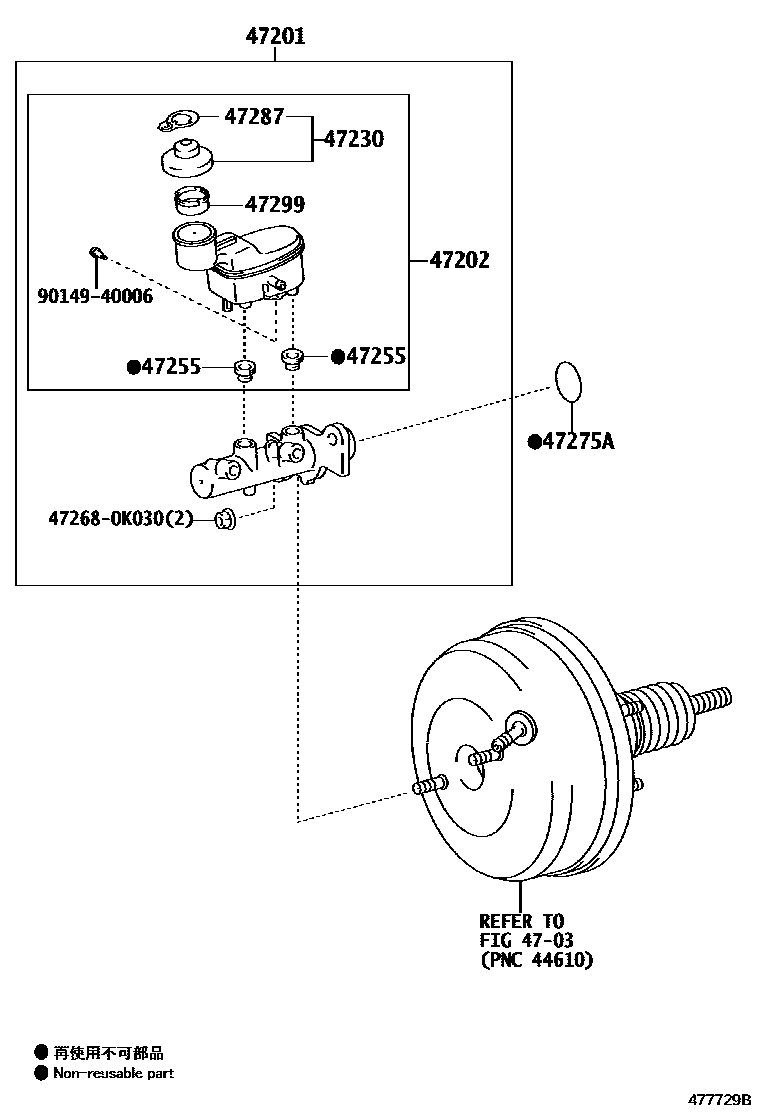

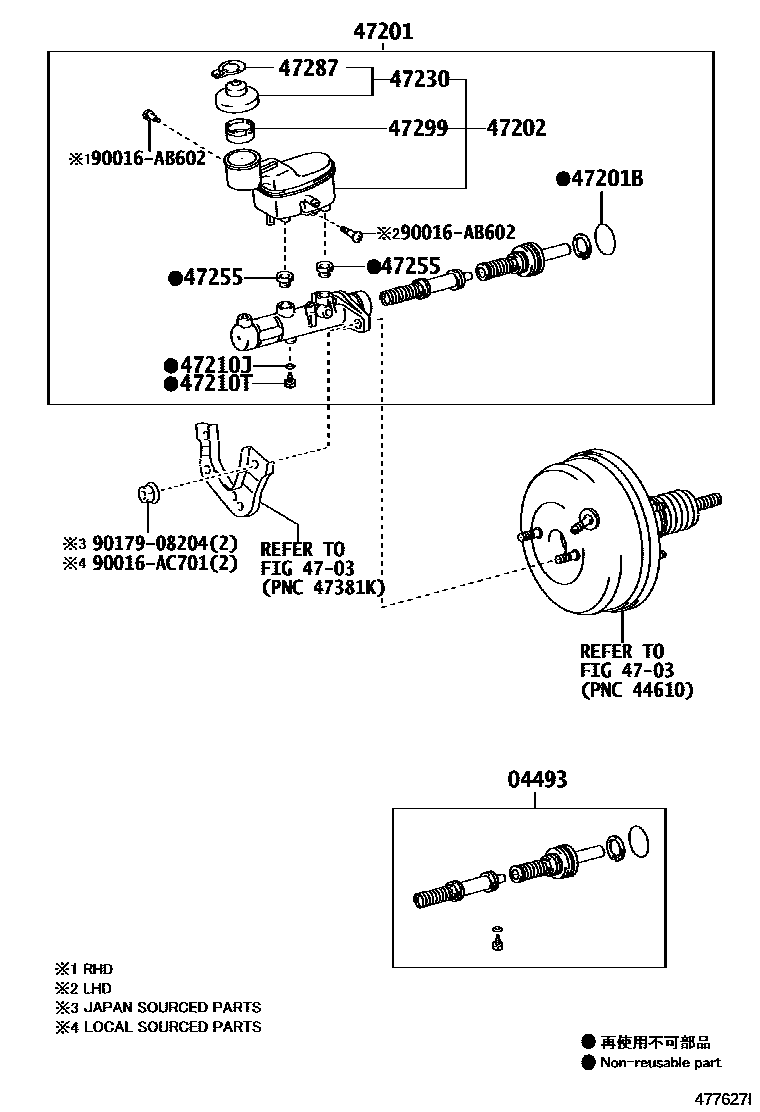

Toyota HILUX EPC diagram 4702, 制动总泵, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-0K010 |
| 47201 | Brake master cylinder sub-assembly | 47201-09200 · 47201-09210 · 47201-09230 · 47201-09240 · 47201-0K010 · 47201-0K020 · 47201-0K030 · 47201-0K040 · 47201-0K140 · 47201-0K141 · 47201-0K142 · 47201-0K150 · 47201-0K151 · 47201-0K152 · 47201-0K160 · 47201-0K161 · 47201-0K162 · 47201-0K170 · 47201-0K171 · 47201-0K172 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 · 90016-AH901 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-09070 · 47220-09080 · 47220-0K010 · 47220-0K020 · 47220-0K080 · 47220-0K090 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D221 · 47230-0K010 · 47230-0K011 |
| 47255 | Master pump reservoir seal | 47255-16010 · 90016-AT001 |
| 47275A | Brake master cylinder seal | 47275-02010 |
| 47287 | brake fluid information label | 47287-02360 · 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-0K010 |
