Toyota HILUX 前转向齿轮和连杆 — Figure 4505

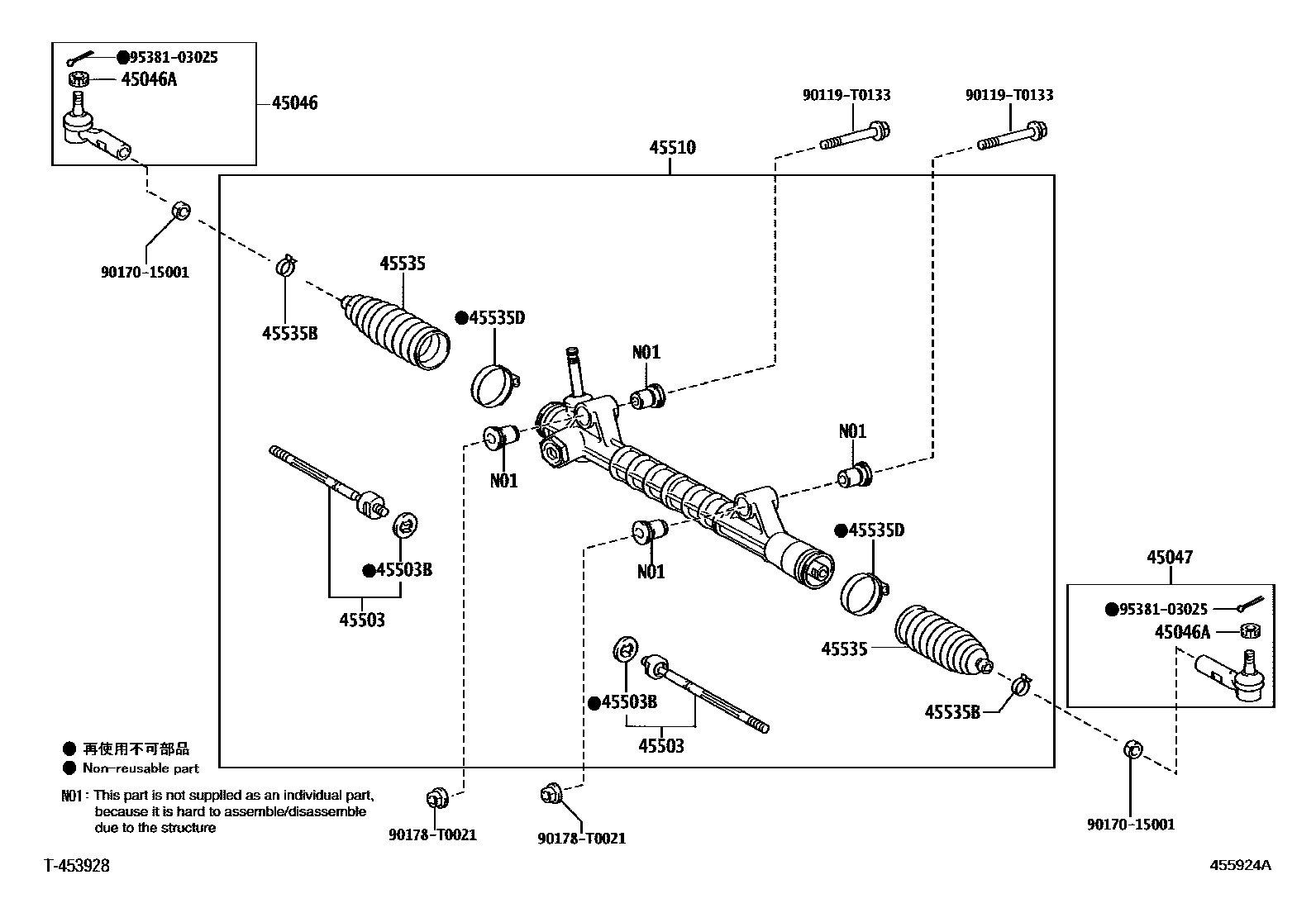

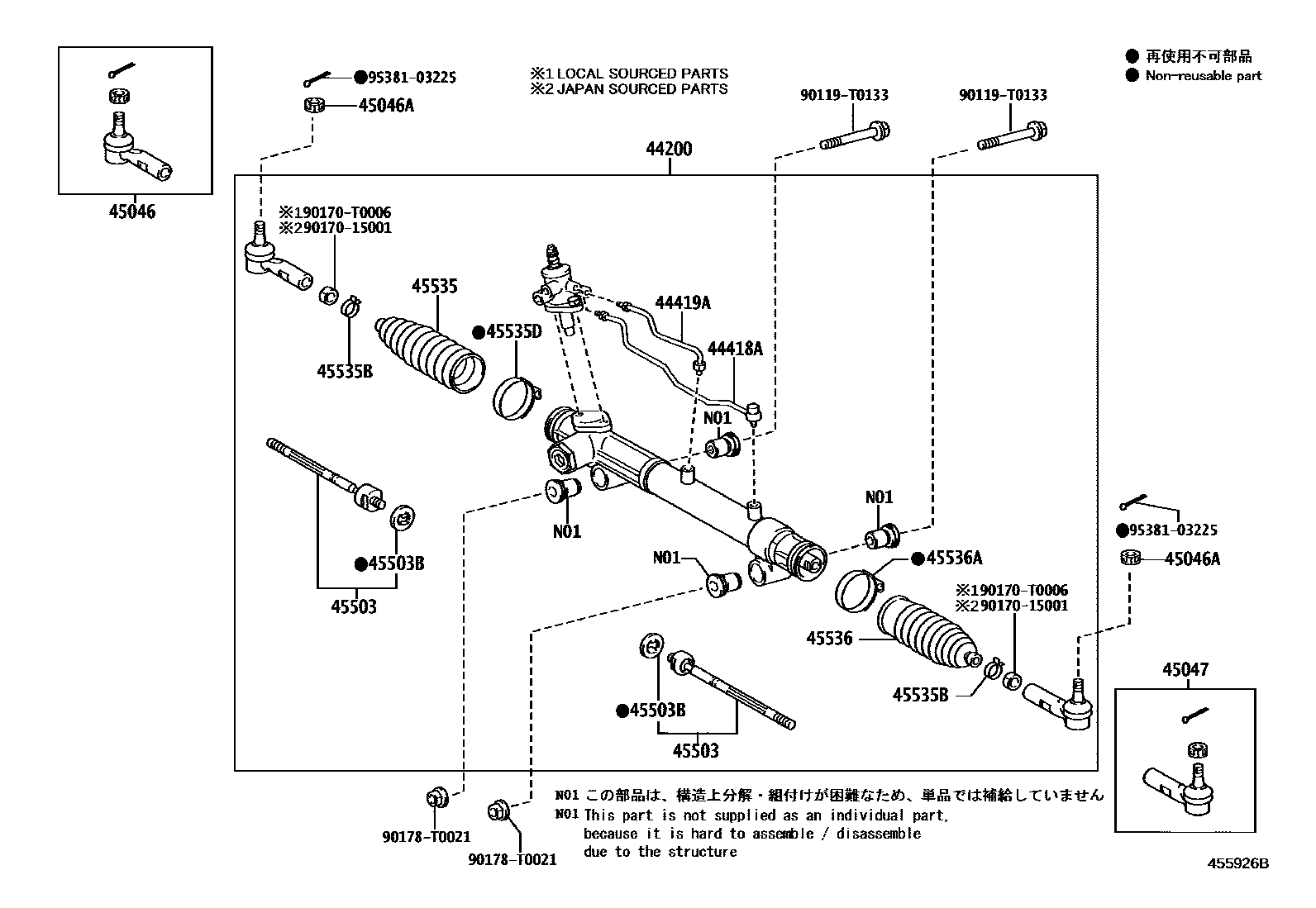

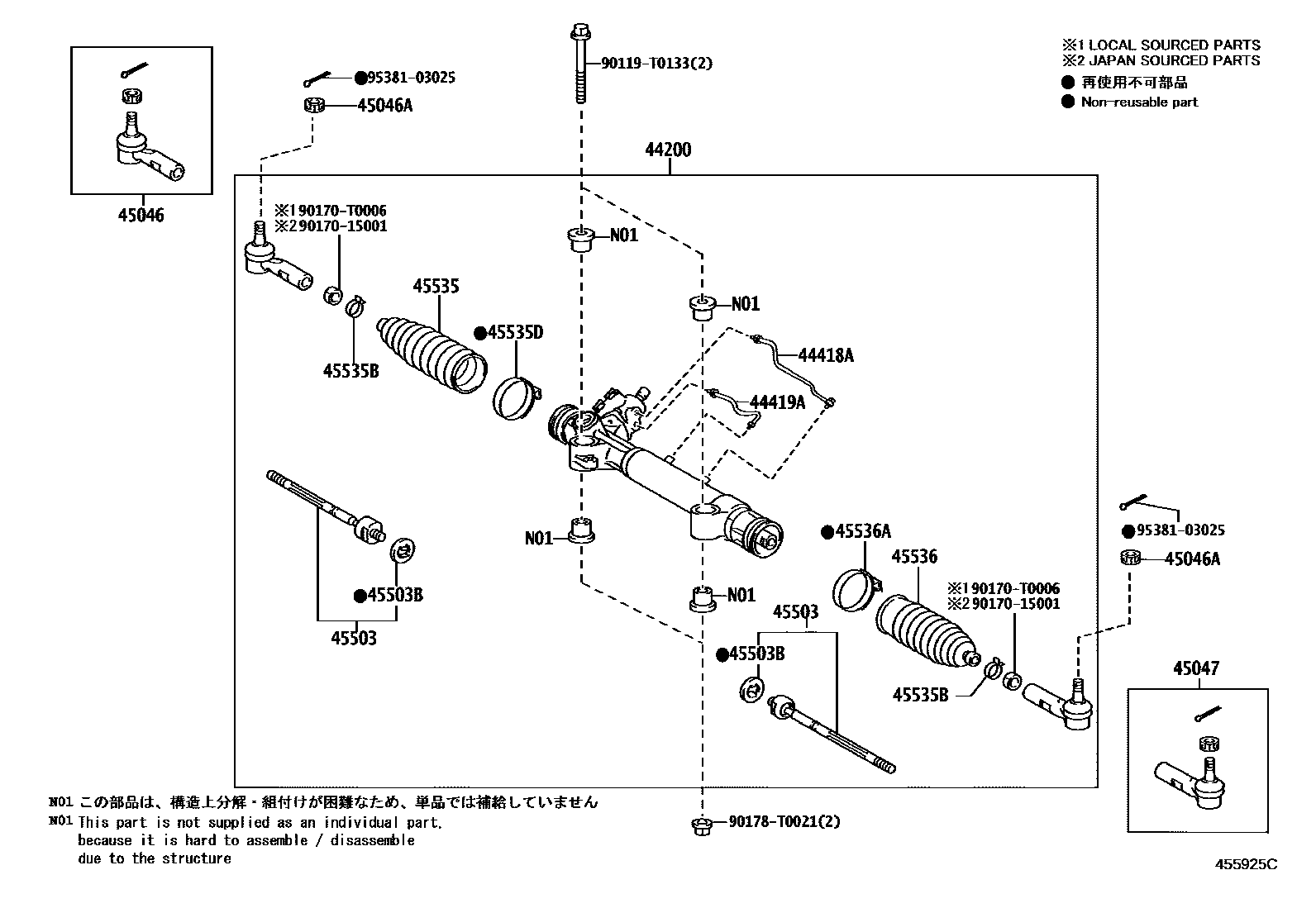

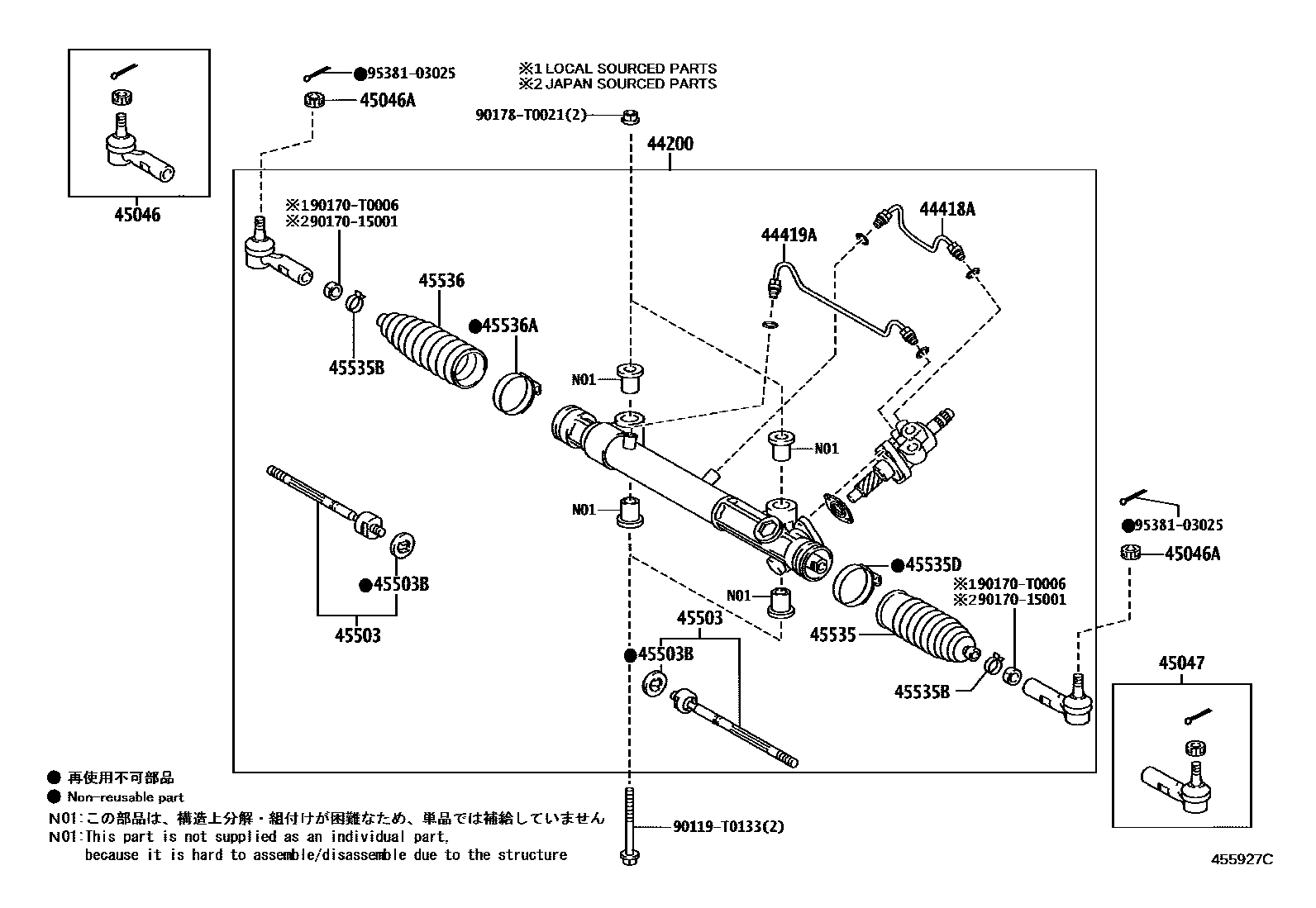

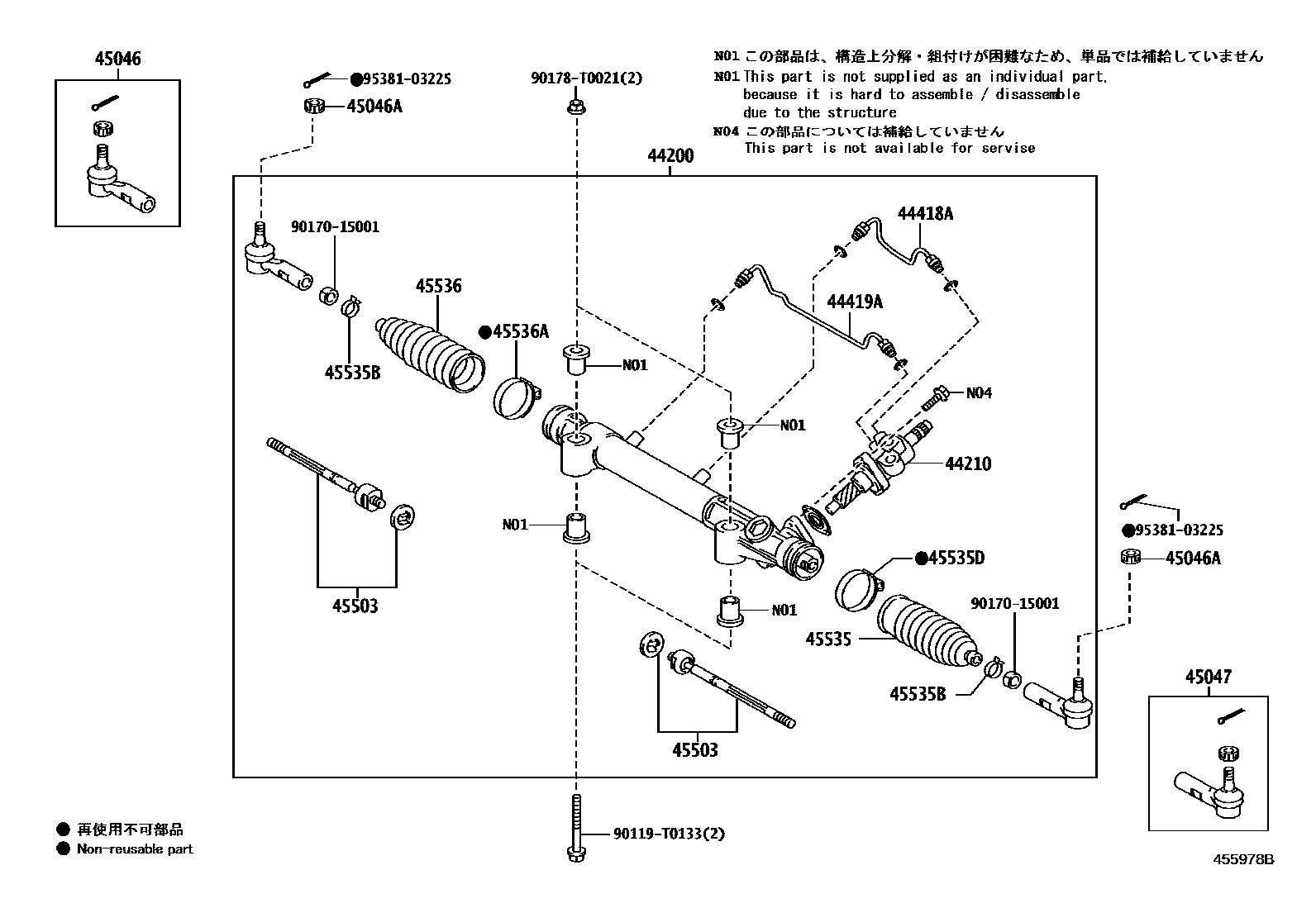

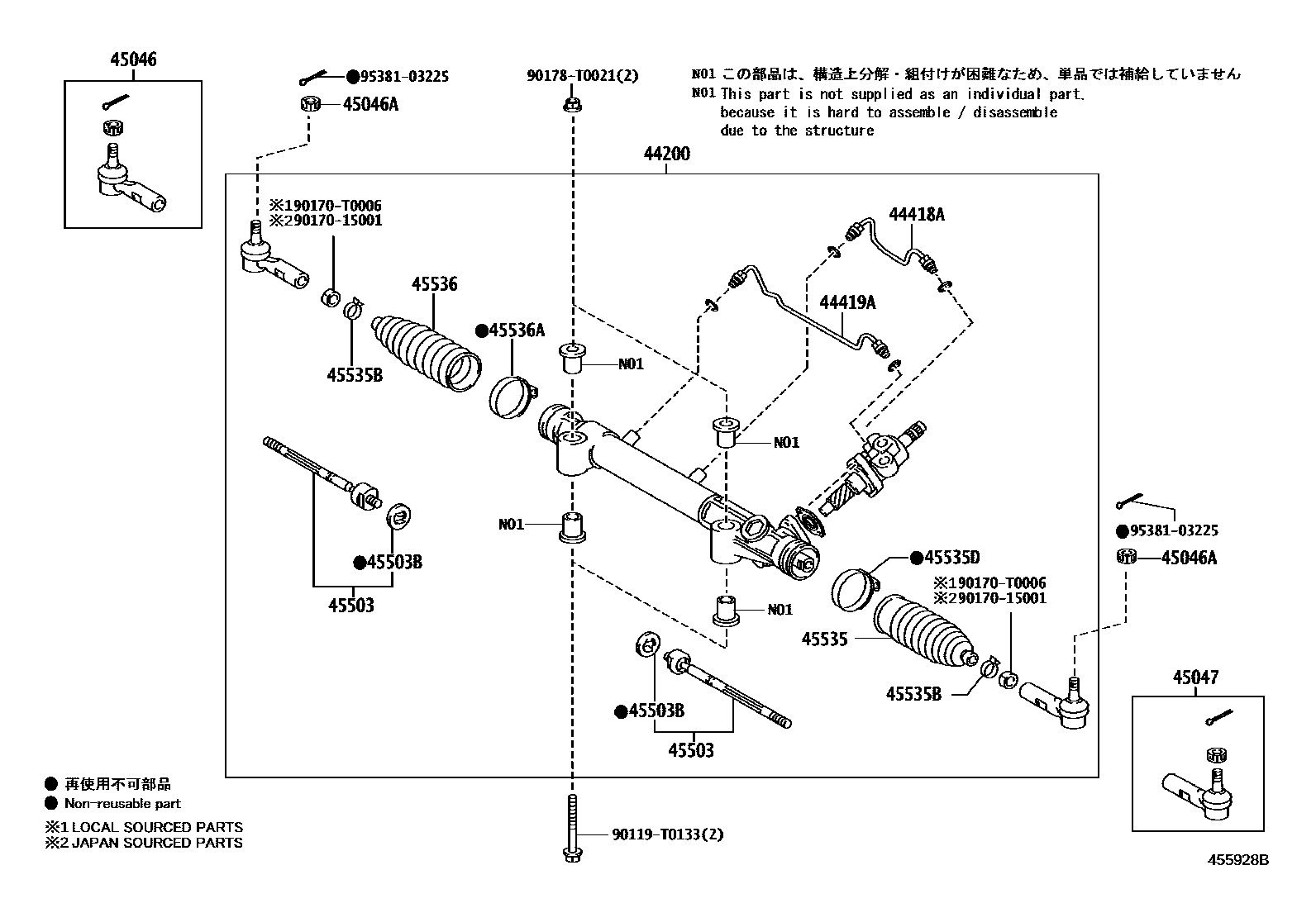

Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

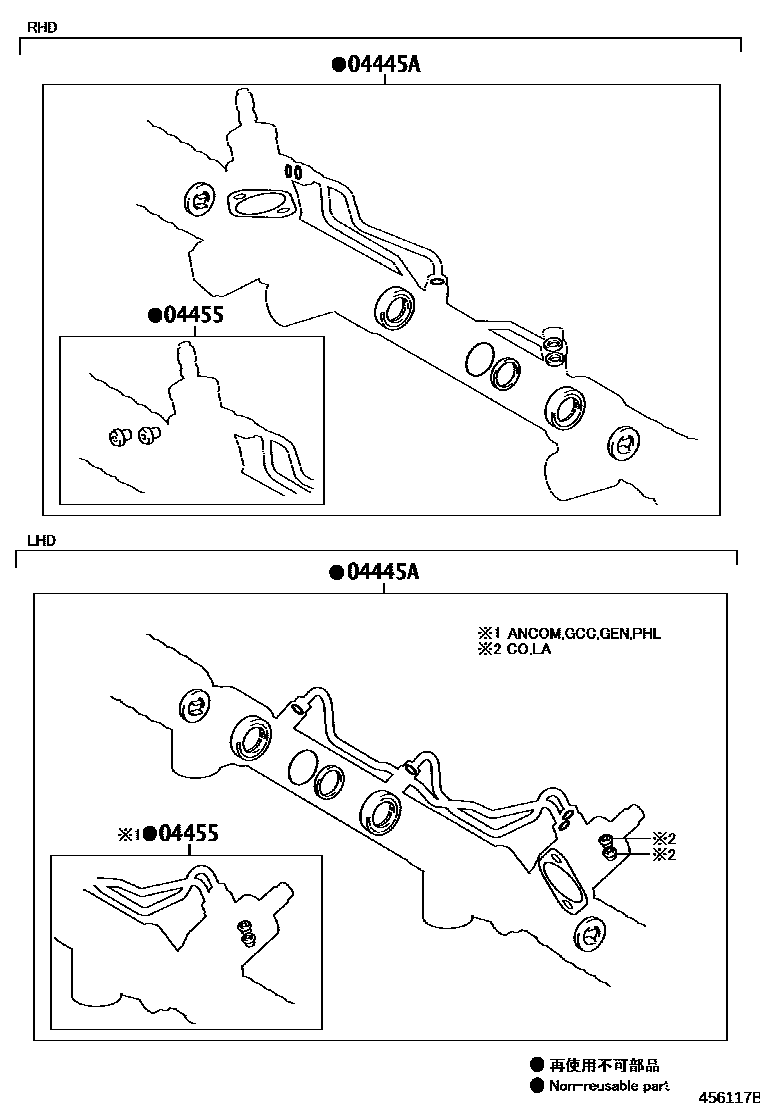

| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-0K071 · 04445-0K091 · 04445-0K100 · 04445-0K131 · 04445-0K142 · 04445-0K201 · 04445-0K211 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-0K020 · 04455-0K060 |
| 44200 | Power steering tie rod assembly | 44200-0K200 · 44200-0K210 · 44200-0K220 · 44200-0K230 · 44200-0K240 · 44200-0K260 · 44200-0K270 · 44200-0K280 · 44200-0K290 · 44200-0K300 · 44200-0K310 · 44200-0K320 · 44200-0K330 · 44200-0K340 · 44200-0K360 · 44200-0K380 · 44200-0K390 · 44200-0K400 · 44200-0K420 · 44200-0K430 · 44200-0K440 · 44200-0K450 · 44200-0K460 · 44200-0K470 · 44200-0K480 · 44200-0K490 · 44200-0K500 · 44200-0K510 · 44200-0K550 · 44200-0K570 · 44200-0K760 · 44200-0K770 · 44200-0K780 · 44200-0K840 · 44200-0K850 · 44200-0K860 · 44200-0K870 · 44200-0K880 · 44200-0K890 · 44200-0KA00 |
| 44210 | Power steering control valve assembly | 44210-0K160 · 44210-0K250 |
| 44418A | Right steering pressure oil pipe | 44418-0K090 · 44418-0K100 · 44418-0K120 · 44418-0K130 · 44418-0K140 · 44418-0K150 · 44418-0K160 · 44418-0K170 · 44418-0K180 |
| 44419A | Left steering pressure oil pipe | 44419-0K090 · 44419-0K100 · 44419-0K120 · 44419-0K130 · 44419-0K140 · 44419-0K150 · 44419-0K160 · 44419-0K170 · 44419-0K180 |
| 45046 | Right tie rod end sub-assembly | 45046-09251 · 45046-09261 · 45046-09281 · 45046-09310 · 45046-09320 |
| 45046A | Castle nuts (for tie rod ends) | 90171-T0002 · 90171-T0004 |
| 45047 | Left tie rod end sub-assembly | 45046-09251 · 45046-09261 · 45046-09281 · 45046-09310 · 45046-09320 |
| 45503 | Steering rack end sub-assembly | 45503-09321 · 45503-09331 · 45503-09340 · 45503-09410 |
| 45503B | Jaw washer (for steering rack end) | 90214-T0001 · 90214-T0002 · 90214-T0003 |
| 45510 | Steering gear assembly | 45510-0K040 |
| 45535 | No. 1 steering rack dust cover | 45535-0K010 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46334 · 90080-46370 · 90466-T0004 · 90466-T0005 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90080-46371 · 90460-T0001 · 90460-T0003 |
| 45536 | No. 2 steering rack dust cover | 45536-0K010 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90080-46371 · 90460-T0001 |
