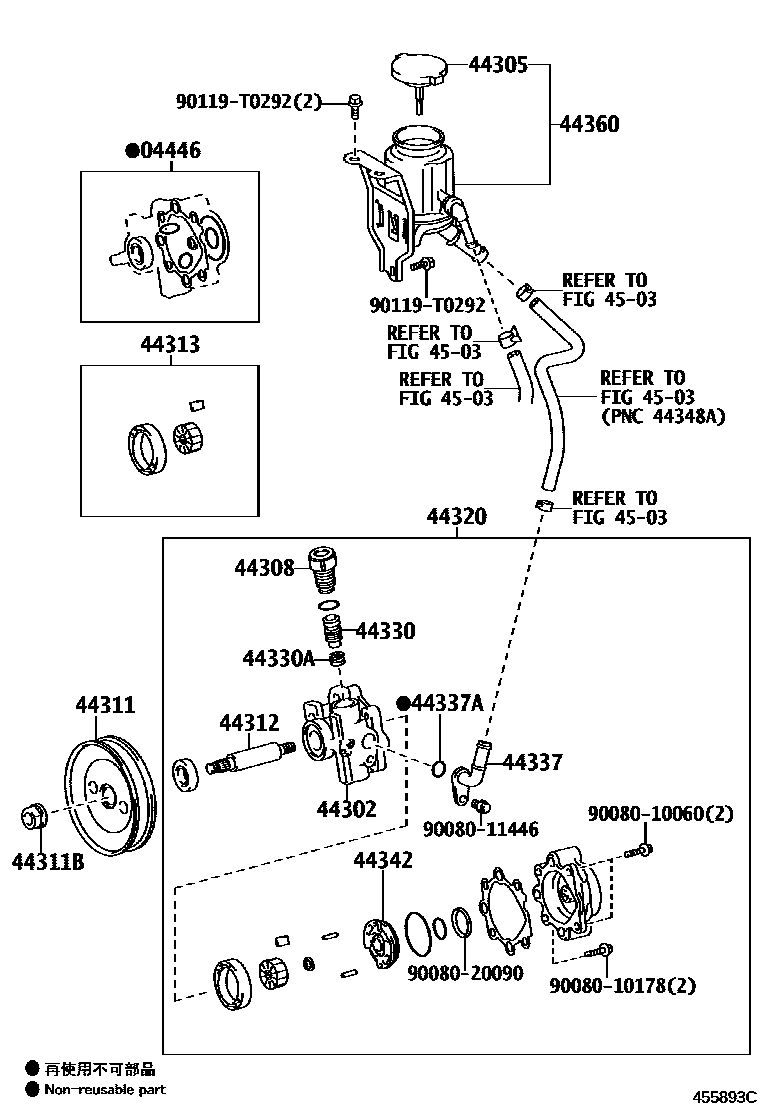

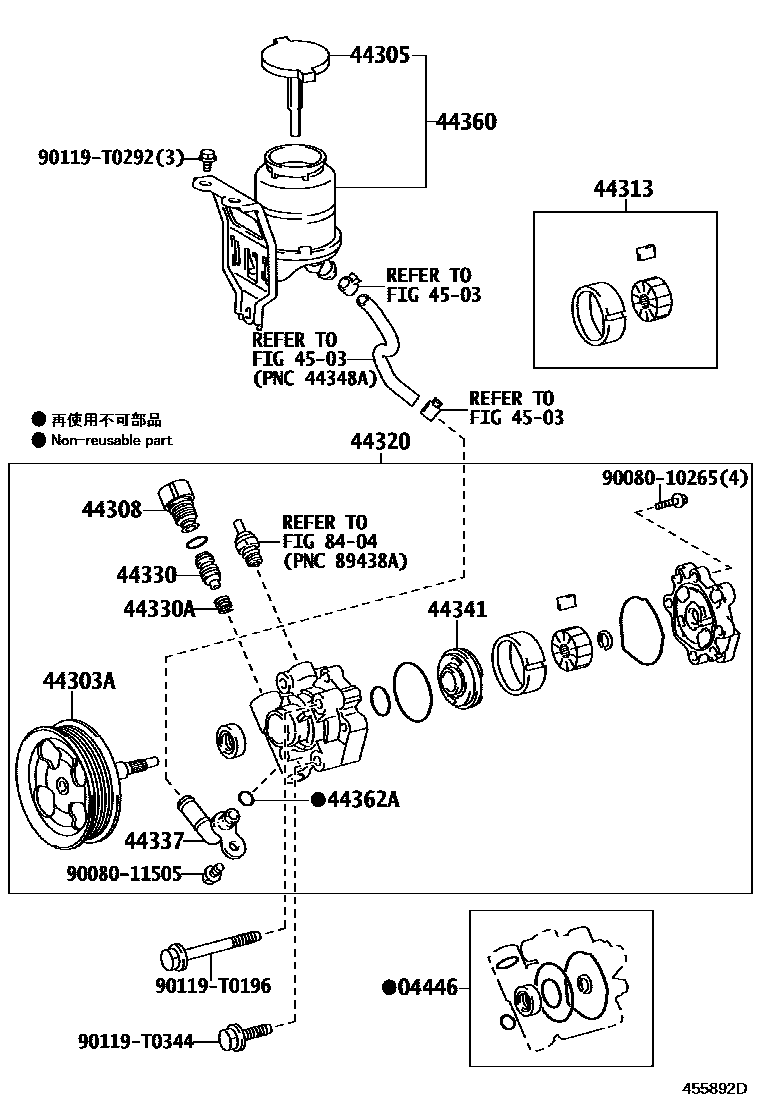

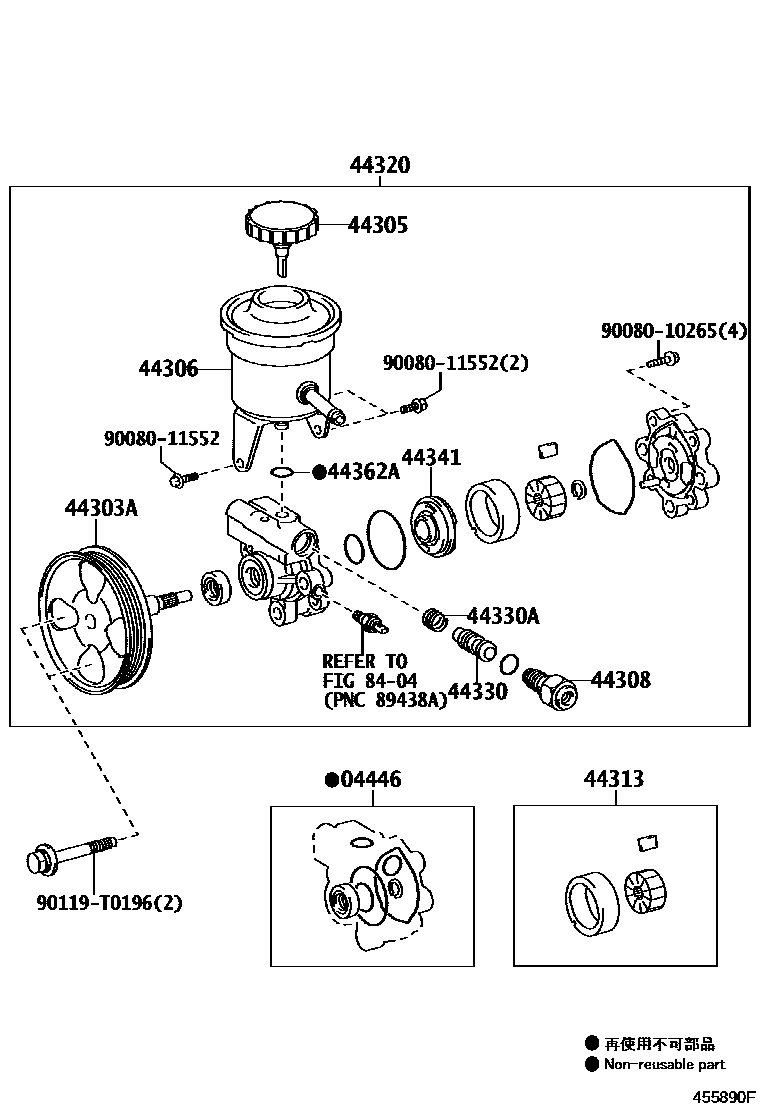

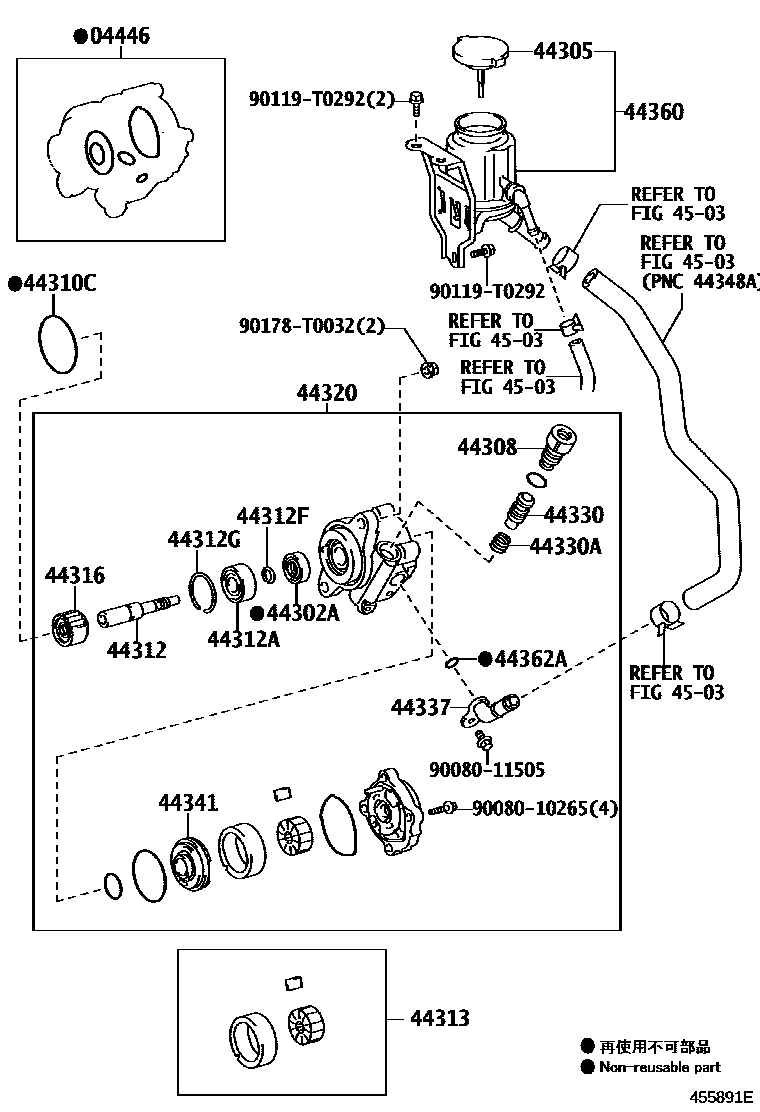

Toyota HILUX 叶片泵和储油罐(动力转向) — Figure 4502
Toyota HILUX EPC diagram 4502, 叶片泵和储油罐(动力转向), with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-06110 · 04446-0B030 · 04446-0K010 |
| 44302 | Front vane pump housing sub-assembly | 44302-04050 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90316-T0001 |
| 44303A | Shaft sub-assembly with pulley | 44303-06040 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-0K041 · 44305-0K042 · 44305-22060 · 44305-22061 |
| 44306 | Vane pump oil storage tank sub-assembly | 44306-0K010 |
| 44308 | Pressure hole connector sub-assembly | 44308-0K010 · 44308-0K020 · 44308-0K030 · 44308-0K040 · 44308-0K050 · 44308-0K060 · 44308-0K070 |
| 44310C | O-ring (for vane pump) | 90301-T0014 |
| 44311 | vane pump pulley | 44311-26060 |
| 44311B | Nut (for vane pump pulley) | 90080-17158 |
| 44312 | vane pump shaft | 44312-06030 · 44312-06040 · 44312-0K010 |
| 44312A | Bearings (for vane pump shafts) | 90363-T0005 |
| 44312F | No. 1 snap ring (for vane pump shaft bearing) | 90520-T0001 |
| 44312G | No. 2 snap ring (for vane pump shaft bearing) | 90520-T0002 |
| 44313 | vane pump rotor | 44313-09010 · 44313-09020 · 44313-09030 · 44313-09040 |
| 44316 | vane pump gear | 44316-0K010 |
| 44320 | Vane pump assembly | 44310-0K010 · 44310-0K020 · 44310-0K030 · 44310-0K040 · 44310-0K050 · 44310-0K060 · 44320-0K010 · 44320-0K020 |
| 44330 | Flow control valve assembly | 44330-04010 · 44330-04020 · 44330-04030 · 44330-04040 · 44330-04050 · 44330-04060 · 44330-0K010 · 44330-0K020 · 44330-0K030 · 44330-0K040 · 44330-0K050 · 44330-0K060 · 44330-0K130 · 44330-0K140 · 44330-0K150 · 44330-0K160 · 44330-0K170 · 44330-0K180 |
| 44330A | Compression spring (for flow control valve) | 90080-50247 · 90501-T0001 |
| 44337 | Power steering suction port connector | 44337-06060 · 44337-0K020 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30049 |
| 44341 | Vane pump front cover | 44341-06010 |
| 44342 | Vane pump rear end cover | 44342-26020 |
| 44360 | Vane pump oil storage tank assembly | 44360-0K010 · 44360-0K011 · 44360-0K030 · 44360-0K031 |
| 44362A | O-ring (for vane pump oil storage tank) | 90080-30093 |
