Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

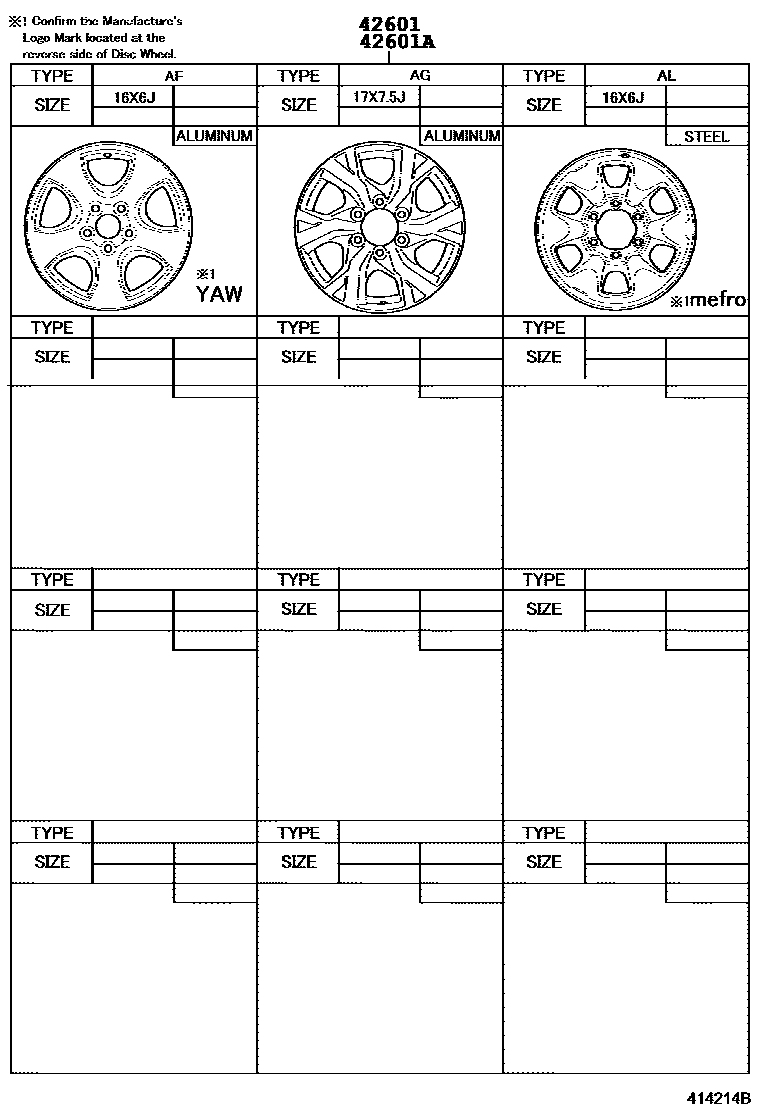

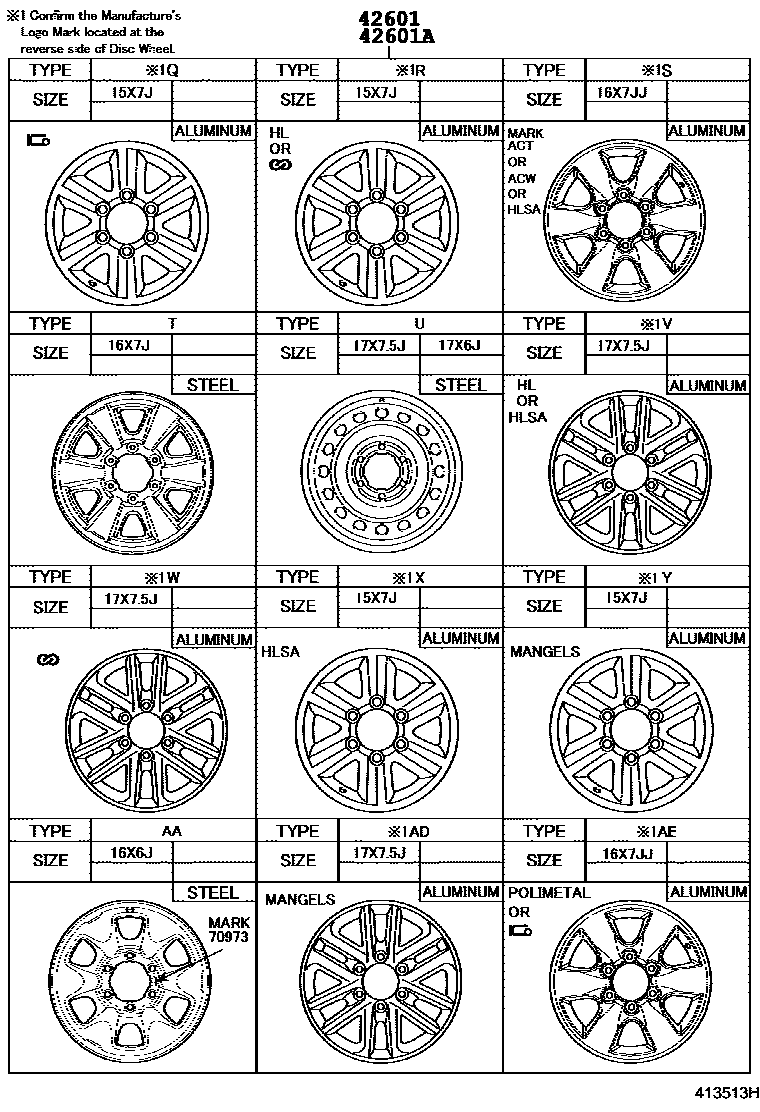

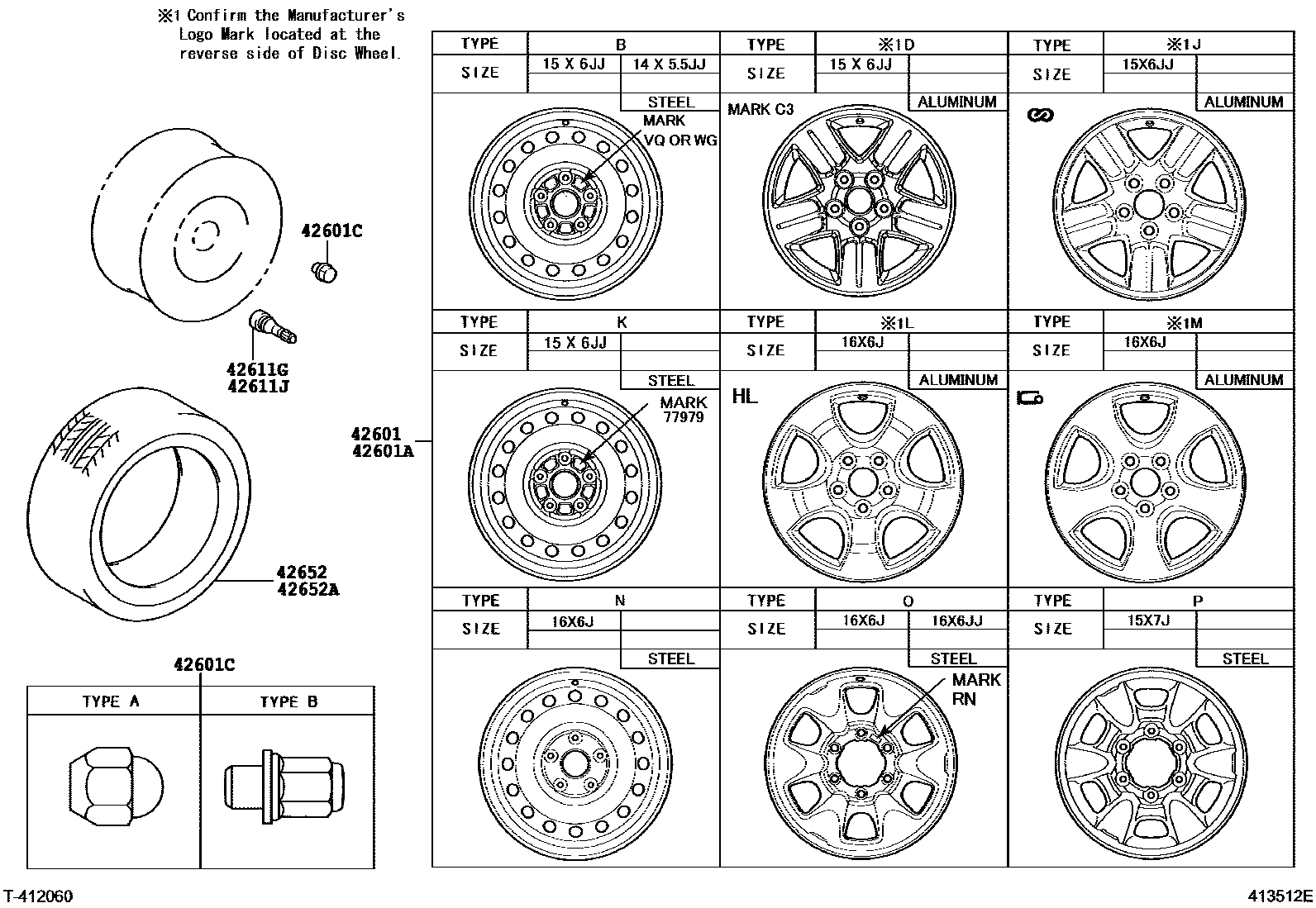

| 42601 | spoke wheel | 42611-0K040 · 42611-0K041 · 42611-0K201 · 42611-0K220 · 42611-0K222 · 42611-0K223 · 42611-0K224 · 42611-0K240 · 42611-0K241 · 42611-0K250 · 42611-0K262 · 42611-0K263 · 42611-0K283 · 42611-0K712 · 42611-0K732 · 42611-0K742 · 42611-0K770 · 42611-0K771 · 42611-0K792 · 42611-0K793 · 42611-0K871 · 42611-0KA40 · 42611-0KA80 · 42611-0KB00 · 42611-0KB91 · 42611-0KB92 · 42611-0KC01 · 42611-0KC02 · 42611-0KC20 · 42611-0KC21 · 42611-0KD90 · 42611-0KD91 · 42611-0KE00 · 42611-0KE10 · 42611-0KE11 · 42611-0KE20 · 42611-0KE30 · 42611-0KE31 · 42611-0KE32 · 42611-0KE40 · 42611-0KE41 · 42611-0KE50 · 42611-0KE60 · 42611-0KE61 · 42611-0KE70 · 42611-0KF70 · 42611-0KF71 · 42611-0KF72 · 42611-0KG50 · 42611-0KM92 · 42611-0KN71 · 42611-0KS40 · 42611-0KS50 · 42611-0KS80 · 42611-YY480 |
| 42601A | Spoke wheel (for spare tire) | 42611-0K040 · 42611-0K041 · 42611-0K220 · 42611-0K222 · 42611-0K223 · 42611-0K224 · 42611-0K240 · 42611-0K241 · 42611-0K250 · 42611-0K732 · 42611-0K742 · 42611-0K770 · 42611-0K771 · 42611-0KA40 · 42611-0KA80 · 42611-0KA91 · 42611-0KB00 · 42611-0KB91 · 42611-0KB92 · 42611-0KC01 · 42611-0KC02 · 42611-0KE00 · 42611-0KE30 · 42611-0KE31 · 42611-0KE32 · 42611-0KE40 · 42611-0KE41 · 42611-0KE50 · 42611-0KF70 · 42611-0KF71 · 42611-0KF72 · 42611-0KG50 · 42611-0KS50 · 42611-YY480 |
| 42601C | Hub nut (for axle) | 90942-01082 · 90942-01109 · 90942-T1005 |

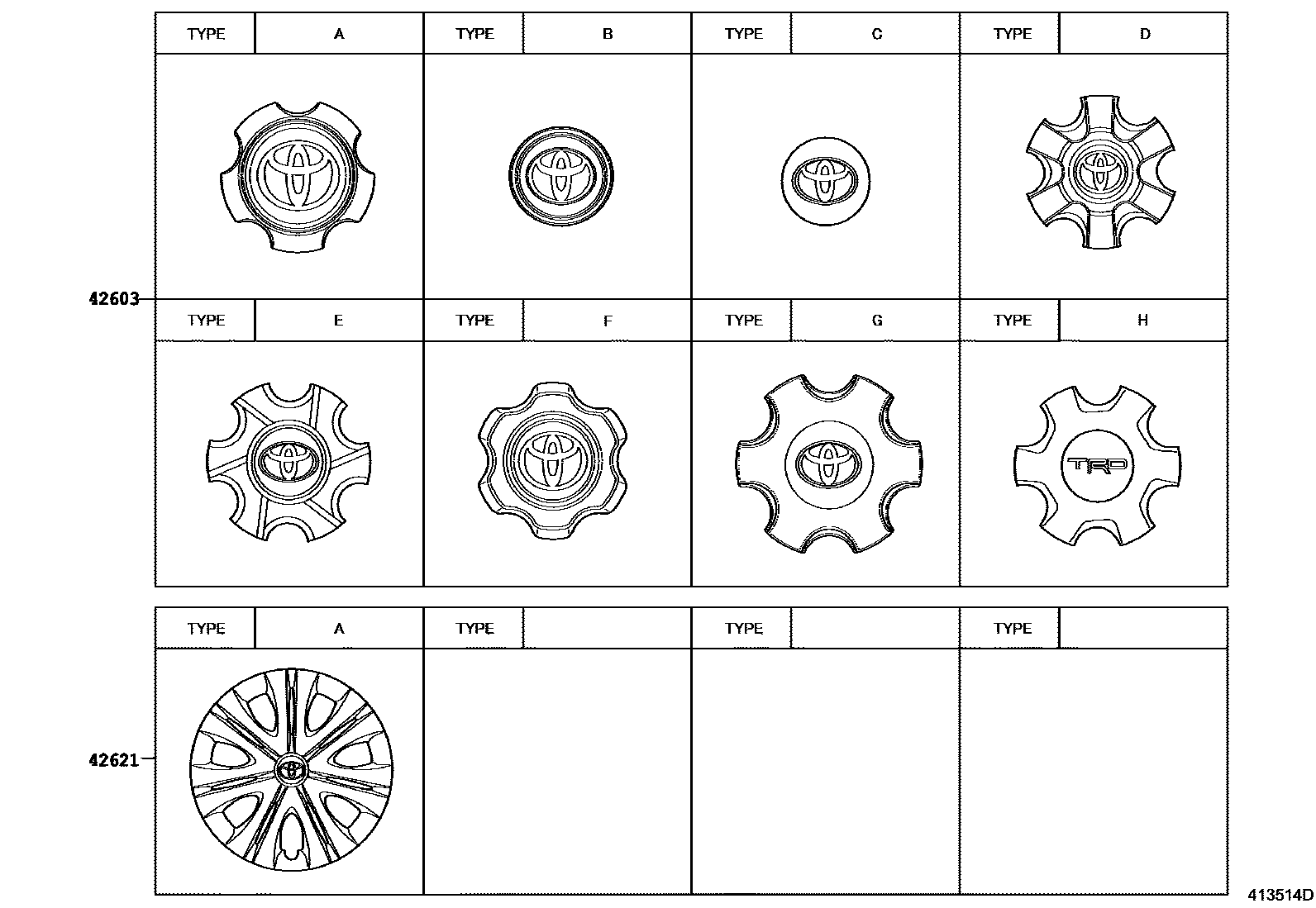

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0K010 · 42603-0K030 · 42603-0K050 · 42603-0K110 · 42603-0K140 · 42603-0K260 · 4260B-0K050 · 4260B-0K060 · 4260B-0K061 · 4260B-0K070 · 4260B-0K080 · 4260B-0K090 · 4260B-0K240 · 4260B-YY010 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90080-94179 · 90080-94180 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90080-94179 · 90080-94180 · 90942-05009 |
| 42621 | wheel cover | 42602-0K050 |
| 42652 | tires | 42652-0K050 · 42652-0K060 · 42652-0K070 · 42652-0K080 · 42652-0K280 · 42652-0K290 · 42652-0K300 · 42652-0K311 · 42652-0K371 · 42652-0K530 |
| 42652A | Tire (for Spare Wheel) | 42652-0K050 · 42652-0K060 · 42652-0K070 · 42652-0K080 · 42652-0K280 · 42652-0K290 · 42652-0K300 · 42652-0K311 · 42652-0K371 · 42652-0K530 |
