Toyota HILUX 后桥壳和差速器 — Figure 4101

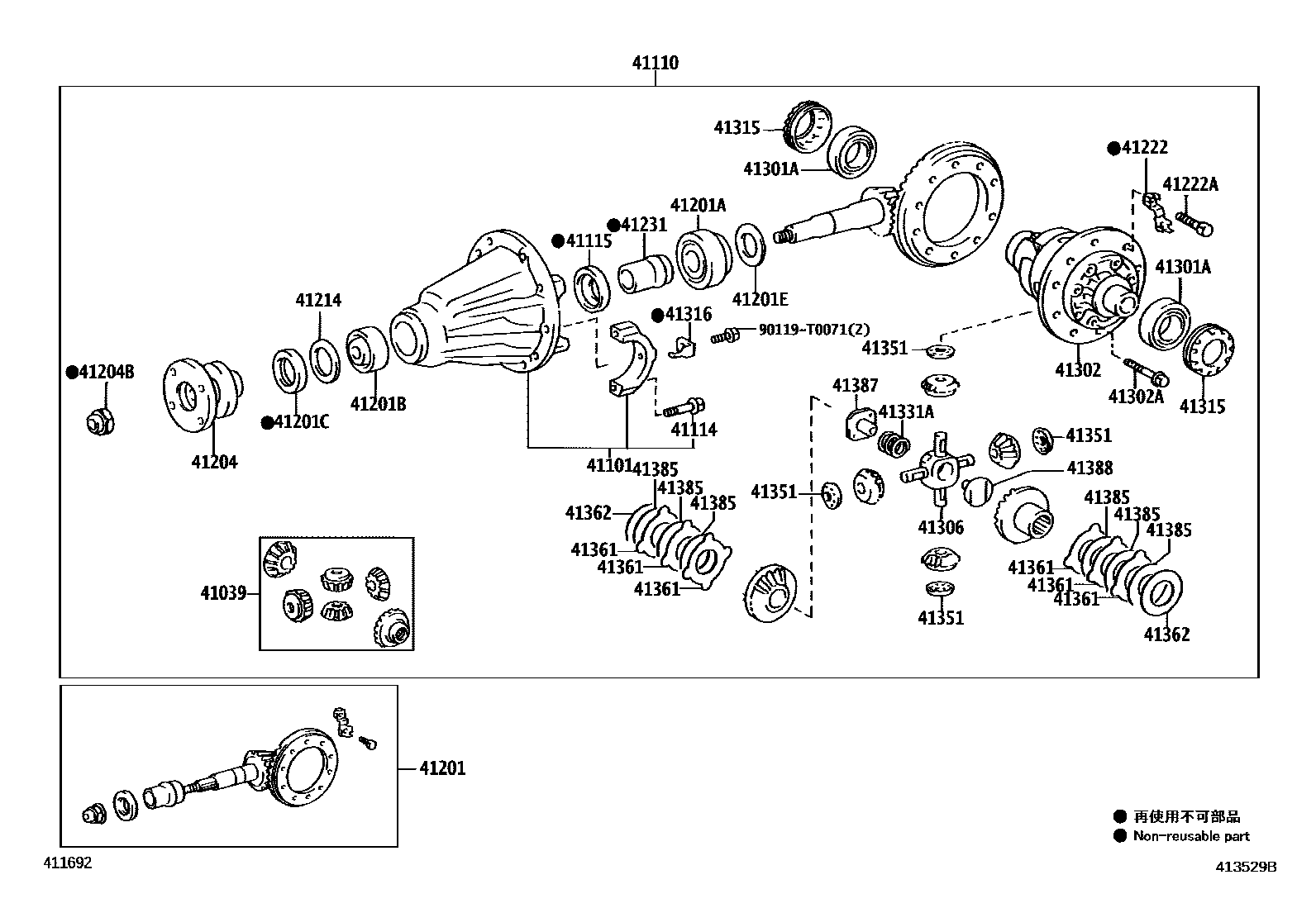

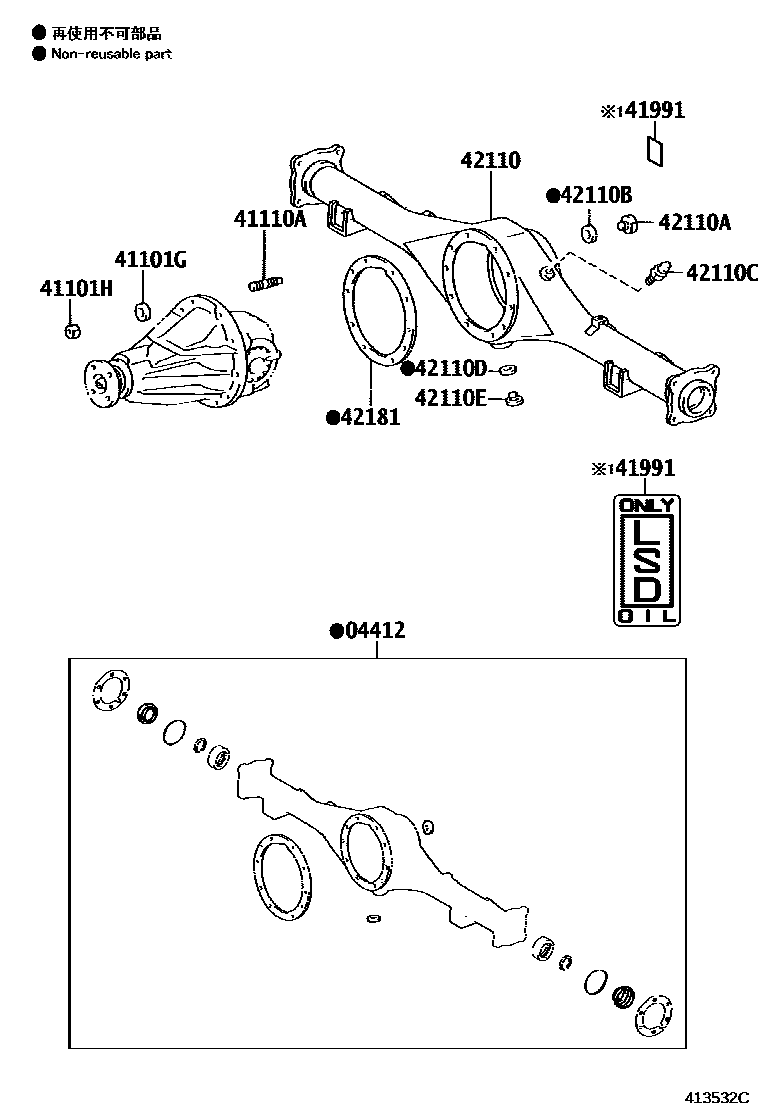

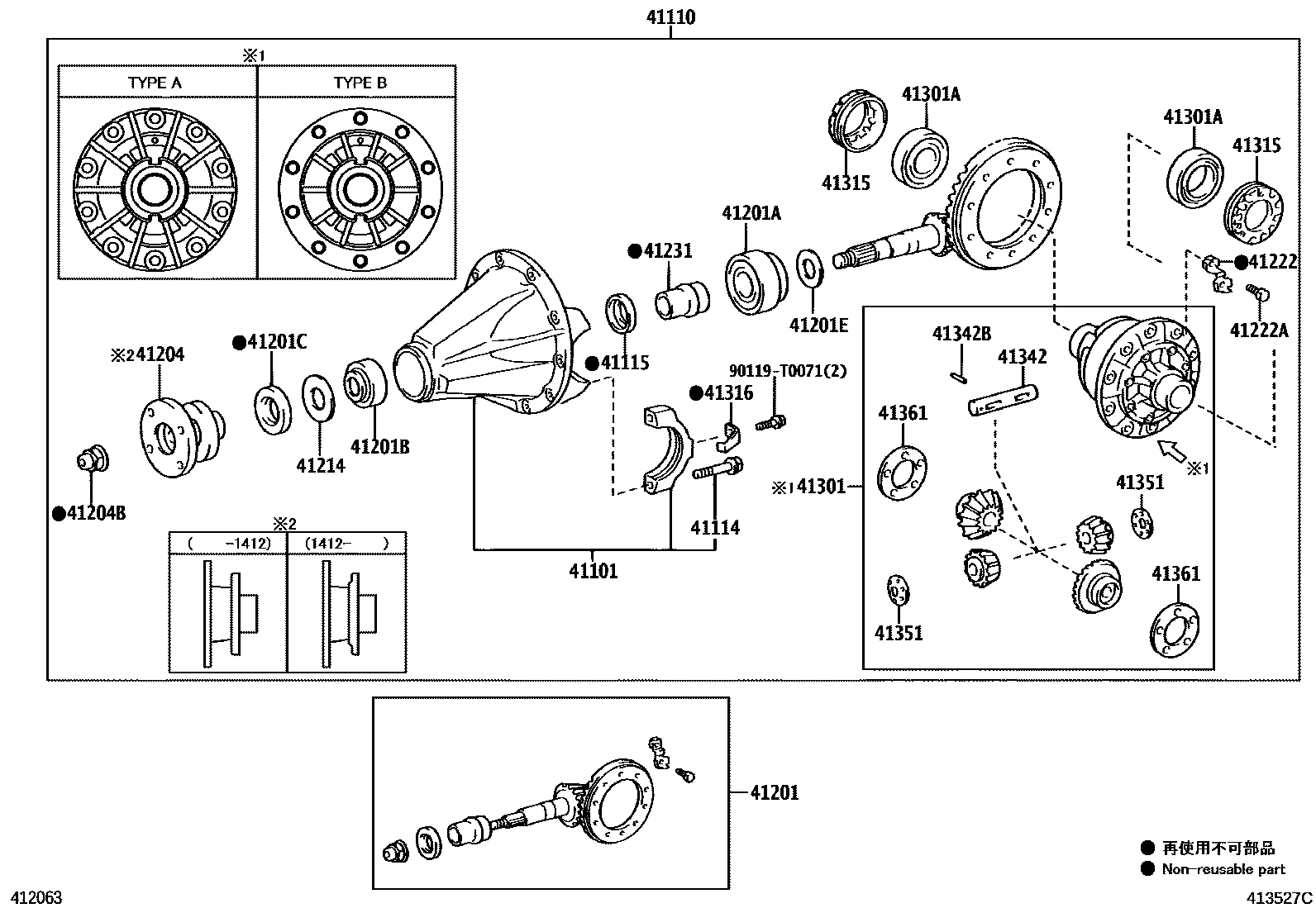

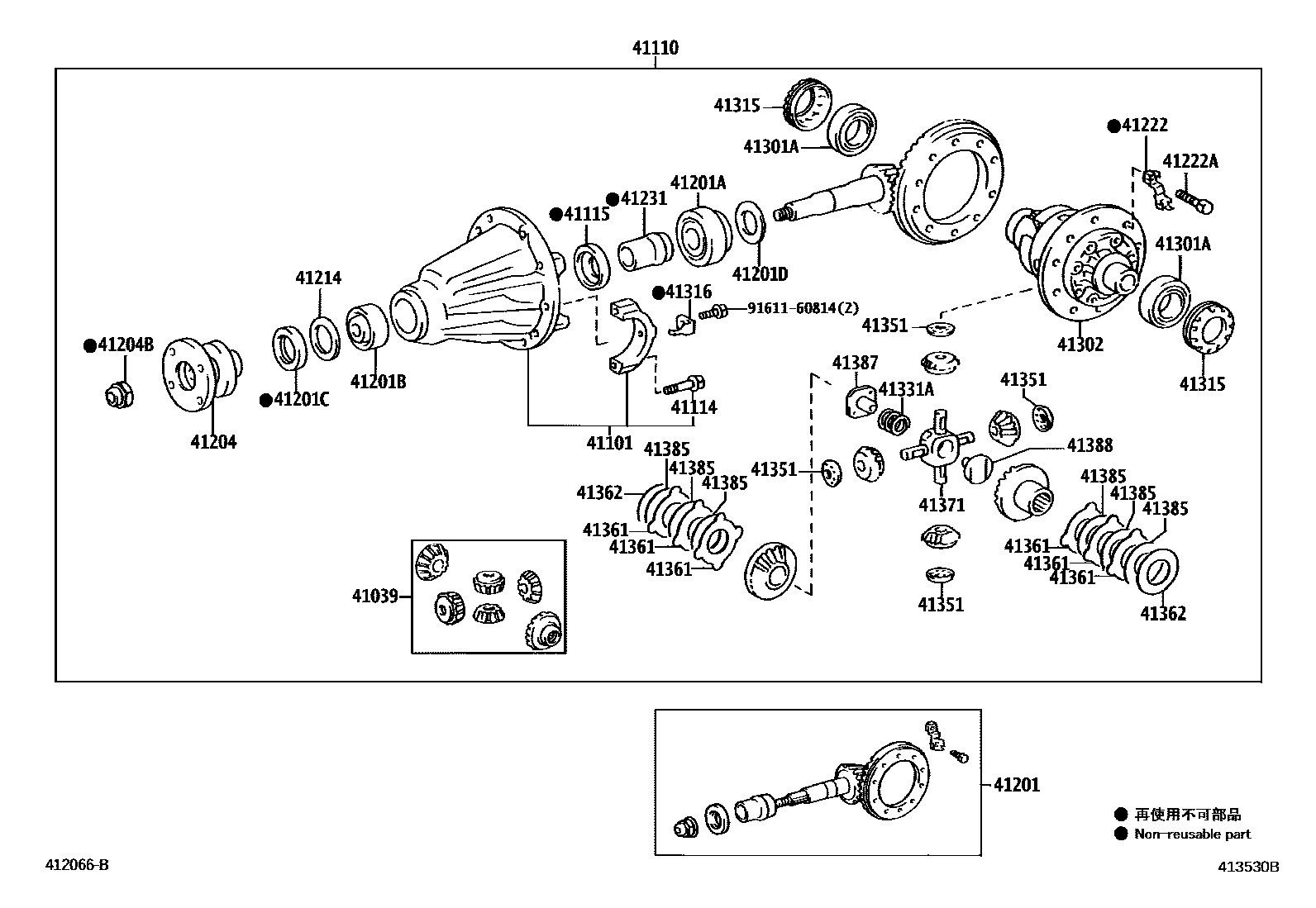

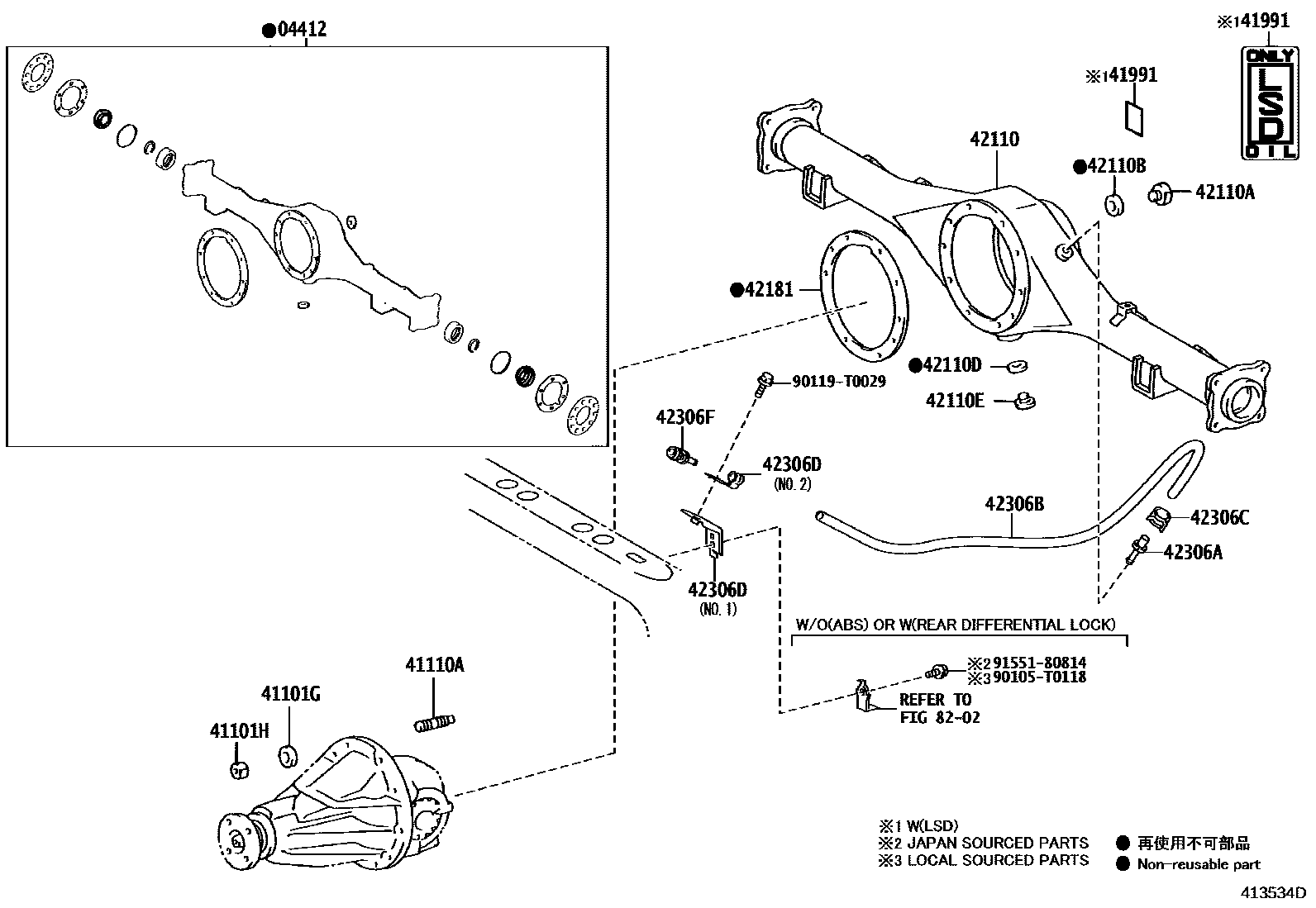

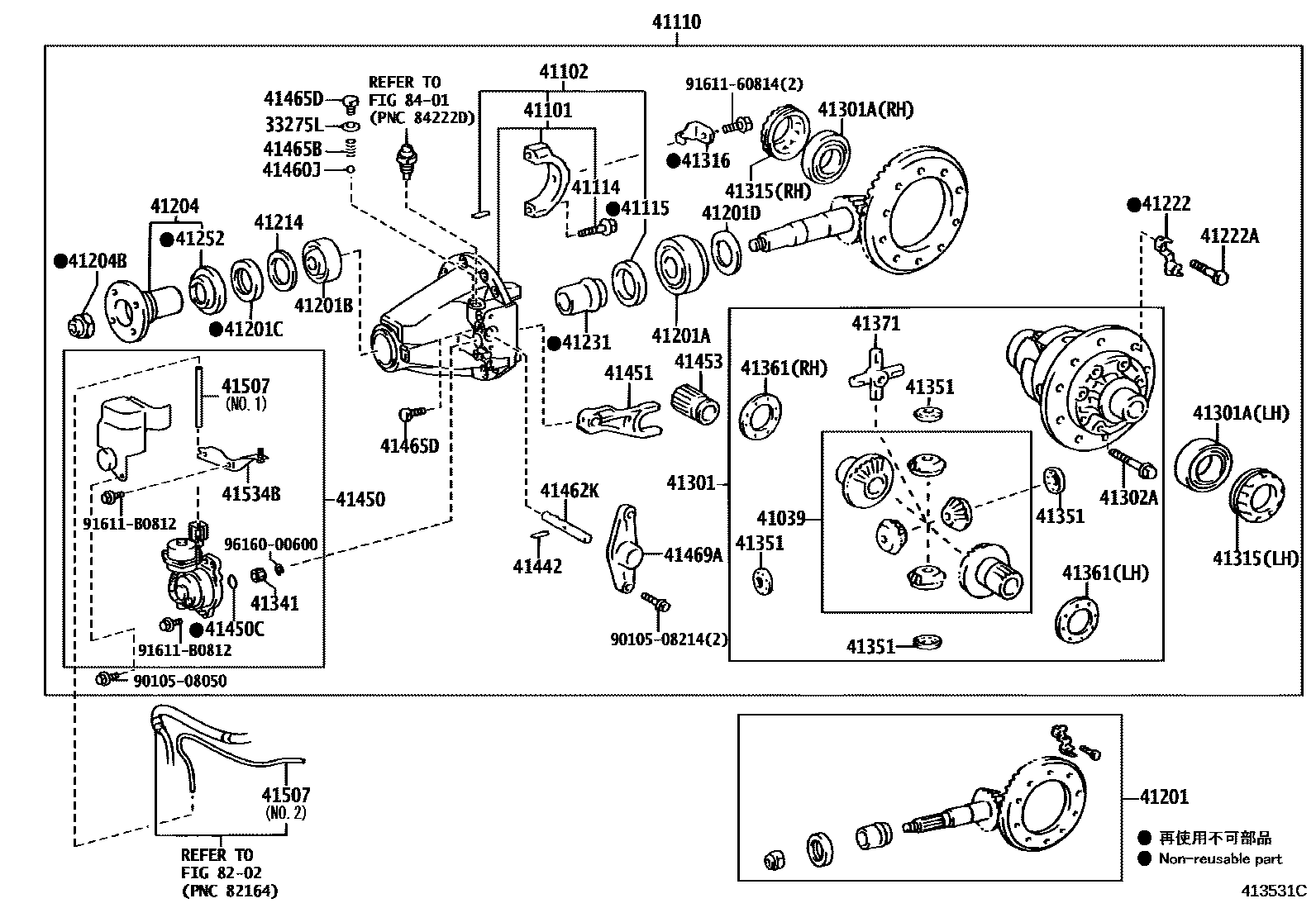

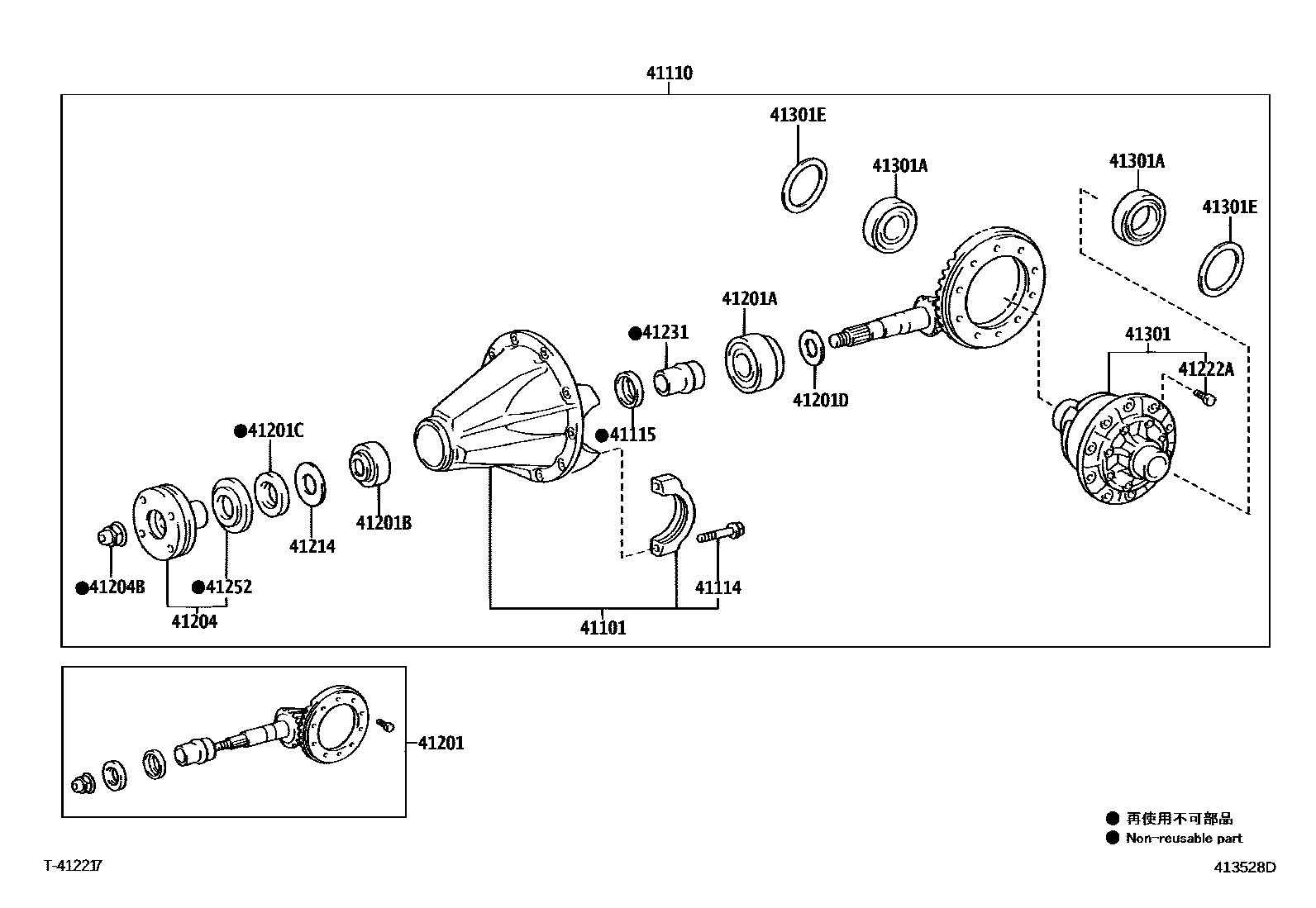

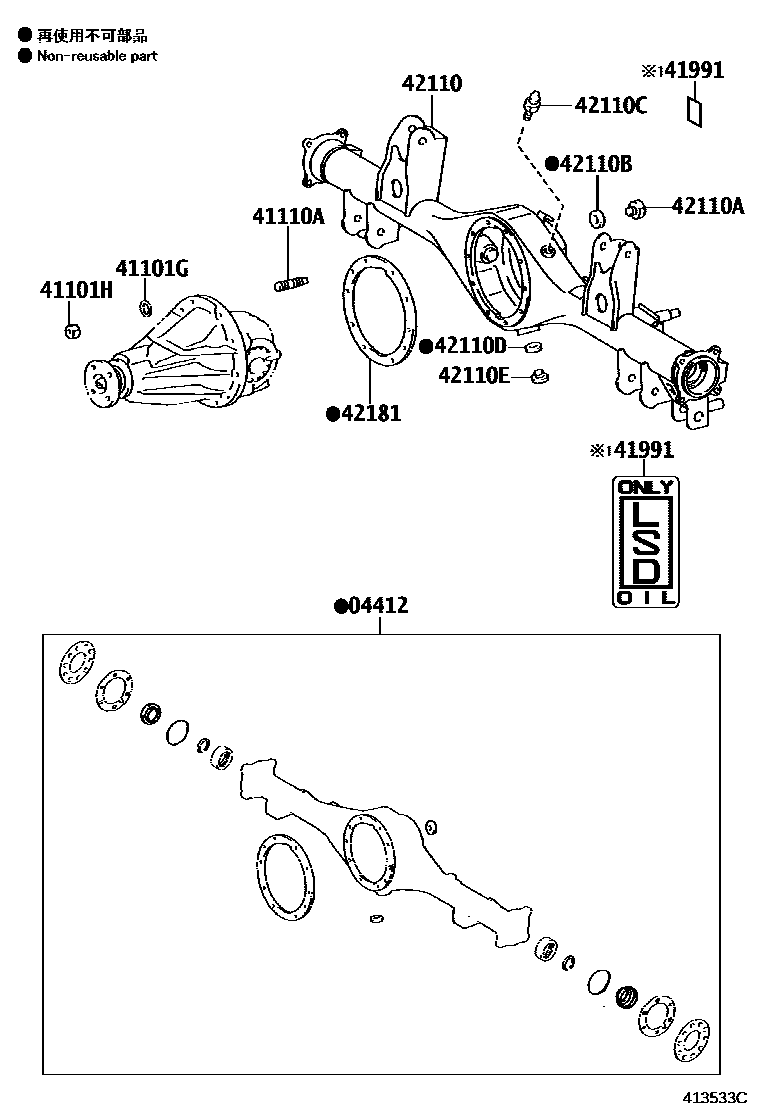

Toyota HILUX EPC diagram 4101, 后桥壳和差速器, with 8 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04412 | Rear differential carrier gasket assembly | 04412-0K470 · 04412-0K500 · 04412-0K510 · 04412-0K520 |
| 33275L | Rear differential lock shift lock steel ball spring seat | 33275-16010 |
| 41039 | rear differential gear assembly | 41039-34060 · 41039-34070 |
| 41101 | Rear differential bracket sub-assembly | 41101-0K010 · 41101-0K011 · 41101-0K040 · 41101-35150 · 41101-35171 |
| 41101G | Spring washer (for rear differential case assembly) | 90201-08002 |
| 41101H | Hex nut (for rear differential case assembly) | 90170-08042 · 90170-T0009 |
| 41102 | Rear differential pin housing sub-assembly | 41102-35010 |
| 41110 | Rear differential bracket assembly | 41110-0K011 · 41110-0K012 · 41110-0K021 · 41110-0K022 · 41110-0K031 · 41110-0K032 · 41110-0K041 · 41110-0K042 · 41110-0K051 · 41110-0K052 · 41110-0K061 · 41110-0K062 · 41110-0K071 · 41110-0K072 · 41110-0K081 · 41110-0K082 · 41110-0K091 · 41110-0K092 · 41110-0K101 · 41110-0K102 · 41110-0K400 · 41110-0K410 · 41110-0K420 · 41110-0K440 · 41110-0K450 · 41110-0K470 · 41110-0K480 · 41110-0K490 · 41110-0KC70 · 41110-71270 · 41110-71280 · 41110-71290 · 41110-71300 · 41110-71310 · 41110-71320 · 41110-71330 · 41110-71340 · 41110-71370 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-08233 · 90116-08329 · 90116-08330 |
| 41114 | Rear differential bearing cap bolts | 90080-10301 · 90105-12053 · 90105-T0081 |
| 41115 | Differential oil reservoir ring | 41115-0K010 · 41115-35010 · 90080-20103 |
| 41201 | Rear differential final drive gear assembly | 41201-09580 · 41201-09620 · 41201-09630 · 41201-09650 · 41201-09A80 · 41201-09B10 · 41201-09B20 · 41201-09B30 · 41201-09B40 · 41201-09B50 · 41201-09D10 · 41201-09D20 · 41201-09D30 · 41201-09D40 · 41201-09D50 · 41201-09D90 · 41201-09E10 · 41201-09E20 · 41201-09E30 · 41201-80764 · 41201-80765 |
| 41201A | Rear bearing (for rear drive pinion) | 90080-36216 · 90366-35087 · 90366-T0016 · 90366-T0080 |
| 41201B | Front bearing (for rear drive pinion) | 90080-36214 · 90366-30067 · 90366-30105 · 90366-T0013 · 90366-T0057 · 90366-T0083 |
| 41201C | Oil seal (for rear differential case) | 90080-31110 · 90311-41014 · 90311-T0034 · 90311-T0068 |
| 41201D | Flat washer (for rear differential drive pinion) | 90080-56136 · 90080-56137 · 90080-56138 · 90080-56139 · 90080-56140 · 90080-56141 · 90080-56142 · 90080-56143 · 90080-56144 · 90080-56145 · 90080-56146 · 90080-56147 · 90080-56148 · 90080-56149 · 90080-56150 · 90080-56151 · 90080-56152 · 90080-56153 · 90080-56154 · 90080-56155 · 90080-56156 · 90080-56157 · 90080-56158 · 90080-56159 · 90080-56160 · 90080-56161 · 90080-56162 · 90080-56163 · 90080-56164 · 90080-56165 · 90080-56166 · 90080-56238 · 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 |
| 41201E | Front adjustment shim (for rear differential drive pinion spacer) | 90564-35109 · 90564-35110 · 90564-35111 · 90564-35112 · 90564-35113 · 90564-35114 · 90564-35115 · 90564-35116 · 90564-35117 · 90564-35118 · 90564-35119 · 90564-35120 · 90564-35121 · 90564-35123 · 90564-35124 · 90564-35125 · 90564-35126 · 90564-35127 · 90564-35128 · 90564-35129 · 90564-35130 · 90564-35131 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-0K050 · 41204-0K060 · 41204-0K100 · 41204-71020 |
| 41204B | Nut (for rear driving pinion) | 90080-17204 · 90177-22003 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-0K030 · 41214-26011 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-0K010 · 41222-35020 · 41222-60010 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90080-10292 · 90101-11353 · 90101-T0006 · 90105-11063 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-0K010 · 41231-24010 |
| 41252 | Dust cover (for rear differential) | 41252-0K040 |
| 41301 | Rear differential housing sub-assembly | 41301-0K011 · 41301-0K090 · 41301-0K110 · 41301-60060 |
| 41301A | Bearings (for rear differential housing) | 90080-36215 · 90366-50007 · 90366-75001 · 90366-T0010 · 90366-T0019 |
| 41301E | Gasket (for differential case) | 90080-56167 · 90080-56168 · 90080-56169 · 90080-56170 · 90080-56171 · 90080-56172 · 90080-56173 · 90080-56174 · 90080-56175 · 90080-56176 · 90080-56177 · 90080-56178 · 90080-56179 · 90080-56180 · 90080-56181 · 90080-56182 · 90080-56183 · 90080-56184 · 90080-56185 · 90080-56186 · 90080-56187 · 90080-56188 · 90080-56189 · 90080-56190 · 90080-56191 · 90080-56192 · 90080-56193 · 90080-56194 · 90080-56195 · 90080-56196 · 90080-56197 · 90080-56198 · 90080-56199 · 90080-56200 · 90080-56201 · 90080-56202 · 90080-56203 · 90080-56204 · 90080-56205 · 90080-56206 · 90080-56207 · 90080-56208 · 90080-56209 · 90080-56210 · 90080-56211 · 90080-56212 · 90080-56213 · 90080-56214 · 90080-56215 · 90080-56216 · 90080-56217 · 90080-56218 · 90080-56219 · 90080-56220 · 90080-56221 · 90080-56222 · 90080-56223 · 90080-56224 · 90080-56225 · 90080-56226 · 90080-56227 · 90080-56228 · 90080-56229 · 90080-56230 · 90080-56231 · 90080-56232 · 90080-56233 · 90080-56234 · 90080-56235 · 90080-56236 · 90080-56237 |
| 41302 | Rear differential housing sub-assembly | 41302-35040 · 41302-71010 |
| 41302A | Bolt (for rear differential case) | 90105-10569 · 90105-T0102 |
| 41306 | Front differential cross shaft sub-assembly | 41306-0K010 |
| 41315 | Rear differential bearing adjusting nut | 41315-0K010 · 41315-35020 · 41315-60010 |
| 41316 | Rear differential bearing adjustment nut locking piece | 41316-0K010 · 41316-35010 |
| 41331A | compression spring | 90501-65003 · 90501-T0006 |
| 41341 | rear differential pinion | 41341-35070 |
| 41342 | Rear differential planetary gear shaft | 41342-0K050 · 41342-0K060 · 41342-53020 |
| 41342B | Direct sales (for rear differential planetary gear shaft) | 90250-T0006 |
| 41351 | Rear differential planetary gear thrust washer | 41351-0K010 · 41351-0K020 · 41351-30060 · 41351-35030 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-0K020 · 41361-0K030 · 41361-0K040 · 41361-0K050 · 41361-0K060 · 41361-0K070 · 41361-0K080 · 41361-0K090 · 41361-34010 · 41361-34020 · 41361-34030 · 41361-34040 · 41361-34050 · 41361-34060 · 41361-34070 · 41361-34080 · 41361-34090 · 41361-35161 · 41361-35291 · 41361-35310 · 41361-35320 · 41361-35330 · 41361-35340 · 41361-35350 · 41361-60290 · 41361-60300 · 41361-60310 · 41361-60320 · 41361-60330 |
| 41362 | No. 2 rear differential half gear thrust washer | 41361-35161 · 90564-50001 · 90564-50002 · 90564-50003 · 90564-50004 · 90564-50005 |
| 41371 | Rear differential cross shaft | 41306-35040 · 41371-35020 |
| 41385 | clutch plate | 41385-22020 |
| 41387 | Right spring seat | 41308-35010 |
| 41388 | Left spring seat | 41388-35020 |
| 41442 | Shift fork locking bolt or locking pin | 90254-05016 |
| 41450 | Differential lock shift actuator | 41450-35030 · 41450-35031 |
| 41450C | O-ring (for rear differential lock shift actuator) | 90301-20005 |
| 41451 | Rear differential lock shift fork | 41451-60020 |
| 41453 | Rear differential lock sleeve | 41453-60020 |
| 41460J | Steel ball (for rear differential lock cylinder) | 90360-08009 |
| 41462K | Rear differential lock shift fork shaft | 41462-60020 |
| 41465B | Compression spring (for rear differential lock retainer) | 90501-12110 |
| 41465D | Plug (for rear differential lock cylinder) | 90341-10065 |
| 41469A | Rear differential lock shaft retainer | 41469-60010 |
| 41507 | Rear differential lock actuator vent pipe | 41507-0K020 · 41507-35130 |
| 41534B | Differential breather pipe bracket | 41534-35030 |
| 41991 | Rear differential warning plate | 41991-0K010 |
| 42110 | Rear axle housing assembly | 42110-0K011 · 42110-0K311 · 42110-0K321 · 42110-0K331 · 42110-0K341 · 42110-0K351 · 42110-0K361 · 42110-0K371 · 42110-0K381 · 42110-0K391 · 42110-0K401 · 42110-0K411 · 42110-0K421 · 42110-0K540 · 42110-0K550 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18006 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42181 | Rear differential case gasket | 42181-0K020 · 42181-0K030 |
| 42306A | Connector (for rear axle breather hose) | 90404-51052 |
| 42306B | Breather hose (for rear axle) | 42316-0K010 |
| 42306C | Hose clip (for rear axle breather hose) | 90466-T0040 |
| 42306D | Clamp (for rear axle breather hose) | 42309-0K010 · 90949-01646 |
| 42306F | Breather plug (for rear axle) | 90930-03097 |
