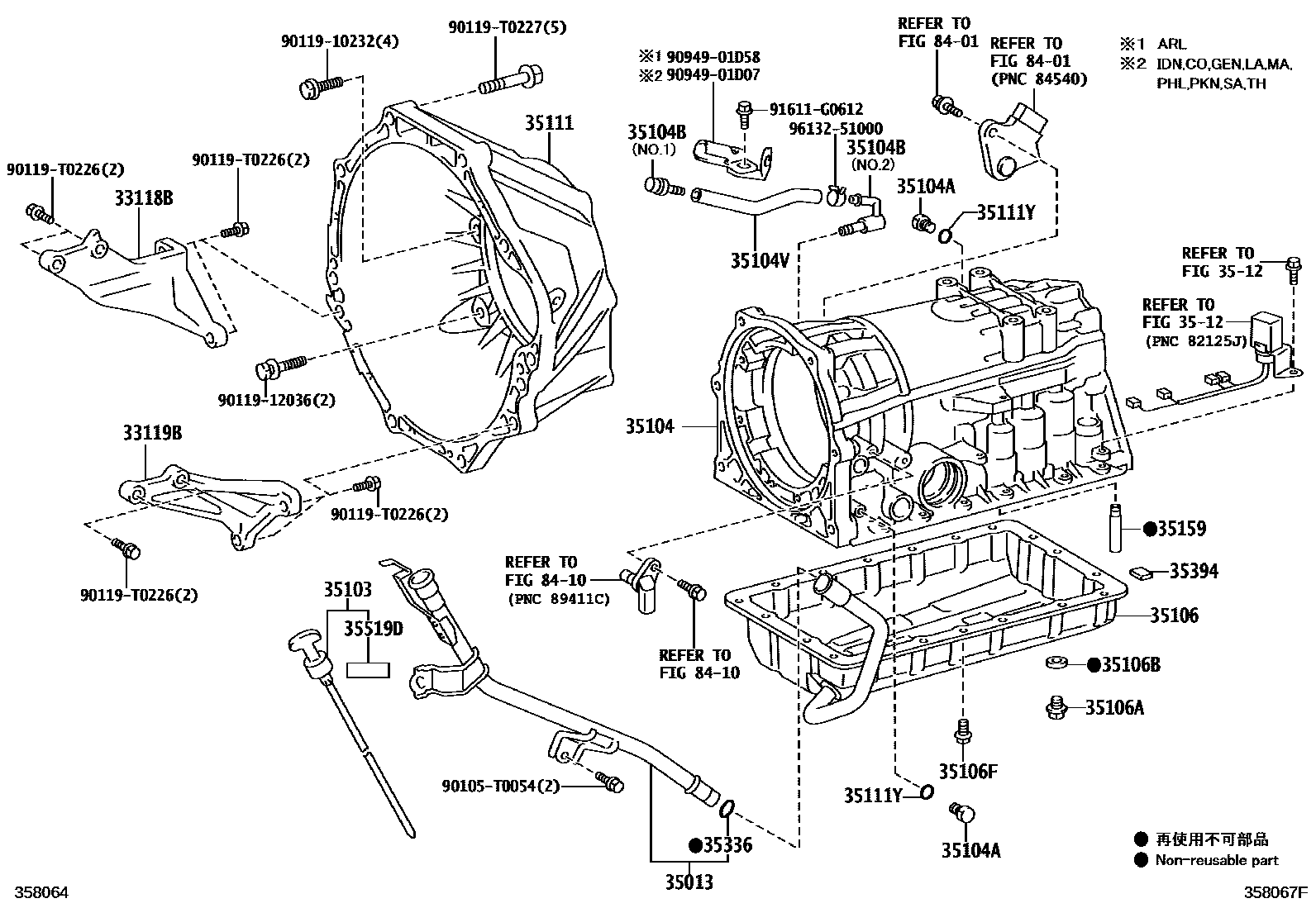

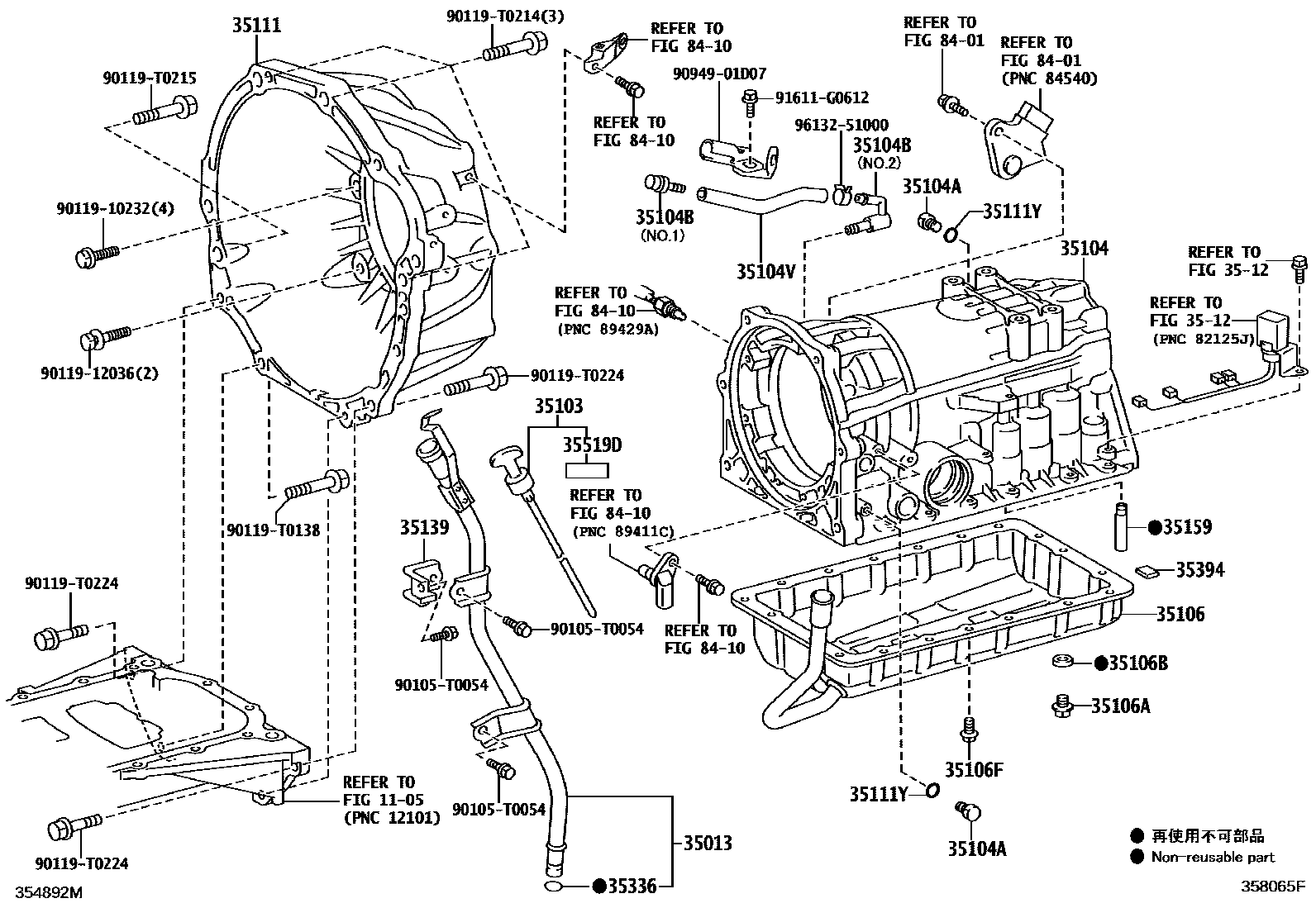

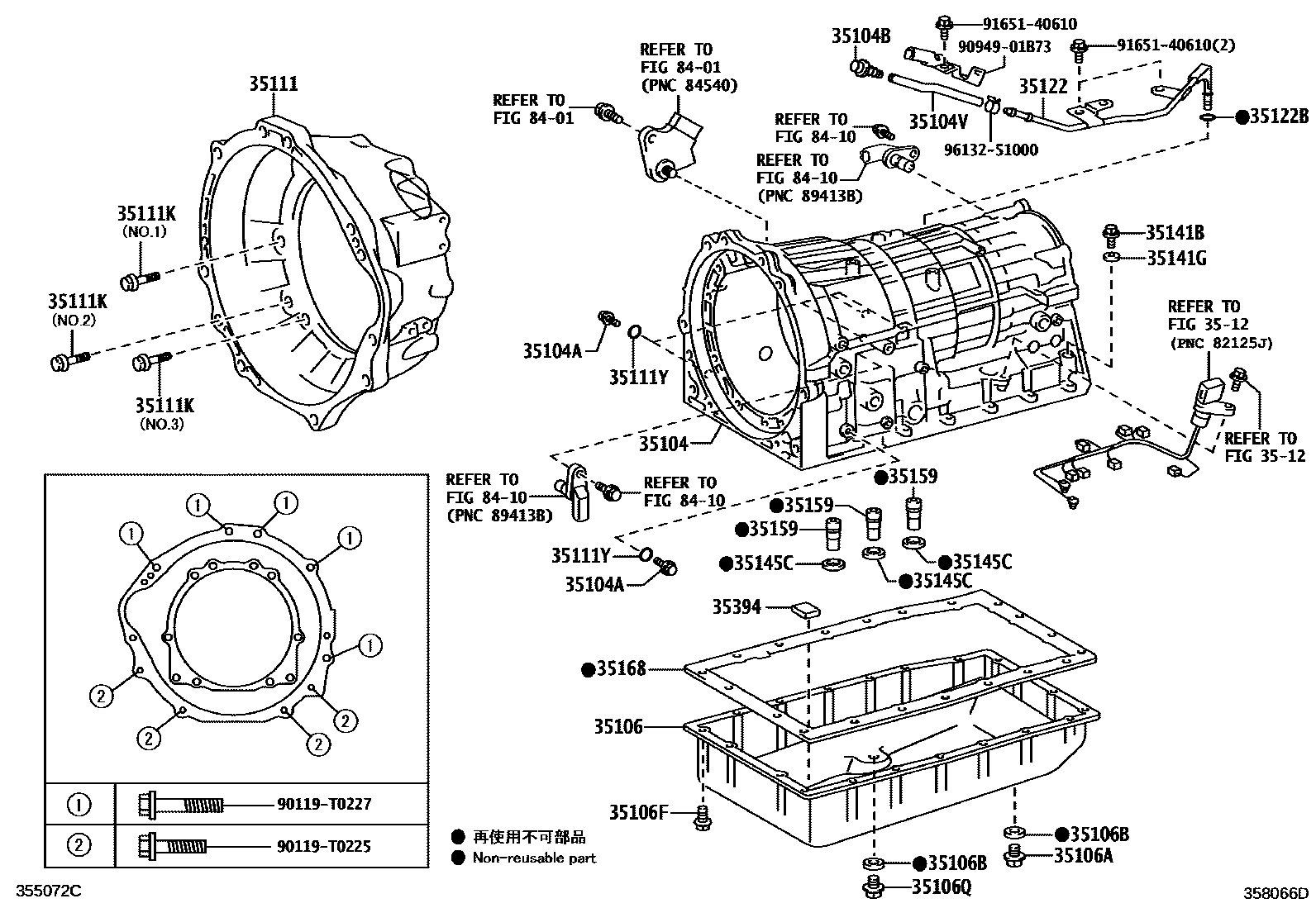

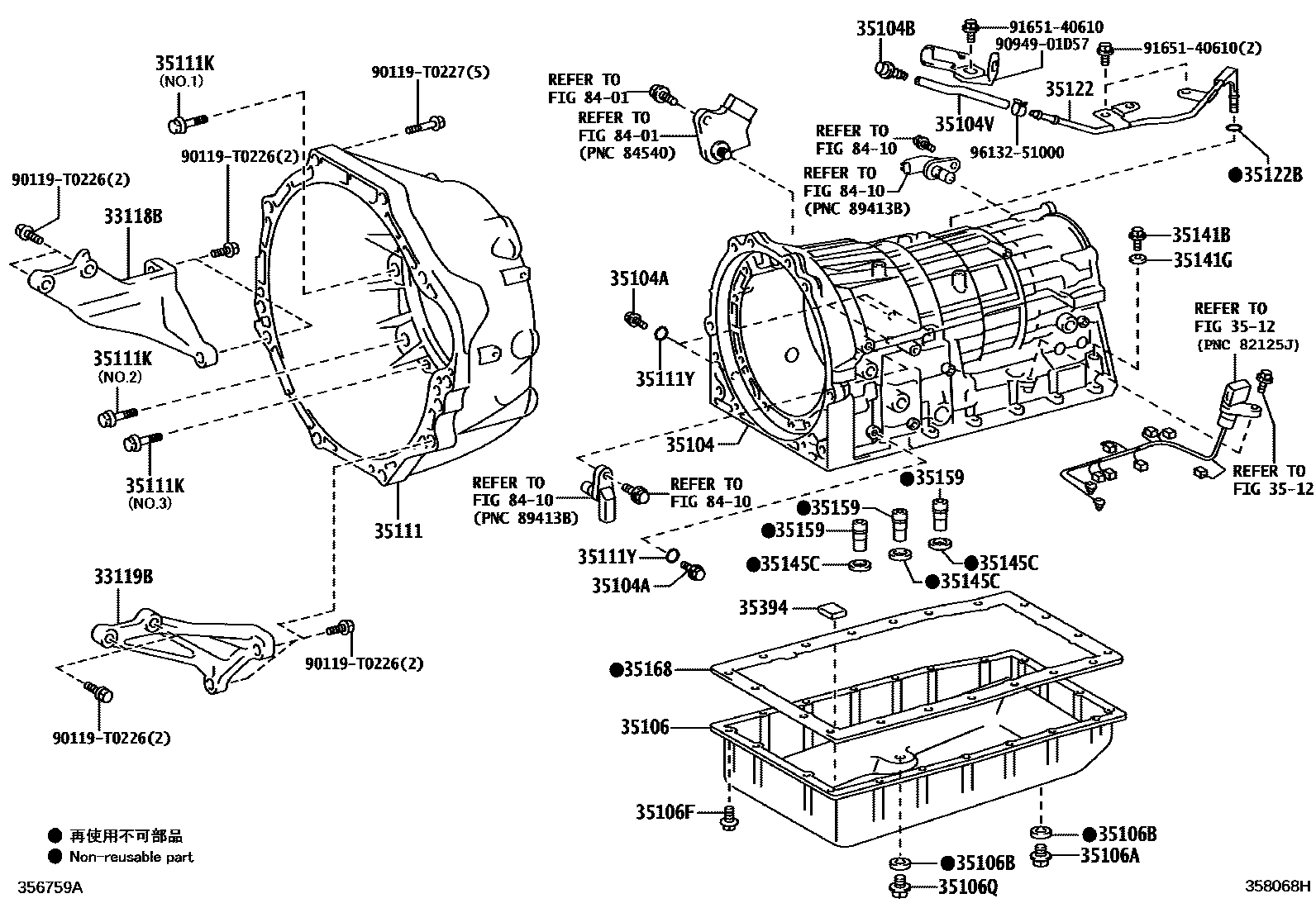

Toyota HILUX 变速器壳和油底壳(ATM) — Figure 3503
Toyota HILUX EPC diagram 3503, 变速器壳和油底壳(ATM), with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33118B | Right reinforcement plate (ATM) | 33118-04020 |
| 33119B | Left reinforcement plate (ATM) | 33119-0K020 |
| 35013 | Transmission oil pipe sub-assembly | 35013-0K020 · 35013-0K030 |
| 35103 | Transmission oil level scoring assembly | 35103-0K020 · 35103-0K030 |
| 35104 | Automatic transmission housing sub-assembly | 35104-26061 · 35104-35022 · 35104-60221 |
| 35104A | automatic transmission plug | 90341-08001 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03098 · 90930-03168 |
| 35104V | Hoses (for breather plug) | 90445-11118 · 90445-11155 · 90445-11159 |
| 35106 | Automatic transmission oil pan sub-assembly | 35106-60180 · 35106-71010 · 35106-71020 · 35106-71030 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10011 |
| 35106B | Drain plug gasket (ATM) | 35178-30010 |
| 35106F | Bolt (for automatic transmission oil pan) | 90119-06173 · 90119-06513 |
| 35106Q | Screw plug (for automatic transmission oil pan) | 90341-10021 |
| 35111 | automatic transmission housing | 35111-35090 · 35111-60160 · 35111-71010 · 35111-71020 |
| 35111K | Bolts (for securing transmission housing and case) | 90119-10232 · 90119-10947 · 90119-12378 |
| 35111Y | O-ring (for automatic transmission) | 90301-06196 |
| 35122 | Snorkel (for automatic transaxle) | 35122-60020 · 35122-71010 |
| 35122B | O-ring (for automatic transmission axle breather pipe joint) | 90301-04014 |
| 35139 | Fuel pipe bracket | 35139-0K010 |
| 35141B | Screw plug (for automatic transmission) | 90341-14011 |
| 35141G | O-ring (for automatic transmission) | 90301-11030 |
| 35145C | Transmission axle housing gasket | 35145-60020 |
| 35159 | brake drum gasket | 35159-30010 · 35159-60010 |
| 35168 | Automatic transmission oil pan gasket | 35168-60010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35519D | Automatic transmission information label | 35519-20030 |
