Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

Toyota HILUX EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 6 images and 2 PNC and OE references.

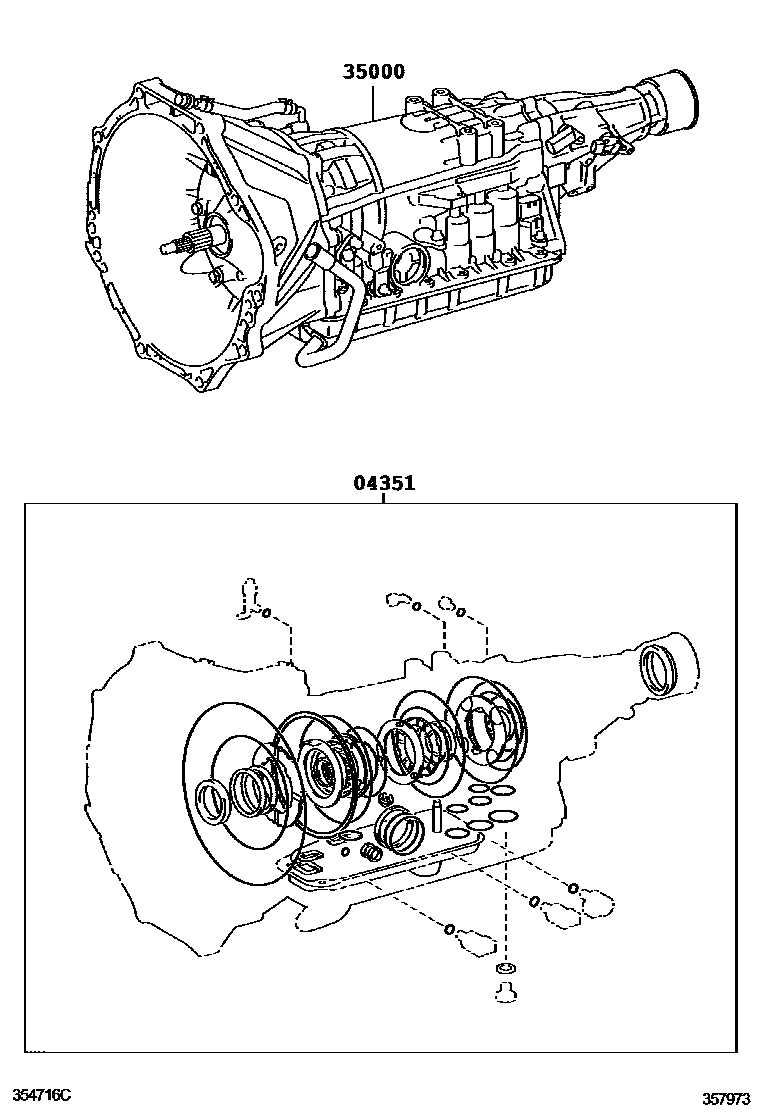

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 357973
传动桥或变速器总成和衬垫组件(ATM) — 357973 (201107 – 999999)

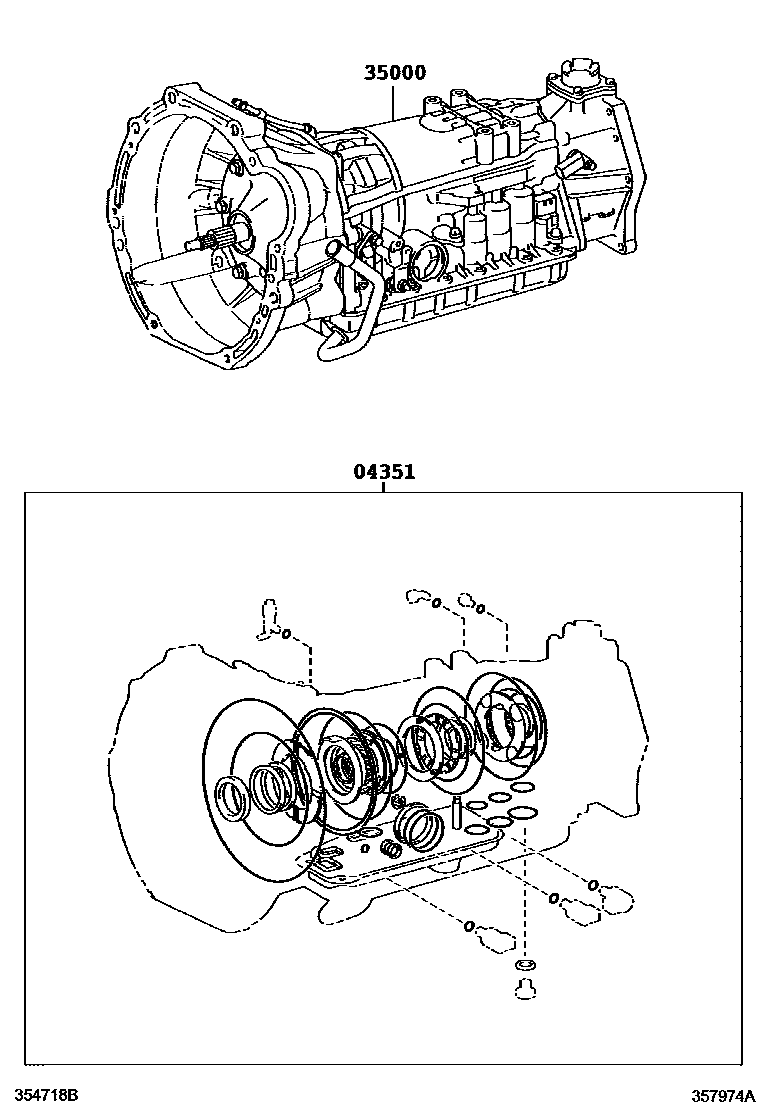

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 357974A
传动桥或变速器总成和衬垫组件(ATM) — 357974A (201107 – 999999)

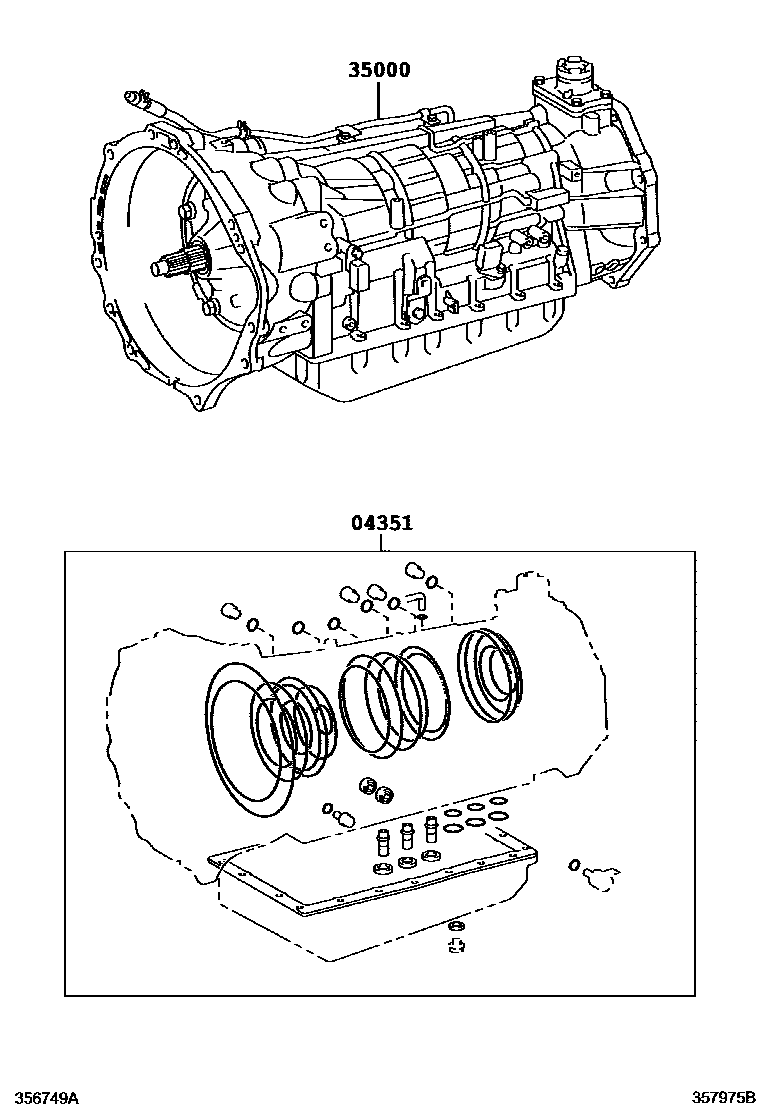

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 357975B
传动桥或变速器总成和衬垫组件(ATM) — 357975B (201107 – 999999)

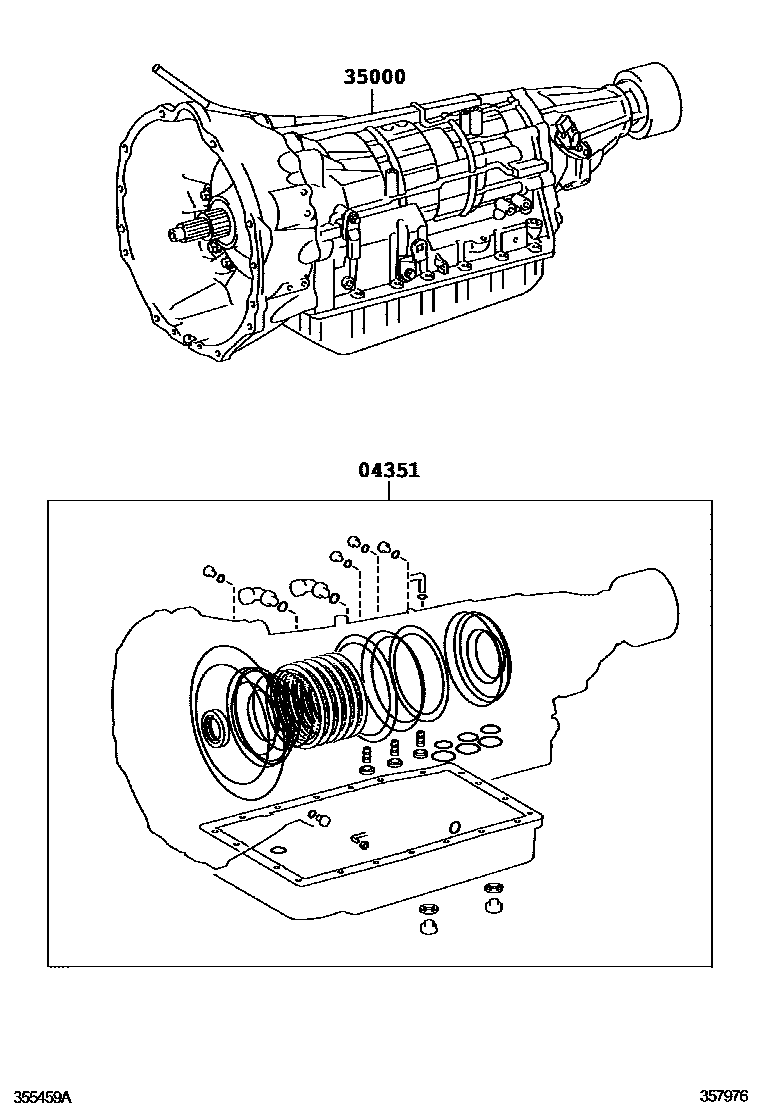

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 357976
传动桥或变速器总成和衬垫组件(ATM) — 357976 (201107 – 999999)

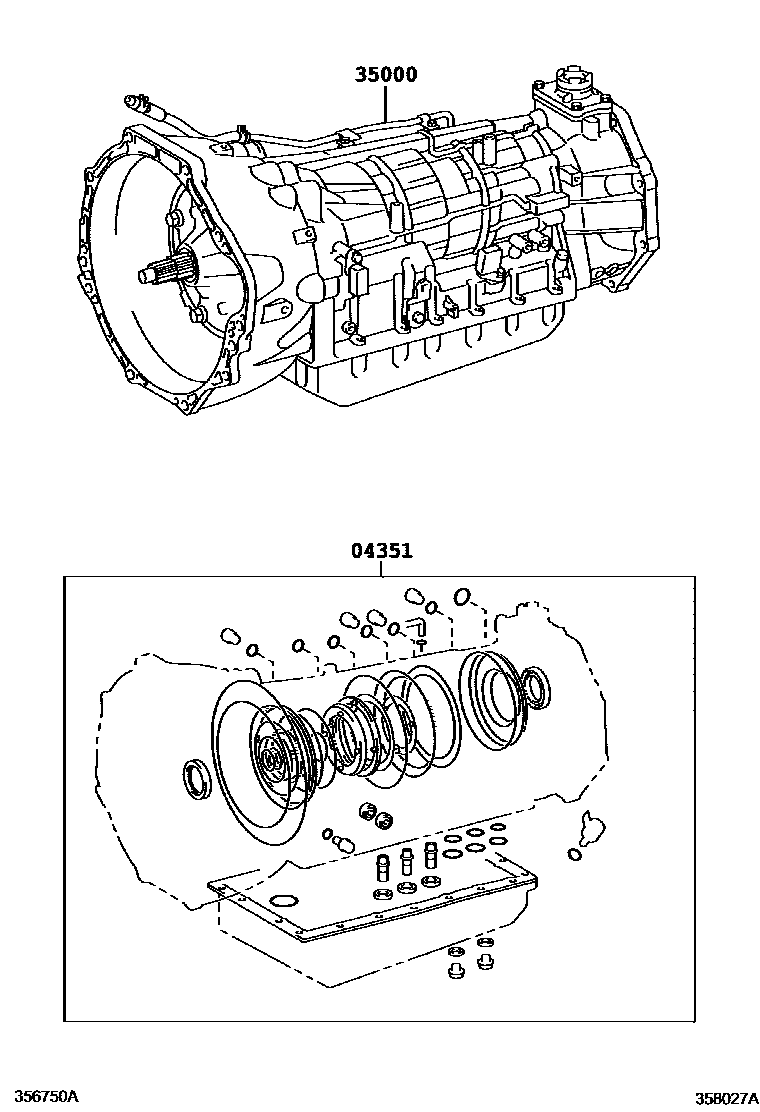

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 358027A
传动桥或变速器总成和衬垫组件(ATM) — 358027A (201204 – 999999)

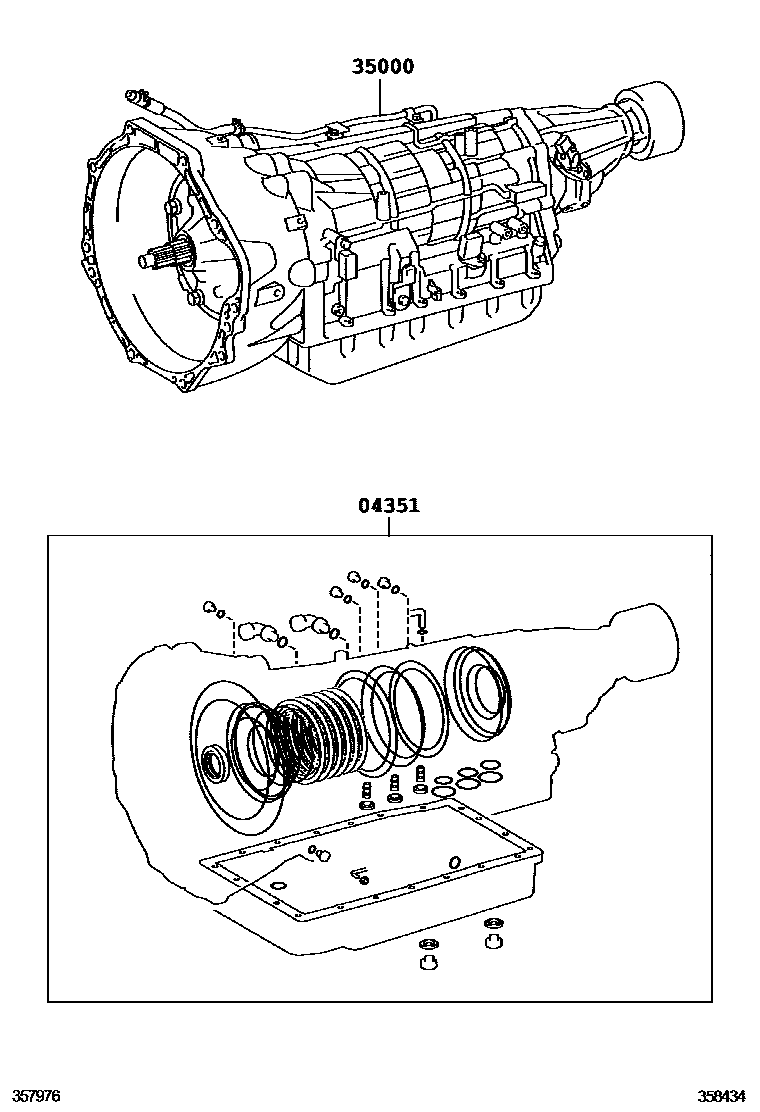

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 358434
传动桥或变速器总成和衬垫组件(ATM) — 358434 (201208 – 999999)

PNC and OE references

PNCPart nameOE numbers
04351Automatic transmission overhaul gasket assembly04351-30630 · 04351-35270 · 04351-35380 · 04351-35390 · 04351-60470 · 04351-71060
35000Automatic transmission assembly35000-71020 · 35000-71030 · 35000-71050 · 35000-71110 · 35000-71140 · 35000-71150 · 35000-71170 · 35000-71180 · 35000-71190 · 35000-71210 · 35000-71240 · 35000-71250 · 35000-71260 · 35000-71300 · 35000-71310
