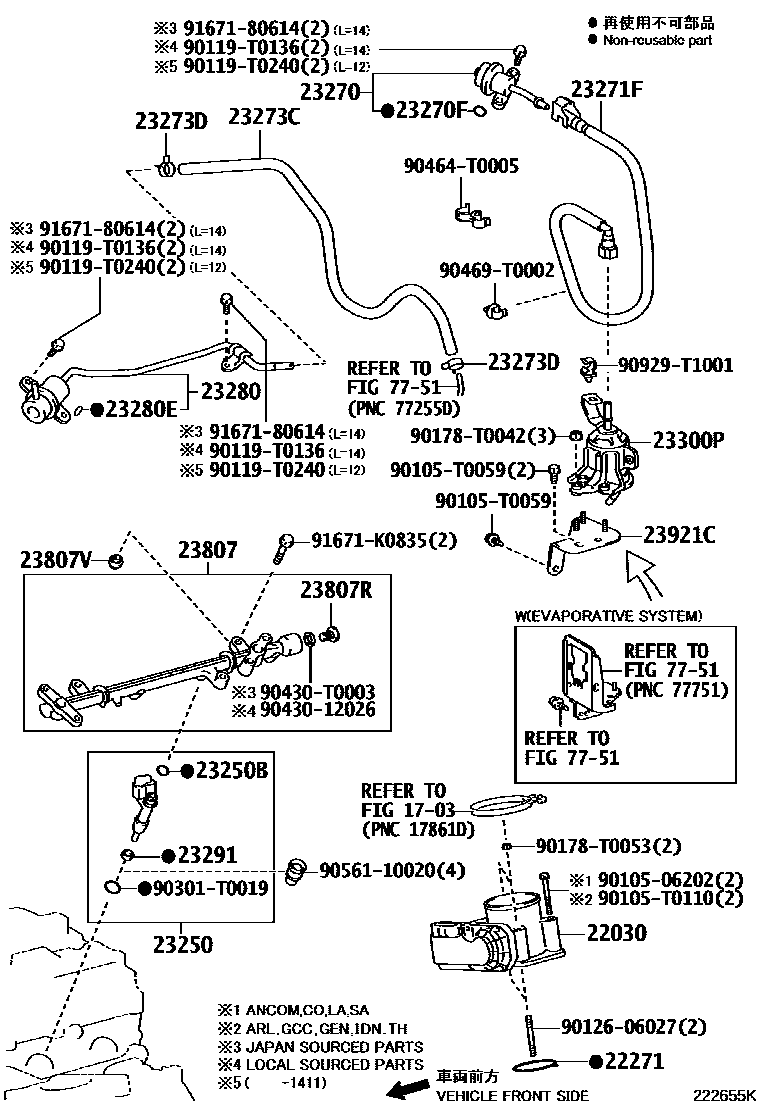

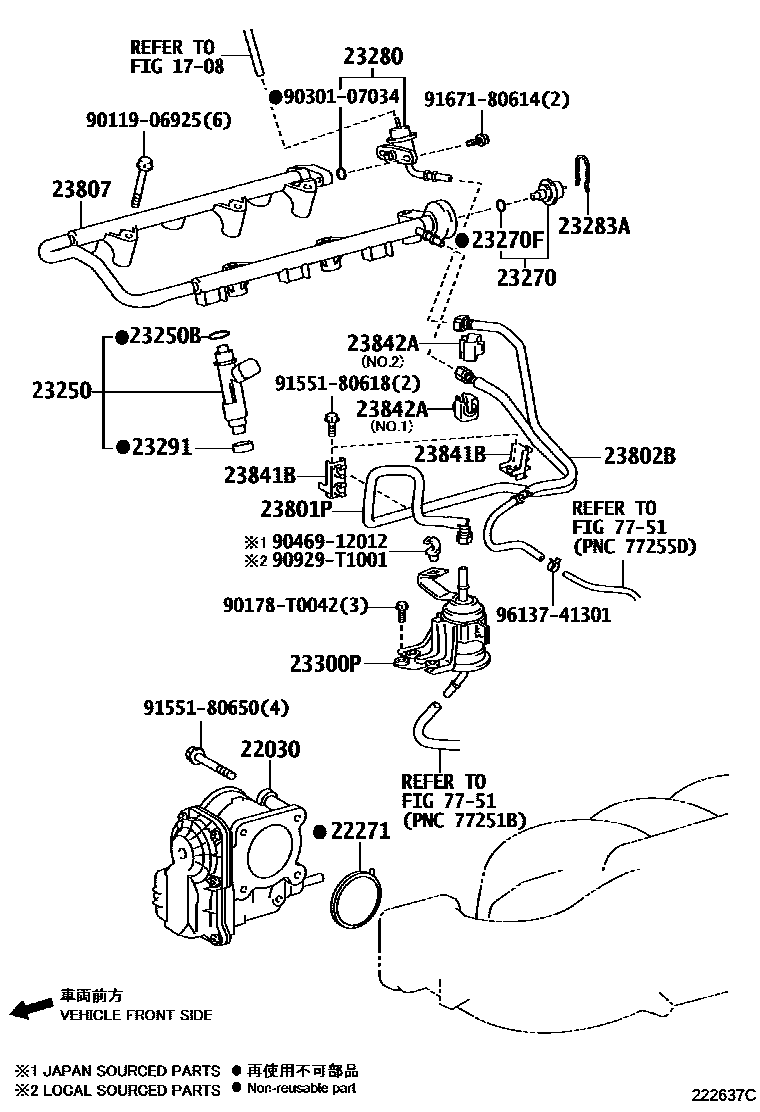

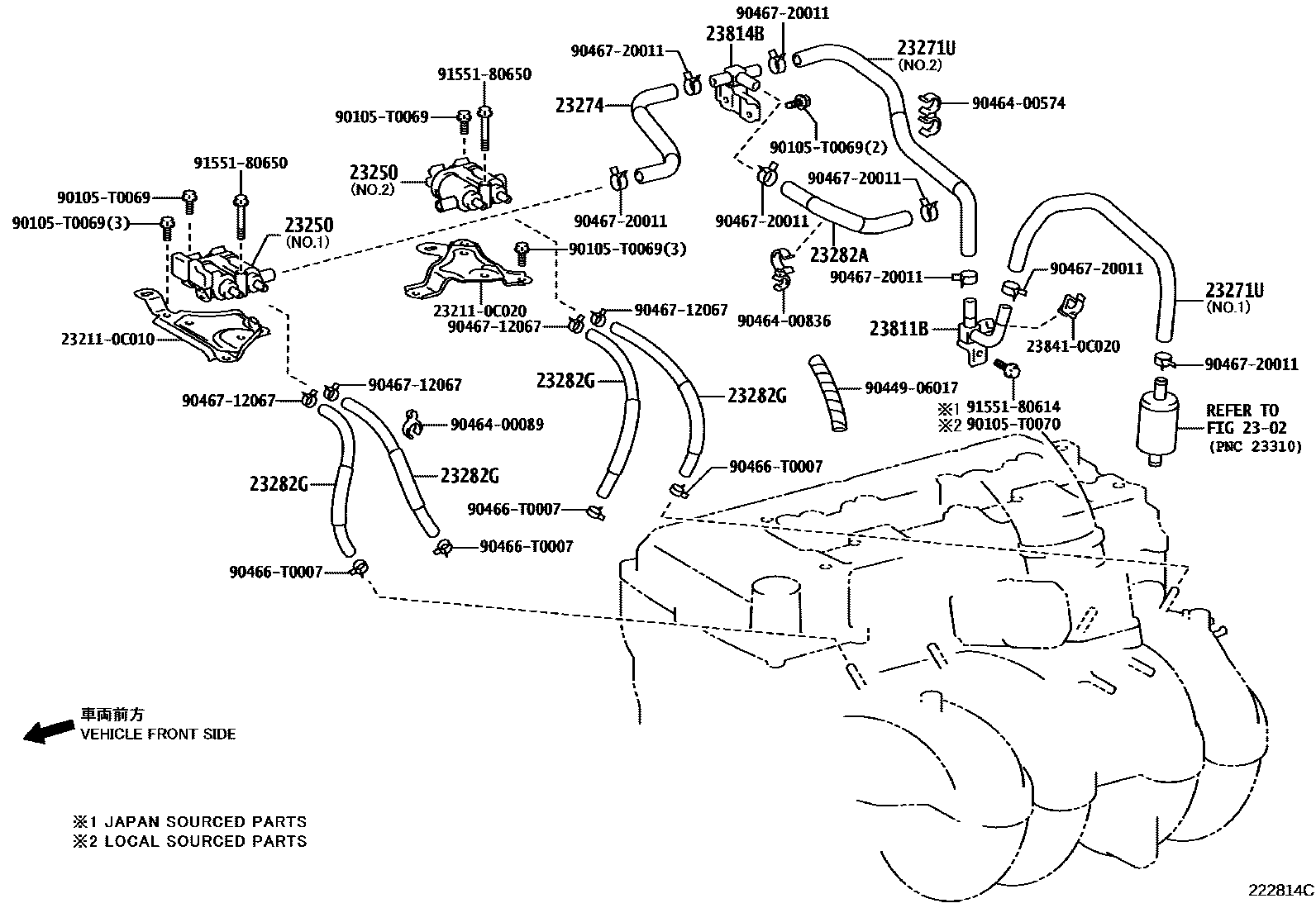

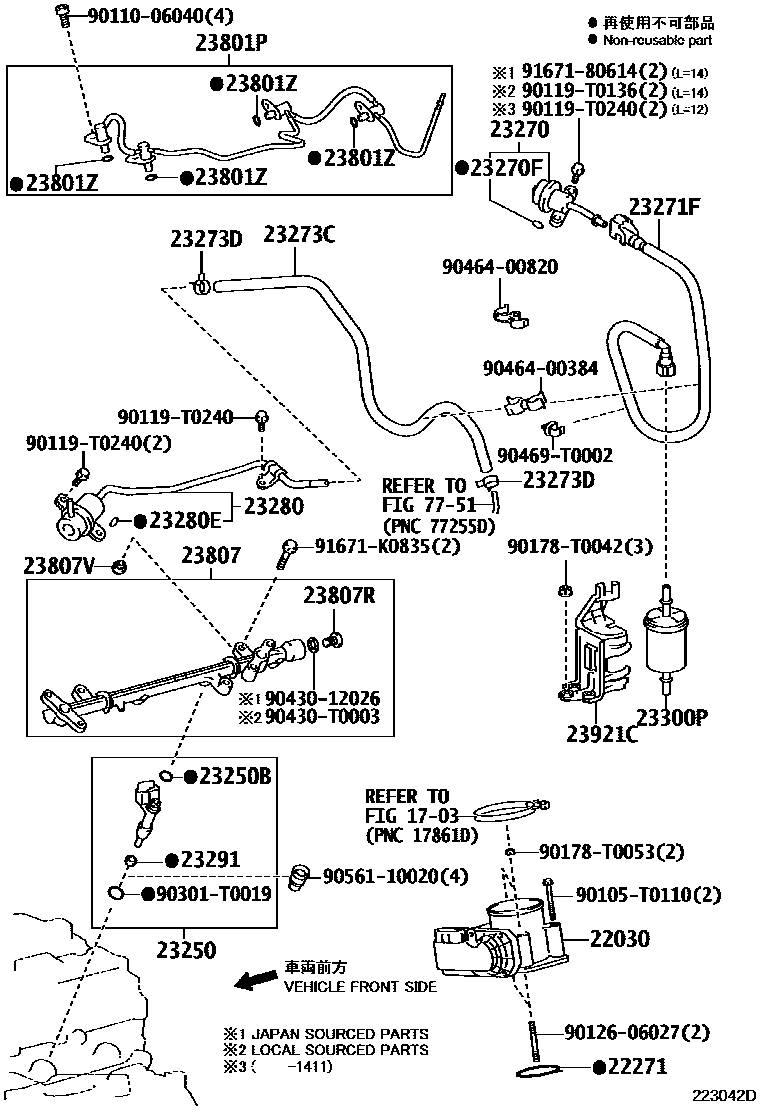

Toyota HILUX 燃油喷射系统 — Figure 2211
Toyota HILUX EPC diagram 2211, 燃油喷射系统, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-0C010 · 22030-0C020 · 22030-31010 |
| 22271 | Throttle body gasket | 22271-0C010 · 22271-0C020 · 22271-0C021 · 22271-31012 · 22271-37010 · 22271-75060 |
| 23250 | Fuel injector assembly | 23070-0C010 · 23209-09045 · 23209-09055 · 23209-09180 · 23209-09190 · 23209-39075 · 23250-0C060 |
| 23250B | O-ring (for fuel injector) | 90301-07033 · 90301-07037 · 90301-T0051 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-31080 · 23270-31140 · 23270-75010 · 23270-75040 · 23270-75050 |
| 23270F | O-ring (for pulsation damper) | 90301-07033 · 90301-07037 |
| 23271F | fuel hose | 23271-0C011 · 23271-0C030 |
| 23271U | No. 1 fuel hose | 23273-75390 · 23286-75010 |
| 23273C | No. 2 fuel hose | 23273-0C061 · 23273-75380 |
| 23273D | Clamp (for No. 2 fuel hose) | 90466-T0040 |
| 23274 | No. 3 fuel hose | 23274-75020 |
| 23280 | Fuel pressure regulator assembly | 23280-31010 · 23280-31040 · 23280-31041 · 23280-75040 · 23280-75090 · 23280-75130 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07037 |
| 23282A | No. 4 fuel hose | 23282-75030 |
| 23282G | No. 5 fuel hose | 23284-0C020 |
| 23283A | Fuel pressure regulator mount | 23283-31010 |
| 23291 | Injector vibration isolation pad | 23291-0C010 · 23291-0C020 · 23291-23010 |
| 23300P | Fuel filter (for EFI) | 23300-0D100 · 23300-31120 · 23300-75140 · 23300-75160 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-31110 · 23801-75120 |
| 23801Z | Snap ring (for fuel pipe) | 90301-04016 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-31050 |
| 23807 | Oil pipe sub-assembly | 23807-0C010 · 23807-0C012 · 23807-0C020 · 23807-31010 · 23807-75050 · 23807-75082 |
| 23807R | Oil pipe plug | 90341-12030 · 90341-T0008 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08036 |
| 23811B | No. 1 fuel pipe | 23811-75020 |
| 23814B | oil pipeline | 23814-75080 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-31030 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-31020 · 23842-31030 |
| 23921C | fuel filter bracket | 23921-0C010 · 23921-75040 |
