Toyota HILUX Air Cleaner — Figure 1703

Toyota HILUX EPC diagram 1703, Air Cleaner, with 20 images and 34 PNC and OE references.

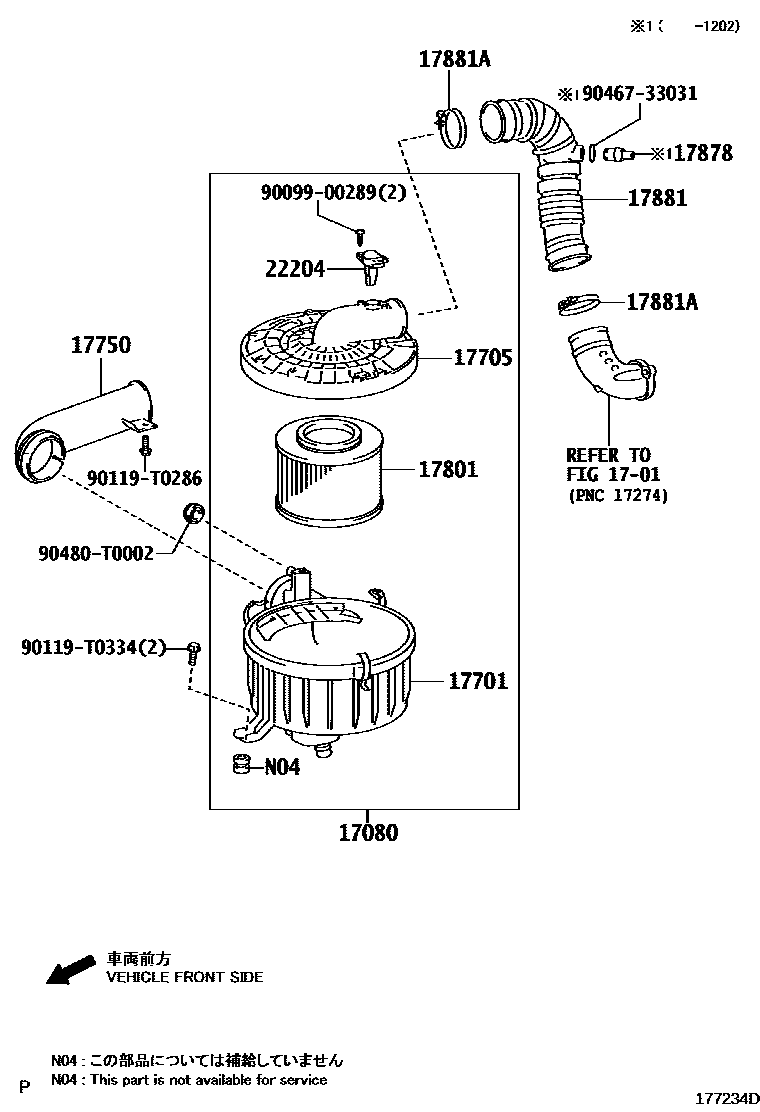

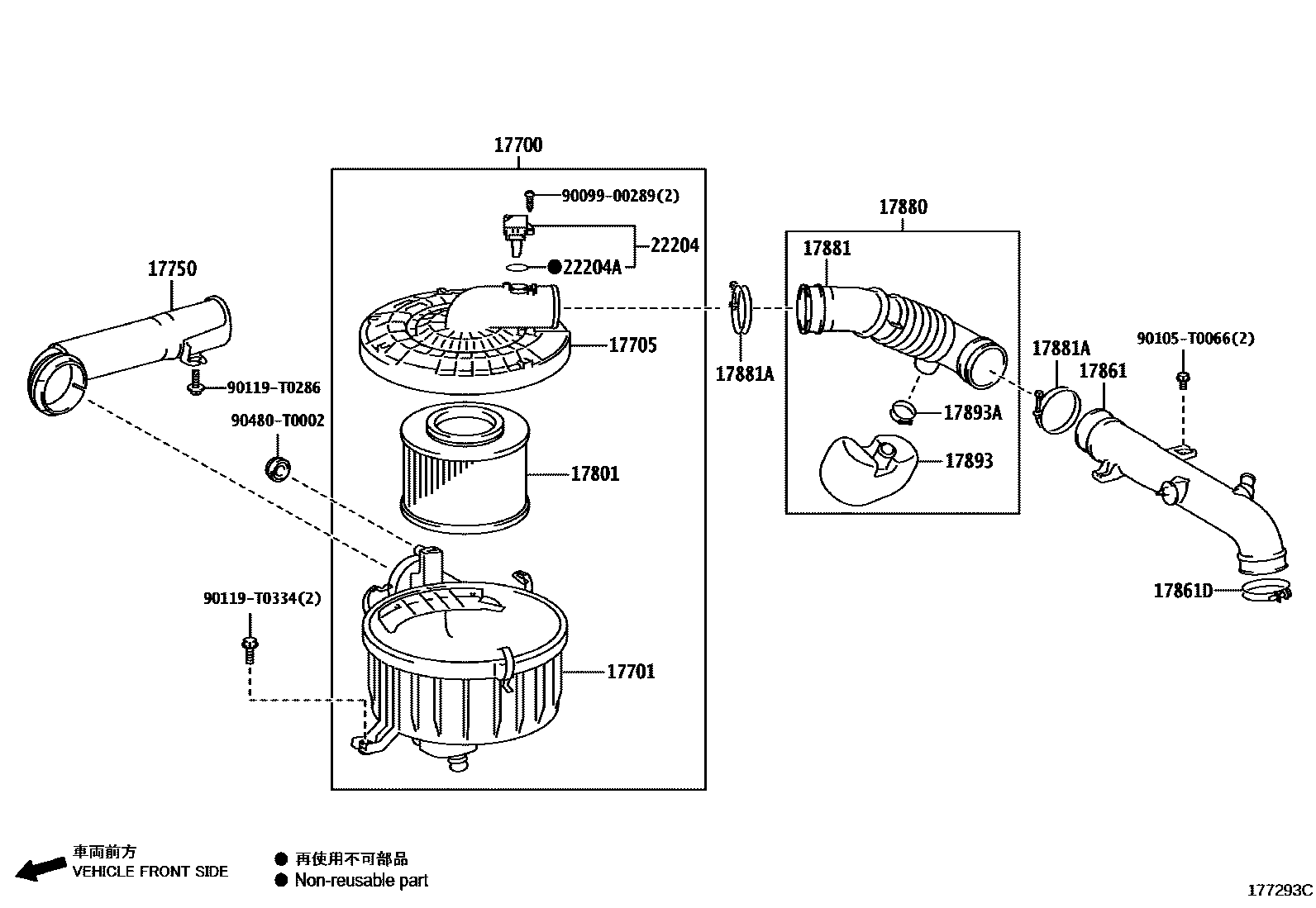

Toyota HILUX Air Cleaner EPC diagram — 177234D — Air Cleaner — 177234D (201107 – 999999)

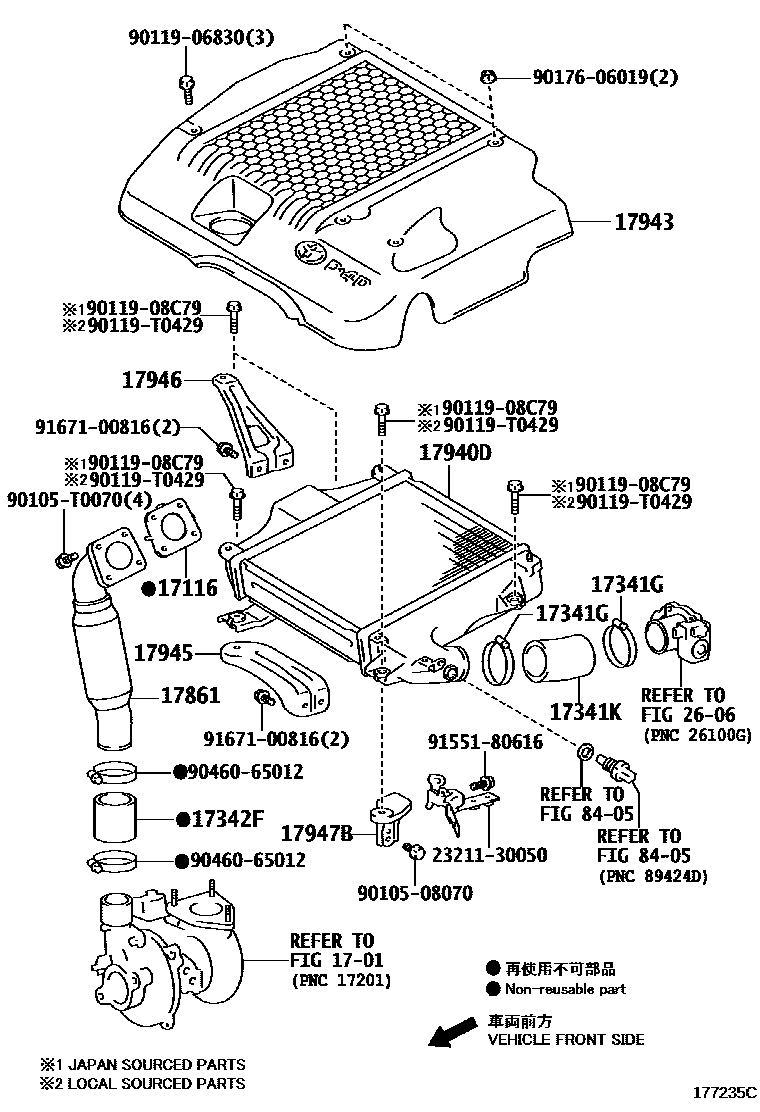

Toyota HILUX Air Cleaner EPC diagram — 177235C — Air Cleaner — 177235C (201107 – 999999)

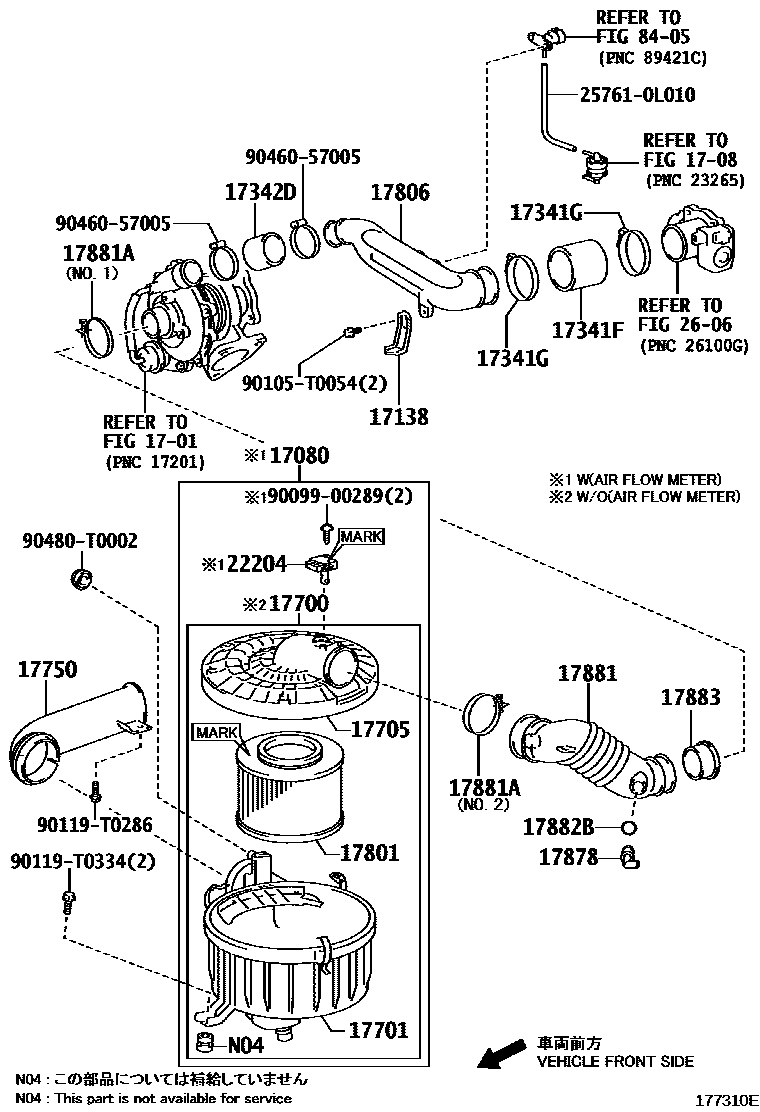

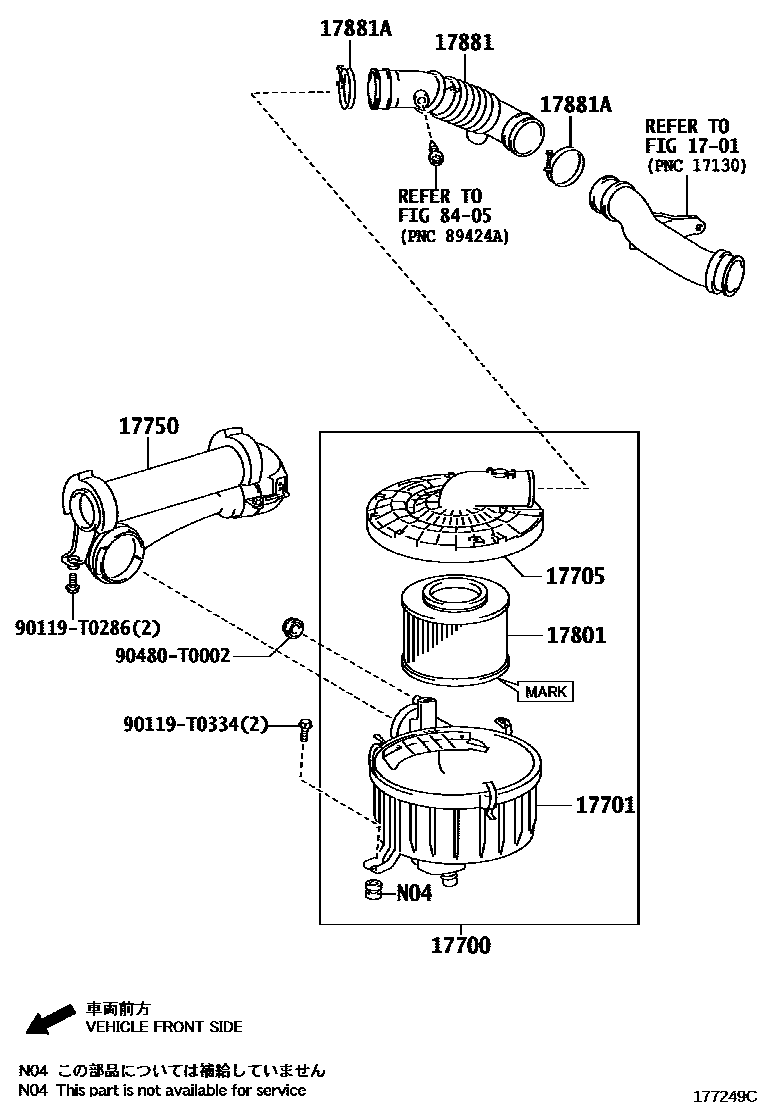

Toyota HILUX Air Cleaner EPC diagram — 177249E — Air Cleaner — 177249E (201108 – 999999)

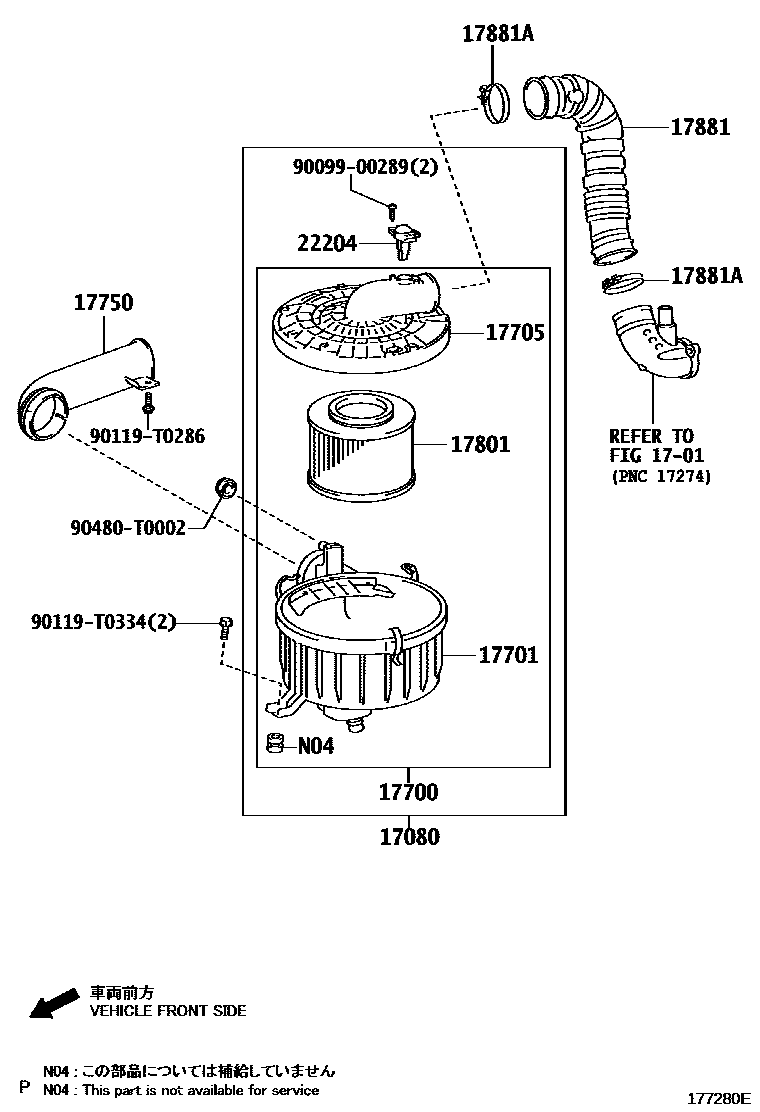

Toyota HILUX Air Cleaner EPC diagram — 177280E — Air Cleaner — 177280E (201107 – 999999)

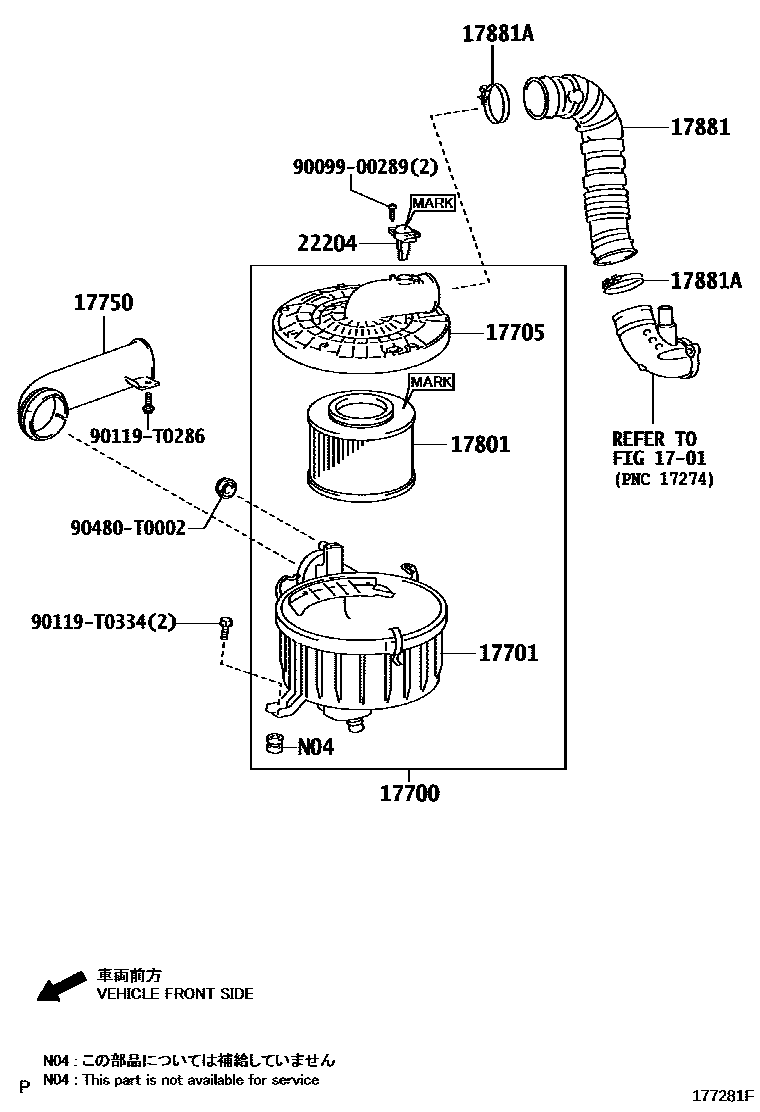

Toyota HILUX Air Cleaner EPC diagram — 177281F — Air Cleaner — 177281F (201108 – 999999)

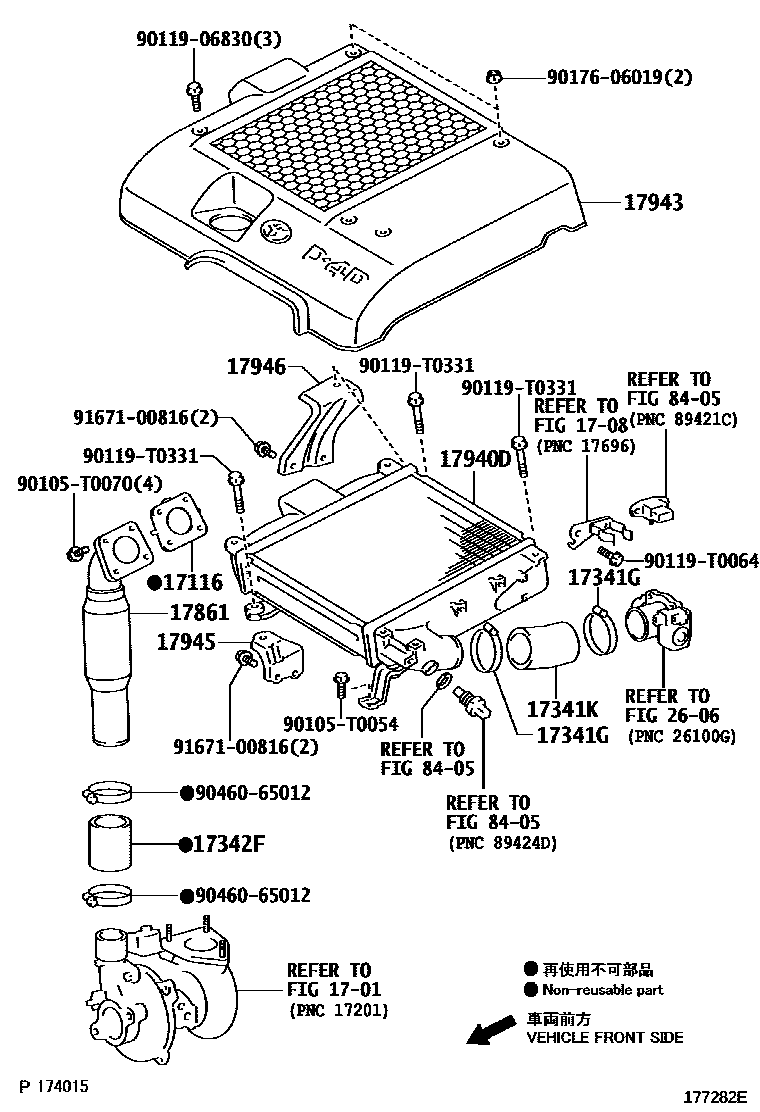

Toyota HILUX Air Cleaner EPC diagram — 177282E — Air Cleaner — 177282E (201107 – 999999)

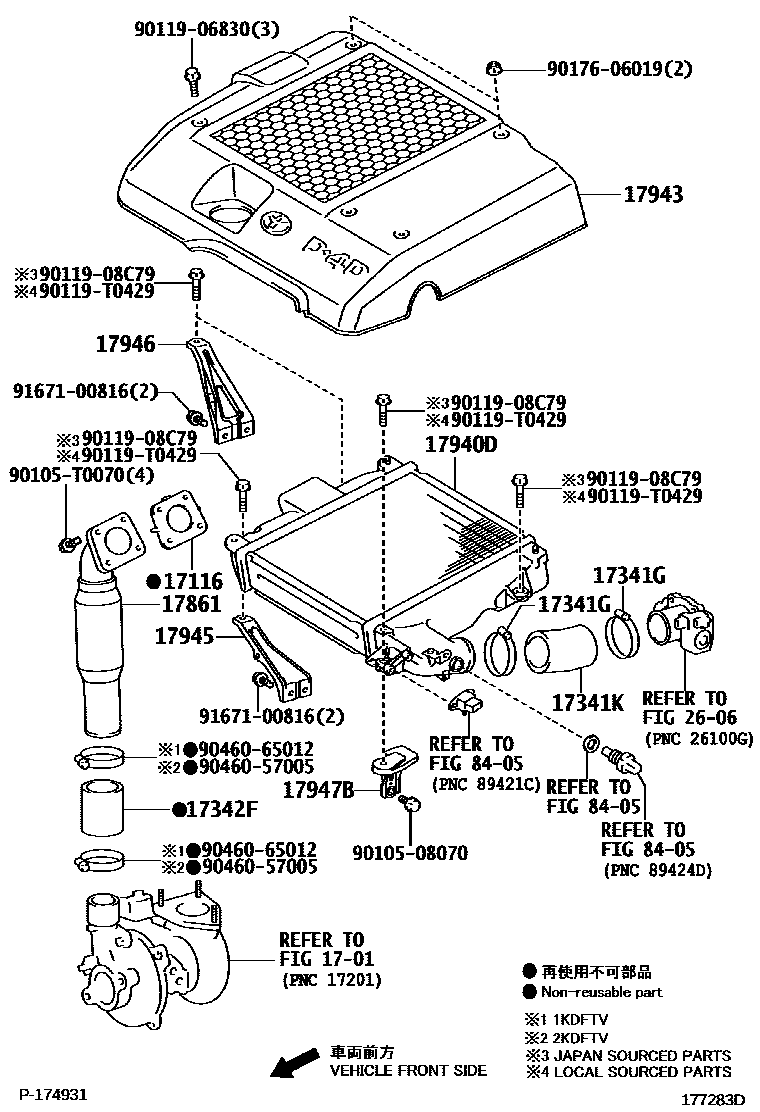

Toyota HILUX Air Cleaner EPC diagram — 177283D — Air Cleaner — 177283D (201107 – 999999)

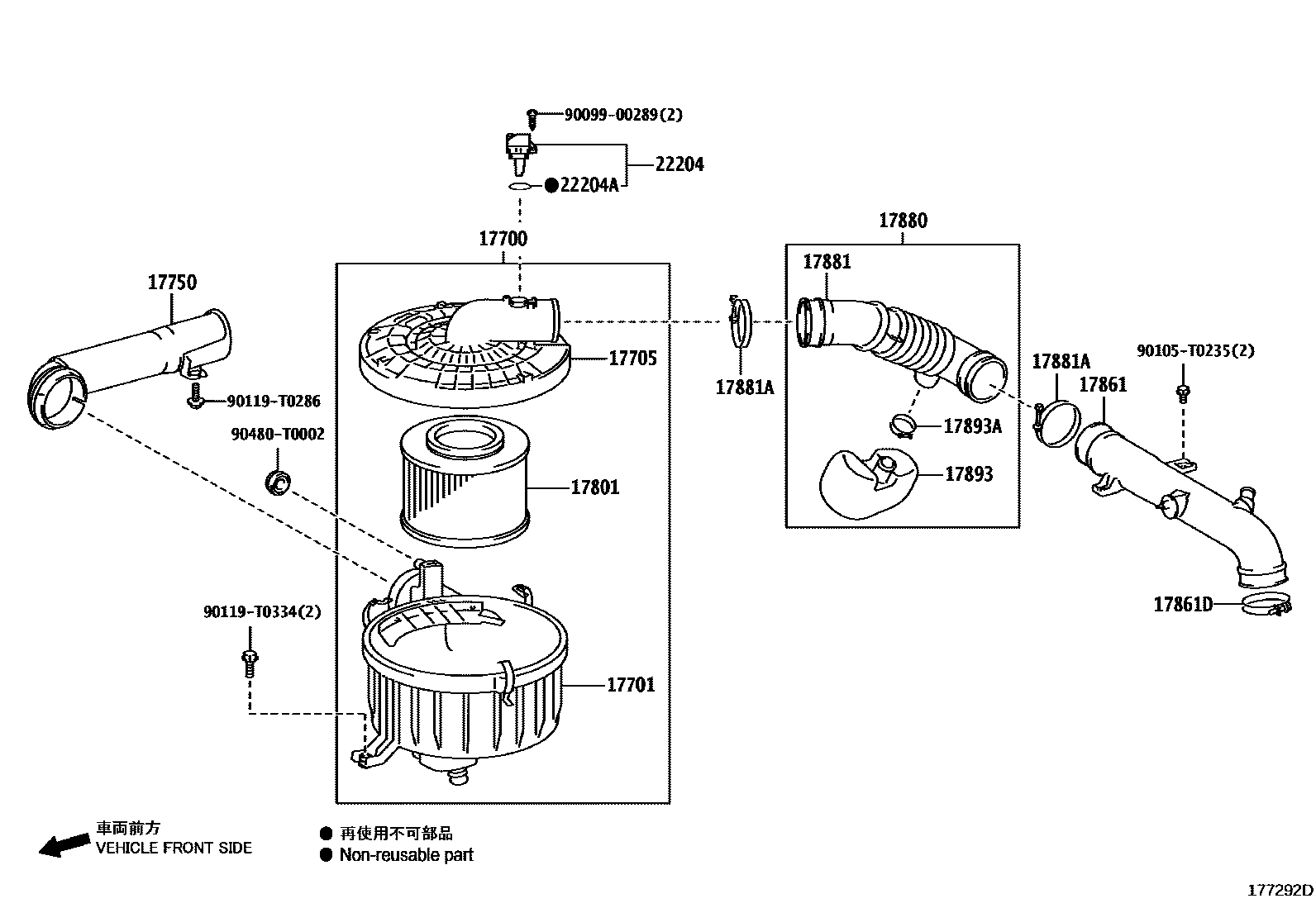

Toyota HILUX Air Cleaner EPC diagram — 177292D — Air Cleaner — 177292D (201108 – 999999)

Toyota HILUX Air Cleaner EPC diagram — 177293C — Air Cleaner — 177293C (201107 – 999999)

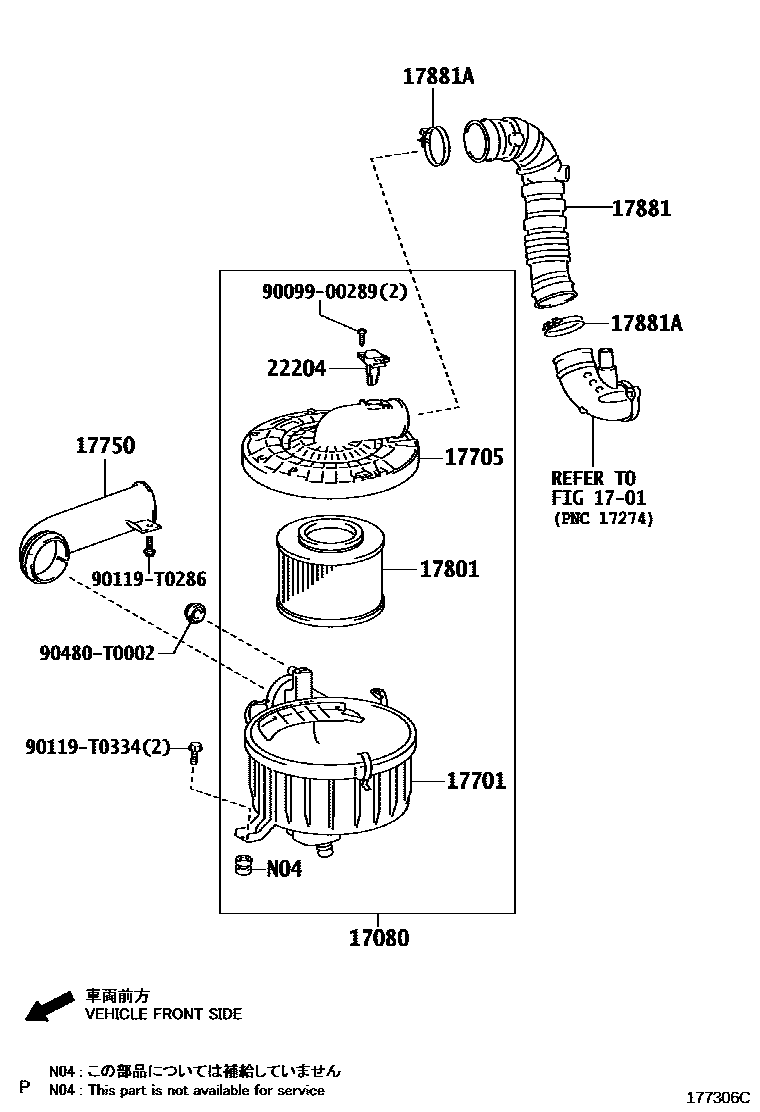

Toyota HILUX Air Cleaner EPC diagram — 177306C — Air Cleaner — 177306C (201107 – 999999)

Toyota HILUX Air Cleaner EPC diagram — 177307C — Air Cleaner — 177307C (201107 – 999999)

Toyota HILUX Air Cleaner EPC diagram — 177308C — Air Cleaner — 177308C (201107 – 999999)

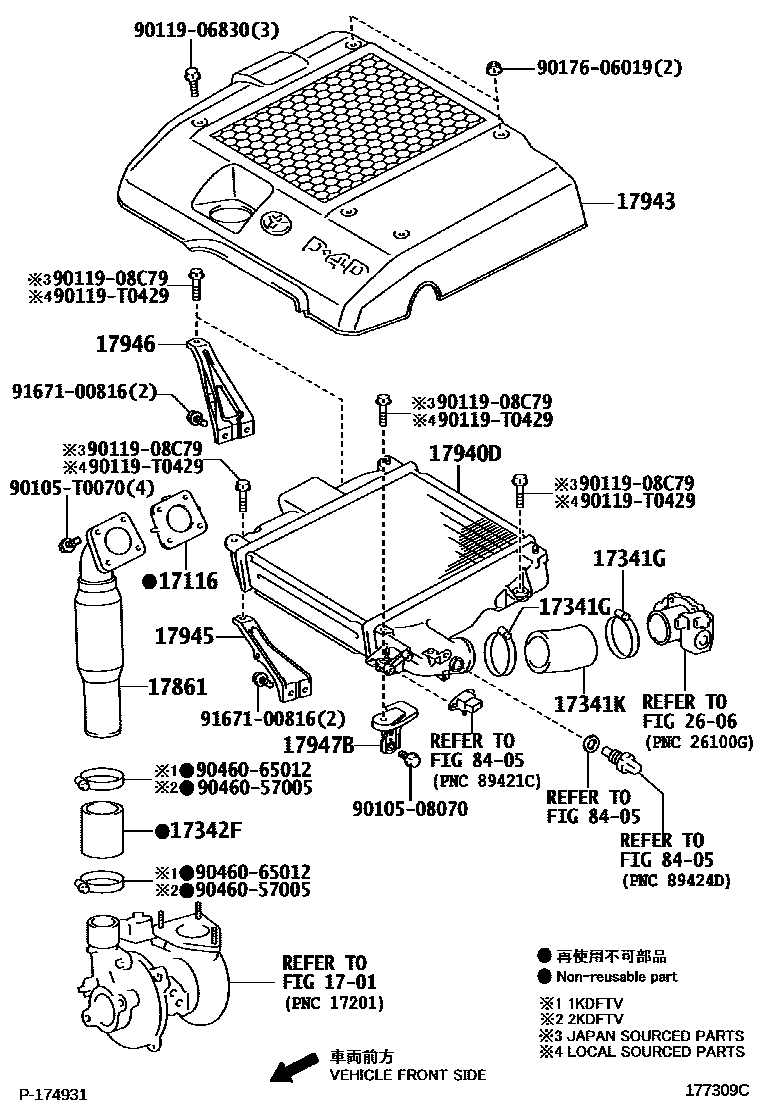

Toyota HILUX Air Cleaner EPC diagram — 177309C — Air Cleaner — 177309C (201107 – 999999)

Toyota HILUX Air Cleaner EPC diagram — 177310E — Air Cleaner — 177310E (201107 – 999999)

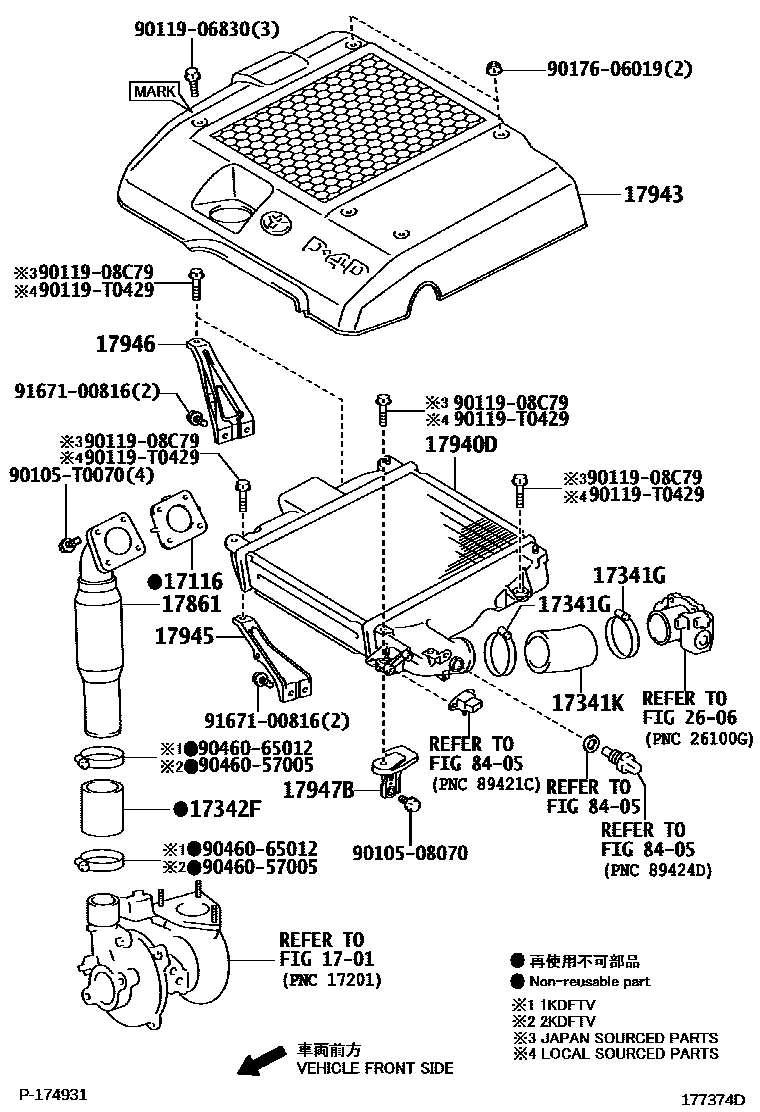

Toyota HILUX Air Cleaner EPC diagram — 177374D — Air Cleaner — 177374D (201110 – 999999)

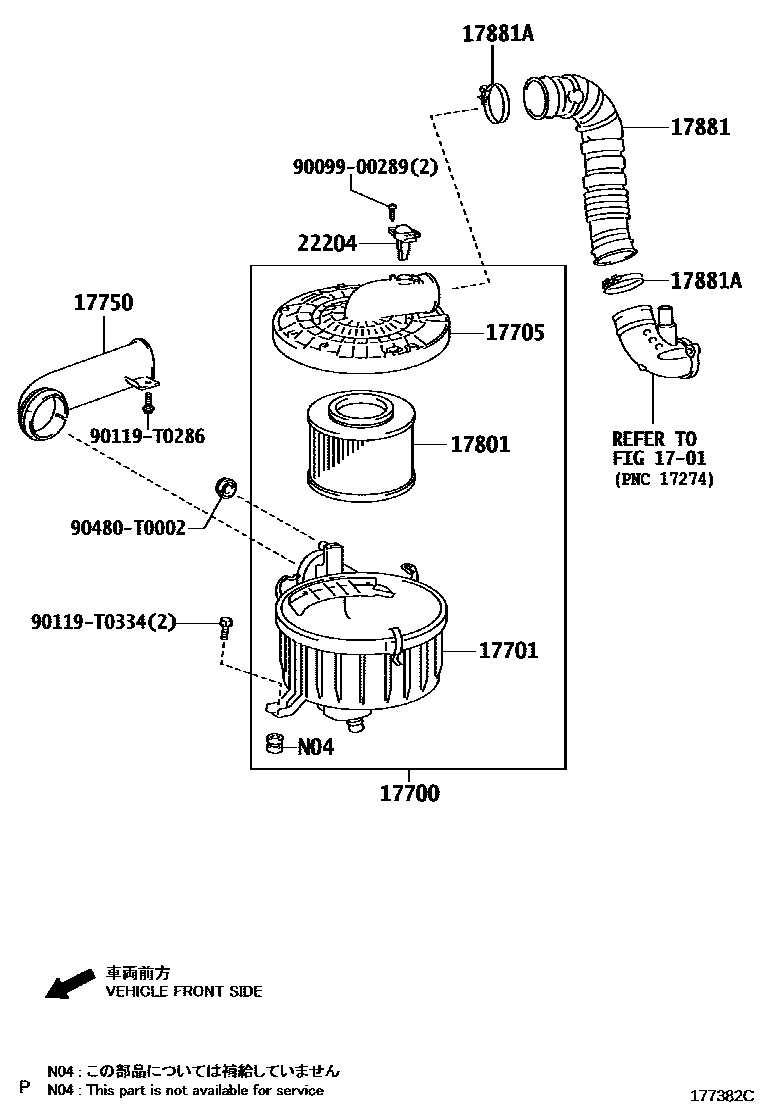

Toyota HILUX Air Cleaner EPC diagram — 177382C — Air Cleaner — 177382C (201110 – 999999)

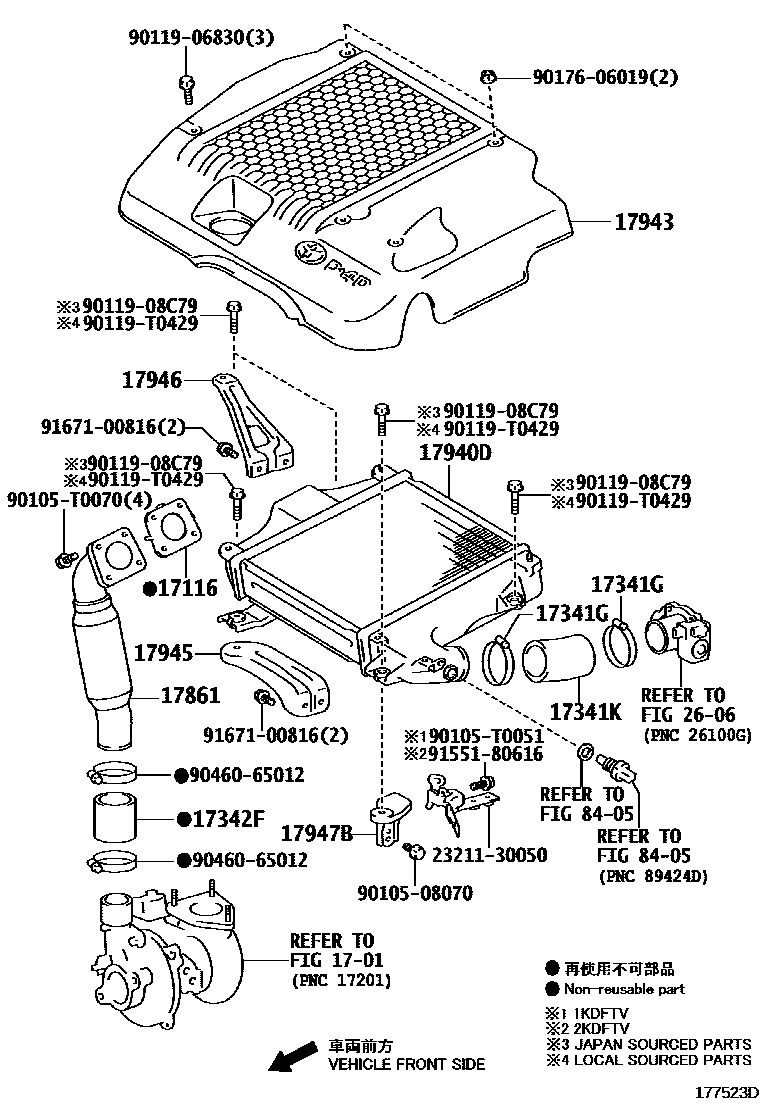

Toyota HILUX Air Cleaner EPC diagram — 177523D — Air Cleaner — 177523D (201204 – 999999)

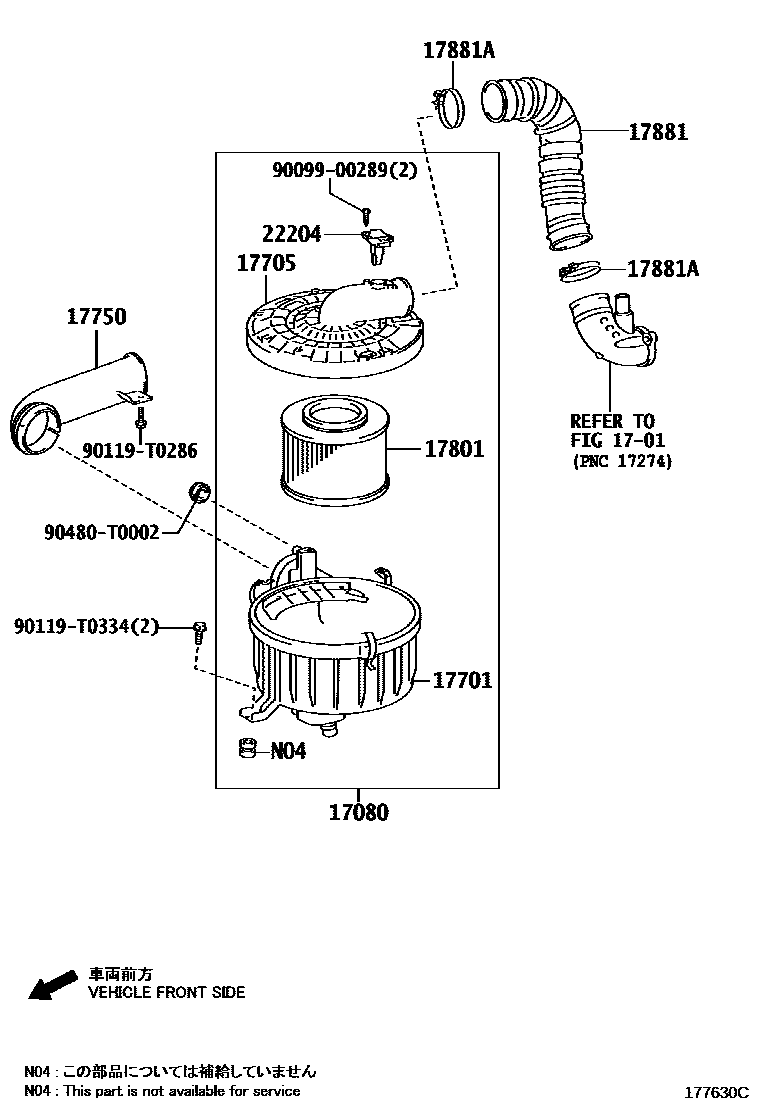

Toyota HILUX Air Cleaner EPC diagram — 177630C — Air Cleaner — 177630C (201208 – 999999)

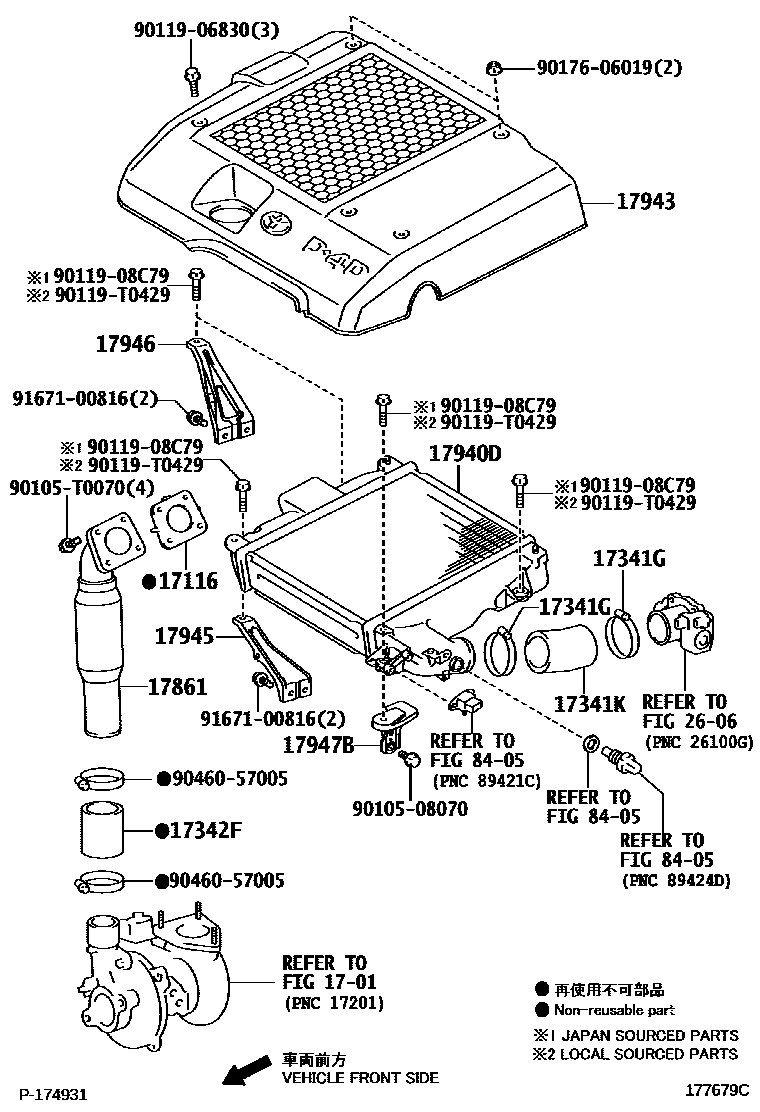

Toyota HILUX Air Cleaner EPC diagram — 177679C — Air Cleaner — 177679C (201208 – 999999)

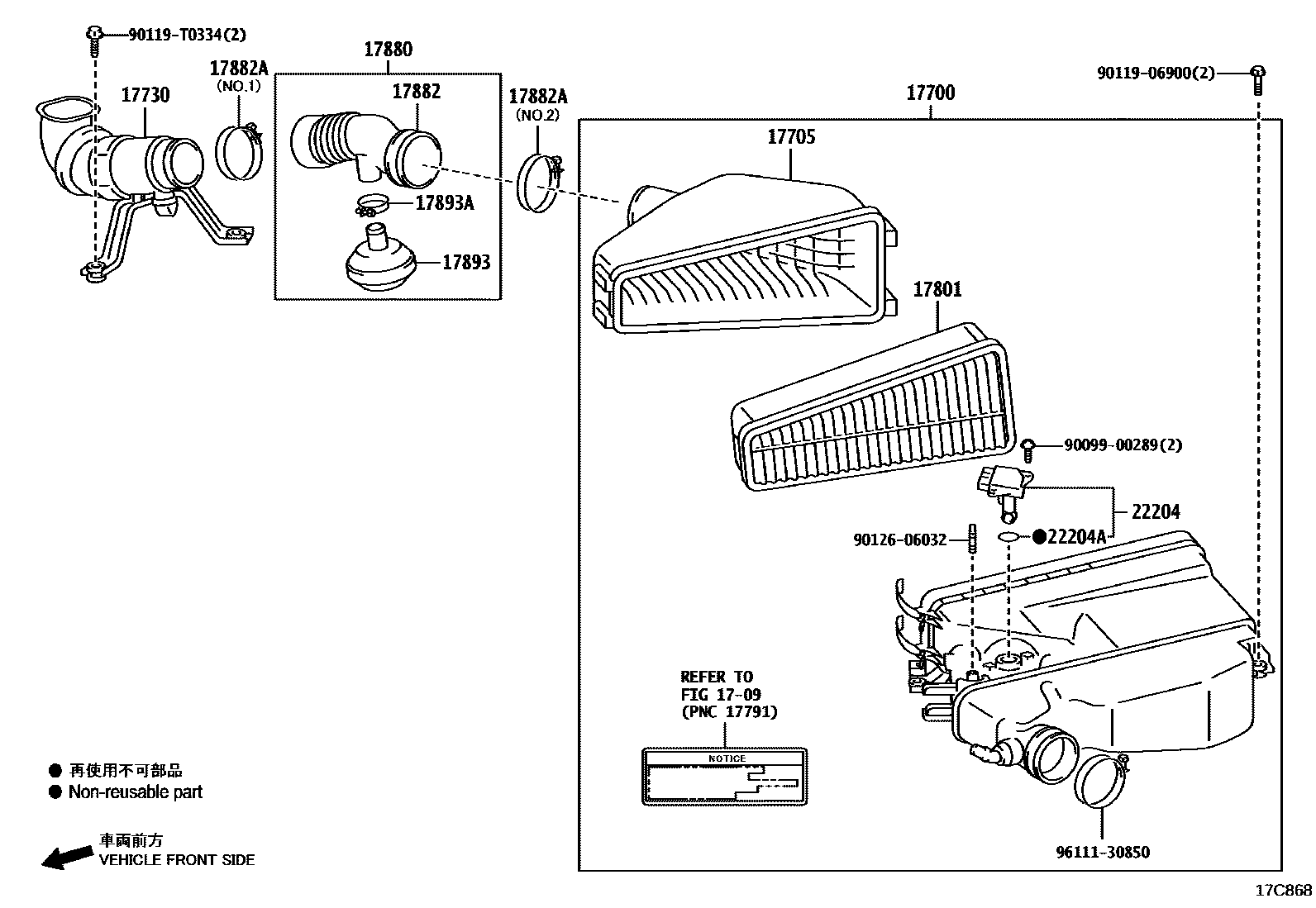

Toyota HILUX Air Cleaner EPC diagram — 17C868 — Air Cleaner — 17C868 (201107 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17080	Air filter assembly with air flow meter	17080-0L051 · 17080-0L081 · 17080-0L101 · 17080-0L140 · 17080-0L190
17116	Intake flange gasket	17116-0L010
17138	Air intake pipe or air intake hose stay	17138-0L010
17341F	Air hose No. 1	17341-30060
17341G	Clip or clip (for No. 1 air hose)	90460-80006
17341K	Air hose No. 1 (for intercooler)	17341-30060
17342D	Air hose No. 2	17342-30050
17342F	Air hose No. 2 (for intercooler)	17342-30010 · 17342-30050
17700	air filter assembly	17080-0C011 · 17700-05101 · 17700-0C121 · 17700-0C131 · 17700-0L051 · 17700-0L061 · 17700-0L071 · 17700-0L082 · 17700-0L101 · 17700-0L111 · 17700-0L141 · 17700-0L230 · 17700-0L240 · 17700-31542
17701	Air filter housing sub-assembly	17701-0C081 · 17701-0C101 · 17701-0C111 · 17701-0L081
17705	Air filter cover sub-assembly	17705-05070 · 17705-0C070 · 17705-0C090 · 17705-0C100 · 17705-0L020 · 17705-0L030 · 17705-0L040 · 17705-0L050 · 17705-0L070 · 17705-0L080 · 17705-0L100 · 17705-0L110 · 17705-0L130 · 17705-0L150 · 17705-0L210 · 17705-0L220 · 17705-0L240 · 17705-31091
17730	Air pre-filter assembly with hose	17730-0P010
17750	Air filter air inlet cover seal assembly	17750-05011 · 17750-0C010 · 17750-0C020 · 17751-0L010 · 17751-0L030 · 17751-0L040 · 17751-0L060
17801	Air filter element sub-assembly	17801-0C010 · 17801-0C020 · 17801-31090
17806	No. 2 air filter pipe assembly	17113-0L020 · 17113-0L030
17861	Intake connecting pipe	17860-0L020 · 17860-0L030 · 17860-30030 · 17860-30040 · 17860-30100 · 17861-0C022 · 17861-0C032 · 17861-0C050 · 17861-75200
17861D	Clamp (for air intake connecting pipe)	90460-T0005 · 96111-10750
17878	No. 3 air intake connecting pipe	17878-0L011 · 17878-0L040
17880	Air cleaner hose assembly	17880-0C050 · 17880-0P070
17881	No. 1 air cleaner hose	17881-05040 · 17881-0C050 · 17881-0L030 · 17881-0L052 · 17881-0L082 · 17881-0L100 · 17881-0L110 · 17881-0L130 · 17881-0L180
17881A	Clamp (for No. 1 air cleaner hose)	90460-T0004 · 90460-T0005
17882	No. 2 air cleaner hose	17882-0P021
17882A	Clamp (for No. 2 air cleaner hose)	90460-T0006 · 90460-T0007
17882B	Clamp (for cold air intake pipe)	90466-30001 · 90467-31110
17883	No. 3 air cleaner hose	17883-0L010
17893	Intake resonator	17893-0C030 · 17893-0P040
17893A	hose clamp	90460-T0008 · 96111-10430
17940D	Intercooler assembly	17940-0L010 · 17940-0L020 · 17940-0L060 · 17940-0L070 · 17940-0L090 · 17940-0L100
17943	Intercooler protection device	12601-0L040 · 12601-0L050 · 12601-0L051 · 12601-0L060 · 12601-0L070 · 12601-0L080
17945	intercooler bracket	17945-0L010 · 17945-0L020 · 17945-0L030 · 17945-30070 · 17945-30080 · 17945-30100
17946	No. 2 intercooler bracket	17946-0L020 · 17946-0L030 · 17946-30030 · 17946-30040 · 17946-30070
17947B	Intercooler bracket No. 3	17947-0L010 · 17947-30020 · 17947-30030
22204	Intake air flow meter assembly	22204-0C020 · 22204-0J010 · 22204-0L010 · 22204-0N010 · 22204-22010 · 22204-30020
22204A	O-ring (for intake air flow meter)	90099-14141
