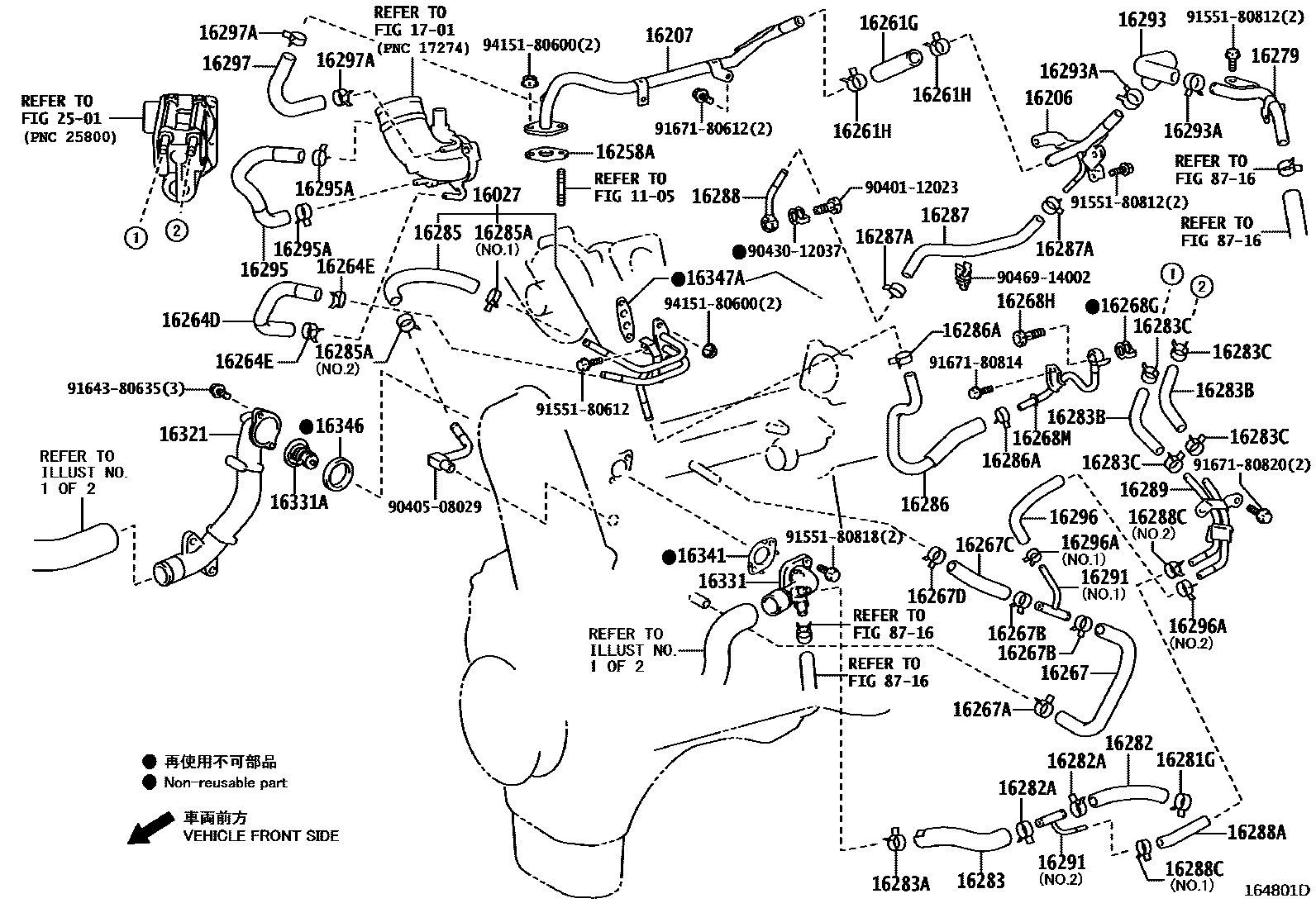

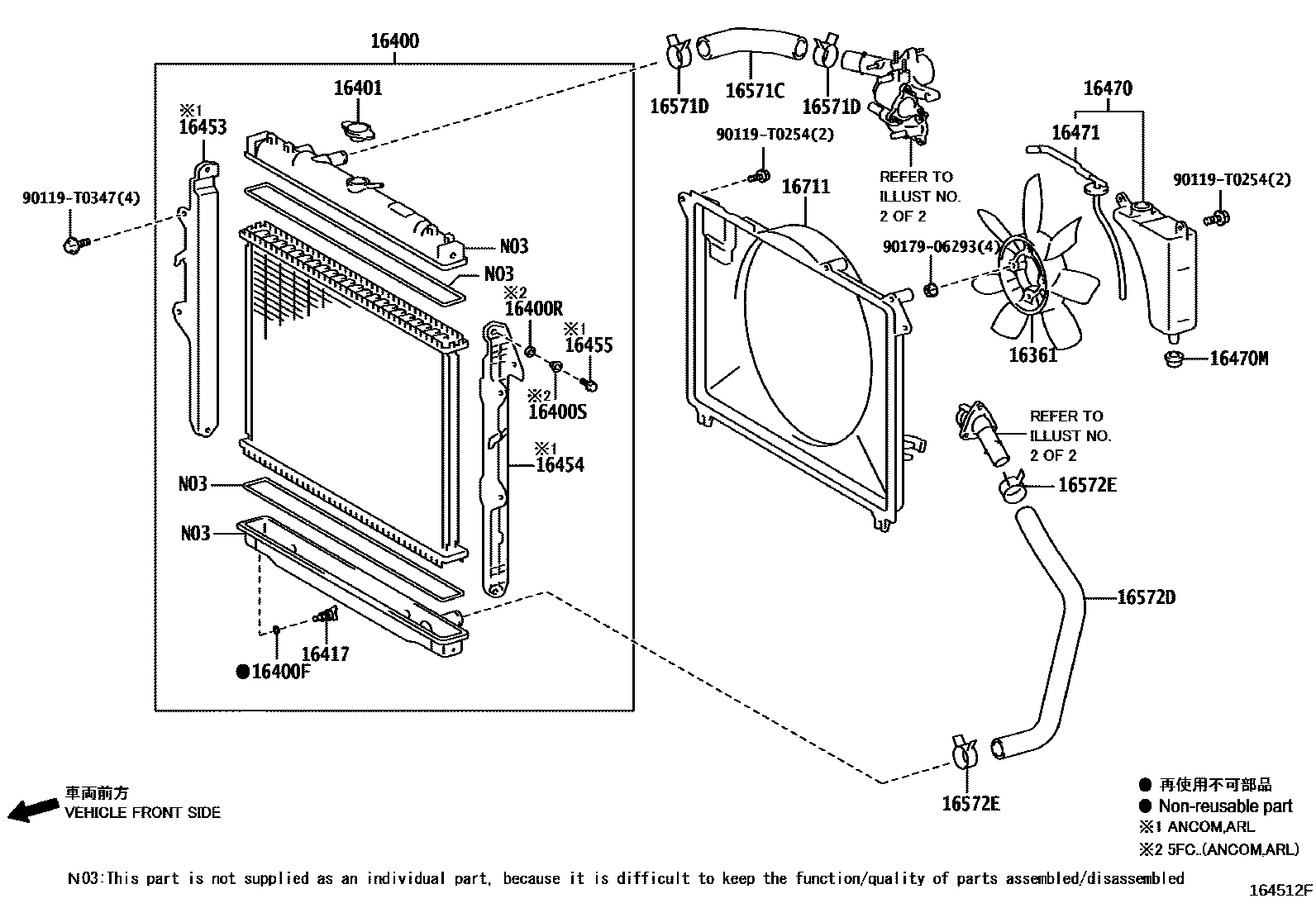

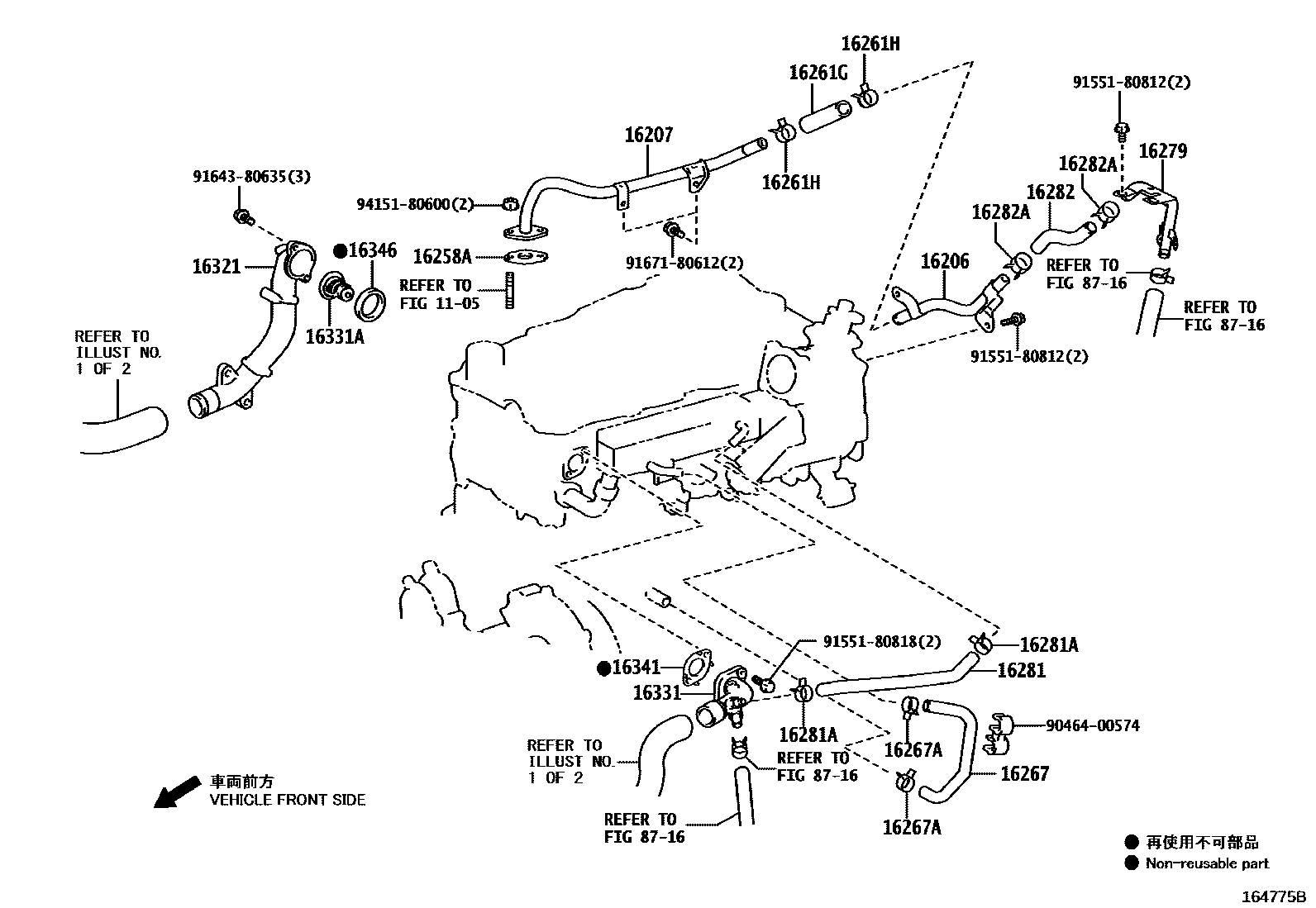

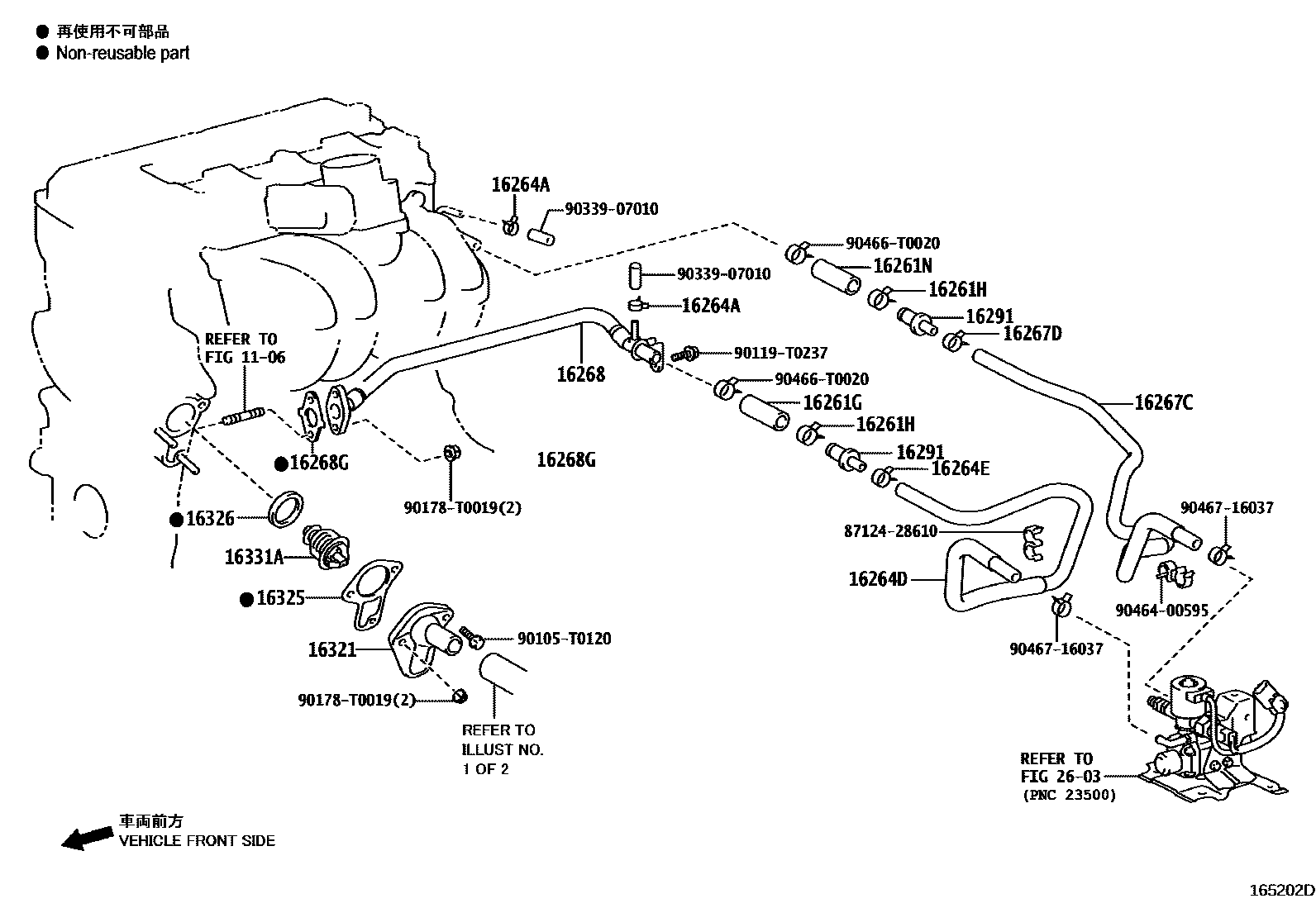

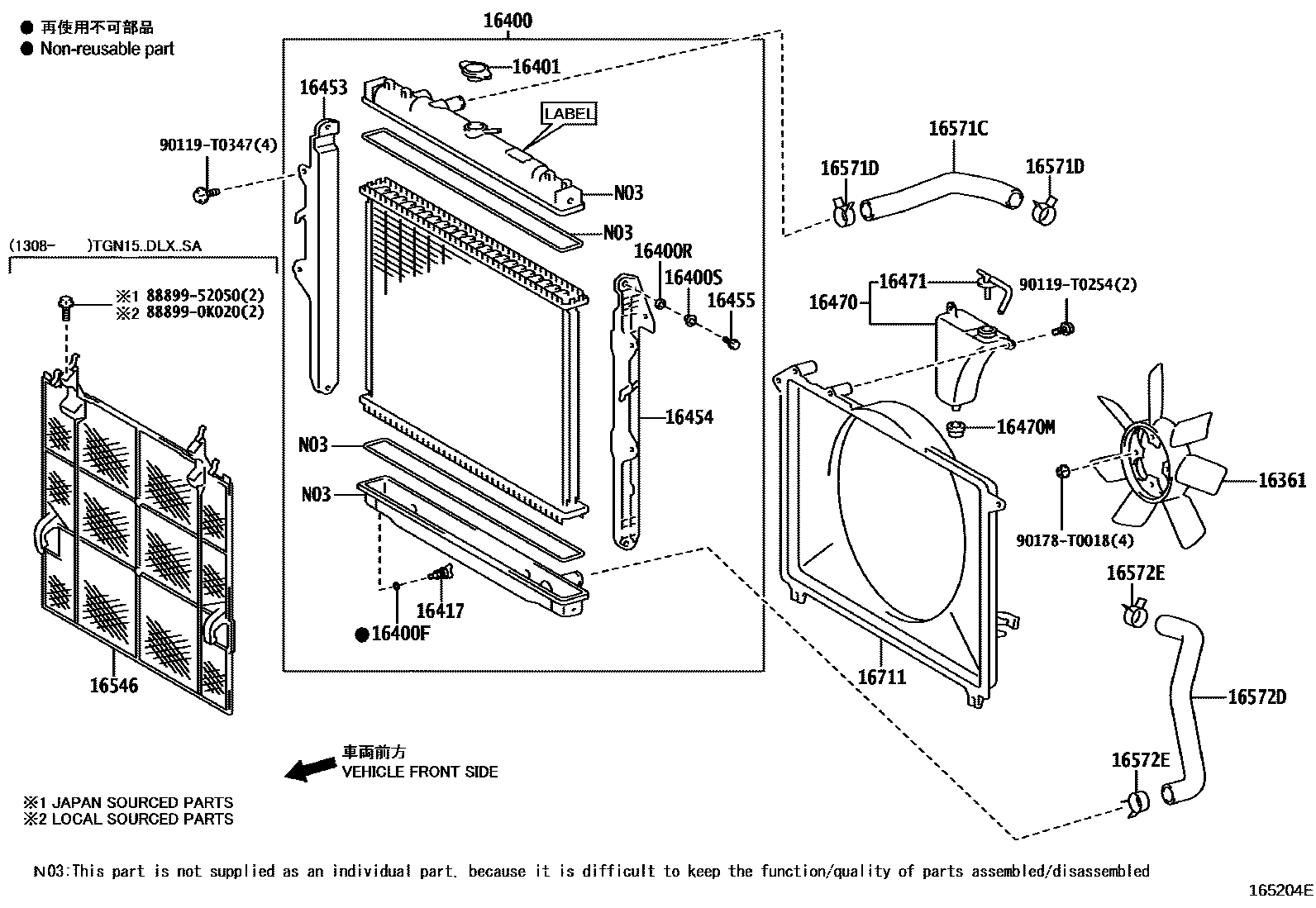

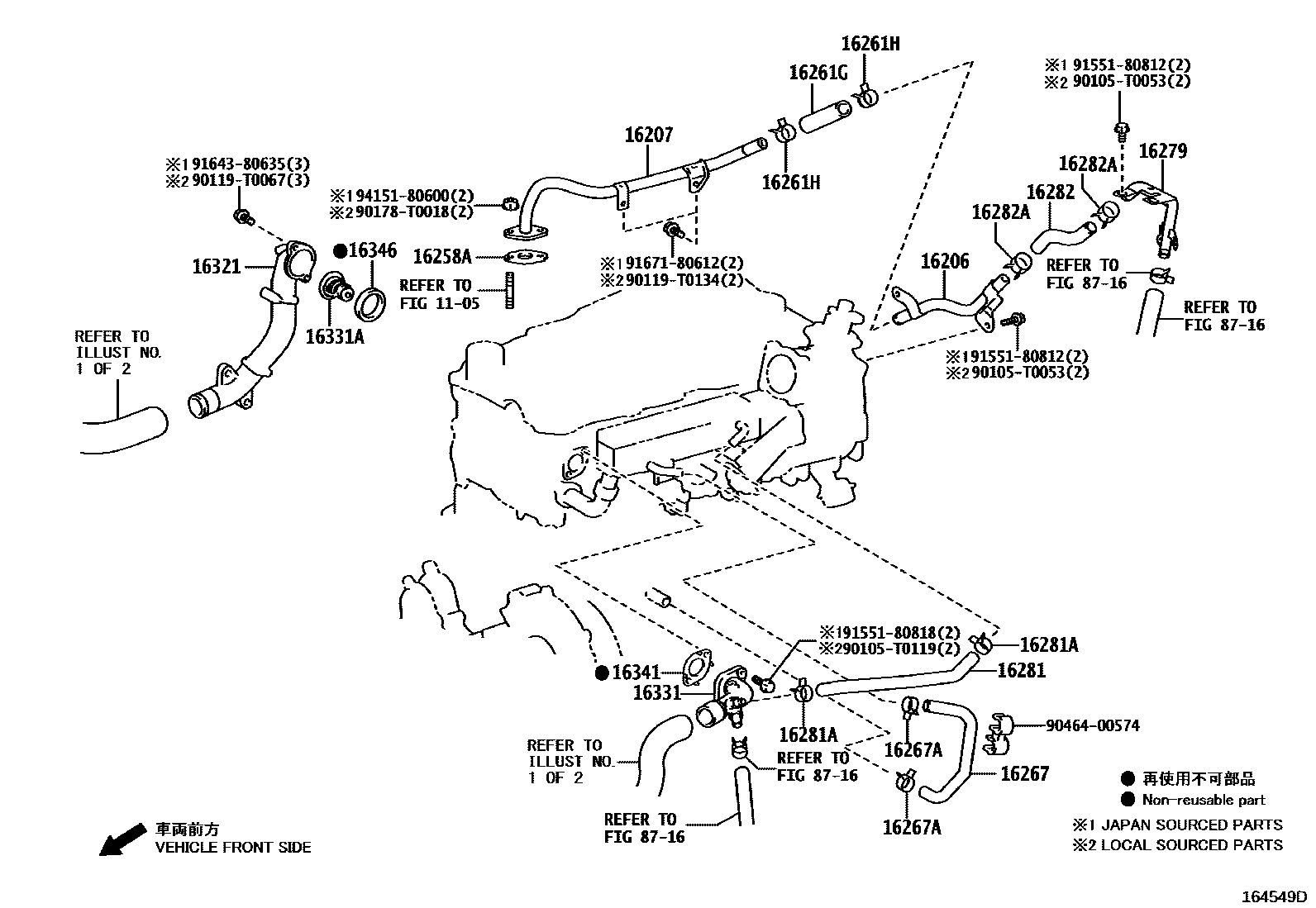

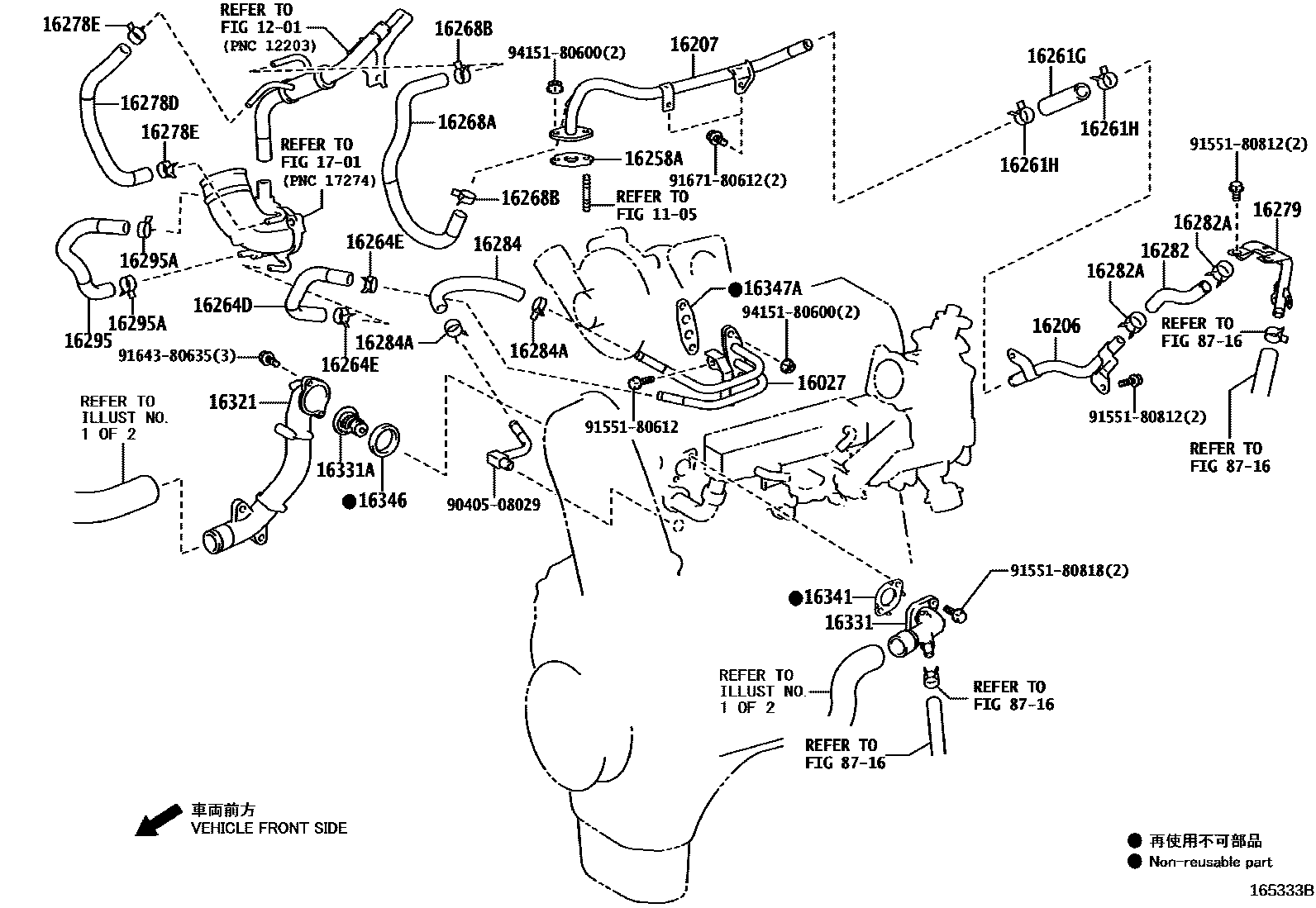

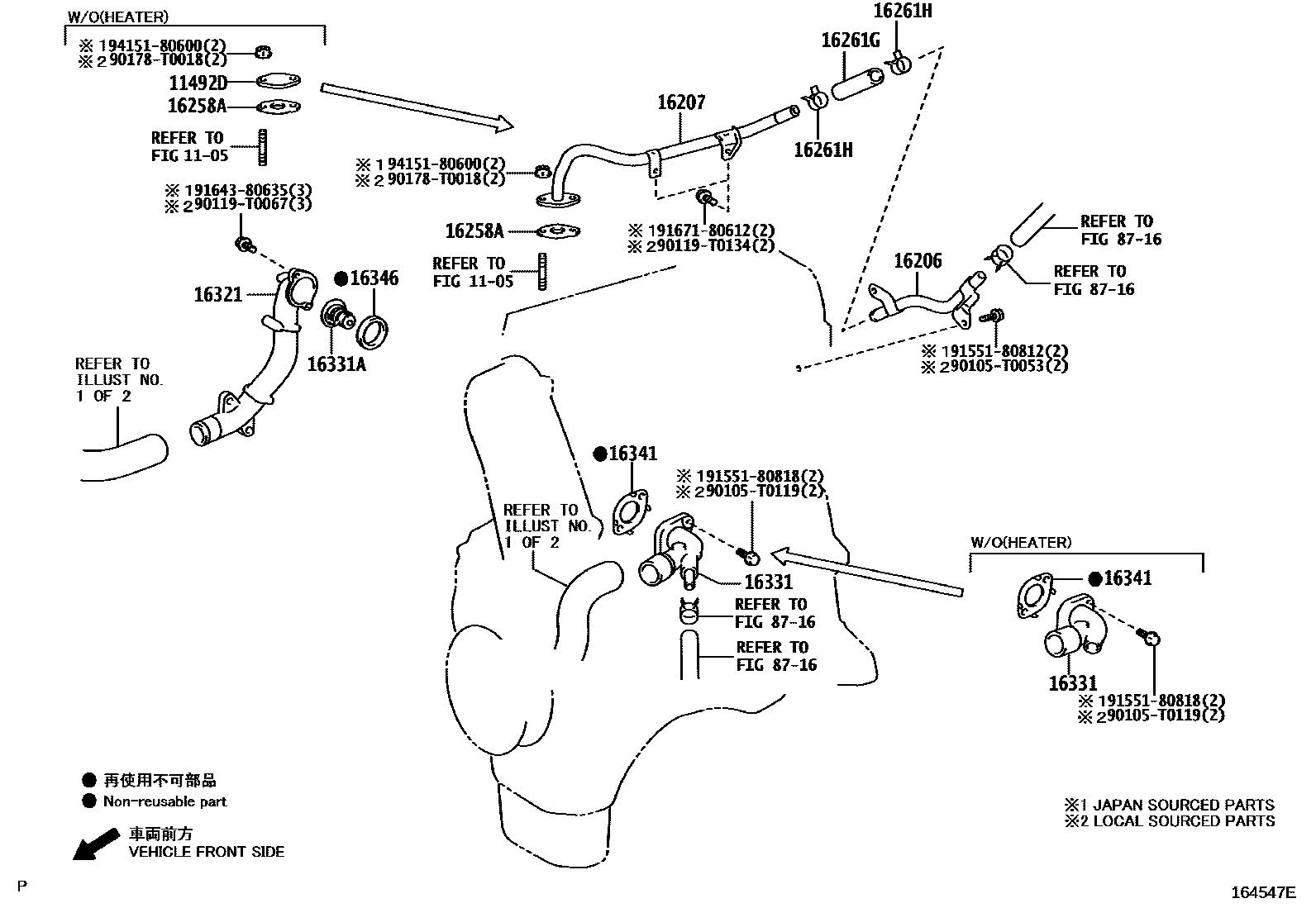

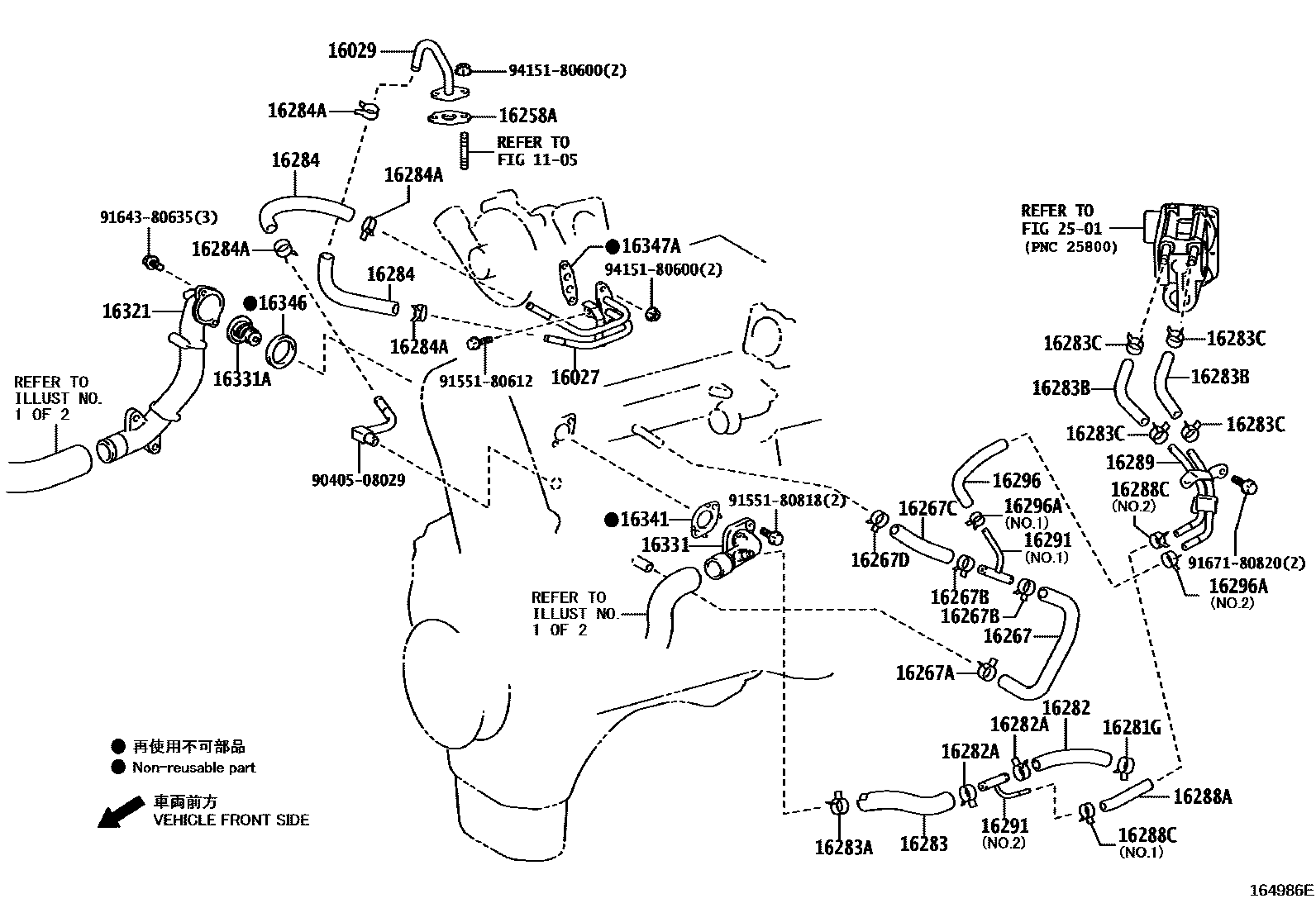

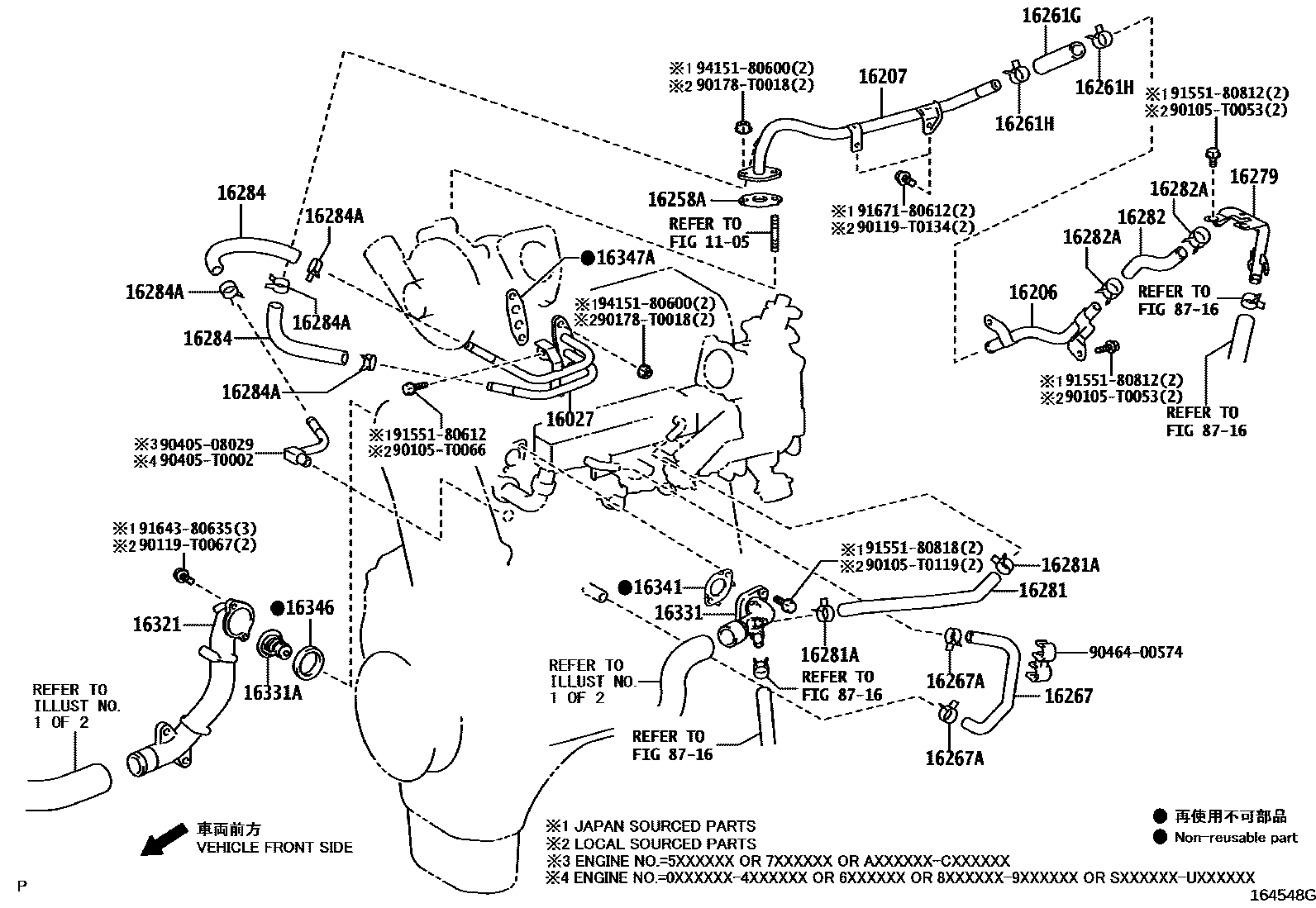

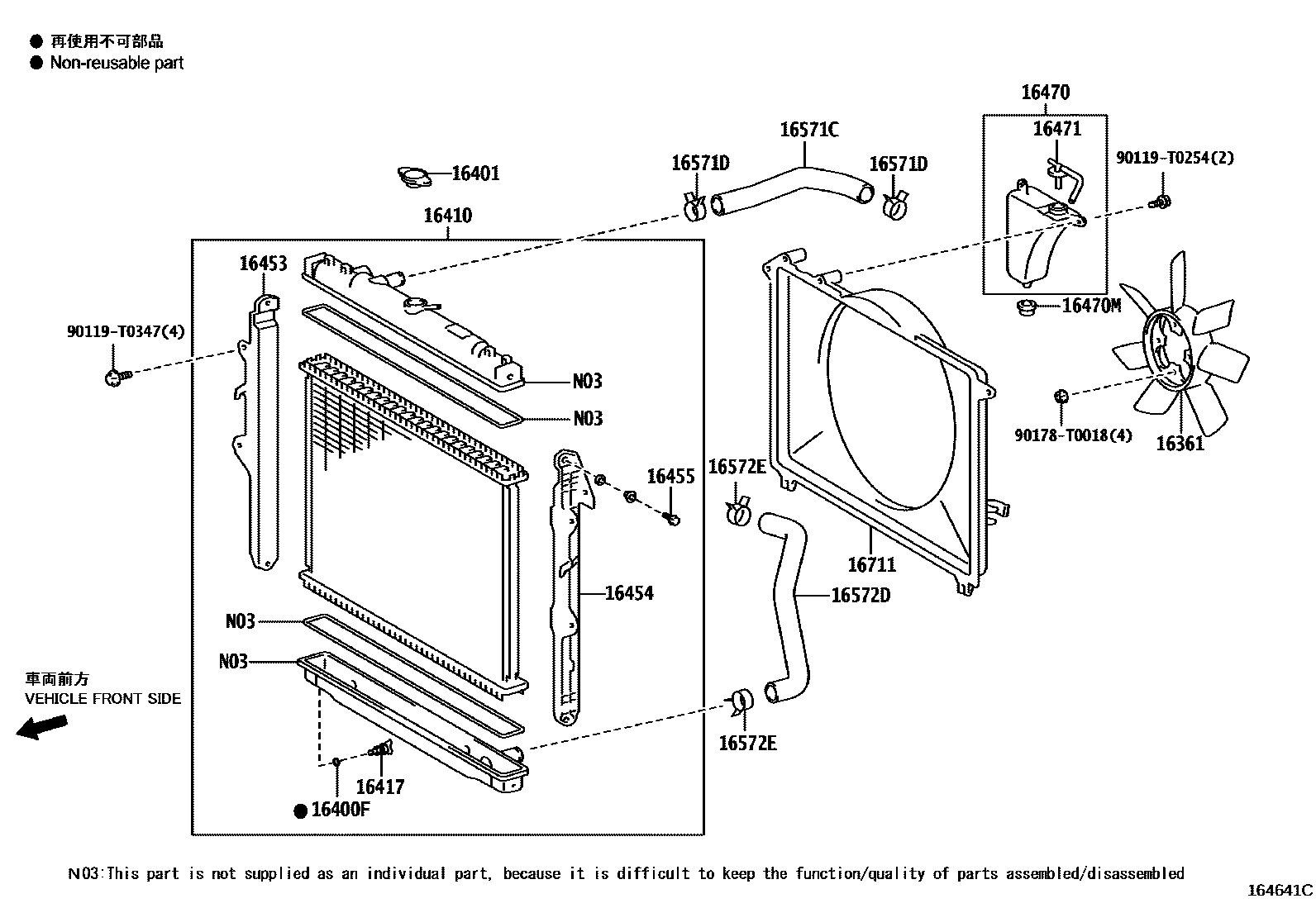

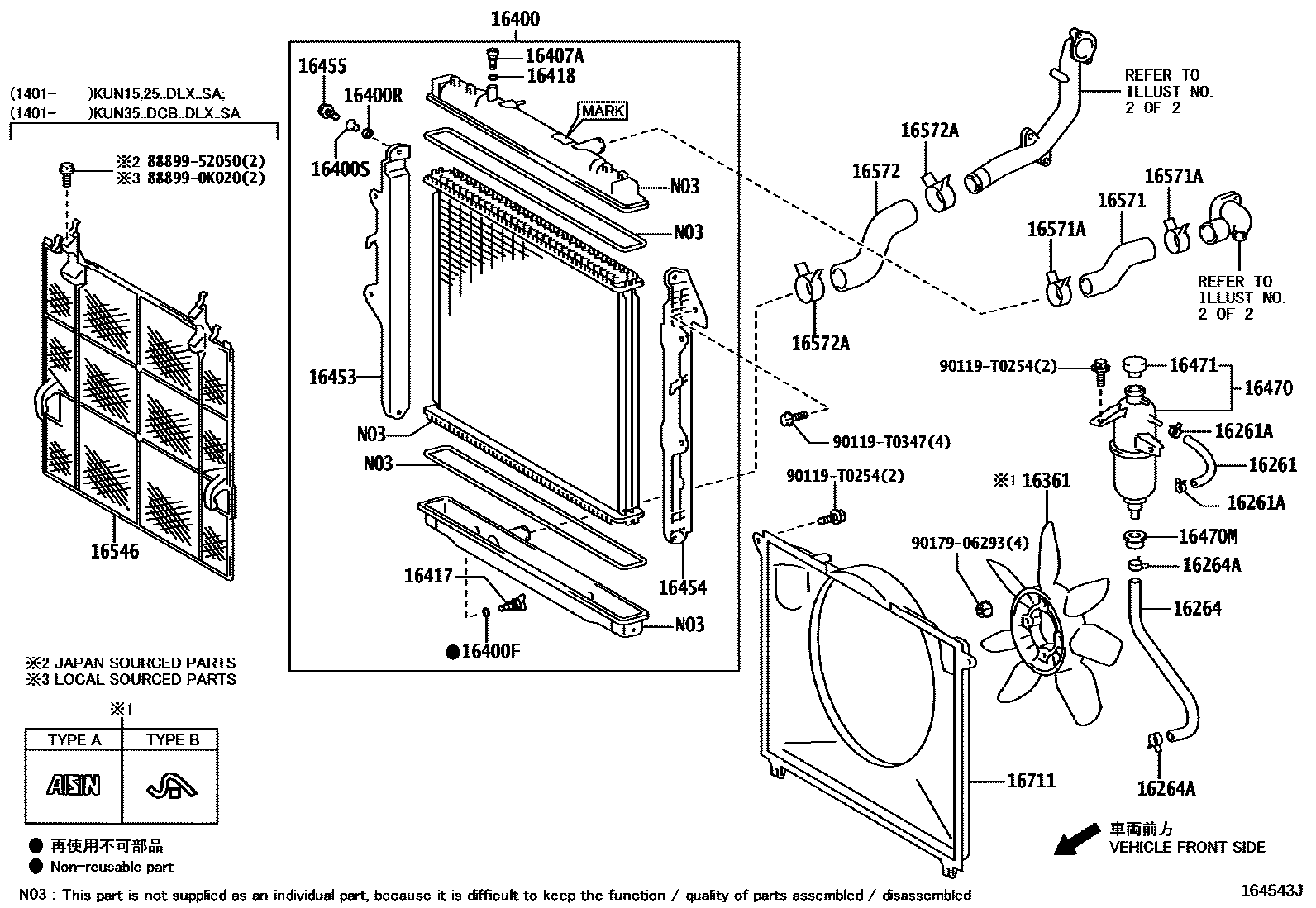

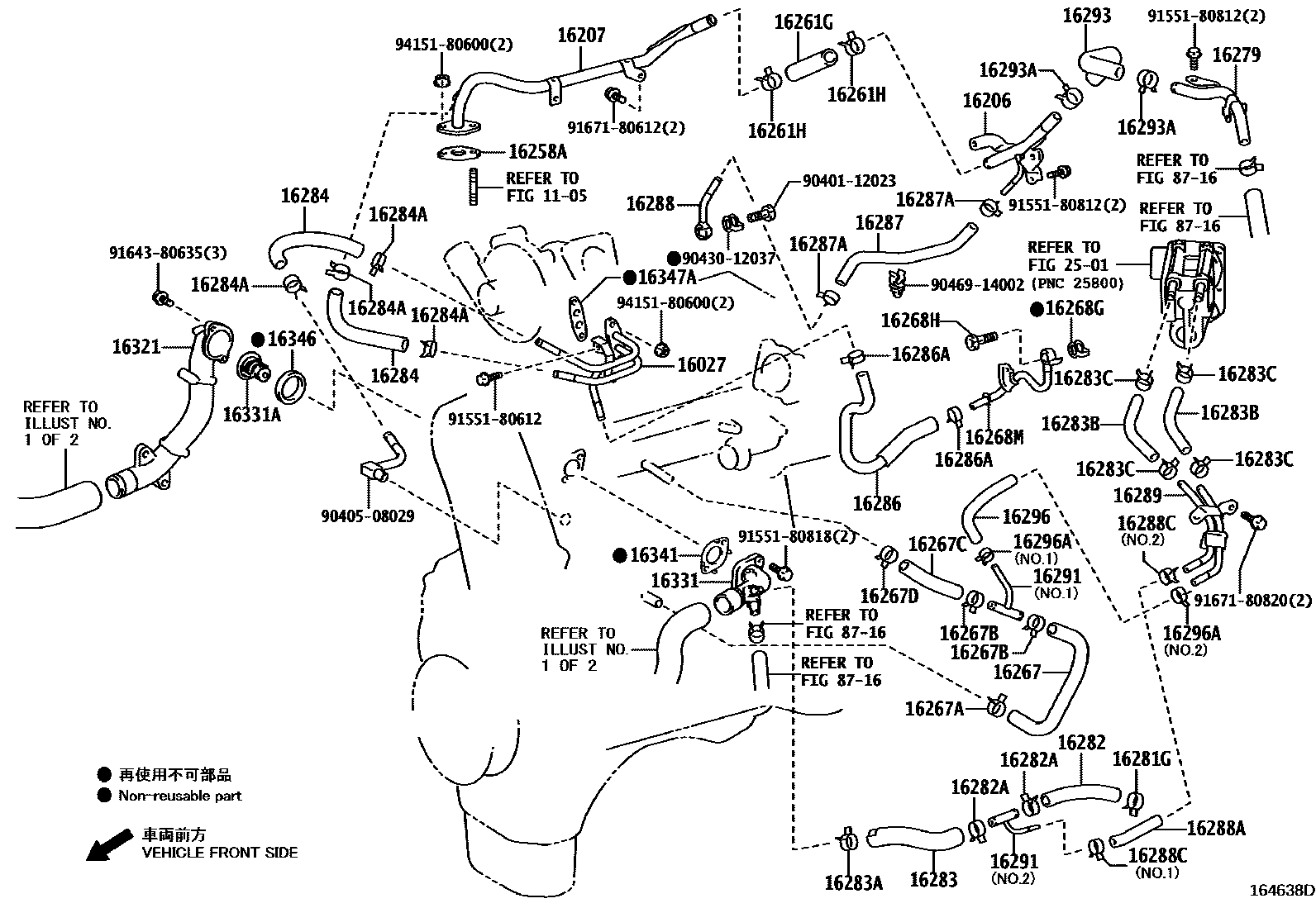

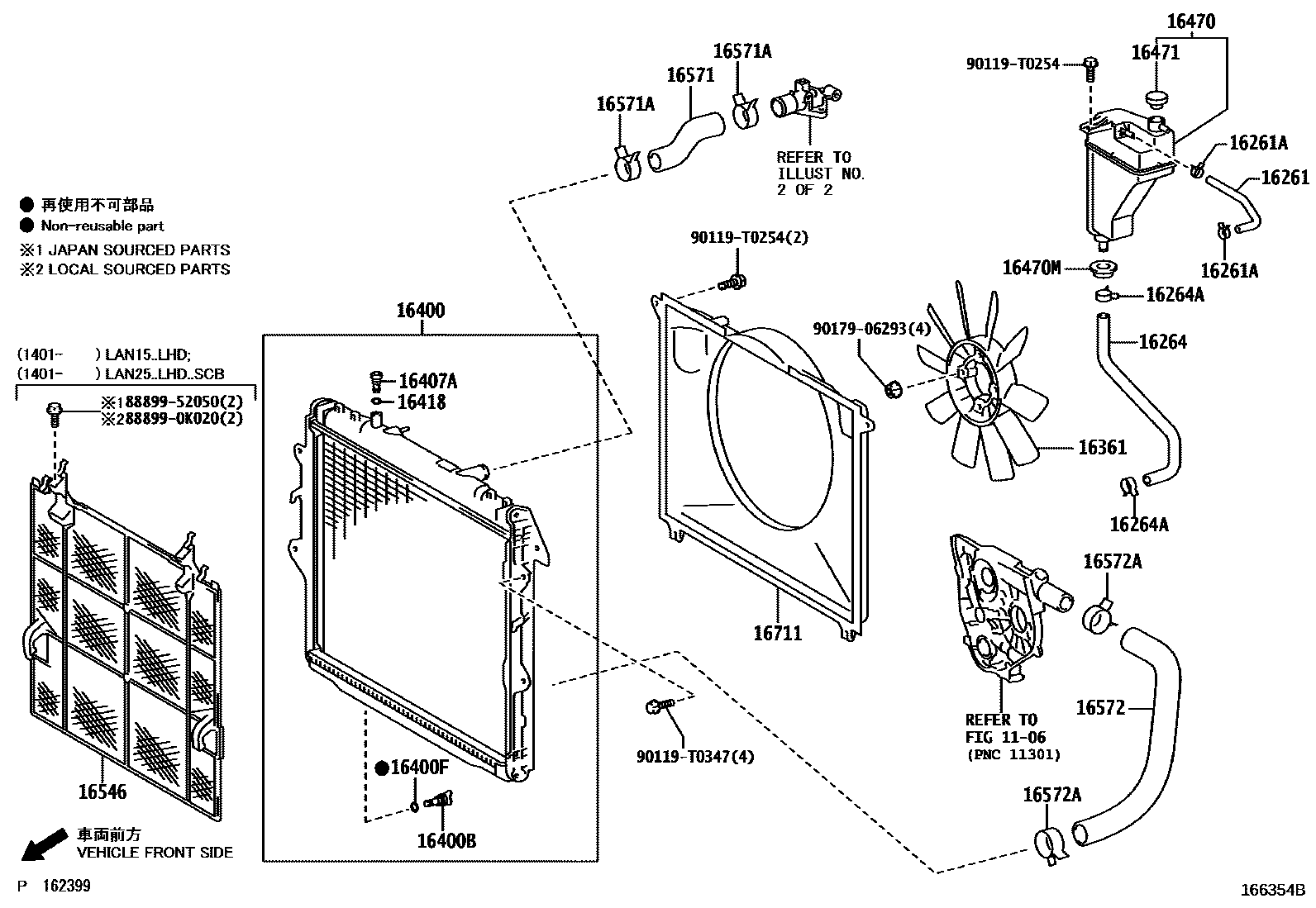

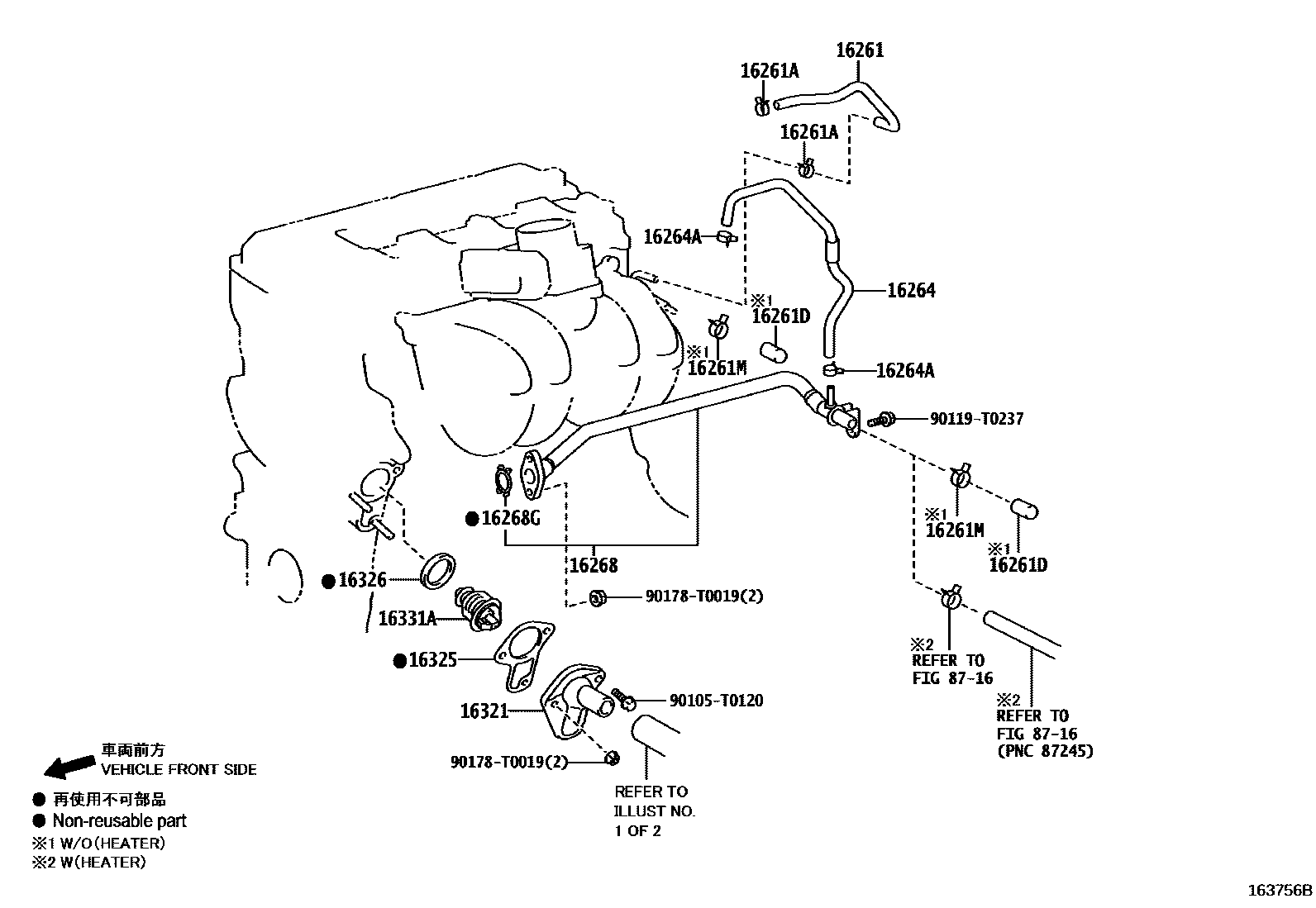

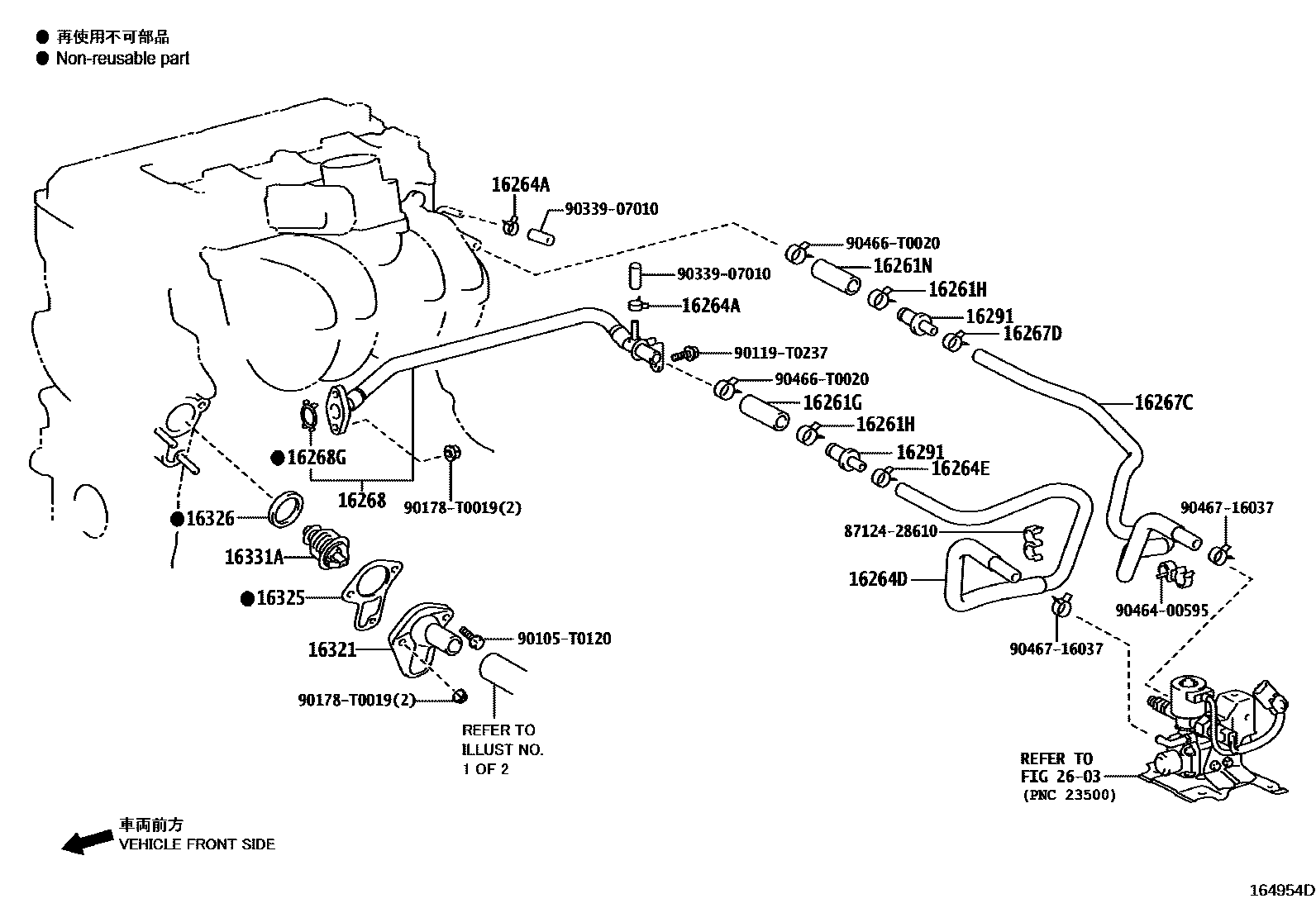

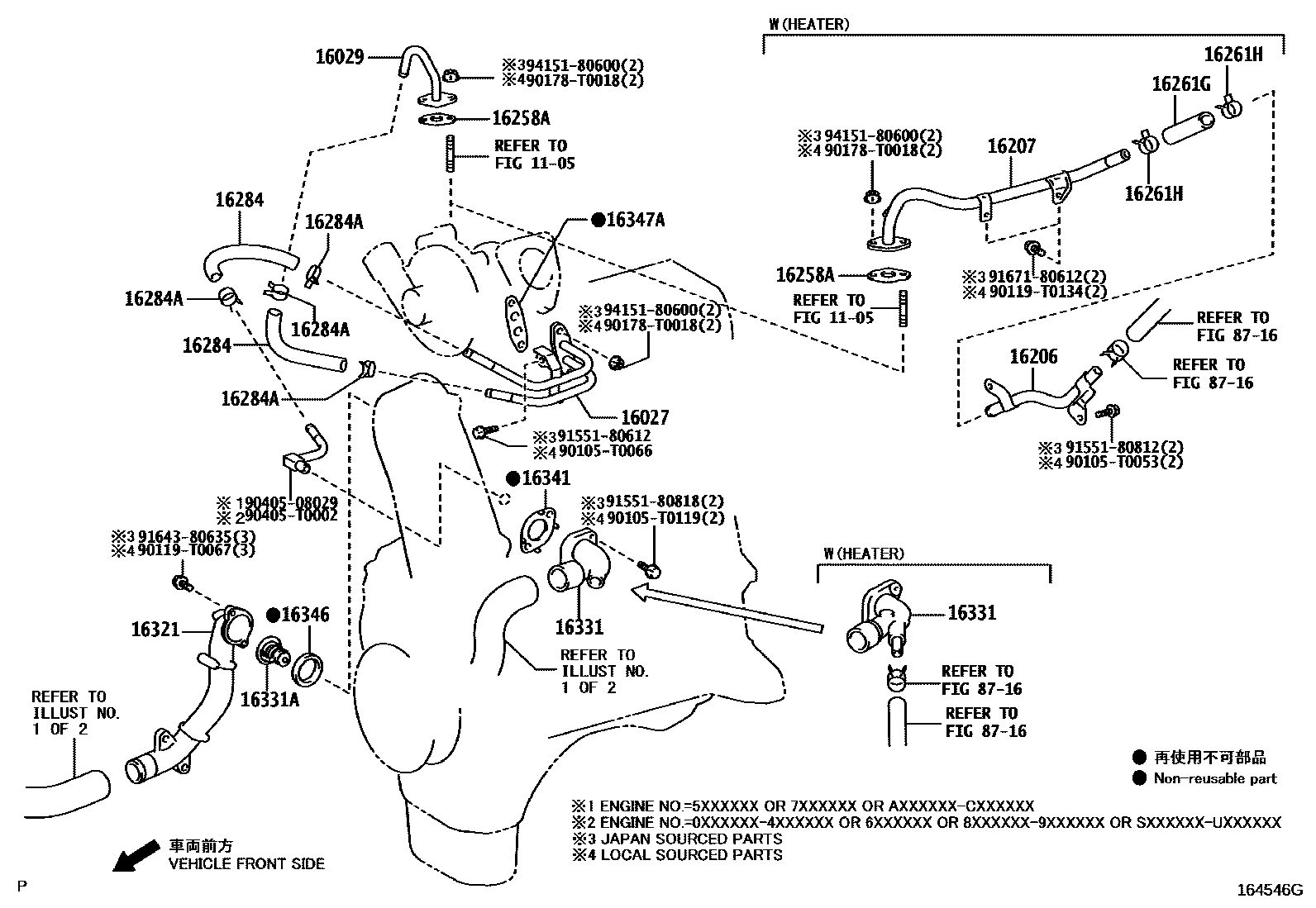

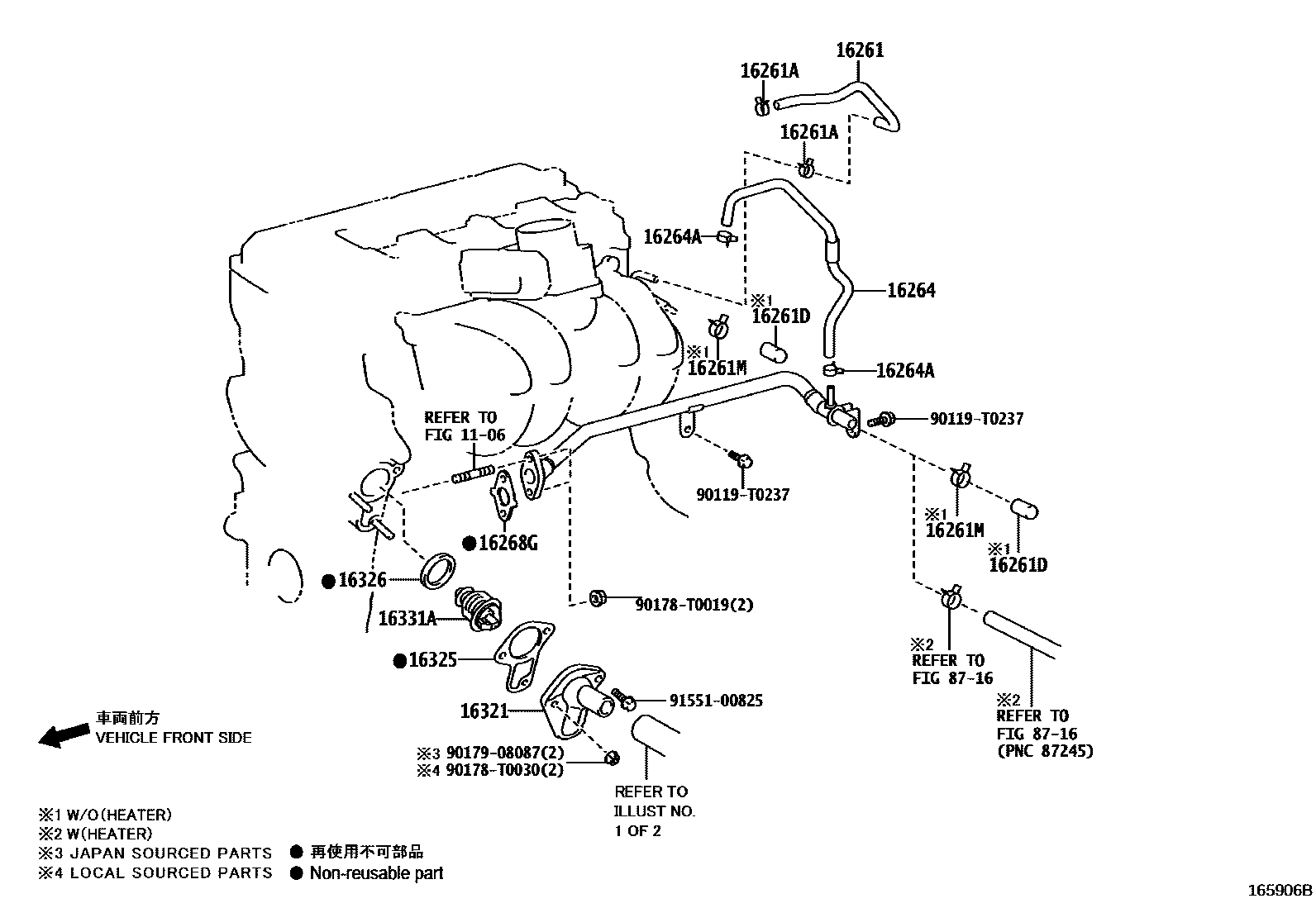

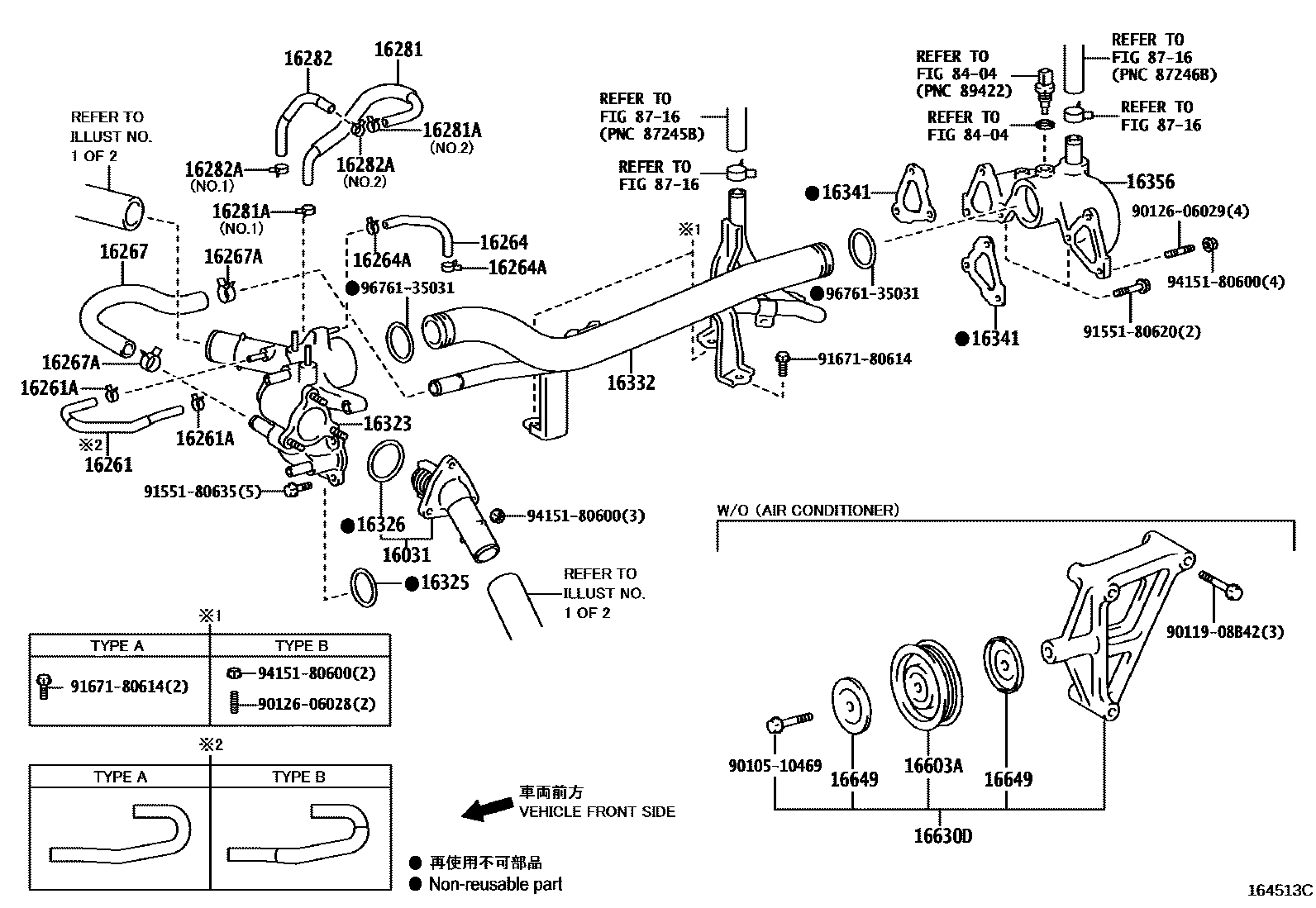

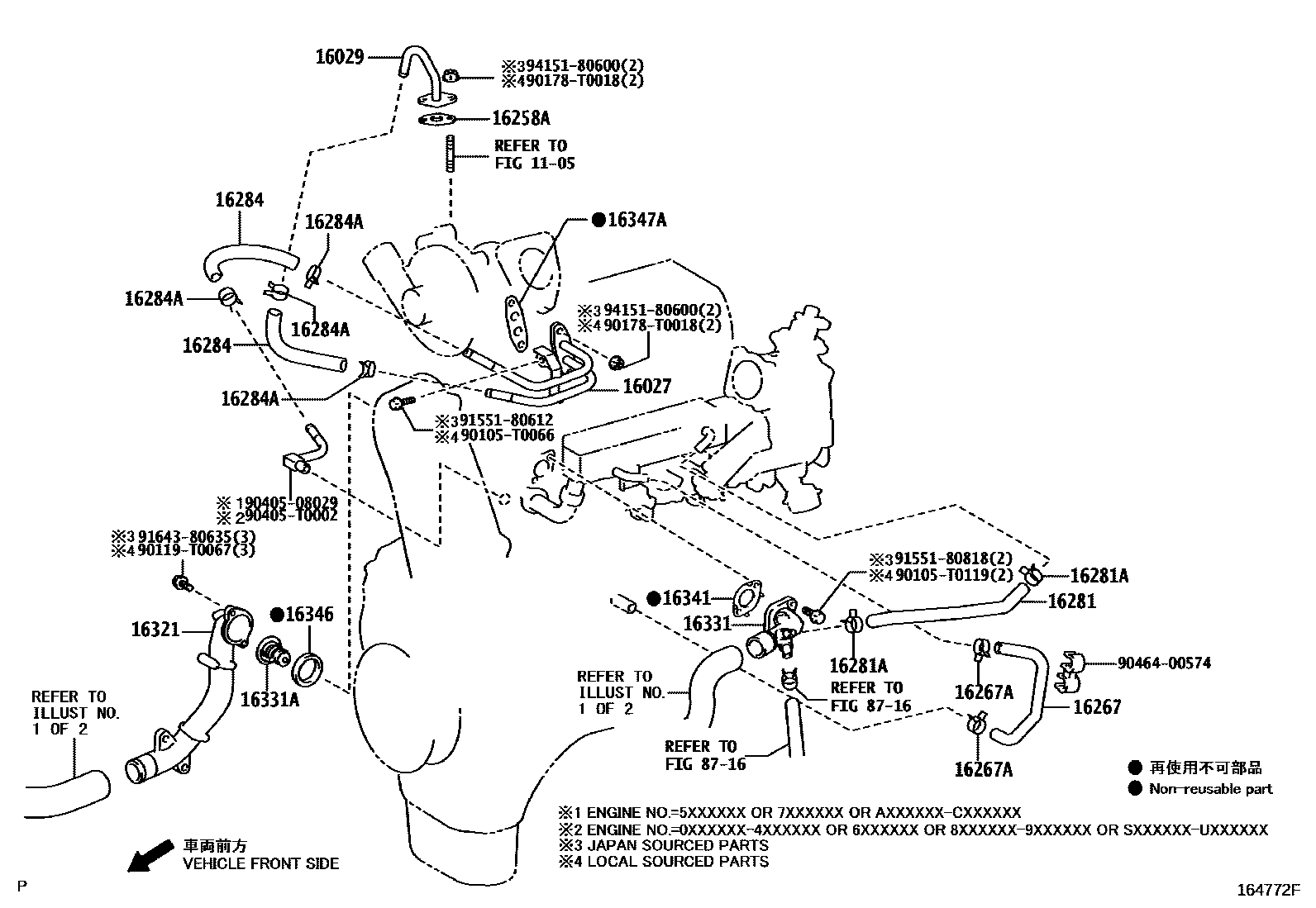

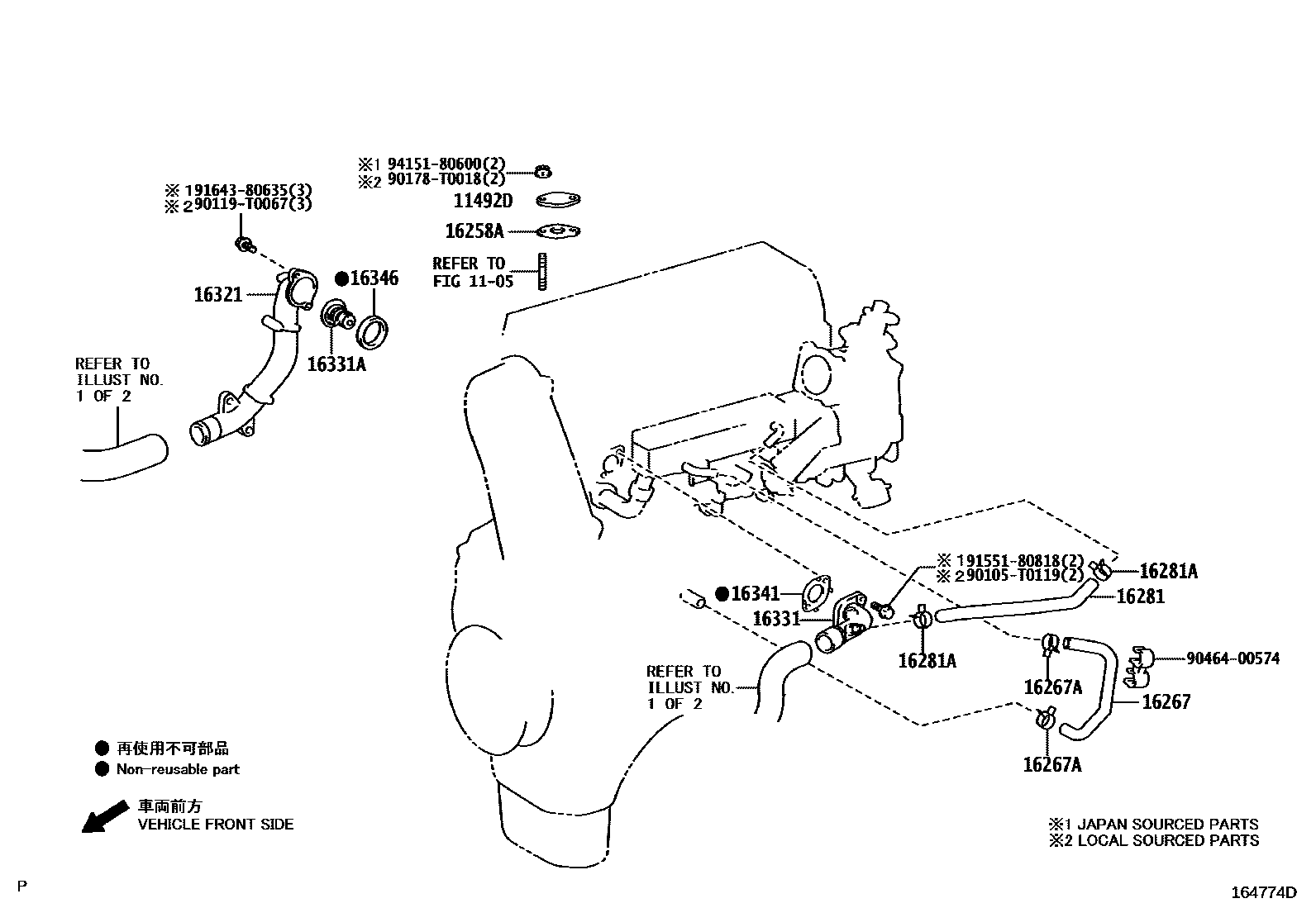

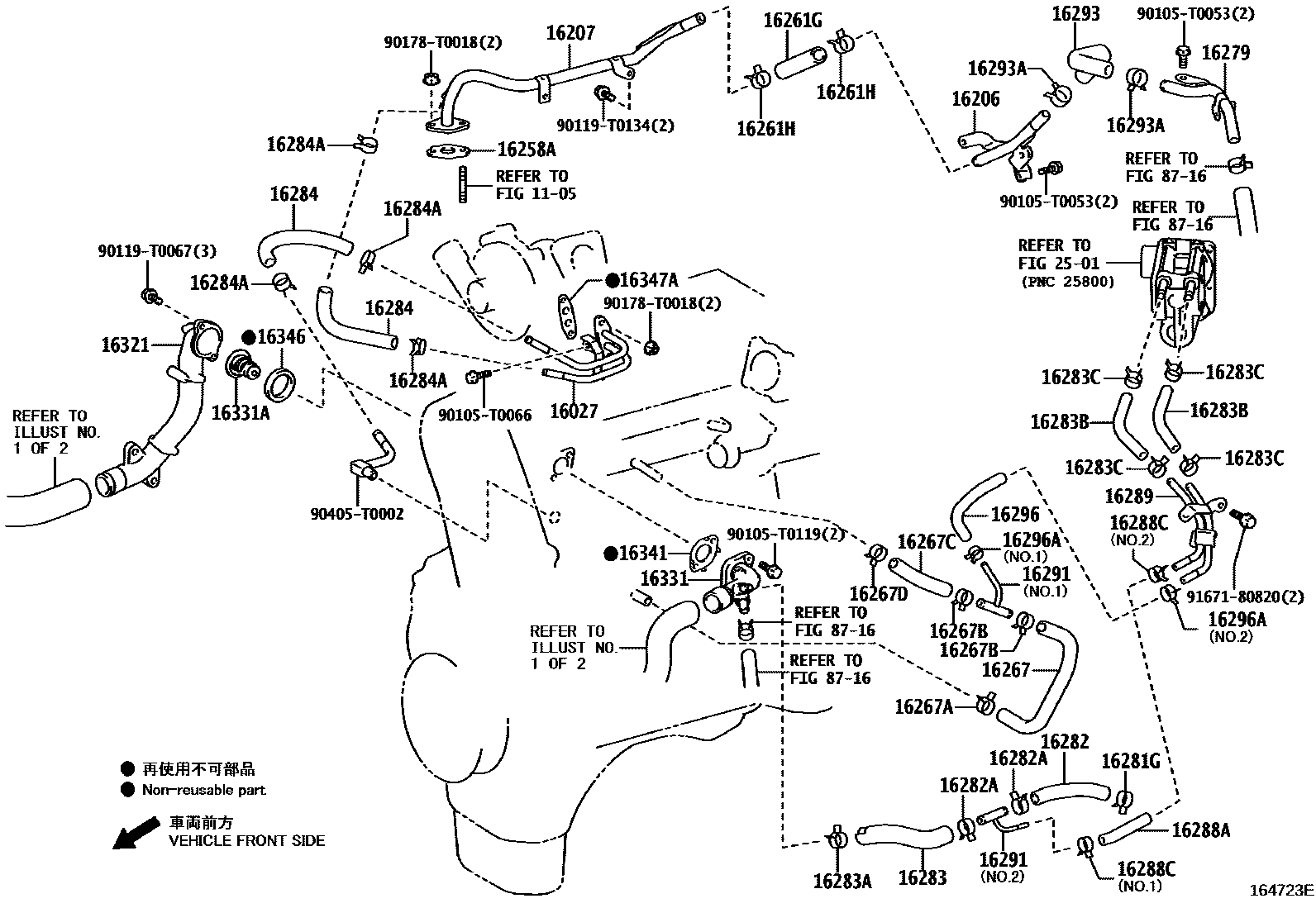

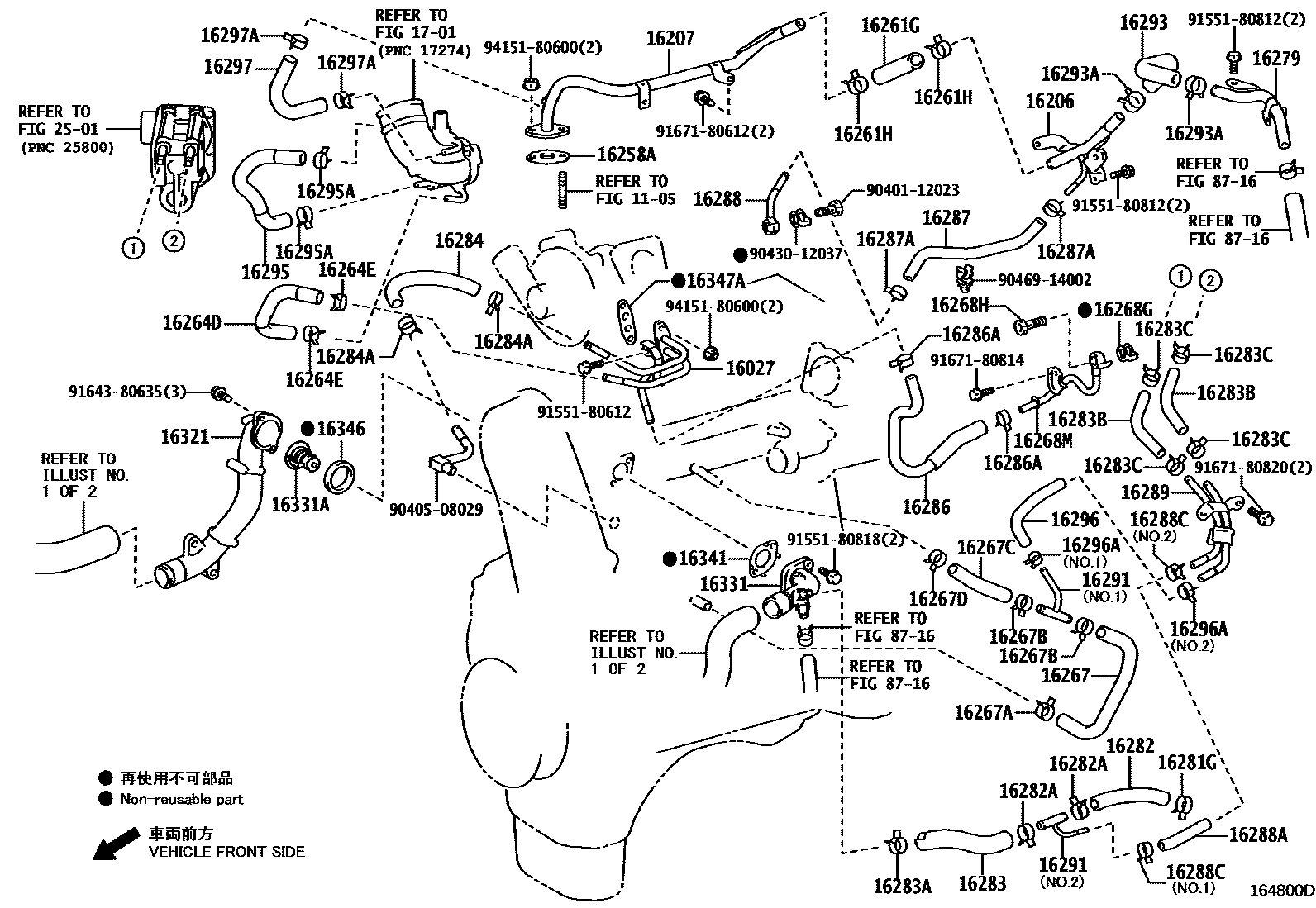

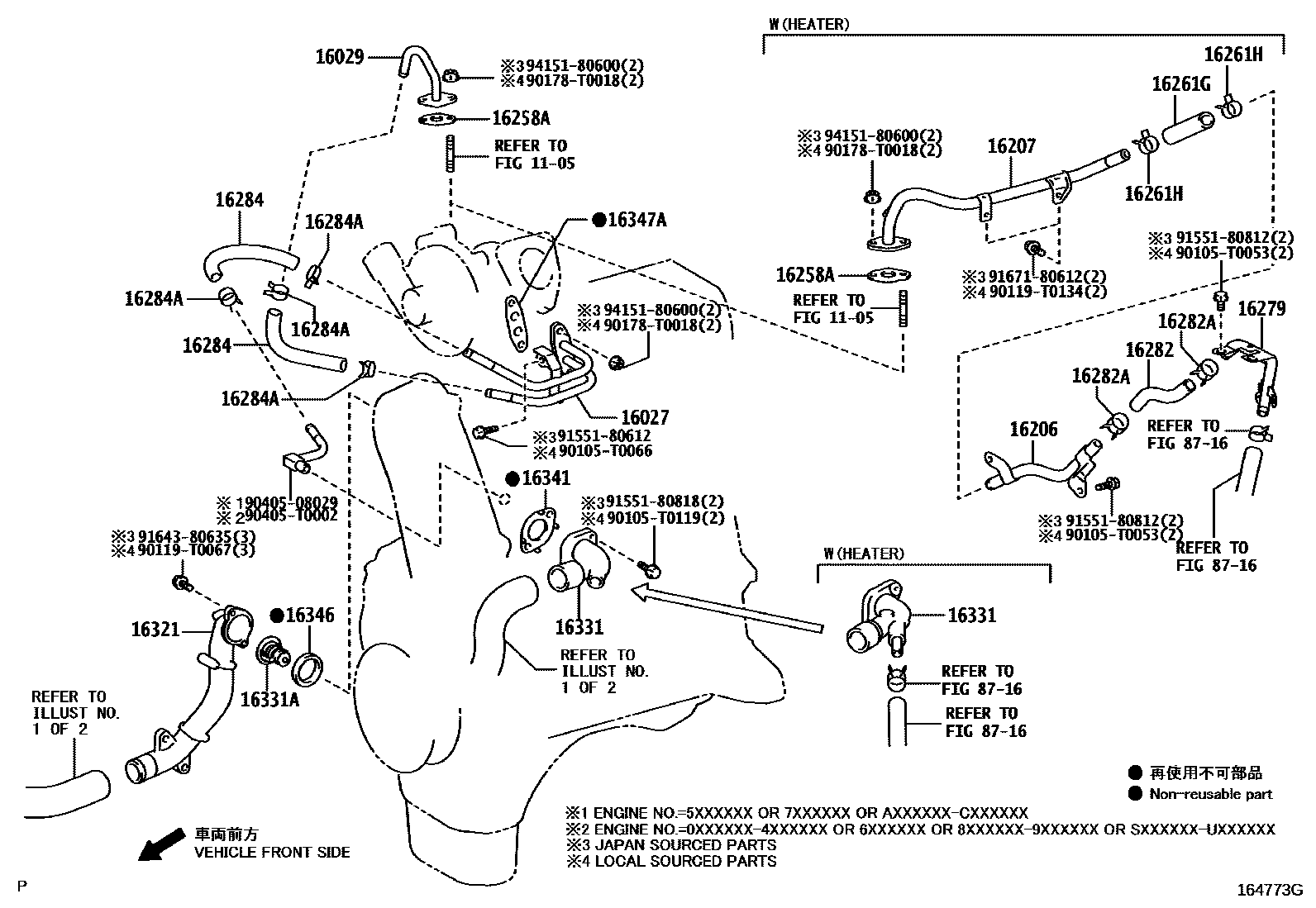

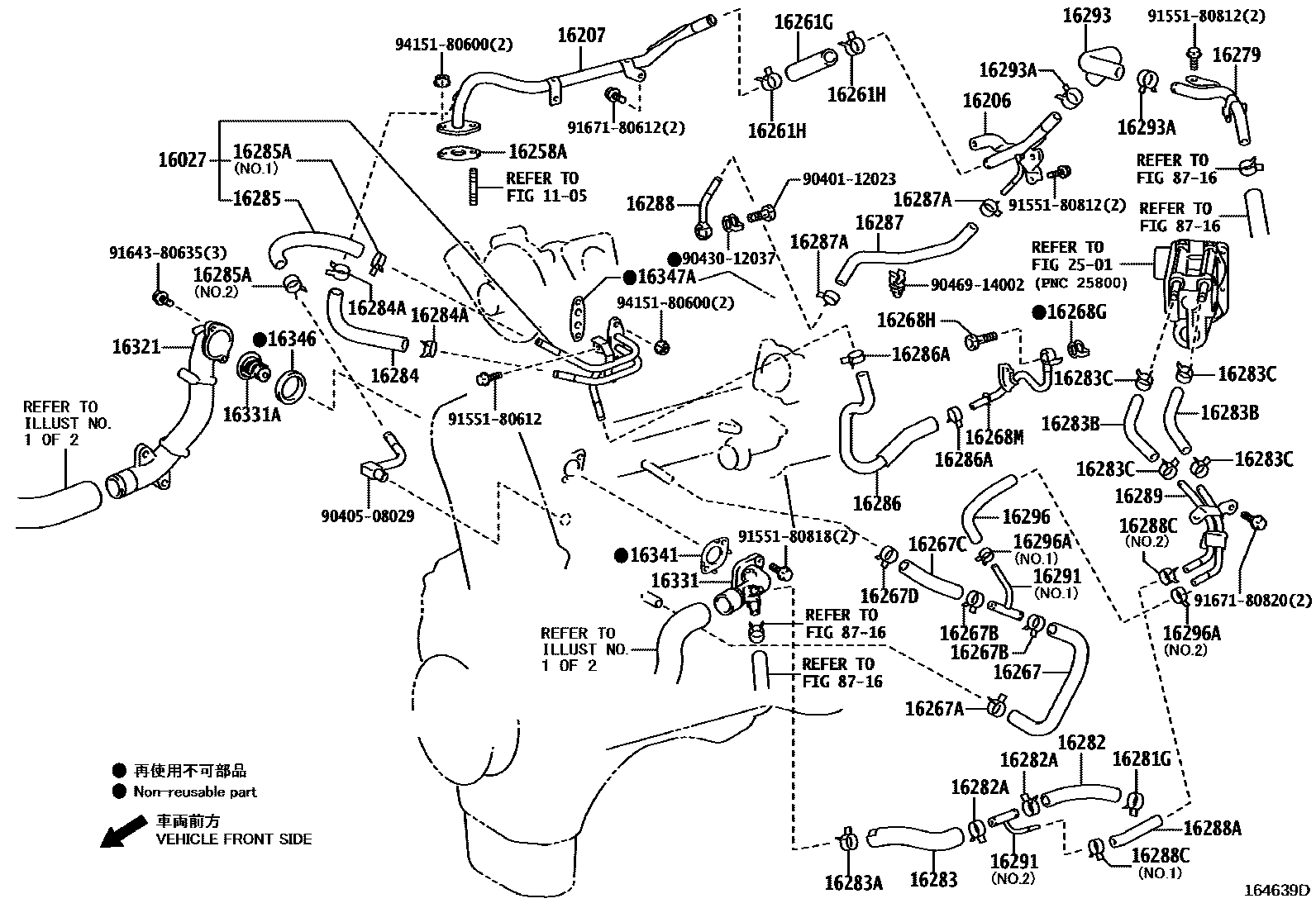

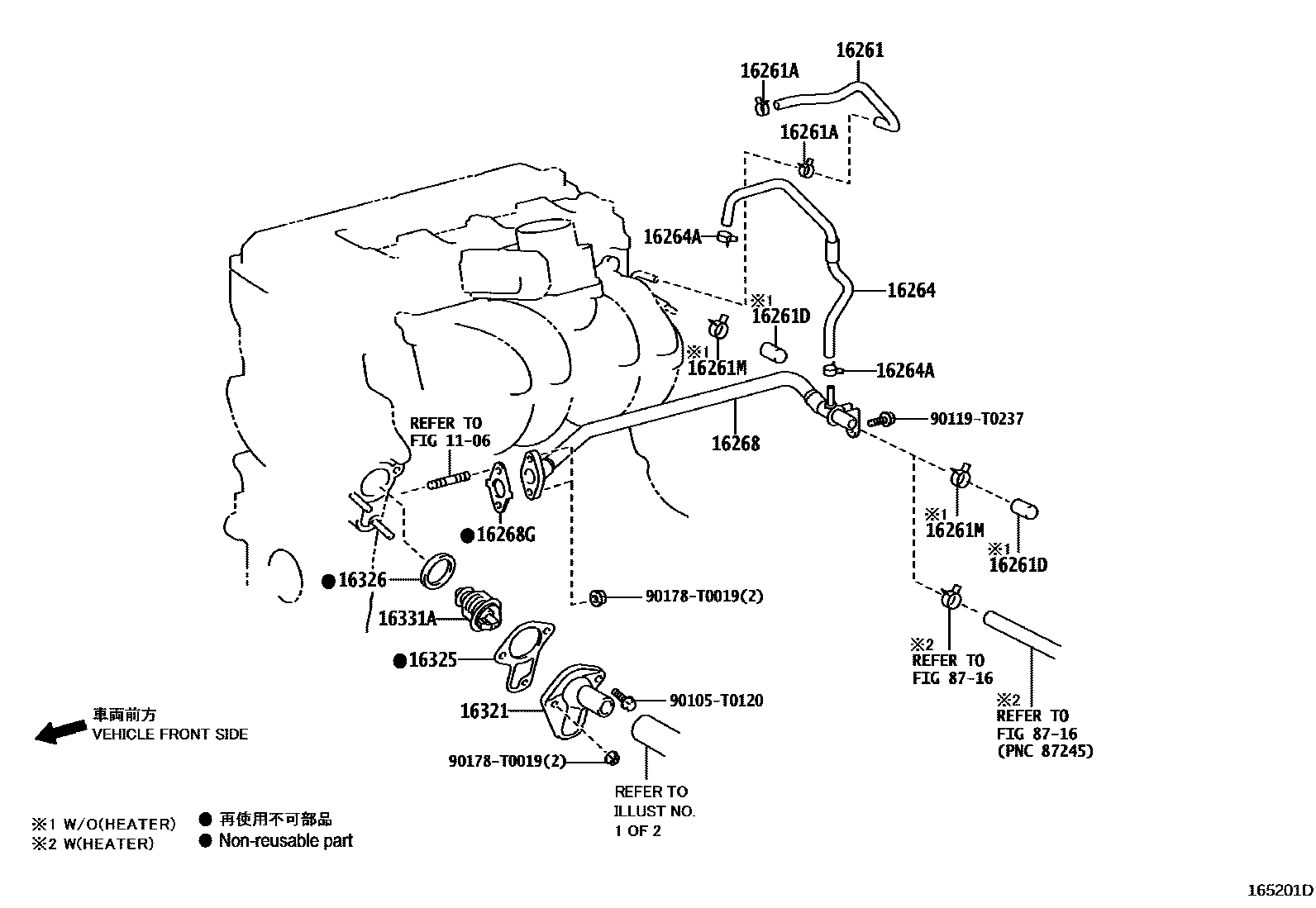

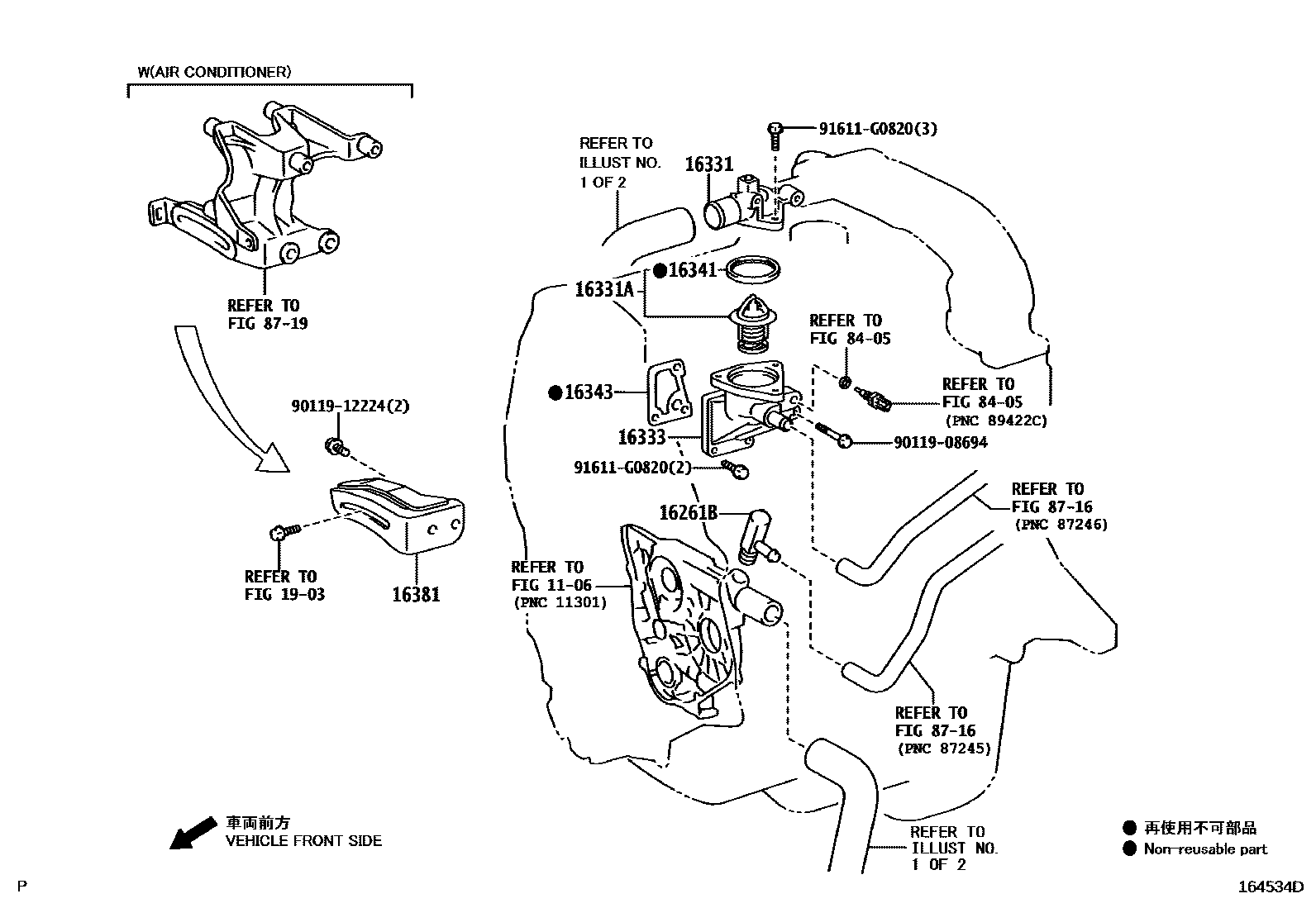

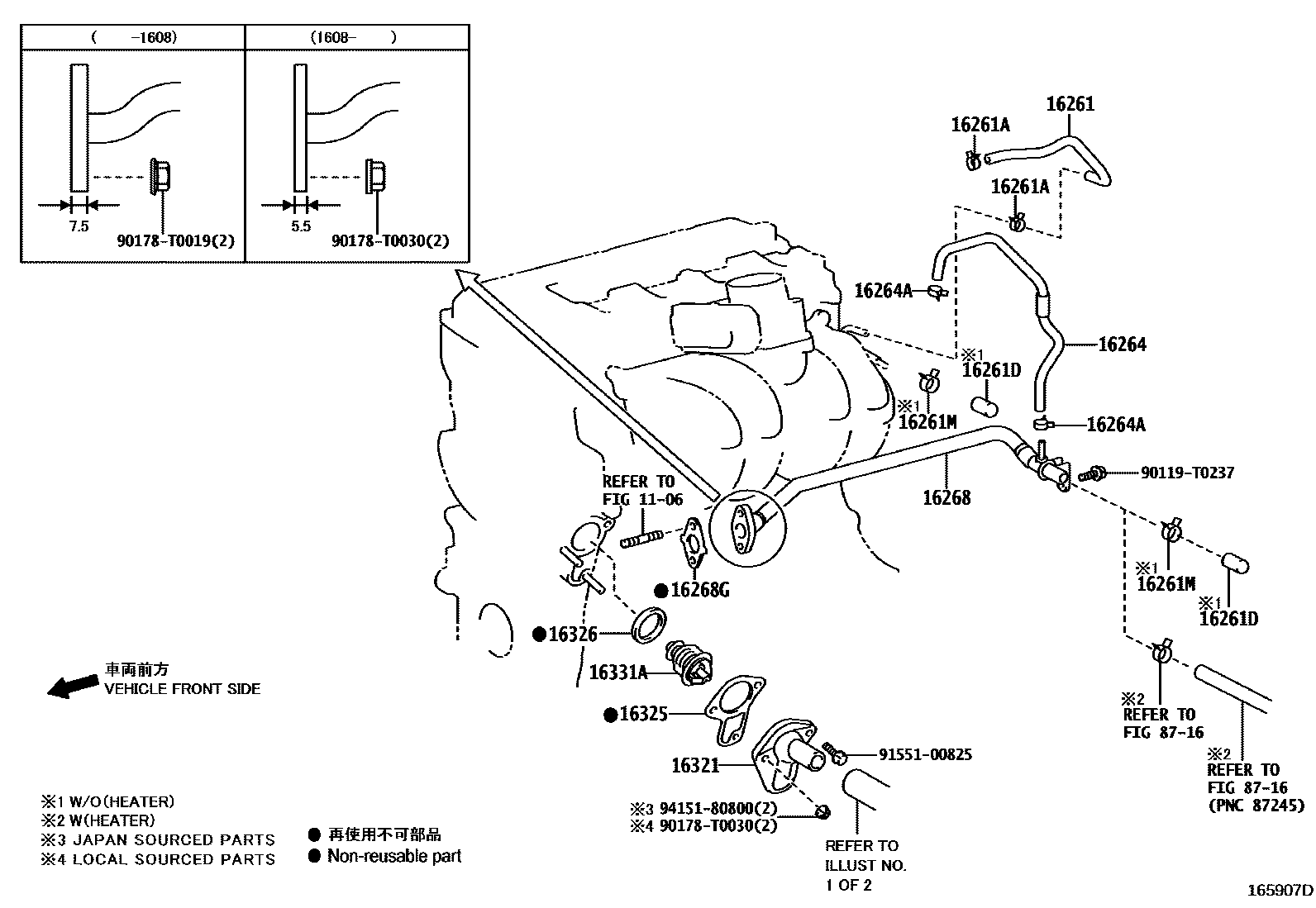

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603
Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 29 images and 107 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11492D | No. 1 sealing plate | 11492-0L010 · 11492-30010 |
| 16027 | No. 1 turbocharger water pipe sub-assembly | 16027-0L010 · 16027-0L020 · 16027-30060 · 16027-30150 · 16027-30160 |
| 16029 | No. 3 turbocharger water pipe sub-assembly | 16029-0L010 · 16029-30030 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-31011 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-0L010 · 16206-0L030 · 16206-30050 · 16206-30060 · 16206-30061 · 16206-30101 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-0L010 · 16207-0L020 · 16207-0L050 · 16207-0L060 · 16207-30110 · 16207-30120 · 16207-30180 |
| 16258A | Pad (for heater return) | 16258-0L010 · 16258-67010 |
| 16261 | HOSE, WATER BY-PASS | 16261-05030 · 16261-0C010 · 16261-0C020 · 16261-0C032 · 16261-0L010 · 16261-0L030 · 16261-0L100 · 16261-31020 · 16261-31100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-T0015 · 90466-T0033 · 90466-T0046 · 96136-41501 · 96137-41301 · 96137-41501 |
| 16261B | Connector (for water bypass hose) | 87251-89113 |
| 16261D | Screw plug without heater | 90339-16001 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0C040 · 16261-0L050 · 16261-30060 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-21001 · 90466-T0010 · 90466-T0020 · 90467-21010 |
| 16261M | Clamp without heater plug | 90467-22011 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-0C040 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0C010 · 16264-0C020 · 16264-0C030 · 16264-0C040 · 16264-0C052 · 16264-0L010 · 16264-0L030 · 16264-0L080 · 16264-31010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0015 · 90466-T0030 · 90466-T0031 · 96136-41501 · 96137-41301 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0C060 · 16264-30030 · 16264-30031 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0023 · 90467-16037 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0L010 · 16267-30080 · 16267-30120 · 16267-31010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-19022 · 96136-42101 · 96136-42501 |
| 16267B | Clip (for water bypass hose) | 90467-19022 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-0C010 · 16281-30140 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0023 · 90467-19022 · 96136-42101 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0C010 · 16268-0C020 · 16268-0C021 · 16268-75091 |
| 16268A | Hoses (for water bypass pipes) | 16299-30020 |
| 16268B | Hose clamp or clip (for water bypass pipe) | 96137-41501 |
| 16268G | Gasket (for water bypass pipe) | 16258-0C010 · 16258-75010 · 16258-75021 · 90430-12037 |
| 16268H | Joint bolts (for water bypass pipe) | 90401-12023 |
| 16268M | No. 3 water bypass pipe | 16279-30010 |
| 16278D | HOSE, WATER BY-PASS | 16298-30020 |
| 16278E | Clip (for water bypass hose) | 96137-41501 |
| 16279 | No. 3 water bypass pipe | 16208-0L010 · 16208-30010 · 16208-30020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0L010 · 16281-30080 · 16281-31011 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0014 · 90467-13128 · 90467-19022 · 96136-41501 · 96136-42101 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-19022 · 96136-42101 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0L010 · 16282-30010 · 16282-30040 · 16282-30050 · 16282-31010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-21001 · 90466-T0010 · 90466-T0014 · 90467-13128 · 90467-19022 · 96136-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-30040 · 16283-30041 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90467-19022 · 96136-42101 |
| 16283B | HOSE, WATER BY-PASS | 99555-10080 |
| 16283C | Clip or clip (for water bypass hose) | 90466-T0015 · 96137-41501 |
| 16284 | No. 1 turbocharger water hose | 16284-0L010 · 16284-30070 |
| 16284A | Clamp (for No. 1 turbocharger water hose) | 90466-T0014 · 90466-T0015 · 96137-41501 |
| 16285 | No. 2 turbocharger water hose | 16284-30120 |
| 16285A | Clamp (for No. 2 turbocharger water hose) | 90467-13128 · 96137-41501 |
| 16286 | No. 3 turbocharger water hose | 16286-30080 |
| 16286A | Clamp (for No. 3 turbocharger water hose) | 96137-41501 |
| 16287 | No. 4 turbocharger water hose | 16287-30040 |
| 16287A | Clamp (for No. 4 turbocharger water hose) | 96137-41501 |
| 16288 | No. 4 water bypass pipe | 16288-30020 |
| 16288A | Hoses (for No. 4 water bypass pipe) | 16294-30030 · 99555-10200 |
| 16288C | Clamp (for No. 4 water bypass pipe) | 90466-T0015 · 90467-13073 · 90467-13128 · 96137-41501 |
| 16289 | No. 5 water bypass pipe | 16289-30010 · 16289-30011 |
| 16291 | water hose connector | 16291-0C010 · 16291-30020 · 16291-30030 |
| 16293 | 10Water bypass hose | 16293-30030 · 16293-30031 |
| 16293A | Clamp (for No. 10 water bypass hose) | 90466-21001 · 90466-T0010 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-30050 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96137-41501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-30020 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-T0015 · 90467-13128 · 96137-41501 |
| 16297 | No. 9 water bypass hose | 16297-30010 |
| 16297A | Clamp (for No. 9 water bypass hose) | 96137-41501 |
| 16321 | water inlet | 16321-0C010 · 16321-0C020 · 16321-0L010 · 16321-0L020 · 16321-30040 · 16321-75020 |
| 16323 | HOUSING, WATER INLET | 16323-31021 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0C020 · 16325-0C021 · 16325-0C040 · 16325-31010 · 16325-75011 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-0C030 · 16325-76010 · 16326-31020 |
| 16331 | Water outlet | 16304-0L010 · 16304-0L020 · 16304-30010 · 16331-0L030 · 16331-0L040 · 16331-0L050 · 16331-30100 · 16331-30110 · 16331-54202 |
| 16331A | thermostat | 16340-54040 · 90916-03093 · 90916-03118 |
| 16332 | No. 1 outlet pipe | 16306-31021 |
| 16333 | Water outlet shell | 16333-54280 |
| 16341 | GASKET, WATER OUTLET | 16341-05020 · 16341-0L010 · 16341-30020 · 16341-31010 · 16341-35010 |
| 16343 | Outlet shell gasket | 16343-54040 |
| 16346 | thermostat gasket | 16346-0K010 · 16346-67010 |
| 16347A | Gasket (for turbocharger water pipe) | 16347-0L010 · 16347-30010 |
| 16356 | Rear water bypass connector | 16356-31011 |
| 16361 | Fan | 16361-0C011 · 16361-0L020 · 16361-31060 · 16361-54131 · 16361-67020 |
| 16381 | Fan belt adjustment lever | 16381-54121 |
| 16400 | Radiator assembly | 16400-05160 · 16400-0C180 · 16400-0C190 · 16400-0C220 · 16400-0C270 · 16400-0L120 · 16400-0L130 · 16400-0L160 · 16400-0L170 · 16400-0L180 · 16400-0L190 · 16400-0L230 · 16400-0L250 · 16400-0L260 · 16400-0L270 · 16400-0L280 · 16400-0L320 · 16400-0P030 · 16400-0P040 · 16400-0P060 |
| 16400B | Radiator drain switch screw plug | 16417-0D430 |
| 16400F | Seal (for radiator drain switch) | 16492-0D430 · 16492-21050 |
| 16400R | Bushing (for radiator) | 16444-0L060 · 16444-75180 |
| 16400S | Collar (for radiator) | 16445-0C180 |
| 16401 | Radiator cover sub-assembly | 16401-0C030 · 16401-0H060 · 16401-0K040 |
| 16407A | Radiator drain switch sub-assembly | 16407-67240 · 16417-50240 |
| 16410 | Radiator assembly without cover | 16410-0C160 |
| 16417 | switch | 16417-0C180 · 16417-0D430 · 16417-21280 |
| 16418 | Seals | 16418-0D310 |
| 16453 | Radiator side panel | 16453-0C180 · 16453-0L120 · 16453-0L260 |
| 16454 | Radiator side panel | 16454-0C180 · 16454-0L120 · 16454-0L260 |
| 16455 | Radiator side support plate bolts | 91651-B0820 |
| 16470 | Radiator reservoir assembly | 16470-05070 · 16470-05071 · 16470-05072 · 16470-0C040 · 16470-0C060 · 16470-0C070 · 16470-0L010 · 16470-0L011 · 16470-0L012 · 16470-0L013 · 16470-0L031 · 16470-0L032 · 16470-0L033 |
| 16470M | gasket | 90480-T0003 · 90480-T0004 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-30011 · 16401-30012 · 16401-30013 · 16405-0C020 · 16405-0C050 |
| 16546 | Radiator protection device | 16546-0L010 |
| 16571 | Radiator water inlet hose | 16571-05070 · 16571-0L030 · 16571-0L040 · 16571-0L050 · 16571-0L080 · 16571-0L090 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-T0011 · 90466-T0012 · 90466-T0024 · 90466-T0028 |
| 16571C | Radiator hose No. 1 | 16571-0C080 · 16571-0C090 · 16571-0C100 · 16571-0C130 · 16571-0P030 |
| 16571D | No. 1 radiator hose clip | 90466-T0011 · 90466-T0028 |
| 16572 | Radiator outlet hose | 16572-05060 · 16572-0L030 · 16572-0L040 · 16572-0L050 · 16572-0L080 · 16572-0L090 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-T0012 · 90466-T0024 |
| 16572D | Radiator hose No. 2 | 16572-0C070 · 16572-0C080 · 16572-0C090 · 16572-0C120 · 16572-0P030 |
| 16572E | No. 2 radiator hose clip | 90466-T0011 · 90466-T0028 |
| 16603A | No. 1 idler pulley sub-assembly | 16603-28020 |
| 16630D | Idler gear assembly | 16630-0P010 |
| 16649 | Idler cover | 16659-31011 |
| 16711 | fan cover | 16711-05060 · 16711-0C090 · 16711-0C110 · 16711-0C120 · 16711-0L040 · 16711-0L050 · 16711-0L070 · 16711-0L080 · 16711-0L120 · 16711-0P030 · 16711-0P040 |
