Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 9 images and 12 PNC and OE references.

Toyota HILUX Ventilation Hose EPC diagram — 120795A
Ventilation Hose — 120795A (201108 – 999999)

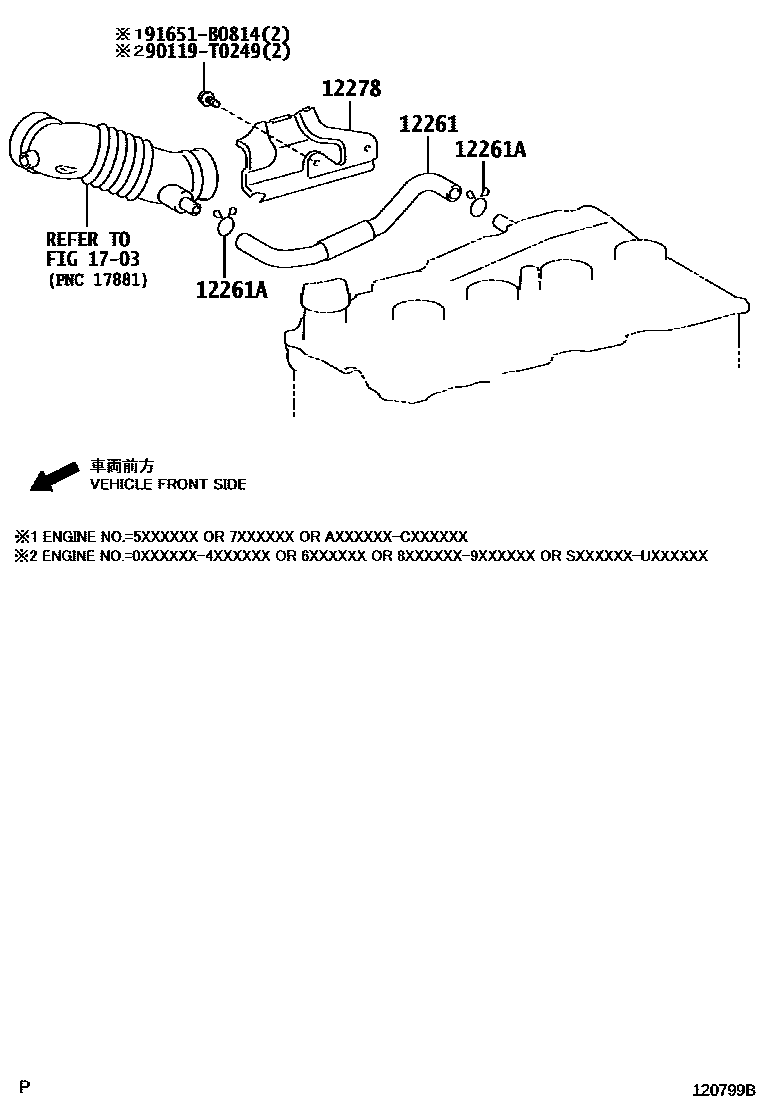

Toyota HILUX Ventilation Hose EPC diagram — 120799B
Ventilation Hose — 120799B (201107 – 999999)

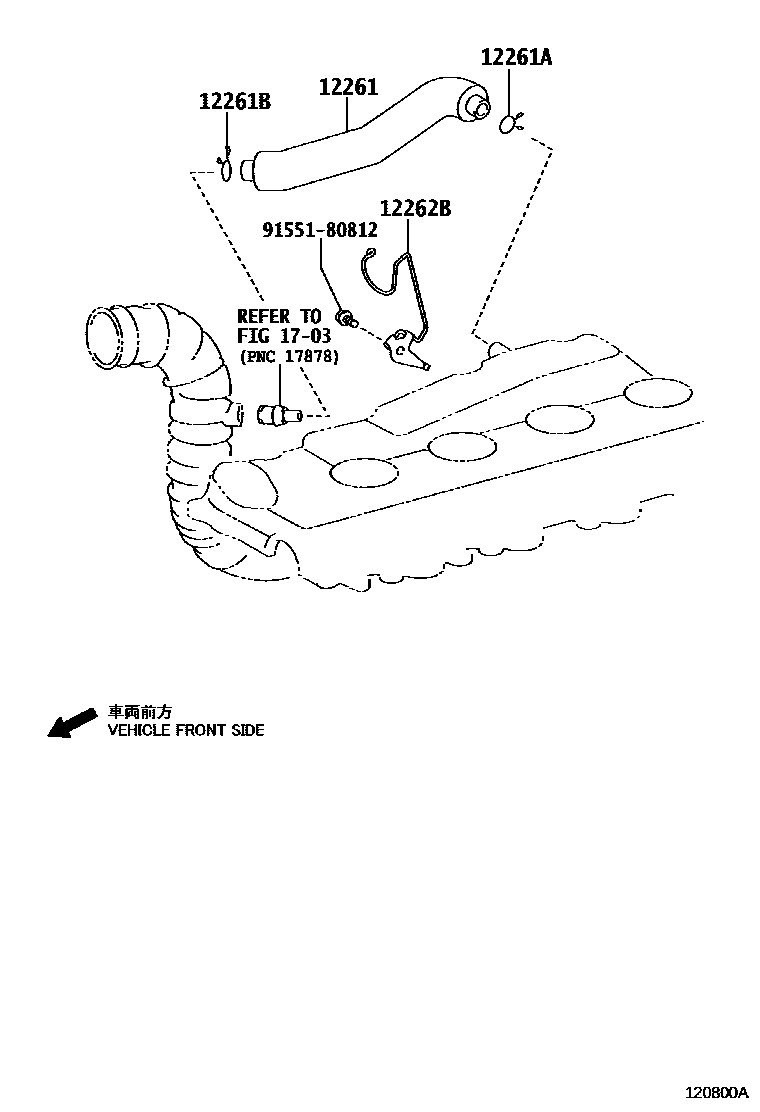

Toyota HILUX Ventilation Hose EPC diagram — 120800A
Ventilation Hose — 120800A (201107 – 201203)
Toyota HILUX Ventilation Hose EPC diagram — 120803A
Ventilation Hose — 120803A (201107 – 201203)

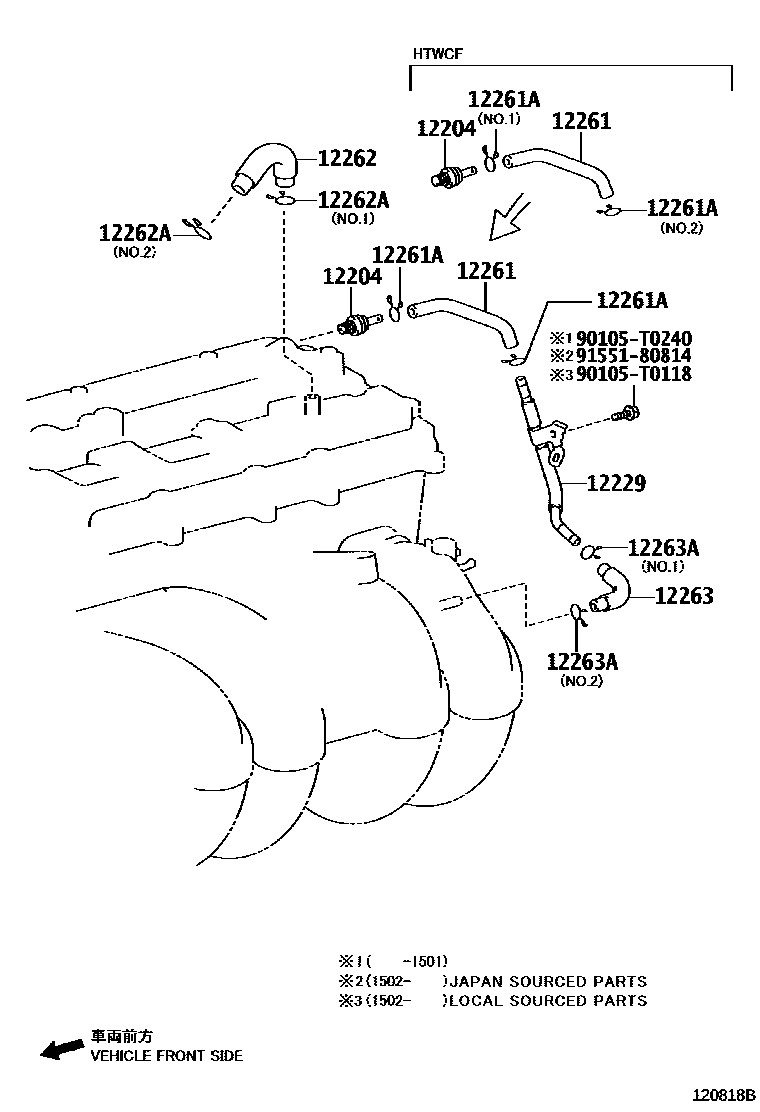

Toyota HILUX Ventilation Hose EPC diagram — 120818B
Ventilation Hose — 120818B (201107 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — 120844A
Ventilation Hose — 120844A (201203 – 999999)

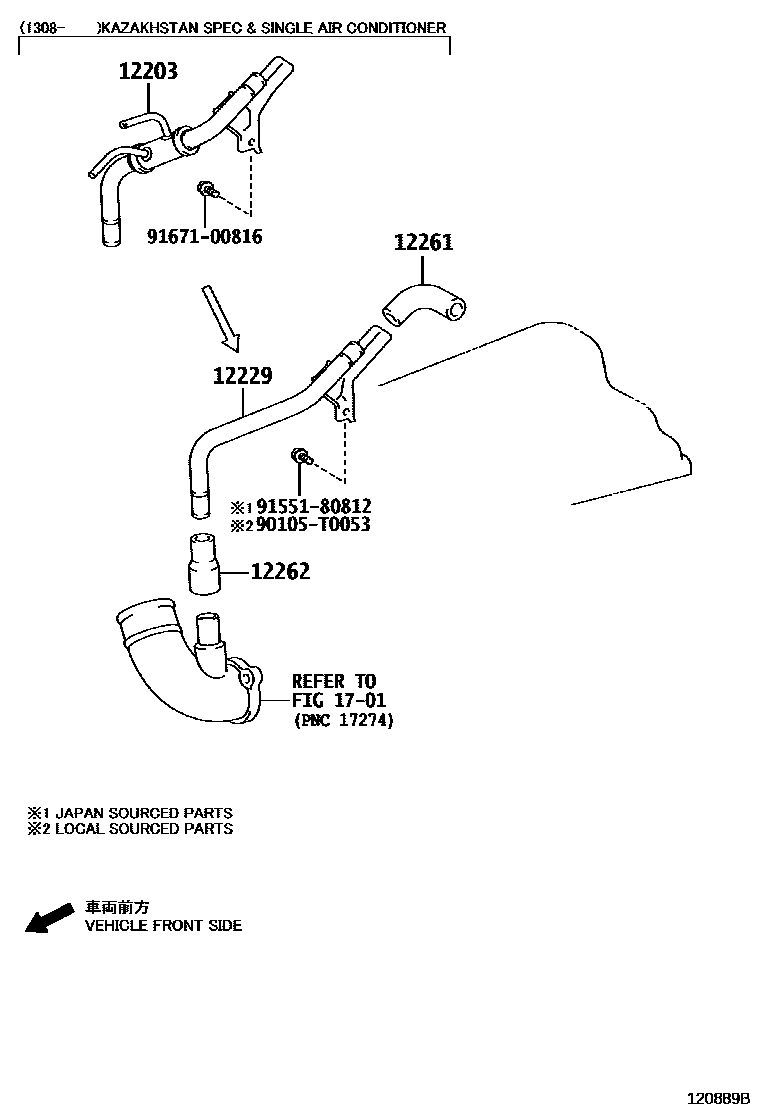

Toyota HILUX Ventilation Hose EPC diagram — 120889B
Ventilation Hose — 120889B (201107 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — 120898A
Ventilation Hose — 120898A (201308 – 999999)

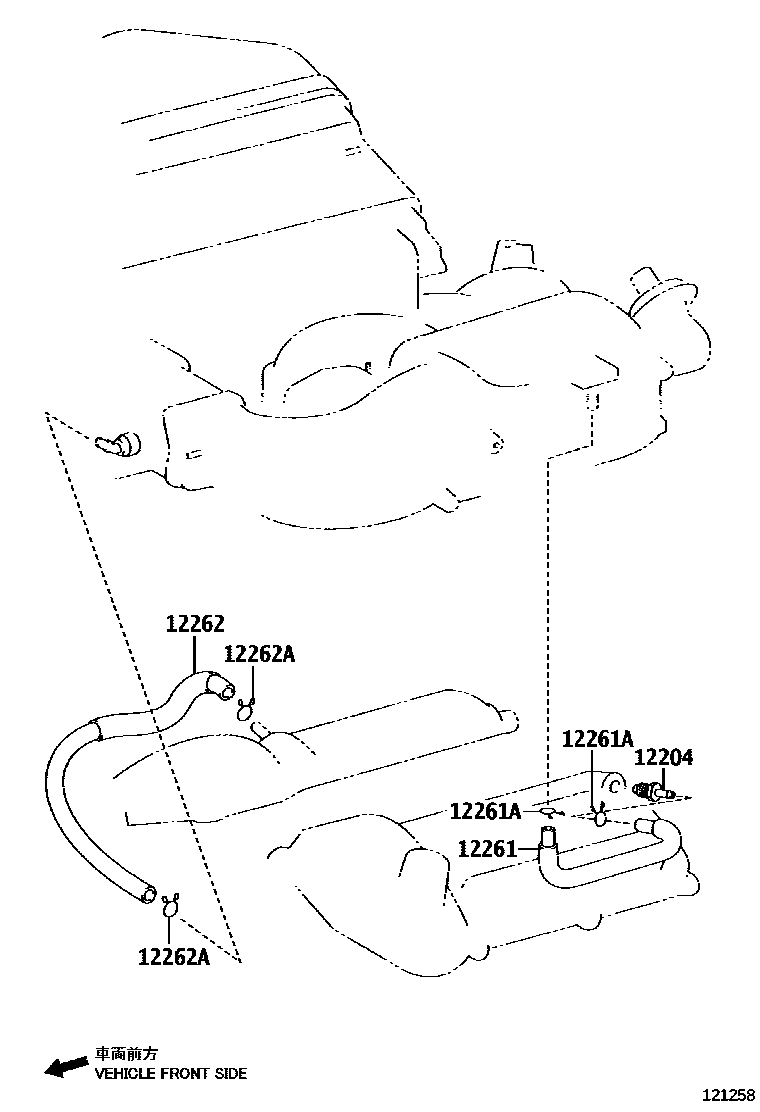

Toyota HILUX Ventilation Hose EPC diagram — 121258
Ventilation Hose — 121258 (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
12203Ventilation pipe sub-assembly12203-30090
12204Ventilation valve sub-assembly12204-0C010 · 12204-31030 · 12204-75050
12229ventilation duct12229-0C010 · 12229-0C020 · 12229-0L010 · 12229-0L020 · 12229-30040 · 12229-30110
12261Ventilation Hose12261-0C010 · 12261-0C020 · 12261-0C030 · 12261-0L021 · 12261-0L030 · 12261-0P060 · 12261-30040 · 12261-30090 · 12261-31030 · 12261-54200
12261AClip or clip (for vent hose)90466-T0026 · 90466-T0032 · 90467-14017 · 90467-15012 · 90467-18003 · 90467-22010
12261BClip or clip (for vent hose)90467-21006
12262Ventilation hose No. 212262-0C010 · 12262-0C020 · 12262-0L010 · 12262-0P050 · 12262-30040 · 12262-31030 · 12262-75190
12262AClamp (for vent hose No. 2)90466-T0027 · 90467-21152 · 90467-24038
12262BClamp (for ventilation hose)16581-30180
12263No. 3 ventilation hose12263-0C010 · 12263-0C020
12263AClip (for ventilation hose)90466-T0026 · 90466-T0061 · 90467-16035
12278Ventilation hose insulation pad12278-0L010 · 12278-30020
