Toyota HILUX antenna — Figure 8604

Toyota HILUX EPC diagram 8604, antenna, with 2 images and 6 PNC and OE references.

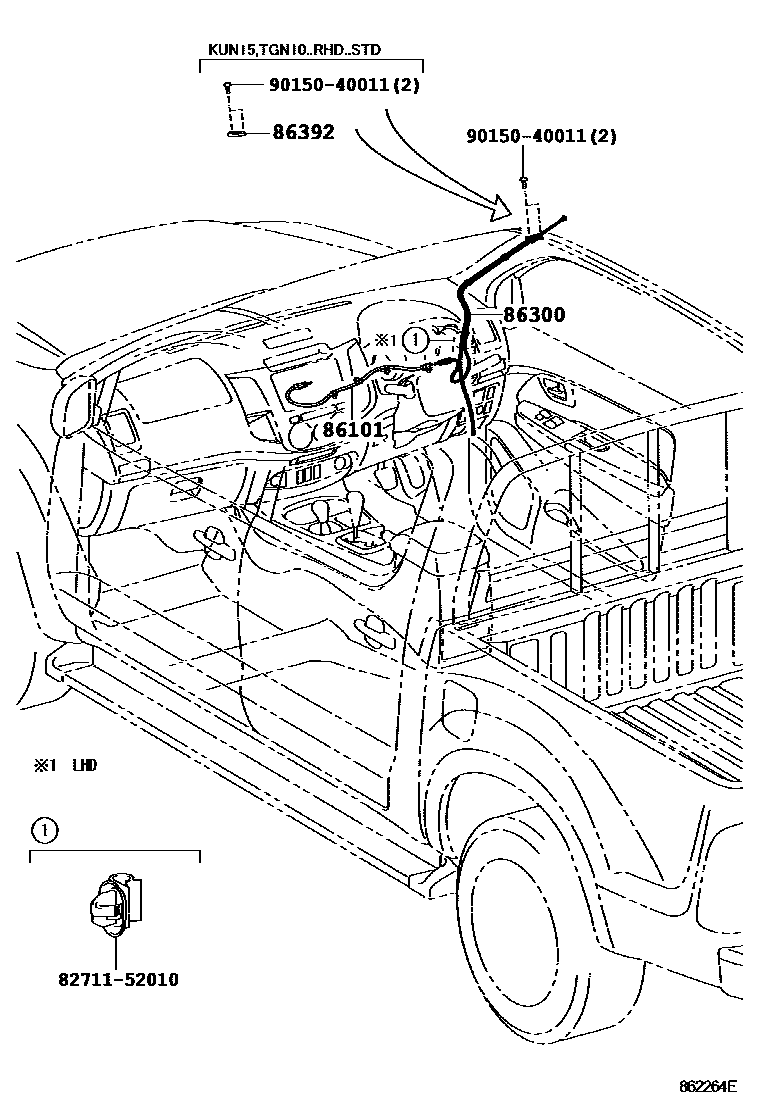

Toyota HILUX antenna EPC diagram — 862264E
antenna — 862264E (200408 – 999999)

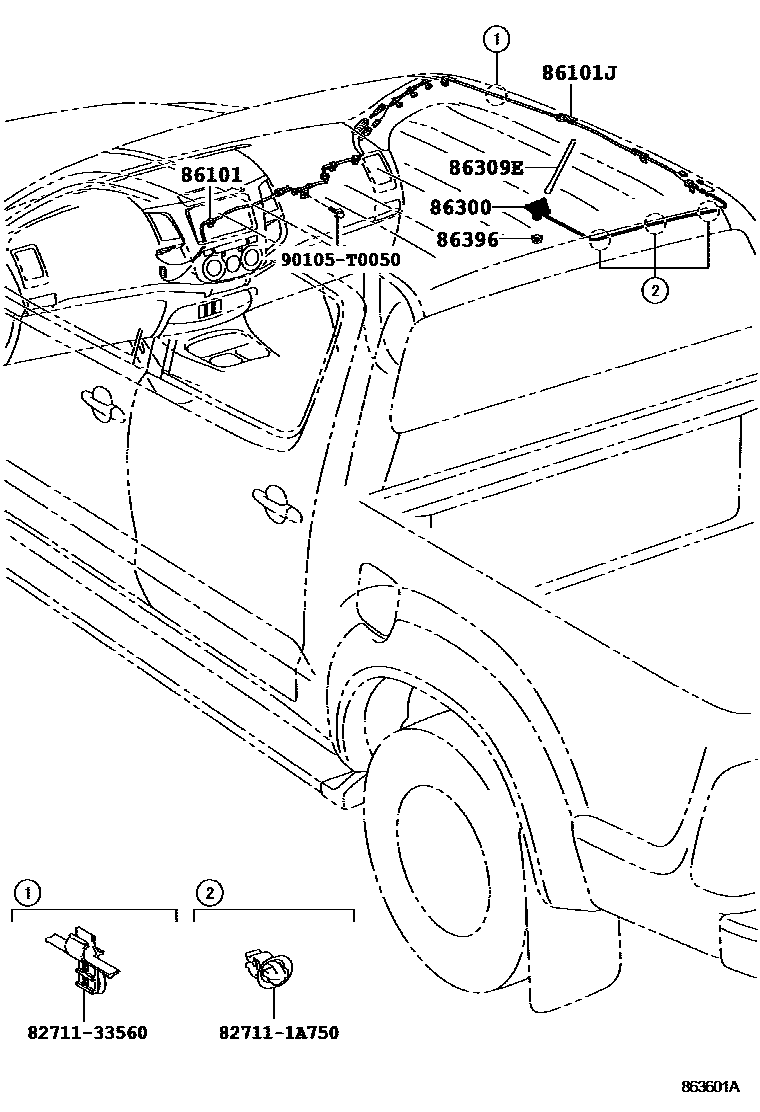

Toyota HILUX antenna EPC diagram — 863601A
antenna — 863601A (200810 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0K010 · 86101-0K070 · 86101-0K130 · 86101-0K140 · 86101-0K170 · 86101-0K250 · 86101-0K290
86101JAntenna No. 2 wire sub-assembly86101-0K110 · 86101-0K120
86300Antenna assembly with fixing parts86300-0K010 · 86300-0K050 · 86300-0K070 · 86300-71010 · 86300-71020
86309ERoof antenna sub-assembly86309-48040
86392Antenna decorative parts86392-0K010
86396Antenna nut86396-20040
